C&T RF Antennas Inc. manufactures a series of high-performance SMA-to-BNC adapters. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance SMA-to-BNC adapters, including the RF SMA-to-BNC adapter datasheet, pricing, and inventory.
Or other RF adapter connector styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
SMA-to-BNC adapters are RF connectors used to connect devices with SMA and BNC interfaces. They are widely used in ham radio setups, test equipment, RF antennas, and Software-Defined Radios (SDRs) to allow quick, durable connections. These adapters typically feature a 50 Ohm impedance, ensuring stable signal transmission with minimal loss. The RF SMA-to-BNC adapters supplied by C&T RF Antennas Inc.
The high-performance SMA-to-BNC adapters are constructed in SMA-to-BNC female-to-female, female-to-male, male-to-female, or male-to-male gender varieties. The SMA-to-BNC adapters are available in standard interfaces.
In addition to high-performance SMA-to-BNC Adapters, we also provide copper & stainless steel N-type-to-SMA adapters, BNC adapters, N-Type Adapters, and SMA-to-SMA adapters. Don’t hesitate to get in touch with us for more details if you want.
C&T RF Antennas Inc. offers RF connectors & adapters primarily crafted from solid copper, including gold-plated, nickel-plated, and silver-plated copper.
C&T RF Antennas Inc. offers various RF coaxial cable assemblies with RF SMA, SMB, SMC, N-type, UHF, BNC, TNC, MCX, MMCX, F-type, TV, RCA, FME, IPX, M5, and other RF, video, and communication connectors, along with couplers, attenuators, power dividers, etc. With various high-frequency cables, such as 50Ω (1, 1.5, 2, 3, 5, 7), 75Ω (3, 5, 7), 1/2-wave feedlines, RG213, RG223, RG1.13, RG1.37, RG174, RG178, RG316, RG58, RG142, RG400, RG402, RG405, LMR195, LMR200, LMR240, LMR400, etc.
For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality RF adapter that meets your requirements.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
| Type | Description |
| Category | Connectors, Interconnects |
| RF Coaxial Connectors | |
| RF Adapters | |
| Adapter Type | J-J, K-K, J-K |
| Conversion Type | Same Series |
| Adapter Series | SMA-to-BNC |
| Convert From (Adapter End) | Male/Female |
| Convert To (Adapter End) | Male/Female |
| Impedance | 50 Ohms |
| Style | Straight |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | Threaded, Threaded |
| Frequency – Max | 6 GHz |
| Center Contact Plating | Gold |
| Body Material | Alloy/Brass/SS |
| Body Finish | Passivated |
| Center Contact Material | Copper |
| Operating Temperature | -55°C ~ 100°C |
| RoHS Status | ROHS3 Compliant |

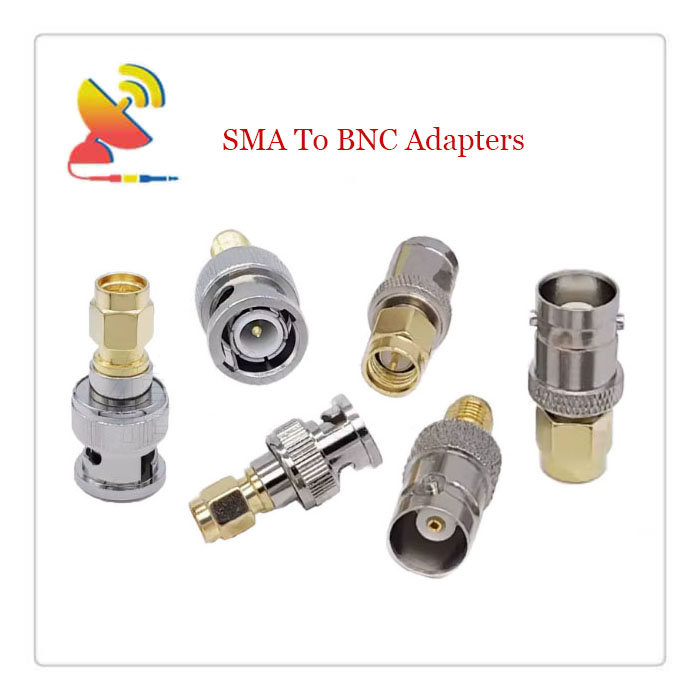

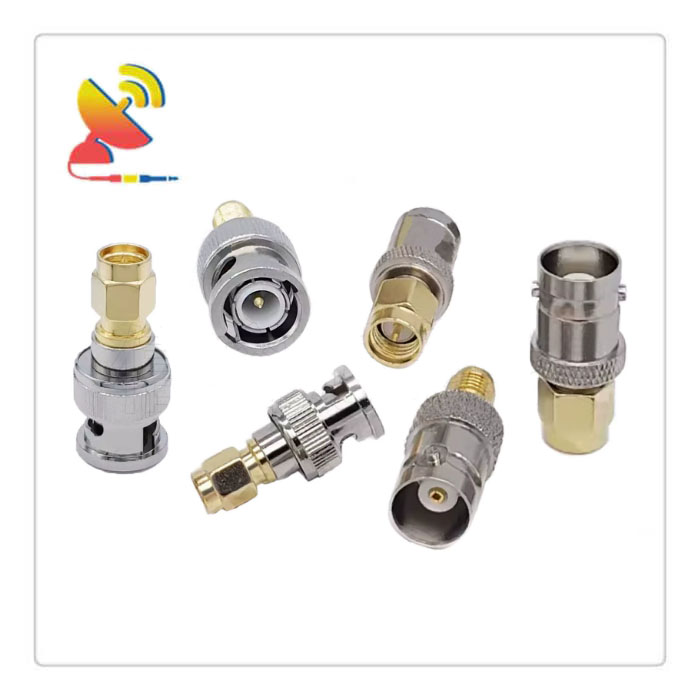

C&T RF Antennas Inc. offers high-performance SMA-to-BNC adapters. Below are some of the RF SMA-to-BNC connector styles.

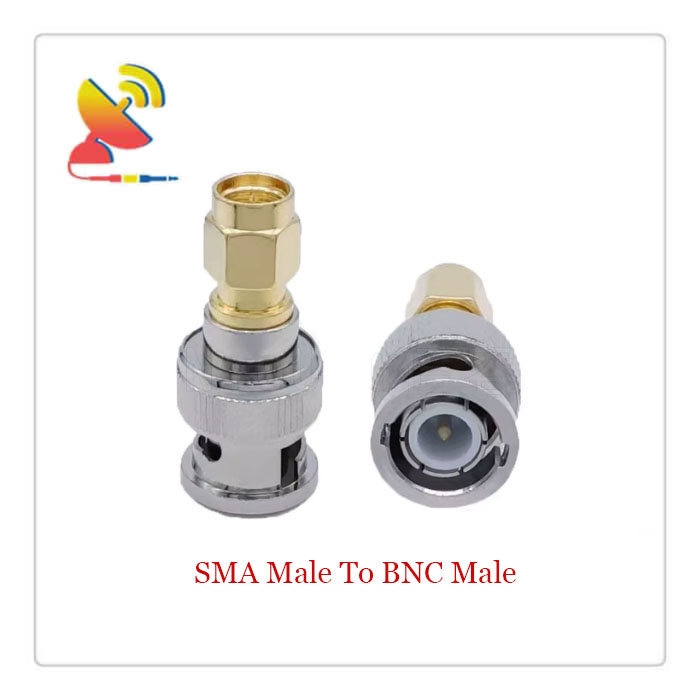

Item: CTRF-ANTENNA-CA-SMAJ-BNCJ
Specifications:
RF Adapter Type: SMA Male to BNC Male
Conversion Type: Same Series
Adapter Series: SMA-to-BNC
Center Gender: Male to Male
Convert From (Adapter End): Male, Male
Convert To (Adapter End): SMA Male, BNC Male
Style: Straight
Mounting Type: Free Hanging (In-Line)
Fastening Type: Threaded
Frequency – Max: 6 GHz
Center Contact Plating: Gold
Center Contact Material: Copper

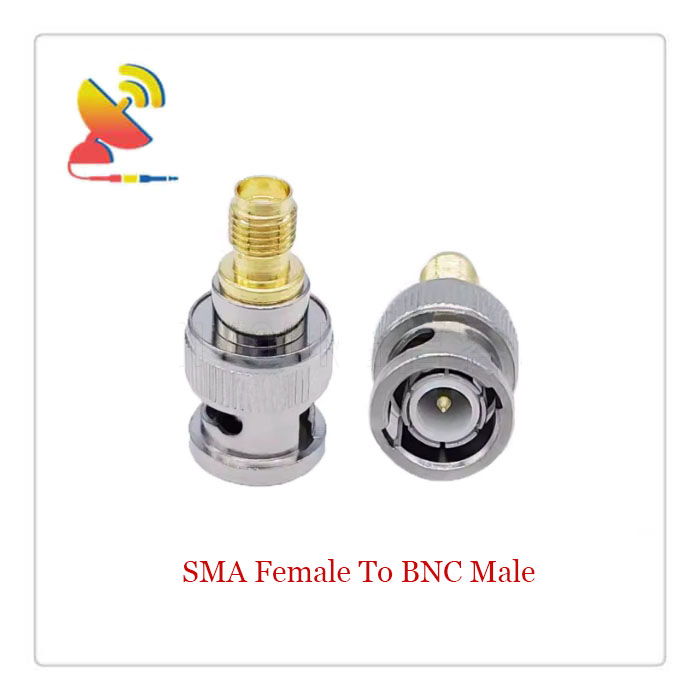

Item: CTRF-ANTENNA-CA-SMAK-BNCJ
Specifications:
RF Adapter Type: SMA Female to BNC Male
Conversion Type: Same Series
Adapter Series: SMA-to-BNC
Center Gender: Female to Male
Convert From (Adapter End): Female, Male
Convert To (Adapter End): SMA Female, BNC Male
Style: Straight
Mounting Type: Free Hanging (In-Line)
Fastening Type: Threaded
Frequency – Max: 6 GHz
Center Contact Plating: Gold
Center Contact Material: Copper

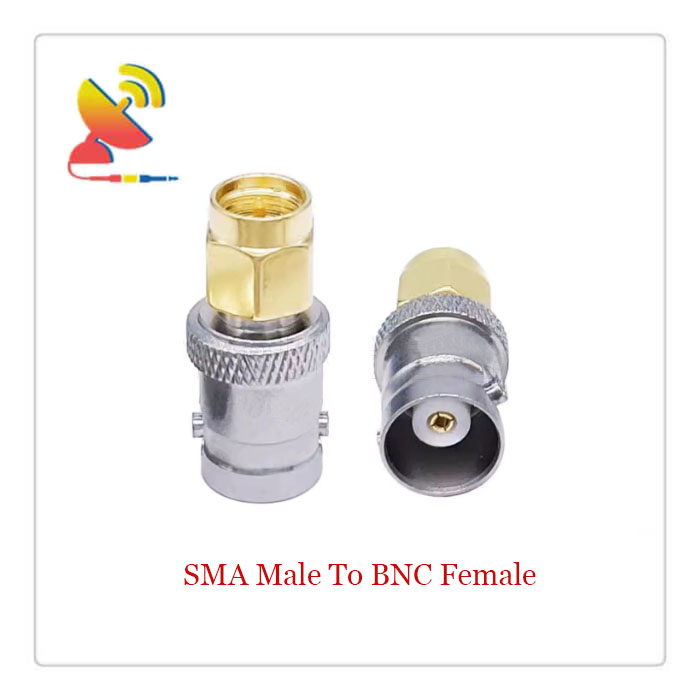

Item: CTRF-ANTENNA-CA-SMAJ-BNCK
Specifications:
RF Adapter Type: SMA Male to BNC Female
Conversion Type: Same Series
Adapter Series: SMA-to-BNC
Center Gender: Male to Female
Convert From (Adapter End): Male, Male
Convert To (Adapter End): SMA Male, BNC Female
Style: Straight
Mounting Type: Free Hanging (In-Line)
Fastening Type: Threaded
Frequency – Max: 6 GHz
Center Contact Plating: Gold
Center Contact Material: Copper

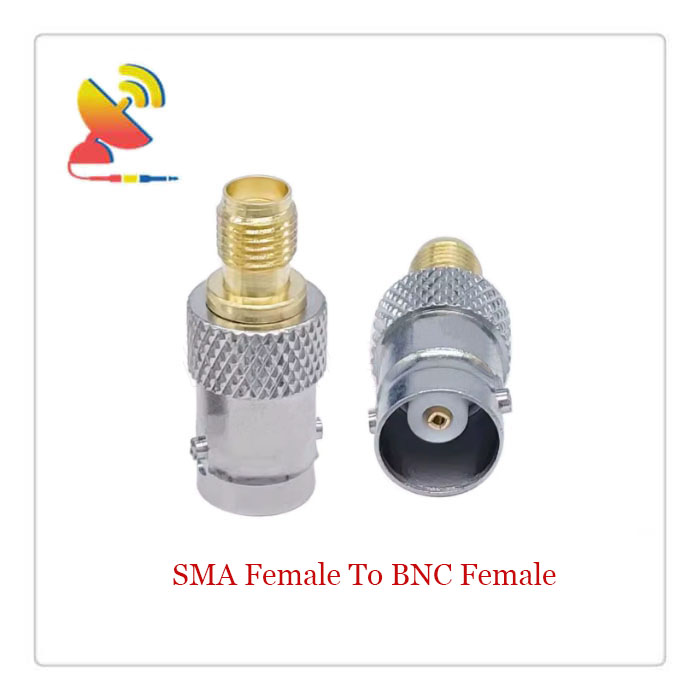

Item: CTRF-ANTENNA-CA-SMAK-BNCK
Specifications:
RF Adapter Type: SMA Female to BNC Female
Conversion Type: Same Series
Adapter Series: SMA-to-BNC
Center Gender: Female to Female
Convert From (Adapter End): Female, Female
Convert To (Adapter End): SMA Female, BNC Female
Style: Straight
Mounting Type: Free Hanging (In-Line)
Fastening Type: Threaded
Frequency – Max: 6 GHz
Center Contact Plating: Gold
Center Contact Material: Copper
Besides the RF SMA adapters, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, magnetic antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
