C&T RF Antennas Inc. manufactures a series of high-performance RG174 coax cable assemblies. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance RG174 coaxial cable assemblies, including the datasheet, pricing, and inventory.
Or other RG coaxial cable assembly styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance RG174 coax cable assemblies are 50-ohm, flexible, small-diameter 2.79mm (0.11″) cables manufactured by C&T RF Antennas Inc., used for low-power, high-frequency signals in limited-space applications, such as Cellular, Wi-Fi, GPS, and telecommunications.
The high-performance RG174 coaxial cable assemblies feature tinned copper braids and 30 AWG center conductors. These assemblies are commonly terminated with SMA, u.FL/IPEX, BNC, TNC, N-type, and Fakra connectors support frequencies up to 6 GHz.
RG174 is a standard 50-ohm coaxial cable specifically designed for high-frequency signal transmission. It is widely used in wireless communications, security monitoring, automotive electronics, and other fields.
Wireless Communication: Connects Wi-Fi devices to antennas, supporting 2.4GHz/5GHz bands.
Security Systems: CCTV surveillance signal transmission with strong anti-interference capability.
Automotive Electronics: Vehicle sensors and GPS antenna harnesses, resistant to vibration and high temperatures.
Industrial Control: Data links for automation equipment, such as PLC signal transmission.
etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
C&T RF Antennas Inc. offers various RF coaxial cable assemblies with RF SMA, SMB, SMC, N-type, UHF, BNC, TNC, MCX, MMCX, F-type, TV, RCA, FME, IPX, M5, and other RF, video, and communication connectors, along with couplers, attenuators, power dividers, etc. With various high-frequency cables, such as 50Ω (1, 1.5, 2, 3, 5, 7), 75Ω (3, 5, 7), 1/2-wave feedlines, RG213, RG223, RG1.13, RG1.37, RG174, RG178, RG316, RG58, RG142, RG400, RG402, RG405, LMR195, LMR200, LMR240, LMR400, etc.
For more information on similar products, our expert technical support and knowledgeable sales team can help you select high-quality RF coaxial cable assemblies that meet your requirements.

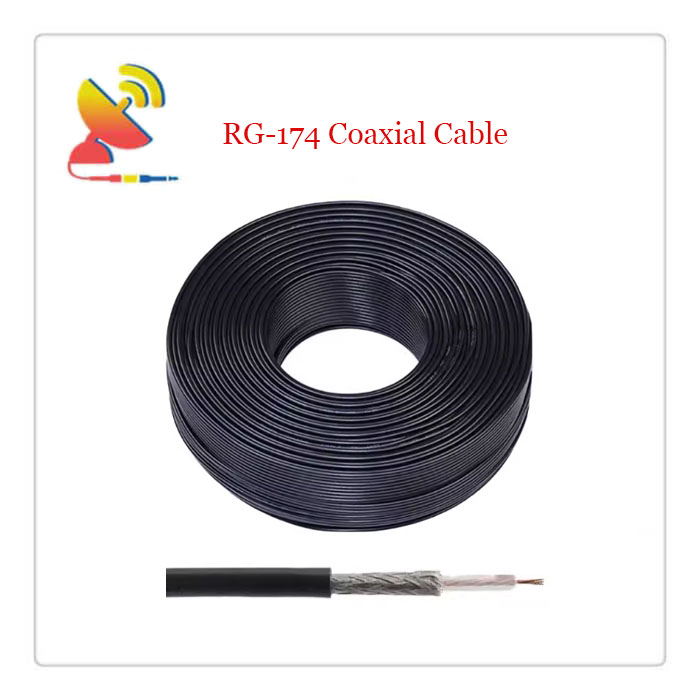

RG174 Coaxial Cable Structure Parameters |
|||
| No. | Item | Material | Diameter(mm) |
| 1 | Inner Conductor | Silver-plated copper-clad steel wire | 7X0.17 |
| 2 | Insulator | PTFE | 1.52 |
| 3 | Outer Conductor | Single-layer silver-plated copper wire braid | Nom.1.90 |
| 4 | Jacket | FEP | 2.79 |
RG174 Coaxial Cable Electrical Performance Parameters |
|||
| Capacitance(pF/m) | 101.05 | ||
| Impedance(ohm) | 50 | ||
| Transmission Rate(%) | 66 | ||
| Max. Operating Voltage(KVrms) | 1.1 | ||
| Max. Operating Frequency(MHz) | 1000 | ||
| RG174 Coaxial Cable Mechanical and Environmental Performance | |||
| Operating Temperature Range(℃) | -25 to +70 | ||
| Bending Radius(mm) | 10 | ||
| ROHS | Compliance | ||
RG174 Coaxial Cable Attenuation |
|||
| Frequency(MHz) | Attenuation(dB/m) | ||
| 100 | 0.276 | ||
| 400 | 0.558 | ||
| 1000 | 0.899 | ||
C&T RF Antennas Inc. offers high-performance RG174 coax cable assemblies. Below are some of the RG174 coaxial cable assembly styles.

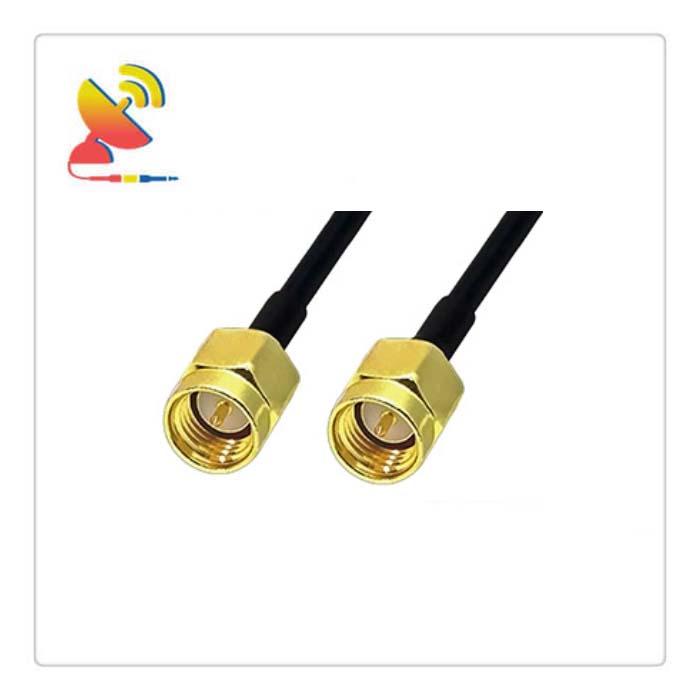

Item: CTRF-ANTENNA-CC-SMA-SMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

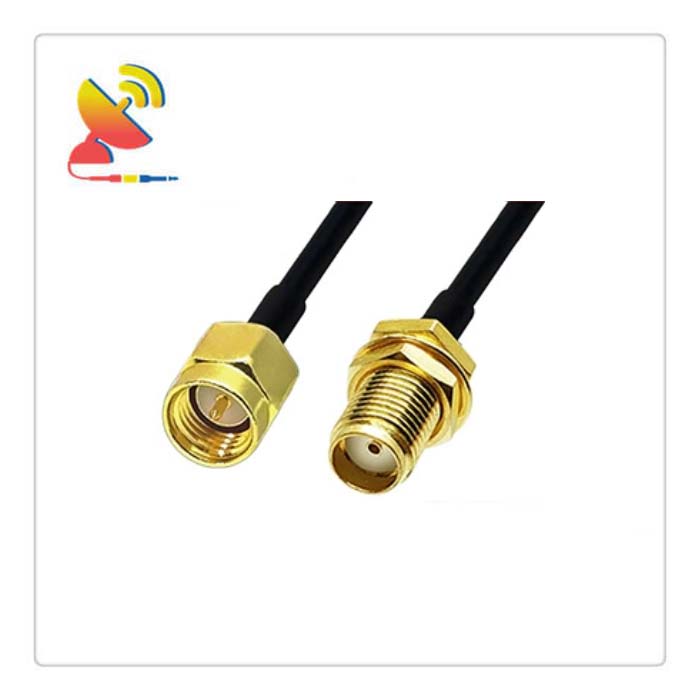

Item: CTRF-ANTENNA-CC-SMA-SMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

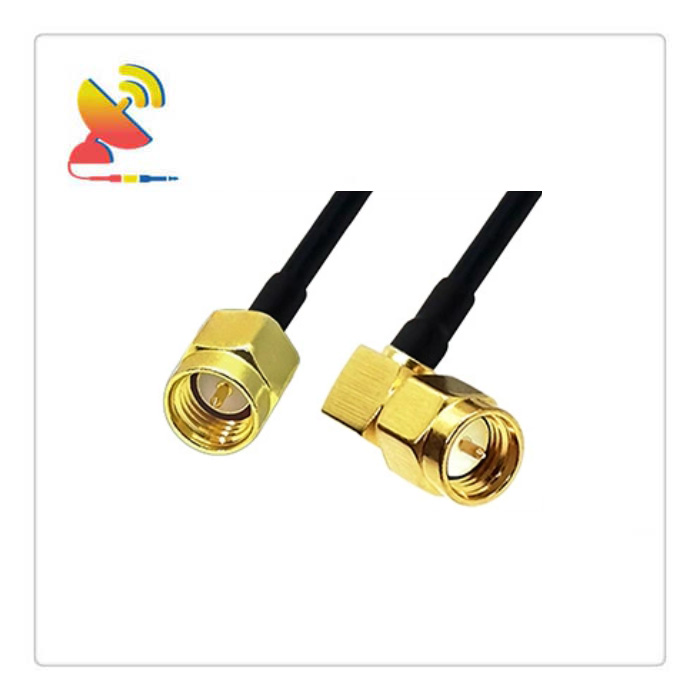

Item: CTRF-ANTENNA-CC-SMA-SMAW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Male Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-SMA-SMAKW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Female Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

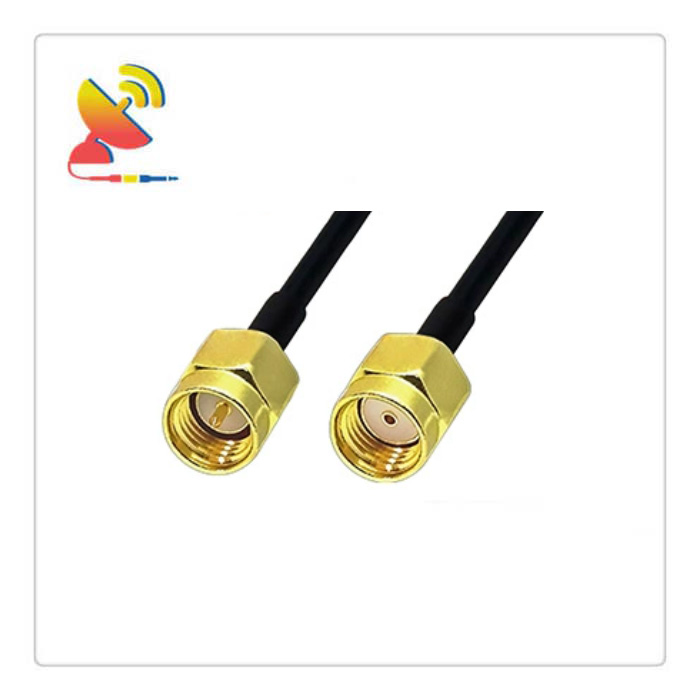

Item: CTRF-ANTENNA-CC-SMA-RPSMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: RP-SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

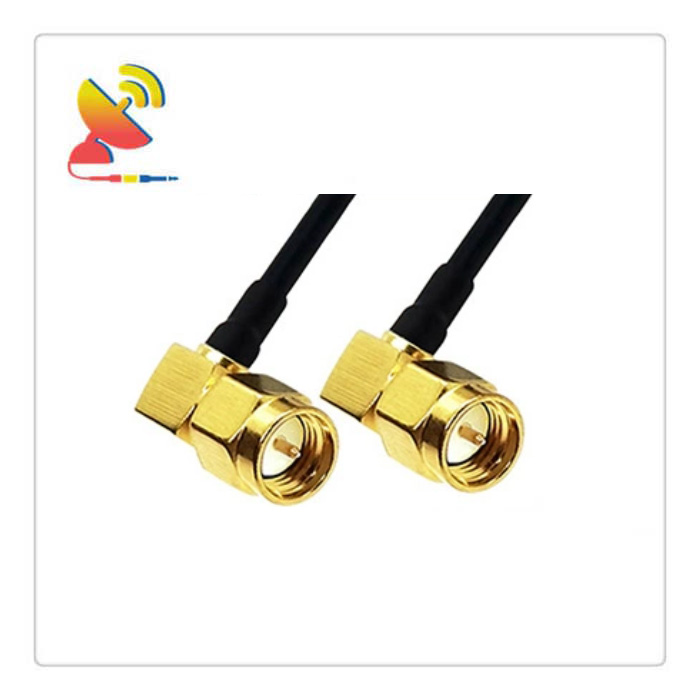

Item: CTRF-ANTENNA-CC-SMAW-SMAW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male Right-Angle
Connector 2: SMA Male Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-SMAK-SMAW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female
Connector 2: SMA Male Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-RPSMA-RPSMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: RP-SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

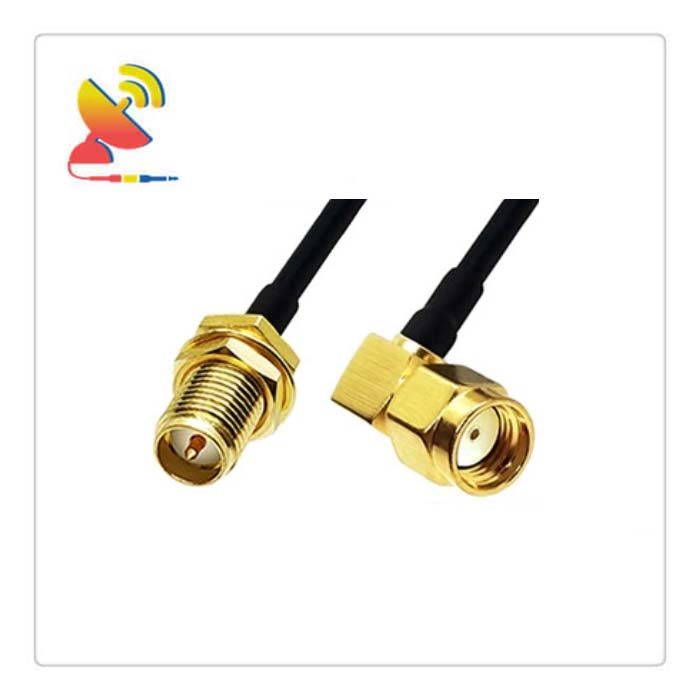

Item: CTRF-ANTENNA-CC-RPSMAK-RPSMAW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Female
Connector 2: RP-SMA Male Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

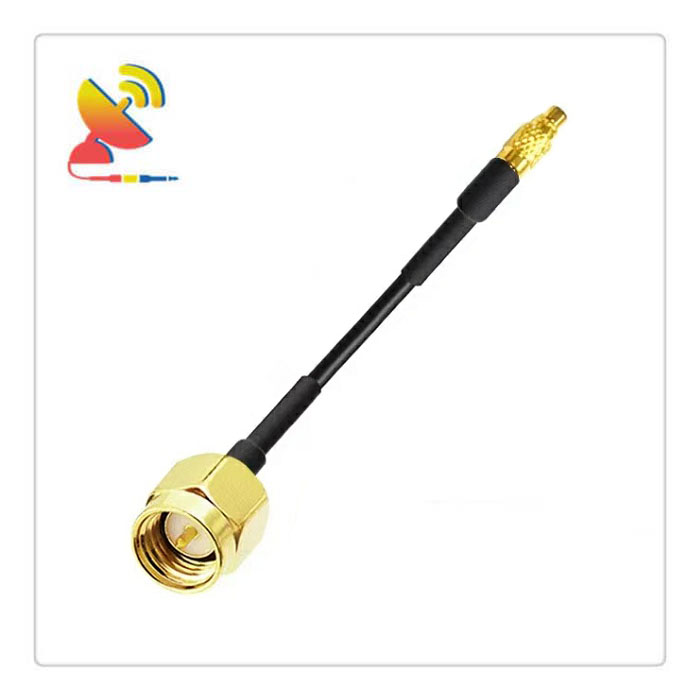

Item: CTRF-ANTENNA-CC-MMCX-SMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMCX Male
Connector 2: SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

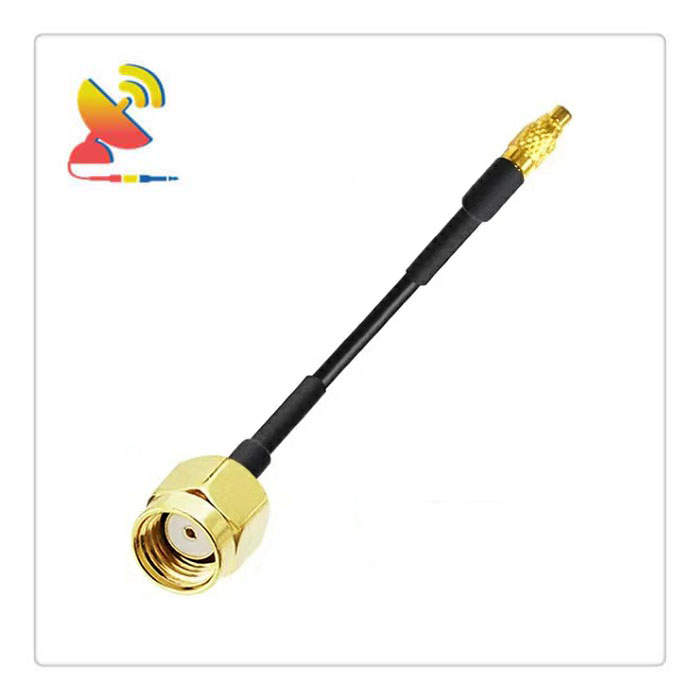

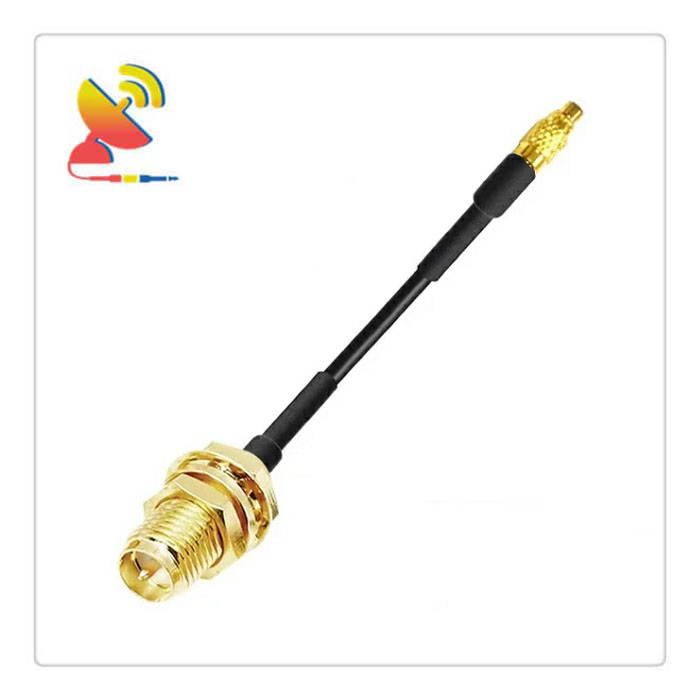

Item: CTRF-ANTENNA-CC-MMCX-RPSMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMCX Male
Connector 2: RP-SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

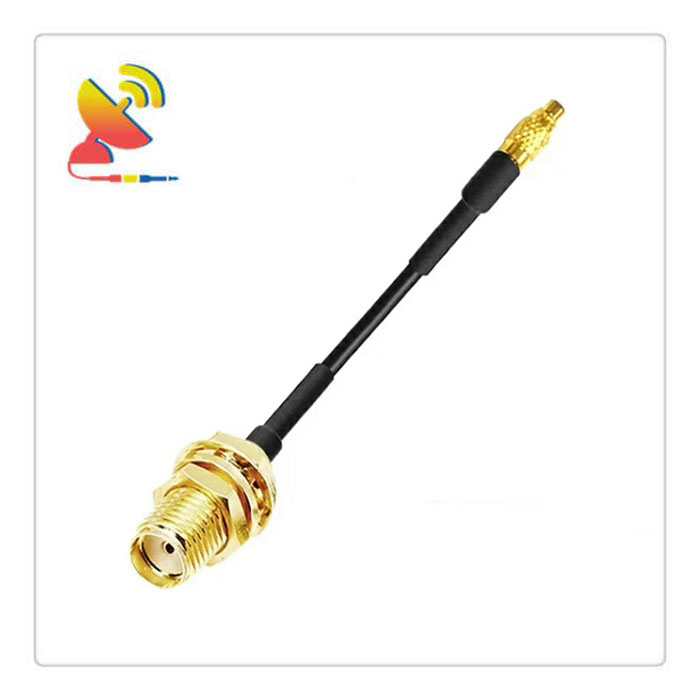

Item: CTRF-ANTENNA-CC-MMCX-SMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMCX Male
Connector 2: SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-FKA-SMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

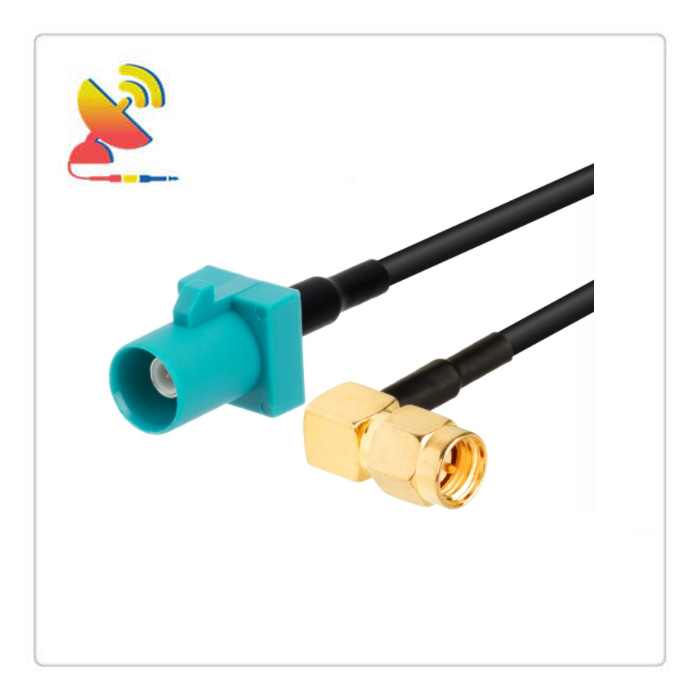

Item: CTRF-ANTENNA-CC-FKA-SMAW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: SMA Male Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-FKA-SMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

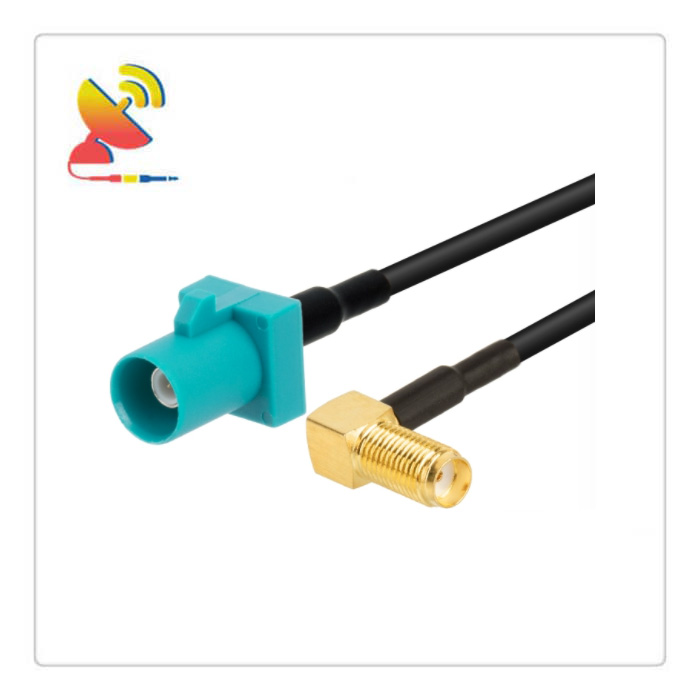

Item: CTRF-ANTENNA-CC-FKA-SMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: SMA Female Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-FKA-RPSMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: RP-SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

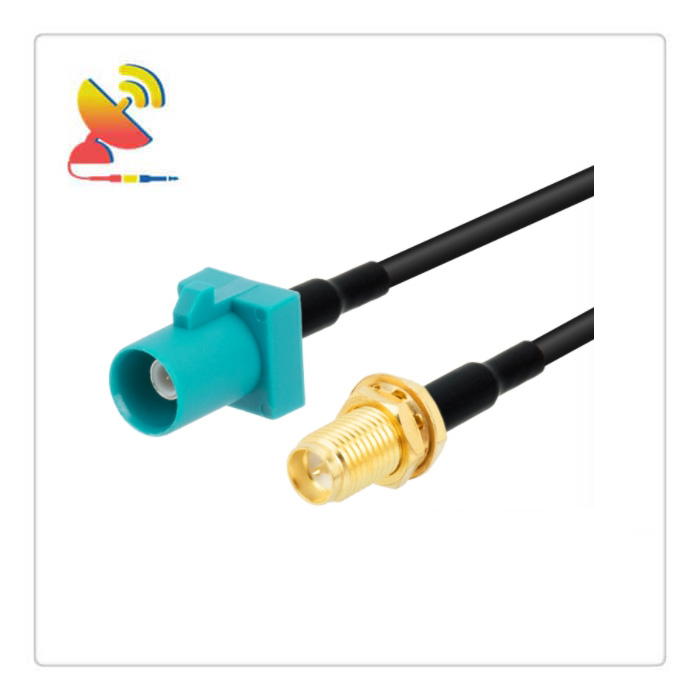

Item: CTRF-ANTENNA-CC-FKA-RPSMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: RP-SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
Item: CTRF-ANTENNA-CC-FKAK-SMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

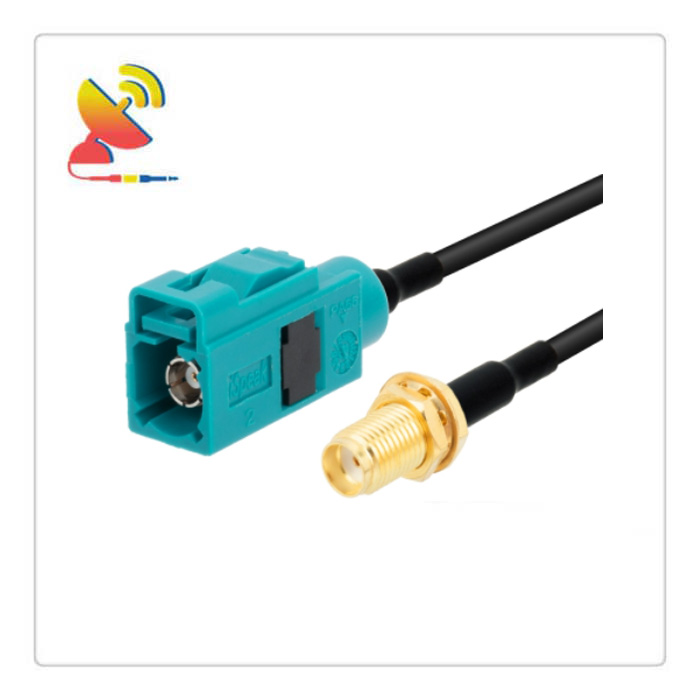

Item: CTRF-ANTENNA-CC-FKAK-SMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

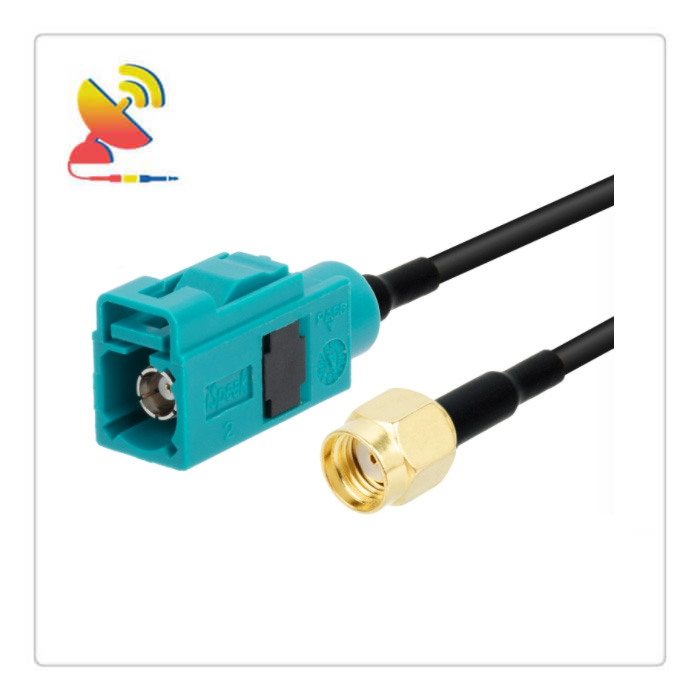

Item: CTRF-ANTENNA-CC-FKAK-RPSMA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: RP-SMA Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

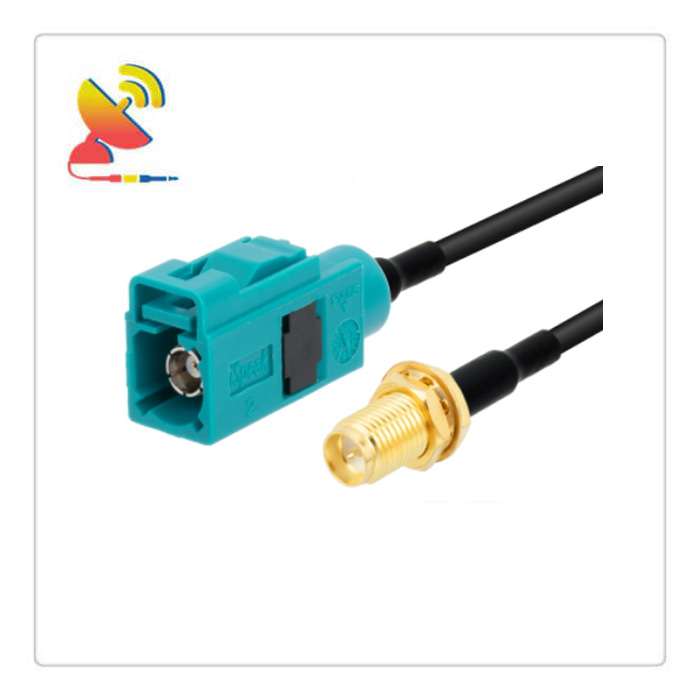

Item: CTRF-ANTENNA-CC-FKAK-RPSMAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: RP-SMA Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

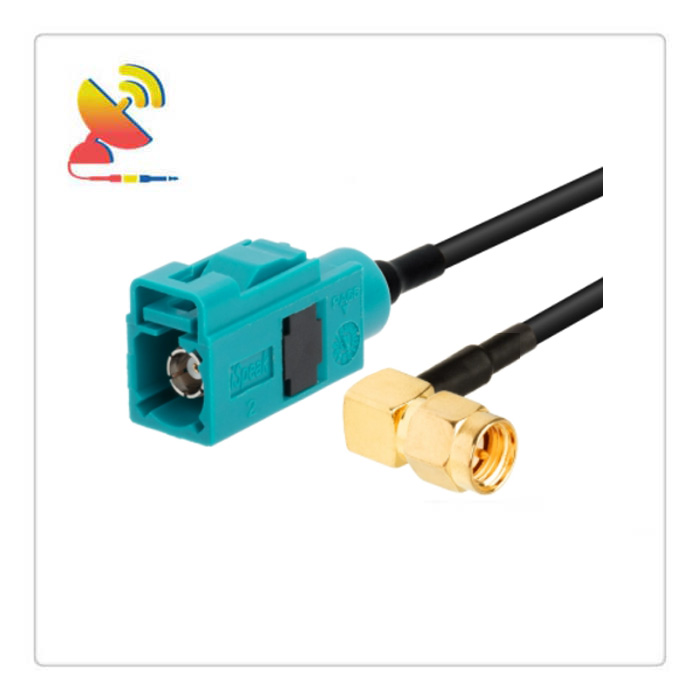

Item: CTRF-ANTENNA-CC-FKAK-SMAW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: SMA Male Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

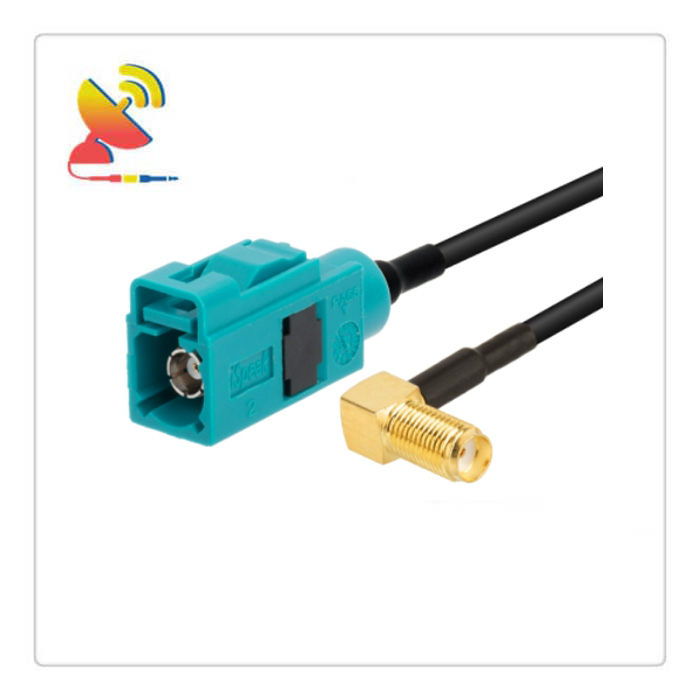

Item: CTRF-ANTENNA-CC-FKAK-SMAKW-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: SMA Female Right-Angle
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

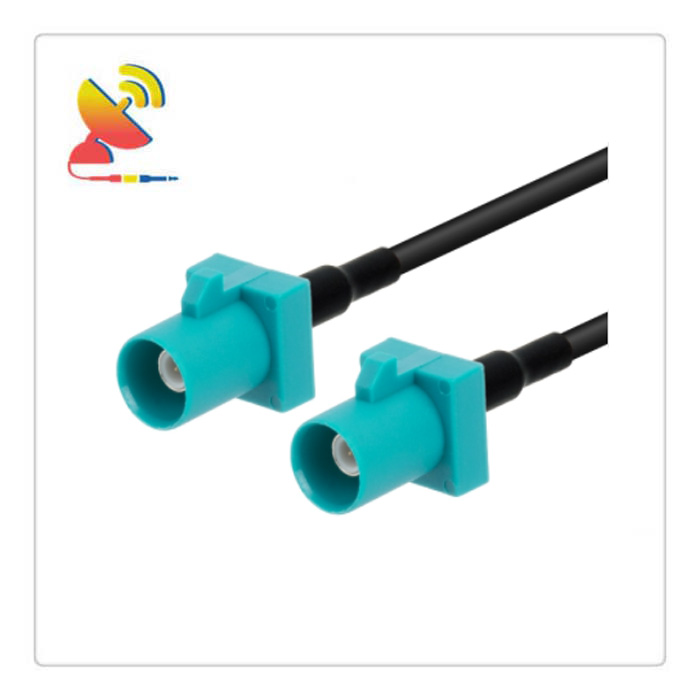

Item: CTRF-ANTENNA-CC-FKA-FKA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Male
Connector 2: Fakra Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

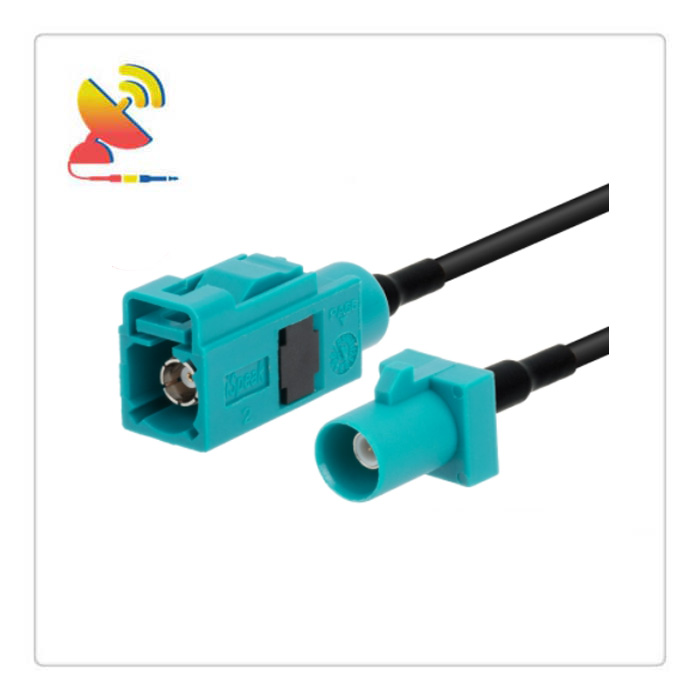

Item: CTRF-ANTENNA-CC-FKAK-FKA-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: Fakra Male
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm

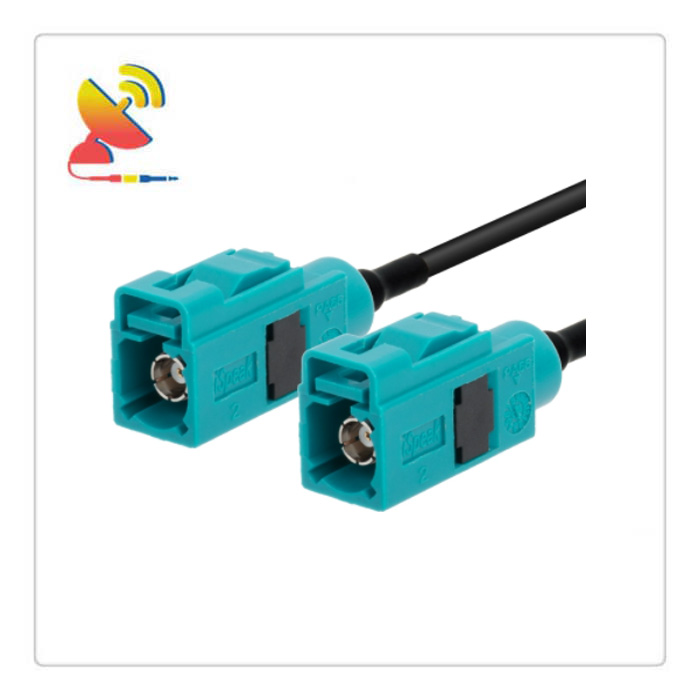

Item: CTRF-ANTENNA-CC-FKAK-FKAK-RG174-1M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Fakra Female
Connector 2: Fakra Female
Cable: RG174
Cable Length: 1m (0.1m, 0.15m, 0.2m, 0.3m, 0.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 2.79mm
In addition to RG coax cables, C&T RF Antennas Inc. also offers RF coax cable assemblies and RF antennas. Such as external rubber duck antennas, adhesive mount antennas, magnetic antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
