C&T RF Antennas Inc. manufactures a series of high-performance RG1.13 coaxial cable assemblies. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance RG1.13 cable assemblies, including custom datasheets, pricing, and inventory.
Or other RG coaxial cable assembly styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance RG1.13 coaxial cable assemblies are low-loss coax cables with RF connectors, manufactured by C&T RF Antennas Inc., Ideal for ham radio, Wi-Fi radio modems, and 2.4 GHz radio, GPS wireless applications.
C&T RF Antennas Inc. is a leading manufacturer of custom coaxial / RF cable assemblies and jumpers. simple to complex coax/rf assemblies, built to specification. Request a quote now. Get a quote now.

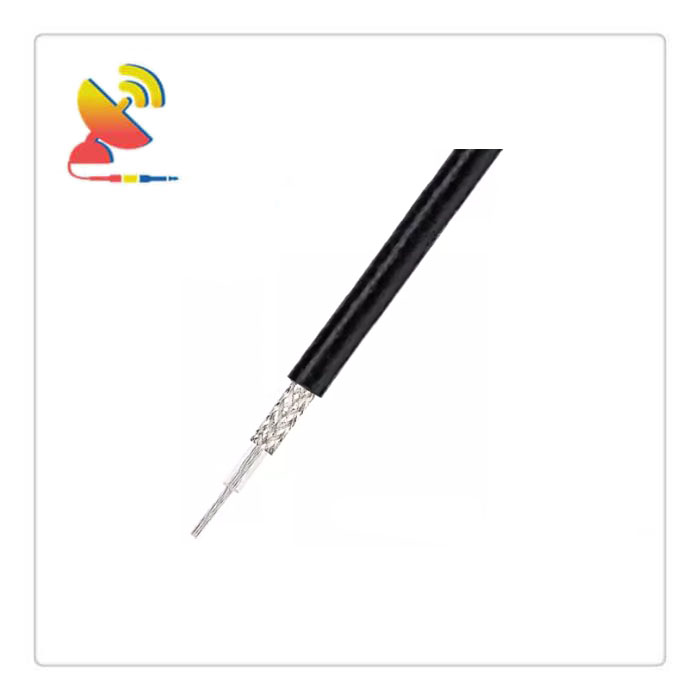

RG1.13 coax cable is a 50-ohm, ultra-miniature RG cable, often featuring a 1.13mm diameter, used for high-frequency internal radio connections.
It commonly features a silver-plated conductor, a tin-overcoated copper shield, and an FEP jacket, and is frequently used with IPEX/UFL/MHF/SMA connectors for LoRa, Wi-Fi, Bluetooth, 2G/3G/4G/5G, GNSS, and GPS applications. etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for any additional specifications you need.
C&T RF Antennas Inc. offers various RF coaxial cable assemblies with RF SMA, SMB, SMC, N-type, UHF, BNC, TNC, MCX, MMCX, F-type, TV, RCA, FME, IPX, M5, and other RF, video, and communication connectors, along with couplers, attenuators, power dividers, etc. With various high-frequency cables, such as 50Ω (1, 1.5, 2, 3, 5, 7), 75Ω (3, 5, 7), 1/2-wave feedlines, RG213, RG223, RG1.13, RG1.37, RG174, RG178, RG316, RG58, RG142, RG400, RG402, RG405, LMR195, LMR200, LMR240, LMR400, etc.
For more information on similar products, our expert technical support and knowledgeable sales team can help you select high-quality RF coaxial cable assemblies that meet your requirements.
RG1.13 Coax Cable Structure Parameters |
||||
| Item | Material | Diameter(mm) | ||
| Inner Conductor | Silver-plated copper-clad steel wire | 7X0.102 | ||
| Insulator | PTFE | 0.68 | ||
| Outer Conductor | Single-layer silver-plated copper wire braid | Nom.0.88 | ||
| Jacket | FEP | 1.13 | ||
RG1.13 Coax Cable Electrical Performance Parameters |
||||
| Capacitance(pF/m) | 95.6 | |||
| Impedance(ohm) | 50 | |||
| Transmission Rate(%) | 70 | |||
| Max. Operating Voltage(KVrms) | 0.1 | |||
| Max. Operating Frequency(MHz) | 6000 | |||
| RG1.13 Coax Cable Mechanical and Environmental Performance | ||||
| Operating Temperature Range(℃) | -55 to +200 | |||
| Bending Radius(mm) | 4 | |||
| ROHS | Compliance | |||
RG1.13 Coax Cable Attenuation |
||||
| Frequency(MHz) | Attenuation(dB/m) | |||
| 1000 | 2.3 | |||
| 2000 | 3.1 | |||
| 3000 | 3.9 | |||
| 4000 | 4.6 | |||
| 5000 | 5.1 | |||
| 6000 | 5.8 | |||
C&T RF Antennas Inc. offers high-performance RG1.13 coaxial cable assemblies. Below are some of the RG1.13 coax cable assembly styles.

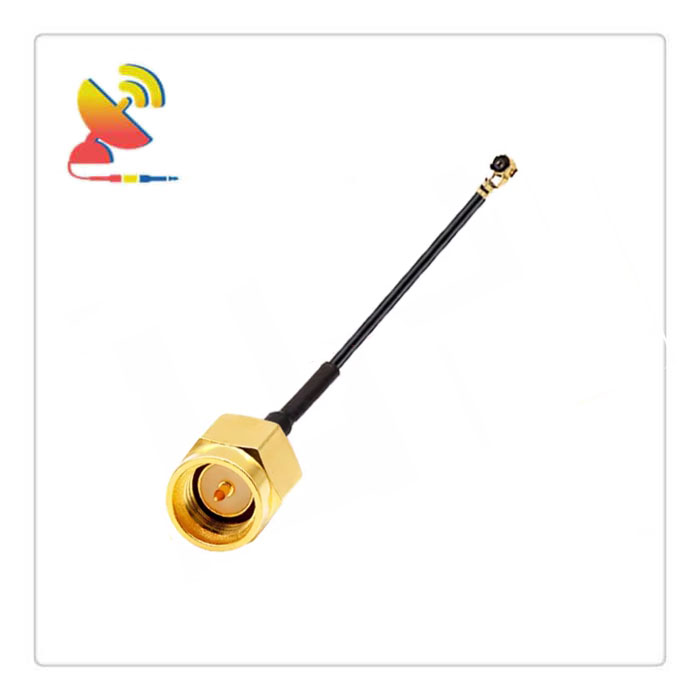

Item: CTRF-ANTENNA-SMA-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: IPEX/U.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm
Item: CTRF-ANTENNA-SMA-O-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male Right-Angle
Connector 2: Open-end
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

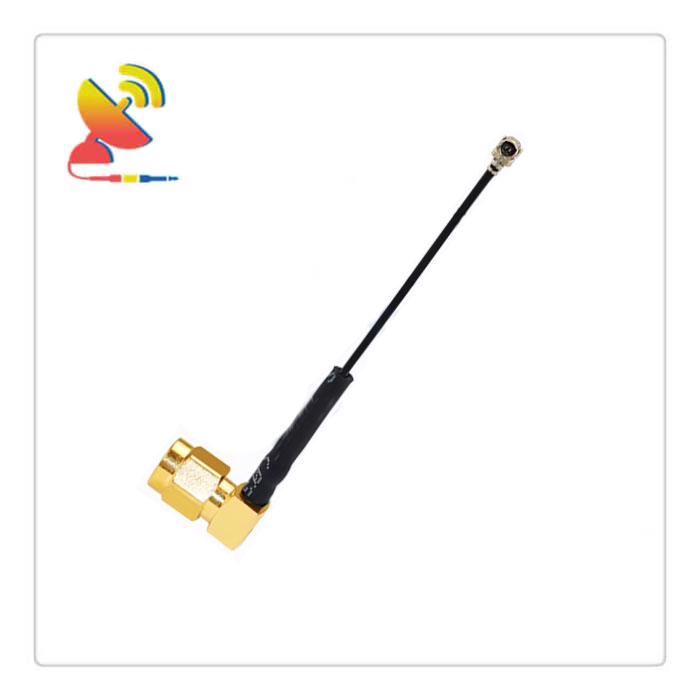

Item: CTRF-ANTENNA-SMAW-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male Right-Angle
Connector 2: IPEX/U.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

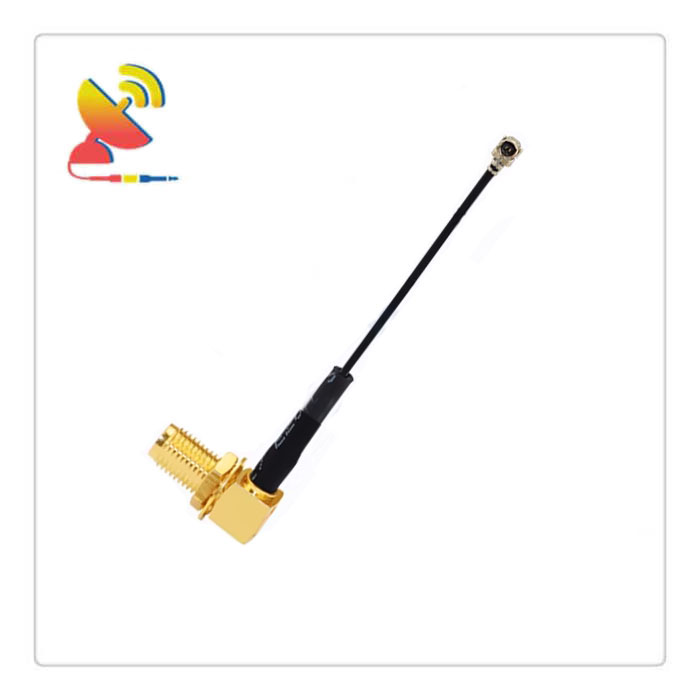

Item: CTRF-ANTENNA-SMAKW-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female Right-Angle
Connector 2: IPEX/U.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

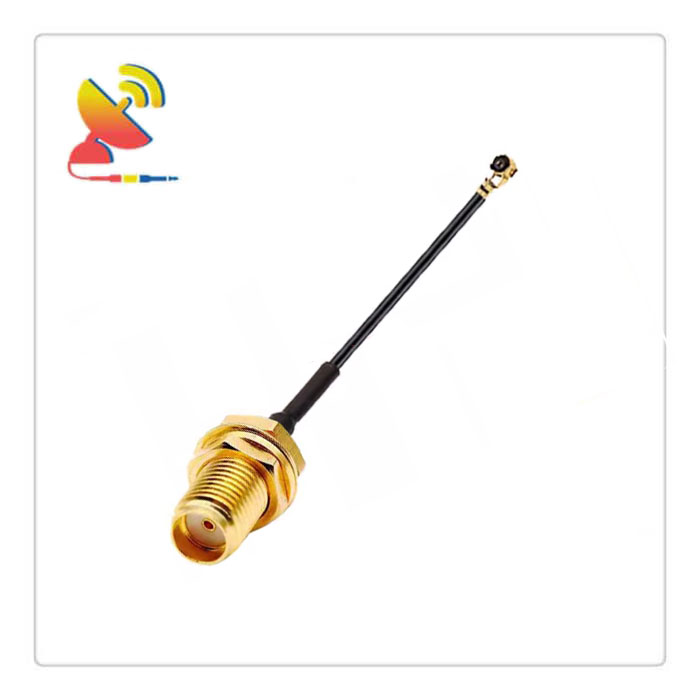

Item: CTRF-ANTENNA-SMAK-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female
Connector 2: IPEX/U.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

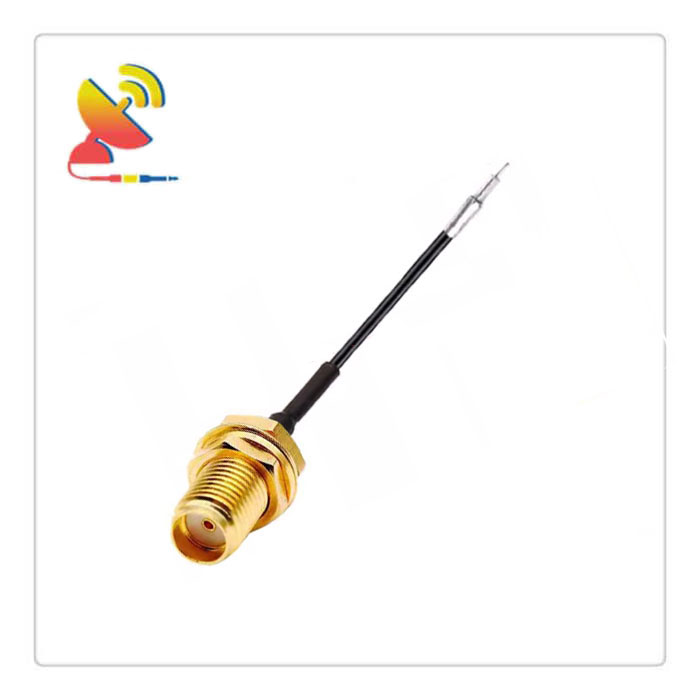

Item: CTRF-ANTENNA-SMAK-O-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female
Connector 2: Open-end
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm
Item: CTRF-ANTENNA-SMAKO-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female With Waterproof-Ring IP68
Connector 2: IPEX/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

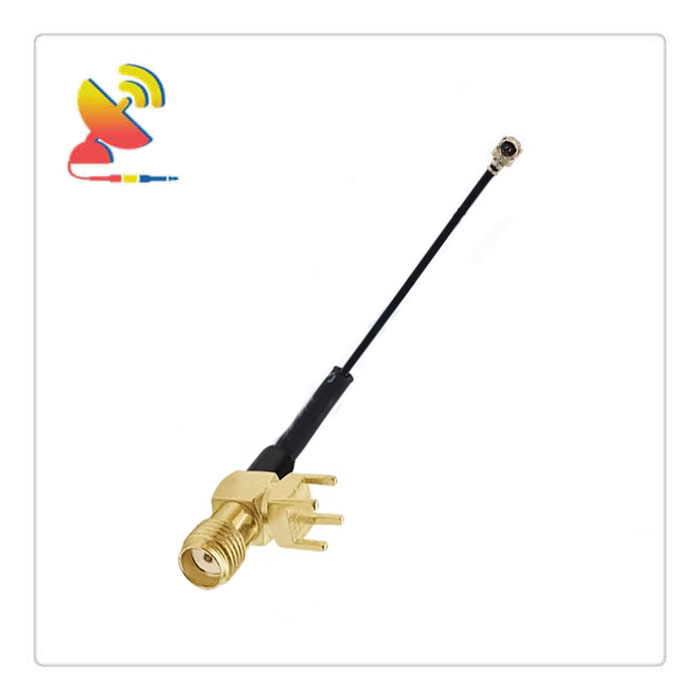

Item: CTRF-ANTENNA-SMAKWK9-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female Thru Hole Plug Right Angle 90 DEGREE ( SMA-KWE ) 9.5mm
Connector 2: IPEX/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

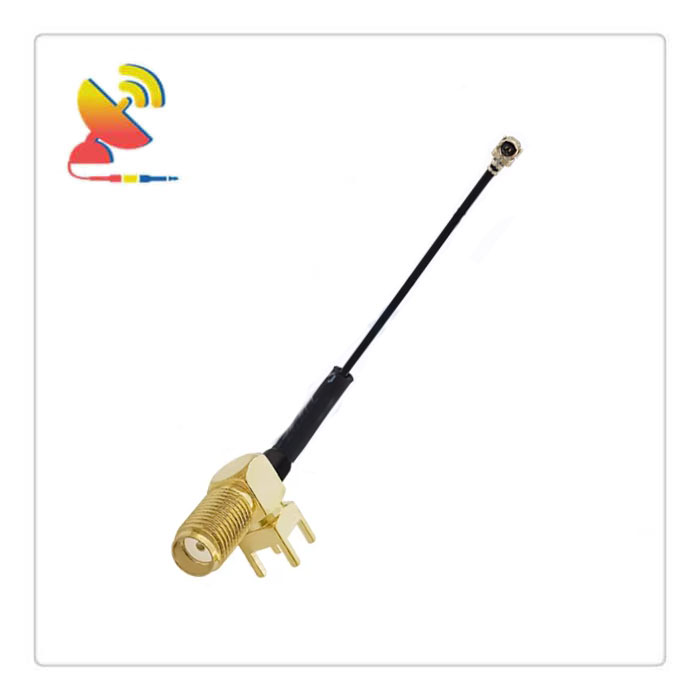

Item: CTRF-ANTENNA-SMAKWK11-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female Thru Hole Plug Right Angle 90 DEGREE ( SMA-KWE ) 11mm
Connector 2: IPEX/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

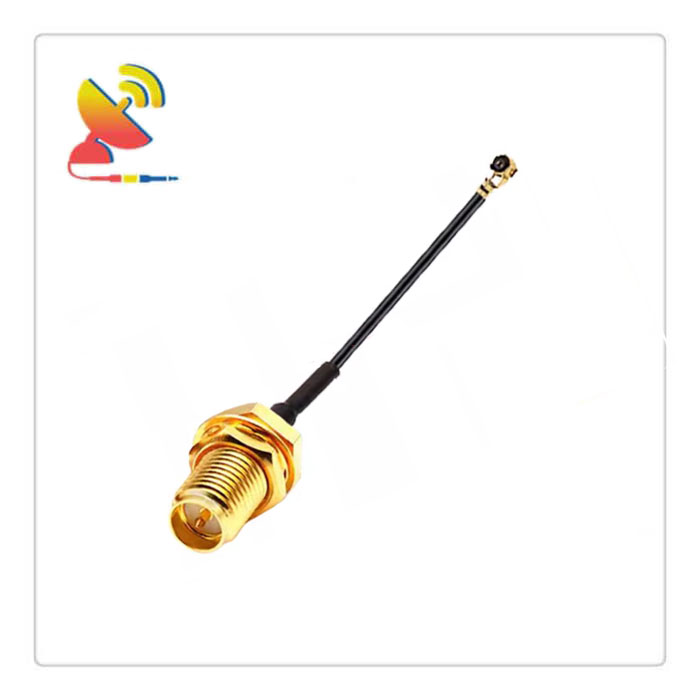

Item: CTRF-ANTENNA-RPSMAK-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Female
Connector 2: IPEX/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

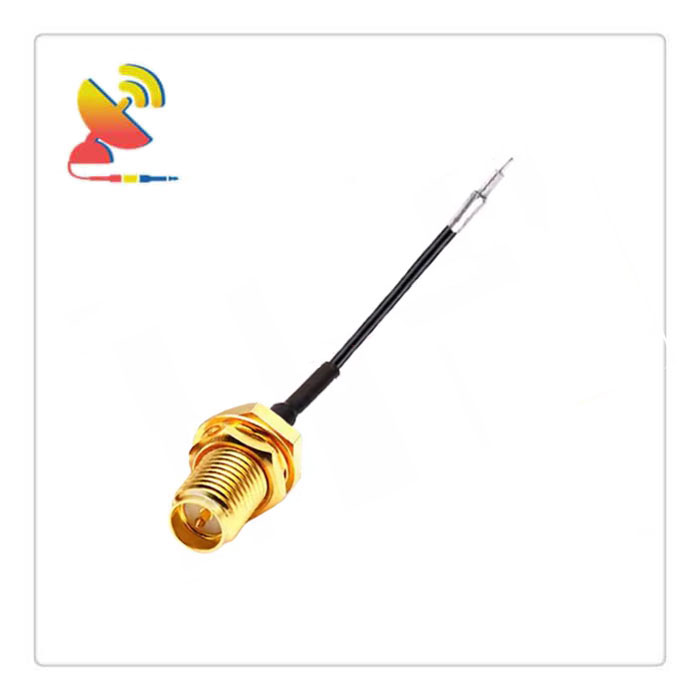

Item: CTRF-ANTENNA-RPSMAK-O-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Female
Connector 2: Open-end
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

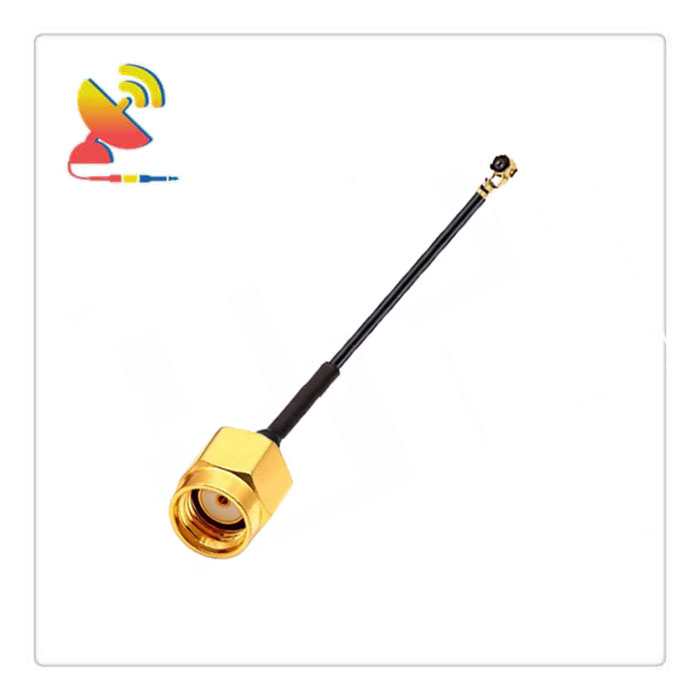

Item: CTRF-ANTENNA-RPSMA-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: IPEX/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

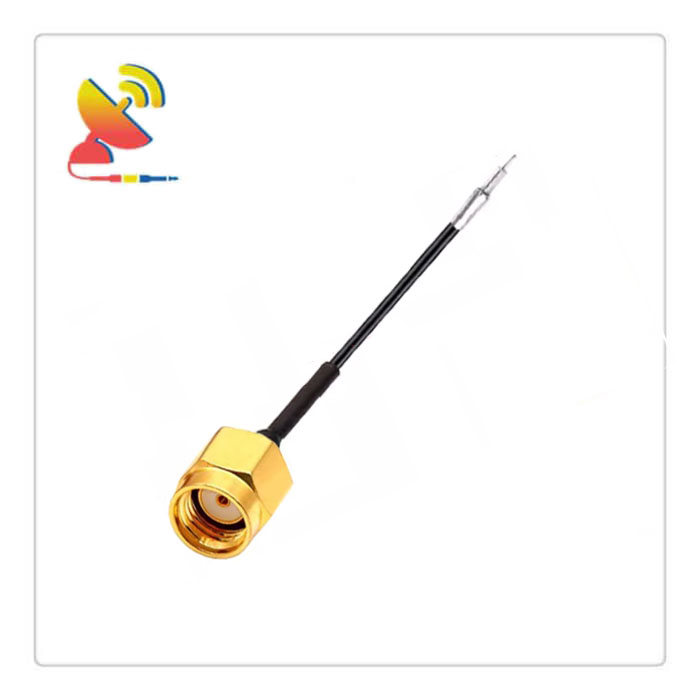

Item: CTRF-ANTENNA-RPSMA-O-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: Open-end
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm
Item: CTRF-ANTENNA-MMXCK-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMXC Female Right Angle
Connector 2: IPEX1, U.FL, MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

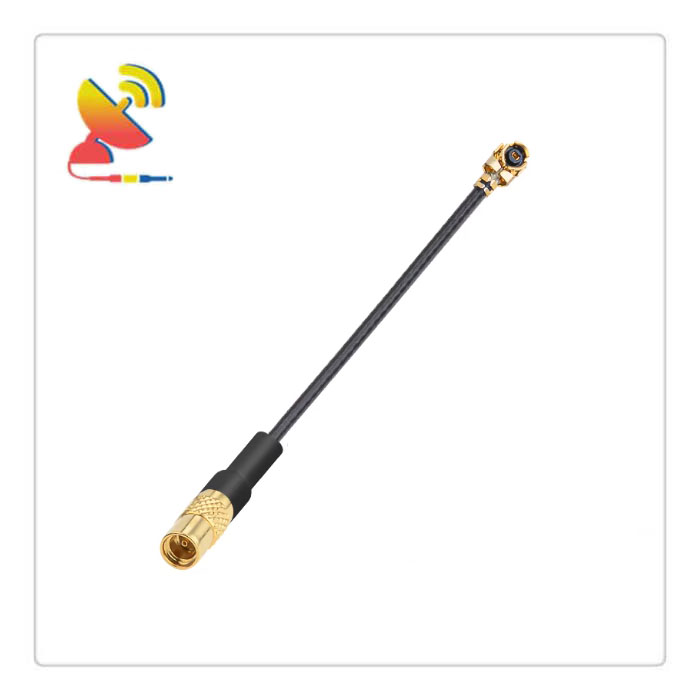

Item: CTRF-ANTENNA-MMXCK-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMXC Female
Connector 2: IPEX1, U.FL, MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm
Item: CTRF-ANTENNA-MMXCW-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMXC Male Right-Angle
Connector 2: IPEX1, U.FL, MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

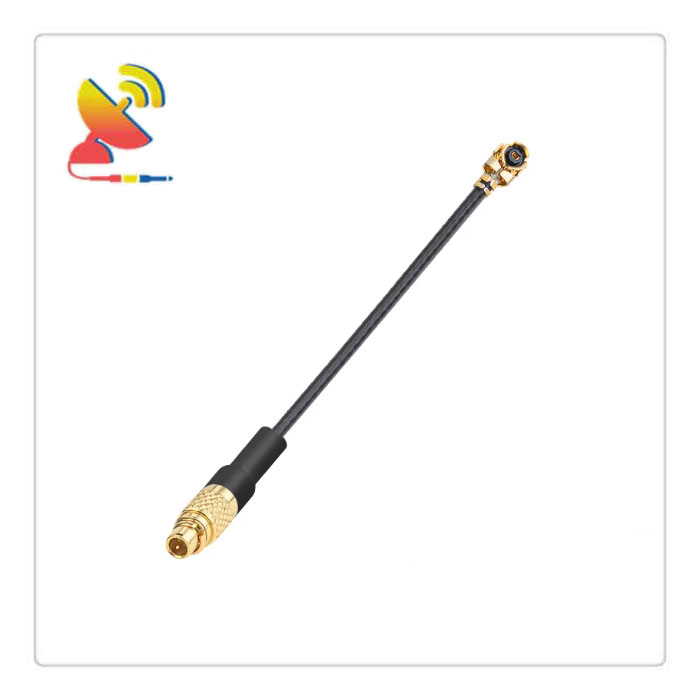

Item: CTRF-ANTENNA-MMXC-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: MMXC Male
Connector 2: IPEX1, U.FL, MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

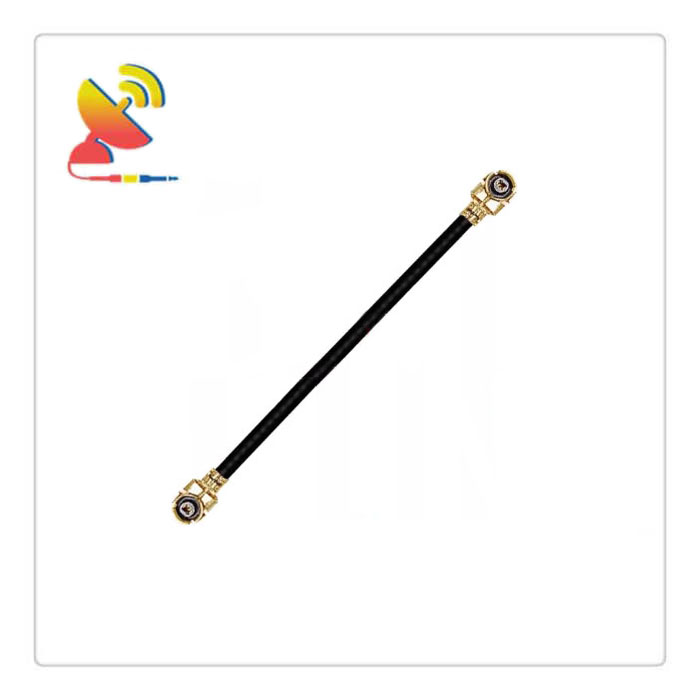

Item: CTRF-ANTENNA-BNCKF-IPEXx2-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: IPEX1, U.FL, MHF1
Connector 2: IPEX1, U.FL, MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

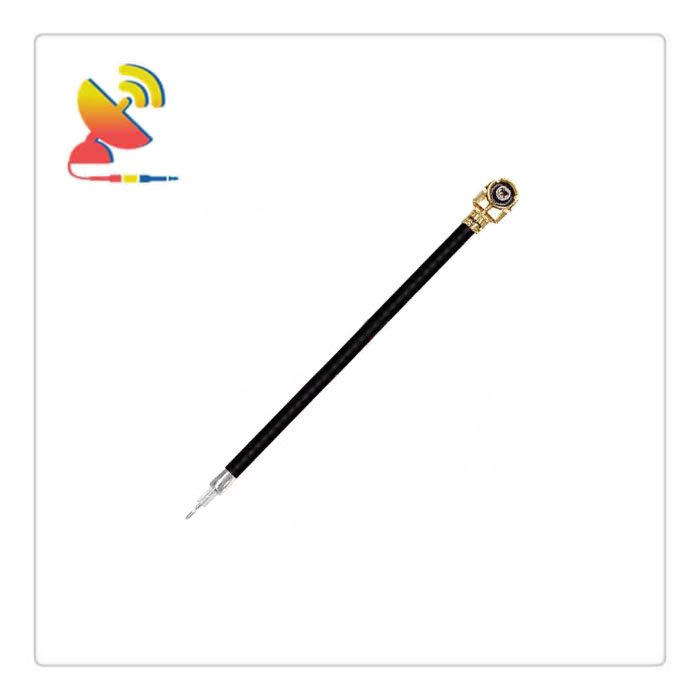

Item: CTRF-ANTENNA-BNCKF-IPEX-O-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: IPEX1, U.FL, MHF1
Connector 2: Open-end
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

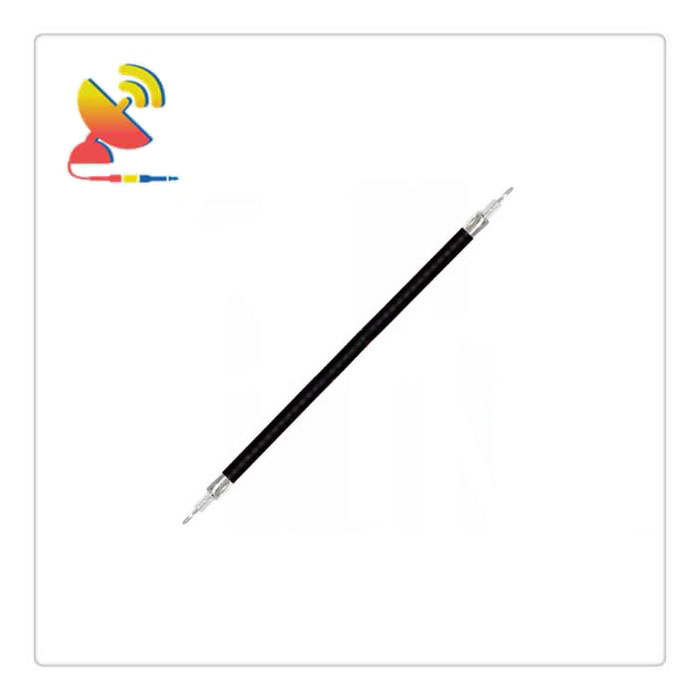

Item: CTRF-ANTENNA-BNCKF-Ox2-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: Open-end
Connector 2: Open-end
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

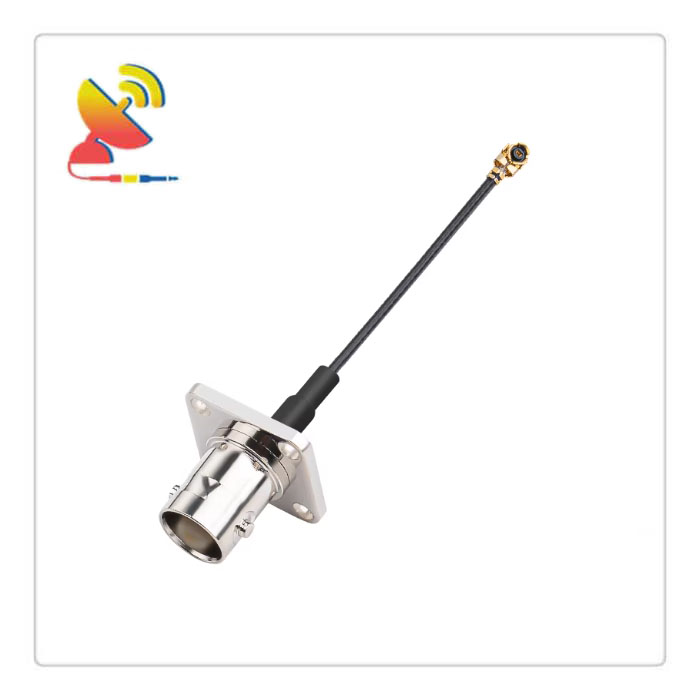

Item: CTRF-ANTENNA-BNCKF-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Female 4 Hole Flange
Connector 2: IPEX1/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm
Item: CTRF-ANTENNA-BNCKB-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Female Bulkhead
Connector 2: IPEX1/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

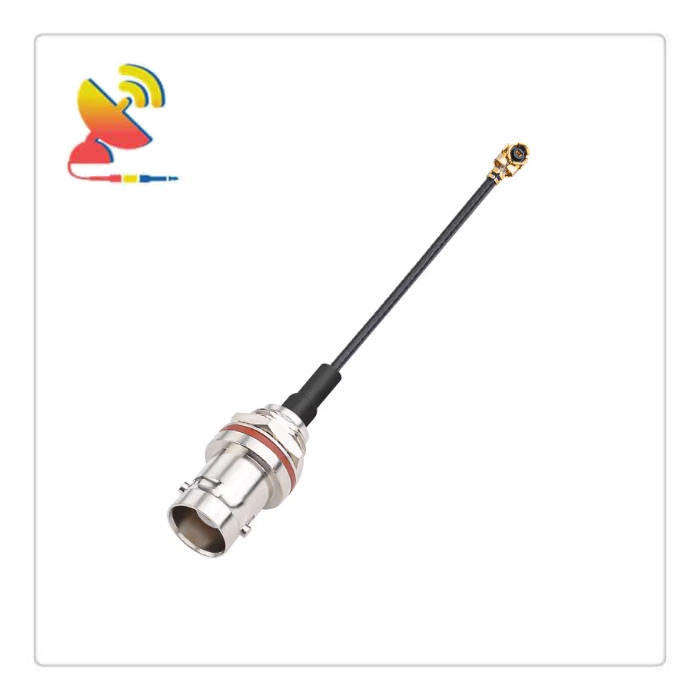

Item: CTRF-ANTENNA-BNCK-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Female
Connector 2: IPEX1/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

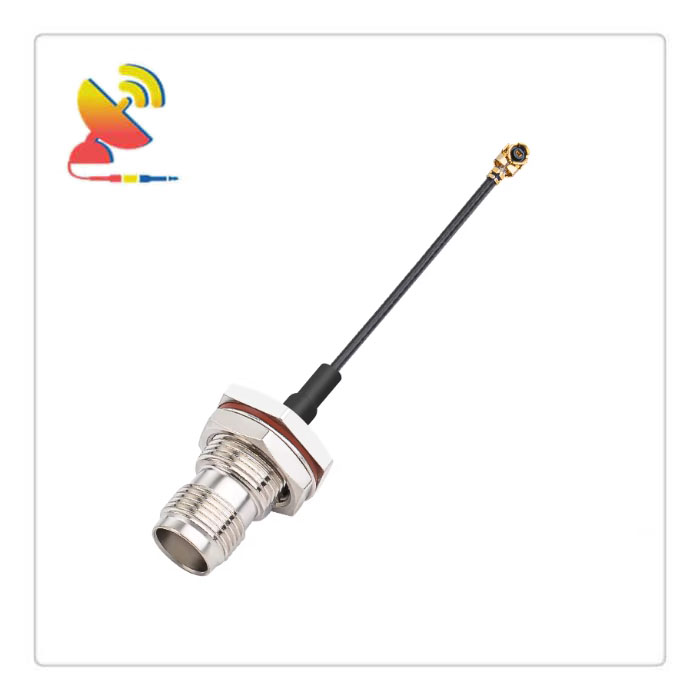

Item: CTRF-ANTENNA-TNCKB-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Female Bulkhead
Connector 2: IPEX1/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm

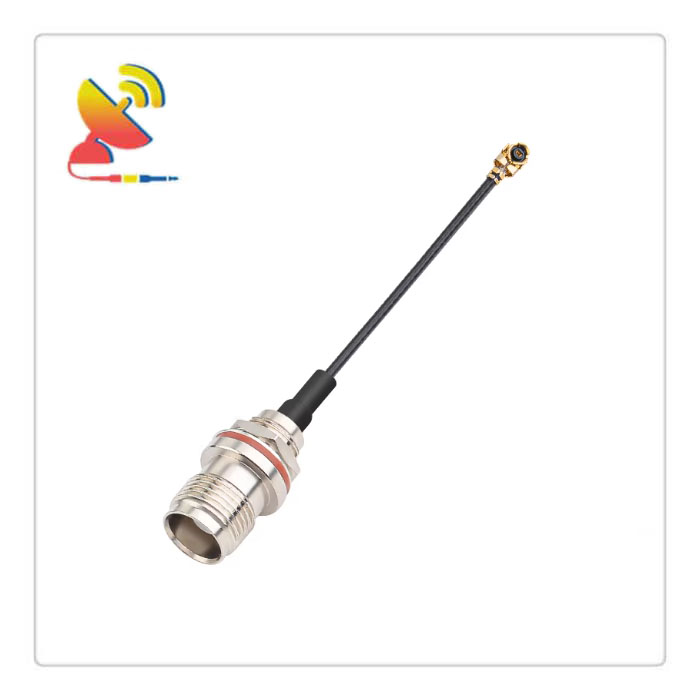

Item: CTRF-ANTENNA-TNCK-IPEX-RG113-10CM
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Female
Connector 2: IPEX1/u.FL/MHF1
Cable: RG1.13
Cable Length: 0.1m (0.05m, 0.15m, 0.2m, 0.3m, 0.5m, or customized)
Cable Diameter: 1.13mm
In addition to RG coax cables, C&T RF Antennas Inc. also offers RF coax cable assemblies and RF antennas. Such as external rubber duck antennas, adhesive mount antennas, magnetic antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for any additional specifications you need.
