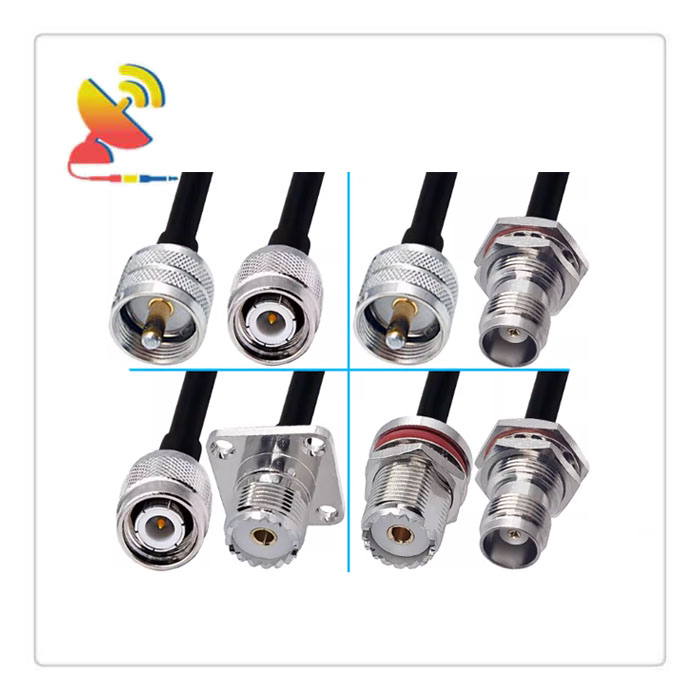

C&T RF Antennas Inc. manufactures a series of high-performance RG58 coax cable assemblies. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance RG58 coaxial cable assemblies, including the datasheet, pricing, and inventory.
Or other RG coaxial cable assembly styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance RG58 coax cable assemblies are 50 Ohm, low-loss foam, black RG58 coaxial cables built with different types of RF connectors manufactured by C&T RF Antennas Inc., and are typically used for low-power signal and RF connections.
The high-performance RG58 coax cables are assembled with RG-58 low-loss coaxial cables, SMA/N/BNC/TNC/UHF(PL259/M) male or female connectors on both ends. They are RF coax cable assemblies for RF antenna pigtails, jumpers, extenders, and extensions.

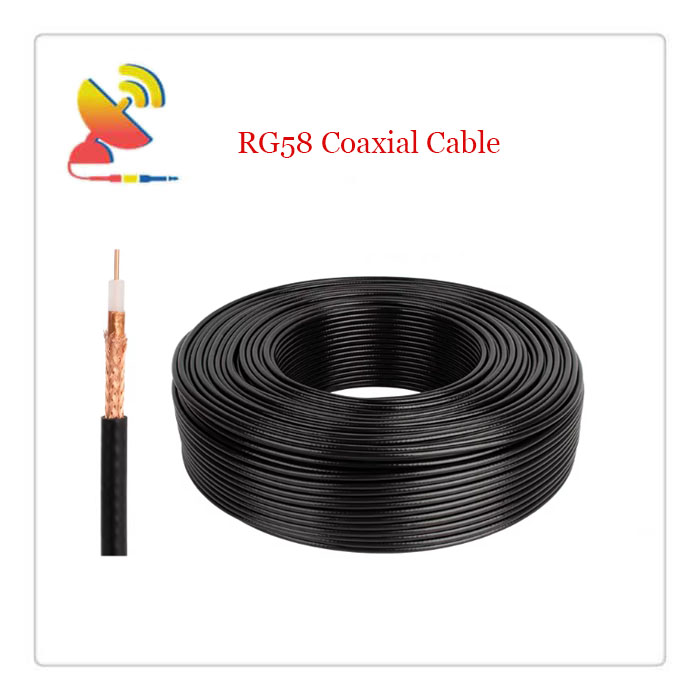

RG-58 coaxial cable is a thin coaxial cable with a characteristic impedance of 50 ohms, belonging to the MIL-C-17 military standard series of cables, which includes models such as RG-58 A/U, B/U, C/U, etc.
With an outer diameter of approximately 5 mm, it features a tinned copper twisted center conductor with PE insulation, covered by a tinned copper braided shield and PVC jacket, achieving up to 96% shield coverage.
RG-58 coaxial cable complies with RoHS standards, operates within a temperature range of -40 to 85°C, and supports a maximum transmission distance of approximately 185 meters. This cable is primarily used in 10Base-2 thin Ethernet architectures and requires N/BNC/TNC/SMA/M/UHF connectors for connection.
RG-58 coaxial cable applications include signal transmission for test and measurement equipment, two-way radio communication systems (maritime communications, police walkie-talkies, WLAN antenna connections), and video surveillance lines. Electrical parameters cover the DC to 6GHz frequency range with a propagation rate of 66%, withstand voltage up to 2.5KVrms, and a static bending radius of 25mm.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
C&T RF Antennas Inc. offers various RF coaxial cable assemblies with RF SMA, SMB, SMC, N-type, UHF, BNC, TNC, MCX, MMCX, F-type, TV, RCA, FME, IPX, M5, and other RF, video, and communication connectors, along with couplers, attenuators, power dividers, etc. With various high-frequency cables, such as 50Ω (1, 1.5, 2, 3, 5, 7), 75Ω (3, 5, 7), 1/2-wave feedlines, RG213, RG223, RG1.13, RG1.37, RG174, RG178, RG316, RG58, RG142, RG400, RG402, RG405, LMR195, LMR200, LMR240, LMR400, etc.
For more information on similar products, our expert technical support and knowledgeable sales team can help you select high-quality RF coaxial cable assemblies that meet your requirements.
RG58 Coaxial Cable Structure Parameters |
|||
| No. | Item | Material | Diameter(mm) |
| 1 | Inner Conductor | 19/0.18 Copper-tin plated | 19×0.18 |
| 2 | Insulator | PE | 2.95 |
| 3 | Outer Conductor | Copper-tin plated | 3.5 |
| 4 | Jacket | PVC | 4.95 |
RG58 Coaxial Cable Electrical Performance Parameters |
|||
| Capacitance(pF/m) | 101.05 | ||
| Impedance(ohm) | 50 | ||
| Velocity of Propagation, Nominal | 66% | ||
| Max. Operating Voltage(KVrms) | 1.4 | ||
| Max. Operating Frequency(MHz) | 1000 | ||
| RG58 Coaxial Cable Mechanical and Environmental Performance | |||
| Operating Temperature Range(℃) | -25 to +75 | ||
| Bending Radius(mm) | 25 | ||
| ROHS | Compliance | ||
RG58 Coaxial Cable Attenuation |
|||
| Frequency(MHz) | Attenuation(dB/m) | ||
| 100 | 0.17 | ||
| 400 | 0.38 | ||
| 700 | 0.55 | ||
| 1000 | 0.69 | ||
C&T RF Antennas Inc. offers high-performance RG58 coax cable assemblies. Below are some of the RG58 coaxial cable assembly styles.
Item: CTRF-ANTENNA-CC-BNC-BNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Male
Connector 2: BNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

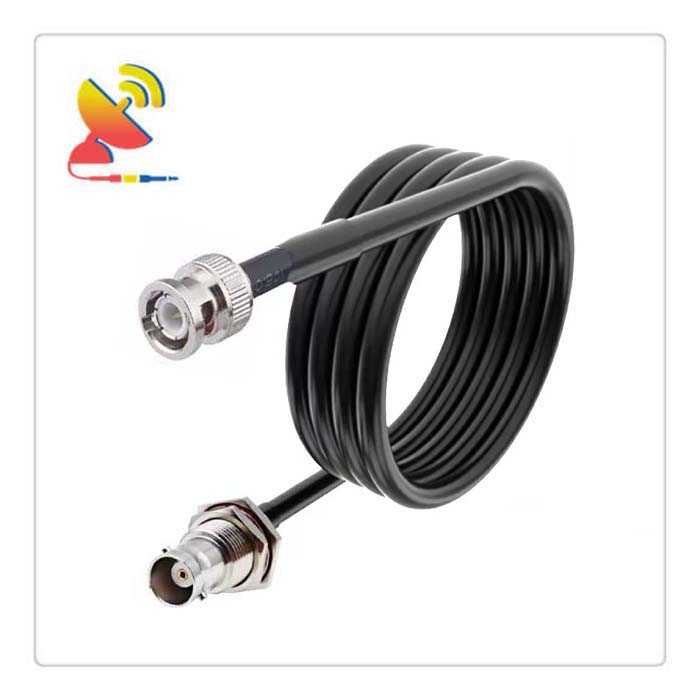

Item: CTRF-ANTENNA-CC-BNC-BNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Male
Connector 2: BNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-BNCK-BNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Female
Connector 2: BNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-BNC-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Male
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

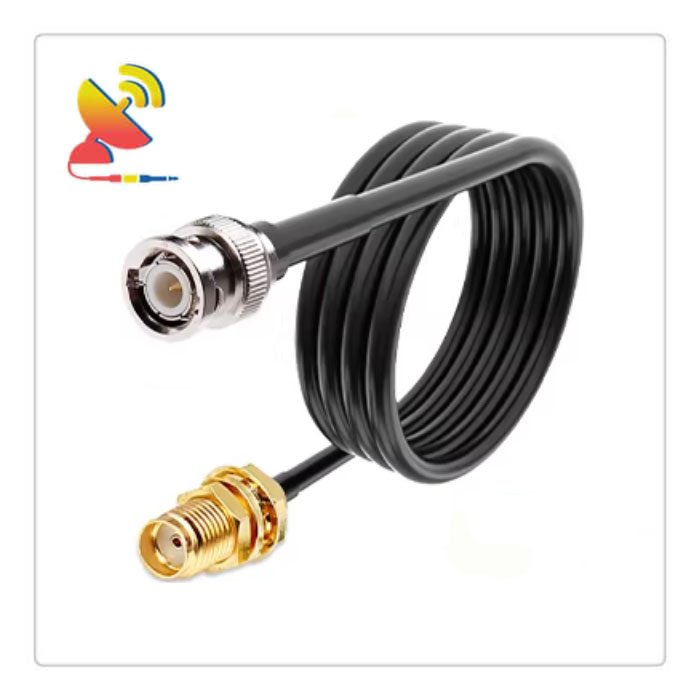

Item: CTRF-ANTENNA-CC-BNC-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Male
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-BNCK-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Female
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

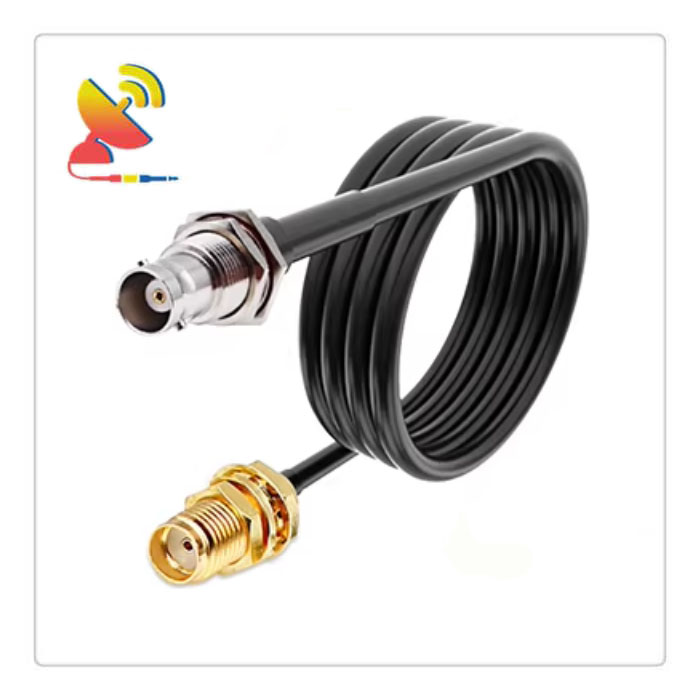

Item: CTRF-ANTENNA-CC-BNCK-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Female
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

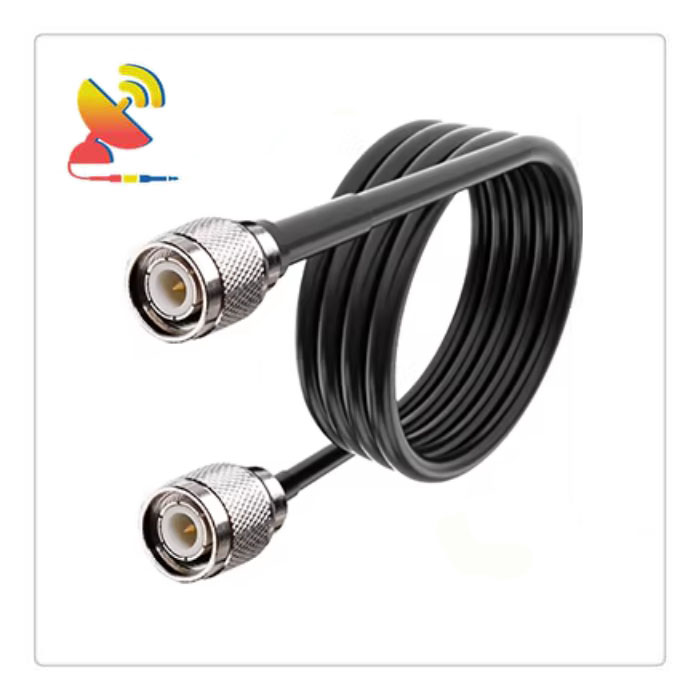

Item: CTRF-ANTENNA-CC-TNC-TNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Male
Connector 2: TNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-TNC-TNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Male
Connector 2: TNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

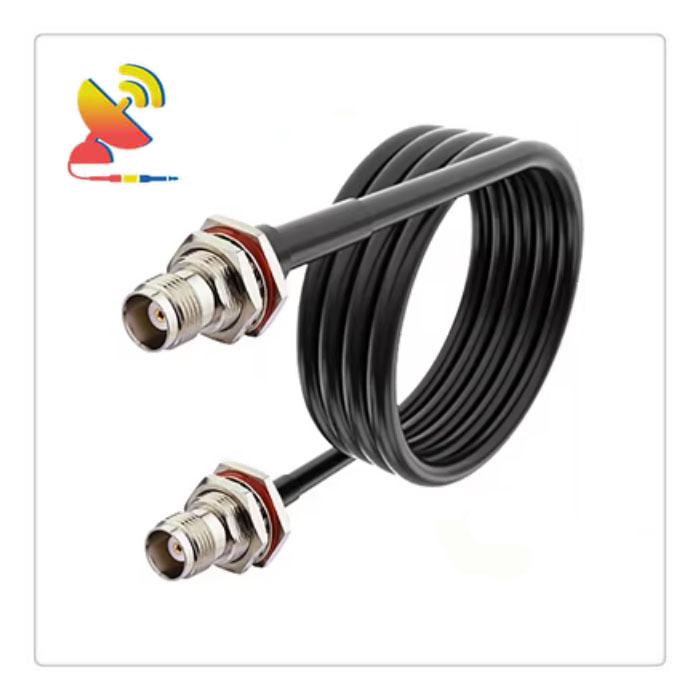

Item: CTRF-ANTENNA-CC-TNCK-TNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Female
Connector 2: TNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

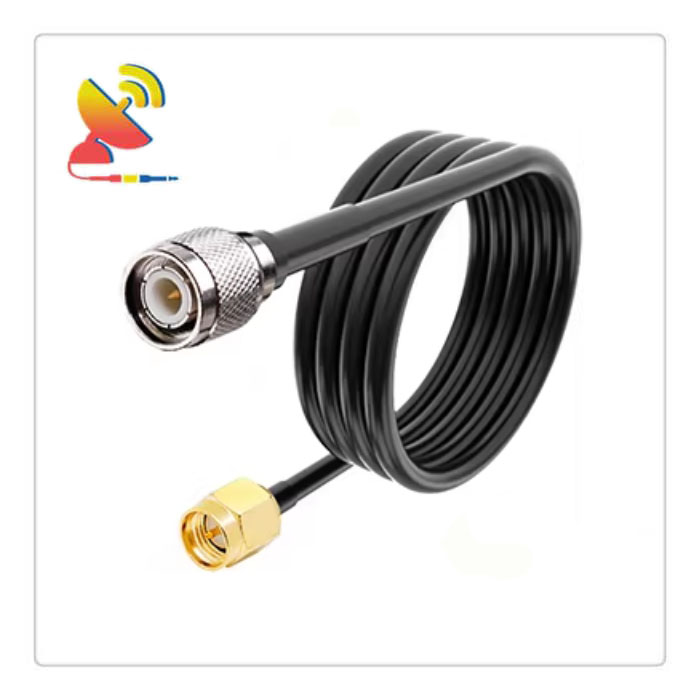

Item: CTRF-ANTENNA-CC-TNC-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Male
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

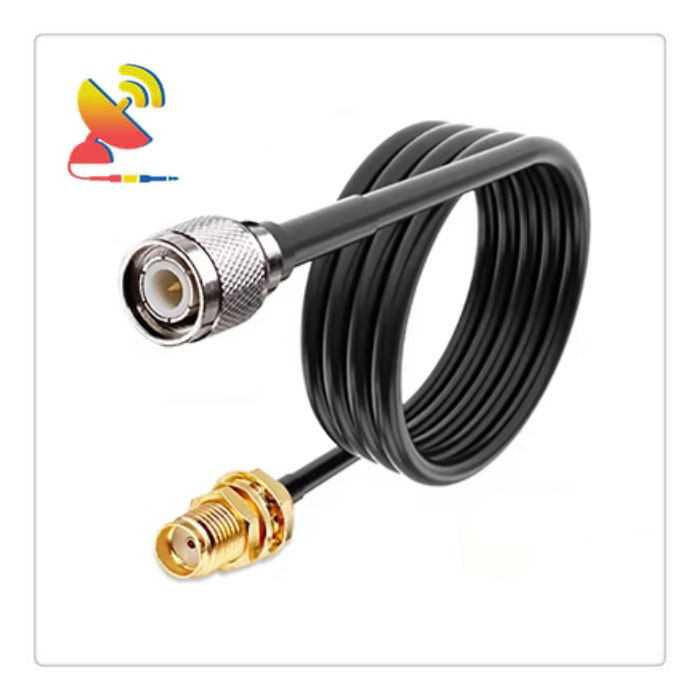

Item: CTRF-ANTENNA-CC-TNC-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Male
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-TNCK-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Female
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-TNCK-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Female
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

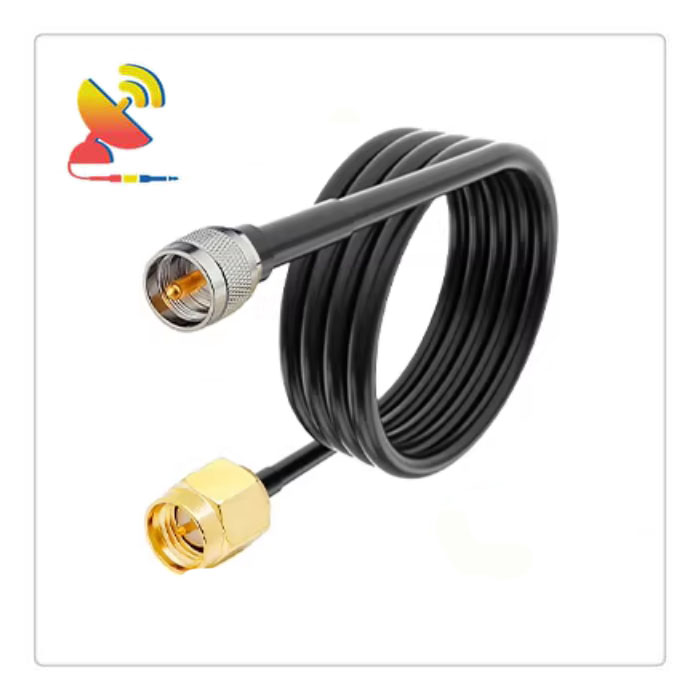

Item: CTRF-ANTENNA-CC-M-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

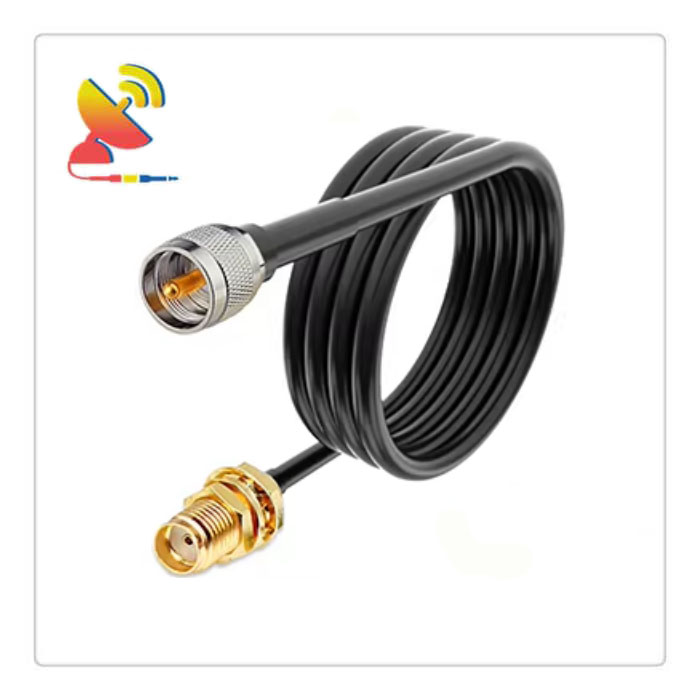

Item: CTRF-ANTENNA-CC-M-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-MK-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-MK-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

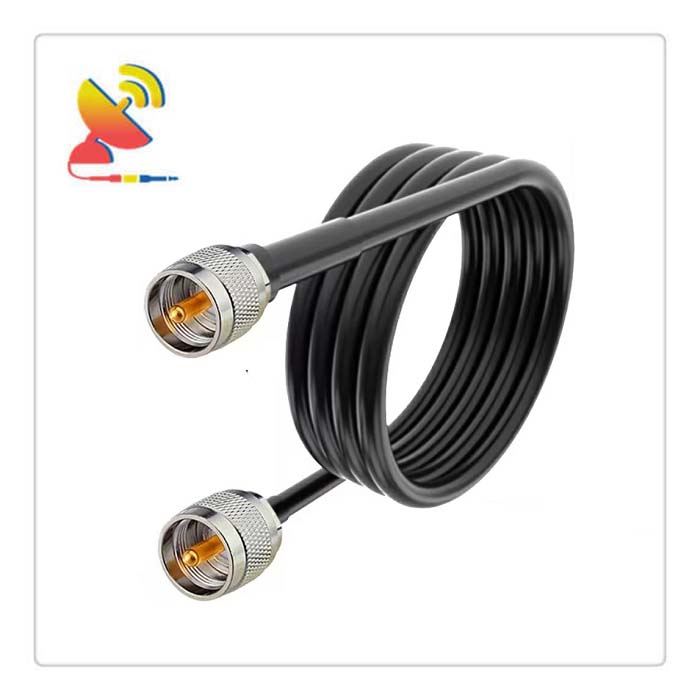

Item: CTRF-ANTENNA-CC-M-M-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: M(UHF/PL259) Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

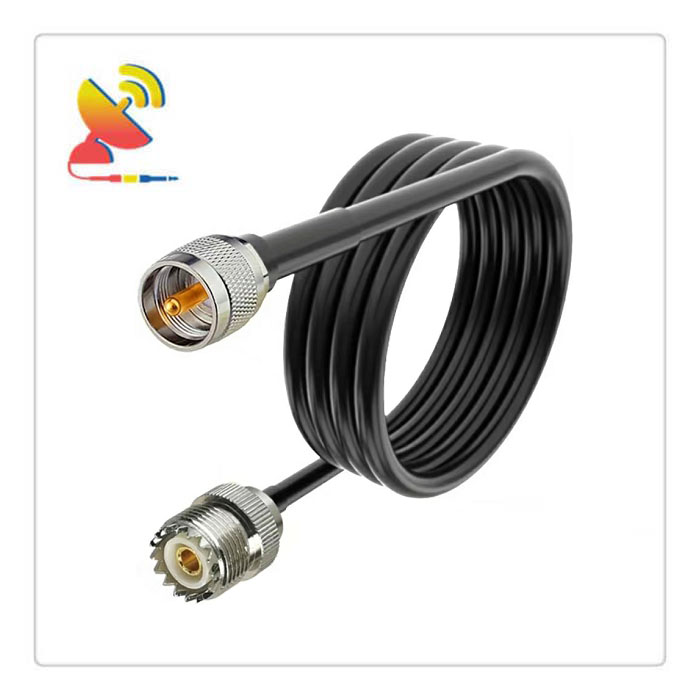

Item: CTRF-ANTENNA-CC-MJ-MK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: M(UHF/PL259) Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

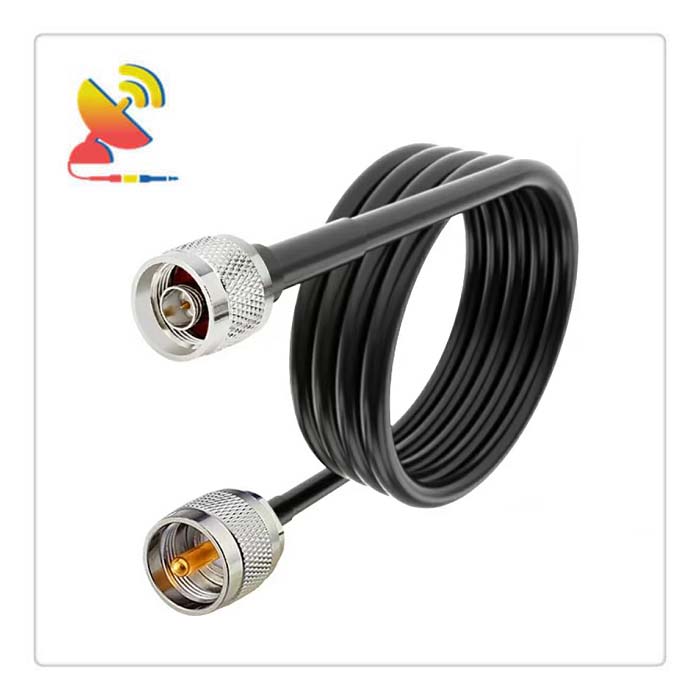

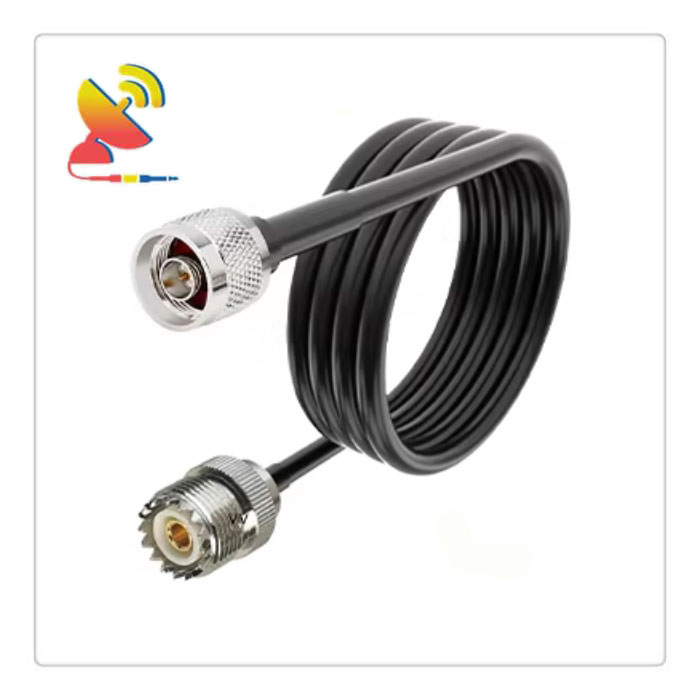

Item: CTRF-ANTENNA-CC-NJ-MK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: M(UHF/PL259) Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

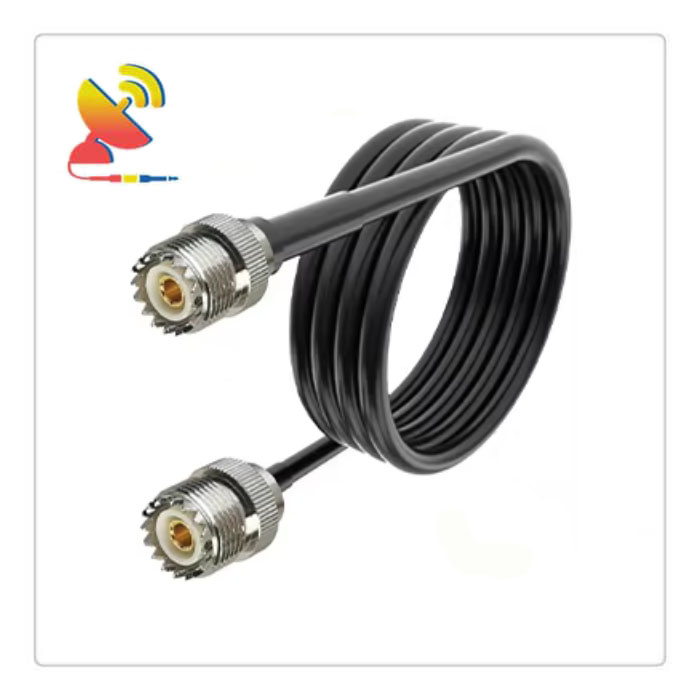

Item: CTRF-ANTENNA-CC-MK-MK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: M(UHF/PL259) Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

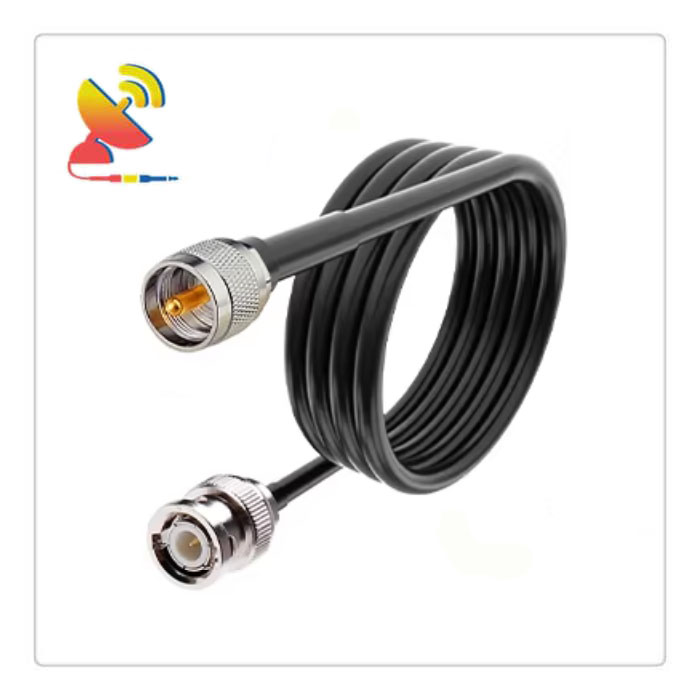

Item: CTRF-ANTENNA-CC-M-BNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: BNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-M-BNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: BNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

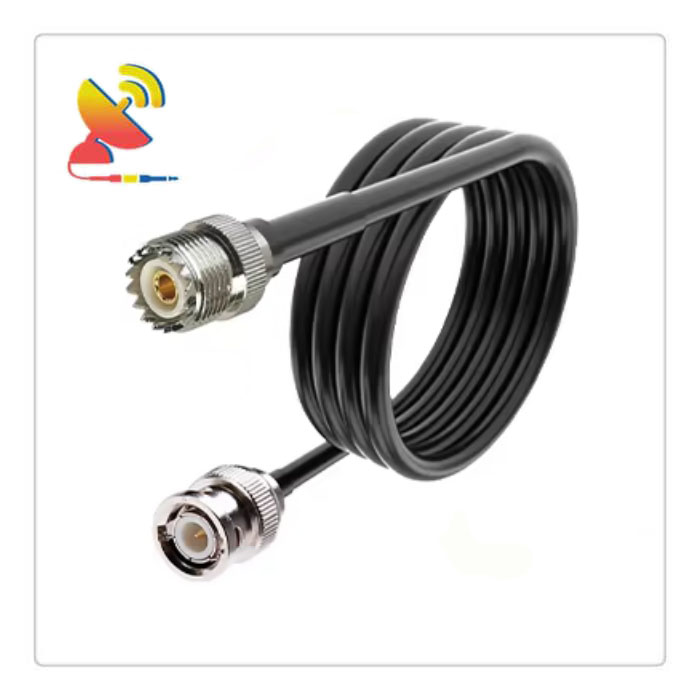

Item: CTRF-ANTENNA-CC-MK-BNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: BNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

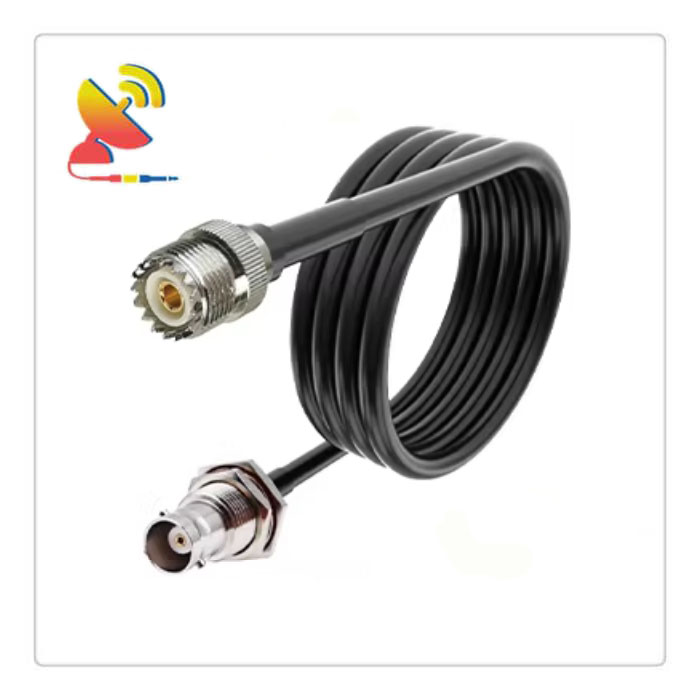

Item: CTRF-ANTENNA-CC-MK-BNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: BNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

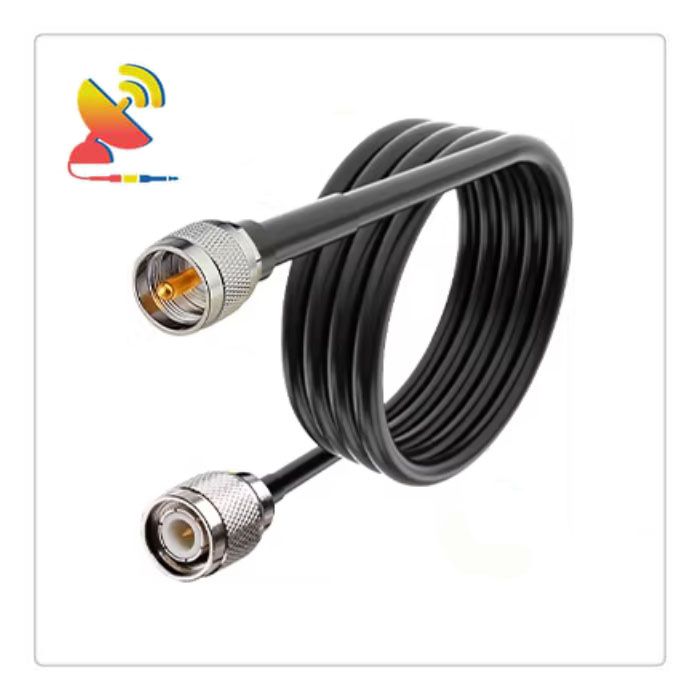

Item: CTRF-ANTENNA-CC-M-TNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: TNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-M-TNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Male
Connector 2: TNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

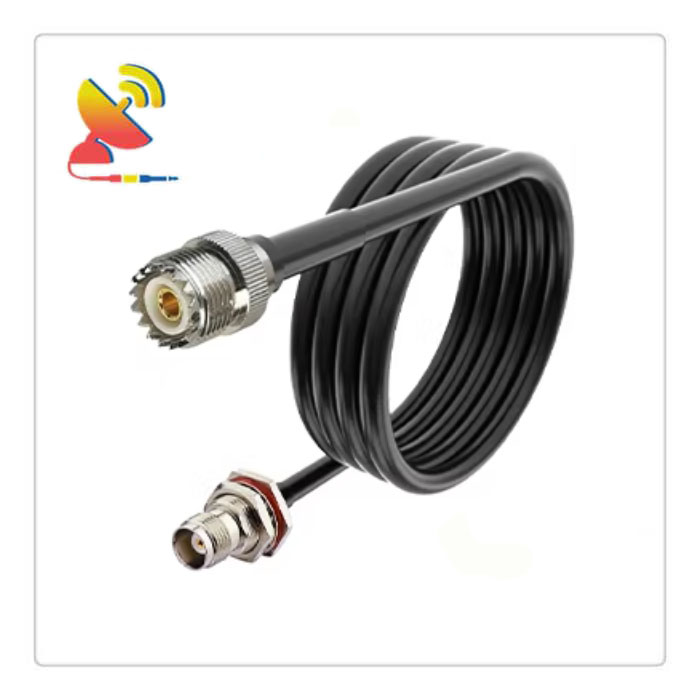

Item: CTRF-ANTENNA-CC-MK-TNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: TNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-MK-TNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: M(UHF/PL259) Female
Connector 2: TNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-SMA-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

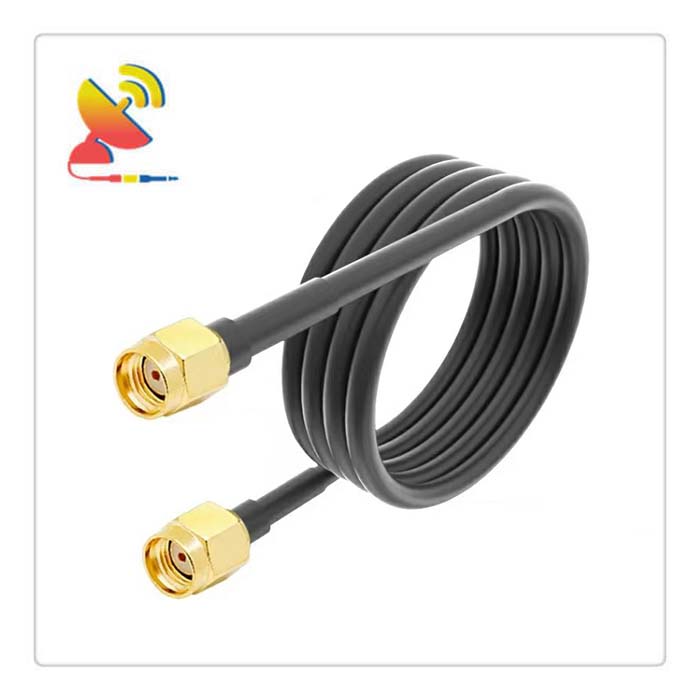

Item: CTRF-ANTENNA-CC-RPSMA-RPSMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: RP-SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

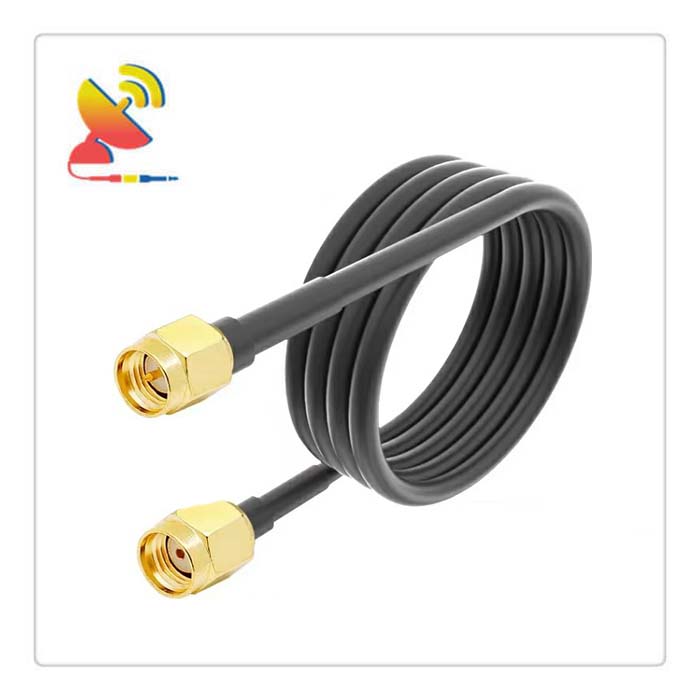

Item: CTRF-ANTENNA-CC-SMA-RPSMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: RP-SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

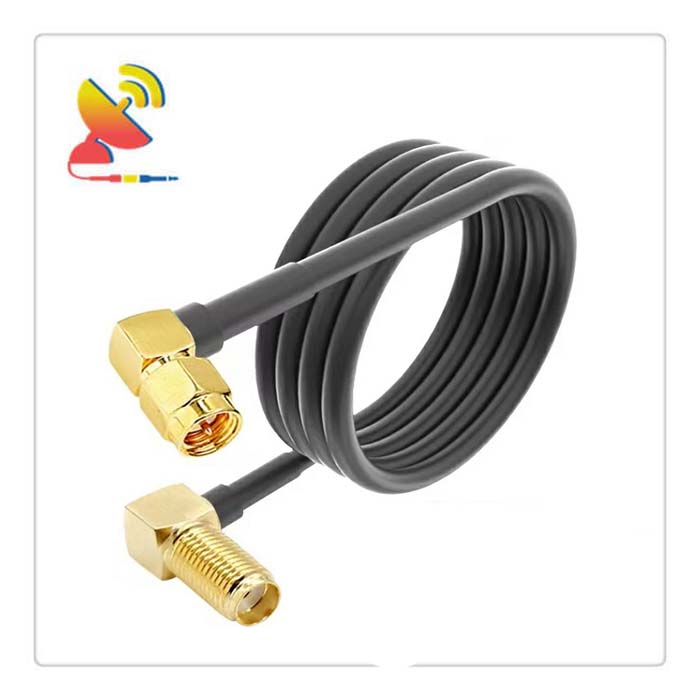

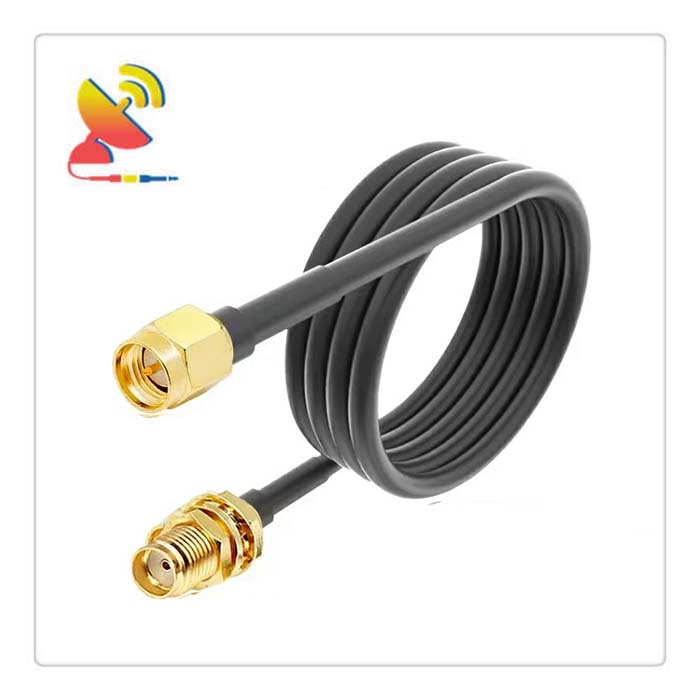

Item: CTRF-ANTENNA-CC-SMA-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-RPSMA-RPSMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: RP-SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

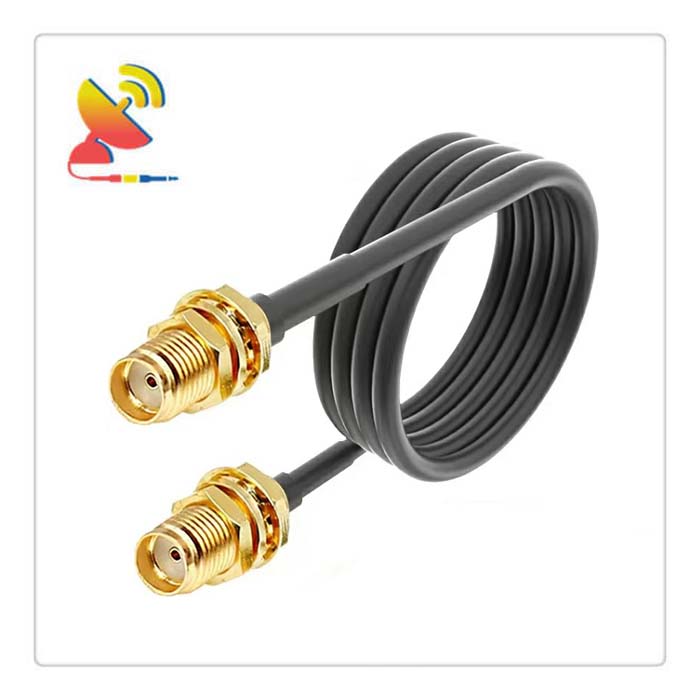

Item: CTRF-ANTENNA-CC-SMAK-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

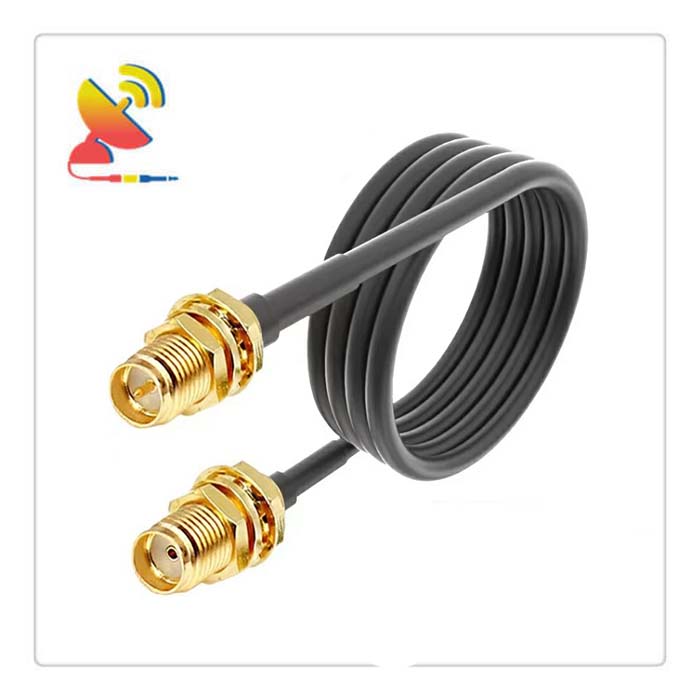

Item: CTRF-ANTENNA-CC-RPSMAK-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Female
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

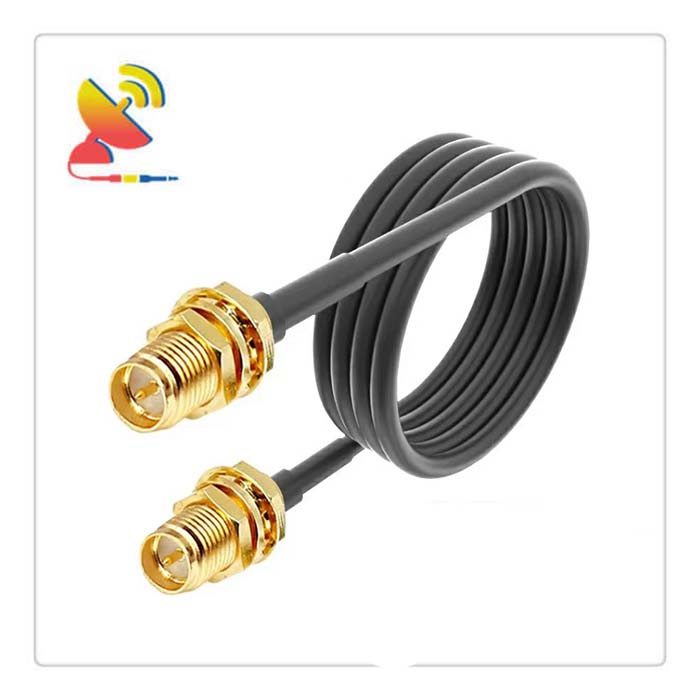

Item: CTRF-ANTENNA-CC-RPSMAK-RPSMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Female
Connector 2: RP-SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

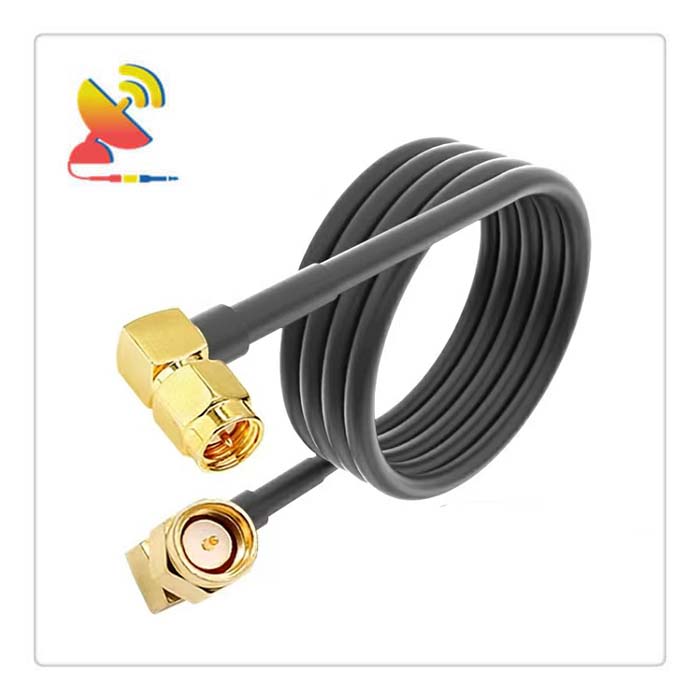

Item: CTRF-ANTENNA-CC-SMAW-SMAW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male Right-Angle
Connector 2: SMA Male Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-RPSMAW-SMAW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male Right-Angle
Connector 2: SMA Male Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

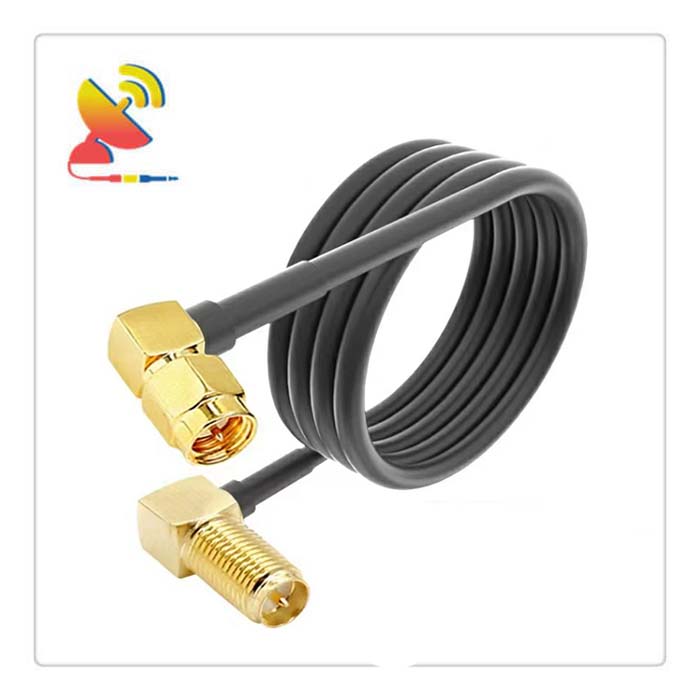

Item: CTRF-ANTENNA-CC-SMAW-RPSMAKW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male Right-Angle
Connector 2: RP-SMA Female Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-SMAW-SMAKW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male Right-Angle
Connector 2: SMA Female Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

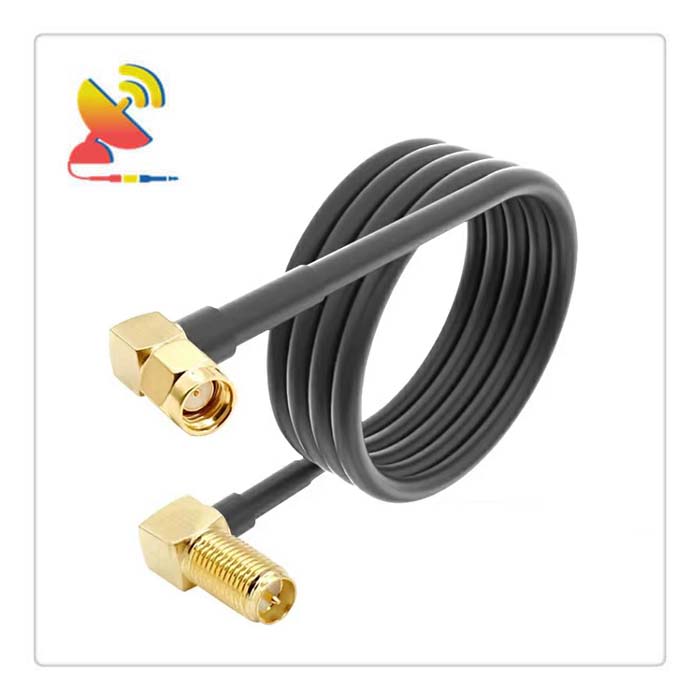

Item: CTRF-ANTENNA-CC-RPSMAW-RPSMAKW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male Right-Angle
Connector 2: RP-SMA Female Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

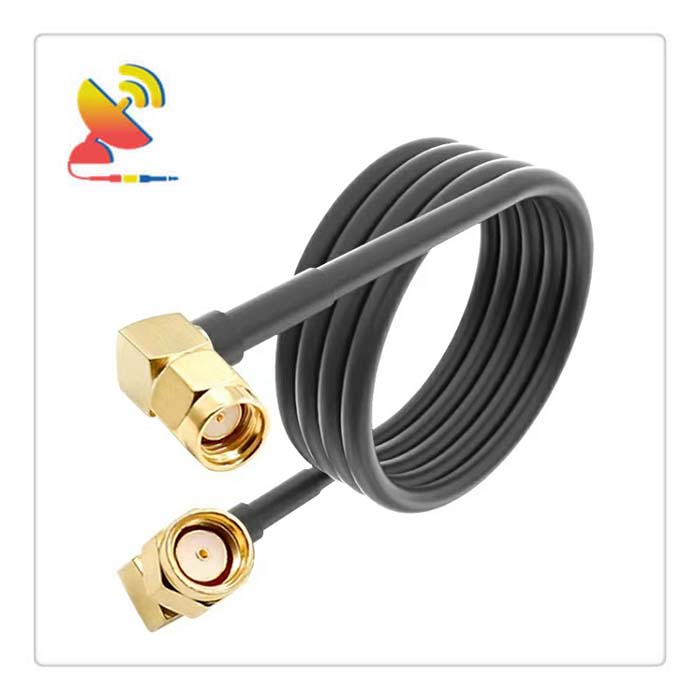

Item: CTRF-ANTENNA-CC-RPSMAW-RPSMAW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male Right-Angle
Connector 2: RP-SMA Male Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

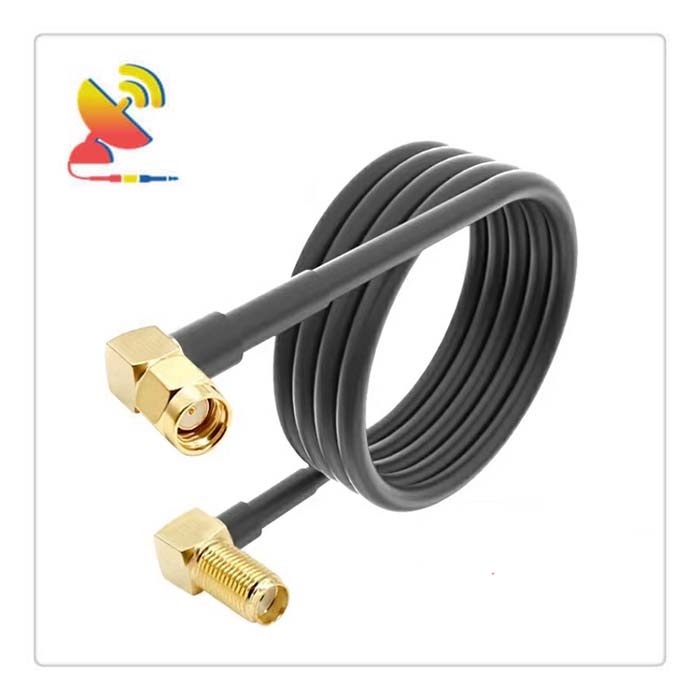

Item: CTRF-ANTENNA-CC-RPSMAW-SMAKW-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male Right-Angle
Connector 2: SMA Female Right-Angle
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

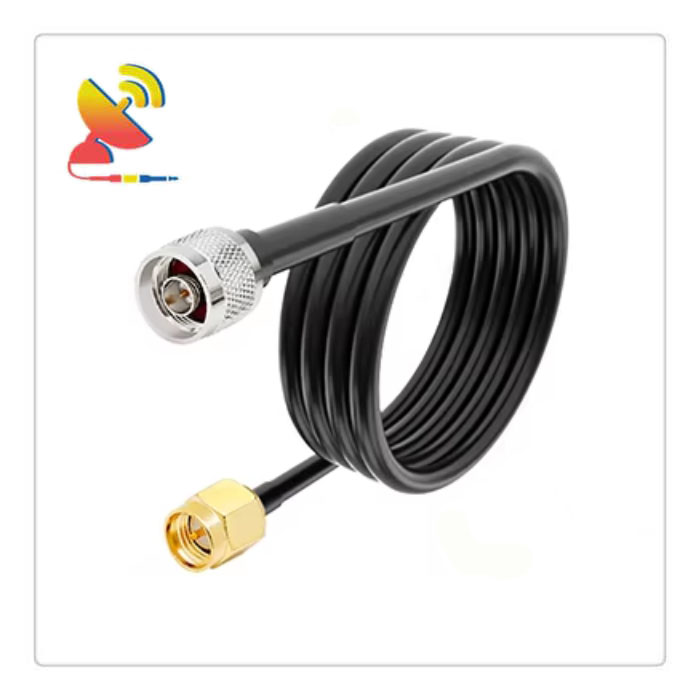

Item: CTRF-ANTENNA-CC-N-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

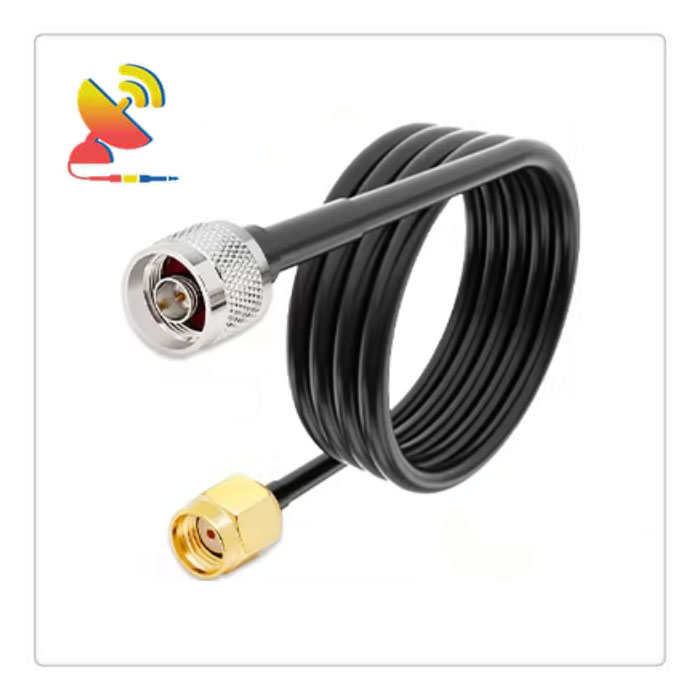

Item: CTRF-ANTENNA-CC-N-RPSMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: RP-SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-RPSMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: RP-SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

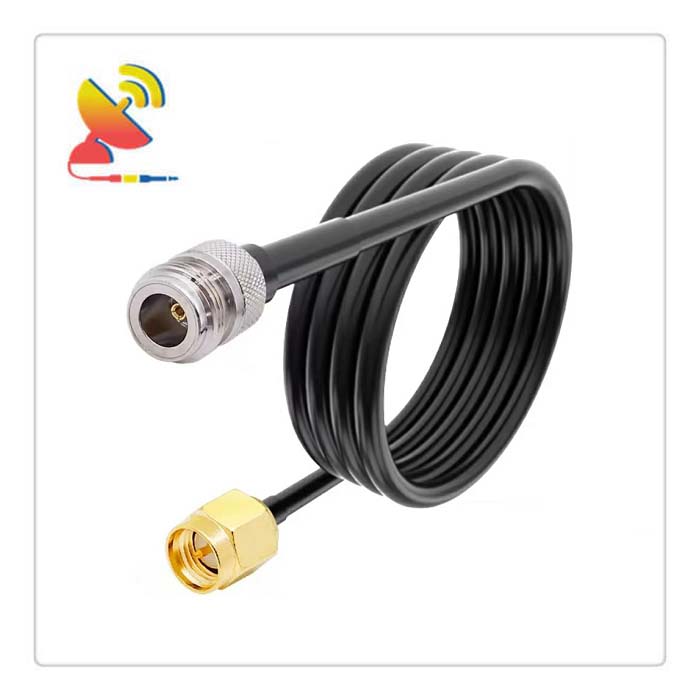

Item: CTRF-ANTENNA-CC-NK-SMA-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: SMA Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-NK-SMAK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: SMA Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

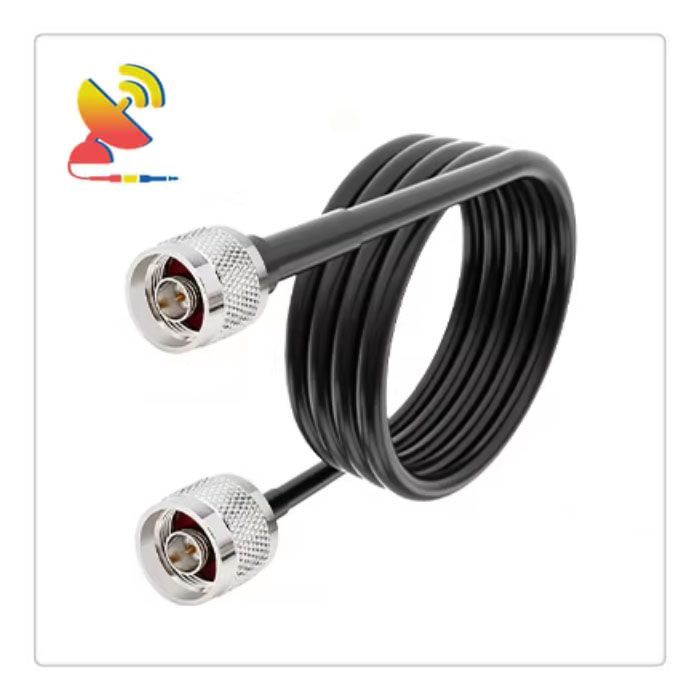

Item: CTRF-ANTENNA-CC-NJ-NJ-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: N-type Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-TNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: TNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-TNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: TNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-NK-TNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: TNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-NK-TNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: TNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

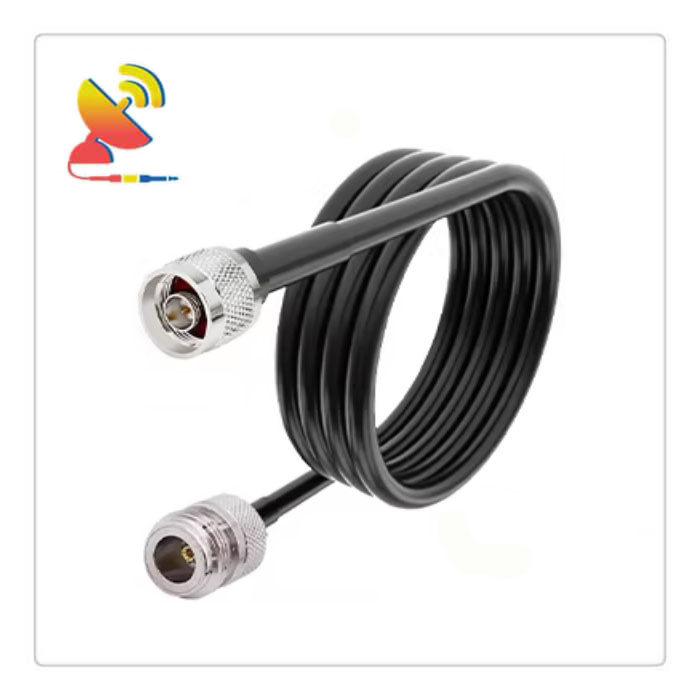

Item: CTRF-ANTENNA-CC-NJ-NK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: N-type Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

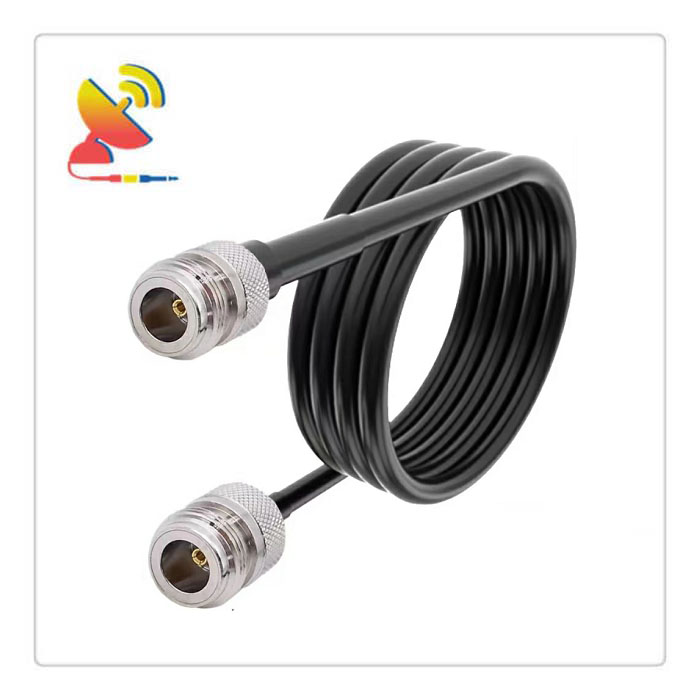

Item: CTRF-ANTENNA-CC-NK-NK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: N-type Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

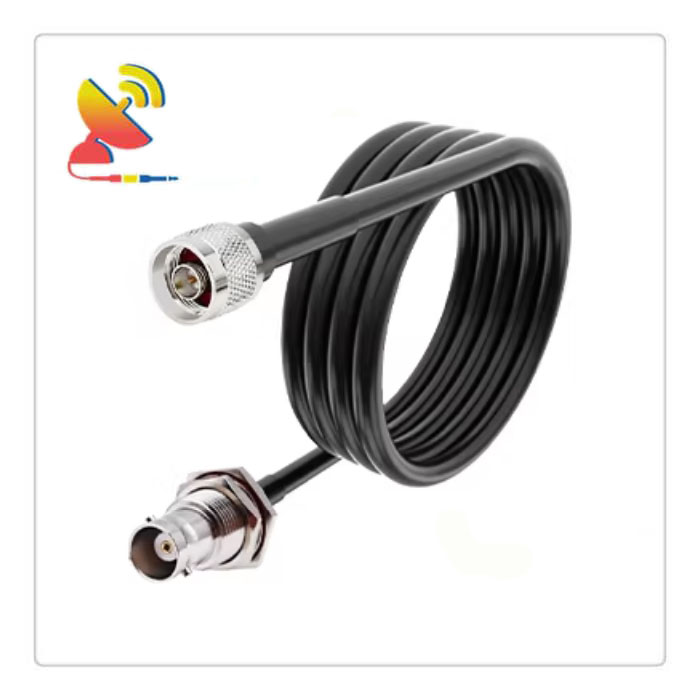

Item: CTRF-ANTENNA-CC-N-BNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: BNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-BNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: BNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

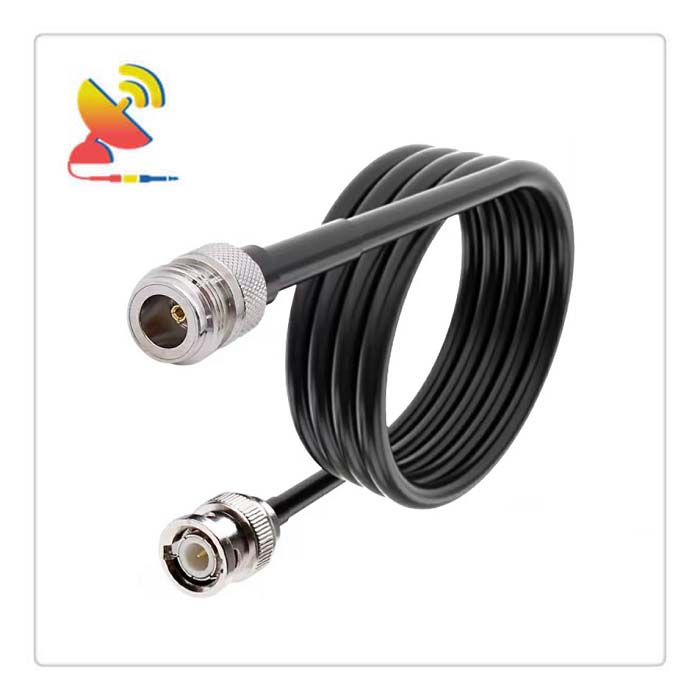

Item: CTRF-ANTENNA-CC-NK-BNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: BNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm

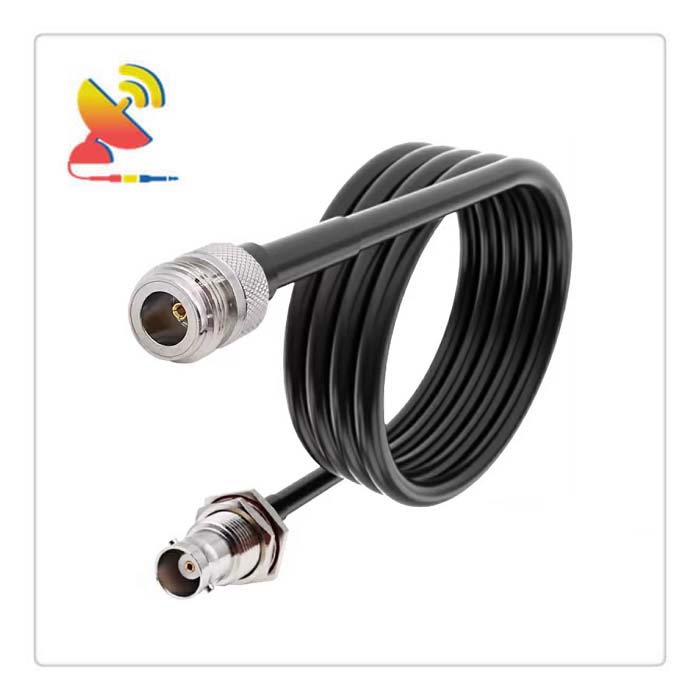

Item: CTRF-ANTENNA-CC-NK-BNCK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: BNC Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-NK-MK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: M(UHF/PL259) Female
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-UHF-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: UHF(PL259/M-type) Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-NK-UHF-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Female
Connector 2: UHF(PL259/M-type) Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-N-UHFK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Male
Connector 2: UHF(PL259/M-type) Fenale
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-NK-UHFK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-type Fenale
Connector 2: UHF(PL259/M-type) Fenale
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-UHF-UHF-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: UHF(PL259/M-type) Male
Connector 2: UHF(PL259/M-type) Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-UHF-UHFK-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: UHF(PL259/M-type) Male
Connector 2: UHF(PL259/M-type) Fenale
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
Item: CTRF-ANTENNA-CC-UHF-BNC-RG58-3M
Specifications:
Frequency: 0-6 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: UHF(PL259/M-type) Male
Connector 2: BNC Male
Cable: RG58
Cable Length: 3m (1m, 2m, 5m, 10m, 15m, 20m, 30m, or customized)
Cable Diameter: 4.95mm
In addition to RG coax cables, C&T RF Antennas Inc. also offers RF coax cable assemblies and RF antennas. Such as external rubber duck antennas, adhesive mount antennas, magnetic antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
