C&T RF Antennas Inc. manufactures a series of high-performance WiFi sector antennas. The outdoor directional antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on high-performance WiFi sectoral antennas, including the Wi-Fi sector antenna datasheet, pricing, and inventory.
Or other indoor-outdoor single-band & dual-band WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

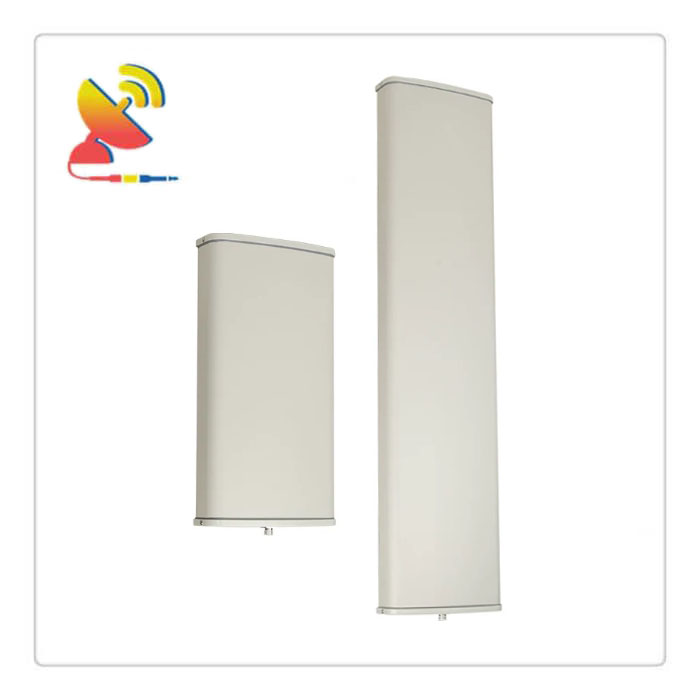

The high-performance WiFi sector antennas are RF element directional antennas that operate in the 2.4 GHz and 5 GHz (5.8 GHz) single/dual bands. The outdoor directional sectoral antennas are manufactured by C&T RF Antennas Inc. for outdoor base station WLAN applications.
If other frequencies need to be customized, contact our team to make it happen.
Besides the High-Performance WiFi Sector Antennas, C&T RF Antennas Inc. also provides the 1.4 GHz Sector Antennas, GSM Sector Antennas, LoRa Sector Antennas, LTE Sector Antennas, and 4G 5G Sector Antennas for your choice.
C&T RF Antennas Inc. provides a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for any more specs you need.
Long-range signal transmission
Low-loss pure copper connectors
Waterproof and dustproof antenna housing
For outdoor use
Long service life
etc.
The high-performance WiFi sector antennas are used for WiFi, Bluetooth, Cameras, video transmission, and wireless ISM applications. etc.
The high-performance Wi-Fi sectoral antennas come in different types. They are coming with single-band or dual-band WiFi antennas for selection.

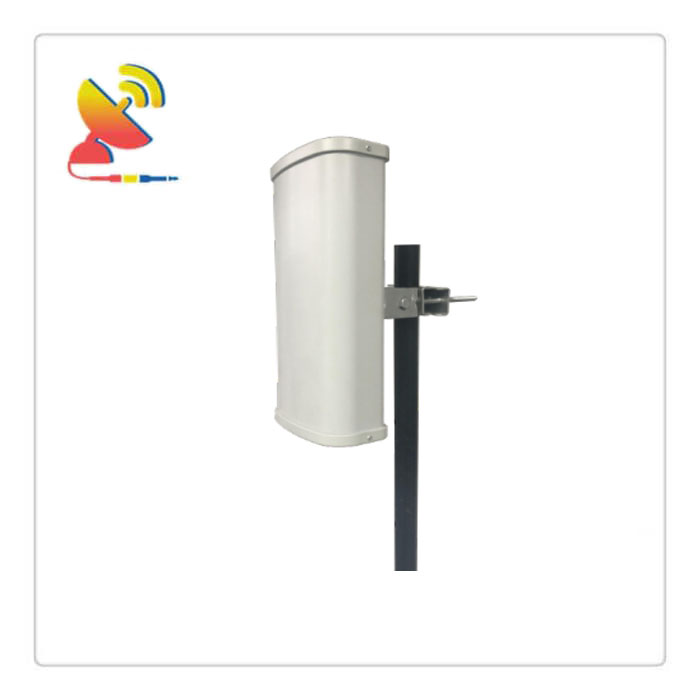

Item: CTRF-ANTENNA-BTS-2450-12DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 2400-2500 MHz
Gain: 12dBi
Horizontal Beam Width: 120°±10°
Vertical Beam Width: 20°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: Vertical/Horizontal
Dimension(High): Φ350mm

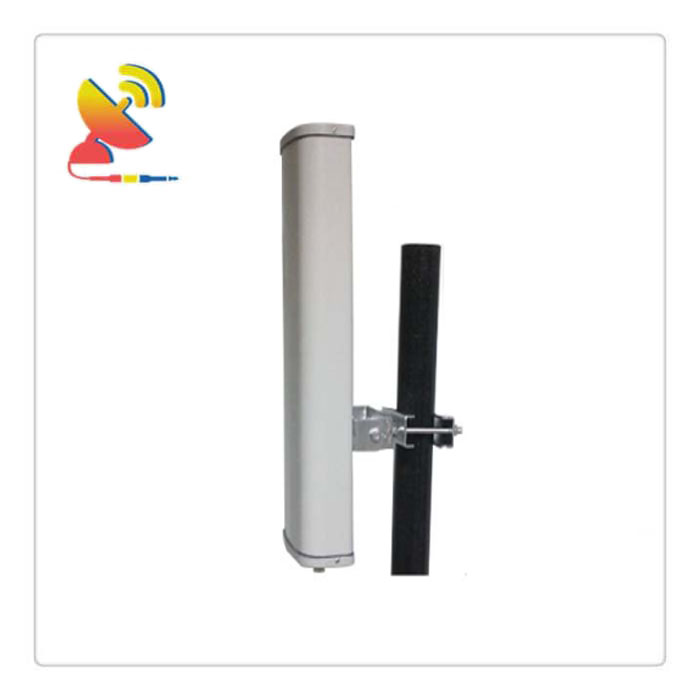

Item: CTRF-ANTENNA-BTS-2450-14DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 2400-2500 MHz
Gain: 14dBi
Horizontal Beam Width: 120°±10°
Vertical Beam Width: 15°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: Vertical/Horizontal
Dimension(High): Φ450mm
Item: CTRF-ANTENNA-BTS-2450-16DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 2400-2500 MHz
Gain: 16dBi
Horizontal Beam Width: 120°±10°
Vertical Beam Width: 12°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: Vertical/Horizontal
Dimension(High): Φ600mm
Item: CTRF-ANTENNA-BTS-2450-17DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 2400-2500 MHz
Gain: 17dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 10°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: 45°
Dimension(High): Φ800mm

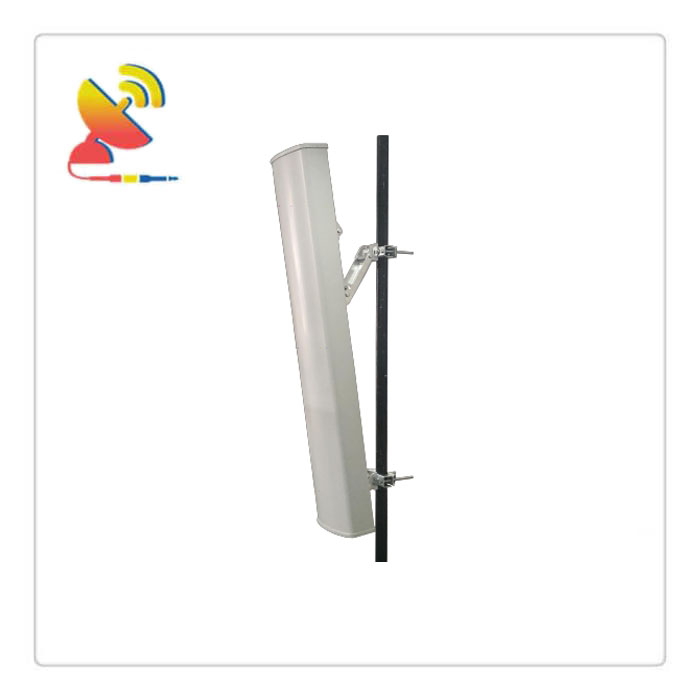

Item: CTRF-ANTENNA-BTS-5158-16DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 5150-5800 MHz
Gain: 16dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 15°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *1
Dimension(High): Φ400mm
Item: CTRF-ANTENNA-BTS-5158-19DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 5150-5800 MHz
Gain: 19dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 9°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: Vertical/Horizontal
Dimension(High): Φ800mm

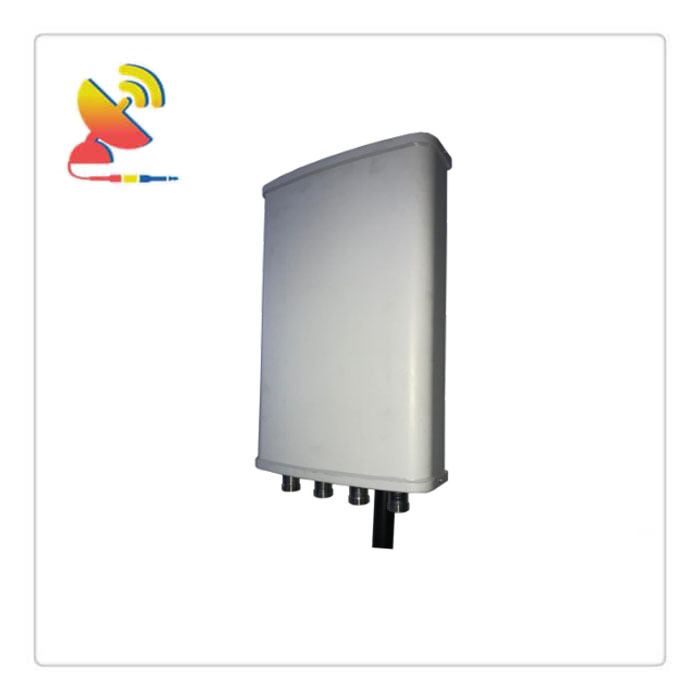

Item: CTRF-ANTENNA-BTS-5158-16DBVD-4NK
Specifications:
Material: Plastic/UPVC
Frequency range: 5150-5800 MHz
Gain: 16dBi
Horizontal Beam Width: 90°±10°
Vertical Beam Width: 12°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *4
Polarization: 45°
Dimension(High): Φ500mm

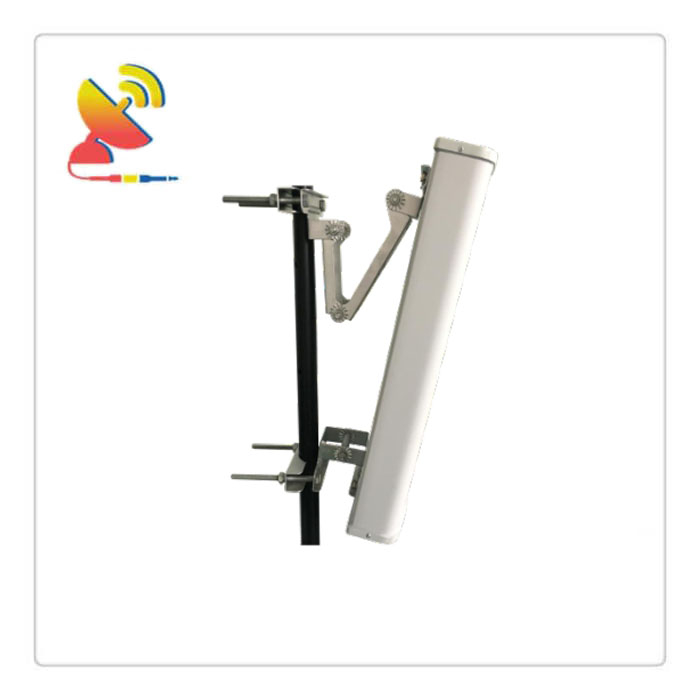

Item: CTRF-ANTENNA-BTS-2458-16/18DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 2400-2500 MHz, 5150-5800 MHz
Gain: 16/18dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 9°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: Vertical
Dimension(High): Φ800mm
Item: CTRF-ANTENNA-BTS-2458-16/18DBVD-4NK
Specifications:
Material: Plastic/UPVC
Frequency range: 2400-2500 MHz, 5150-5800 MHz
Gain: 16/18dBi
Horizontal Beam Width: 90°±10°
Vertical Beam Width: 10°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *4
Polarization: 45°/Vertical+Horizontal
Dimension(High): Φ1000mm
Besides the sector antennas, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas, etc. Contact us for more specs you need.
