C&T RF Antennas Inc. manufactures a series of high-performance LTE 4G 5G sector antennas. The outdoor directional antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on high-performance 4G LTE 5G NR sectoral antennas, including the LTE 4G 5G sector antennas’ datasheet, pricing, and inventory.
Or other indoor-outdoor LTE NR antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

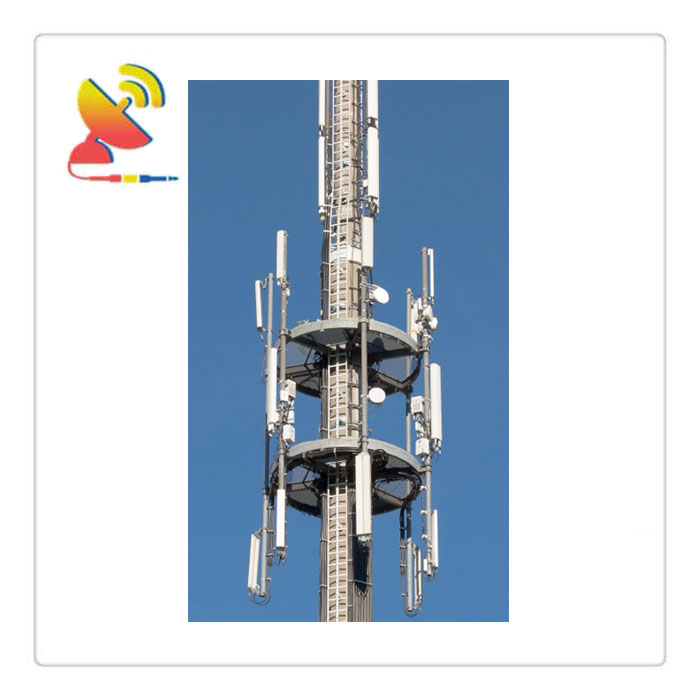

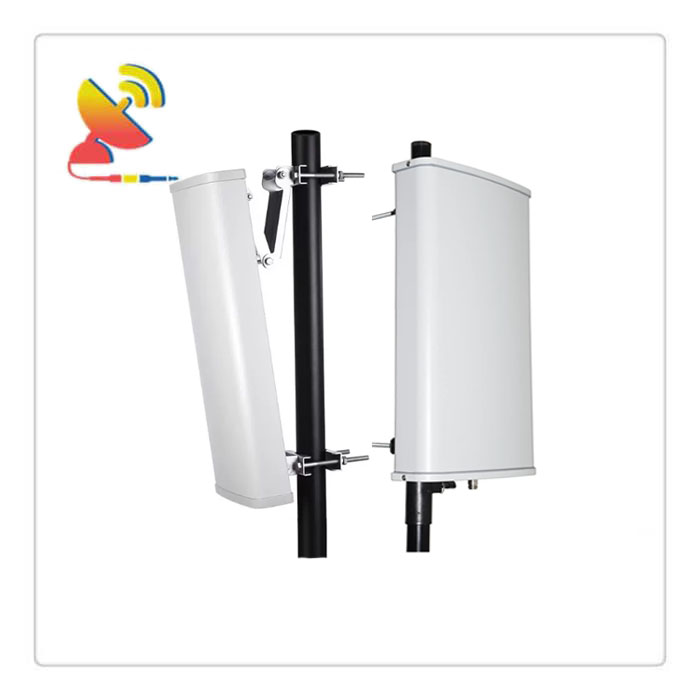

The high-performance 4G 5G sector antennas are RF element directional antennas that operate in the 2G 3G 4G 5G bands. The outdoor directional sectoral antennas are manufactured by C&T RF Antennas Inc. for outdoor base station cellular wireless network applications.
If other frequencies need to be customized, contact our team to make it happen.
Besides the High-Performance 4G 5G Sector Antennas, C&T RF Antennas Inc. also provides the 1.4 GHz Sector Antennas, GSM Sector Antennas, LoRa Sector Antennas, LTE Sector Antennas, and WiFi Sector Antennas for your choice.
C&T RF Antennas Inc. provides a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for any more specs you need.
Wide frequency band
Extensive coverage
Long transmission range
High corrosion resistance
Good sealing
Waterproof and dustproof
Stable operation
etc.
The high-performance WiFi sector antennas are used for 2G 3G 4G 5G cellular LTE, CBRS, and new radio wireless applications. etc.
The high-performance 4G LTE 5G NR sectoral antennas come in different types. They are coming with many styles for selection.
Item: CTRF-ANTENNA-BTS-8037-8/12DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 806-960MHz, 1700-2700MHz, 3300-3700MHz
Gain: 8/12dBi
Horizontal Beam Width: 60°±10°
Vertical Beam Width: 32°32°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *1
Polarization: Vertical
Dimension(High): Φ450mm

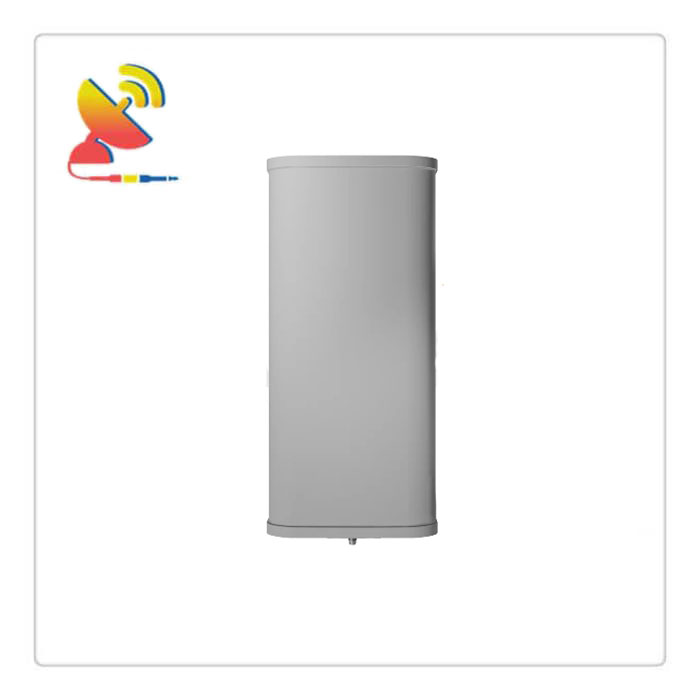

Item: CTRF-ANTENNA-BTS-3337-15DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 3300-3700MHz
Gain: 15dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 17°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *1
Polarization: Vertical
Dimension(High): Φ450mm
Item: CTRF-ANTENNA-BTS-1737-12/15DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 1700-2700MHz, 3300-3700MHz
Gain: 12/15dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 32°/17°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *1
Polarization: Vertical
Dimension(High): Φ450mm

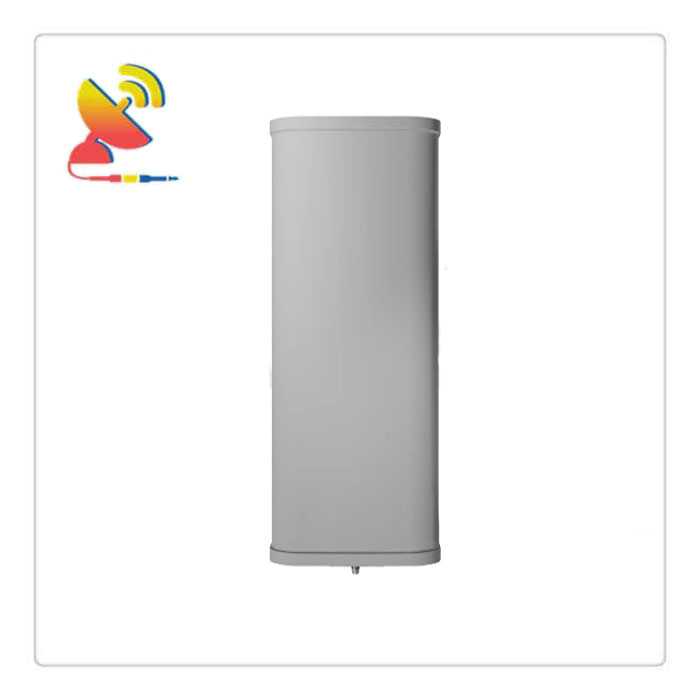

Item: CTRF-ANTENNA-BTS-1737-17DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 3300-3700MHz
Gain: 15/17dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 17°/9°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *1
Polarization: Vertical
Dimension(High): Φ650mm
Item: CTRF-ANTENNA-BTS-3337-17DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 3300-3700MHz
Gain: 17dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 9°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *1
Polarization: Vertical
Dimension(High): Φ650mm

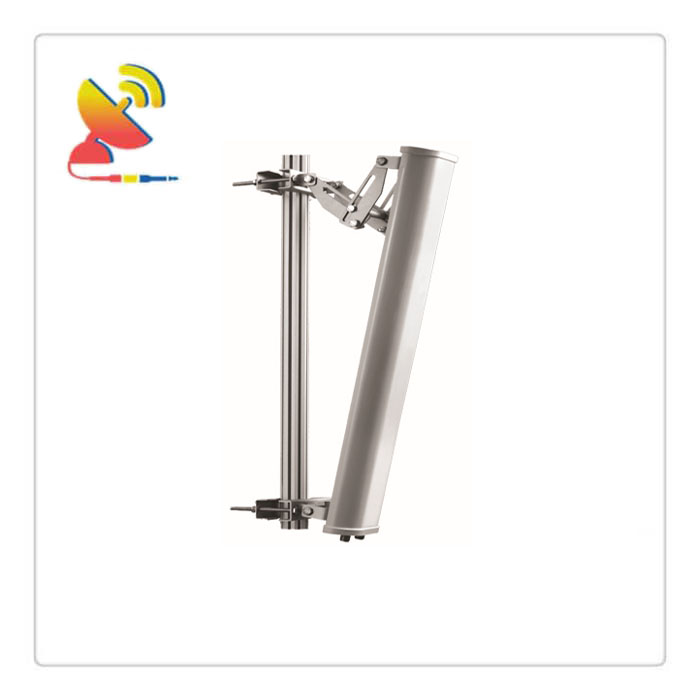

Item: CTRF-ANTENNA-BTS-1737-10/12DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 1700-2700MHz, 3300-3700MHz
Gain: 10/12dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 32°/17°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: Vertical
Dimension(High): Φ320mm

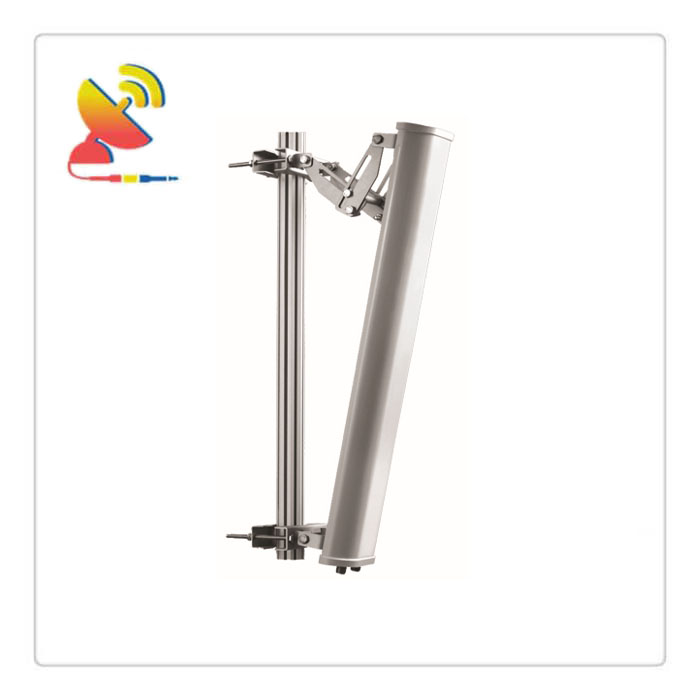

Item: CTRF-ANTENNA-BTS-7038-10/14DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 698-960MHz, 1710-2700MHz, 3300-3800MHz
Gain: 10/14/14dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 25°/16°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *2
Polarization: 45°
Dimension(High): Φ650mm

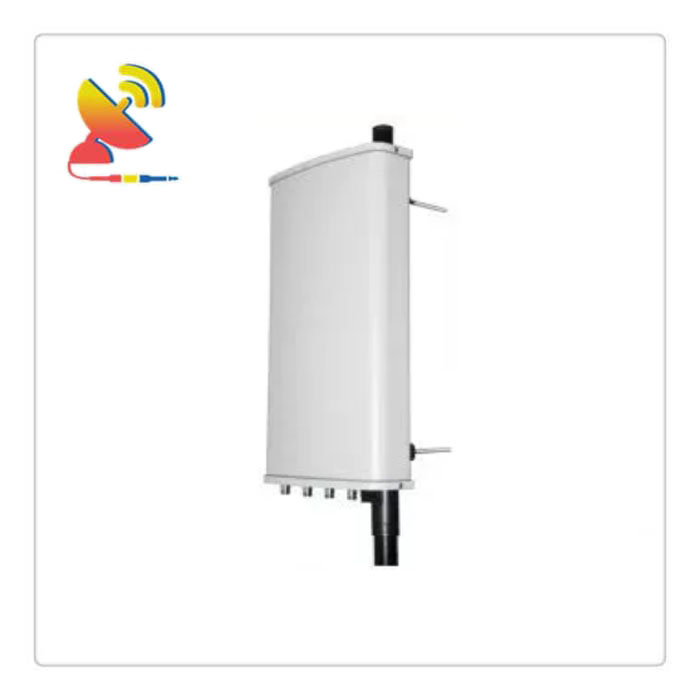

Item: CTRF-ANTENNA-BTS-3338-15DBVD-4NK
Specifications:
Material: Plastic/UPVC
Frequency range: 3300-3600MHz
Gain: 15dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 9°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Connector: N-K *4
Polarization: 45°
Dimension(High): Φ600mm
Besides the sector antennas, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, magnetic antennas, through-hole screw mount puck antennas. And Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas, etc. Contact us for any more specs you need.
