C&T RF Antennas Inc. manufactures a series of high-performance 433MHz/868MHz/915MHz LoRa sector antennas. The outdoor directional antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on high-performance LoRa sector antennas, including the 433MHz/868MHz/915MHz sectoral antenna datasheet, pricing, and inventory.
Or other indoor-outdoor 433MHz/868MHz/915MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

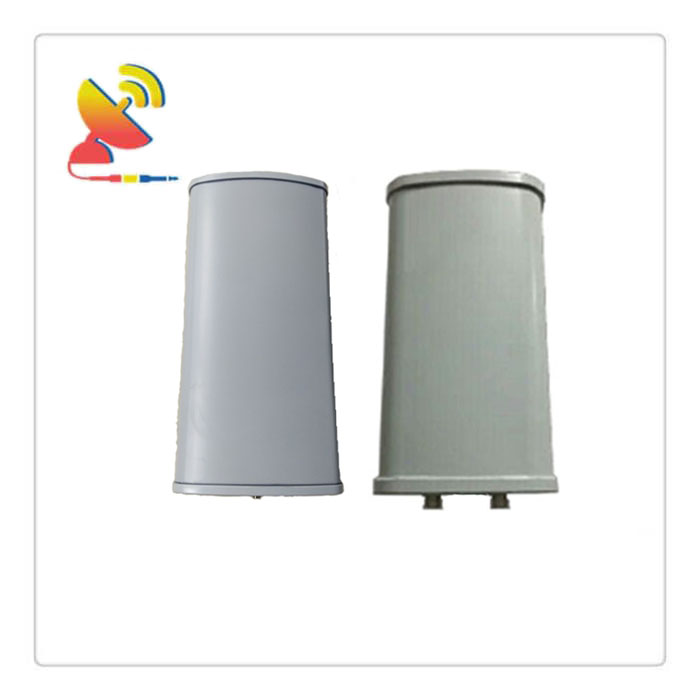

The high-performance LoRa sector antennas are directional RF elements that operate in the LoRa band. C&T RF Antennas Inc. manufactures the outdoor directional sectoral antennas for LoRa 433 MHz, 868MHz, 915 MHz band applications.
The listed high-performance LoRa sector antennas come with Single-Polarized and Dual-Polarized for choice. If other frequencies need to be customized, contact our team to make it happen.
Besides the High-Performance LoRa Sector Antennas, C&T RF Antennas Inc. also provides the WiFi Sector Antennas, GSM Sector Antennas, LTE Sector Antennas, and 4G 5G Sector Antennas for your choice.
C&T RF Antennas Inc. provides a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for any more specs you need.
The antenna housing is made of a highly durable material that will not crack and offers excellent stability
The antenna design allows for easy installation
Manufactured to exacting standards using high-quality testing equipment
Products undergo rigorous testing
Complies with production standards
etc.
The high-performance LoRa sector antennas are used for outdoor and long-range applications. They are suitable for 433MHz/868 MHz/900MHz/915MHz LoRa ISM bands.
The high-performance LoRa sectoral antennas have two different types of antennas. They are Single-Polarised and Dual-Polarised antennas for selection.

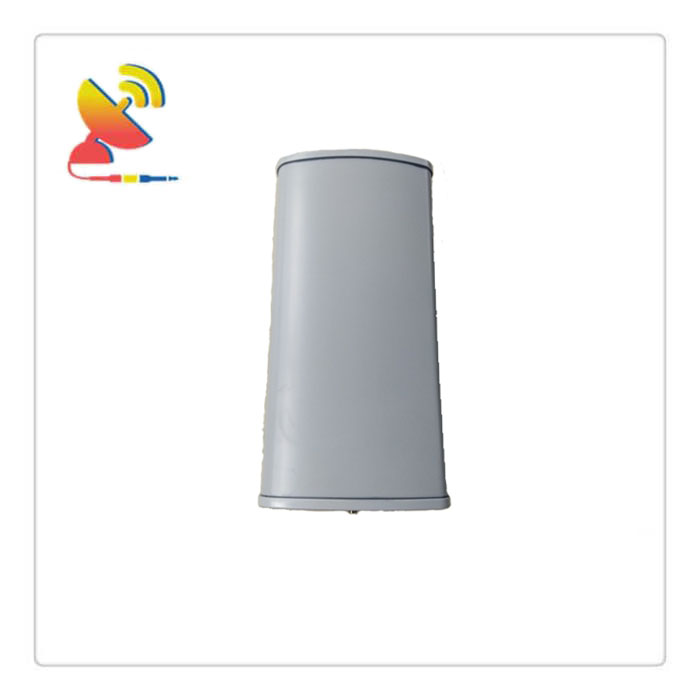

Item: CTRF-ANTENNA-BS-0433-6DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 433 MHz
Gain: 6dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 70°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *1
Dimension(High): Φ400mm

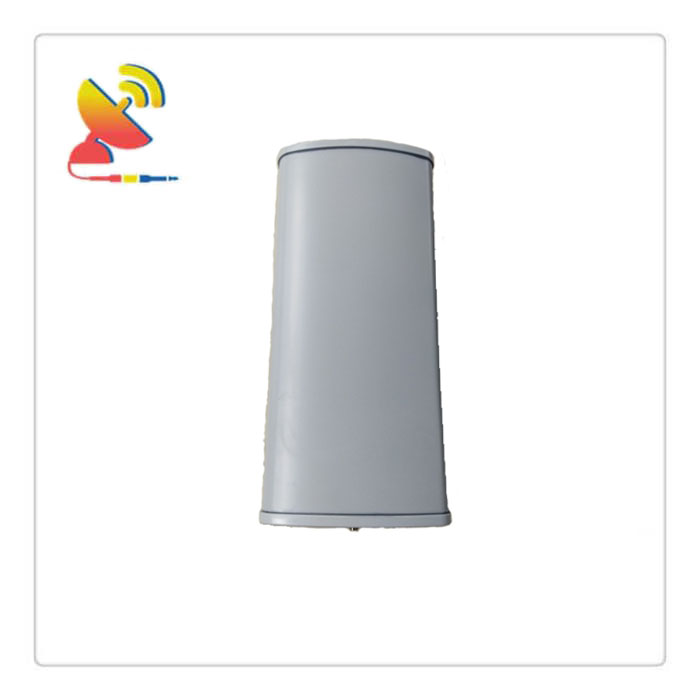

Item: CTRF-ANTENNA-BS-0433-8DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 433 MHz
Gain: 8dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 65°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *1
Dimension(High): Φ600mm

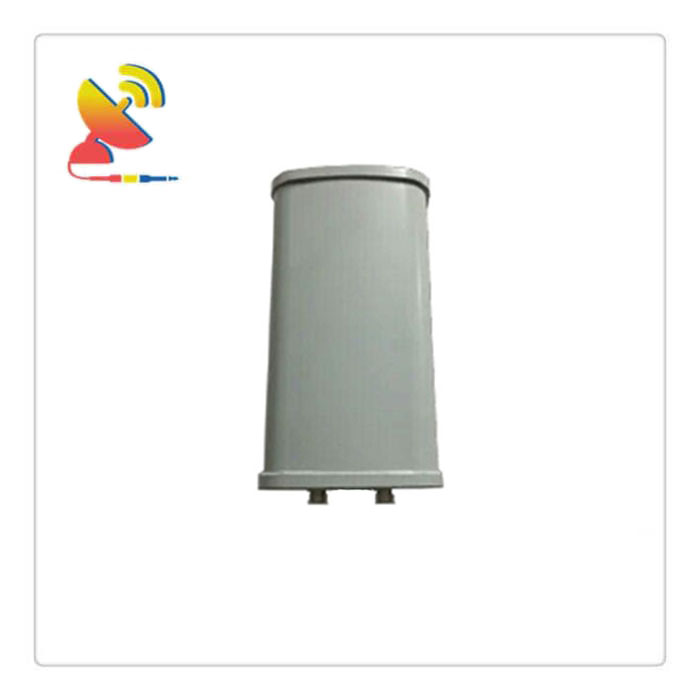

Item: CTRF-ANTENNA-BS-0433-6DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 433 MHz
Gain: 6dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 70°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *2
Dimension(High): Φ400mm
Item: CTRF-ANTENNA-BS-0433-8DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 433 MHz
Gain: 8dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 65°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *2
Dimension(High): Φ600mm
Item: CTRF-ANTENNA-BS-0868-10DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 868 MHz
Gain: 10dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 35°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *1
Dimension(High): Φ600mm
Item: CTRF-ANTENNA-BS-0900-10DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 900 MHz
Gain: 10dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 35°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *1
Dimension(High): Φ600mm
Item: CTRF-ANTENNA-BS-0915-10DBVS-1NK
Specifications:
Material: Plastic/UPVC
Frequency range: 915 MHz
Gain: 10dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 35°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *1
Dimension(High): Φ600mm
Item: CTRF-ANTENNA-BS-0868-10DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 868 MHz
Gain: 10dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 35°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *2
Dimension(High): Φ600mm
Item: CTRF-ANTENNA-BS-0900-10DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 900 MHz
Gain: 10dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 35°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *2
Dimension(High): Φ600mm

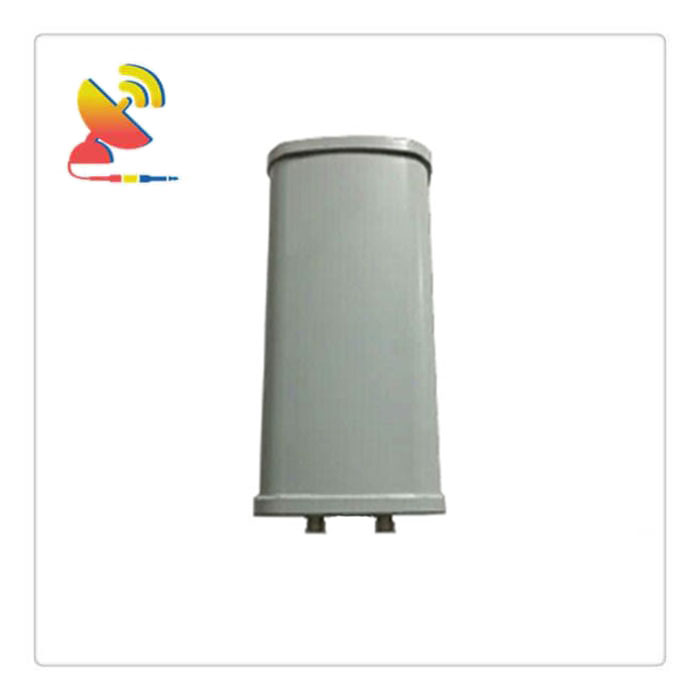

Item: CTRF-ANTENNA-BS-0915-10DBVD-2NK
Specifications:
Material: Plastic/UPVC
Frequency range: 915 MHz
Gain: 10dBi
Horizontal Beam Width: 65°±10°
Vertical Beam Width: 35°±5°
V.S.W.R:≤2.0
Radiation pattern: Directional
Polarization: Vertical
Connector: N-K *2
Dimension(High): Φ600mm
Besides the sector antennas, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas, etc. Contact us for more specs you need.
