Monopole Antennas

What are monopole antennas?

A monopole antenna is an antenna with only one polarization, usually with horizontal or vertical polarization direction.

When transmitting and receiving signals, a unipolarized antenna requires the use of two antennas, one for horizontal signal transmission and the other for vertical signal transmission.

Monopole antennas have a relatively simple structure, usually consisting of a single conductor, are capable of omnidirectional radiation, and exhibit broadband characteristics in a wide range of communication systems and frequency bands.

Monopole antennas have an important role in radio communications. They can provide good signal reception quality and effectively suppress interference from other directions, thereby improving system performance.

In addition, monopole antennas can be used in a variety of application scenarios such as search and tracking, positioning, navigation, etc., including radio broadcasting, radios, televisions, wireless networks, cellular telephones, cordless telephones, and so on.

Since monopole antennas have good unidirectionality, they can effectively suppress interference from other directions and improve the system’s transmit power and signal transmission quality.

In terms of application scenarios, monopole antennas can be used for both indoor and outdoor installation. They can be installed on roofs, walls, windows, and other locations, adapting to different environmental requirements.

Monopole antenna transmission and reception methods

A monopole antenna usually requires two antennas for transmitting and receiving signals, one for horizontal signal transmission and the other for vertical direction. This design allows the antenna to be more specialized when dealing with signals in the polarized direction.

Monopole antenna signal coverage

Signal coverage is another key measure of antenna performance. In open areas, monopole antennas, especially vertically polarized designs, tend to provide better coverage performance because the direction of the signal perpendicular to the ground better matches the reception state of most mobile devices.

Monopole antenna space requirements and maintenance

Considering from a space and maintenance point of view, a monopole antenna requires more space and maintenance work because it needs to install two independent antennas. Regular inspections and calibrations are essential to ensure communication stability.

Monopole antenna performance enhancements

Antenna selection is especially important in areas where wide coverage and overcoming signal fading are required, such as suburban or rural areas. While monopole antennas may show better performance in some situations, the difference in performance gains between dual-polarized and monopole antennas is not significant in most real-world applications.

Monopole antenna applications

Consumer electronics

Home electronics such as wireless routers, Bluetooth devices, etc. usually only require unipolar antennas as they are sufficient for the communication needs of the average home or small office.

Basic communication systems

Some simple wireless communication systems, such as walkie-talkies and some industrial remote control devices, also mainly use monopole antennas because they usually only need basic communication functions.

Monopole antenna structure design

These antennas have a simple structure and are mainly used to receive and transmit signals of a single polarization. Because of their simple structure, they are usually small and easy to install, especially suitable for use in environments with limited space.

What are the types of monopole antennas?

Monopole antennas include rubber duck antennas, PCB antennas, flexible PCB antennas, patch antennas, through-hole mount antennas, glass fiber antennas, panel antennas, sector antennas, Yagi antennas, Grid antennas, etc.

Who manufactures monopole antennas?

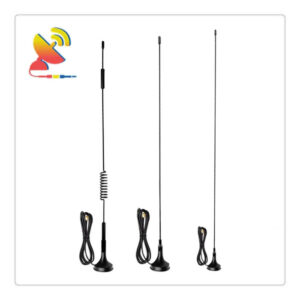

C&T RF Antennas Inc. manufactures many types of indoor-outdoor monopole antennas for your choice. Contact us for off-the-shelf monopole antennas or design customizations.
