C&T RF Antennas Inc. manufactures a series of passive GNSS antennas, magnetic GPS antennas. The external passive GPS/GNSS dome/puck antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance passive GNSS GPS magnetic mount antennas, including the antenna datasheet, pricing, and inventory.
Or other indoor-outdoor active & passive GNSS/GPS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

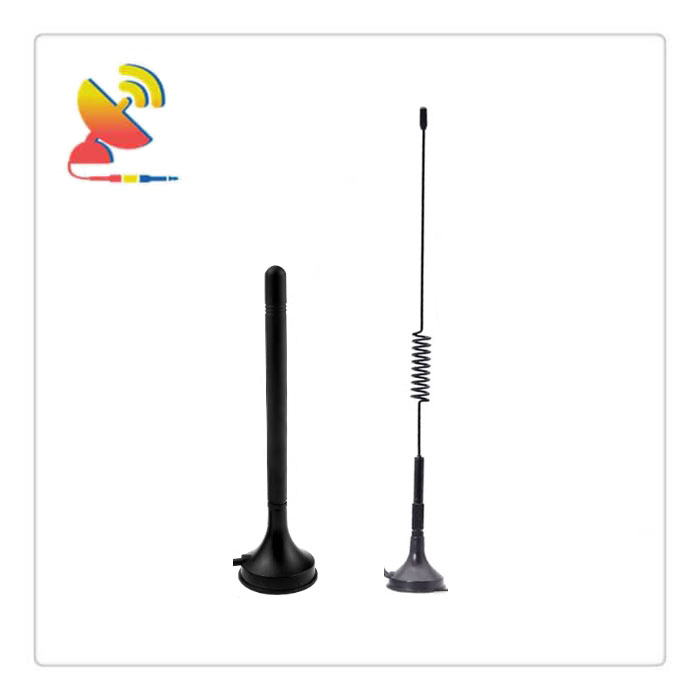

The high-performance magnetic GPS antennas are passive magnetic base mount antennas with GPS/GNSS/Beidou/Glonass/Galileo multi-band whip antennas manufactured by C&T RF Antennas Inc. for positioning/tracking devices.
The high-performance magnetic GPS antennas are used for the following four main band applications.
1. Beidou: 1589.742MHz/1561.098MHz/1268.52MHz/1207.14MHz
2. GPS: 1575.42MHz/1227.60MHz/1176.45MHz
3. Galileo: 1575.42MHz/1191.795MHz/1176.45MHz/1207.14MHz/1278.75MHz
4. Glonass: 1602MHz/1246MHz/1202MHz
Besides the High-Performance Magnetic GPS Antennas, the Magnetic VHF Antennas, 315MHz Magnetic Mount Antennas, 868 MHz Magnetic Base Antennas, 915 MHz Magnet Mount Antennas, Magnetic WiFi Antennas, LTE 5G Mag Mount Antennas, NB-IoT 4G Magnetic Antennas, Magnetic Mount UHF Antennas, and ISM/LoRa Magnetic Whip Antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
C&T RF Antennas Inc. provides high-performance magnetic GPS antennas. Below are some of the passive GPS/GNSS magnetic mount antennas.

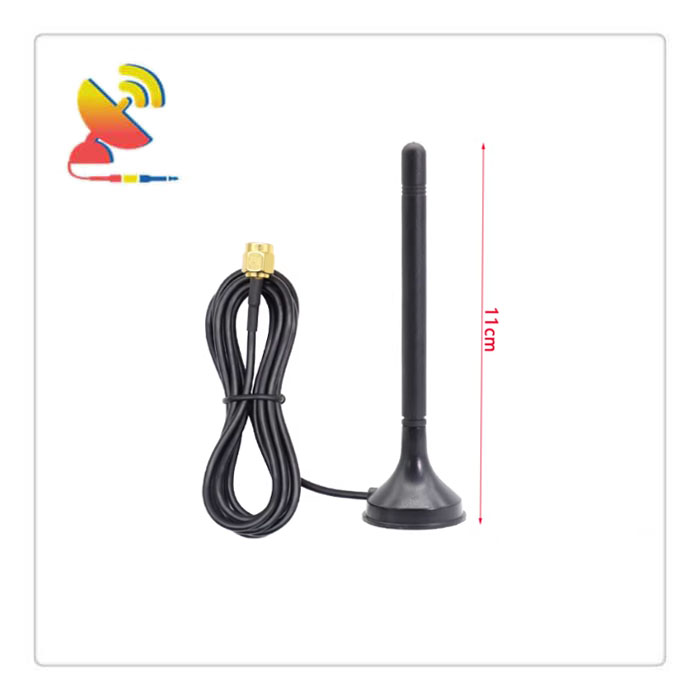

Item: CTRF-ANTENNA-MG-GNSS-30110-SMA
Specifications:
Material: ABS
Frequency: 1176.45-1602MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x110mm
Mounting: Magnetic Base

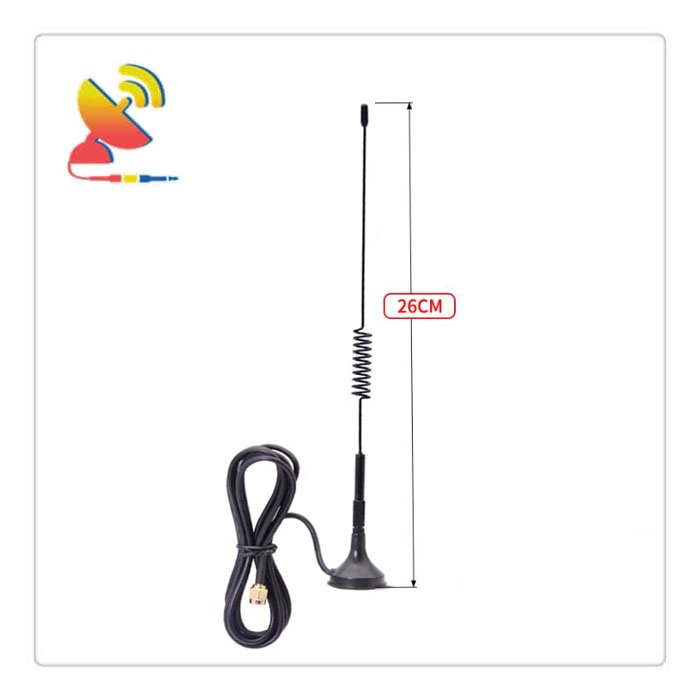

Item: CTRF-ANTENNA-MG-GPS-30260-SMA
Specifications:
Material: ABS
Frequency: 1572.42 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x260mm
Mounting: Magnetic Base

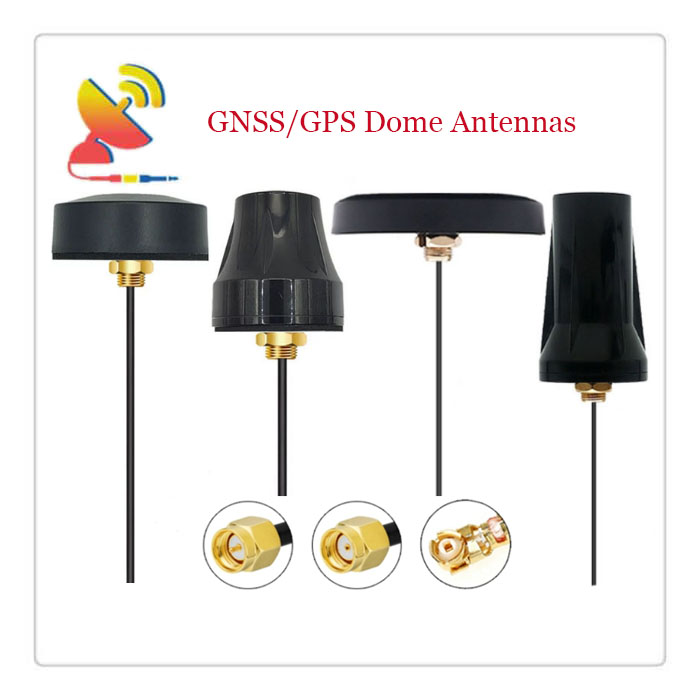

Besides the magnetic antennas, C&T RF Antennas Inc. also offers GNSS/GPS antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
