C&T RF Antennas Inc. manufactures a range of high-performance magnetic WiFi antennas for all Wi-Fi, Bluetooth/Sigfox/Zigbee/ISM applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance magnetic WiFi antennas, including the antenna datasheet, pricing information, and inventory availability for magnetic WiFi antennas.
Or other internal-external WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

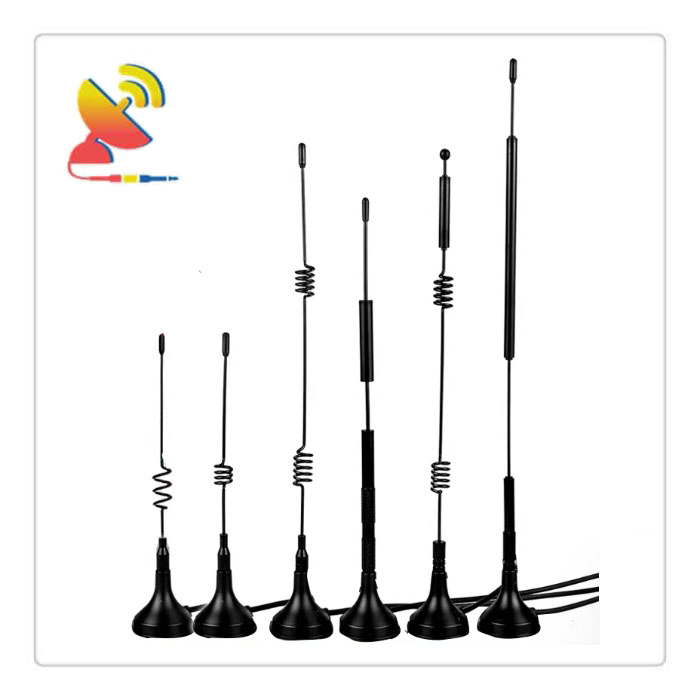

The high-performance magnetic WiFi antennas are mag mount whip antennas with 2.4 GHz single-band and 2.4/5GHz dual-band Wi-Fi antennas designed for all wireless LNA applications. The magnetic WiFi antennas manufactured by C&T RF Antennas Inc. are suitable for WiFi, Bluetooth, Zigbee, Sigfox, and ISM applications.
The high-performance magnetic WiFi antennas have 30mm and 60mm magnet base mounts for choice. They have standard SMA connectors, low-loss RF cable extensions, and easy installation on the devices for WiFi/WLAN and 2.4 GHz ISM band, 5 GHz band applications such as Bluetooth® and ZigBee®.
Besides the High-Performance Magnetic WiFi Antennas, the Magnetic VHF Antennas, 315MHz Magnetic Mount Antennas, 868 MHz Magnetic Base Antennas, 915 MHz Magnet Mount Antennas, LTE 5G Mag Mount Antennas, Magnetic GPS Antennas, NB-IoT 4G Magnetic Antennas, Magnetic Mount UHF Antennas, and ISM/LoRa Magnetic Whip Antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
C&T RF Antennas Inc. provides high-performance WiFi adhesive mount antennas. Below are some examples of WiFi antenna styles.

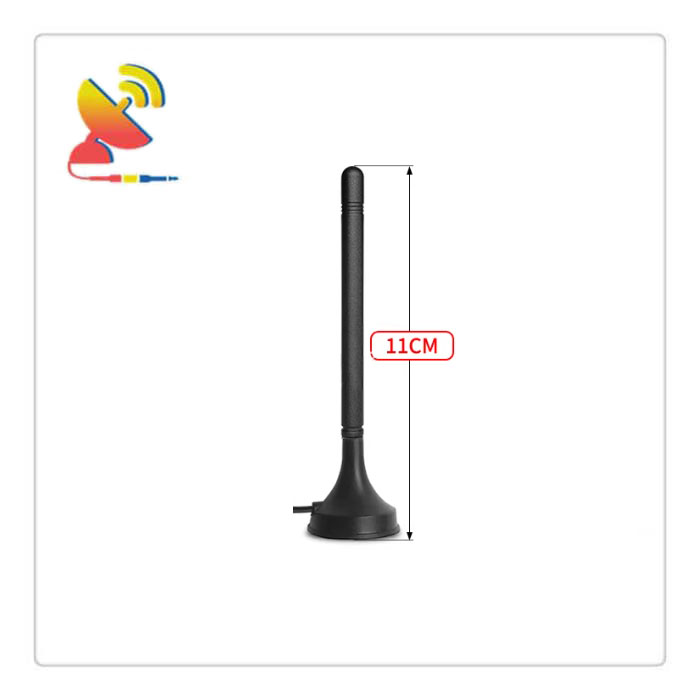

Item: CTRF-ANTENNA-MG-2450-30110-SMA
Specifications:
Material: ABS
Frequency range: 2400-2500 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x110mm
Mounting: Magnetic base

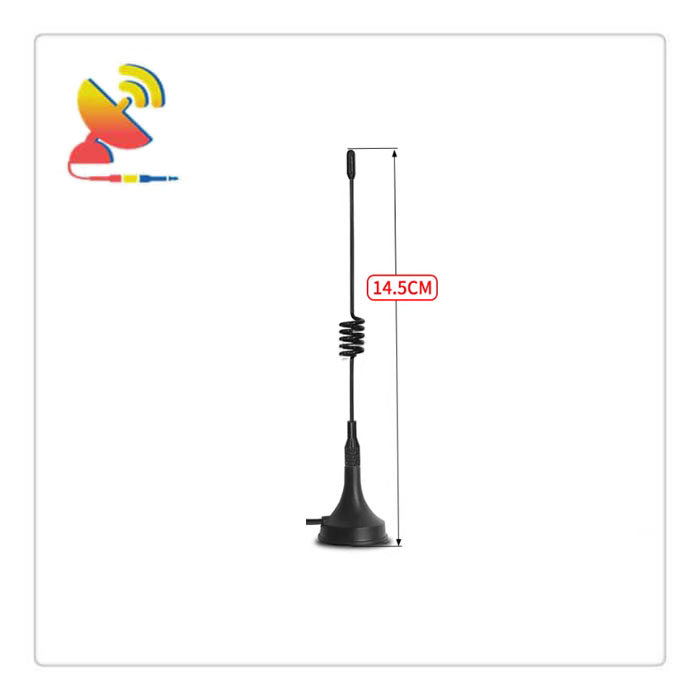

Item: CTRF-ANTENNA-MG-2450-30145-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x145mm
Mounting: Magnetic base

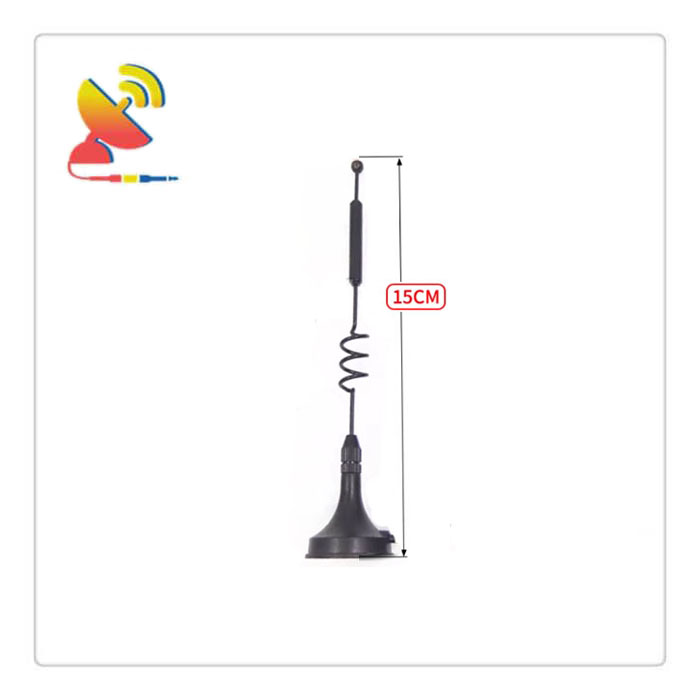

Item: CTRF-ANTENNA-MG-2450-30150-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x150mm
Mounting: Magnetic base

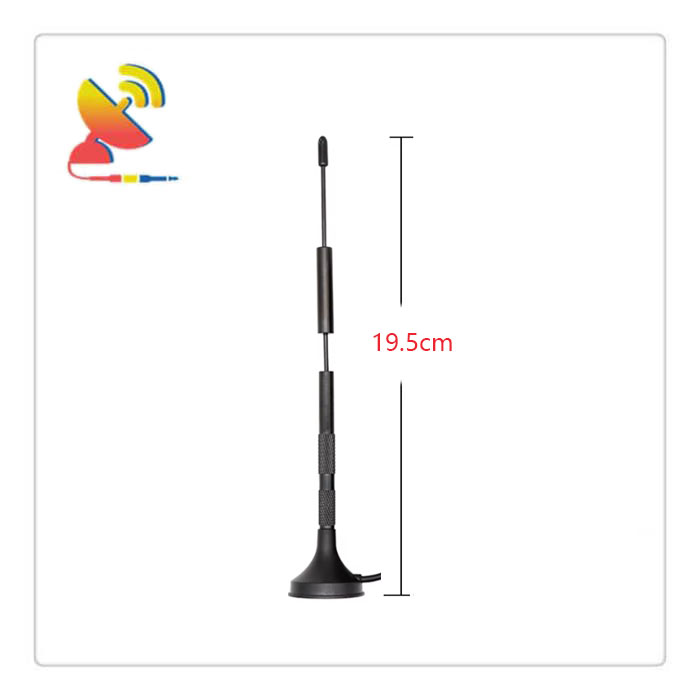

Item: CTRF-ANTENNA-MG-2450-30195-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x195mm
Mounting: Magnetic base
Item: CTRF-ANTENNA-MG-2450-30220-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x220mm
Mounting: Magnetic base

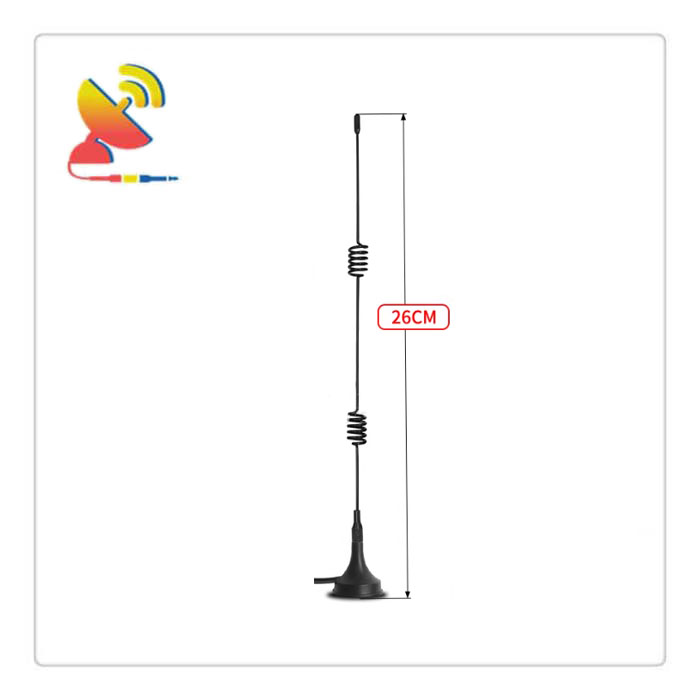

Item: CTRF-ANTENNA-MG-2450-30260-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x260mm
Mounting: Magnetic base

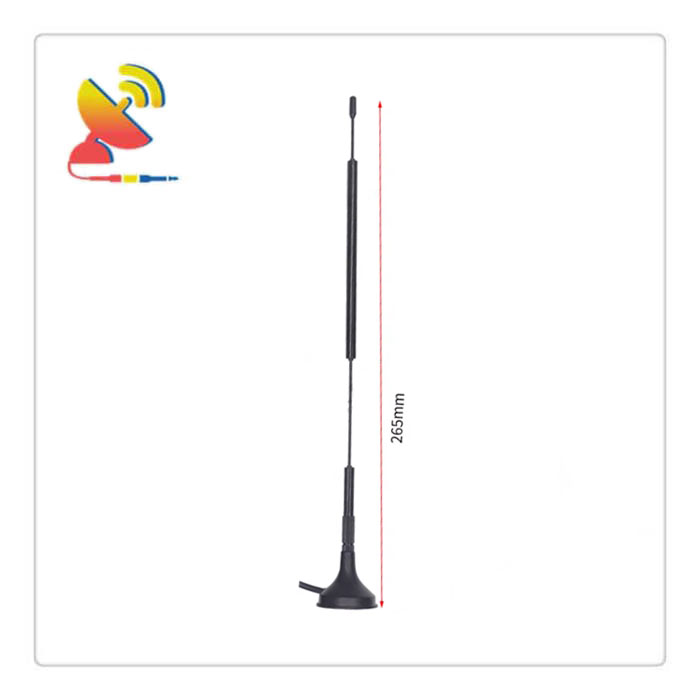

Item: CTRF-ANTENNA-MG-2450-30265-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x265mm
Mounting: Magnetic base

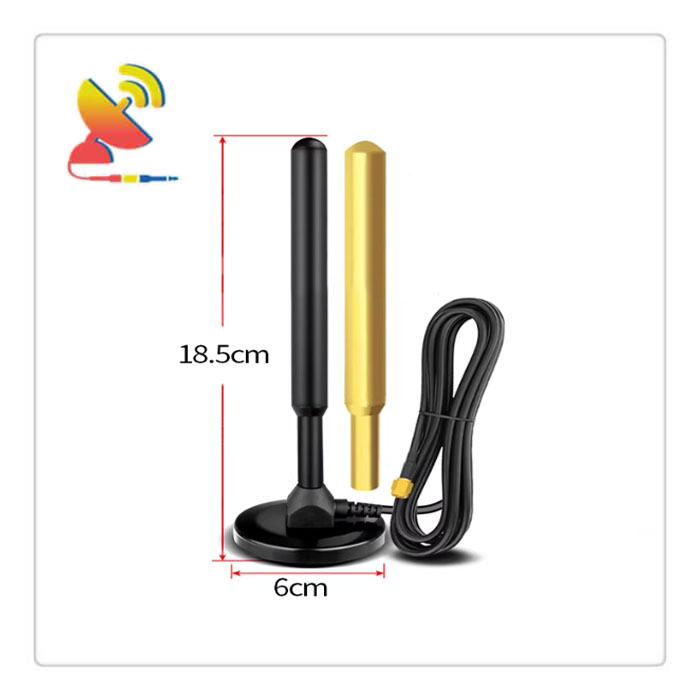

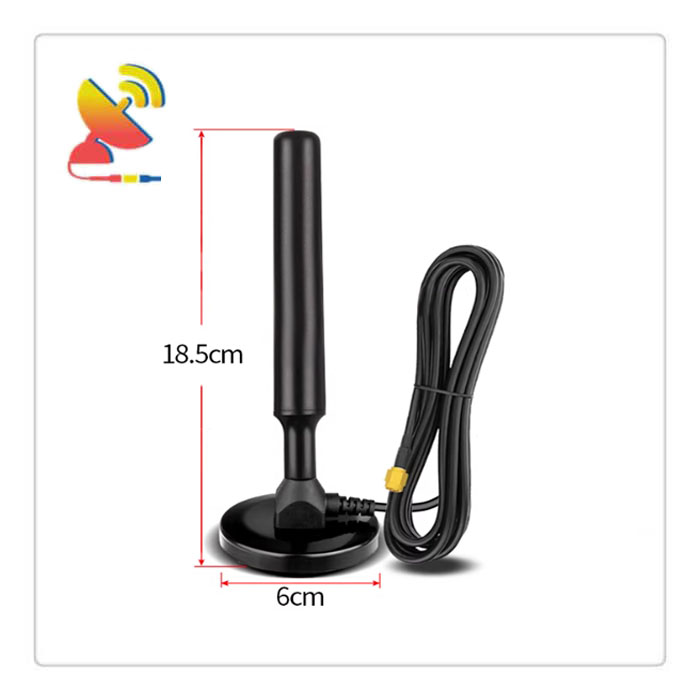

Item: CTRF-ANTENNA-MG-2450-301851-SMA
Specifications:
Material: ABS
Frequency range: 2400-2500 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Color: Black
Dimension: Φ30x185mm
Mounting: Magnetic base
Item: CTRF-ANTENNA-MG-2450-301852-SMA
Specifications:
Material: Brass
Frequency range: 2400-2500 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Color: Black
Dimension: Φ30x185mm
Mounting: Magnetic base
Item: CTRF-ANTENNA-MG-2458-30110-SMA
Specifications:
Material: ABS
Frequency range: 2400-2500 MHz, 5150-5800 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x110mm
Mounting: Magnetic base
Item: CTRF-ANTENNA-MG-2458-30195-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz, 5150-5800 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x195mm
Mounting: Magnetic base
Item: CTRF-ANTENNA-MG-2458-30220-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz, 5150-5800 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x220mm
Mounting: Magnetic base
Item: CTRF-ANTENNA-MG-2458-30260-SMA
Specifications:
Material: Spring
Frequency range: 2400-2500 MHz, 5150-5800 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ30x260mm
Mounting: Magnetic base

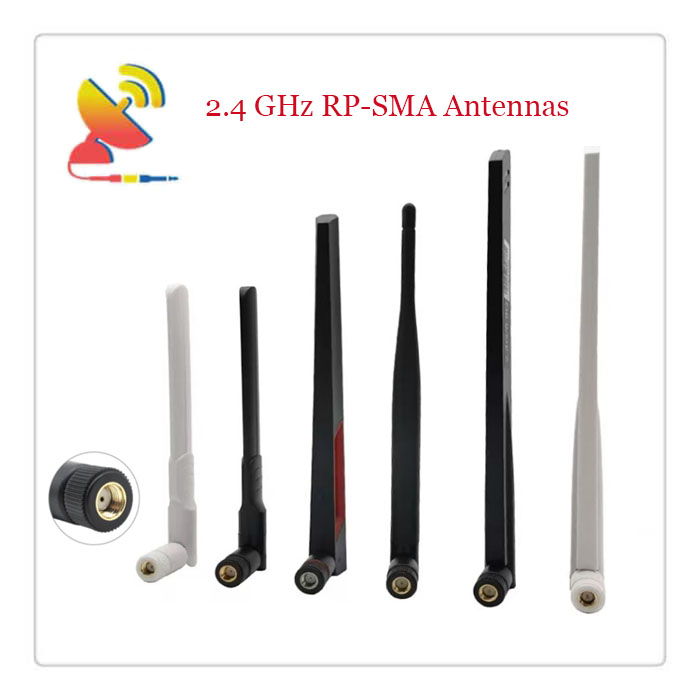

Besides the magnetic antennas, C&T RF Antennas Inc. also offers WiFi/Bluetooth antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
