High-Performance Omni 2.4 GHz Antennas

What are the High-Performance Omni 2.4 GHz Antennas?

The High-Performance Omni 2.4 GHz Antennas are omnidirectional antennas with a 2400-2483 MHz radio frequency range for external WiFi band antennas, manufactured by C&T RF Antennas Inc. for ISM applications.

Besides the High-Performance Omni 2.4 GHz Antennas, C&T RF Antennas Inc. also provides LTE 4G Omni Antennas, New 5G Omni Antennas, Omni WiFi Antennas, GSM Omni Antennas, etc., for your selection. Also, colors can be chosen: grey, white, and black; connectors can be chosen: N-type male or female.







C&T RF Antennas Inc. provides a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for any additional specs you need.





Applications of High-Performance Omni 2.4 GHz Antennas

It is suitable for devices utilising modules operating in the 2.4 GHz, Wi-Fi, Bluetooth, Zigbee, and Sigfox bands, as well as outdoor access points, base station signal coverage, Wi-Fi bridges, and wireless data transmission equipment, etc.







Types of High-Performance Omni 2.4 GHz Antennas

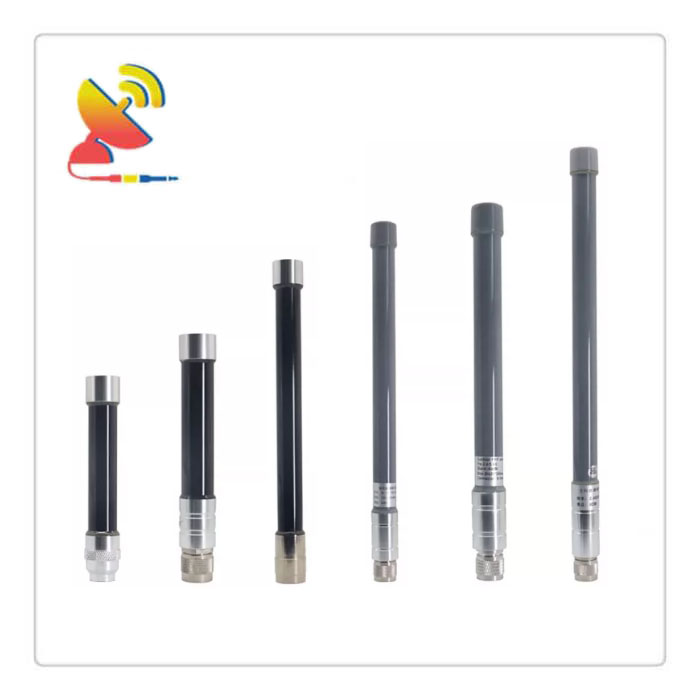

C&T RF Antennas Inc. provides high-performance Omni 2.4 GHz antennas. Below are some of the 2.4 GHz Omni antenna styles.

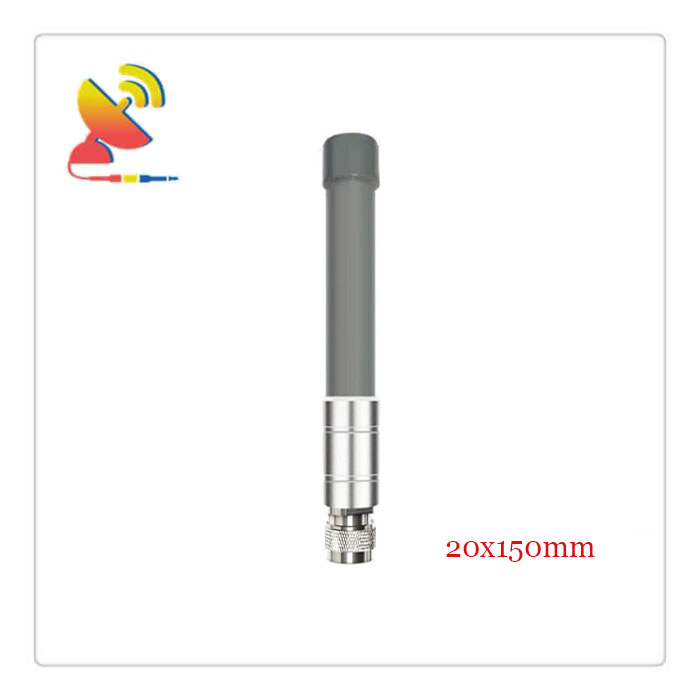

Item: CTRF-ANTENNA-FRP-2450-20150G-NM

High-performance 2.4 GHz Wifi Outdoor Omni-directional Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x150mm

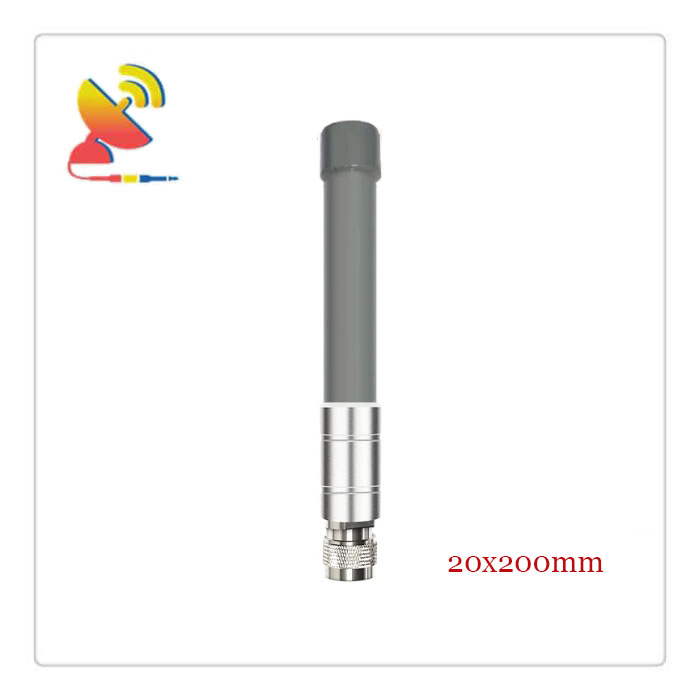

Item: CTRF-ANTENNA-FRP-2450-20200G-NM

High-performance 2.4 GHz Omni-directional Wireless Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x200mm

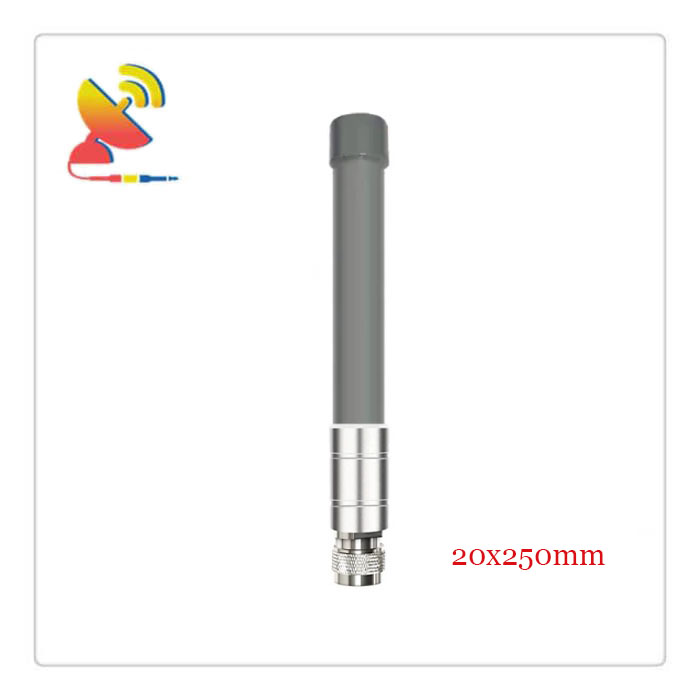

Item: CTRF-ANTENNA-FRP-2450-20250G-NM

High-performance Outdoor Access Point Omnidirectional Antenna 2.4 GHz Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x250mm

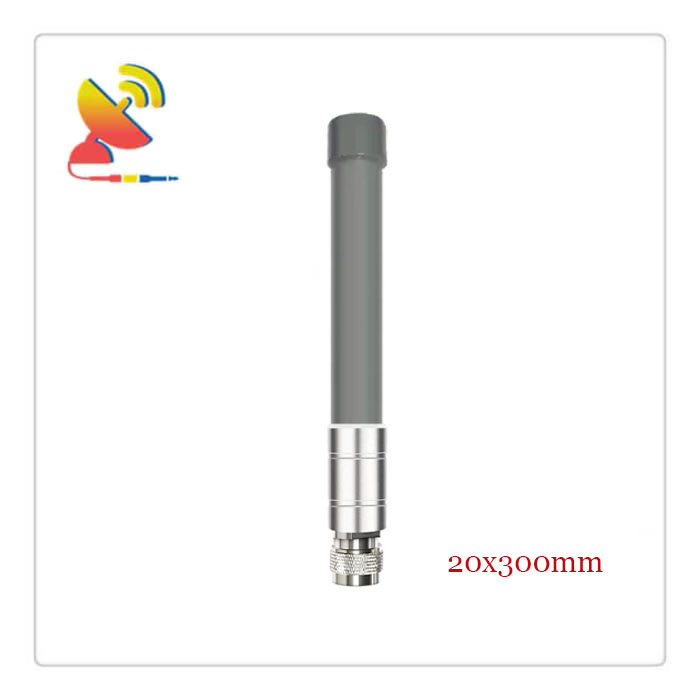

Item: CTRF-ANTENNA-FRP-2450-20300G-NM

High-performance 2.4 GHz Wireless Access Point Omnidirectional Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x300mm







Item: CTRF-ANTENNA-FRP-2450-20350G-NM

High-performance 2.4 GHz Wireless Omni Wifi Antenna Outdoor Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x350mm







Item: CTRF-ANTENNA-FRP-2450-20400G-NM

High-performance 6dBi 2.4 GHz Omnidirectional Outdoor Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x400mm

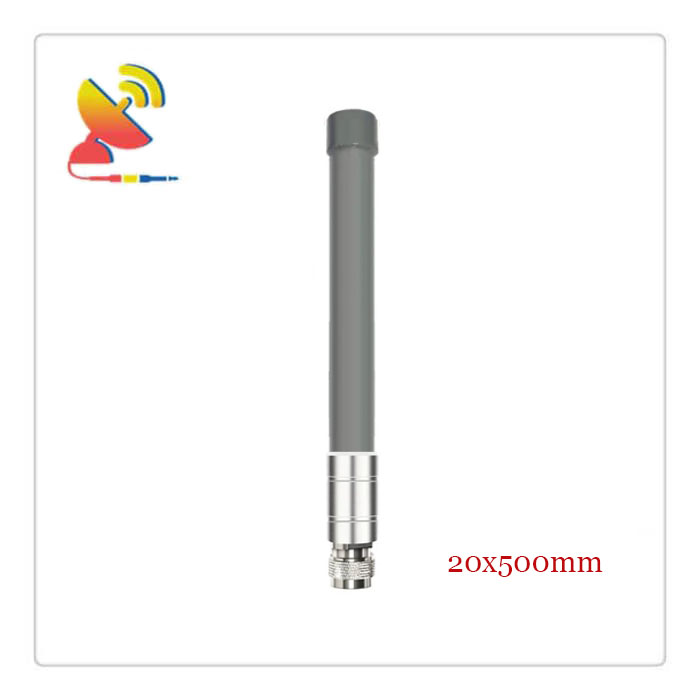

Item: CTRF-ANTENNA-FRP-2450-20500G-NM

High-performance 2.4 GHz Long-range Omnidirectional Outdoor WiFi Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x500mm







Item: CTRF-ANTENNA-FRP-2450-20600G-NM

High-performance 2.4 GHz WiFi 8 dBi Omni-directional Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x600mm







Item: CTRF-ANTENNA-FRP-2450-20800G-NM

High-performance 10dBi High-gain 2.4 GHz Omnidirectional Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x800mm

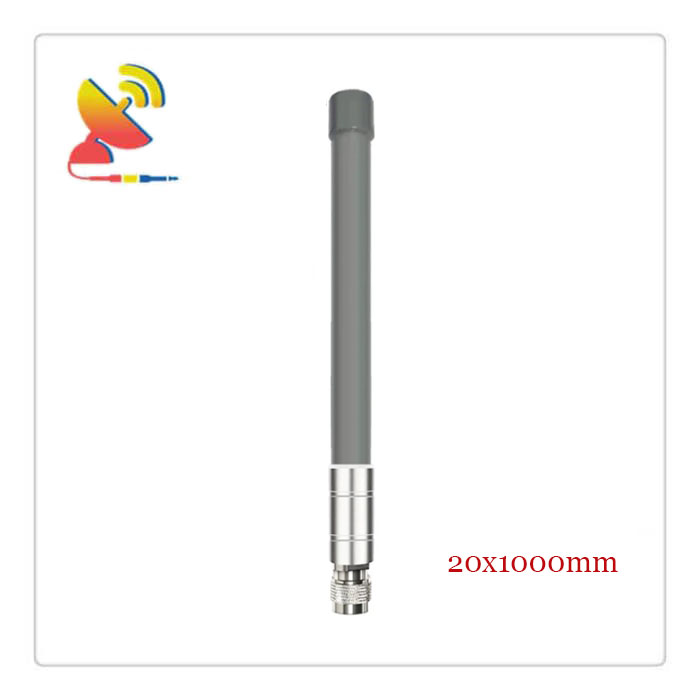

Item: CTRF-ANTENNA-FRP-2450-201000G-NM

High-performance 2.4 GHz High-gain Omni Antenna 12dBi

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 12dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x1000mm







Item: CTRF-ANTENNA-FRP-2450-201200G-NM

High-performance & High-gain 2.4 GHz 15dBi Outdoor Omni-directional Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 15dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male

Color: Grey

Dimension: Φ20x1200mm

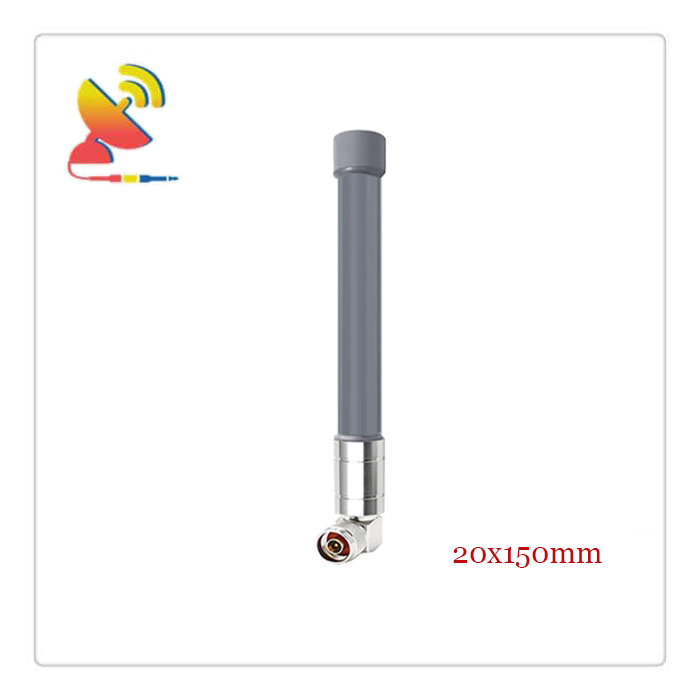

Item: CTRF-ANTENNA-FRP-2450-20150G-NW

High-performance 2.4 GHz Outdoor Omni-directional Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male 90-degree

Color: Grey

Dimension: Φ20x150mm

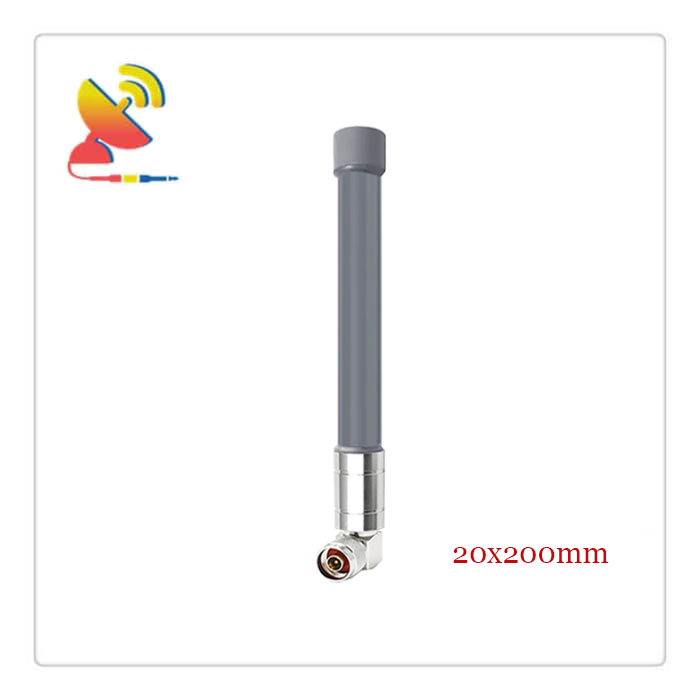

Item: CTRF-ANTENNA-FRP-2450-20200G-NW

High-performance N-type Connector 90-degree 2.4 GHz Wireless Omni Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R.: ≤2.0

Polarization: Vertical

Connector: N-type Male 90-degree

Color: Grey

Dimension: Φ20x200mm

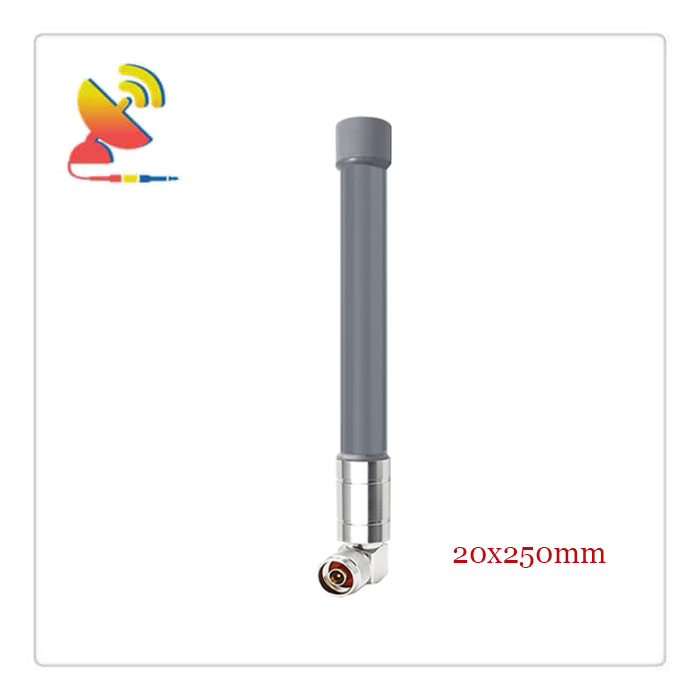

Item: CTRF-ANTENNA-FRP-2450-20260G-NW

High-performance Omni Wifi Antenna Outdoor 2.4 GHz Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male 90-degree

Color: Grey

Dimension: Φ20x260mm

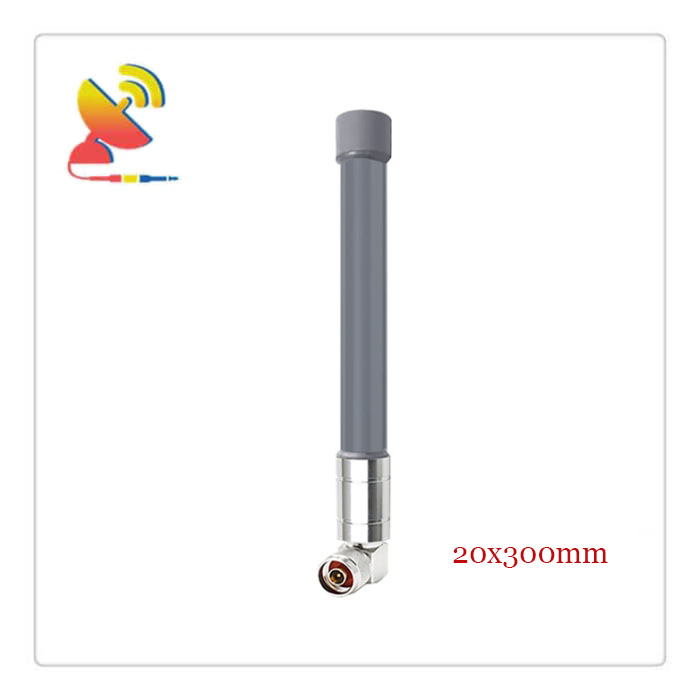

Item: CTRF-ANTENNA-FRP-2450-20300G-NW

High-performance Omnidirectional Outdoor Wifi Antenna 2.4 GHz Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male 90-degree

Color: Grey

Dimension: Φ20x300mm

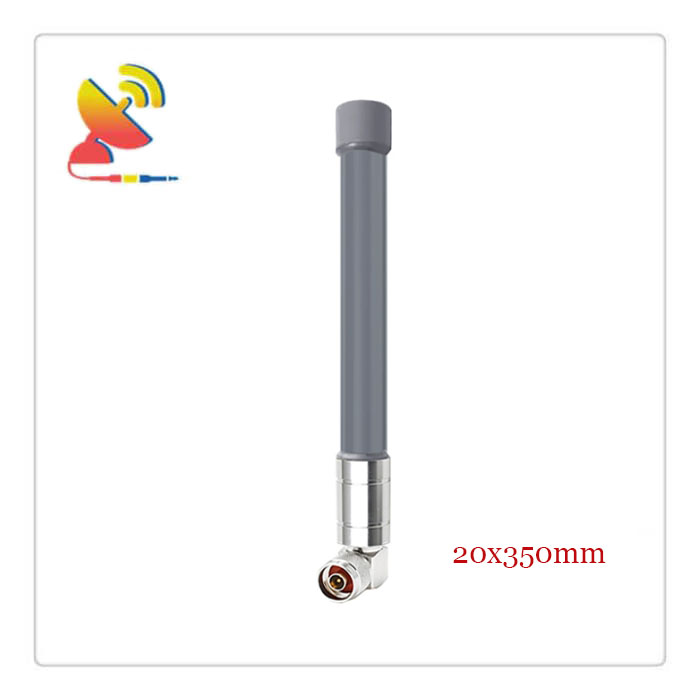

Item: CTRF-ANTENNA-FRP-2450-20350G-NW

High-performance External Omnidirectional WiFi Antenna 2.4 GHz Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male 90-degree

Color: Grey

Dimension: Φ20x350mm

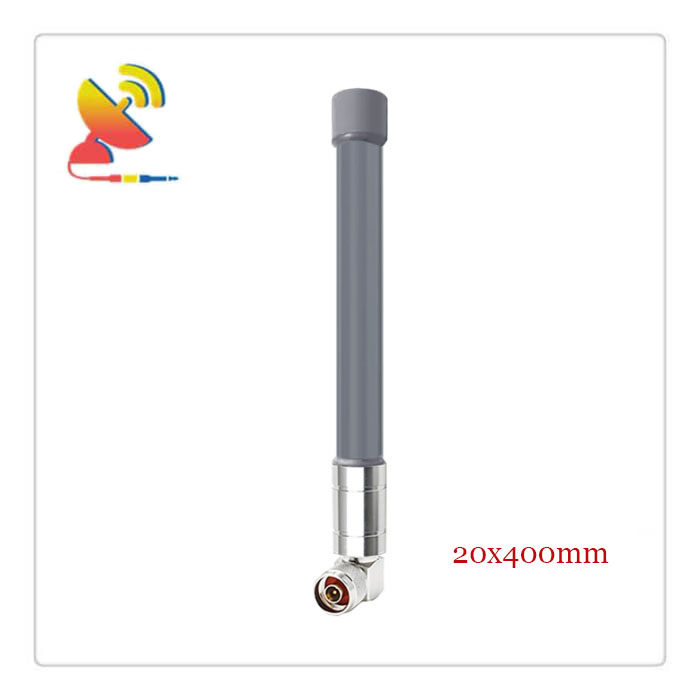

Item: CTRF-ANTENNA-FRP-2450-20400G-NW

High-performance 6dBi Omni Antenna WiFi 2.4 GHz Outdoor N Connector 90-degree Antenna

Specifications:

Material: Glass Fiber

Frequency range: 2400-2483 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: N-type Male 90-degree

Color: Grey

Dimension: Φ20x400mm







Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
