C&T RF Antennas Inc. manufactures a series of 4G LTE Omni antennas, the 2G 3G 4G full-band external antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance LTE 4G Omni antennas, such as the antenna datasheet, pricing, and 4G LTE antenna inventory.
Or other indoor-outdoor 2G 3G 4G LTE antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The High-Performance LTE 4G Omni Antennas are outdoor Omni-directional antennas with a 2G 3G 4G full-band frequency band of 698-960MHz, 1710-2700 MHz, wide-band cellular antennas manufactured by C&T RF Antennas Inc. for LTE applications.
Besides the High-Performance LTE 4G Omni Antennas, C&T RF Antennas Inc, also provides the New 5G Omni Antennas, Omni WiFi Antennas, GSM Omni Antennas, etc. for your selection.
C&T RF Antennas Inc. provides a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for any additional specs you need.

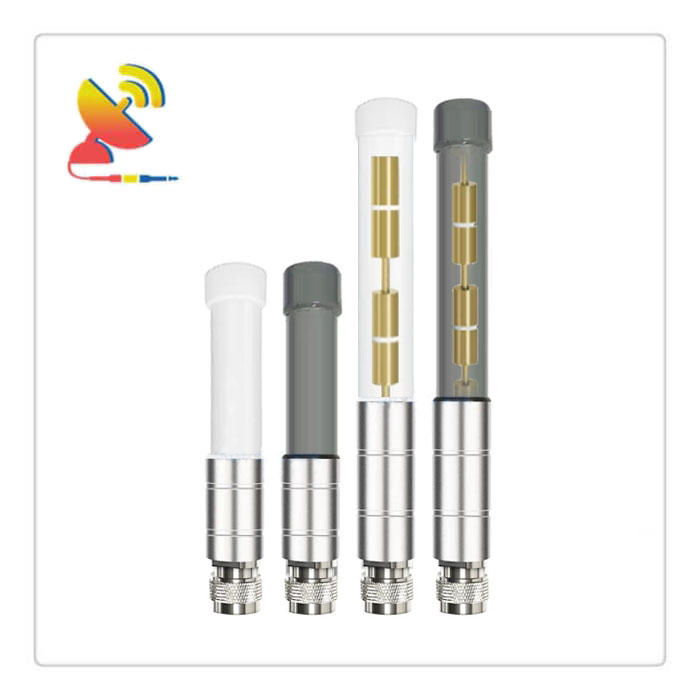

The LTE 4G Omni antennas feature a multi-segment pure copper dipole structure, delivering higher gain and transmission/reception efficiency, as well as greater communication range and wider signal coverage, etc.

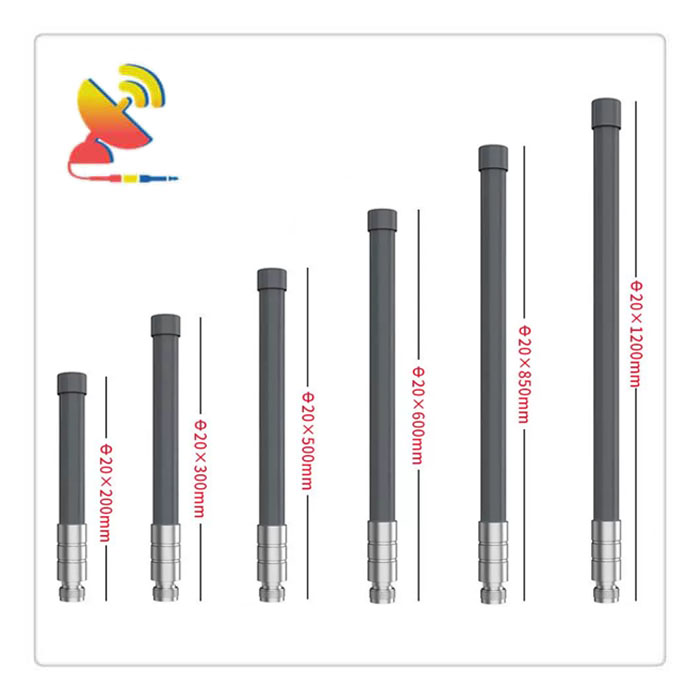

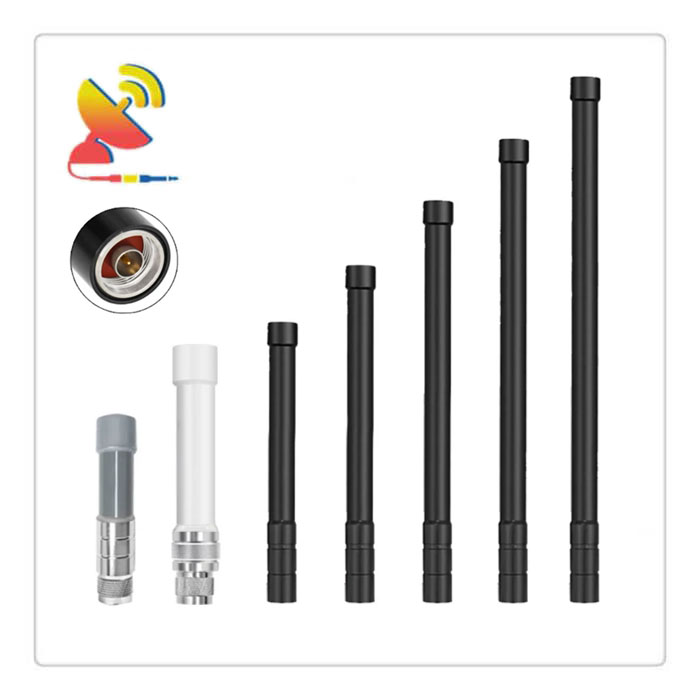

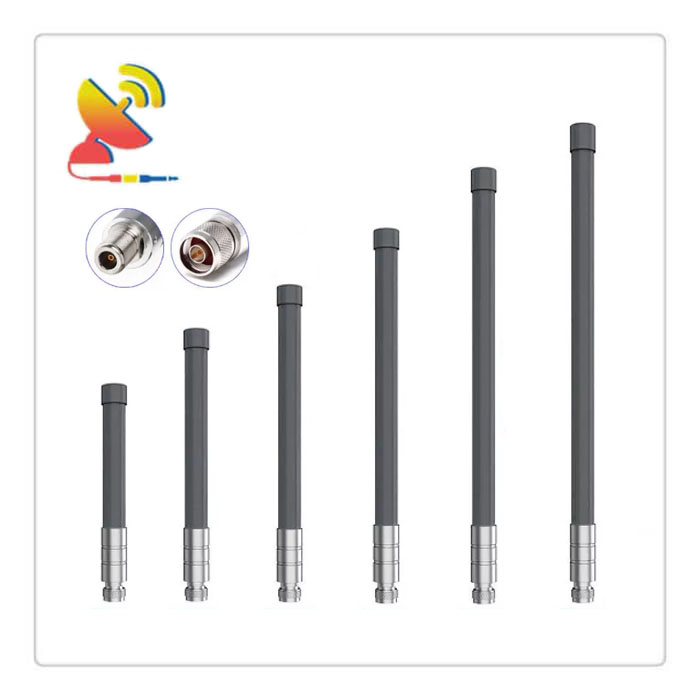

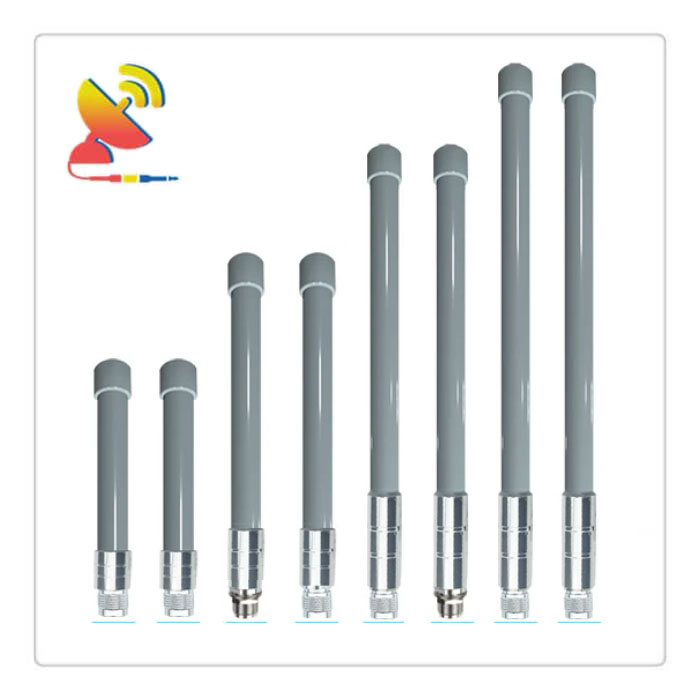

C&T RF Antennas Inc. provides high-performance LTE 4G Omni antennas. Below are some of the 3G/4G antenna styles.

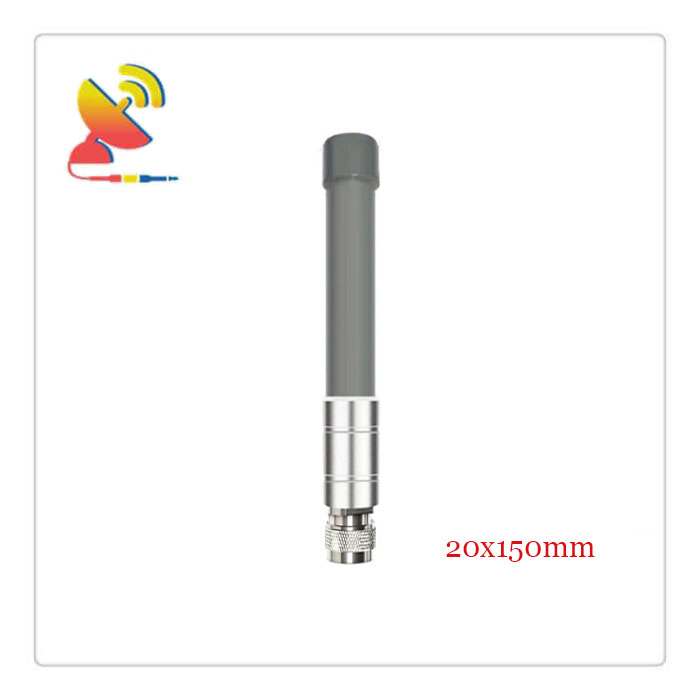

Item: CTRF-ANTENNA-FRP-7027-20150G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x150mm

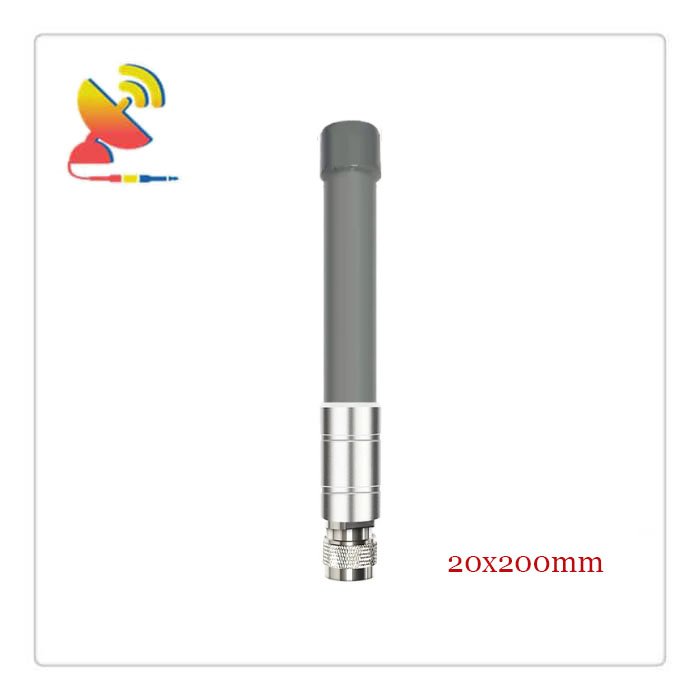

Item: CTRF-ANTENNA-FRP-7027-20200G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x200mm

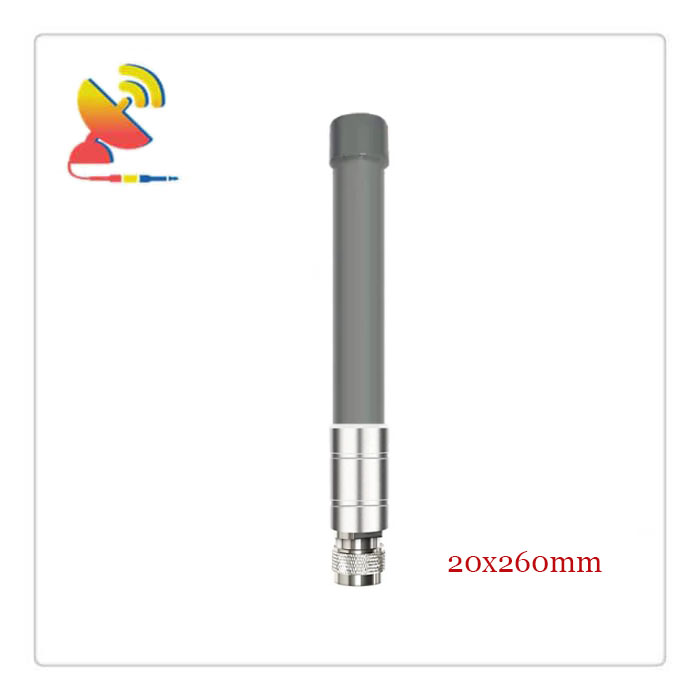

Item: CTRF-ANTENNA-FRP-7027-20260G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x260mm

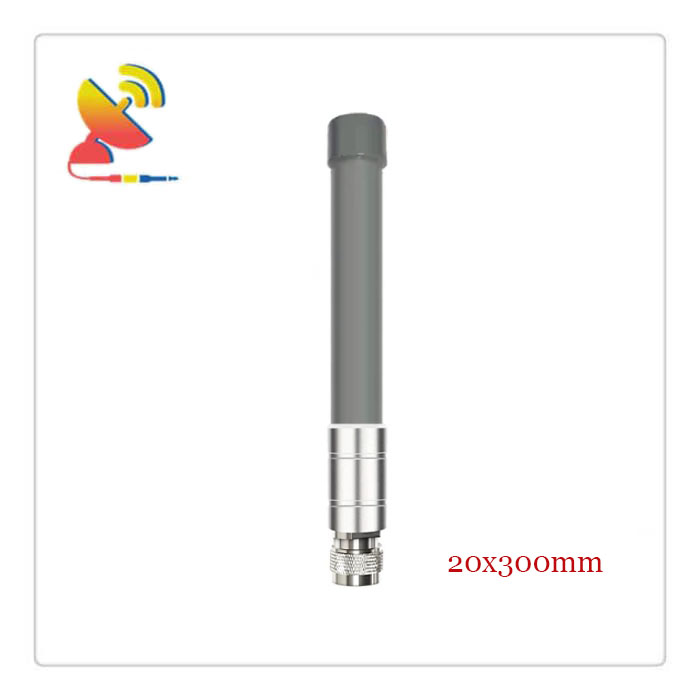

Item: CTRF-ANTENNA-FRP-7027-20300G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x300mm
Item: CTRF-ANTENNA-FRP-7027-20400G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x400mm

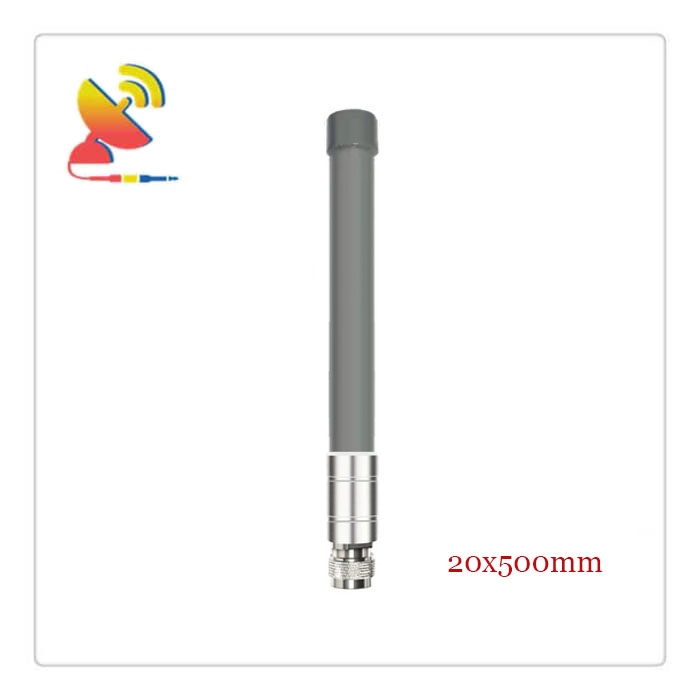

Item: CTRF-ANTENNA-FRP-7027-20500G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x500mm

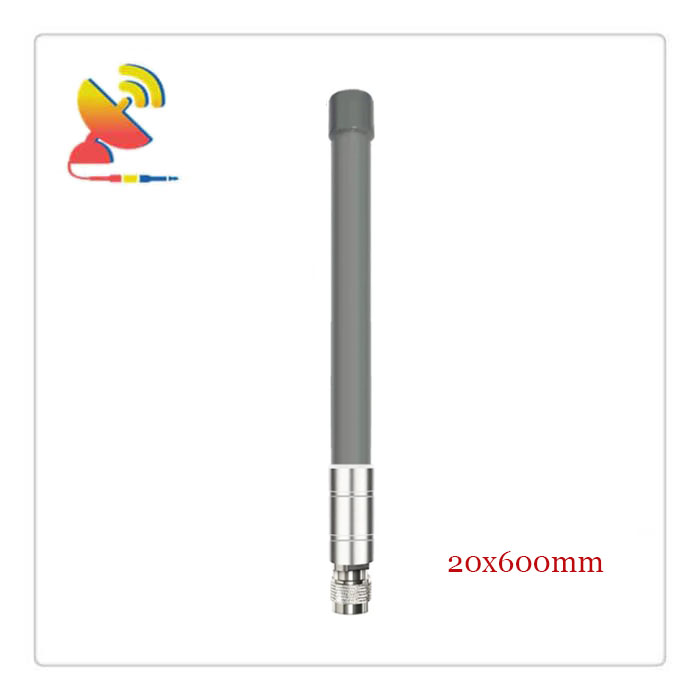

Item: CTRF-ANTENNA-FRP-7027-20600G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x600mm
Item: CTRF-ANTENNA-FRP-7027-20800G-NM
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male
Color: Grey
Dimension: Φ20x800mm

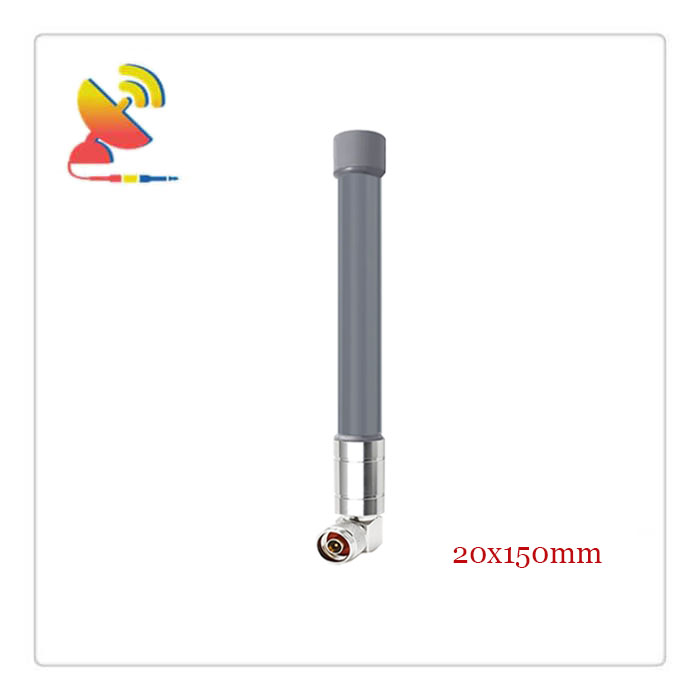

Item: CTRF-ANTENNA-FRP-7027-20150G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x150mm

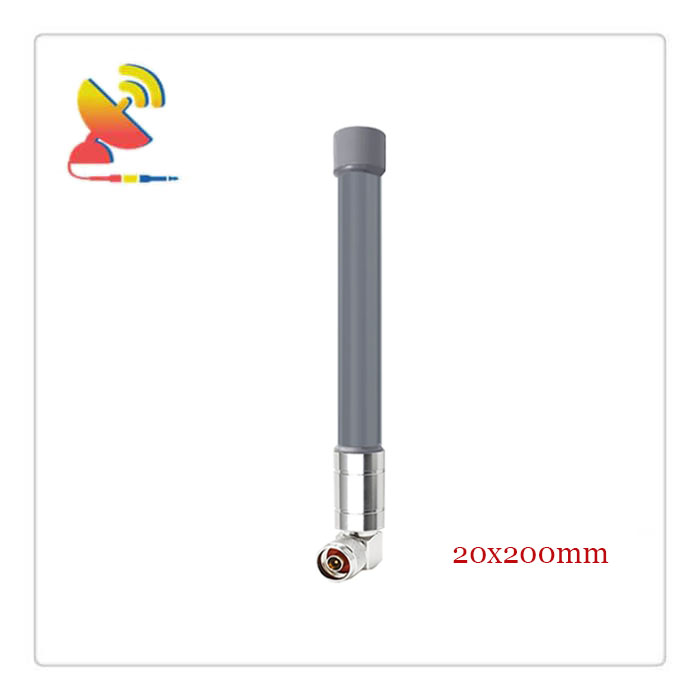

Item: CTRF-ANTENNA-FRP-7027-20200G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R.: ≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x200mm

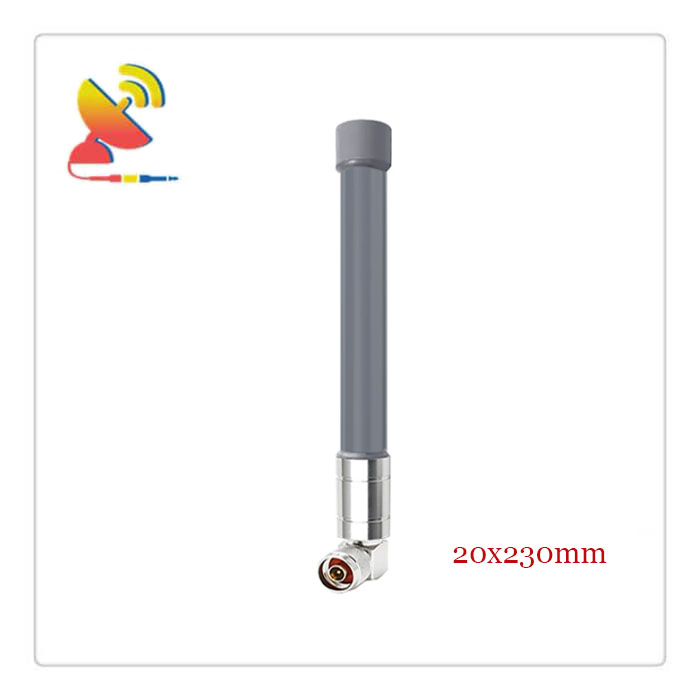

Item: CTRF-ANTENNA-FRP-7027-20230G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 4.2dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x230mm

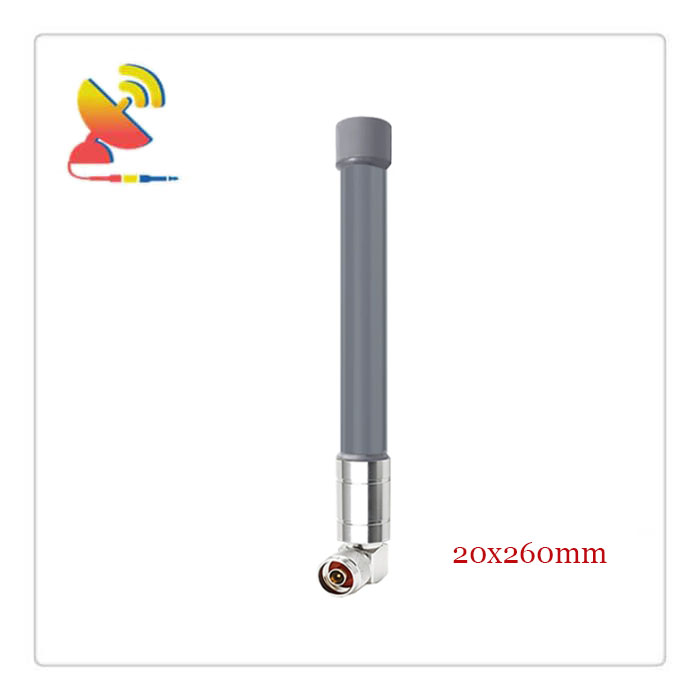

Item: CTRF-ANTENNA-FRP-7027-20260G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x260mm

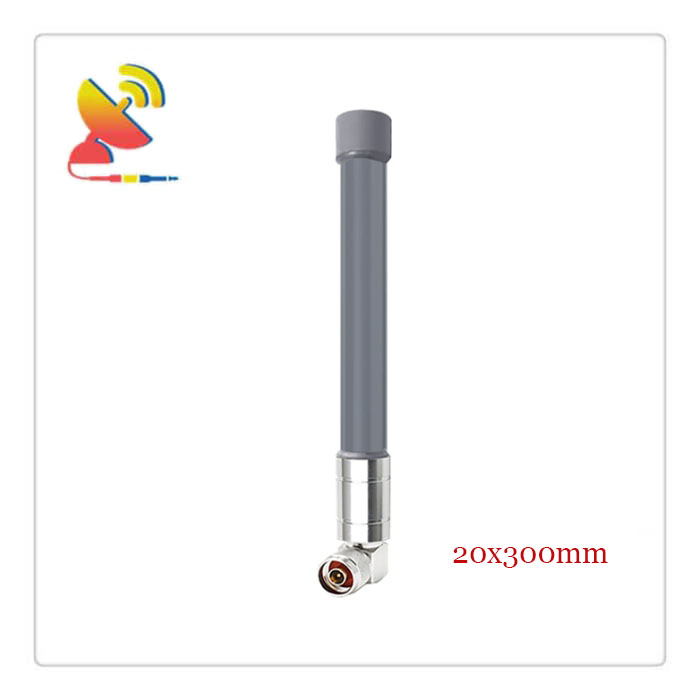

Item: CTRF-ANTENNA-FRP-7027-20300G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x300mm

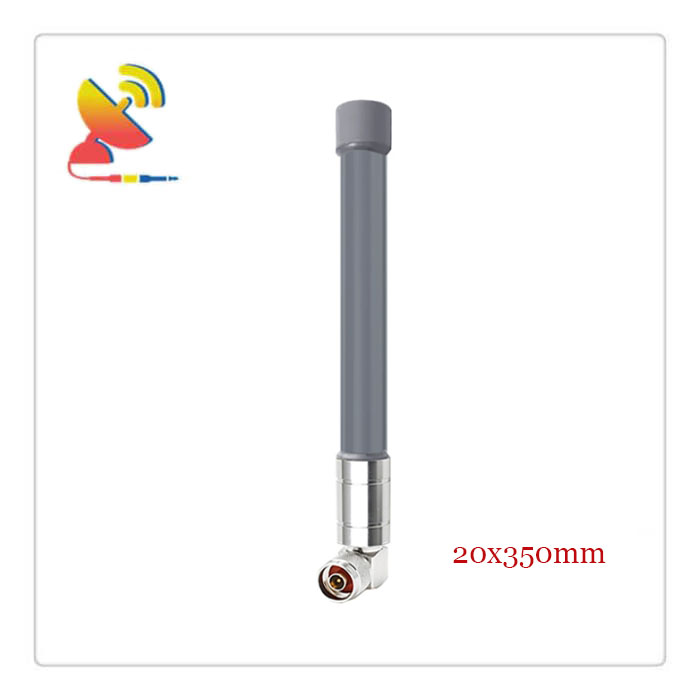

Item: CTRF-ANTENNA-FRP-7027-20350G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x350mm

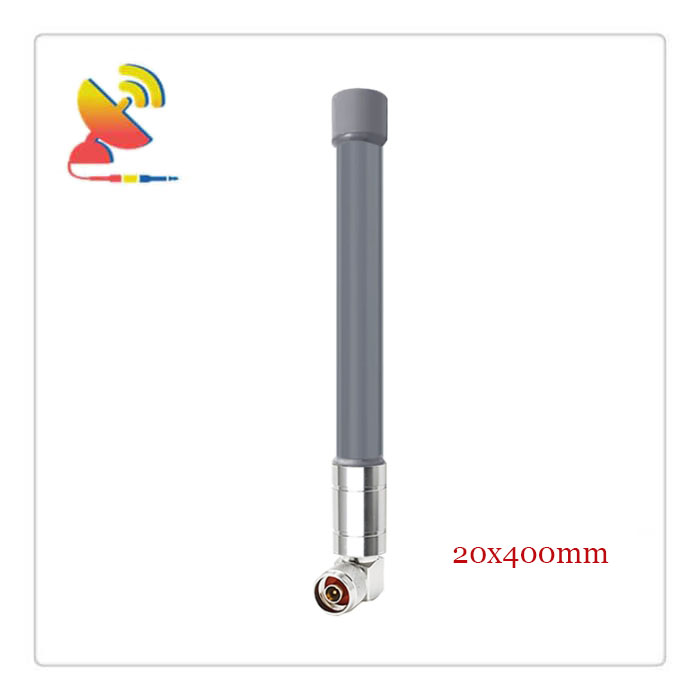

Item: CTRF-ANTENNA-FRP-7027-20400G-NW
Specifications:
Material: Glass Fiber
Frequency range: 698-960MHz, 1710-2700 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.5
Polarization: Vertical
Connector: N-type Male 90-degree
Color: Grey
Dimension: Φ20x400mm
Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
