C&T RF Antennas Inc. manufactures a series of new 5G NR mag mount antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance 4G LTE 5G NR mag mount antennas, including the LTE 5G magnet antenna datasheet, 4G 5G magnetic mount antenna pricing, and LTE 5G NR antenna inventory.
Or other indoor-outdoor 4G LTE 5G NR antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance LTE 5G mag mount antennas are magnet antennas with a 600-6000 MHz extra-wideband cellular LTE antennas manufactured by C&T RF Antennas Inc. for 2G/3G/4G/5G, LTE, NR, 3.5GHz, CBRS wireless network applications.
The high-performance LTE 5G mag mount antennas deliver stable high omnidirectional gain and efficiencies across all common 5G, 4G, 3G, and 2G global cellular bands from 600MHz to 6000MHz. These include WiFi, Bluetooth, GPS, and GNSS bands.
The high-performance LTE 5G mag mount antennas are typically used for Payment Terminals, Smart Metering, and Smart Home. etc.
Besides the High-Performance LTE 5G Mag Mount Antennas, the Magnetic VHF Antennas, 315MHz Magnetic Mount Antennas, 868 MHz Magnetic Base Antennas, 915 MHz Magnet Mount Antennas, Magnetic WiFi Antennas, Magnetic GPS Antennas, NB-IoT 4G Magnetic Antennas, Magnetic Mount UHF Antennas, and ISM/LoRa Magnetic Whip Antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.

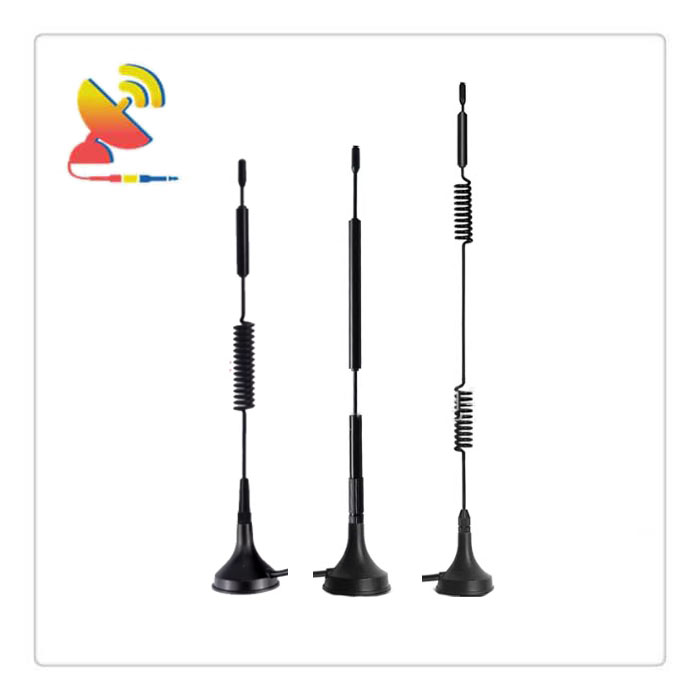

C&T RF Antennas Inc. provides high-performance LTE 5G mag mount antennas. Below are some of the 5G NR magnetic mount antennas.

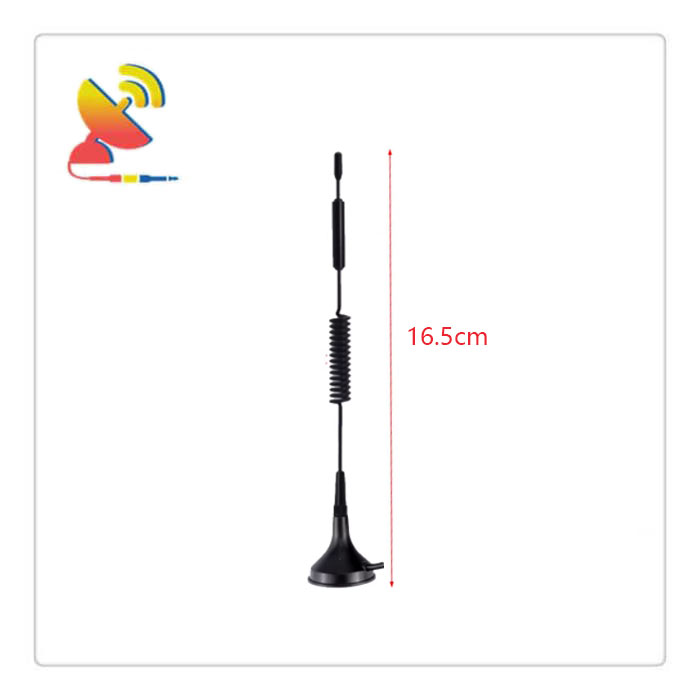

Item: CTRF-ANTENNA-MG-NR-30165-SMA
Specifications:
Material: Spring
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ60x165mm
Mounting: Magnetic Base

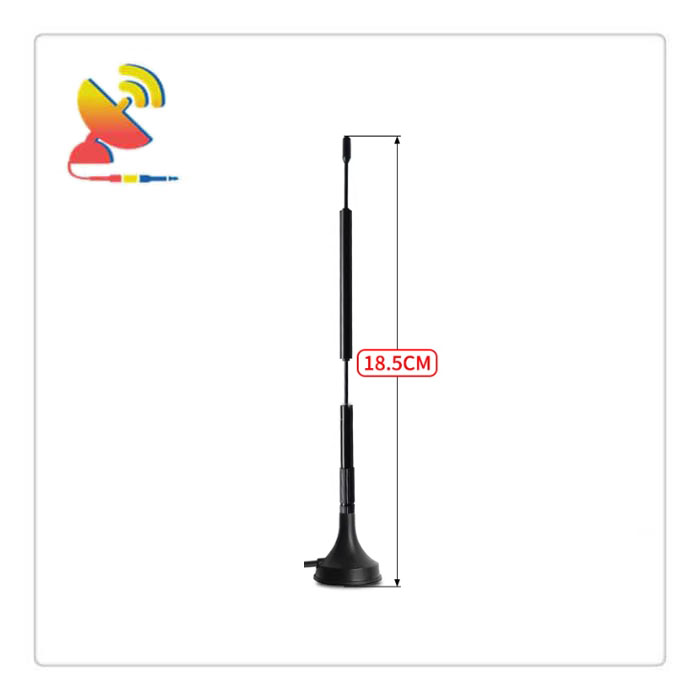

Item: CTRF-ANTENNA-MG-NR-30185-SMA
Specifications:
Material: Spring
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ60x185mm
Mounting: Magnetic Base
Item: CTRF-ANTENNA-MG-NR-30243-SMA
Specifications:
Material: Spring
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ60x243mm
Mounting: Magnetic Base
Item: CTRF-ANTENNA-MG-NR-30290-SMA
Specifications:
Material: Spring
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ60x290mm
Mounting: Magnetic Base

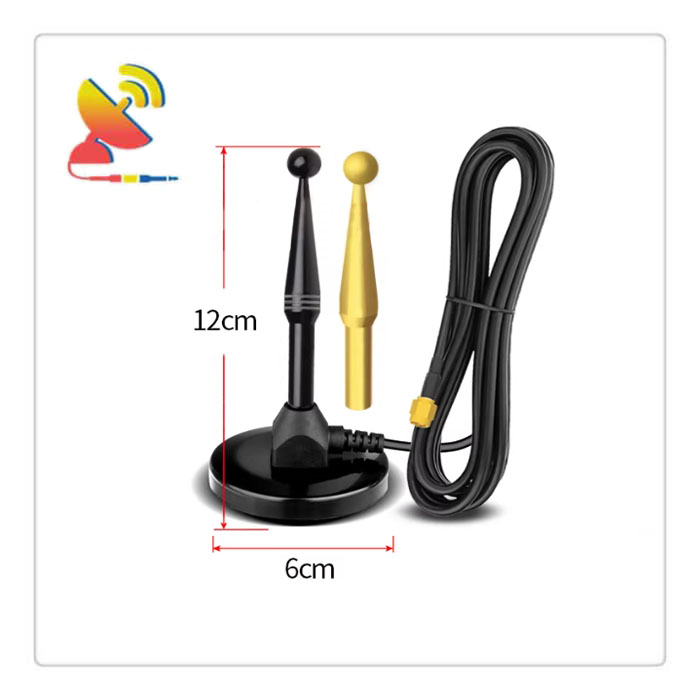

Item: CTRF-ANTENNA-MG-NR-60120-SMA
Specifications:
Material: Brass
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Color: Black
Dimension: Φ60x120mm
Mounting: Magnetic Base

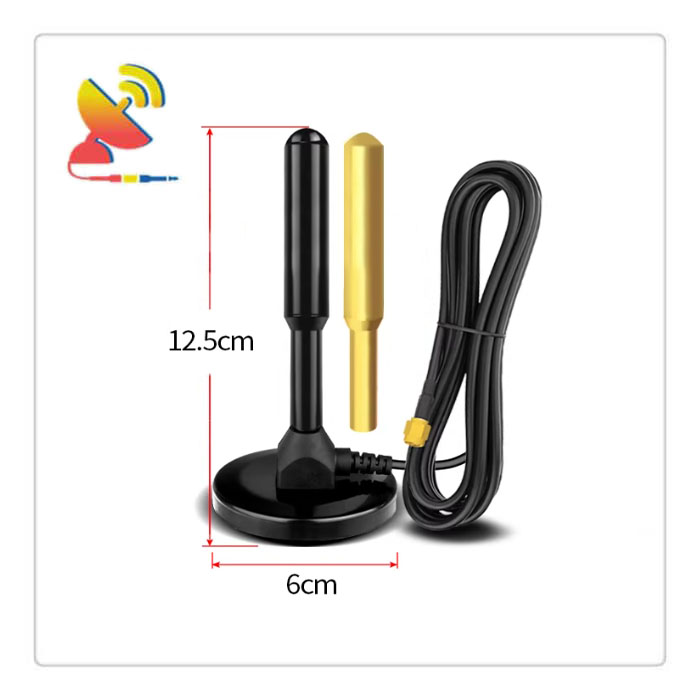

Item: CTRF-ANTENNA-MG-NR-60125-SMA
Specifications:
Material: Brass
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Color: Black
Dimension: Φ60x125mm
Mounting: Magnetic Base

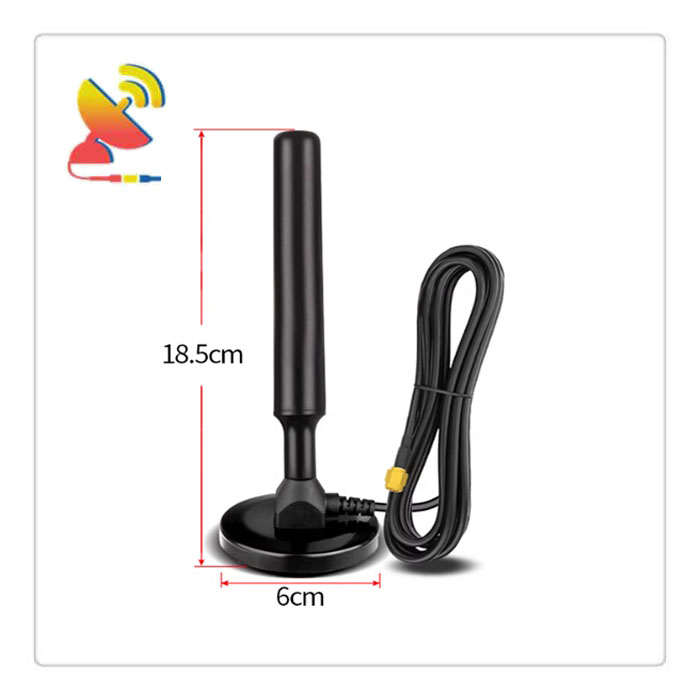

Item: CTRF-ANTENNA-MG-NR-60185-SMA
Specifications:
Material: ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Color: Black
Dimension: Φ60x185mm
Mounting: Magnetic Base

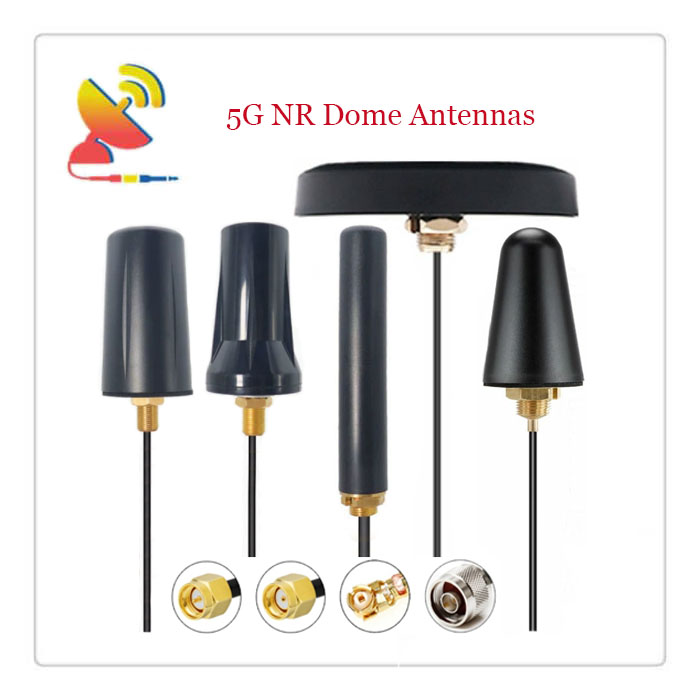

Besides the magnetic antennas, C&T RF Antennas Inc. also offers cellular LTE 5G NR antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
