C&T RF Antennas Inc. manufactures a series of high-performance Omni Ultra-wideband PCB antennas. The Ultra-wideband PCB antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on high-performance Omni Ultra-wideband PCB antennas, including the UWB PCB antenna datasheet, pricing, and inventory.
Or other indoor-outdoor UWB antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance Omni Ultra-Wideband PCB antennas are directional, rigid printed circuit board antennas that operate in Ultra-Wideband antennas. The Omni Ultra-Wideband PCB antennas are manufactured by C&T RF Antennas Inc. for ultra-wideband (UWB) applications.
The high-performance Omni Ultra-Wideband(UWB) PCB antennas offer advantages such as high gain, strong resistance to interference, a wide range of applications, compact size, and stable data transmission.
Besides the High-Performance Omni Ultra-Wideband PCB Antennas, we also provide High-performance Log-Periodic UWB PCB antennas for your choice.
C&T RF Antennas Inc. provides a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
Ultra-Wideband(UWB) Antenna for RF Microwave Applications, PCB Material Broadband Antenna with High Heat Dissipation, Omnidirectional Signal.
The Omni Ultra-Wideband PCB antennas are characterised by their compact size, high efficiency, ultra-wideband (UWB) capabilities, and high data transfer rates. It is primarily used for ultra-wideband positioning, communications, and similar applications.

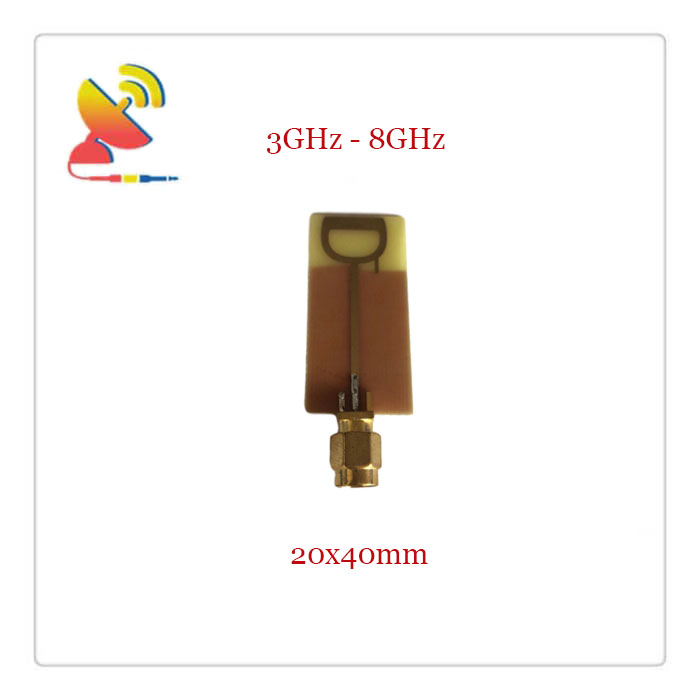

Item: CTRF-ANTENNA-PCB-300800-2040-SMA
Specifications:
Material: Rigid printed circuit board
Frequency center: 3GHz-8GHz
Gain: 4dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Male
Color: Brown
Dimension: Φ20x40mm

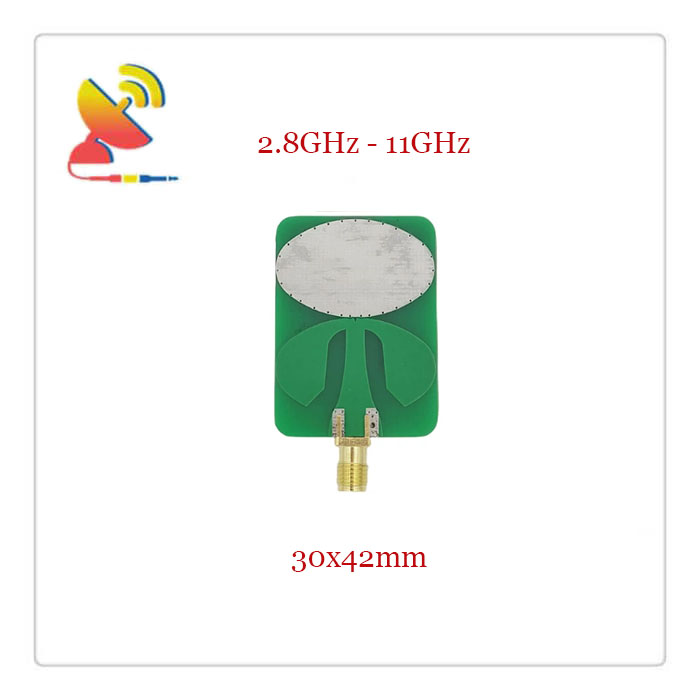

Item: CTRF-ANTENNA-PCB-2801100-3042-SMAK
Specifications:
Material: Rigid printed circuit board
Frequency center: 2.8GHz-11GHz
Gain: 5dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ30x42mm
Item: CTRF-ANTENNA-PCB-300800-4031-SMA
Specifications:
Material: Rigid printed circuit board
Frequency center: 3GHz-8GHz
Gain: 5dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Male
Color: Brown
Dimension: Φ40x31mm

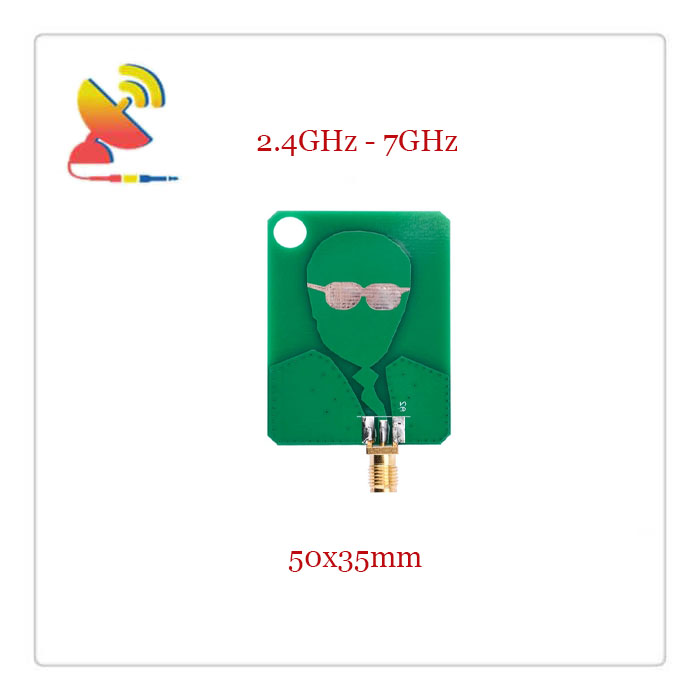

Item: CTRF-ANTENNA-PCB-240700-5035-SMAK
Specifications:
Material: Rigid printed circuit board
Frequency center: 2.4GHz-7GHz
Gain: 5dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ50x35mm

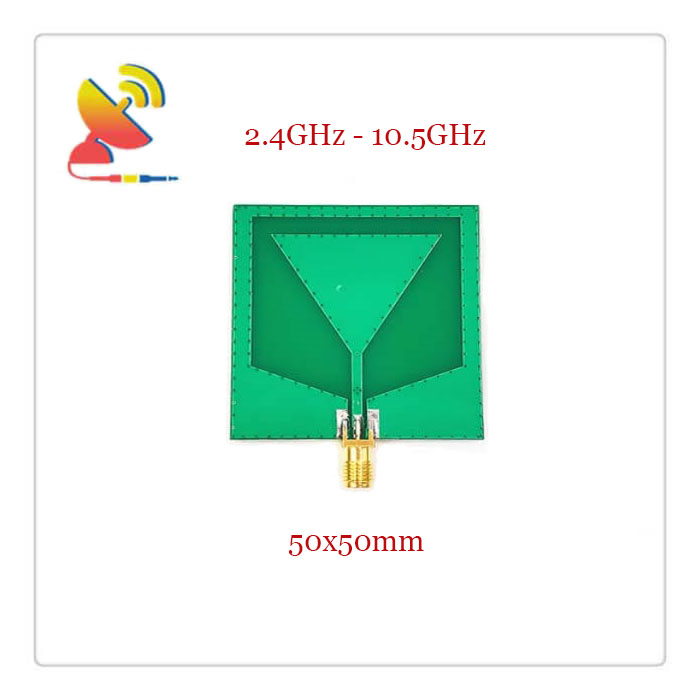

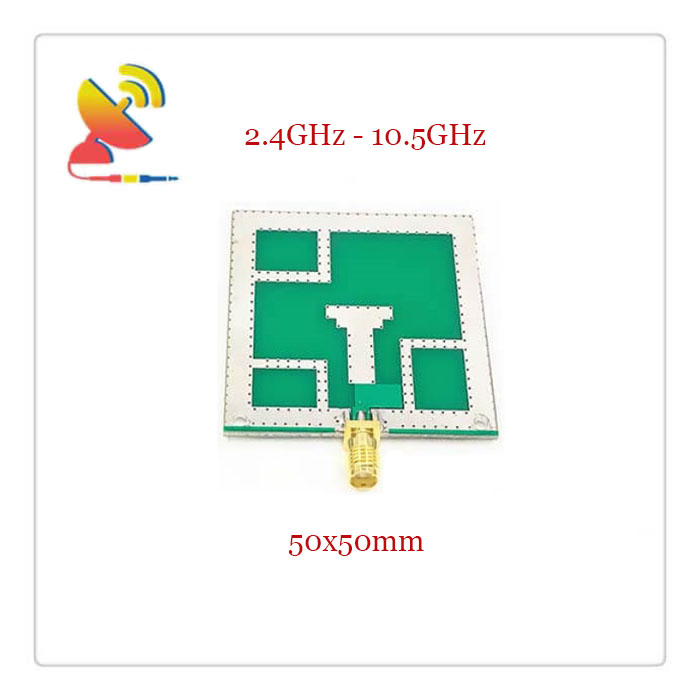

Item: CTRF-ANTENNA-PCB-24105-5050-SMAK
Specifications:
Material: Rigid printed circuit board
Frequency center: 2.4GHz-10.5GHz
Gain: 6dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ50x50mm

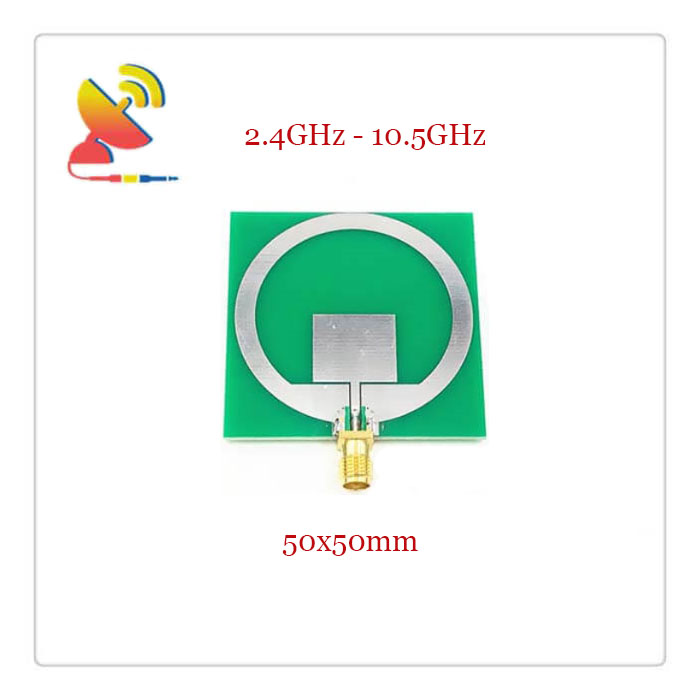

Item: CTRF-ANTENNA-PCB-24105-5050-SMAK-1
Specifications:
Material: Rigid printed circuit board
Frequency center: 2.4GHz-10.5GHz
Gain: 6dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ50x50mm

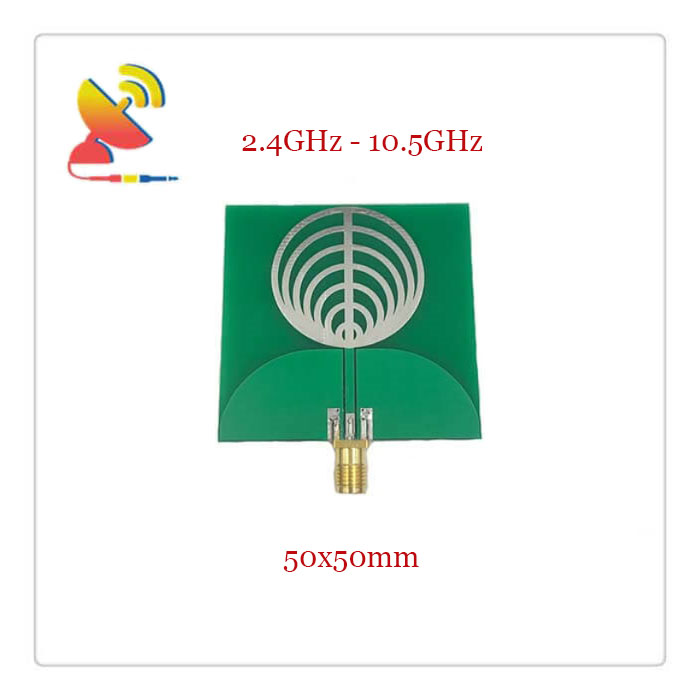

Item: CTRF-ANTENNA-PCB-24105-5050-SMAK-2
Specifications:
Material: Rigid printed circuit board
Frequency center: 2.4GHz-10.5GHz
Gain: 6dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ50x50mm
Item: CTRF-ANTENNA-PCB-24105-5050-SMAK-3
Specifications:
Material: Rigid printed circuit board
Frequency center: 2.4GHz-10.5GHz
Gain: 6dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ50x50mm

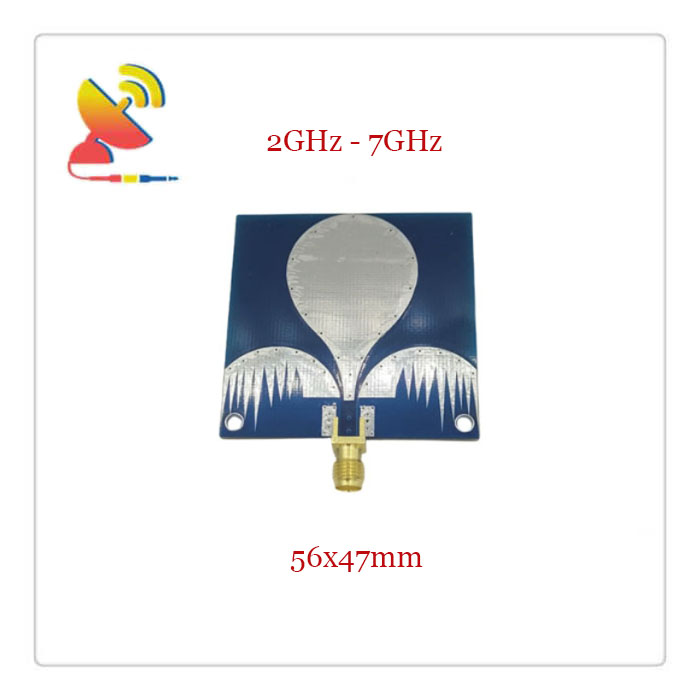

Item: CTRF-ANTENNA-PCB-200700-5647-SMAK
Specifications:
Material: Rigid printed circuit board
Frequency center: 2GHz-7GHz
Gain: 6dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ56x47mm

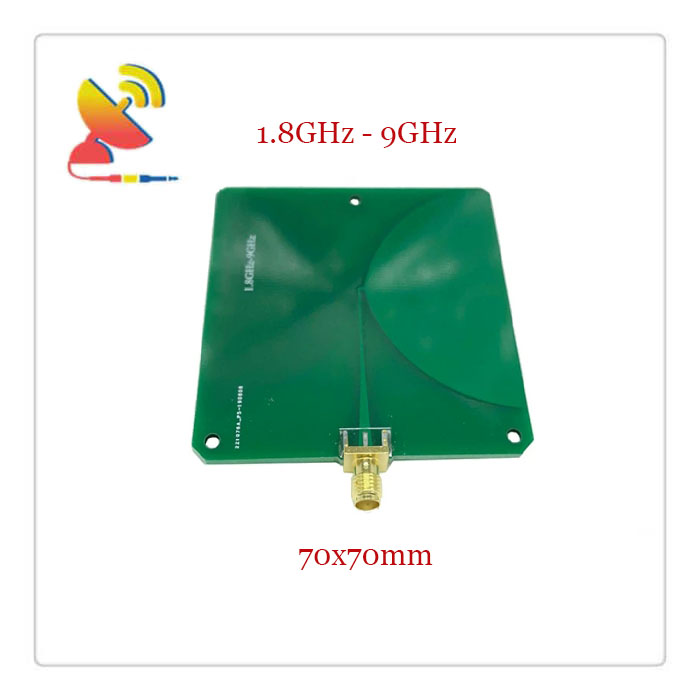

Item: CTRF-ANTENNA-PCB-180900-7070-SMAK
Specifications:
Material: Rigid printed circuit board
Frequency center: 1.8GHz-9GHz
Gain: 7dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ70x70mm

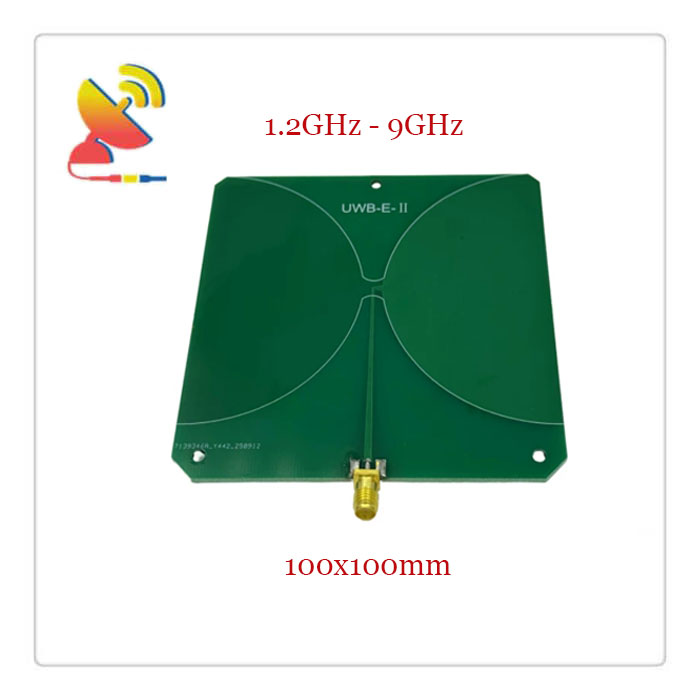

Item: CTRF-ANTENNA-PCB-120900-100100-SMAK
Specifications:
Material: Rigid printed circuit board
Frequency center: 1.2GHz-9GHz
Gain: 8dBi
V.S.W.R:≤3.0
Radiation pattern: Omni-Directional
Connector: SMA Female
Color: Green
Dimension: Φ100x100mm
Besides the PCB antennas, C&T RF Antennas Inc. also offers RF antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
