C&T RF Antennas Inc. manufactures a series of N-type connector Omni 315 MHz antennas—315 MHz terminal antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on high-performance 315 MHz Omni rubber duck antennas, including the 315 MHz N male antenna datasheet, Omni 315MHz antenna pricing, and 315 MHz rubber duck antenna inventory.
Or other indoor-outdoor 315MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance N-Type Connector Omni 315MHz Antennas are 315MHz RF band rubber duck antennas with an N-type connector, manufactured by C&T RF Antennas Inc. 315MHz N rubber duck antennas are omni antennas commonly designed to operate in the 315 MHz industrial, scientific, and medical (ISM) radio band, etc.
These high-performance omni antennas, 315 MHz rubber duck antennas, are ideal for telemetry, M2M applications, or general low-power radio applications that operate in the 310-320MHz frequency band.
Besides the N-type 315MHz Omni antennas, C&T RF Antennas Inc. also provides BNC connector rubber duck 315MHz Omni antennas, SMA connector 315MHz Omni antennas, TNC Connector Omni Antenna 315 MHzfor your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
Long-range signal transmission distance and reception sensitivity.
Omni-directional signal coverage.
Easy to carry and install.
Two connector types: Straight N-type or N-type right-angle connectors are selectable.
Two colors: Black or white are selectable.
etc.

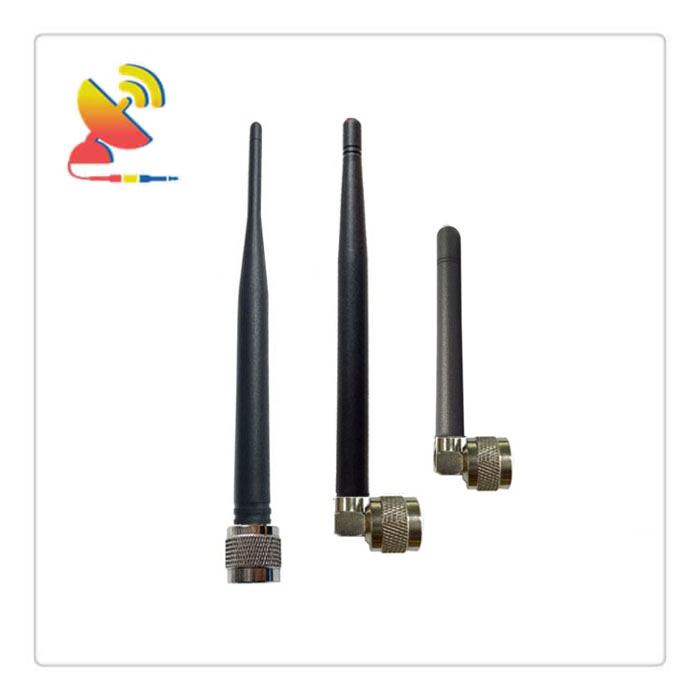

C&T RF Antennas Inc. provides high-performance N connector Omni 315 MHz rubber duck antennas. Below are some of the Omni 315 MHz antennas.

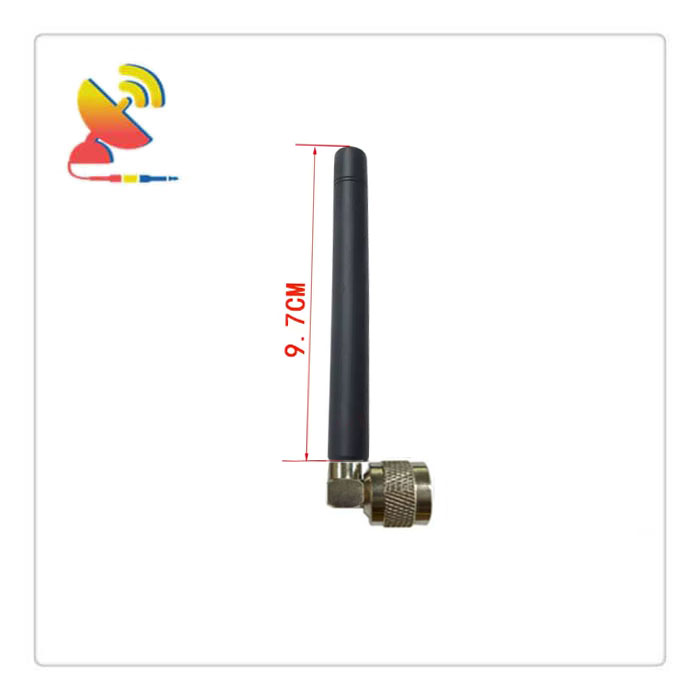

Item: CTRF-ANTENNA-AP-0315-1097-NW
Specifications:
Material: Plastic ABS
Center frequency: 315MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: N Male Right-Angle
Color: Black
Dimension: Φ10x97mm

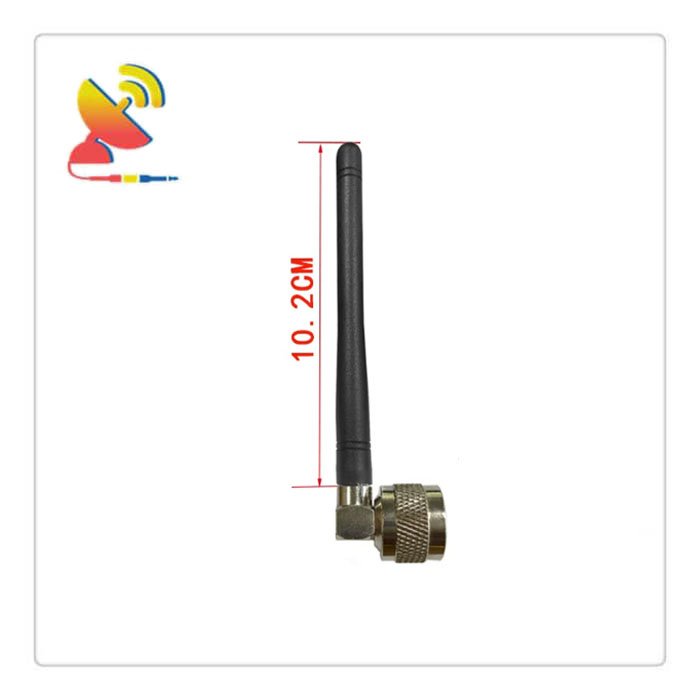

Item: CTRF-ANTENNA-AP-0315-10102-NW
Specifications:
Material: Plastic ABS
Center frequency: 315MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: N Male Right-Angle
Color: Black
Dimension: Φ10x102mm

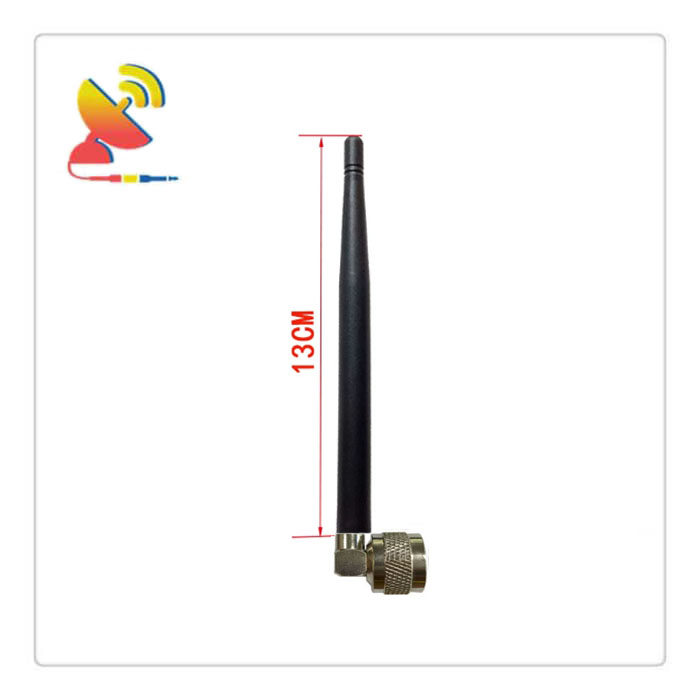

Item: CTRF-ANTENNA-AP-0315-13130-NW
Specifications:
Material: Plastic ABS
Center frequency: 315MHz
Gain: 3.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: N Male Right-Angle
Color: Black
Dimension: Φ10x130mm

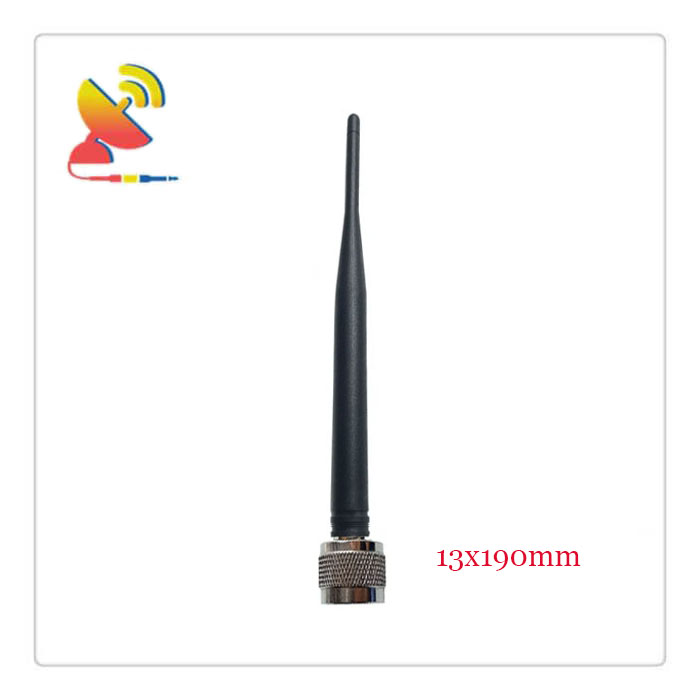

Item: CTRF-ANTENNA-AP-0315-13185-NM
Specifications:
Material: Plastic ABS
Center frequency: 315MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight N Male
Color: Black
Dimension: Φ13x185mm

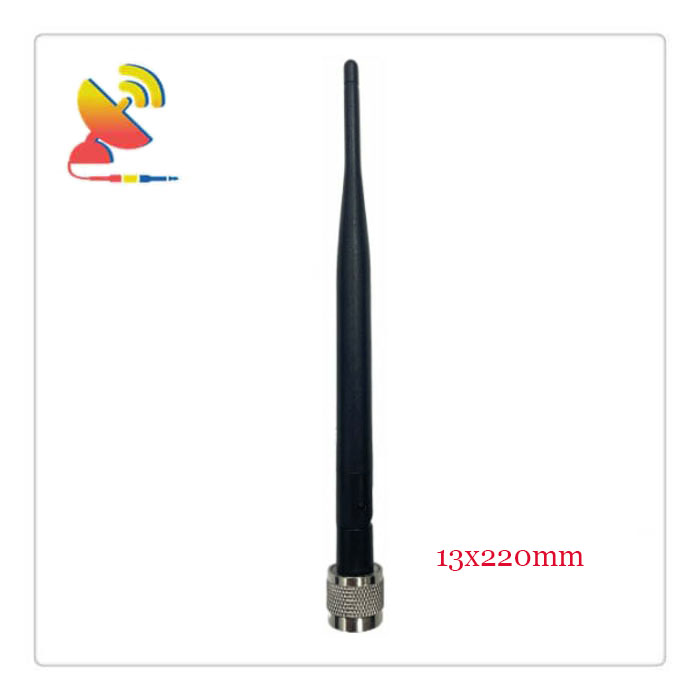

Item: CTRF-ANTENNA-AP-0315-13215-NM
Specifications:
Material: Plastic ABS
Center frequency: 315MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight N Male
Color: Black
Dimension: Φ13x215mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 315 MHz antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
