C&T RF Antennas Inc. manufactures a series of passive GNSS GPS puck antennas. The external passive GPS/GNSS dome/puck antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance passive GNSS GPS puck antennas, such as the passive GPS puck antenna datasheet, passive GNSS puck antenna pricing, and passive GNSS GPS dome antenna inventory.
Or other indoor-outdoor active & passive GNSS/GPS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance passive GNSS GPS puck antennas are passive GPS/GNSS/Beidou/Glonass/Galileo 1561/1575.42/1602MHz multi-band antennas made by plastic housing dome/puck antennas manufactured by C&T RF Antennas Inc. for positioning/tracking devices.
The high-performance passive GNSS GPS puck antennas are used for GPS L1 band 1575.42 MHz, Glonass L1 band 1602 MHz, Beidou B1 band 1561.098 MHz, and Galileo L1 band 1575.42 MHz for GNSS applications.
GPS, GLONASS, BeiDou, and Galileo are the four main satellite navigation systems in the world, each of which uses different frequency bands to provide positioning, navigation, and timing services.
Besides the passive GNSS GPS puck antennas, the 433 MHz dome antennas, 4G LTE 5G dome antennas, NB-IoT/LTE-M puck antennas, GSM 4G puck antennas, Wi-Fi puck antennas, and LoRa/ISM 868/915 MHz puck antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
GPS/Beidou/Glonass/Galileo multi-applications
Waterproof housing
Screw and 3M adhesive mounting
Low-profile
Universal
Power saving
Easy installed
High-performance
etc.
The high-performance passive GNSS GPS puck antennas are used for Universal, Auto, Car, Truck, Lorry, RV, Motorhome, and Vehicle. etc

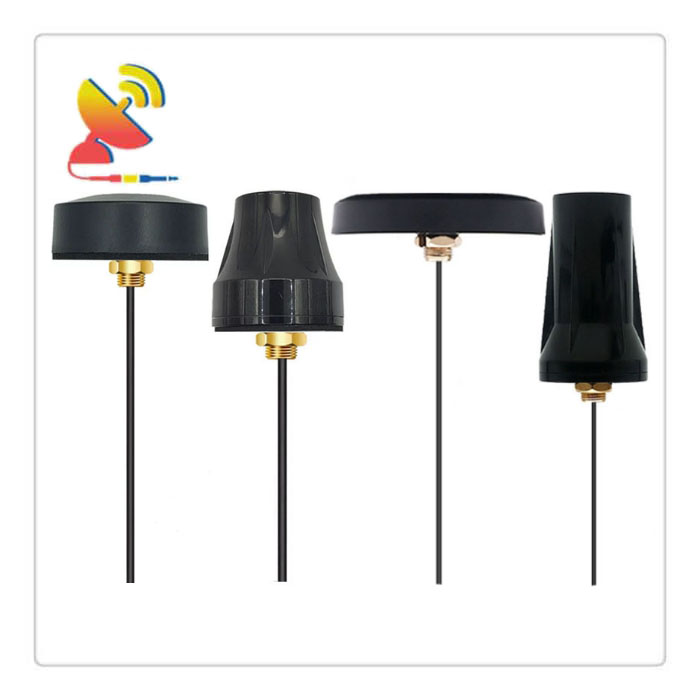

C&T RF Antennas Inc. provides high-performance passive GNSS GPS puck antennas. Below are some of the passive GPS GNSS dome/puck antennas.

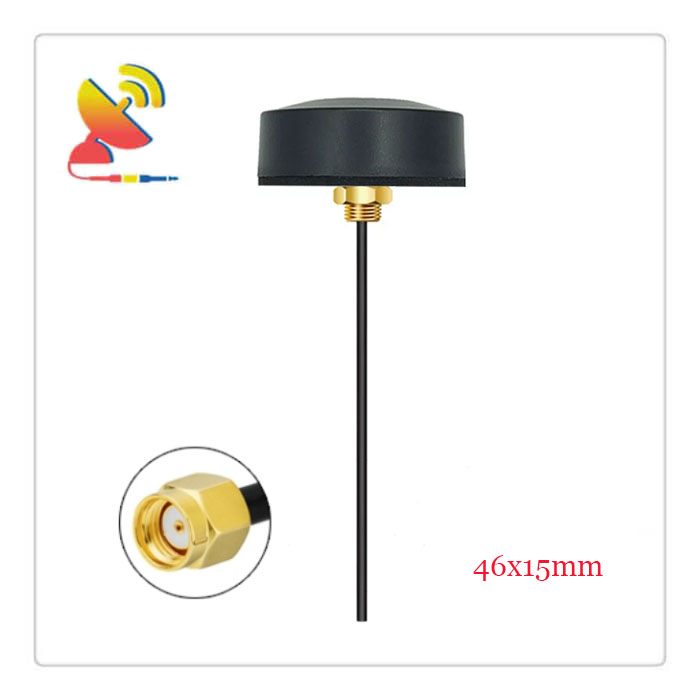

Item: CTRF-ANTENNA-EX-GNSS-4615-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5±1dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-GNSS-4615-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

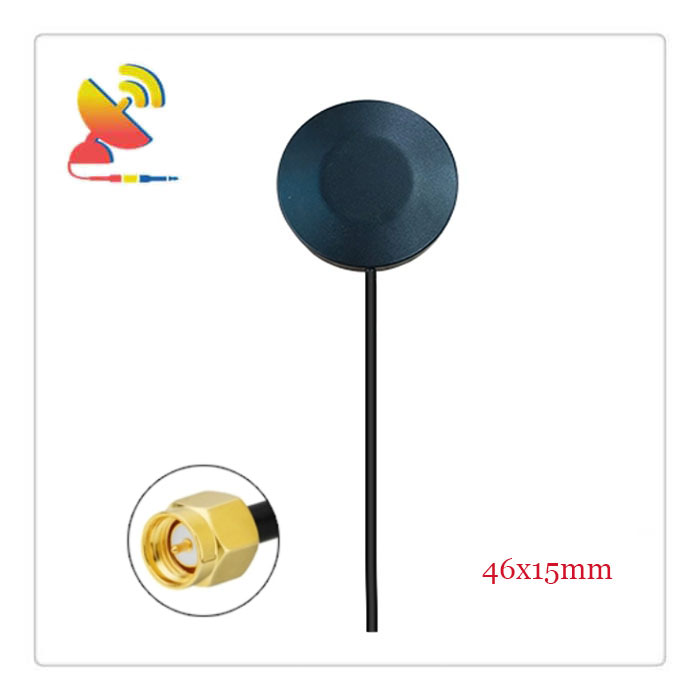

Item: CTRF-ANTENNA-EX-GNSS-4615S-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x15mm
Mounting: Sticker
Item: CTRF-ANTENNA-EX-GNSS-4615S-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x15mm
Mounting: Sticker

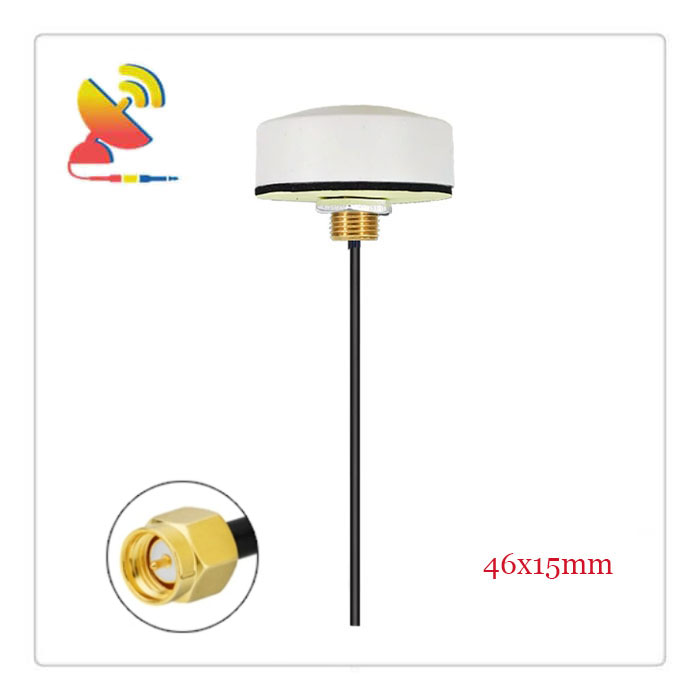

Item: CTRF-ANTENNA-EX-GNSS-4615W-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: White
Dimension: Φ46x15mm
Mounting: Screw/through-hole

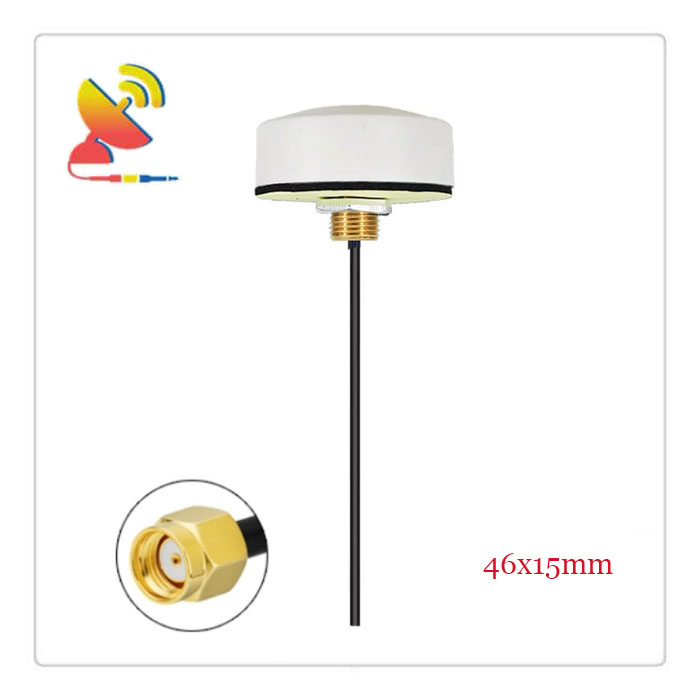

Item: CTRF-ANTENNA-EX-GNSS-4615W-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: White
Dimension: Φ46x15mm
Mounting: Screw/through-hole

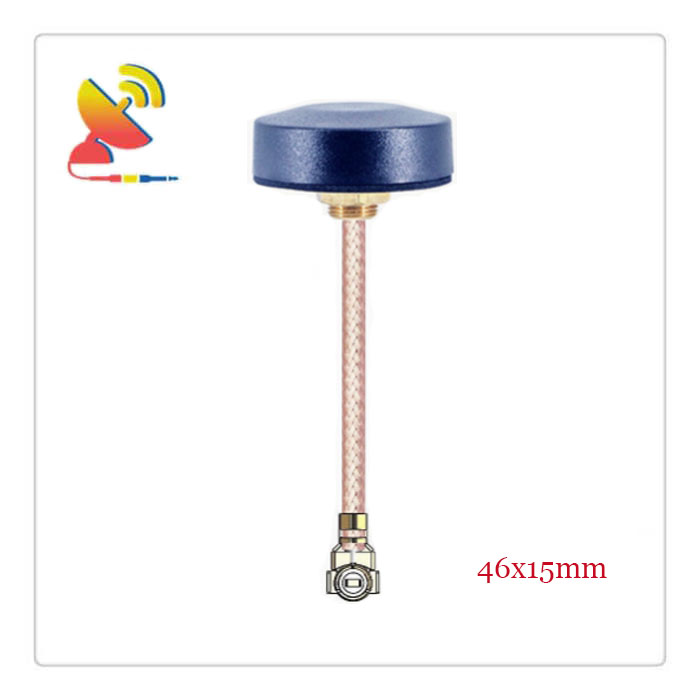

Item: CTRF-ANTENNA-EX-GNSS-4615-IPEX
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13/RG178/RG316
Cable length: 0.2M
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

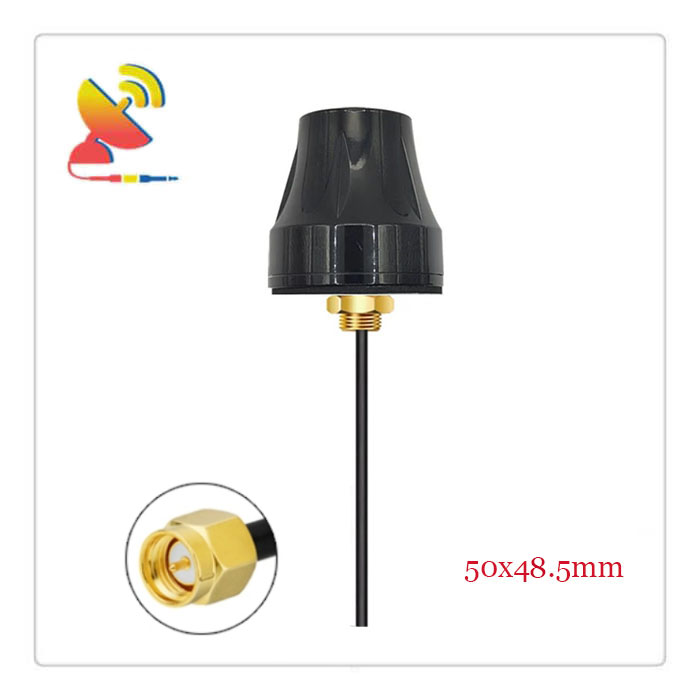

Item: CTRF-ANTENNA-EX-GNSS-5048-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-GNSS-5048-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

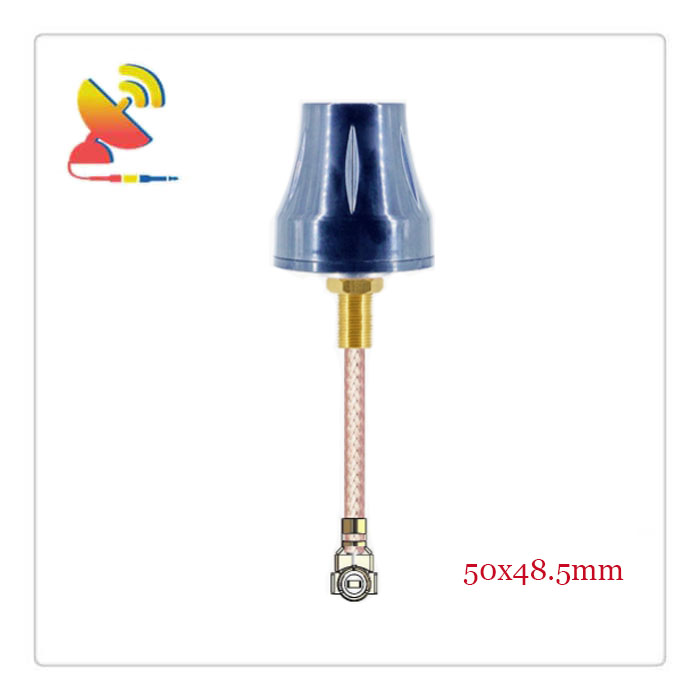

Item: CTRF-ANTENNA-EX-GNSS-5048-IPEX
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13/RG178
Cable length: 0.2M
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

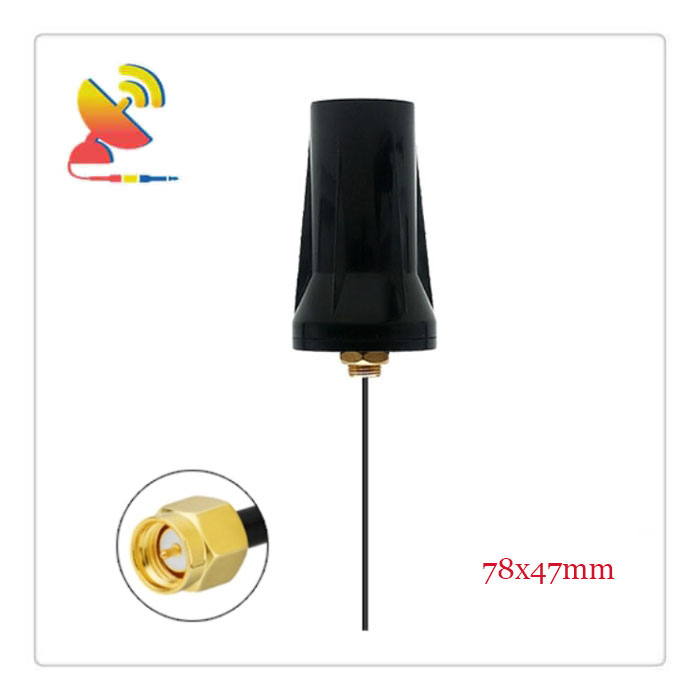

Item: CTRF-ANTENNA-EX-GNSS-7847-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ78x47mm
Mounting: Screw/through-hole

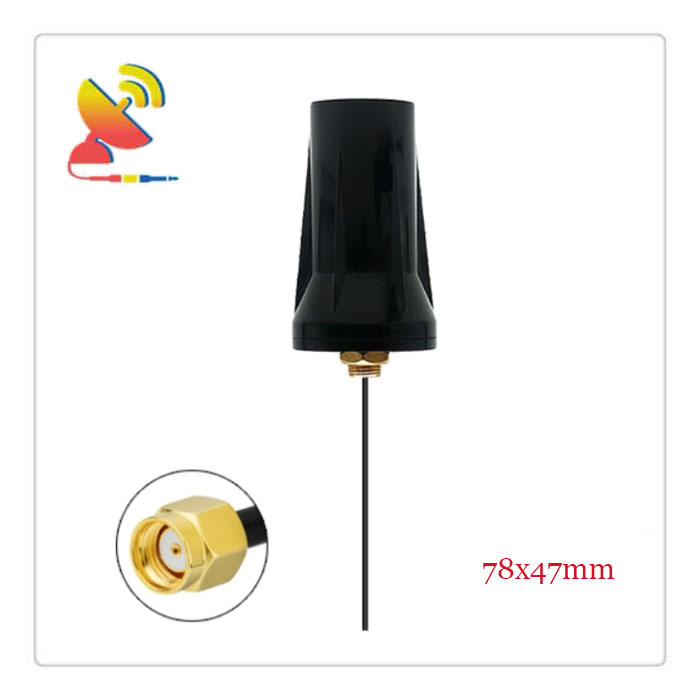

Item: CTRF-ANTENNA-EX-GNSS-7847-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ78x47mm
Mounting: Screw/through-hole

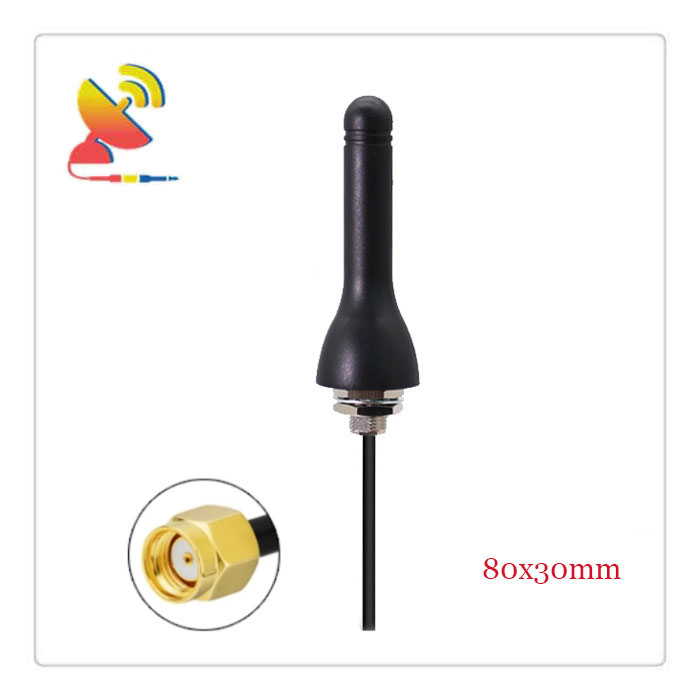

Item: CTRF-ANTENNA-EX-GNSS-8030-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ80x30mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-GNSS-8030-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ80x30mm
Mounting: Screw/through-hole

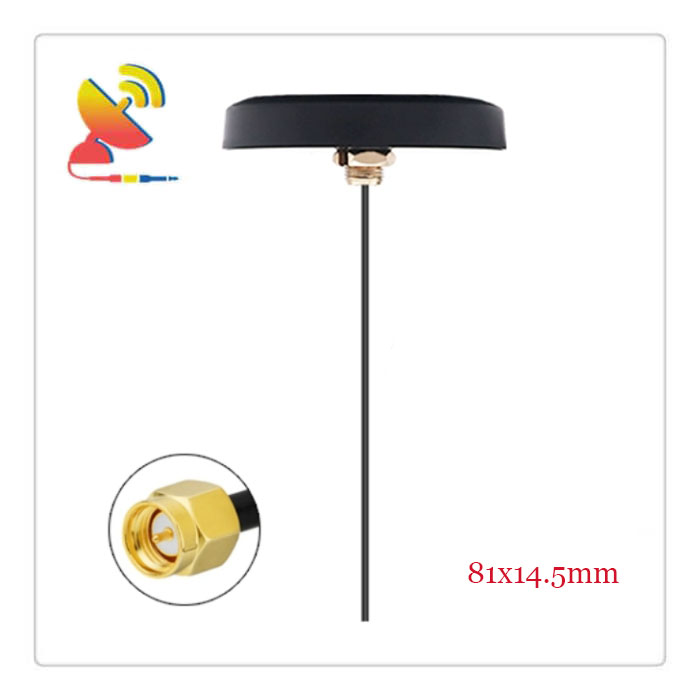

Item: CTRF-ANTENNA-EX-GNSS-8114-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-GNSS-8114-RPSMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

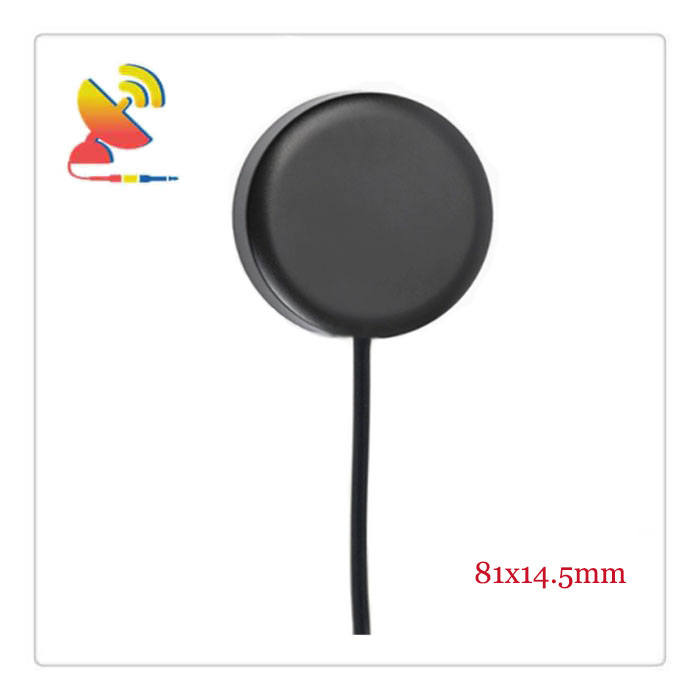

Item: CTRF-ANTENNA-EX-GNSS-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency: 1561/1575.42/1602MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Directional: Omnidirectional
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ81×14.5mm
Mounting: Sticker
Besides the through-hole screw mount puck antennas. C&T RF Antennas Inc. also offers GNSS/GPS antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
