C&T RF Antennas Inc. manufactures a series of IPEX NFC 13.56 MHz antennas. The internal NFC 13.56 MHz antennas with IPEX connector flexible PCB antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance IPEX NFC 13.56 MHz antennas such as the 13.56 MHz antenna datasheet, NFC antenna pricing, and IPEX antenna inventory.
Or other internal-external 13.56 MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance IPEX NFC 13.56 MHz antennas are internal flexible PCB antennas with an IPEX connector antenna cable extension 13.56 MHz band low-frequency antennas manufactured by C&T RF Antennas Inc. for RFID/NFC wireless applications.
The Flexible PCB sheet can be freely bent, folded, and coiled, and slight bending will not affect the antenna’s performance. Thus, it also provides great convenience for the spatial layout of the antenna in the reader.
The Near Field Communication (NFC) flexible PCB built-in antennas are essential components with self-adhesive backing and coaxial cable working at 13.56 MHz for NFC-enabled devices. They come with or with IPEX connector/soldered opening end antenna cable extensions, which are available for choice.
Besides the high-performance IPEX NFC 13.56 MHz antennas, we also provide 13.56 MHz RFID coil antennas, 13.56 MHz NFC coil antennas, 125KHz RFID antennas, MX 1.25mm NFC Tag antennas, and IPEX 13.56 MHz PCB antennas.
Other flexible PCB material RF antennas, such as flexible 433 MHz PCB antennas, single-band 868MHz/915MHz flexible PCB antennas, dual-band 868/915MHz LoRa flexible antennas, LTE-M/NB-IoT/3G GSM FPC antennas, flexible WiFi 2..4GHz/2.4&5GHz PCB antennas, 4G LTE/5G NR/5G N78 flex PCB antennas, and GNSS/GPS flexible PCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Different NFC antenna products have different sizes and structures. It is recommended to refer to the chip specification to reserve a matching network for impedance debugging.
Internal antenna style with self-adhesive sticker mounting
IPEX/MHF/u.FL connector/soldered opening end cable extension for easy installation
RG low-loss cable extender
RoHS compliant
etc.

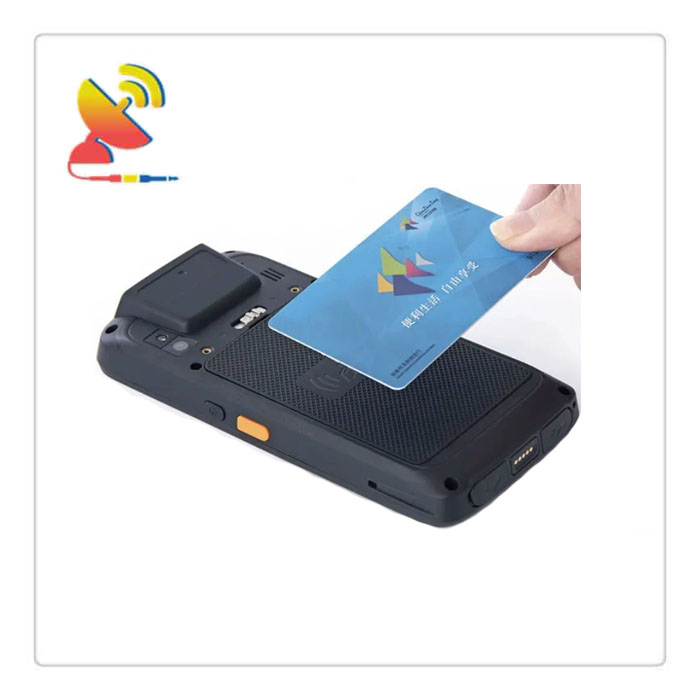

RFID readers,
NFC (near-field communication) tags,
RFID (radio frequency identification) tags,
NFC devices,
etc.
C&T RF Antennas Inc. provides high-performance IPEX NFC 13.56 MHz antennas. Below are some of the 13.56 MHz antennas.
Item: CTRF-ANTENNA-FPC-1356-2020-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Inductance: 2-3.0uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-2020)
Cable length: 100mm
Antenna size: 20x20mm

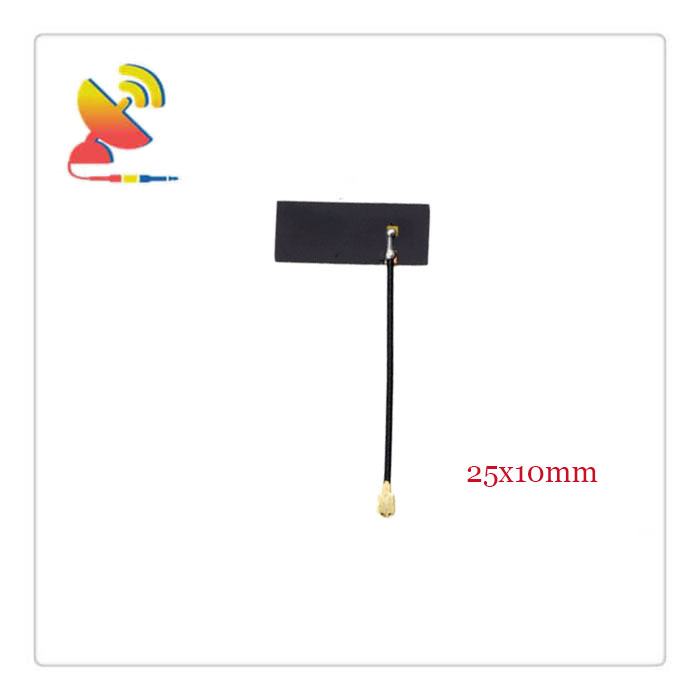

Item: CTRF-ANTENNA-FPC-1356-2510-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Inductance: 1.1uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-2510)
Cable length: 100mm
Antenna size: 25x10mm

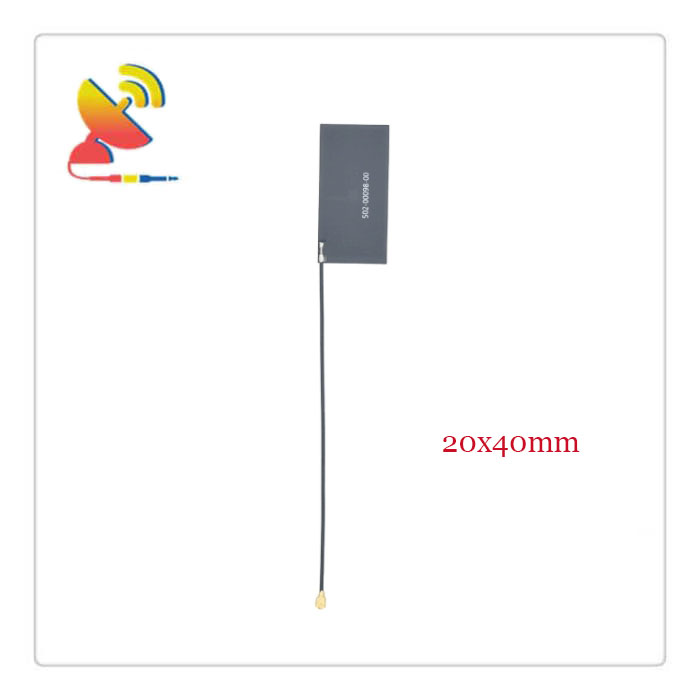

Item: CTRF-ANTENNA-FPC-1356-4020-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Inductance: 1.068uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-4020)
Cable length: 100mm
Antenna size: 40x20mm
Item: CTRF-ANTENNA-FPC-1356-6809-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 2.8-4.0uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-6809)
Cable length: 120mm
Antenna size: 68x9mm

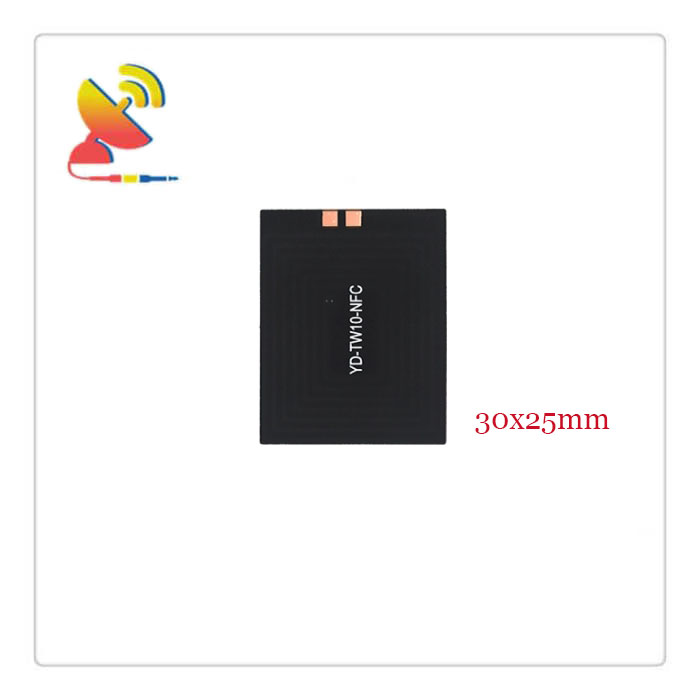

Item: CTRF-ANTENNA-FPC-1356-3025-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-3025)
Cable length: 100mm
Antenna size: 30x25mm

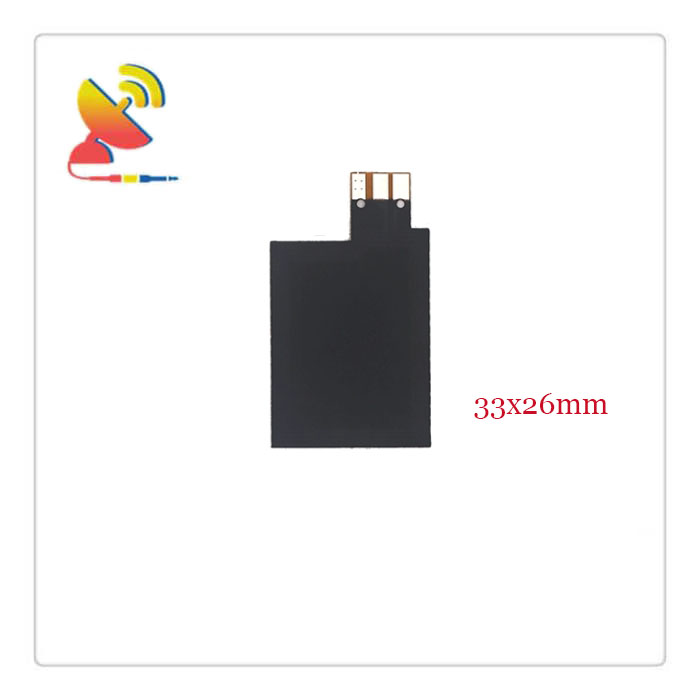

Item: CTRF-ANTENNA-FPC-1356-3326-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-3326)
Cable length: 100mm
Antenna size: 33x26mm

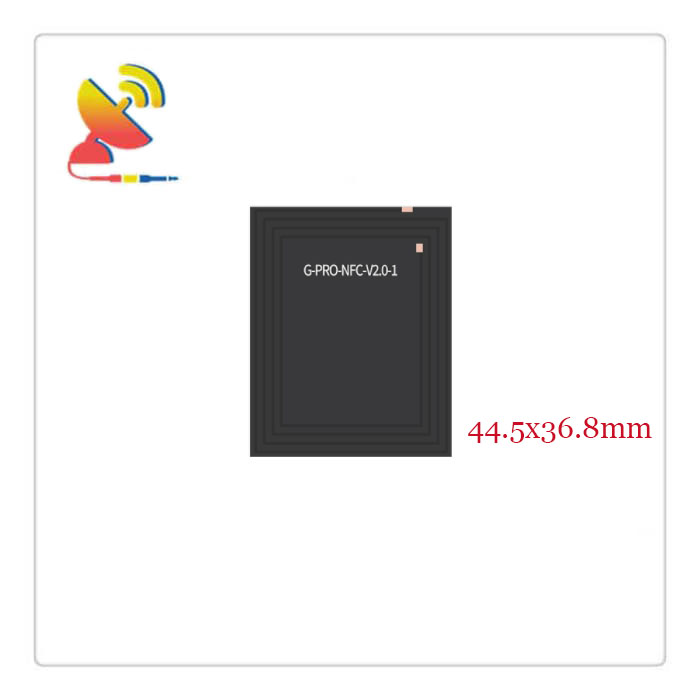

Item: CTRF-ANTENNA-FPC-1356-4437-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-4437)
Cable length: 100mm
Antenna size: 44.5×36.8mm
Item: CTRF-ANTENNA-FPC-1356-4518-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-4518)
Cable length: 100mm
Antenna size: 45×18.7mm

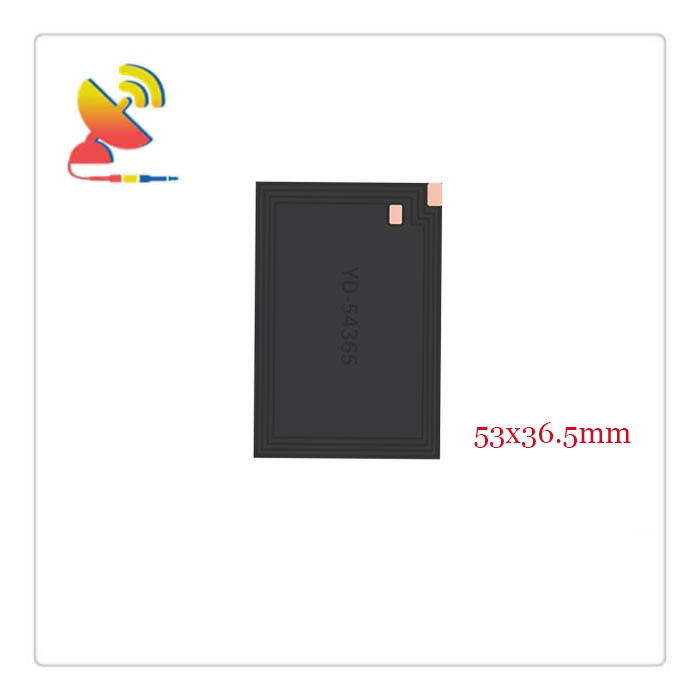

Item: CTRF-ANTENNA-FPC-1356-5336-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-5336)
Cable length: 100mm
Antenna size: 53×36.5mm

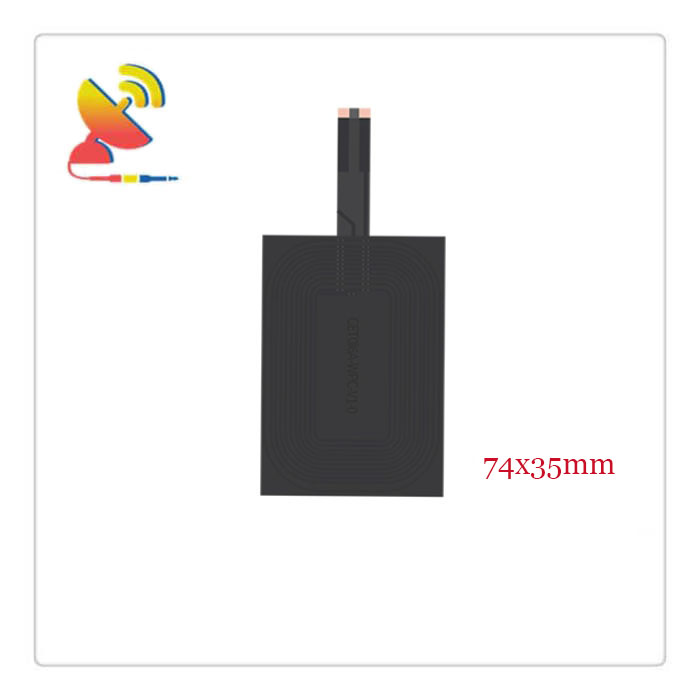

Item: CTRF-ANTENNA-FPC-1356-7435-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-7435)
Cable length: 100mm
Antenna size: 74x35mm

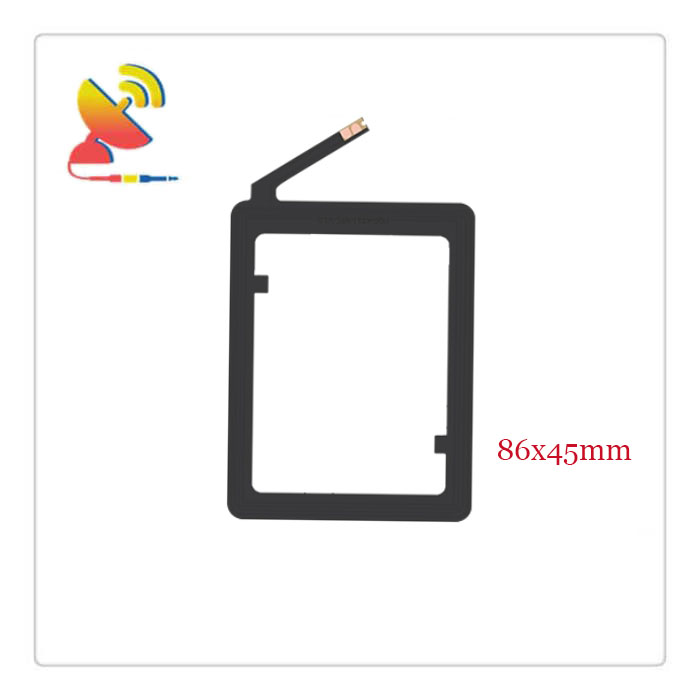

Item: CTRF-ANTENNA-FPC-1356-8645-IPEX
Specifications:
Material: Flexible PCB
Frequency range: 13.56 MHz
Gain: 2dBi
Reading distance: more than 10mm
Inductance: 1.5uH
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-8645)
Cable length: 100mm
Antenna size: 86x45mm
The antenna comes with high magnetic flux ferrite, thin material, high sensitivity, and strong anti-interference ability, compared with no wave-absorbing material antenna significantly improves the sensing distance, and the antenna can be mounted on top of the battery or metal.
