C&T RF Antennas Inc. manufactures a series of flexible GPS GNSS PCB antennas. The internal passive GPS/GNSS flexible PCB/FPC antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance flexible GPS GNSS PCB antennas, such as the passive GPS flexible PCB antenna datasheet, passive GNSS flexible PCB antenna pricing, and GPS/GNSS flexible PCB antenna inventory.
Or other indoor-outdoor active & passive GPS/GNSS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance flexible GPS GNSS PCB antennas are passive GPS/GNSS/Beidou/Glonass multi-band antennas made by flexible printed circuit board antennas manufactured by C&T RF Antennas Inc. for positioning/tracking devices.
The high-performance flexible GPS GNSS PCB antennas are a solution to integrate the antenna on a flexible circuit board (FPC), which is thin, lightweight, bendable, and easy to integrate, and is widely used in portable and wearable devices as well as space-constrained IoT devices.
Besides the high-performance flexible GPS GNSS PCB antennas, we also provide 13.56 MHz FPCB antennas, flexible 433 MHz PCB antennas, flex 868 PCB antennas, 915MHz LoRa FPCB antennas, dual-band 868/915MHz LoRa flexible antennas, LTE-M/NB-IoT/3G GSM FPC antennas, flexible WiFi 2..4GHz/2.4&5GHz PCB antennas, 4G/LTE flex antennas, 5G NR/5G N78 flex PCB antennas for your choice.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Adopting flexible substrates (e.g., polyimide), the thickness is usually between 0.1-0.3mm, which is lightweight, bendable or foldable, and adaptable to complex spatial layouts.
More suitable for size and weight-sensitive devices than traditional ceramic antennas or rigid PCB antennas.
Antennas and RF circuits can be directly integrated on the FPC, reducing external connections, lowering signal loss, and improving reliability.
Supports multi-band design (e.g., GPS L1, GLONASS, BeiDou, etc.) to meet global positioning requirements.
Mature manufacturing process, suitable for mass production and low cost.
The antenna shape, size, and feed point position can be adjusted according to equipment requirements, with high flexibility.
A flexible substrate has good resistance to temperature, humidity, and chemical corrosion, adapting to harsh environments.
etc.
The high-performance, flexible GPS GNSS PCB antennas are used in the following applications.
Integrated GPS/GNSS function for motion track recording and positioning.
Miniaturised design, easy to wear, and supports long battery life.
Adapt to complex airframe structures and provide stable positioning signals.
Affixed to goods or equipment to achieve global positioning.
Deployed in farmland to monitor location and environmental data.
It is integrated on the roof or behind the windscreen to provide precise positioning.
It is built into the body of the vehicle to enable vehicle positioning and management.
e.g., a first aid locator bracelet to quickly locate patients.
etc.

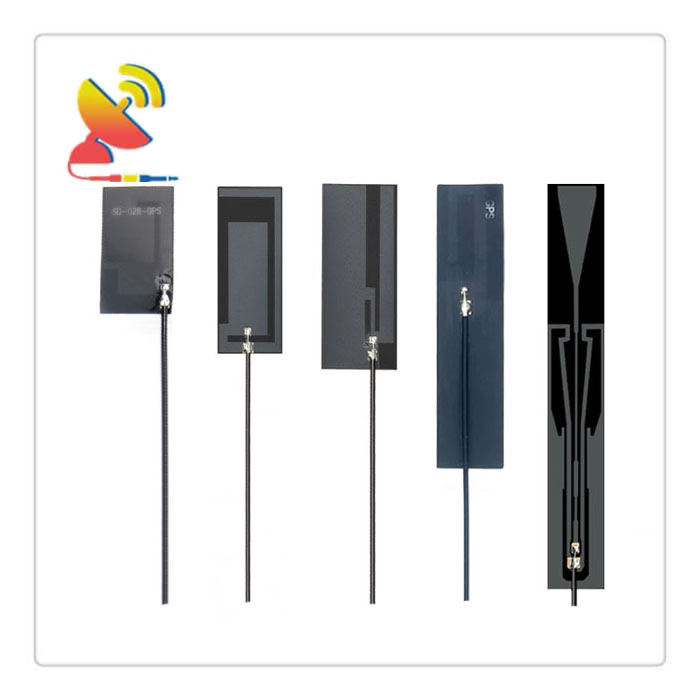

C&T RF Antennas Inc. provides high-performance flexible GPS GNSS PCB antennas. Below are some of the passive GPS GNSS flexible PCB antennas.

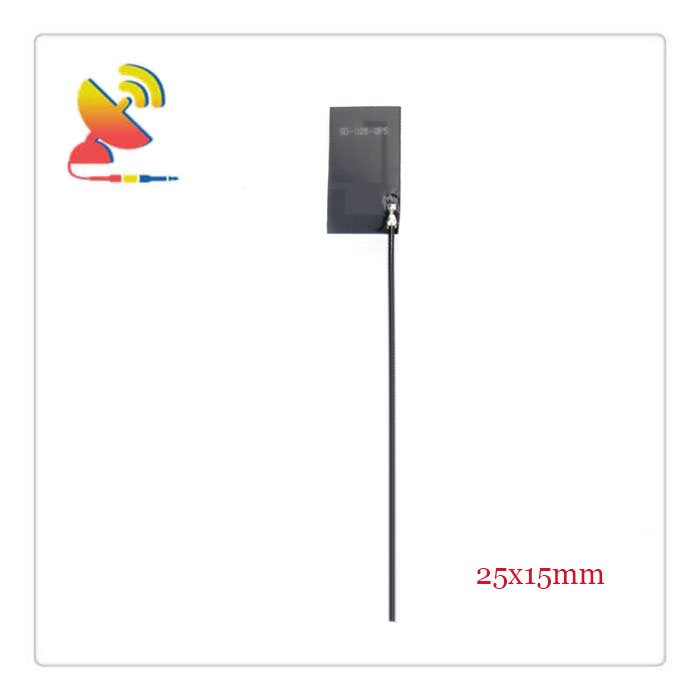

Item: CTRF-ANTENNA-FPC-GPS-2515-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 1575.42 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ25x15mm

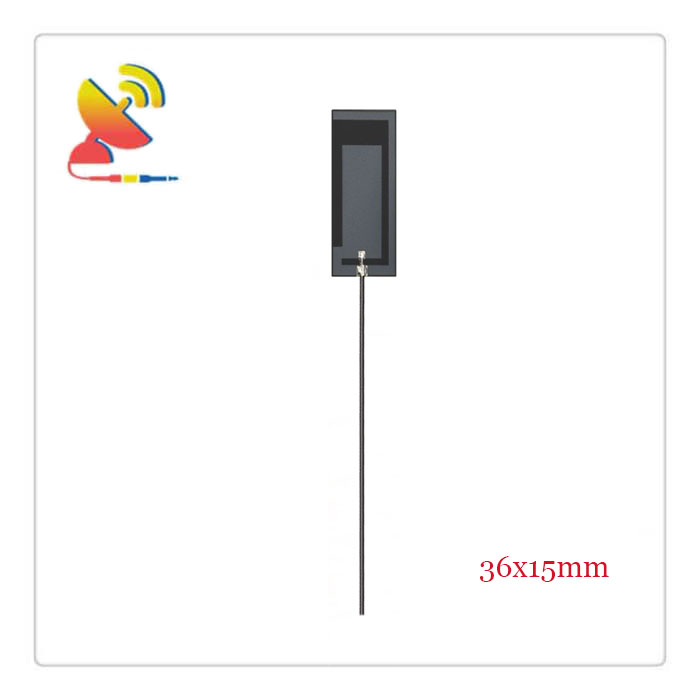

Item: CTRF-ANTENNA-FPC-GPS-3615-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ36x15mm

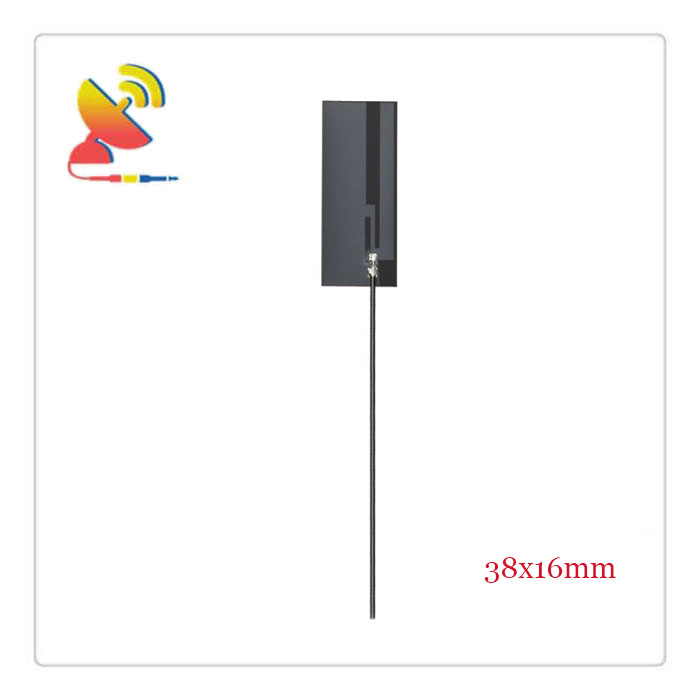

Item: CTRF-ANTENNA-FPC-GPS-3816-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ38x16mm

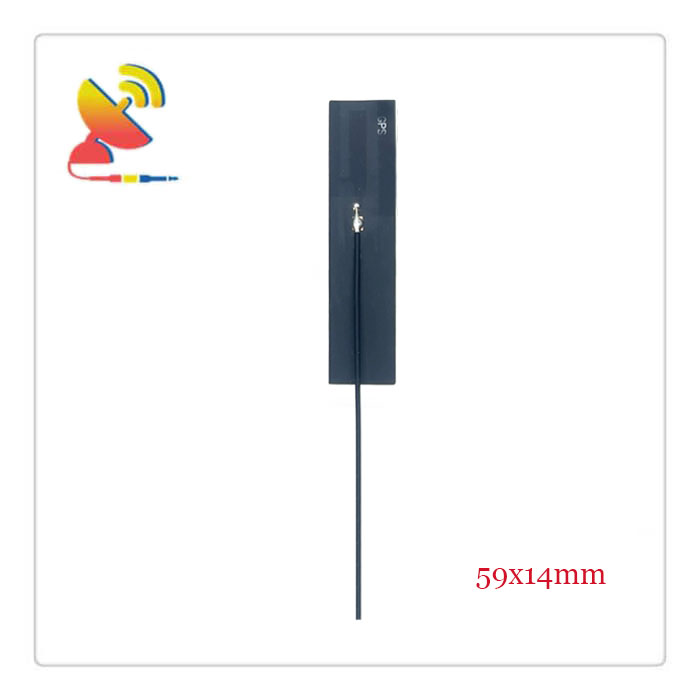

Item: CTRF-ANTENNA-FPC-GPS-5914-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ59x14mm

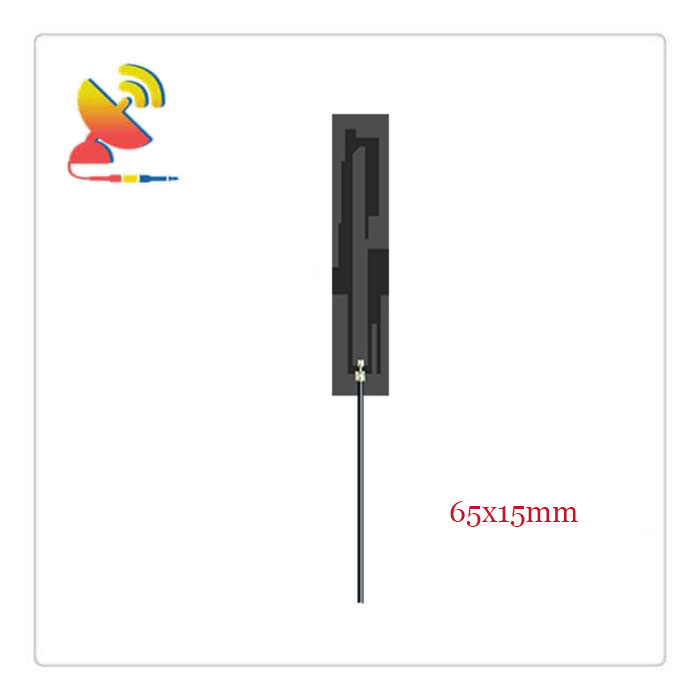

Item: CTRF-ANTENNA-FPC-GNSS-6515-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 1561/1575.42/1610 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ65x15mm

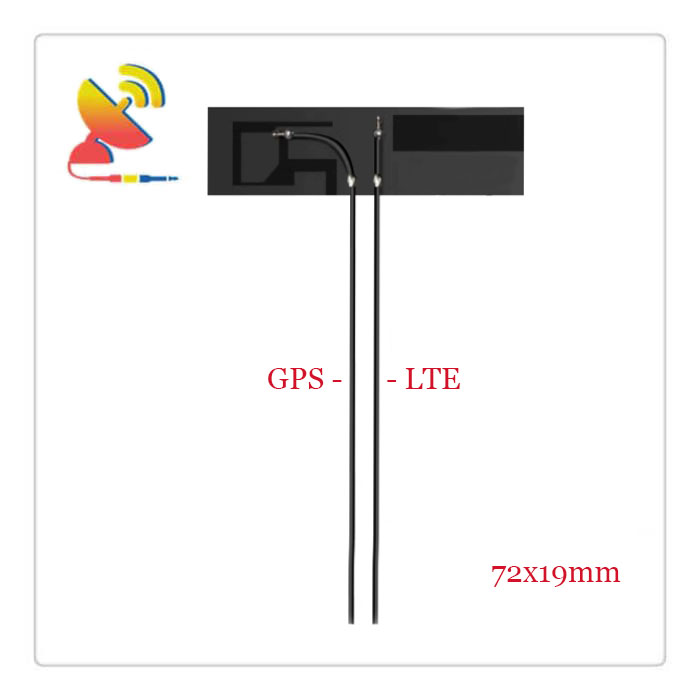

Item: CTRF-ANTENNA-FPC-15-27-7219-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 700-2700 MHz, 1561-1610 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP/Omni
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ72x19mm
Item: CTRF-ANTENNA-FPC-GPS-8714-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency range: 1561/1575.42/1610 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ87x14mm
In addition to the flexible PCB antennas, C&T RF Antennas Inc. also offers GPS/GNSS antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, rubber duck antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, PCB antennas, helical antennas, etc. Contact us for more specs you need.
