C&T RF Antennas Inc. manufactures a series of high-performance HF400 coaxial cable assemblies. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance HF400 cable assemblies, including custom datasheets, pricing, and inventory.
Or other RG coaxial cable assembly styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance HF400 coaxial cable assemblies are 50-ohm, flexible coax cables with RF connectors, manufactured by C&T RF Antennas Inc., and are available in custom lengths from 0.1m to 100m. Used in wireless communication systems and antenna feeders.

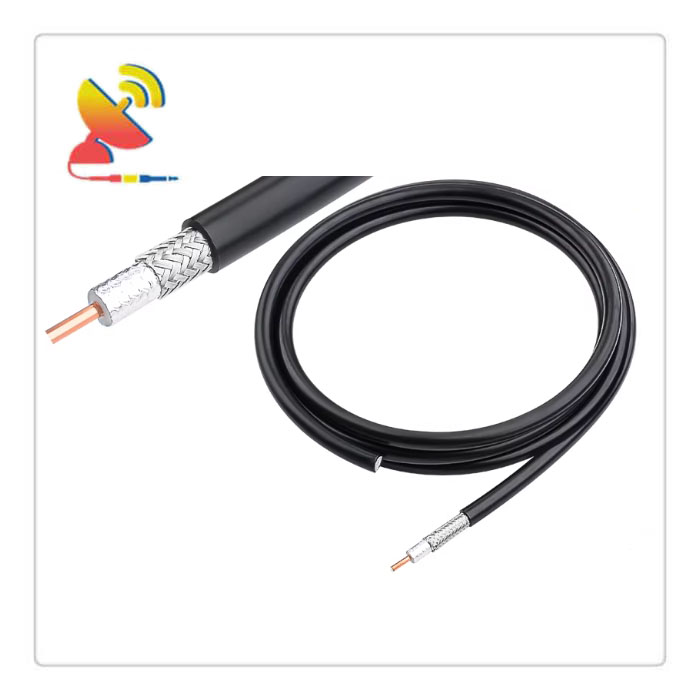

The high-performance HF400 coaxial cable is equivalent to LMR400 cable. High-performance, low-loss, ultra-flexible cables in the HF/LMR series use foamed polyethylene as the dielectric material.
These cables feature minimal insertion loss, exceptional flexibility, high frequency capability, excellent abrasion resistance, shielding performance exceeding -90dB, and outstanding cost-effectiveness. They are widely applied in antenna feed systems for mobile communications, base stations, radar systems, and other fields.
HF400/LMR400 represents the next generation of RF coaxial cables, offering enhanced flexibility, ease of installation, and lower costs. These cables are employed as transmission lines in aircraft, satellite, and communication antenna systems. HF/LMR cables are low-loss coaxial cables that deliver particularly superior performance at high frequencies.
Applications include antenna installation, RF test systems, laboratory interconnects, and communication base station feeders. etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for any additional specifications you need.
C&T RF Antennas Inc. offers various RF coaxial cable assemblies with RF SMA, SMB, SMC, N-type, UHF, BNC, TNC, MCX, MMCX, F-type, TV, RCA, FME, IPX, M5, and other RF, video, and communication connectors, along with couplers, attenuators, power dividers, etc. With various high-frequency cables, such as 50Ω (1, 1.5, 2, 3, 5, 7), 75Ω (3, 5, 7), 1/2-wave feedlines, RG213, RG223, RG142, RG1.13, RG1.37, RG174, RG178, RG316, RG58, RG142, RG402, RG405, LMR195, LMR240, LMR400, etc.
For more information on similar products, our expert technical support and knowledgeable sales team can help you select high-quality RF coaxial cable assemblies that meet your requirements.
HF400 Coaxial Cable Structure Parameters |
|||||
| Item | Material | Diameter(mm) | |||
| Inner Conductor | Solid BC | 2.74 | |||
| Dielectric | Foam PE | 7.24 | |||
| Outer Conductor | Aluminum Tape | 7.39 | |||
| Overall Braid | Tinned Copper | 8.13 | |||
| Jacket | PVC | 10.29 | |||
HF400 Coaxial Cable Electrical Performance Parameters |
|||||
| Capacitance(pF/m) | 78.4 | ||||
| Impedance(ohm) | 50 | ||||
| Velocity Ratio | 85% | ||||
| Inductance (uH/m) | 0.2 | ||||
| Attenuation shielding (>dB) | 90 | ||||
| Max voltage (KVVMS) | 4.0 | ||||
| Sheath voltage resistance (KVVMS) | 8.0 | ||||
| Voltage Withstand(Volts DC) | 2500 | ||||
| Jacket Spark(Volts RMS) | 8000 | ||||
| Peak Power(kW) | 16 | ||||
| Operating Frequency | 6GHz | ||||
| HF400 Coaxial Cable Mechanical and Environmental Performance | |||||
| Operating Temperature Range(℃) | -40 to +85 | ||||
| Bending Radius(mm) | 25.4 | ||||
| Weight | 0.068 lbs/ft [0.1 kg/m] | ||||
| ROHS | Compliance | ||||
HF400 Coaxial Cable Attenuation |
|||||
| Frequency(MHz) | Attenuation(dB/m) | Avg. Power kW | |||
| 30 | 0.022 | 3.33 | |||
| 50 | 0.029 | 2.57 | |||
| 150 | 0.05 | 1.47 | |||
| 220 | 0.061 | 1.2 | |||
| 450 | 0.089 | 0.83 | |||
| 900 | 0.58 | 12.8 | |||
| 1500 | 0.168 | 0.44 | |||
| 1800 | 0.186 | 0.4 | |||
| 2000 | 0.196 | 0.37 | |||
| 2500 | 0.222 | 0.33 | |||
| 5800 | 0.355 | 0.21 | |||
| 8000 | 0.427 | 0.17 | |||
C&T RF Antennas Inc. offers high-performance HF400 coaxial cable assemblies. Below are some of the HF400 coax cable assembly styles.
Item: CTRF-ANTENNA-SMAKx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female
Connector 2: SMA Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm
Item: CTRF-ANTENNA-RPSMAK-SMAK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Female
Connector 2: SMA Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm
Item: CTRF-ANTENNA-RPSMA-RPSMAK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: RP-SMA Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

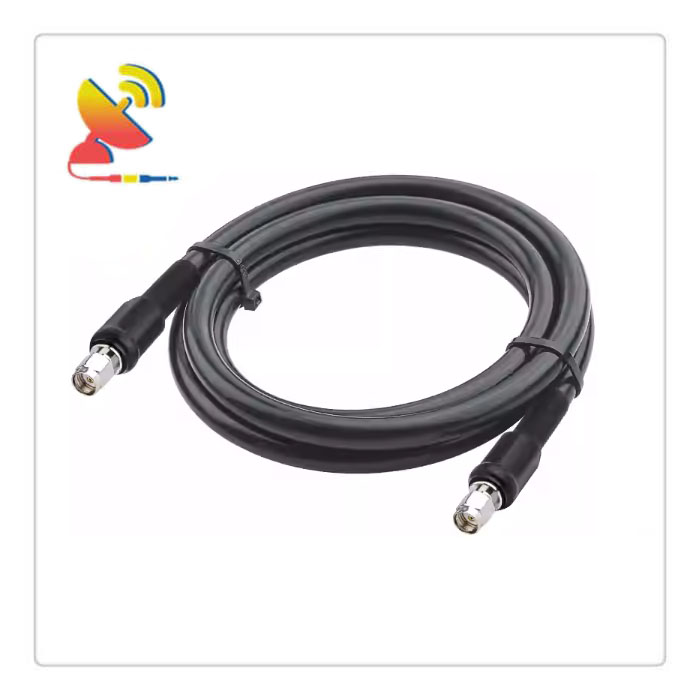

Item: CTRF-ANTENNA-RPSMAx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: RP-SMA Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm
Item: CTRF-ANTENNA-RPSMA-SMAK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: SMA Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

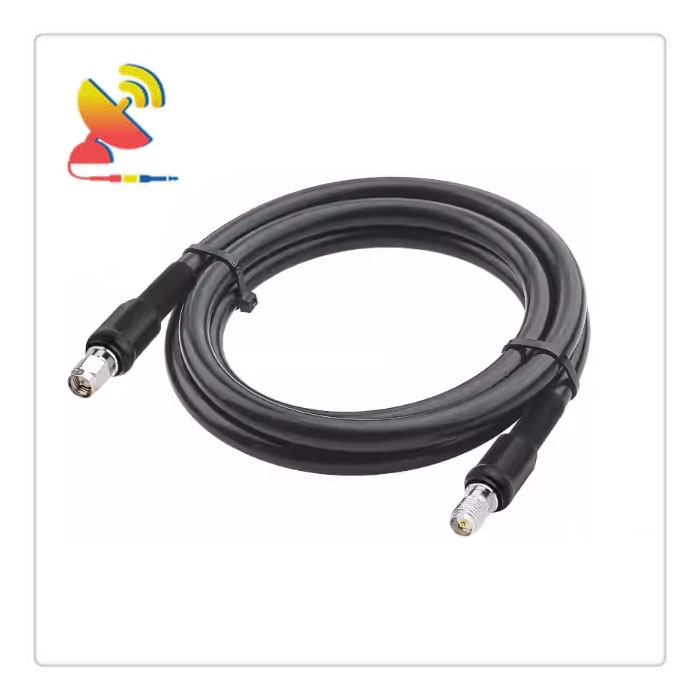

Item: CTRF-ANTENNA-SMA-RPSMAK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: RP-SMA Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

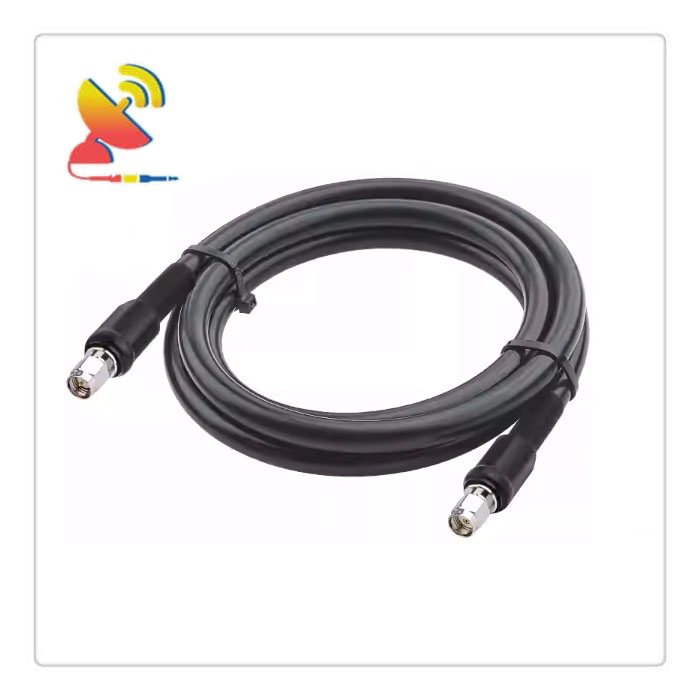

Item: CTRF-ANTENNA-SMA-RPSMA-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: RP-SMA Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

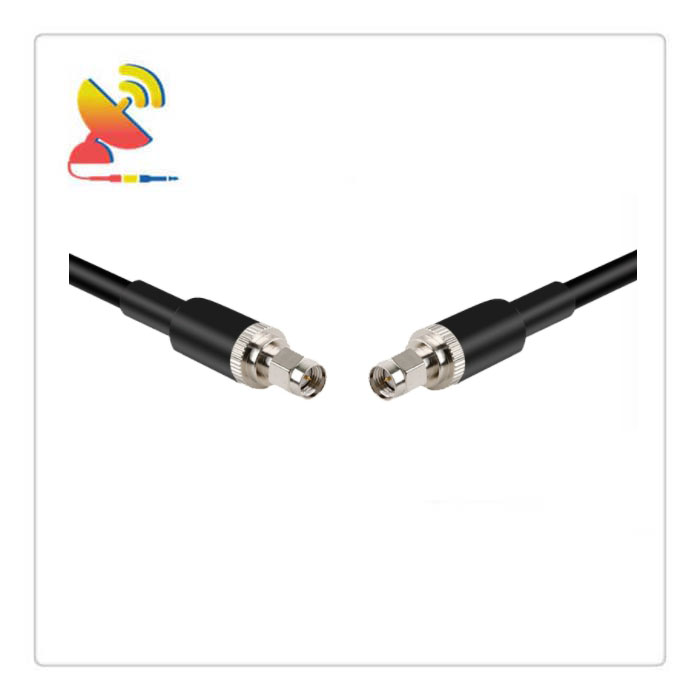

Item: CTRF-ANTENNA-SMAx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

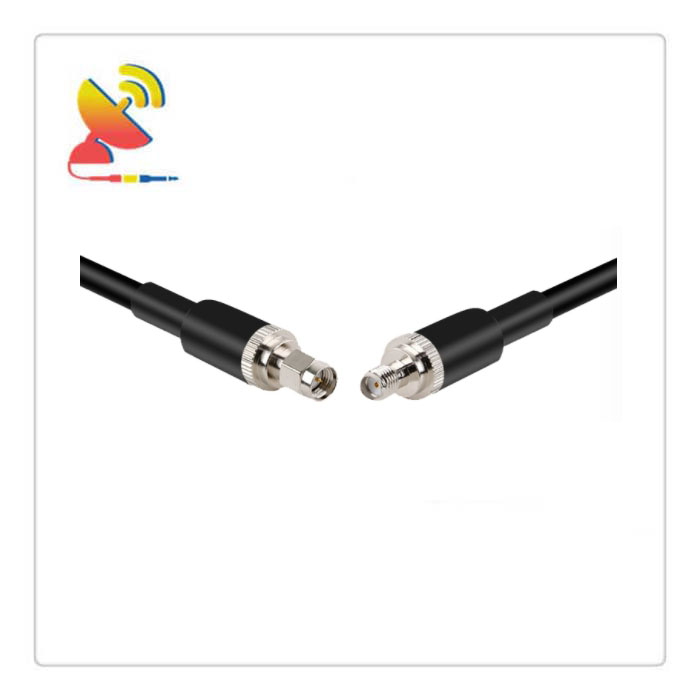

Item: CTRF-ANTENNA-SMAJ-SMAK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: SMA Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

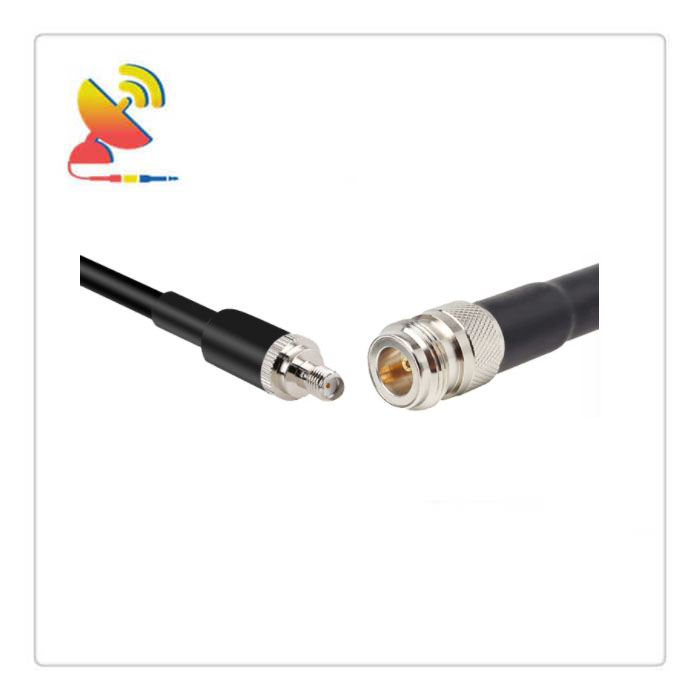

Item: CTRF-ANTENNA-SMAK-NK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Female
Connector 2: N-Type Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

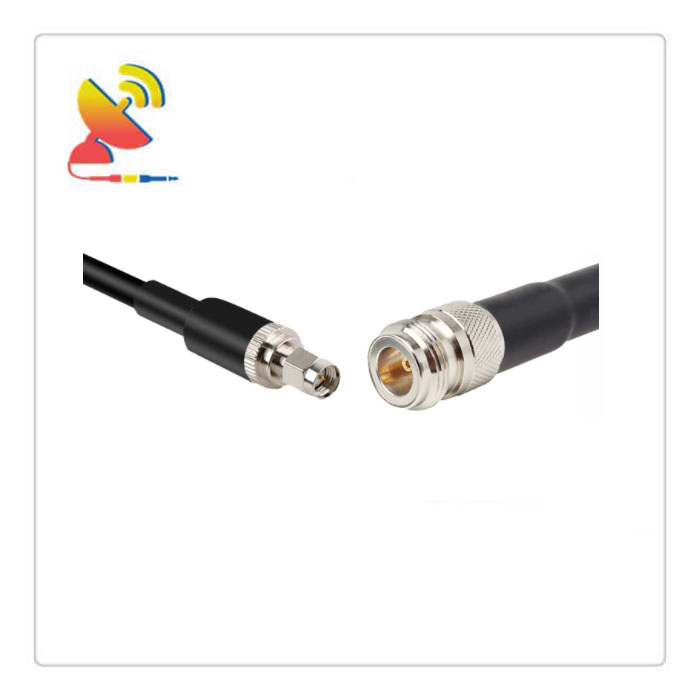

Item: CTRF-ANTENNA-SMA-NK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: N-Type Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

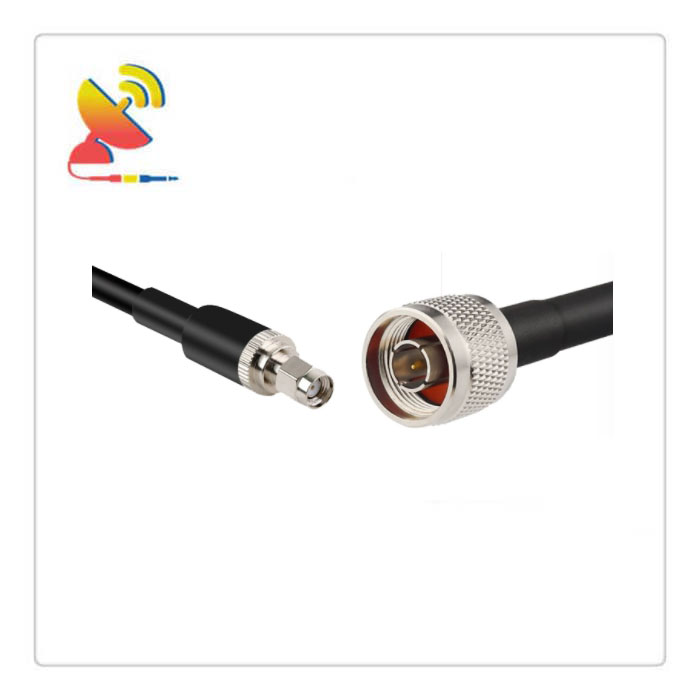

Item: CTRF-ANTENNA-RPSMA-N-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: RP-SMA Male
Connector 2: N-Type Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

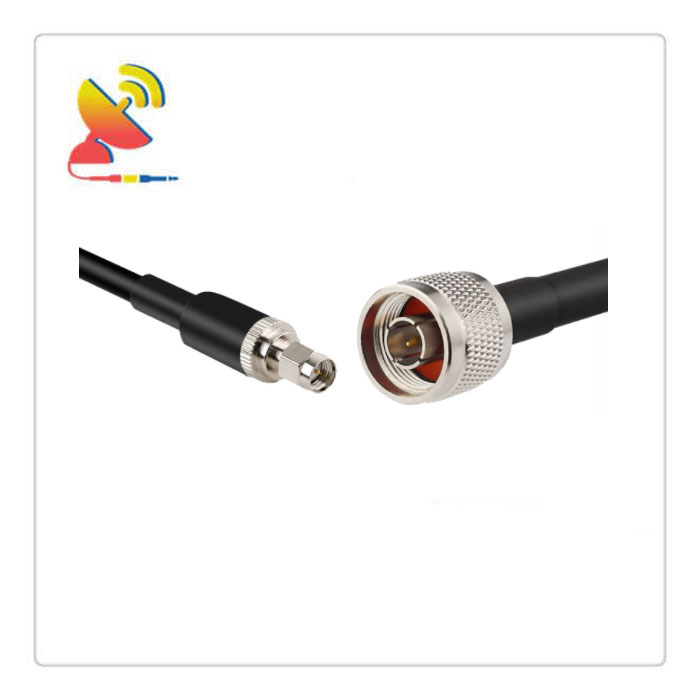

Item: CTRF-ANTENNA-SMA-N-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: SMA Male
Connector 2: N-Type Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

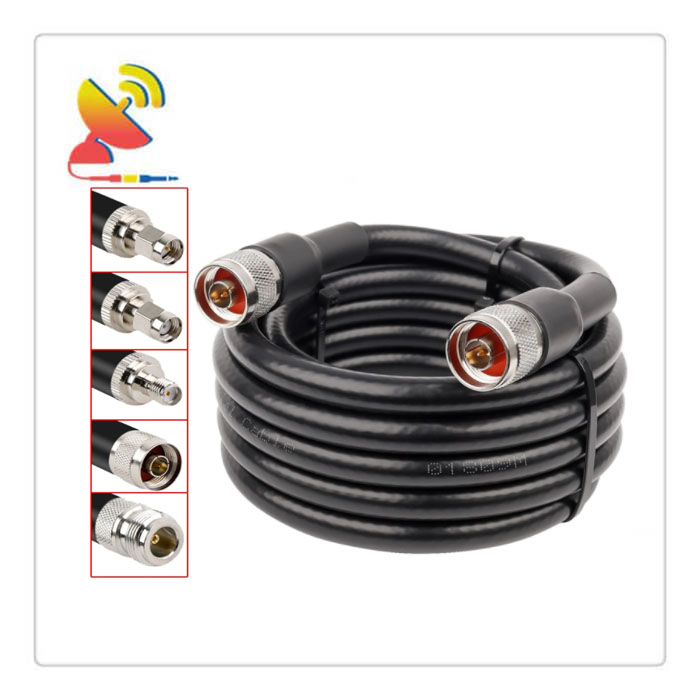

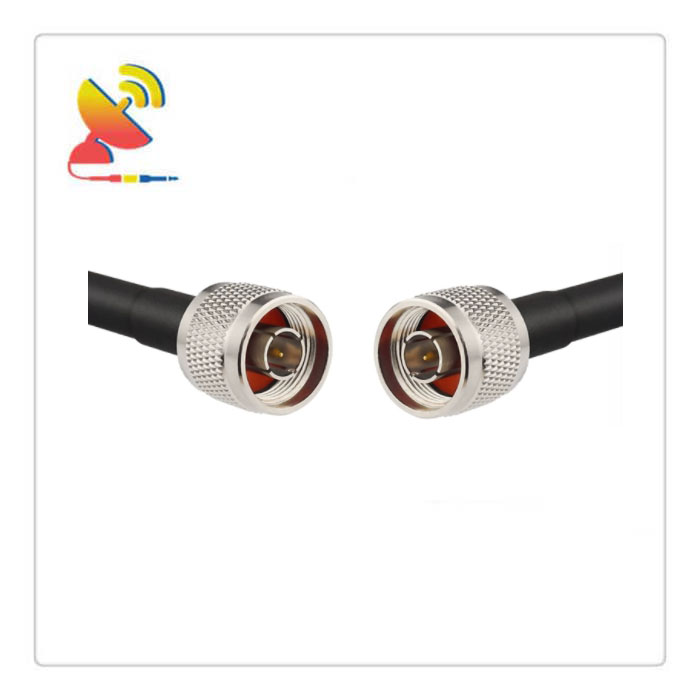

Item: CTRF-ANTENNA-CC-Nx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-Type Male
Connector 2: N-Type Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

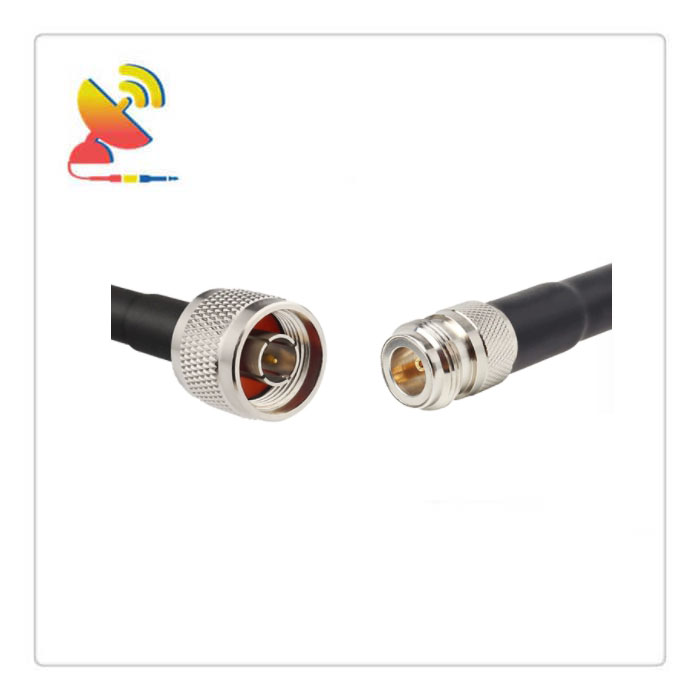

Item: CTRF-ANTENNA-CC-NJ-NK-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-Type Male
Connector 2: N-Type Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

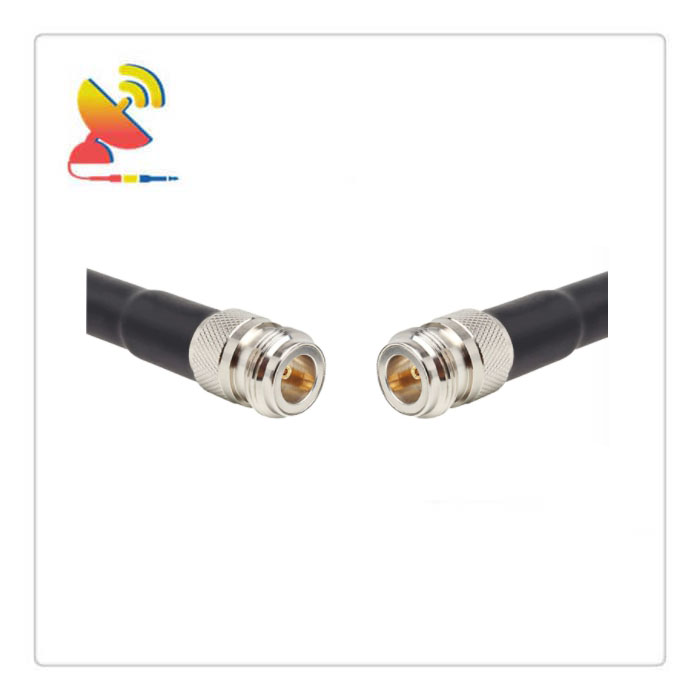

Item: CTRF-ANTENNA-CC-NKx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: N-Type Female
Connector 2: N-Type Female
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm
Item: CTRF-ANTENNA-CC-TNCx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: TNC Male
Connector 2: TNC Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm

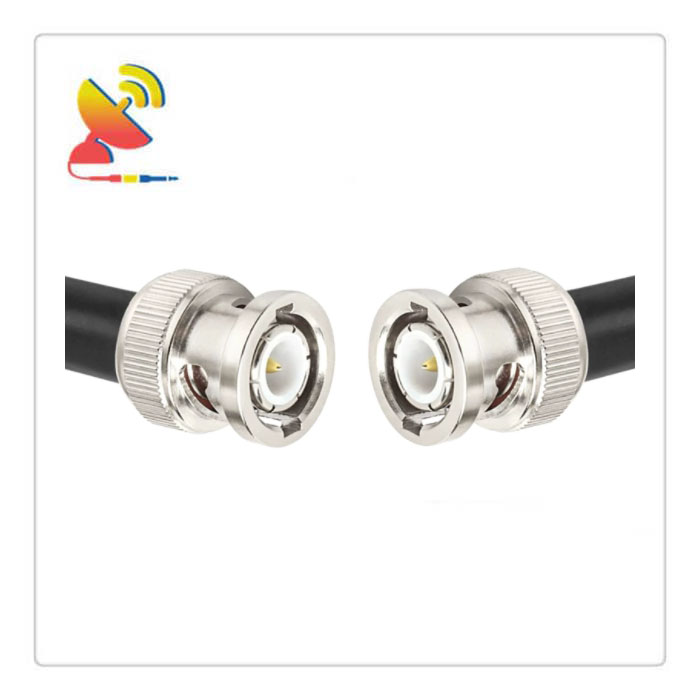

Item: CTRF-ANTENNA-CC-BNCx2-HF400-5M
Specifications:
Frequency: 0-8 GHz
V.S.W.R: ≤1.5
Independence: 50 Ohms
Connector 1: BNC Male
Connector 2: BNC Male
Cable: HF400/LMR-400
Cable Length: 5m (0.5m, 1m,1.5m, 2m, 2.5m, 3m, 4m, 8m, 10m, 15m, 20m, 30m, 50m, 100m, or customized)
Cable Diameter: 10.29mm
In addition to RG coax cables, C&T RF Antennas Inc. also offers RF coax cable assemblies and RF antennas. Such as external rubber duck antennas, adhesive mount antennas, magnetic antennas, fiberglass antennas, Yagi antennas, sector antennas, adhesive mount antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for any additional specifications you need.
