C&T RF Antennas Inc. manufactures a series of 4G LTE Yagi antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on our high-performance 4G LTE Yagi antennas, including the cellular 4G LTE antenna datasheet, pricing, and availability of the Yagi antennas.
Or other indoor-outdoor 4G LTE antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 4G LTE Yagi antennas are external directional yagi antennas that cover the entire 698-960 MHz / 1710-2700 MHz frequency ranges, manufactured by C&T RF Antennas Inc. for Cellphone Signal Booster/Cellular Repeater.
The high-performance 4G LTE Yagi antennas are used for Mobile/China Unicom/China Telecom/wireless surveillance/universal network modules/smart home devices/vending machine queue ticket dispensers/digital signage/base station equipment/transportation equipment, etc.
Besides the High-Performance 4G LTE Yagi Antennas, the LoRa/GSM 900 MHz Yagi Antennas, ISM 915 MHz Yagi Antennas, ISM 868 MHz Yagi Antennas, UHF 433 MHz Yagi Antennas, 1.5 GHz Yagi Antennas, 2.4 GHz Yagi Antennas, and 1.2 GHz Yagi Antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
C&T RF Antennas Inc. provides high-performance 4G LTE Yagi antennas. Below are some of the cellular 4G LTE yagi antennas.

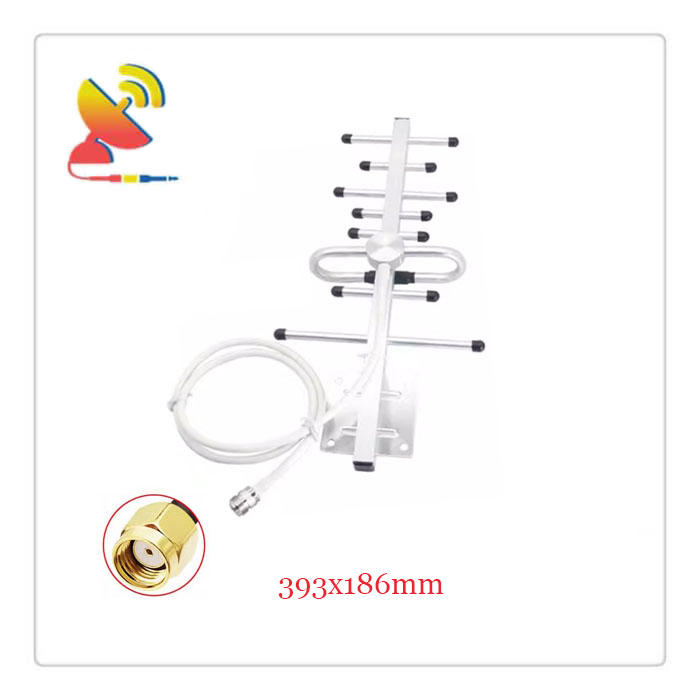

Item: CTRF-ANTENNA-YG-7027-3919-SMA
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 11dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Element: 8
Dimension: Φ393x186mm
Mounting: U-clamp
Item: CTRF-ANTENNA-YG-7027-3919-RPSMA
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 11dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: RP-SMA male
Cable type: RG58
Cable length: 1M
Element: 8
Dimension: Φ393x186mm
Mounting: U-clamp
Item: CTRF-ANTENNA-YG-7027-3919-NM
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 11dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: N-type male
Cable type: RG58
Cable length: 1M
Element: 8
Dimension: Φ393x186mm
Mounting: U-clamp

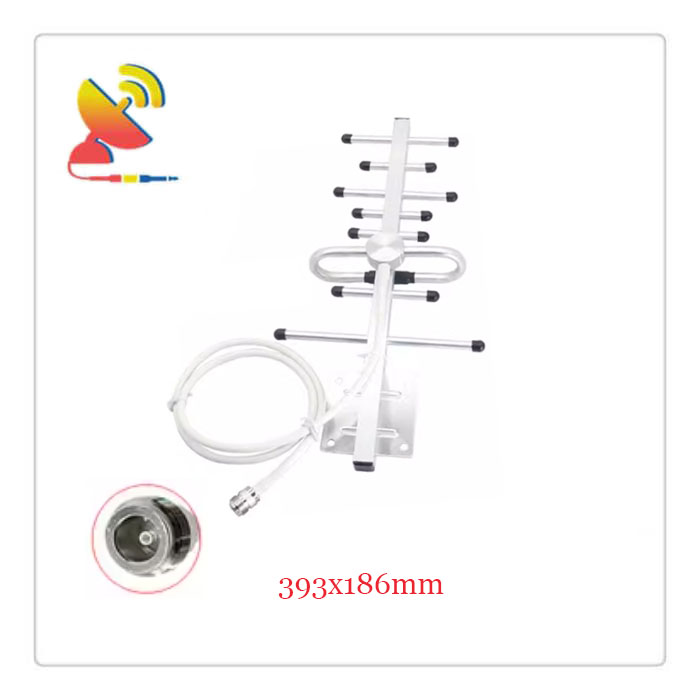

Item: CTRF-ANTENNA-YG-7027-3919-NK
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 11dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: N-type female
Cable type: RG58
Cable length: 1M
Element: 8
Dimension: Φ393x186mm
Mounting: U-clamp

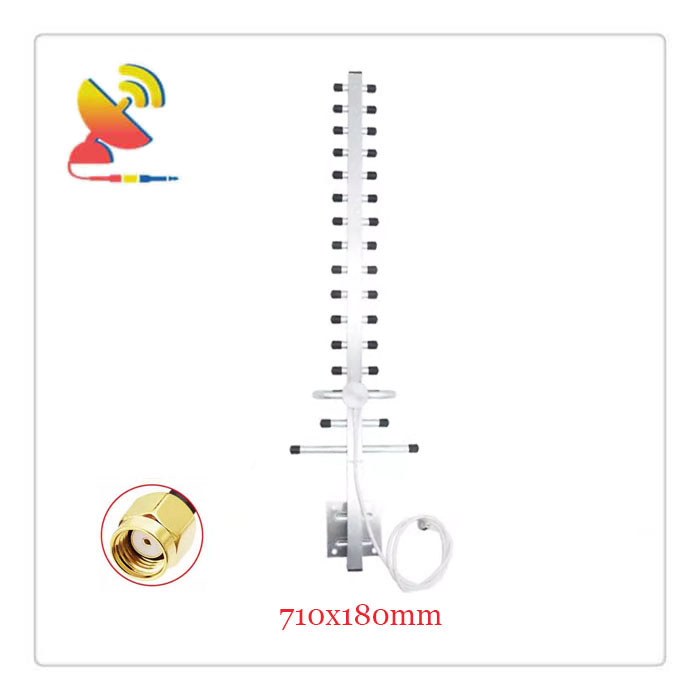

Item: CTRF-ANTENNA-YG-7027-7118-SMA
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 20dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Element: 16
Dimension: Φ710x180mm
Mounting: U-clamp
Item: CTRF-ANTENNA-YG-7027-7118-RPSMA
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 20dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: RP-SMA male
Cable type: RG58
Cable length: 1M
Element: 16
Dimension: Φ710x180mm
Mounting: U-clamp

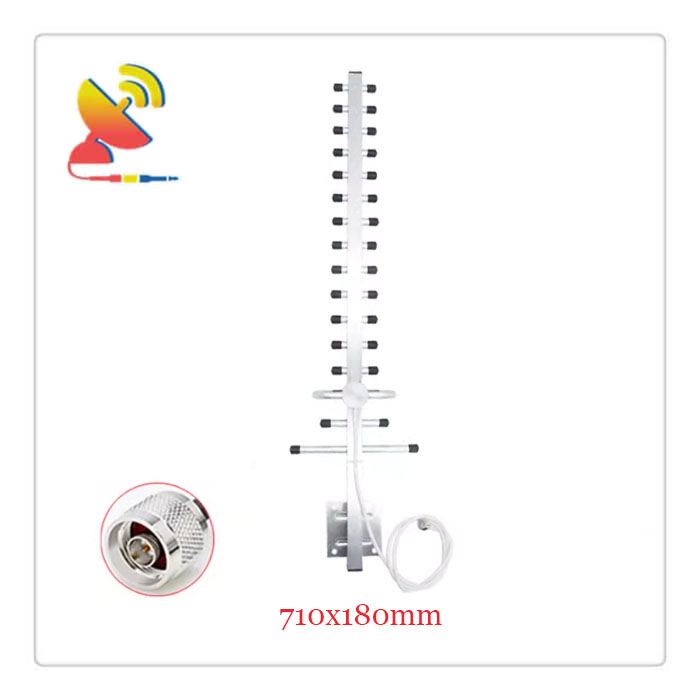

Item: CTRF-ANTENNA-YG-7027-7118-NM
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 20dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: N-type male
Cable type: RG58
Cable length: 1M
Element: 16
Dimension: Φ710x180mm
Mounting: U-clamp

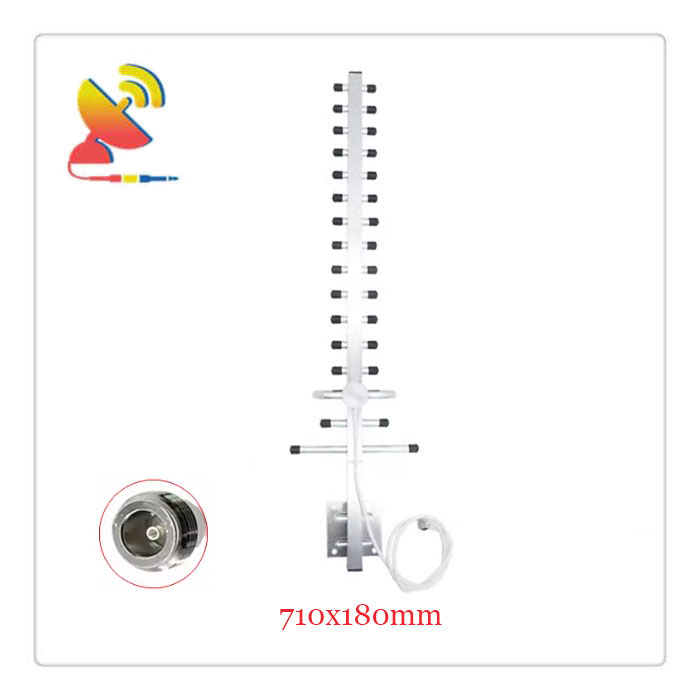

Item: CTRF-ANTENNA-YG-7027-7118-NK
Specifications:
Material: Aluminum/SUS304
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 20dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: N-type female
Cable type: RG58
Cable length: 1M
Element: 16
Dimension: Φ710x180mm
Mounting: U-clamp
In addition to Yagi antennas, C&T RF Antennas Inc. also offers a range of cellular 4G LTE antennas, including external rubber duck antennas, fiberglass antennas, sector antennas, adhesive mount antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
