C&T RF Antennas Inc. manufactures a series of 1.5 GHz Yagi antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 1.5 GHz Yagi antennas, such as the 1.5 GHz directional antenna datasheet, 1.5 GHz Yagi-Uda antenna pricing, and 1.5 GHz antenna inventory.
Or other indoor-outdoor 1.5 GHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 1.5 GHz Yagi antennas are 13dBi 1.5 GHz 12-element Yagi-Uda directional antennas manufactured by C&T RF Antennas Inc. for wireless signal transmission and reception. The advantages of high-performance 1.5 GHz Yagi antennas are their simple structure, high gain, and strong directionality.
The high-performance 1.5 GHz Yagi antennas operate in the 1455-1520 MHz frequency range. They come with SMA, RP-SMA, N-type male, and N-type female standard connectors. RG58 cable extension 1M length, aluminum/SUS304 materials are very suitable for indoor-outdoor applications.
Besides the High-Performance 1.5 GHz Yagi Antennas, the LoRa/GSM 900 MHz Yagi Antennas, ISM 915 MHz Yagi Antennas, ISM 868 MHz Yagi Antennas, UHF 433 MHz Yagi Antennas, 4G LTE Yagi Antennas, 2.4 GHz Yagi Antennas, and 1.2 GHz Yagi Antennas are available at C&T RF Antennas Inc.
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.

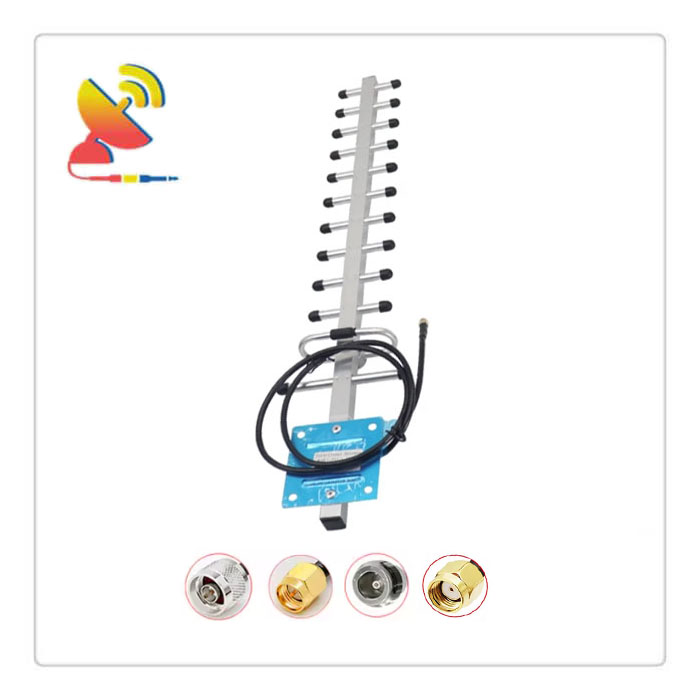

C&T RF Antennas Inc. provides high-performance 1.5 GHz Yagi antennas. Below are some of the 1.5G directional Yagi-Uda antenna styles.
Item: CTRF-ANTENNA-YG-1415-6112-SMA
Specifications:
Material: Aluminum/SUS304
Frequency range: 1455-1520 MHz
Gain: 13dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: SMA plug male
Cable type: RG58
Cable length: 1M
Element: 12
Dimension: Φ610x120mm
Mounting: U-clamp

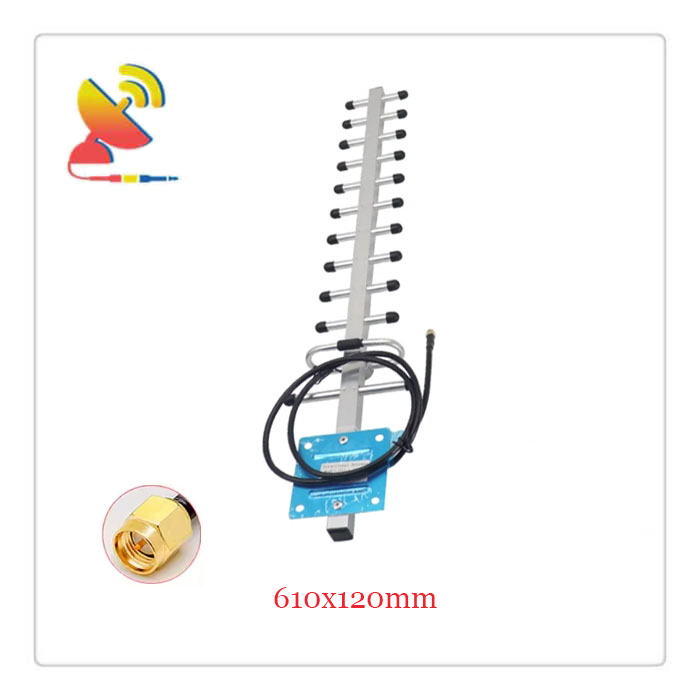

Item: CTRF-ANTENNA-YG-1415-6112-RPSMA
Specifications:
Material: Aluminum/SUS304
Frequency range: 1455-1520 MHz
Gain: 13dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: PR-SMA male
Cable type: RG58
Cable length: 1M
Element: 12
Dimension: Φ610x120mm
Mounting: U-clamp

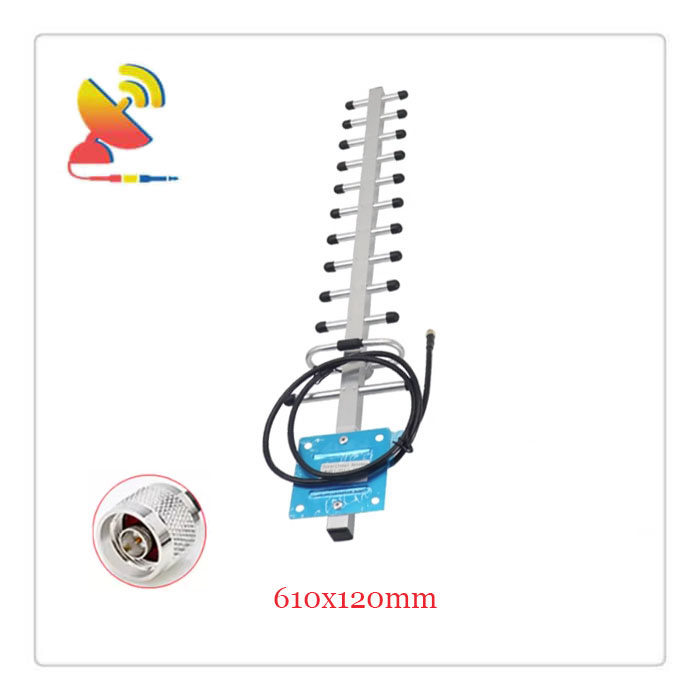

Item: CTRF-ANTENNA-YG-1415-6112-NM
Specifications:
Material: Aluminum/SUS304
Frequency range: 1455-1520 MHz
Gain: 13dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: N-type male
Cable type: RG58
Cable length: 1M
Element: 12
Dimension: Φ610x120mm
Mounting: U-clamp
Item: CTRF-ANTENNA-YG-1415-6112-NK
Specifications:
Material: Aluminum/SUS304
Frequency range: 1455-1520 MHz
Gain: 13dBi
Direction: Directional
V.S.W.R:≤2.0
Polarization: Linear
Connector: N-type female
Cable type: RG58
Cable length: 1M
Element: 12
Dimension: Φ610x120mm
Mounting: U-clamp
In addition to Yagi antennas, C&T RF Antennas Inc. also offers a range of 1.5 GHz antennas, including external rubber duck antennas, fiberglass antennas, sector antennas, adhesive mount antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
