High-performance 2.4 GHz Flexible Antennas

What are the 2.4 GHz Flexible Antennas?

The high-performance 2.4 GHz flexible antennas are embedded/internal/built-in flexible printed circuit board antennas specifically designed for the 2.4 to 2.5 GHz (typically ranging from 2.4 GHz to 2.4835 GHz) wireless antennas manufactured by C&T RF Antennas Inc. for all 2.4 GHz single bands, such as WiFi, Bluetooth, Zigbee, Sigfox, etc, easily integrated into various devices.

The high-performance 2.4 GHz flexible antennas have an I-PEX MHF® I (U.FL) connector. They work well on WiFi, ZigBee, Bluetooth, and the ISM band at 2.4 GHz.

Besides the high-performance 2.4 GHz flexible antennas, we also provide 13.56 MHz FPCB antennas, flexible 433 MHz PCB antennas, single-band 868MHz/915MHz flexible PCB antennas, dual-band 868/915MHz LoRa flexible antennas, LTE-M/NB-IoT/3G GSM FPC antennas, flexible 2.4&5GHz PCB antennas, 4G/LTE flex antennas, 5G NR/5G N78 flex PCB antennas, and GNSS/GPS FPCB antennas for your choice.

C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.





The Features of the 2.4 GHz Flexible PCB Antennas

Compact size

Flexibility

Omnidirectional pattern

Internal use

Adhesive backing

etc.



Applications of High-performance 2.4 GHz Flexible Antennas

2.4G WLAN system

Wi-Fi telecommunication system

Point-to-multipoint applications

Wireless LAN

2.4G WLAN system

IEE802.11

Data Transmission

Wireless AP/adapter/bridge/UAV Drone/Robotic

etc





Types of High-performance 2.4 GHz Flexible Antennas

C&T RF Antennas Inc. provides high-performance 2.4 GHz flexible antennas. Below are some of the styles of 2.4 GHz flexible PCB antennas.

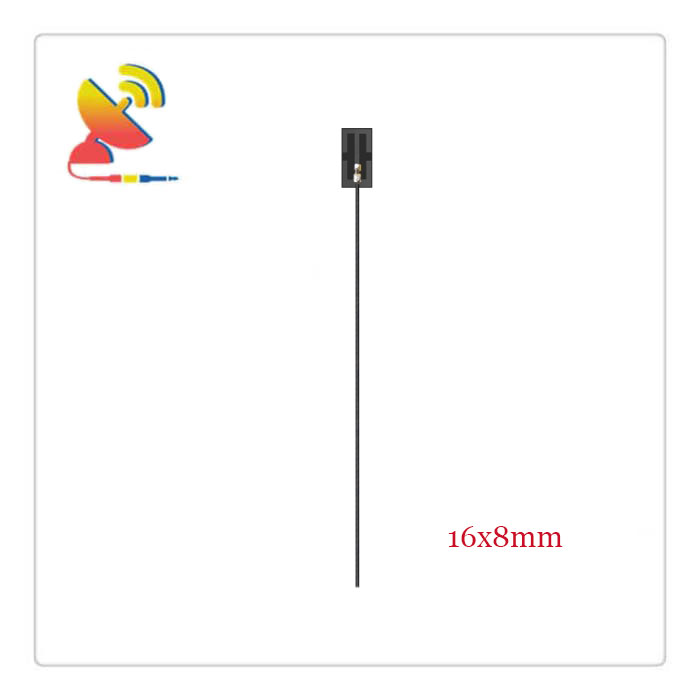

Item: CTRF-ANTENNA-FPC-2450-1608-IPEX

High-performance Smallest Flexible PCB 2.4 Gigabyte Wifi Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ16x8mm

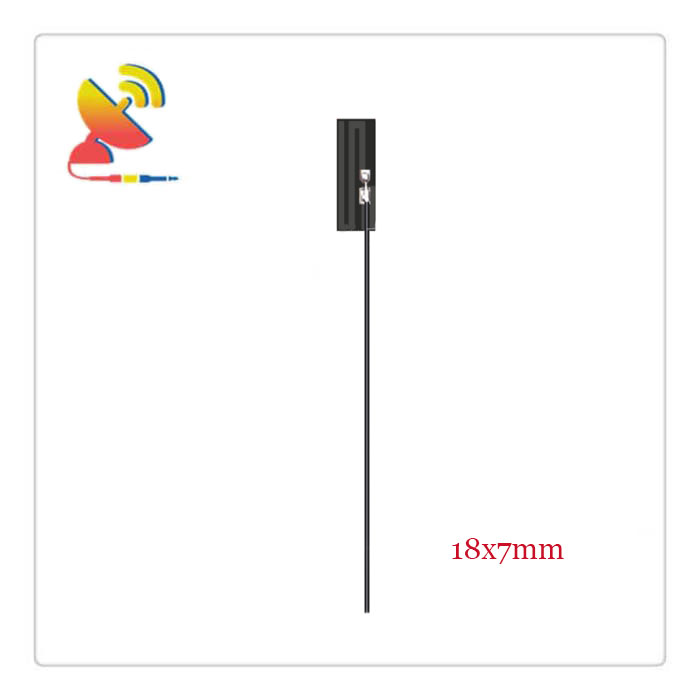

Item: CTRF-ANTENNA-FPC-2450-1807-IPEX

High-performance Small 2.4 GHz Antenna Flexible PCB Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ18x7mm

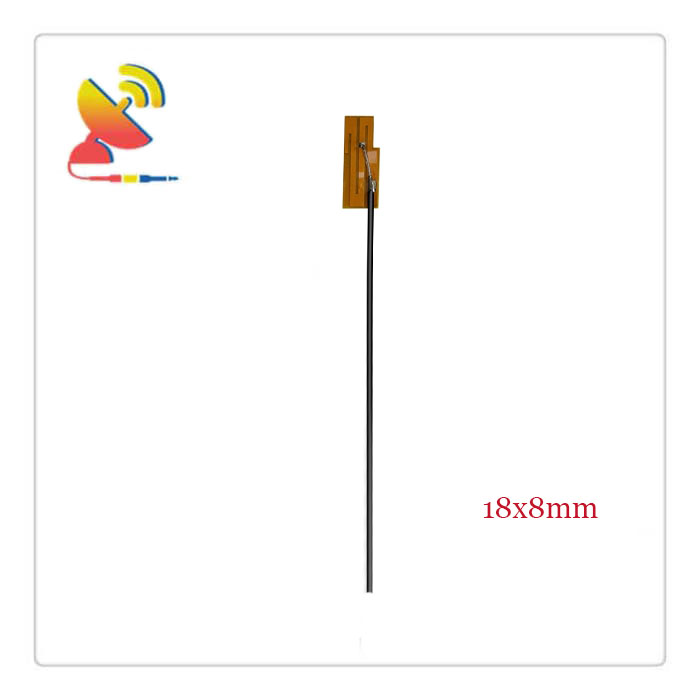

Item: CTRF-ANTENNA-FPC-2450-1808-IPEX

High-performance Small 2.4 GHz Antenna FPCB WiFi Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Yellow

Dimension: Φ18x8mm

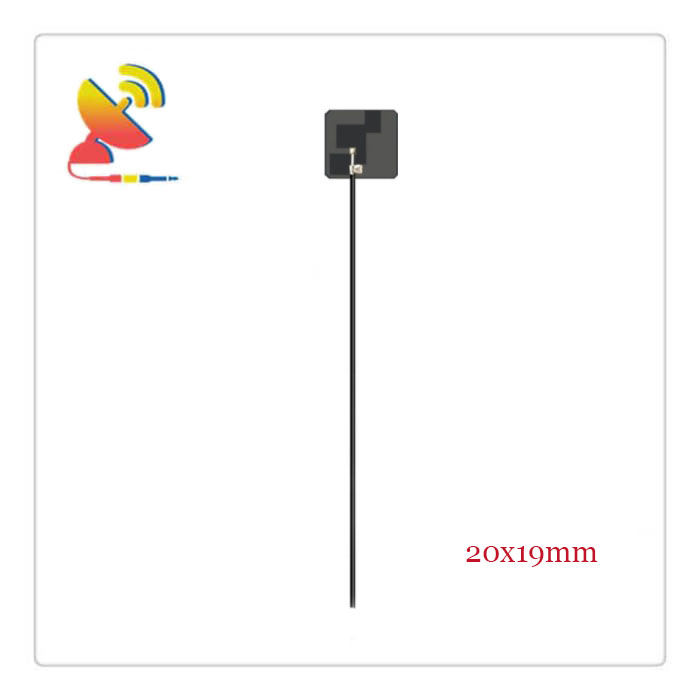

Item: CTRF-ANTENNA-FPC-2450-2019-IPEX

High-performance Small Size Flexible PCB Antenna 2.4 GHz Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ20x19mm

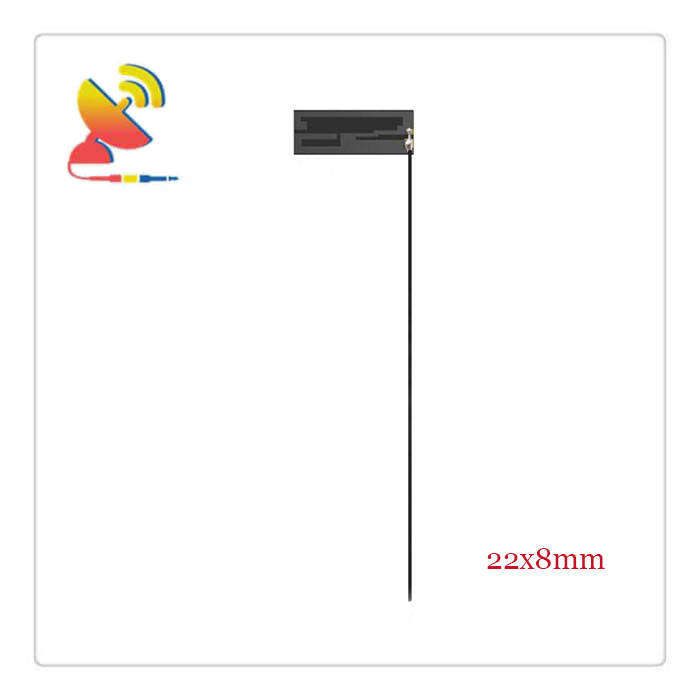

Item: CTRF-ANTENNA-FPC-2450-2208-IPEX

High-performance Compact Size WiFi Bluetooth Flexible PCB Antenna 2.4 GHz Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ22x8mm

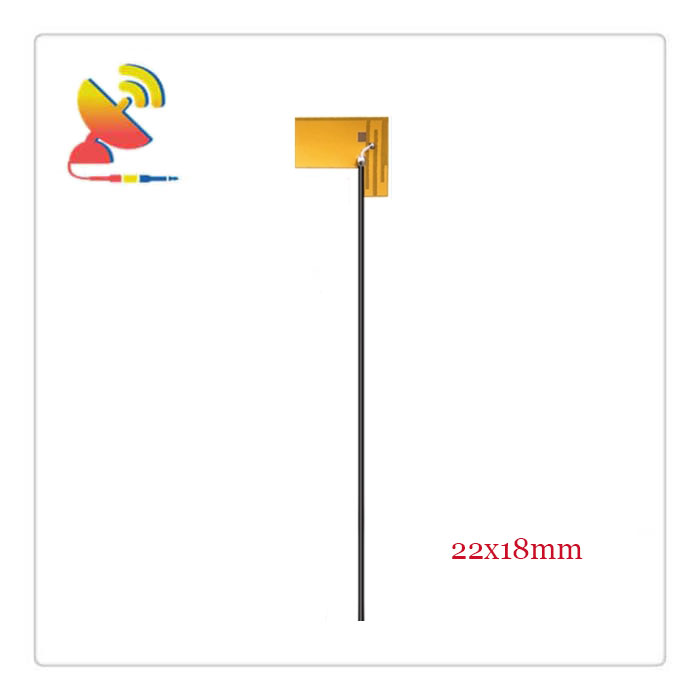

Item: CTRF-ANTENNA-FPC-2450-2218-IPEX

High-performance Small Size 2.4 GHz WiFi Antenna Flexible PCB Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Yellow

Dimension: Φ22x18mm

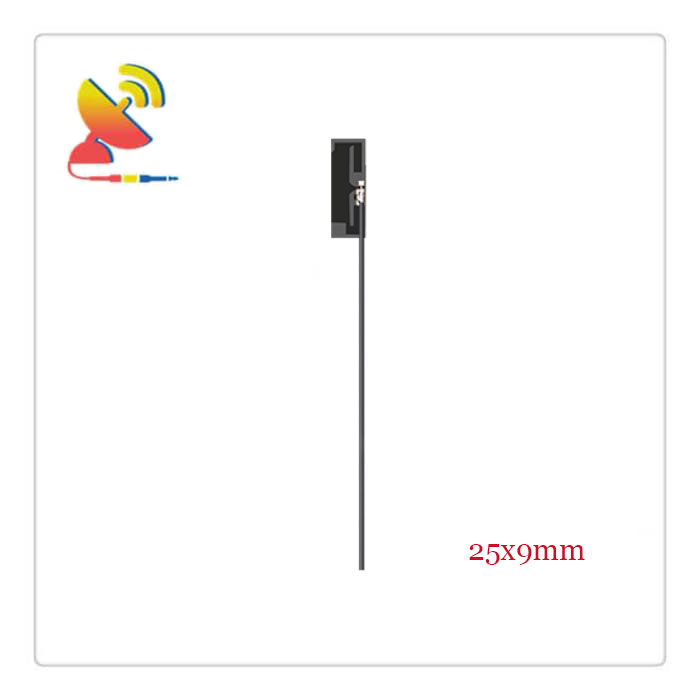

Item: CTRF-ANTENNA-FPC-2450-2509-IPEX

High-performance Small 2.4 GHz WiFi Blueooth Zigbee Flexible PCB Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ25x9mm

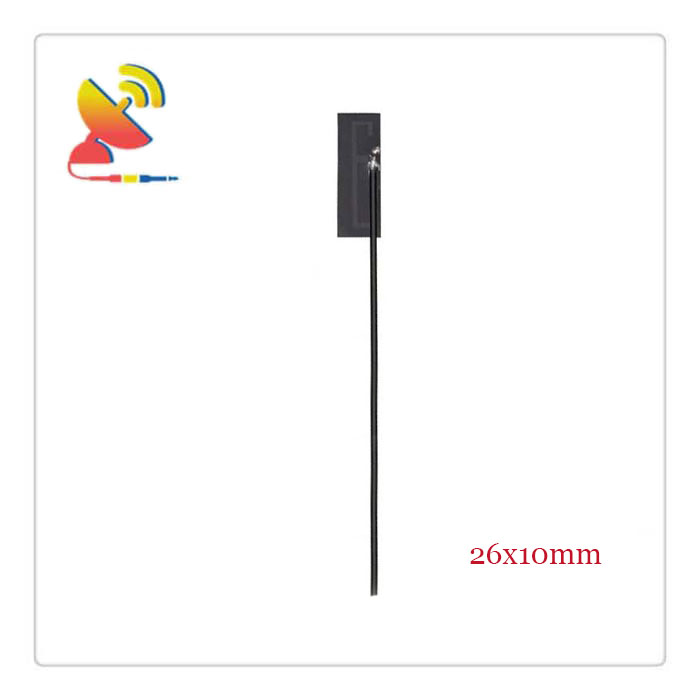

Item: CTRF-ANTENNA-FPC-2450-2610-IPEX

High-performance Small Size Flexible PCB Antenna 2.4 GHz Zigbee Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ26x10mm

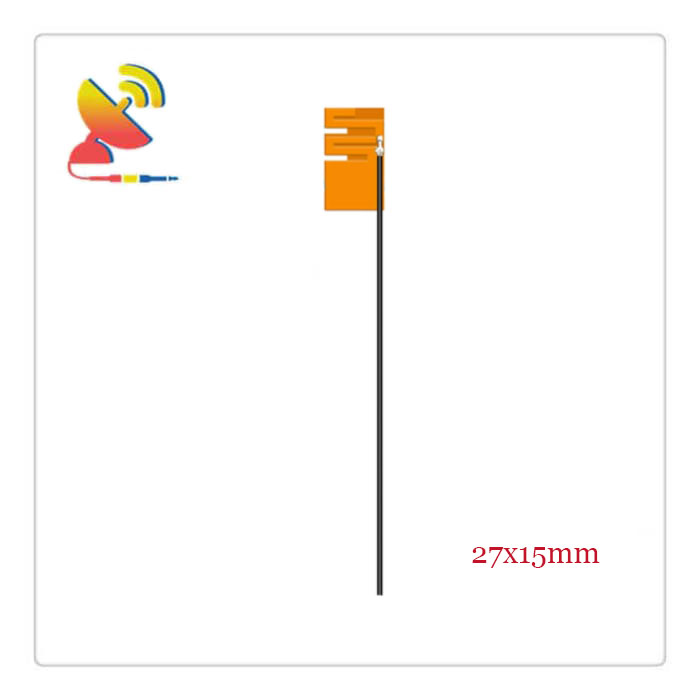

Item: CTRF-ANTENNA-FPC-2450-2715-IPEX

High-performance Small Size Flexible PCB Antenna 2.4 GHz WiFi Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Yellow

Dimension: Φ27x15mm







Item: CTRF-ANTENNA-FPC-2450-2726-IPEX

High-performance Small Flexible PCB Antenna 2.4 GHz IPEX Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ27x26mm

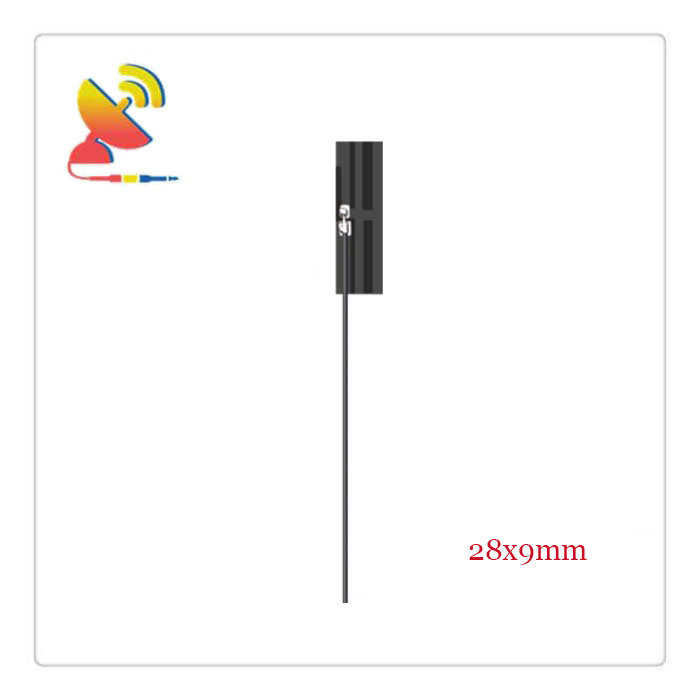

Item: CTRF-ANTENNA-FPC-2450-2809-IPEX

High-performance Small Flexible PCB Antenna IEPX 2.4 GHz Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ28x9mm

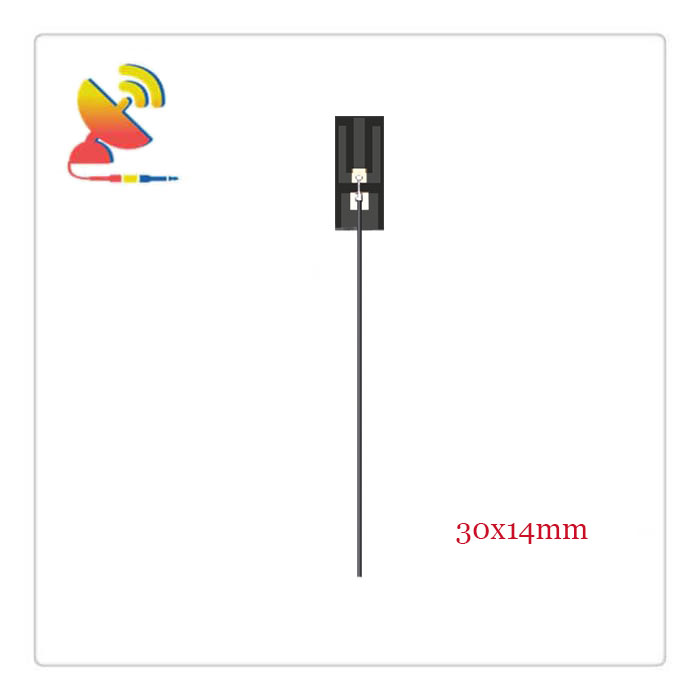

Item: CTRF-ANTENNA-FPC-2450-3014-IPEX

High-performance Compact-Size Internal Flexible 2.4 GHz Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ30x14mm







Item: CTRF-ANTENNA-FPC-2450-3105-IPEX

High-performance Compact Size Flexible PCB Antenna WiFi 2.4 GHz Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ31×5.5mm

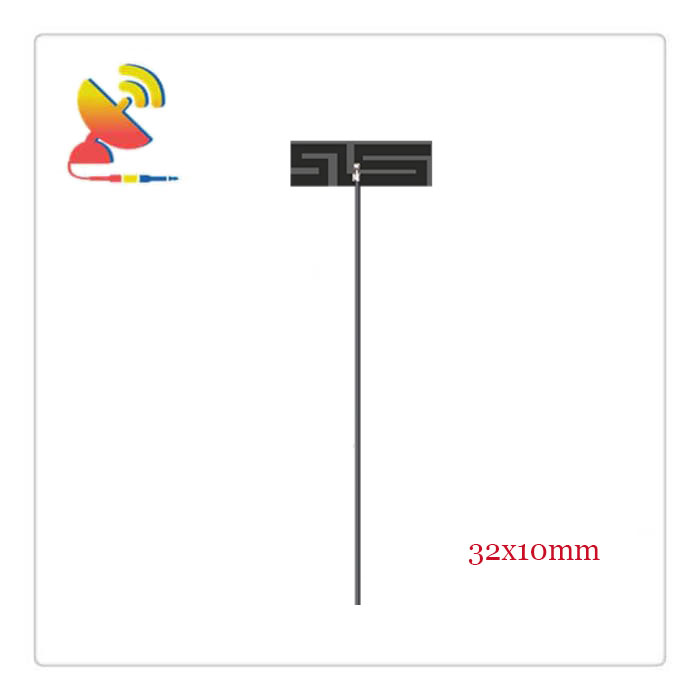

Item: CTRF-ANTENNA-FPC-2450-3210B-IPEX-T

High-performance 2.4 WiFi Antenna Flexible PCB Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ32x10mm

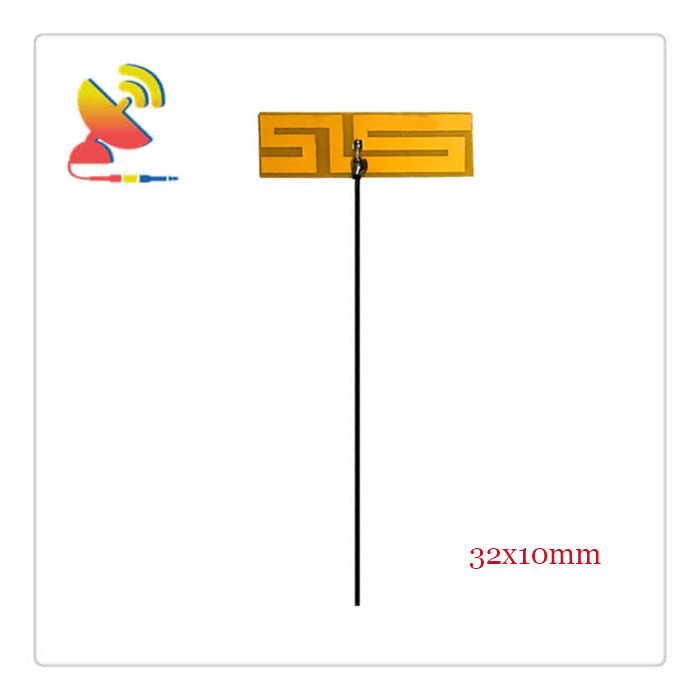

Item: CTRF-ANTENNA-FPC-2450-3210Y-IPEX-T

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz MHF Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Yellow

Dimension: Φ32x10mm

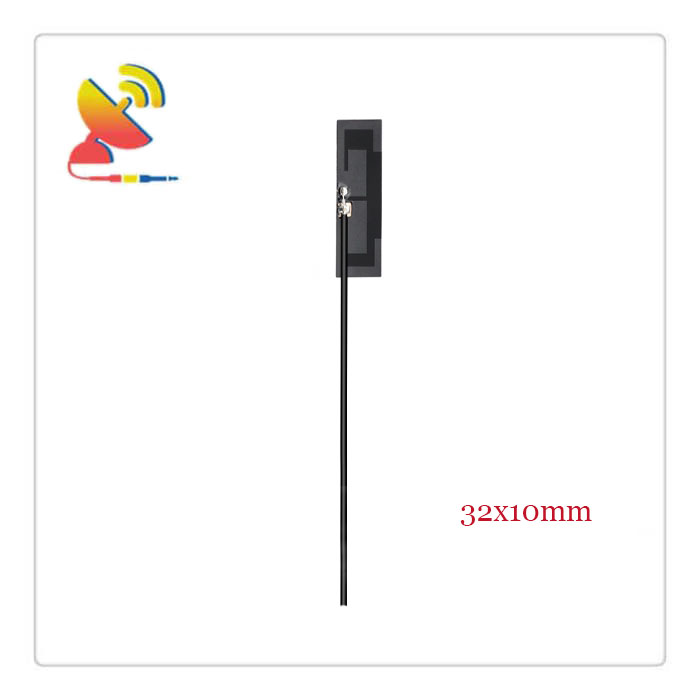

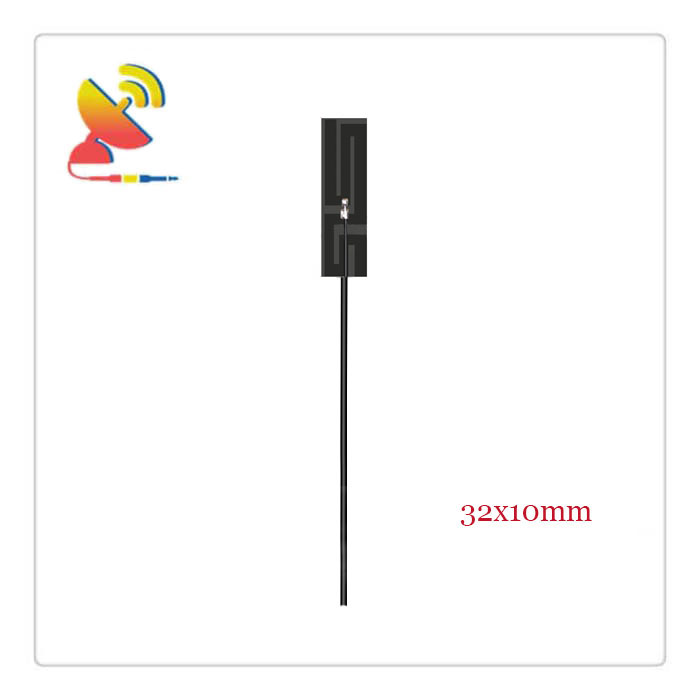

Item: CTRF-ANTENNA-FPC-2450-3210-IPEX-H

High-performance Small FPC Antenna WiFi Indoor 2.4 GHz Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ32x10mm

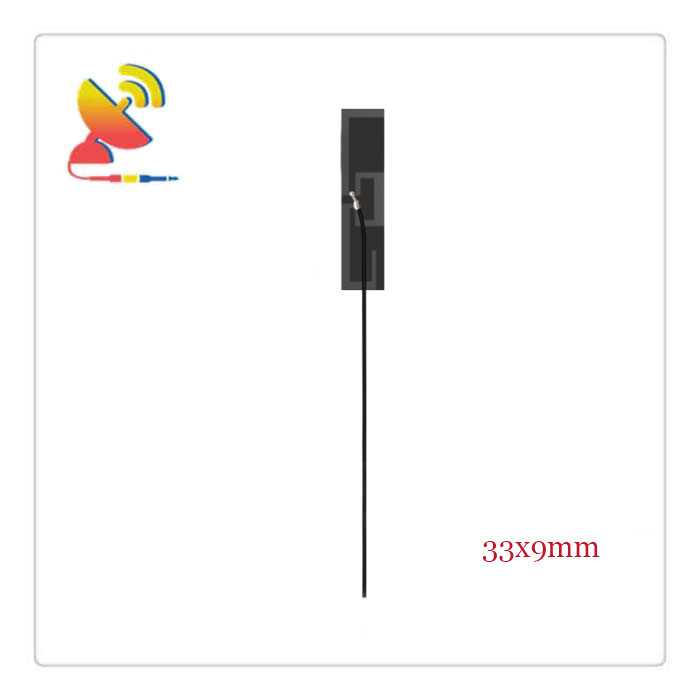

Item: CTRF-ANTENNA-FPC-2450-3309-IPEX

High-performance Internal Flexible PCB Antenna 2.4 GHz Zigbee Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ33x9mm







Item: CTRF-ANTENNA-FPC-2450-3407-IPEX

High-performance Compact-size 2.4 GHz WiFi Bluetooth Flex PCB Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ34x7mm

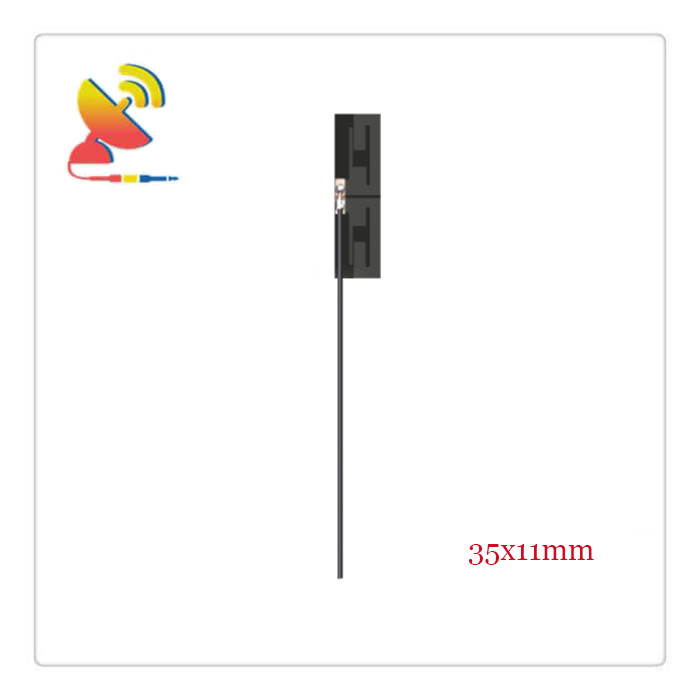

Item: CTRF-ANTENNA-FPC-2450-3511-IPEX-L

High-performance Flexible PCB WiFi Bluetooth 2.45 GHz Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ35x11mm

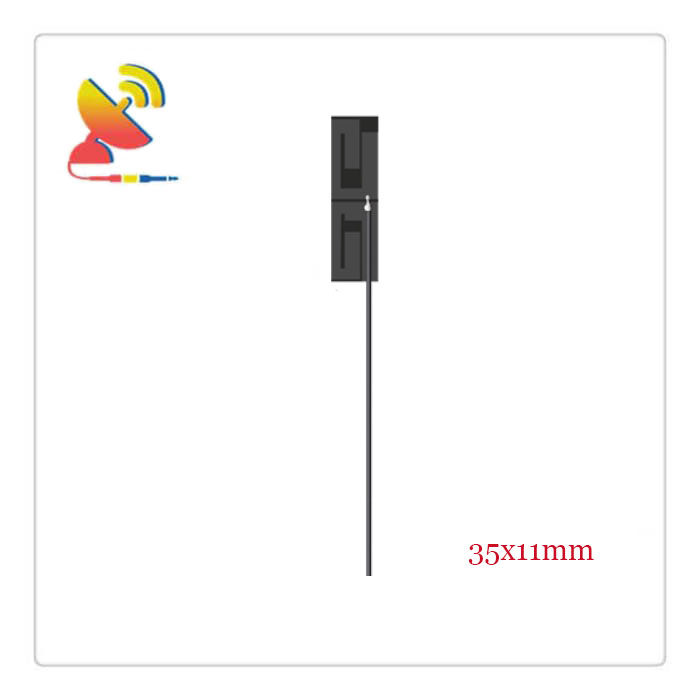

Item: CTRF-ANTENNA-FPC-2450-3511-IPEX-R

High-performance Internal Flexible PCB Antenna 2.4 GHz Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ35x11mm

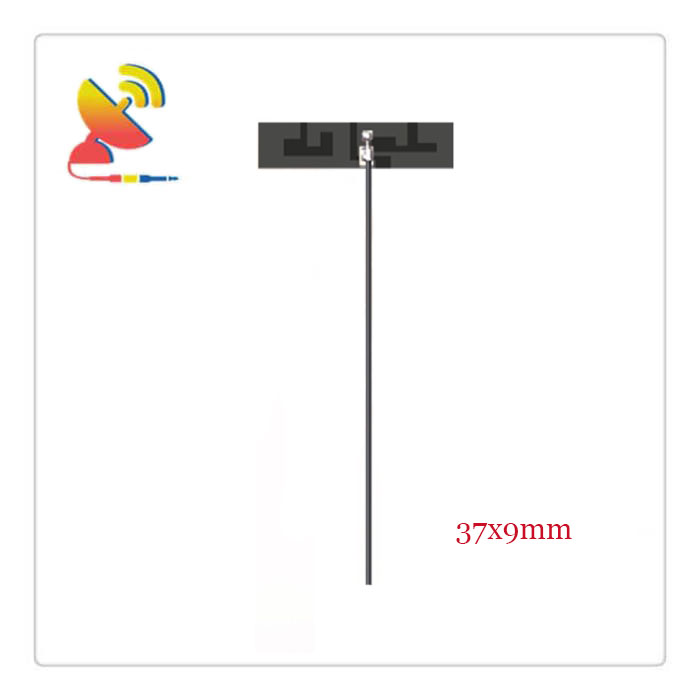

Item: CTRF-ANTENNA-FPC-2450-3709-IPEX-T

High-performance IPEX WiFi Antenna Flexible 2.4 GHz Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ37x9mm

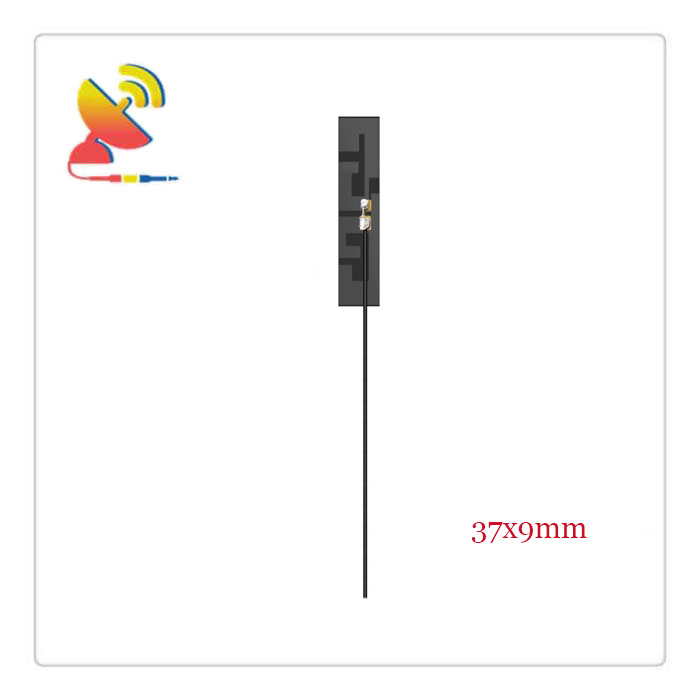

Item: CTRF-ANTENNA-FPC-2450-3709-IPEX-H

High-performance u,fl Antenna 2.4 GHz WiFi Flexible PCB Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ37x9mm

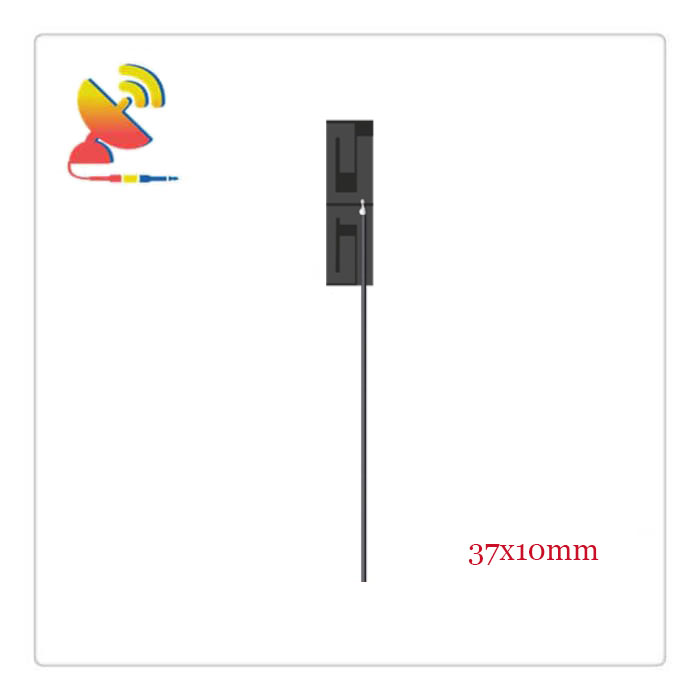

Item: CTRF-ANTENNA-FPC-2450-3710-IPEX

High-performance Internal Flexible PCB Antenna ESP32 Wifi Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ37x10mm







Item: CTRF-ANTENNA-FPC-2450-3713-IPEX

High-performance Internal Flexible PCB Antenna 2.4 GHz WiFi Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ37x13mm

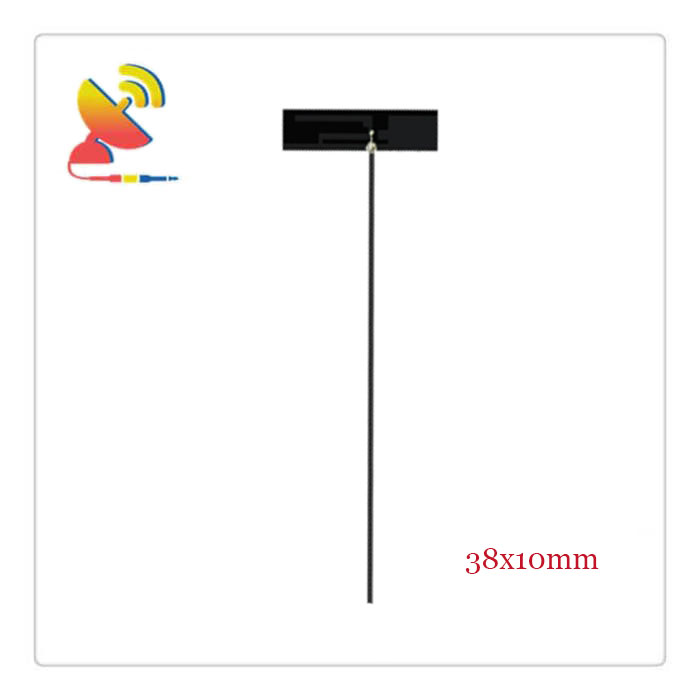

Item: CTRF-ANTENNA-FPC-2450-3810-IPEX

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz U.FL Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ38x10mm

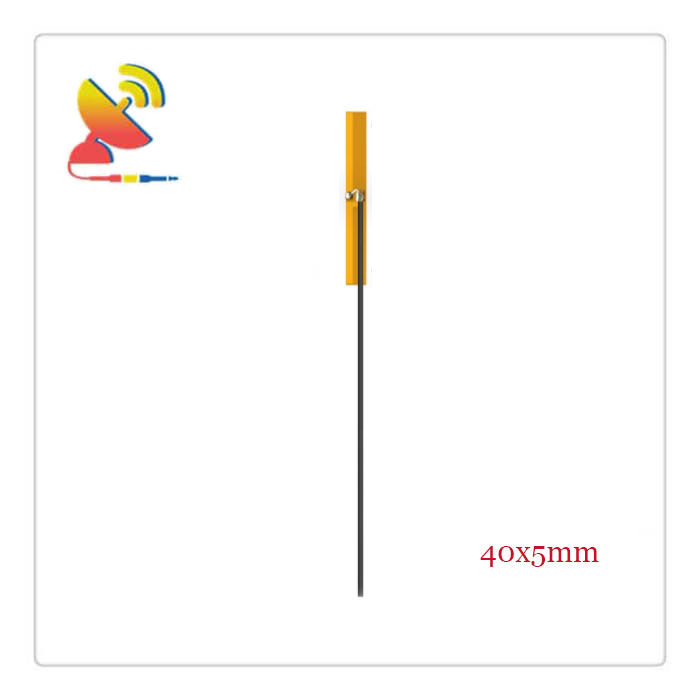

Item: CTRF-ANTENNA-FPC-2450-4005-IPEX

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz IPEX Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Yellow

Dimension: Φ40x5mm

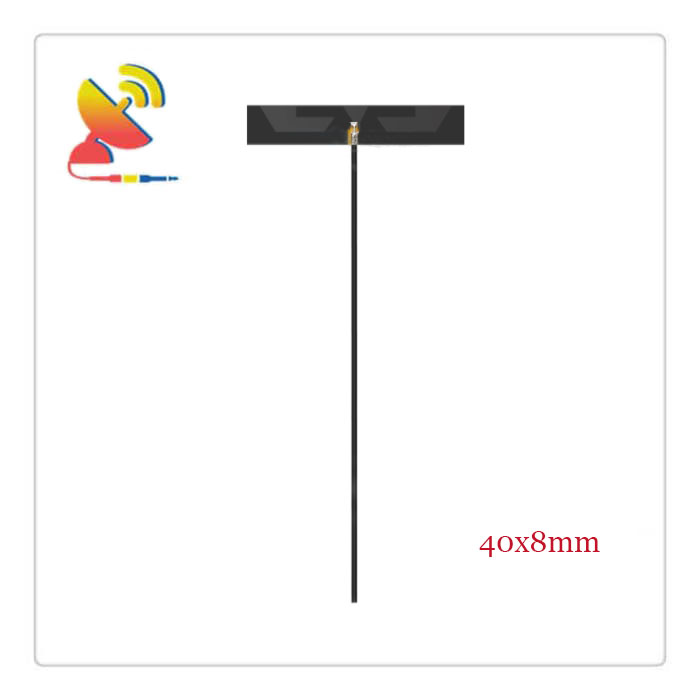

Item: CTRF-ANTENNA-FPC-2450-4008-IPEX

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz WiFi Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ40x8mm







Item: CTRF-ANTENNA-FPC-2450-4008-IPEX

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz WiFi Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ40x8mm

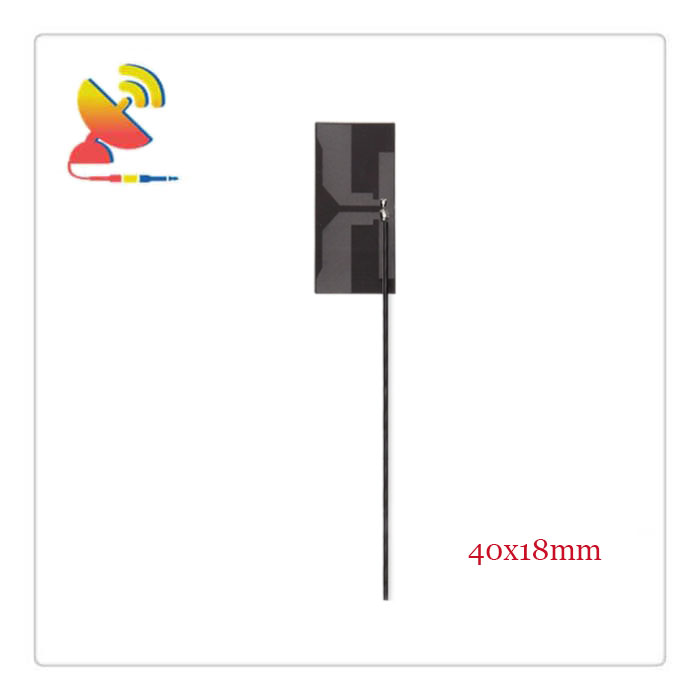

Item: CTRF-ANTENNA-FPC-2450-4018-IPEX

High-performance Embedded Antenna WiFi 2.4 GHz Flexible PCB Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ40x18mm

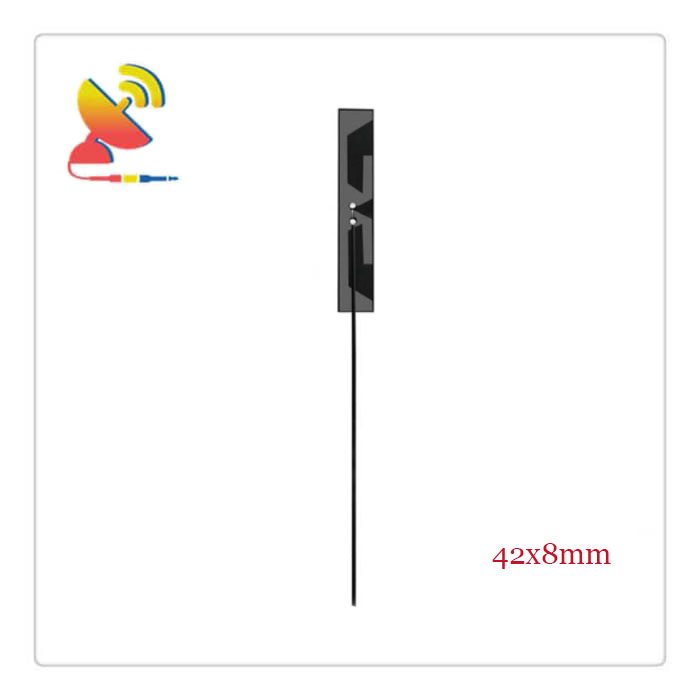

Item: CTRF-ANTENNA-FPC-2450-4208-IPEX

High-performance Compact-size Internal Wifi Antenna Connector IPEX Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ42x8mm

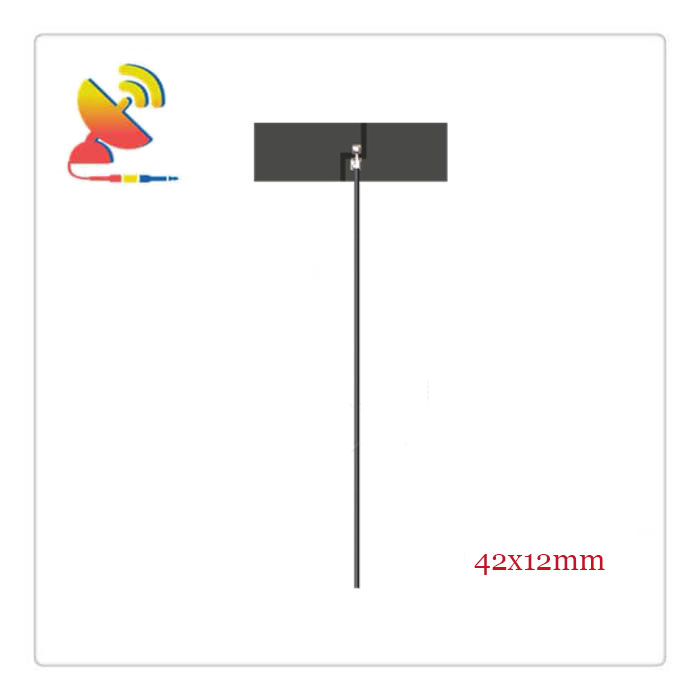

Item: CTRF-ANTENNA-FPC-2450-4212-IPEX

High-performance Flexible PCB Antenna 2.4 GHz Indoor WiFi Bluetooth Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ42x12mm

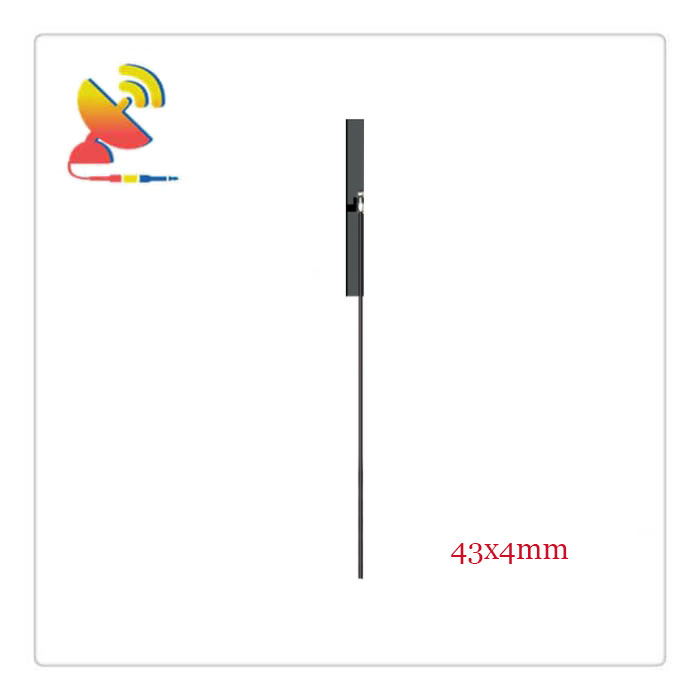

Item: CTRF-ANTENNA-FPC-2450-4304-IPEX

High-performance Compact-size Flexible PCB 2.4 GHz Bluetooth WiFi IPEX Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ43x4mm





Item: CTRF-ANTENNA-FPC-2450-4305-IPEX

High-performance Compact-size 2.4GHz WiFi Bluetooth Flexible PCB Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ43x5mm







Item: CTRF-ANTENNA-FPC-2450-4510-IPEX

High-performance Internal FPCB 2.4 GHz WiFi Receiver Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ45x10mm







Item: CTRF-ANTENNA-FPC-2450-4614-IPEX

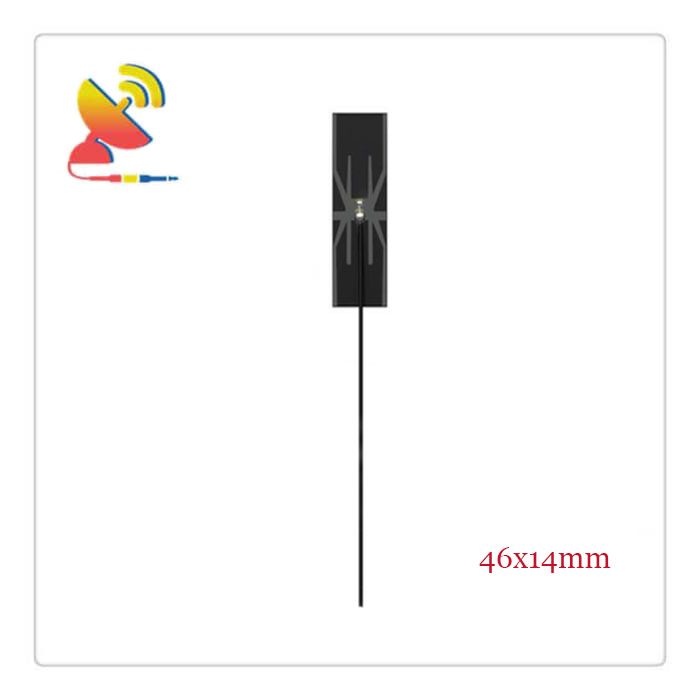

High-performance Internal Flexible 2.4 GHz WiFi PCB Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ46x14mm

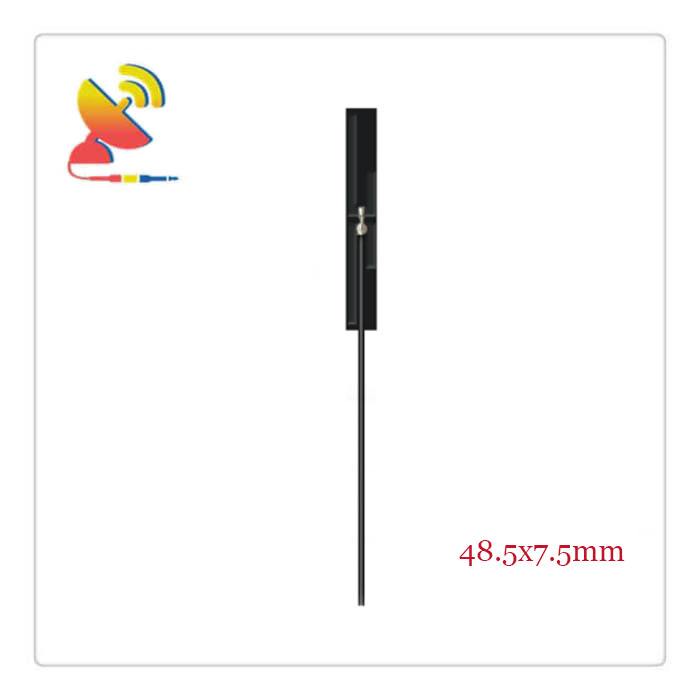

Item: CTRF-ANTENNA-FPC-2450-4807-IPEX

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz Bluetooth Aerial

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ48.5×7.5mm

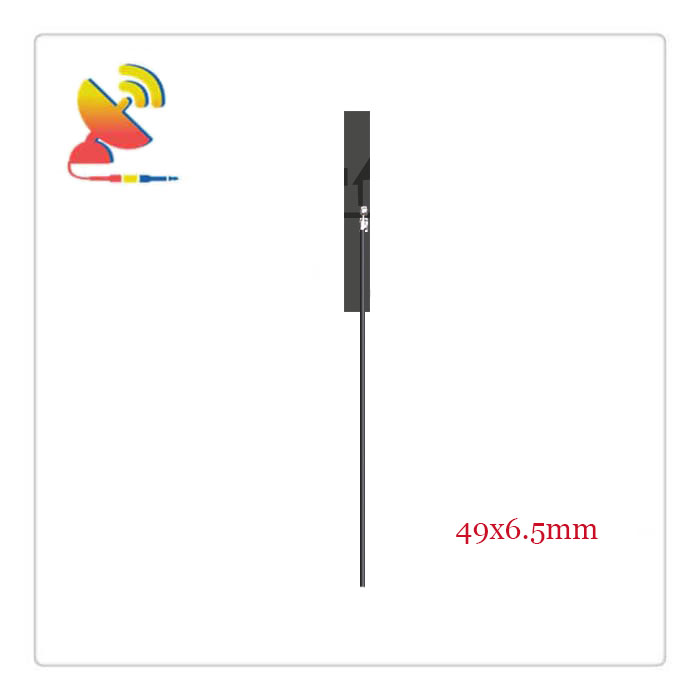

Item: CTRF-ANTENNA-FPC-2450-4906-IPEX

High-performance Flexible PCB 2.4 GHz WiFi Omnidirectional Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ49×6.5mm







Item: CTRF-ANTENNA-FPC-2450-5009-IPEX

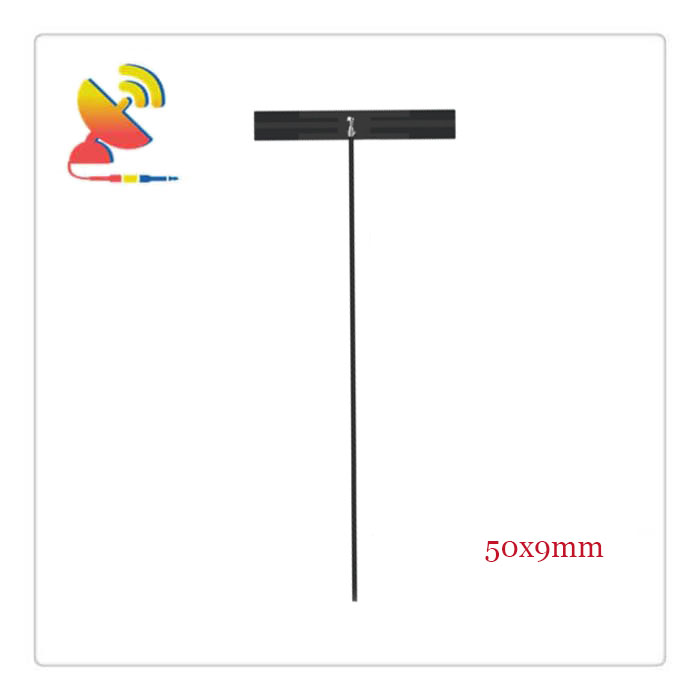

High-performance Compact-Size Flexible PCB Antenna 2.4 GHz Zigbee Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ50x9mm







Item: CTRF-ANTENNA-FPC-2450-5010-IPEX

High-performance 2.4 GHz WiFi Aerial Internal Flexible Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ50x10mm

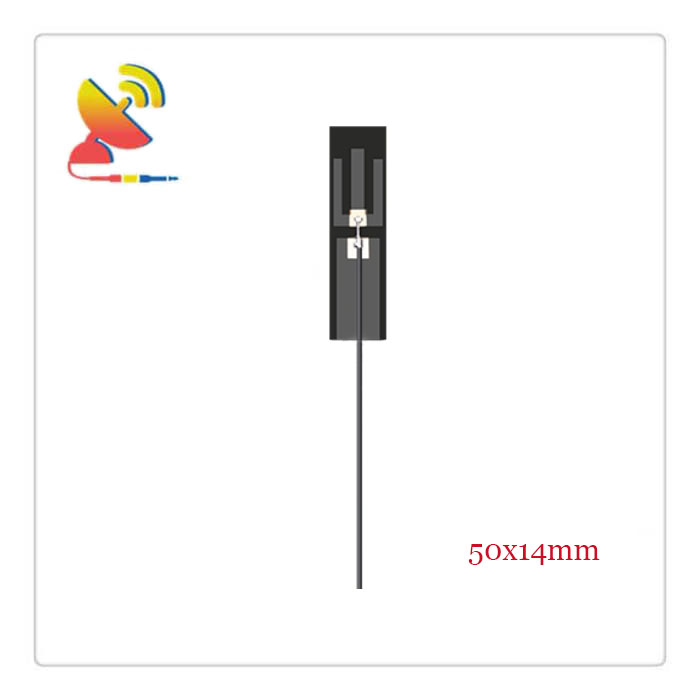

Item: CTRF-ANTENNA-FPC-2450-5014-IPEX

High-performance Flexible PCB 2.4 GHz Indoor Wifi Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ50x14mm







Item: CTRF-ANTENNA-FPC-2450-5112-IPEX

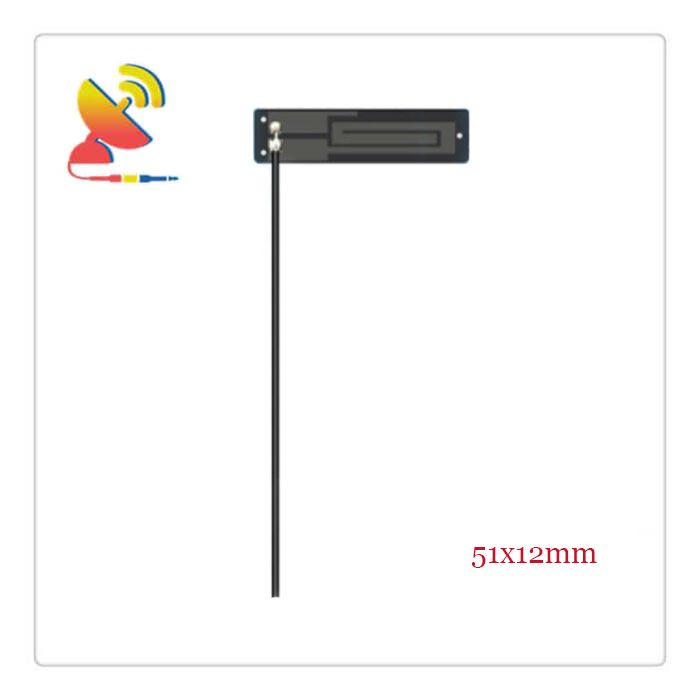

High-performance Internal 2.4 GHz WiFi Flexible Printed Circuit Board Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Linear

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ51x12mm

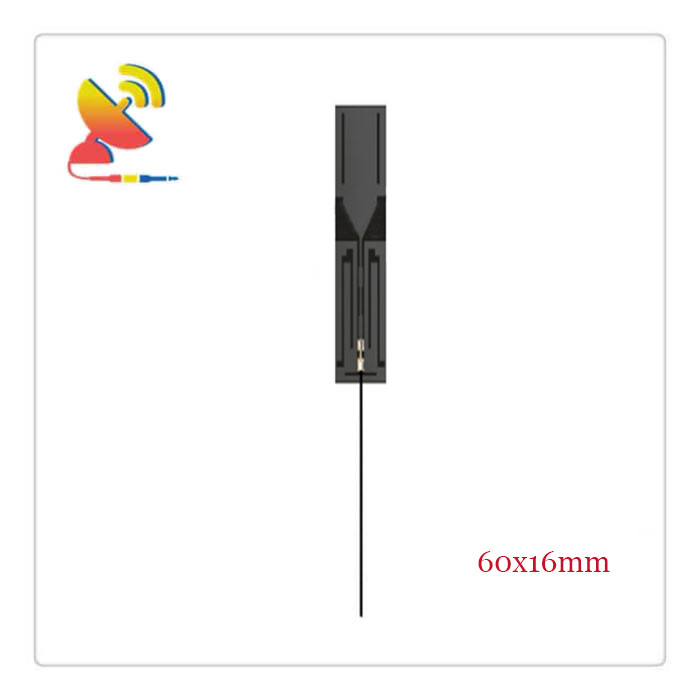

Item: CTRF-ANTENNA-FPC-2450-6016-IPEX

High-performance 2.45 GHz WiFi Antenna Internal Flexible PCB Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ60x16mm

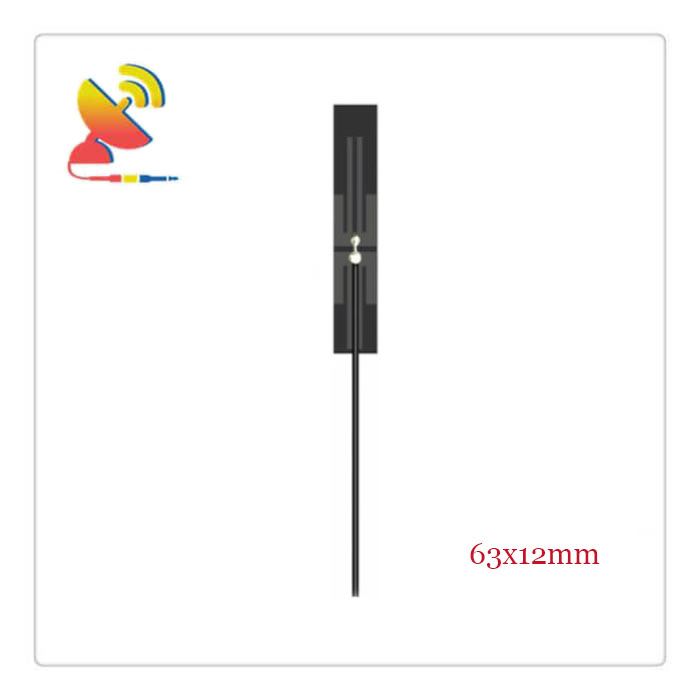

Item: CTRF-ANTENNA-FPC-2450-6312-IPEX

High-performance Internal 2.4 GHz Bluetooth Flexible Printed Circuit Board Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ63x12mm







Item: CTRF-ANTENNA-FPC-2450-6515-IPEX

High-performance & High-Gain 2.4 GHz Flexible PCB Wireless Internet Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 7dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ63x26mm







Item: CTRF-ANTENNA-FPC-2450-6515-IPEX

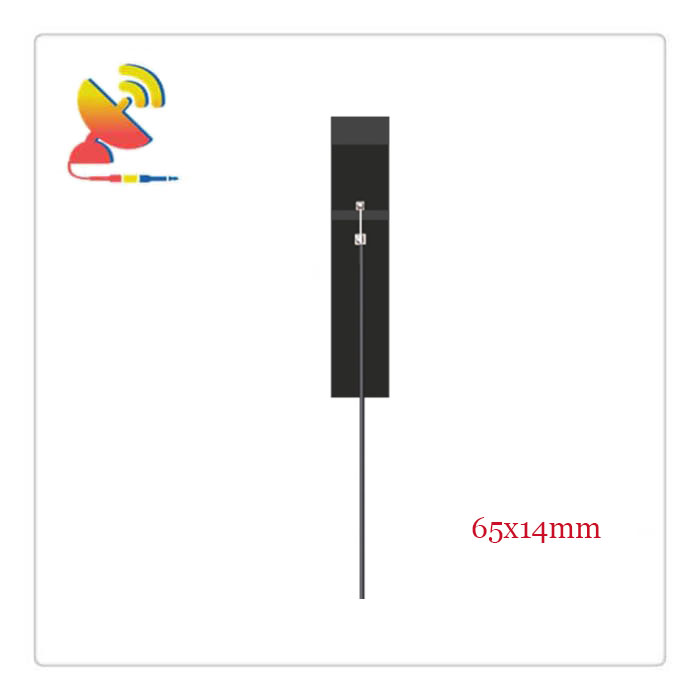

High-performance 2.4 GHz Bluetooth WiFi Internal Flexible PCB Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ65x14mm







Item: CTRF-ANTENNA-FPC-2450-6515-IPEX

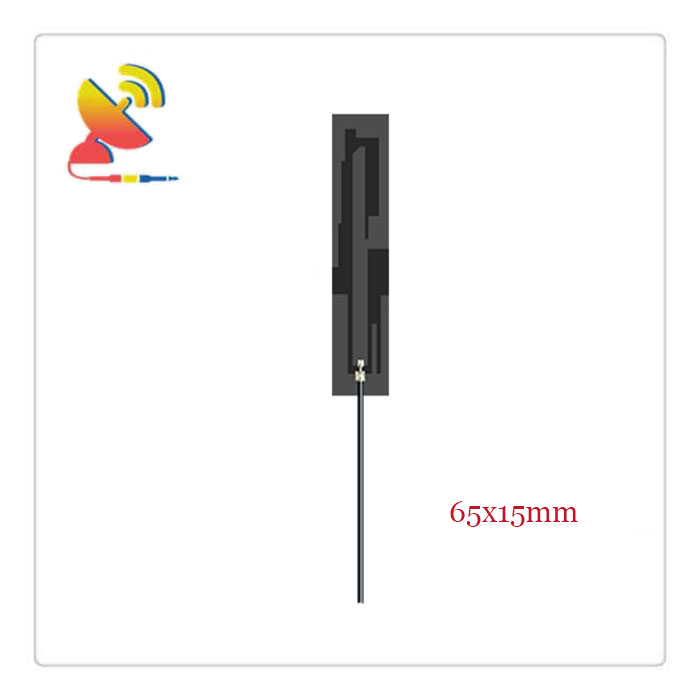

High-performance Wireless Digital Antenna 2.4 GHz Internal Flexible Antenna

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ65x15mm

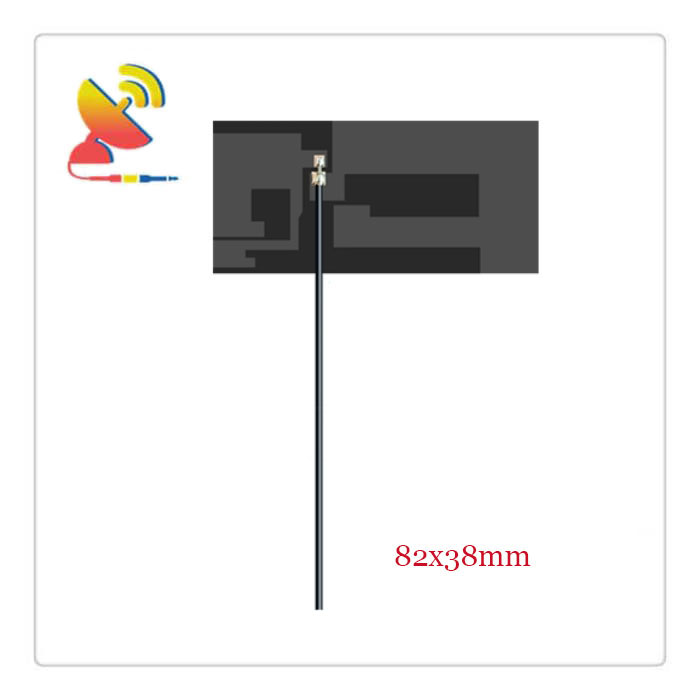

Item: CTRF-ANTENNA-FPC-2450-8238-IPEX

High-performance High-Gain Wifi Internal Flexible PCB Antenna 2.4 GHz

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 10dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ82x38mm







Item: CTRF-ANTENNA-FPC-2450-9814-IPEX

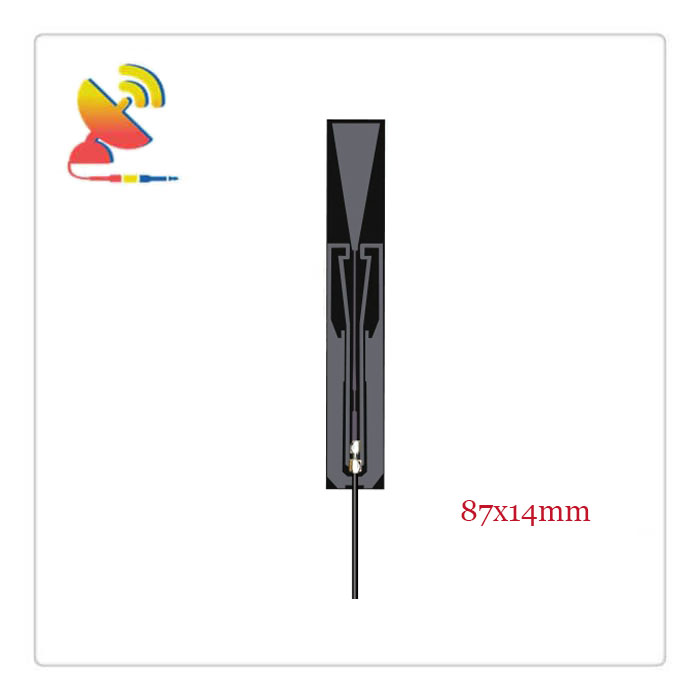

High-performance Internal Flexible PCB 2.4 GHz Long-range Wifi Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ87x14mm







Item: CTRF-ANTENNA-FPC-2450-9914-IPEX

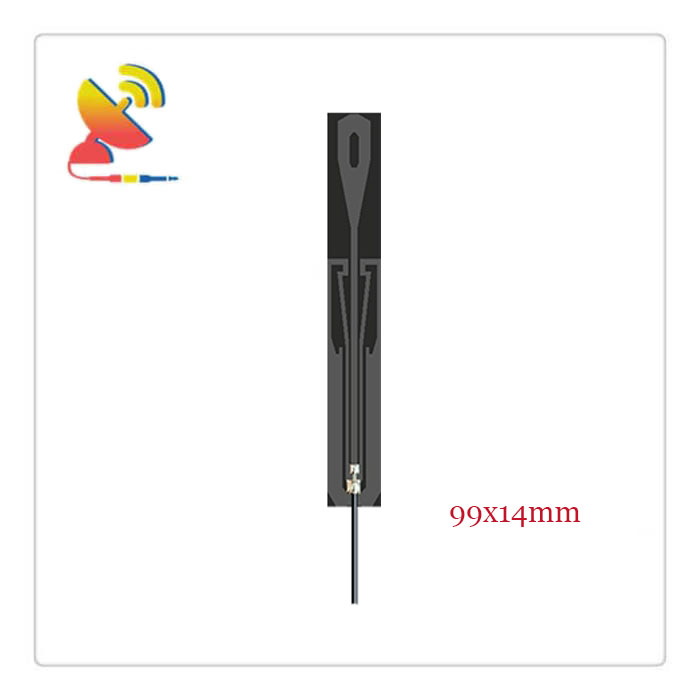

High-performance 2.4 GHz High-gain Omni Flexible PCB Antennas

Specifications:

Material: Flexible printed circuit board

Frequency: 2400-2500MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF

Color: Black

Dimension: Φ99x14mm







The high-performance 2.4 GHz flexible PCB antennas with u.FL/IPEX1/MHF4/SMA connectors or opening ends are selectable.





Besides the flexible PCB antennas, C&T RF Antennas Inc. also offers 2.4 GHz WiFi Bluetooth antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, helical antennas, PCB antennas, etc. Contact us for more specs you need.
