C&T RF Antennas Inc. manufactures a series of 169 MHz ISM band SMA antennas. The Omnidirectional rubber duck antennas with SMA male plug connector 169 MHz terminal external antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 169 MHz ISM band SMA antennas such as the 169 MHz SMA antenna datasheet, 169 MHz ISM antenna pricing, and 169 MHz band antennas inventory.
Or other indoor-outdoor 169 MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 169 MHz ISM band SMA antennas are rubber duck antennas manufactured by C&T RF Antennas Inc. for 169 MHz ISM (Industrial, Scientific, and Medical) band applications.
The high-performance 169 MHz ISM band SMA antennas are not limited to metering applications, but also other types of sensors can benefit from this technology. The 169 MHz ISM band SMA antennas are rubber duck antennas or whip antennas, specially with SMA male connectors for easy installation.
Besides the high-performance 169 MHz ISM band SMA antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, SMA GPS antennas, 230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
169 MHz antenna for the ISM band
169 MHz antenna for LoRa band
149-189 MHz frequency range VHF antenna
Long-range antenna
Low-power antenna
SMA antenna
Omnidirectional antenna
etc.
The license-free 169 MHz frequency band is ideal for smart meters and sensors in hard-to-reach places (deep inside buildings, basements, pits, etc.)
For smart metering
For smart city
For industrial wireless sensor
For other wireless applications
etc.

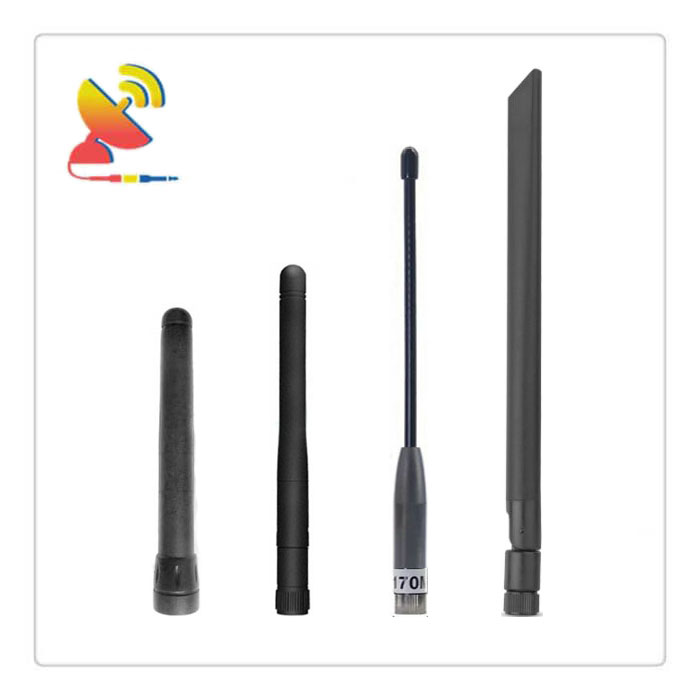

C&T RF Antennas Inc. provides high-performance 169 MHz ISM band SMA antennas rubber duck antennas. Below are some of the 169 MHz ISM band SMA antennas.

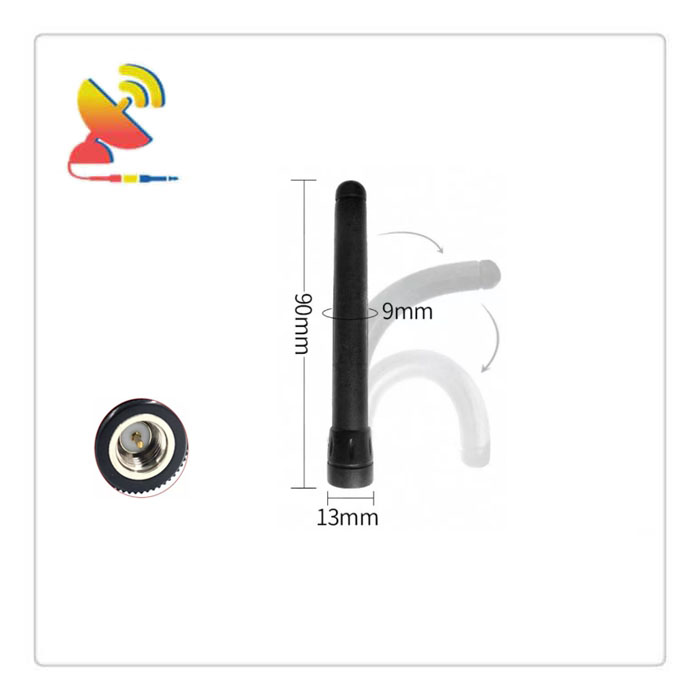

Item: CTRF-ANTENNA-WP-0169-1390-SMA
Specifications:
Material: Plastic ABS
Frequency range: 149-189 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ13x90mm
Item: CTRF-ANTENNA-AP-0169-10110-SMA
Specifications:
Material: Plastic ABS
Frequency range: 149-189 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ10x110mm

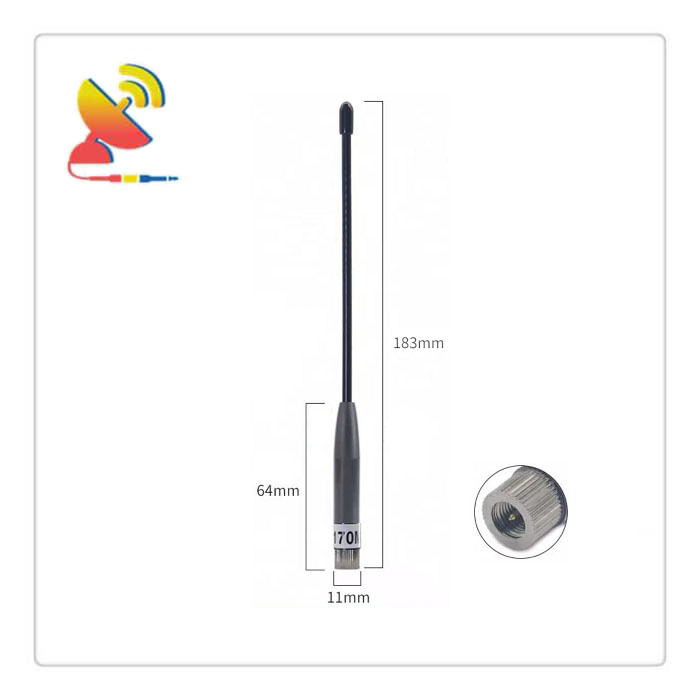

Item: CTRF-ANTENNA-WP-0169-11183-SMA
Specifications:
Material: Plastic ABS
Frequency range: 149-189 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ11x183mm

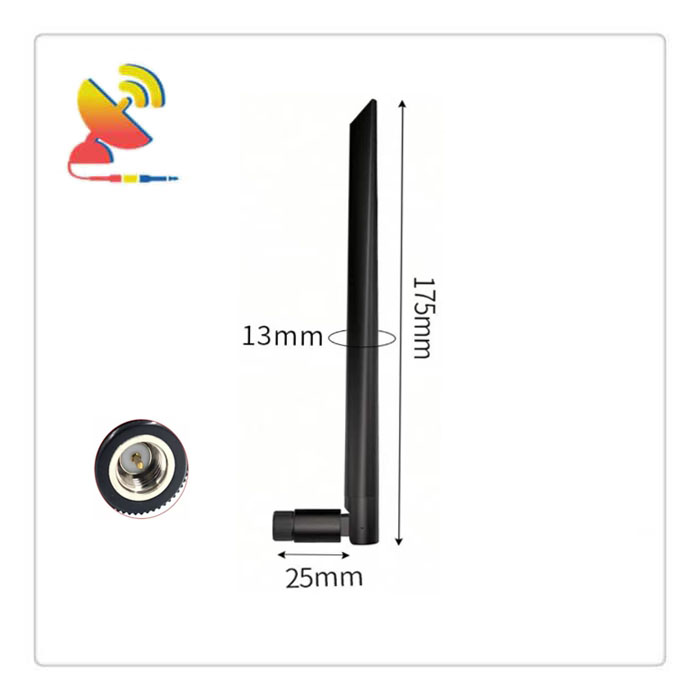

Item: CTRF-ANTENNA-AP-0169-13200-SMA
Specifications:
Material: Plastic ABS
Frequency range: 149-189 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ13x200mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 169 MHz antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
