C&T RF Antennas Inc. manufactures a series of 1.2 GHz antenna FPV. The FPV drone antenna with SMA connector. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 1.2 GHz FPV antennas such as the 1.2 GHz antenna datasheet, 1.2 GHz FPV antenna pricing, and 1.2 GHz mapping antenna inventory.
Or other indoor-outdoor 1.2 GHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 1.2 GHz antenna FPV is a receiving/mapping antenna manufactured by C&T RF Antennas Inc. for drone mapping applications. The essential 1.2 GHz FPV antenna is designed to provide optimal signal reception, ensuring clear, stable video transmission for your FPV drone.
The 1.2 GHz FPV antennas have a Y-shape and RHCP polarization dome-type styles for choice. The high-performance 1.2 GHz antenna FPV is for a 1.2 GHz C-band Rx/Tx system.
Besides the high-performance 1.2 GHz FPV antennas, we also provide 1.8 GHz FPV antennas, 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, SMA GPS antennas, 2.4GHz, 5GHz, and dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
FPV antenna
1.2 GHz antenna
Drone video receiver antenna
Sensitive reception and stable performance
High gain antenna to extend the signal distance
etc.
Traversers
Drones
Aeromodelling
etc.
C&T RF Antennas Inc. provides high-performance 1.2 GHz antenna FPV. Below are some of the styles.

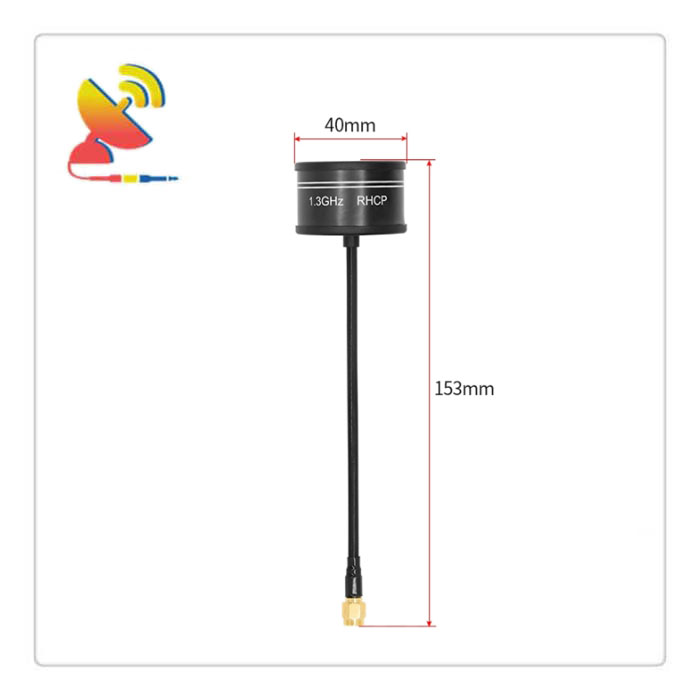

Item: CTRF-ANTENNA-FPV-1200-40153-SMA
Specifications:
Material: Plastic ABS
Frequency: 1.2 GHz – 1.3 GHz
Gain: 5dBi
V.S.W.R:≤2.0
Polarization: LHCP
Connector: SMA Male
Color: Black
Dimensions(head): 40mm dia. x 26mm height.
Cable Length: 127mm
Size: 40x153mm

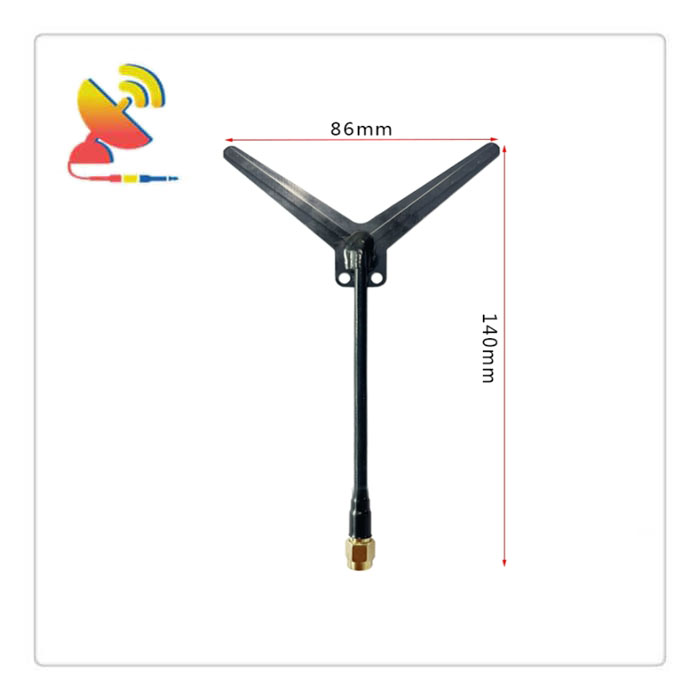

Item: CTRF-ANTENNA-FPV-1200-86140-SMA
Specifications:
Material: Plastic
Frequency: 1.1 GHz – 1.3 GHz
Gain: 5dBi
V.S.W.R:≤2.0
Direction: Directional
Connector: SMA Male
Color: Black
Size: 86x140mm

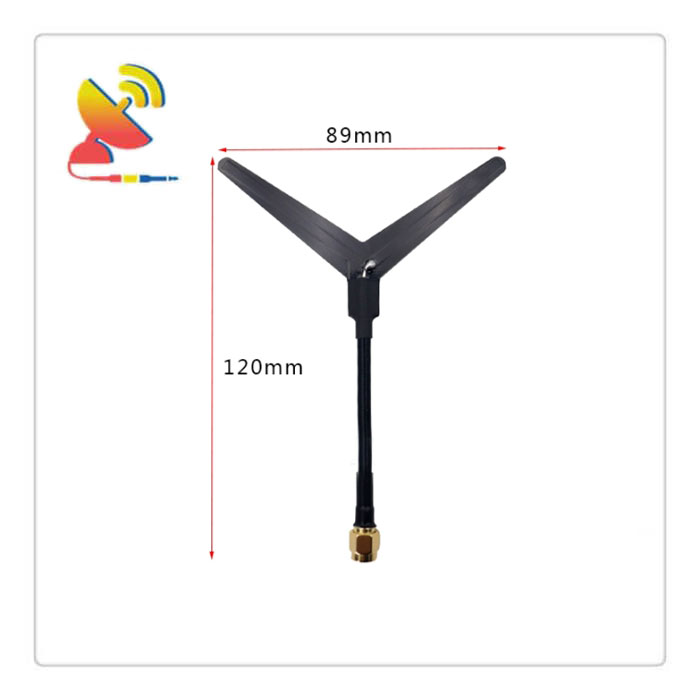

Item: CTRF-ANTENNA-FPV-1200-89120-SMA
Specifications:
Material: Plastic
Frequency: 1.1 GHz – 1.3 GHz
Gain: 5dBi
V.S.W.R:≤2.0
Direction: Directional
Connector: SMA Male
Color: Black
Size: 89x120mm

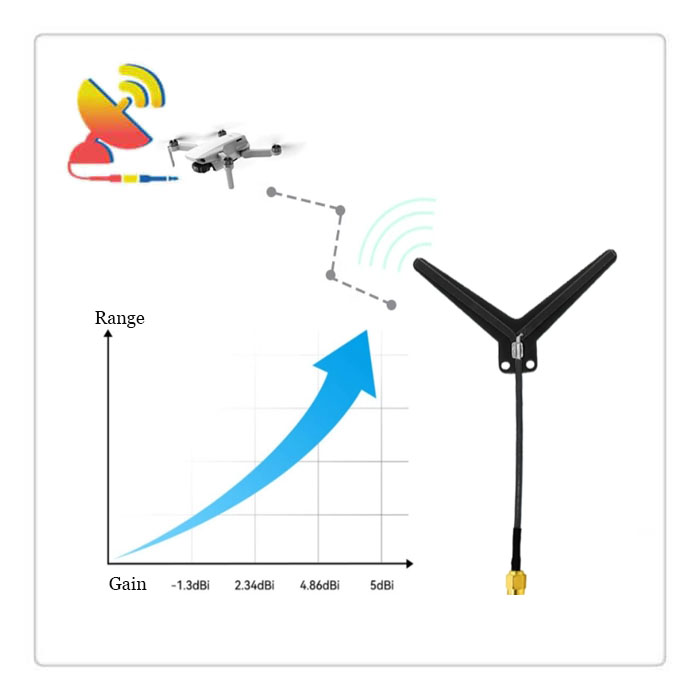

High gain 5dBi 1.2 GHz antenna extends the distance of signal receiving and transmitting, more stable signal.
Besides the FPV antennas, C&T RF Antennas Inc. also offers 1.2G antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, through-hole screw mount puck antennas, and rubber duck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
