C&T RF Antennas Inc. manufactures a series of flexible PCB 2.4/5GHz dual-band antennas. The internal flexible PCB antennas for all wireless 2.4GHz and 5GHz frequency band applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the flexible PCB 2.4/5GHz dual-band antennas, such as the dual-band 2.4/5GHz FPC antenna datasheet, 2.4/5GHz dual-band flex PCB antenna pricing, and 2.4/5GHz dual-band WiFi antenna inventory.
Or other internal-external dual-band 2.4/5 GHz WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 2.4/5GHz flexible antennas are embedded/internal/built-in flexible printed circuit board antennas specifically designed for the 2.4 GHz and 5 GHz wireless antennas manufactured by C&T RF Antennas Inc. for 2.4/5GHz wireless network communications.
The high-performance 2.4 GHz flexible antennas are flexible PCB antennas that can operate at two distinct frequencies, providing the functionality of two antennas in a single unit.
Besides the high-performance 2.4/5GHz flexible antennas, we also provide 13.56 MHz FPCB antennas, flexible 433 MHz PCB antennas, single-band 868MHz/915MHz flexible PCB antennas, dual-band 868/915MHz LoRa flexible antennas, LTE-M/NB-IoT/3G GSM FPC antennas, flexible WiFi 2..4GHz PCB antennas, 4G/LTE flex antennas, 5G NR/5G N78 flex PCB antennas, and GNSS/GPS FPCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
2.4/5GHz WiFi dual-band operation
Flexible printed circuit board design
Self-adhesive backing
Balanced transmission
High radiation efficiency
Compact sizes
IPEX antenna cable extensions
etc.
The high-performance 2.4 GHz flexible antennas are functional in both 2.4 GHz and 5 GHz bands, providing flexibility for different Wi-Fi standards and applications, such as the following.
In smart speakers, cameras, sensors, and other devices, the dual-band antenna can simultaneously connect 2.4GHz ZigBee/Bluetooth devices (e.g., low-power sensors) and 5.8GHz Wi-Fi devices (e.g., high-definition cameras) to achieve efficient data transmission and remote control.
In factory environments, the dual-band antenna connects 2.4GHz industrial sensors (e.g., temperature and humidity monitoring) and 5.8GHz wireless controllers (e.g., AGV carts) to ensure real-time data and device stability.
In shopping malls, hotels, and other scenarios, dual-band routers with dual-band antennas can provide wider coverage (2.4GHz) and higher concurrent capacity (5.8GHz) to meet the demand for high-density user access.
Telematics Wi-Fi, drones, and other mobile devices achieve stable connectivity through dual-band antennas: 2.4GHz for basic communication (e.g., remote control), and 5.8GHz for HD video transmission (e.g., aerial photography by drones).
etc.

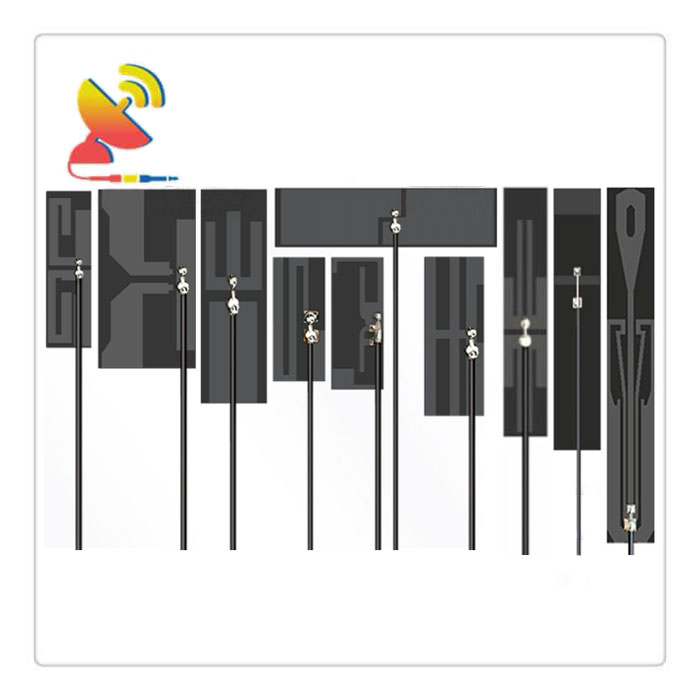

C&T RF Antennas Inc. provides high-performance flexible 2.4/5GHz dual-band antennas. Below are some of the styles of 2.4/5 GHz flexible PCB antennas.

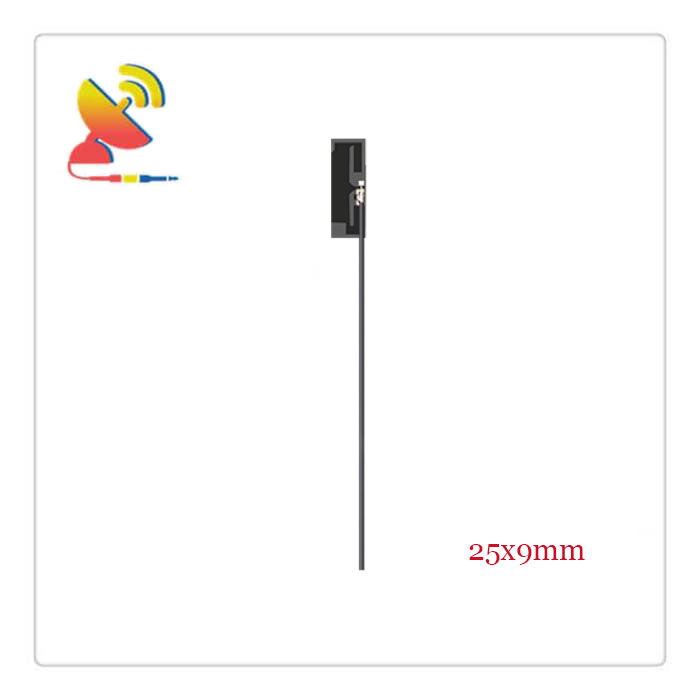

Item: CTRF-ANTENNA-FPC-2458-2509-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ25x9mm

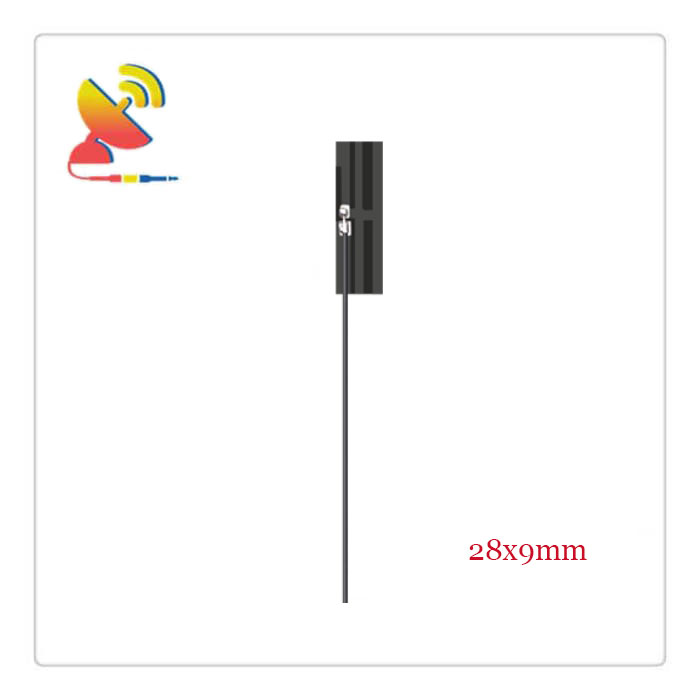

Item: CTRF-ANTENNA-FPC-2458-2809-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ28x9mm

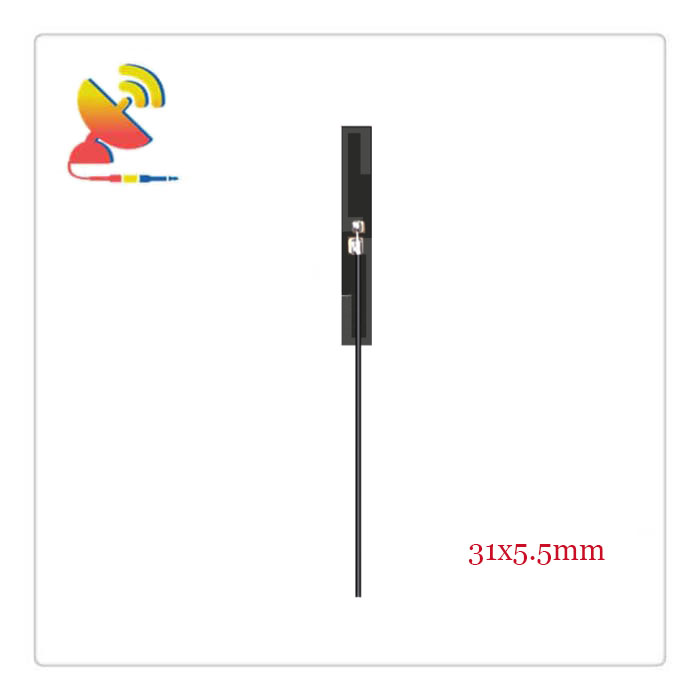

Item: CTRF-ANTENNA-FPC-2458-3105-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ31×5.5mm

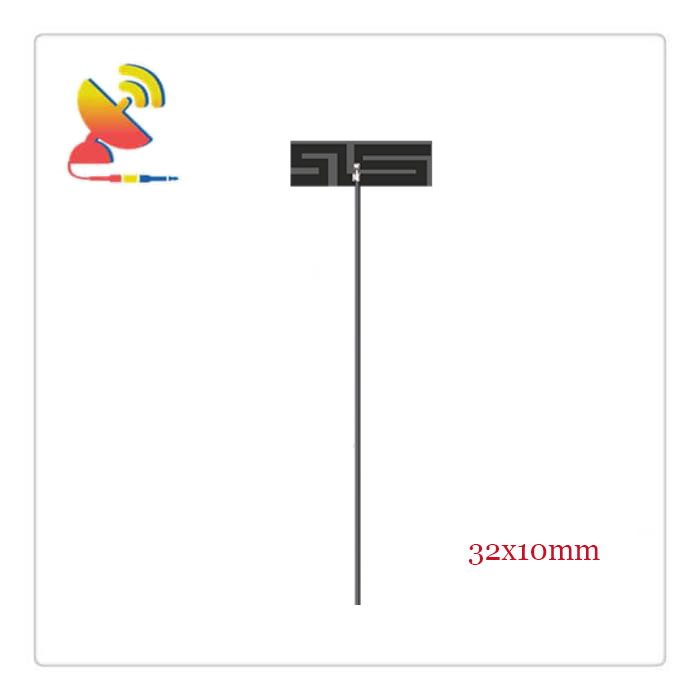

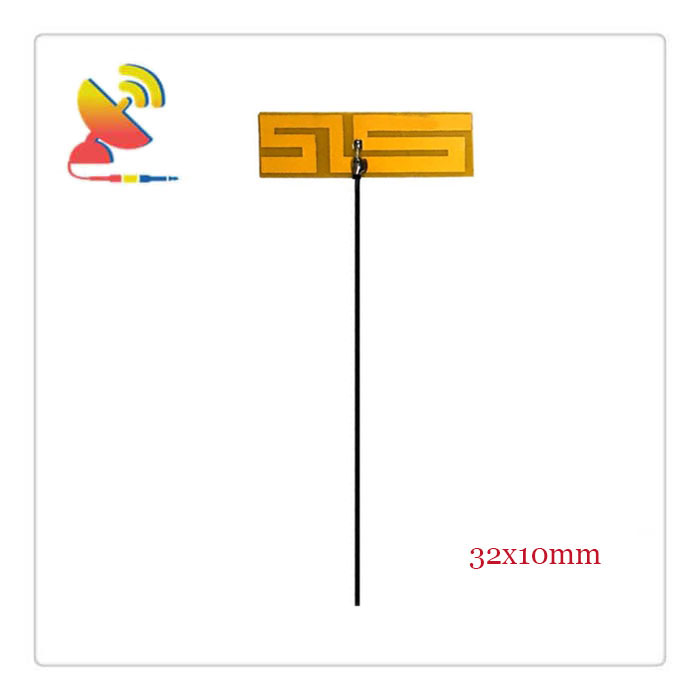

Item: CTRF-ANTENNA-FPC-2458-3210B-IPEX-T
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ32x10mm
Item: CTRF-ANTENNA-FPC-2458-3210Y-IPEX-T
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Yellow
Dimension: Φ32x10mm

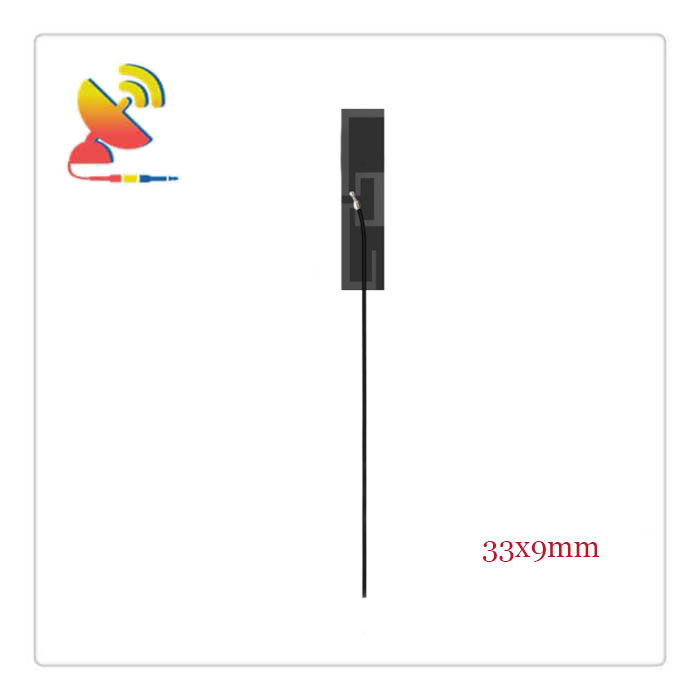

Item: CTRF-ANTENNA-FPC-2458-3309-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ33x9mm

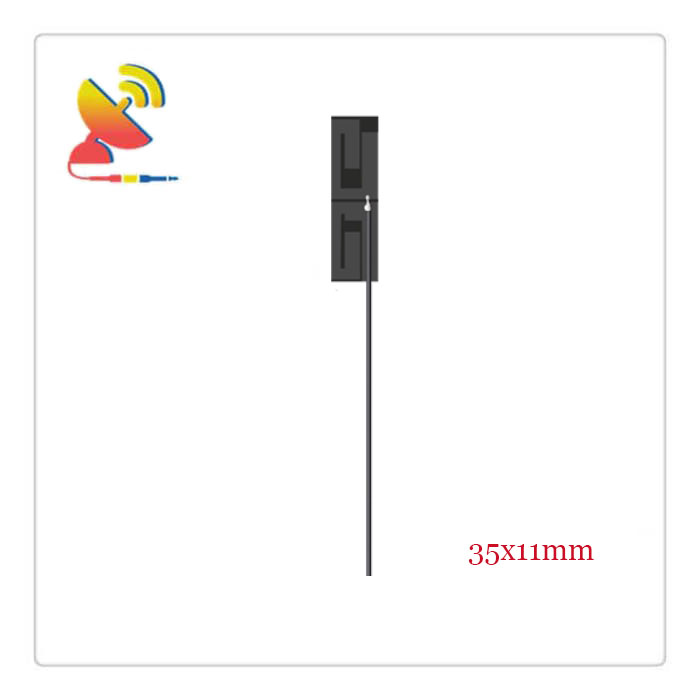

Item: CTRF-ANTENNA-FPC-2458-3511-IPEX-L
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ35x11mm

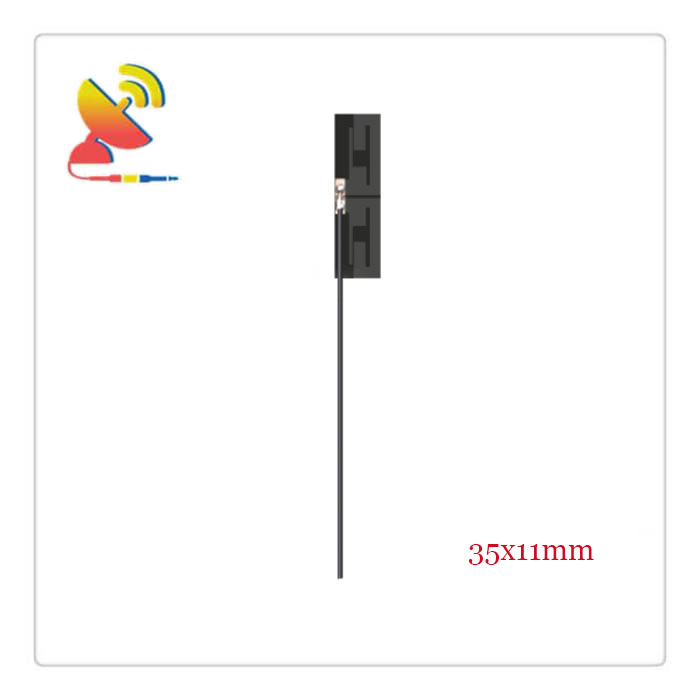

Item: CTRF-ANTENNA-FPC-2458-3511-IPEX-R
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ35x11mm

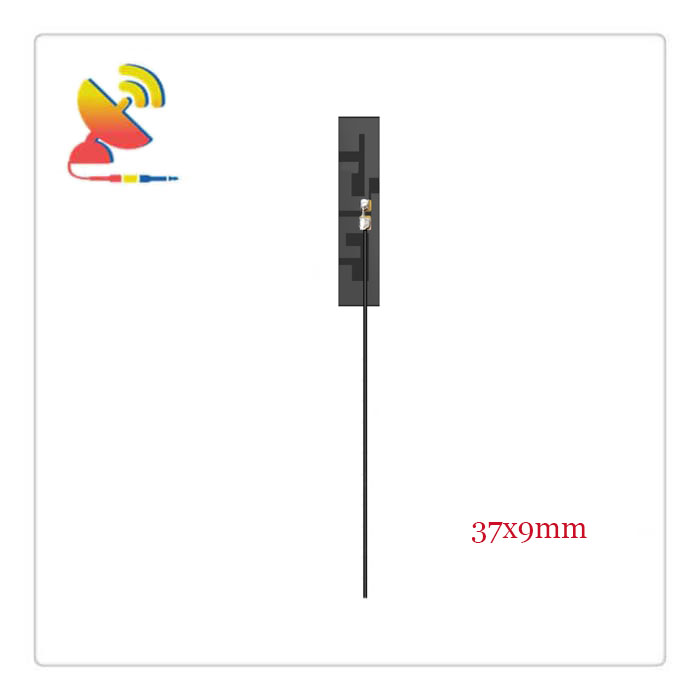

Item: CTRF-ANTENNA-FPC-2458-3709-IPEX-H
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ37x9mm

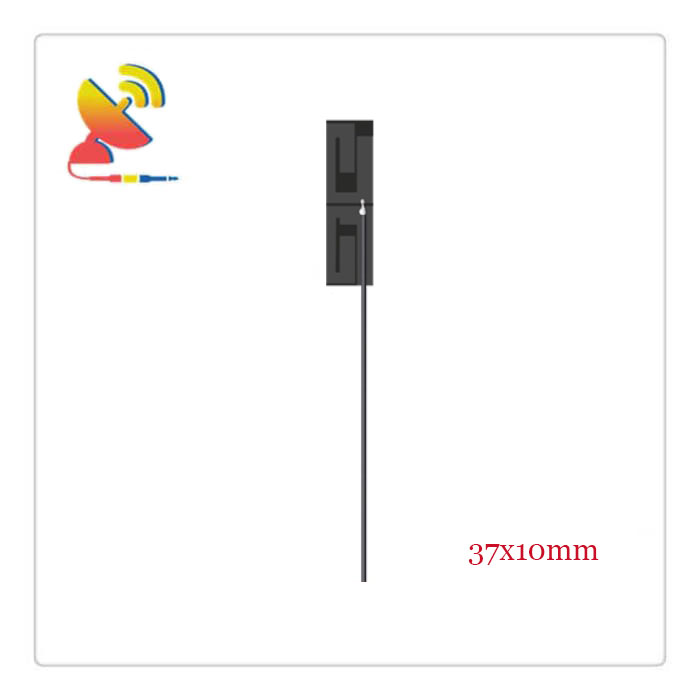

Item: CTRF-ANTENNA-FPC-2458-3710-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ37x10mm
Item: CTRF-ANTENNA-FPC-2458-3713-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ37x13mm

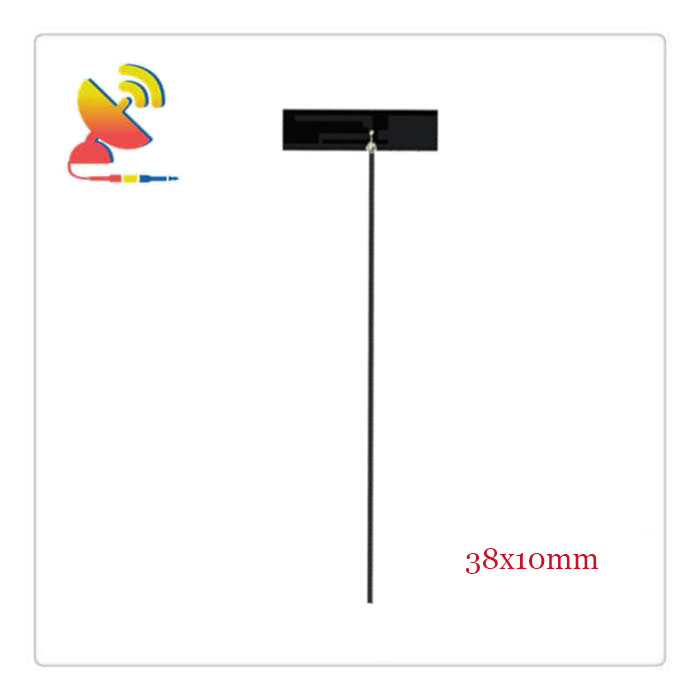

Item: CTRF-ANTENNA-FPC-2458-3810-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ38x10mm

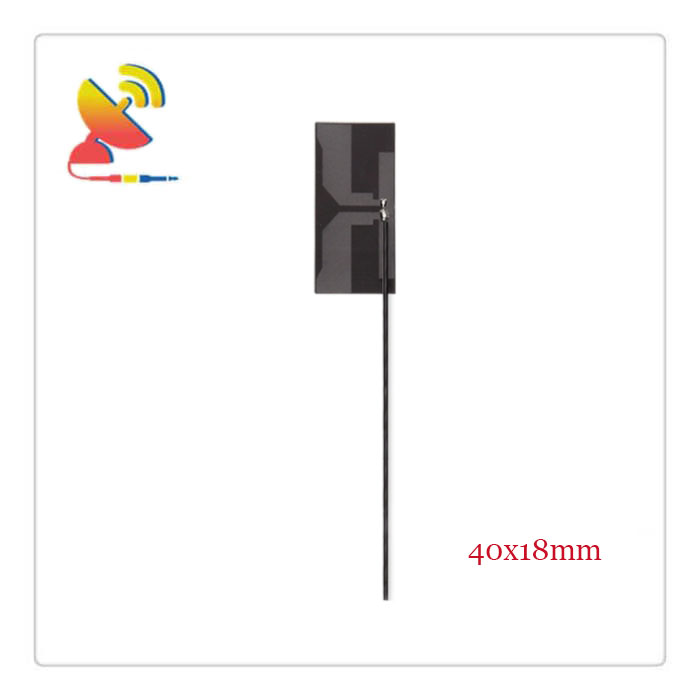

Item: CTRF-ANTENNA-FPC-2458-4018-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ40x18mm

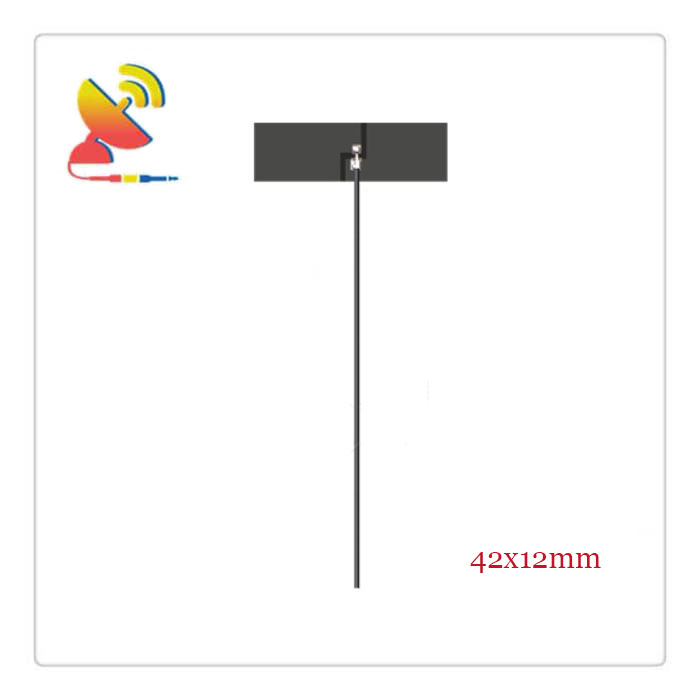

Item: CTRF-ANTENNA-FPC-2458-4212-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ42x12mm
Item: CTRF-ANTENNA-FPC-2458-4614-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ46x14mm

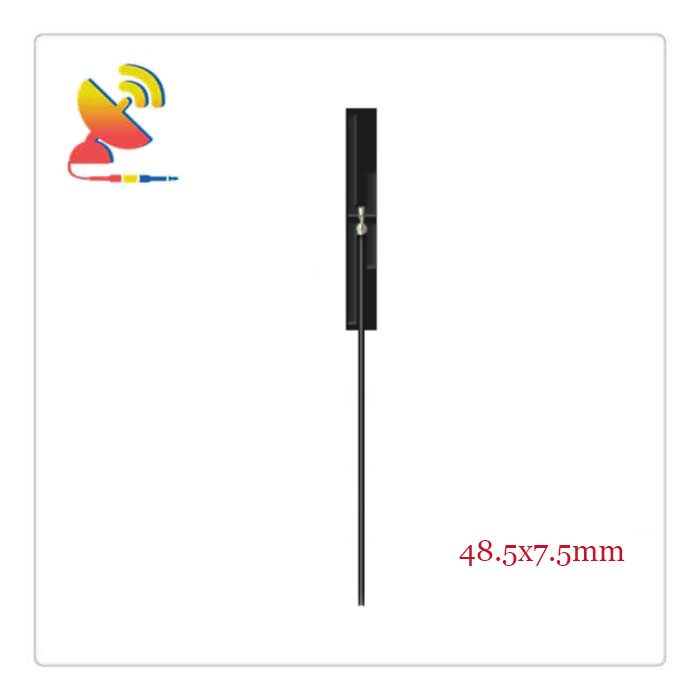

Item: CTRF-ANTENNA-FPC-2458-4807-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ48.5×7.5mm

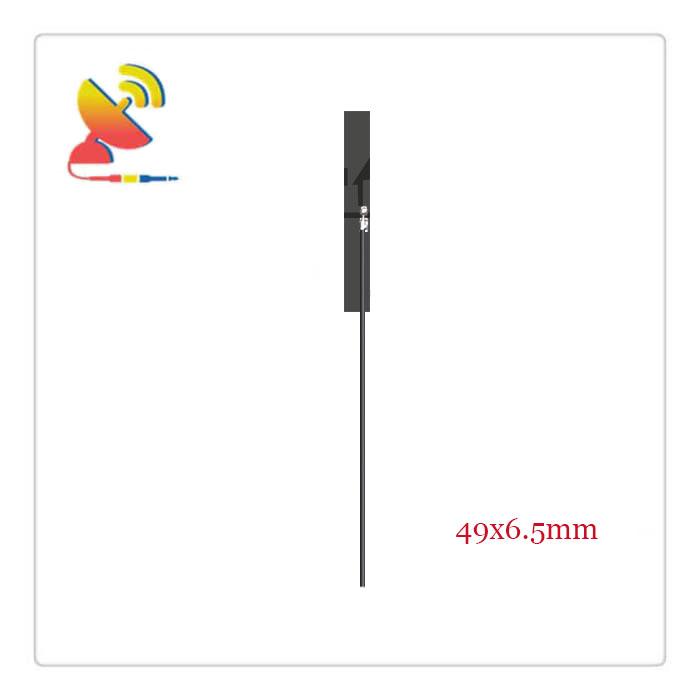

Item: CTRF-ANTENNA-FPC-2458-4906-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ49×6.5mm

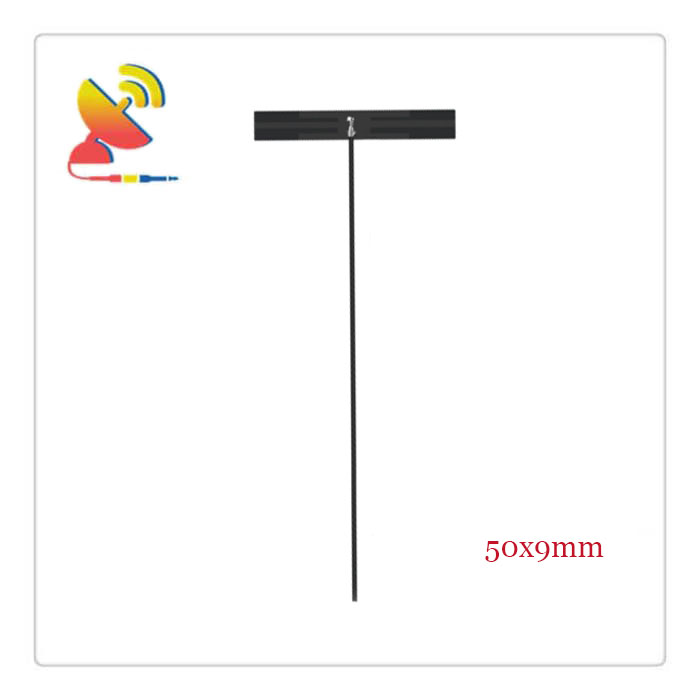

Item: CTRF-ANTENNA-FPC-2458-5009-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ50x9mm

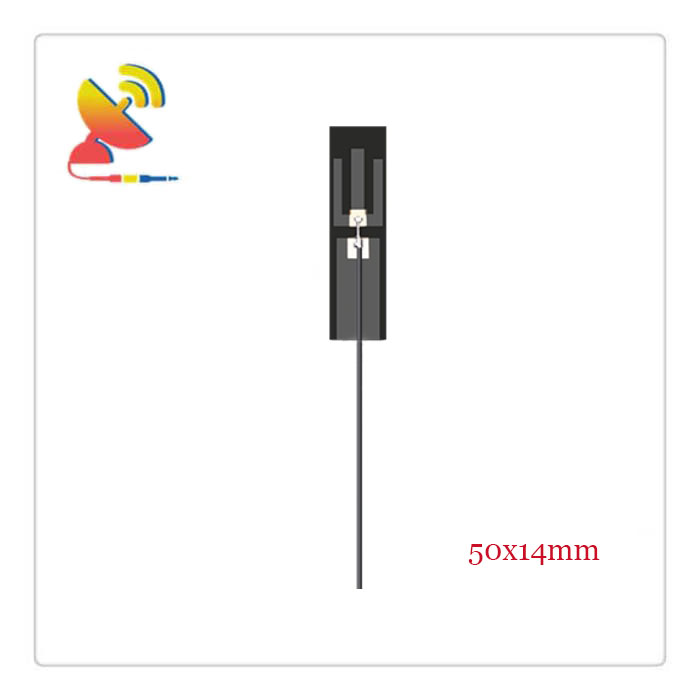

Item: CTRF-ANTENNA-FPC-2458-5014-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ50x14mm

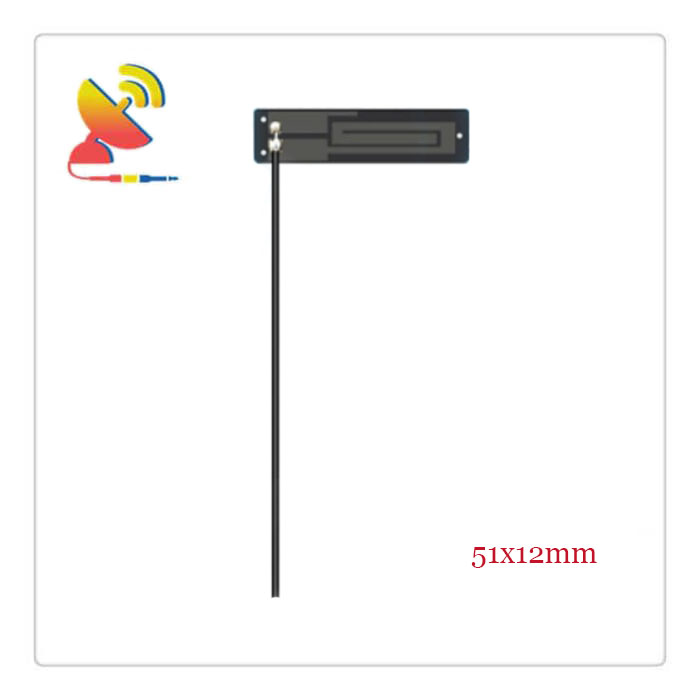

Item: CTRF-ANTENNA-FPC-2458-5112-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ51x12mm

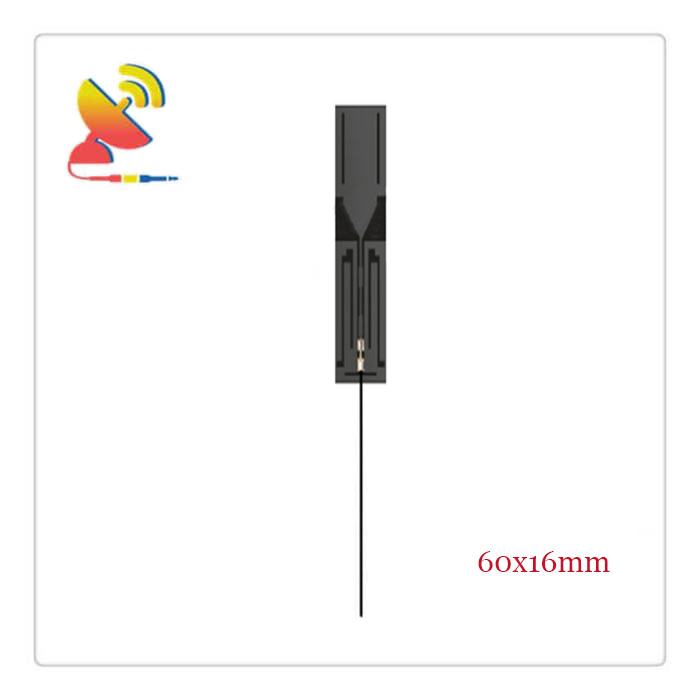

Item: CTRF-ANTENNA-FPC-2458-6016-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ60x16mm

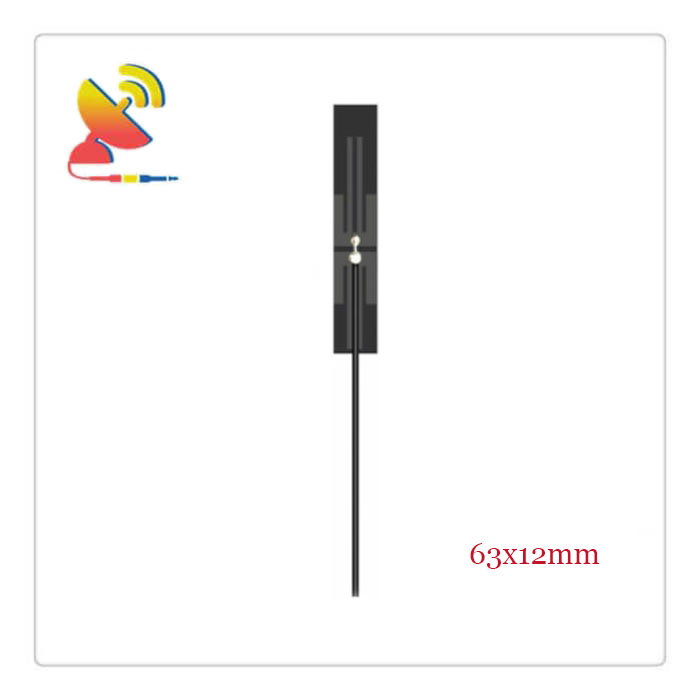

Item: CTRF-ANTENNA-FPC-2458-6312-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ63x12mm
Item: CTRF-ANTENNA-FPC-2458-6514-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ65x14mm

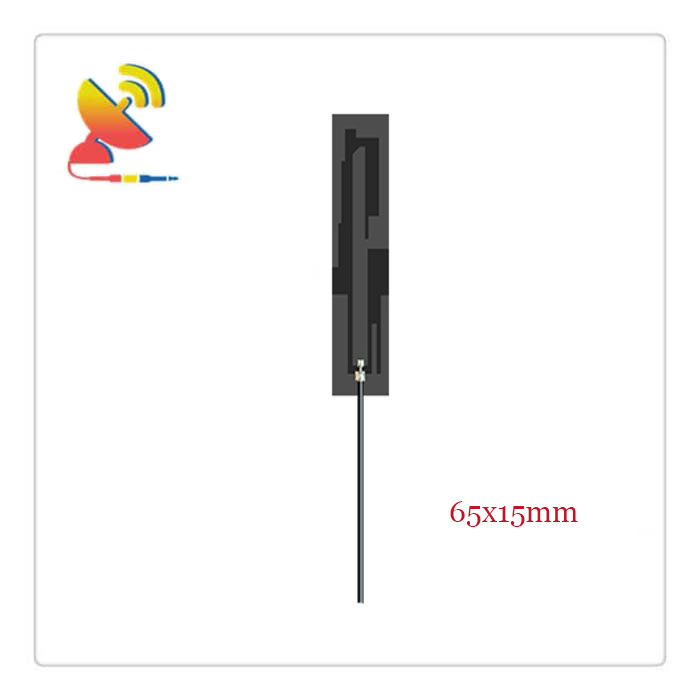

Item: CTRF-ANTENNA-FPC-2458-6515-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ65x15mm

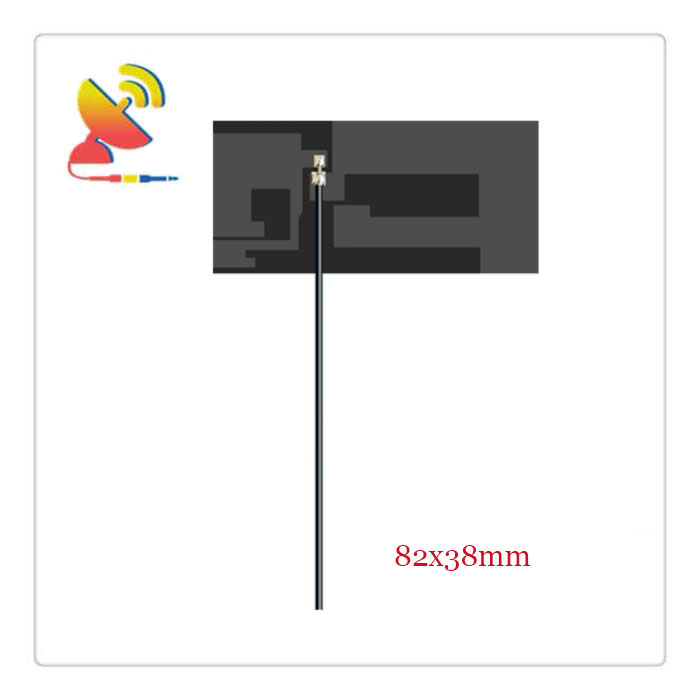

Item: CTRF-ANTENNA-FPC-2458-8238-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 8/10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ82x38mm
Item: CTRF-ANTENNA-FPC-2458-9814-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ87x14mm

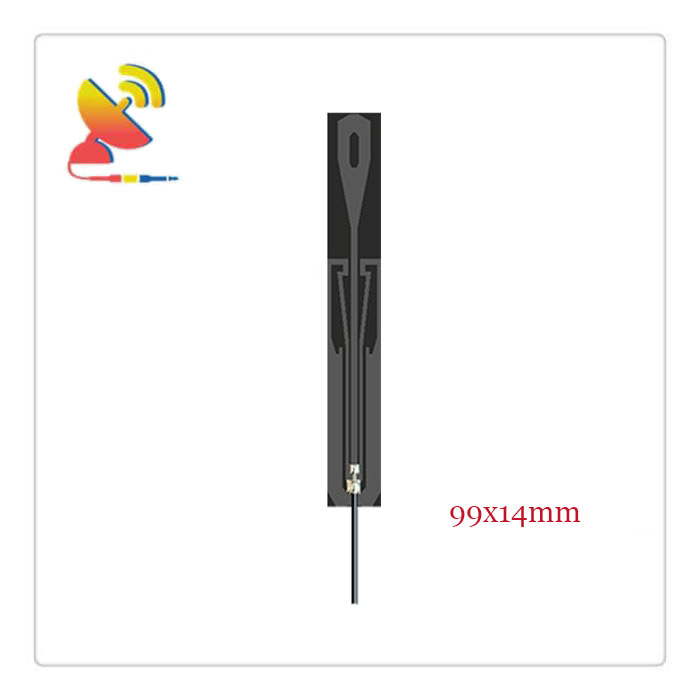

Item: CTRF-ANTENNA-FPC-2458-9914-IPEX
Specifications:
Material: Flexible printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ99x14mm
In addition to flexible PCB antennas, C&T RF Antennas Inc. also offers a range of 2.4 GHz/5 GHz WiFi antennas, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, helical antennas, PCB antennas, etc. Contact us for more specs you need.
