C&T RF Antennas Inc. manufactures a series of high-performance ISM/LoRa 868/915 MHz dome/puck antennas. The external 868/915 MHz ISM/LoRa antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance ISM 868/915 MHz LoRa dome antennas, such as the 868/915 MHz LoRa puck antenna datasheet, 868/915 MHz ISM dome antenna pricing, and ISM/LoRa dome antenna inventory.
Or other indoor-outdoor ISM/LoRa 868/915 MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 868/915 MHz ISM/LoRa dome antennas are external dome/puck antennas with an 850-930 MHz radio frequency band antennas manufactured by C&T RF Antennas Inc. The 868/915 MHz ISM/LoRa dome antennas cover 868 MHz, 900 MHz, 915 MHz, and 928 MHz radio frequency bands used in GSM900, RFID, ISM, LoRa, M2M, and IoT applications.
The high-performance 868/915 MHz ISM/LoRa dome antennas are a type of antenna used for long-range, low-power wireless communication, often in Internet of Things (IoT) applications. They are typically designed with a durable, weatherproof radome (a protective enclosure), often made of ABS plastic, and are suitable for outdoor installations.
These high-performance 868/915 MHz ISM/LoRa dome antennas are characterized by their ability to transmit data over long distances with low power consumption, making them ideal for applications like sensor networks and smart city deployments.
Besides the 868/915 MHz ISM/LoRa dome antennas, the 433 MHz dome antennas, 4G LTE 5G dome antennas, NB-IoT/LTE-M puck antennas, GSM 4G puck antennas, Wi-Fi puck antennas, and GPS/GNSS puck antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
The features of the high-performance 868/915 MHz ISM/LoRa dome antennas are as follows.
For ISM/LoRa/LoRaWAN/GSM/RFID 868 MHz, 900 MHz, 915 MHz, and 928 MHz frequency bands
A dome-shaped or puck-shaped appearance
Low-profile, space-saving design
Omnidirectional and external mount
Through-hole screw mount
etc.
The high-performance 868/915 MHz ISM/LoRa dome antennas are used in various IoT applications, including smart agriculture, environmental monitoring, asset tracking, and smart city infrastructure.

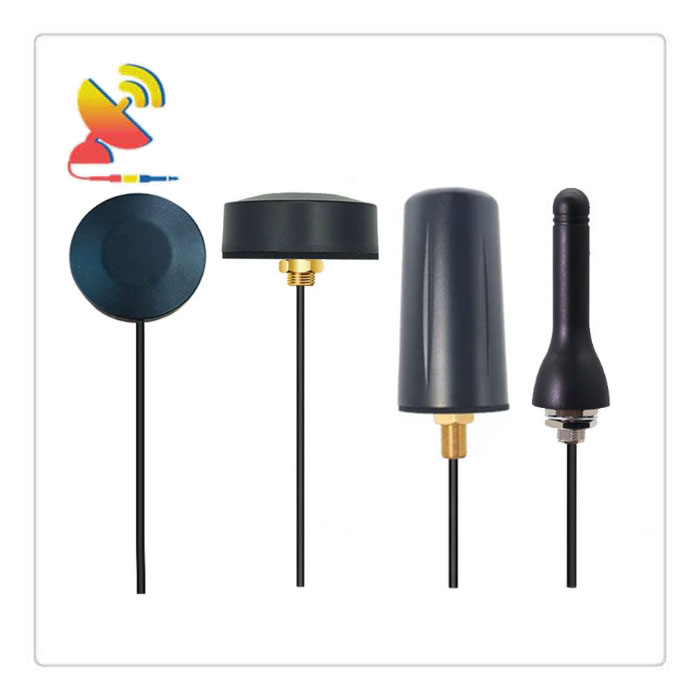

C&T RF Antennas Inc. provides high-performance 868/915 MHz LoRa dome antennas. Below are some of the LoRa antenna styles.

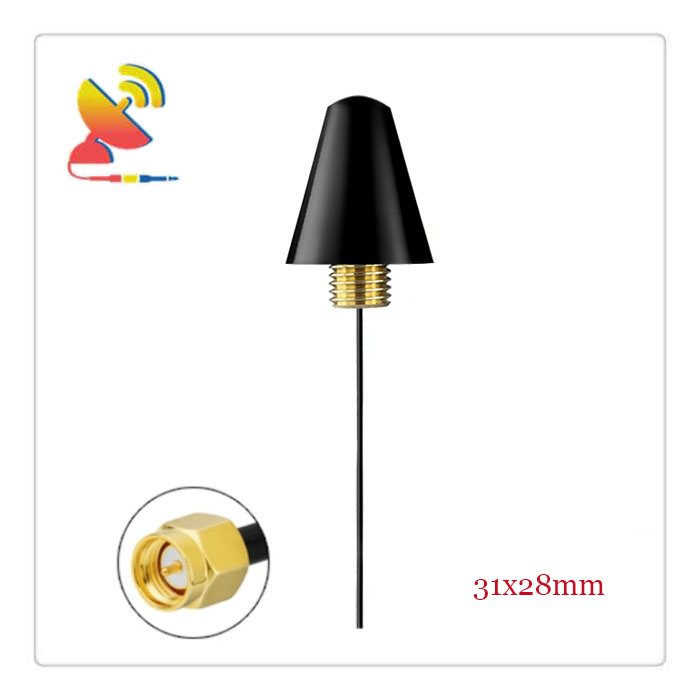

Item: CTRF-ANTENNA-EX-8593-3128-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ31x28mm
Mounting: Screw/through-hole

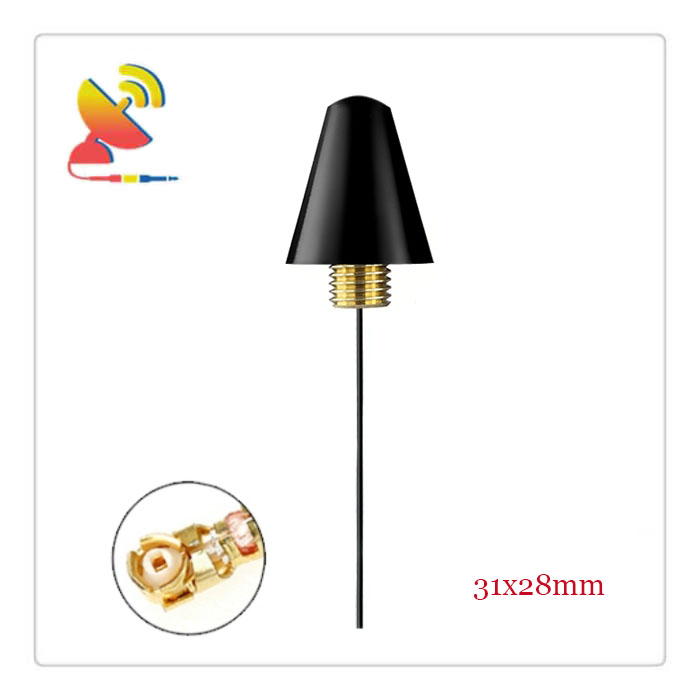

Item: CTRF-ANTENNA-EX-8593-3128-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13
Cable length: 0.15M
Color: Black
Dimension: Φ31x28mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-8593-3920-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG178
Cable length: 0.5M
Color: Black
Dimension: Φ39x20mm
Mounting: Screw/through-hole

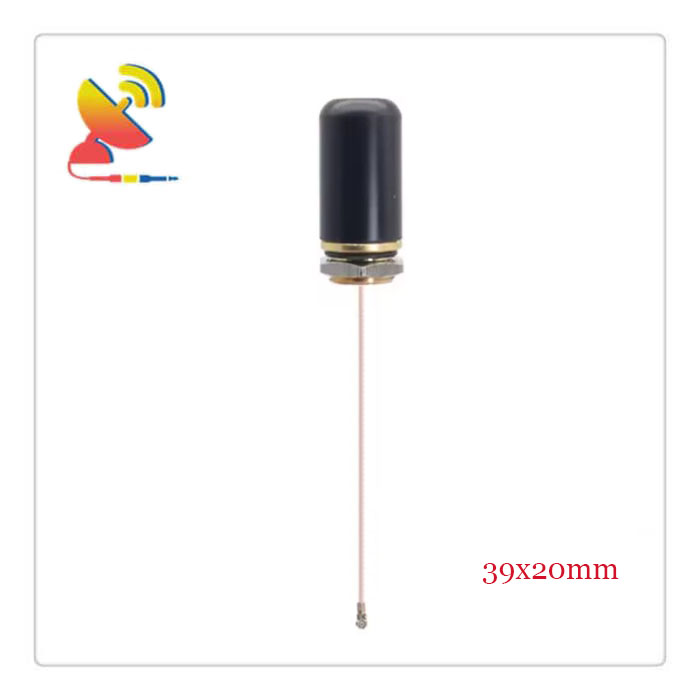

Item: CTRF-ANTENNA-EX-8593-3920-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178
Cable length: 0.2M
Color: Black
Dimension: Φ39x20mm
Mounting: Screw/through-hole

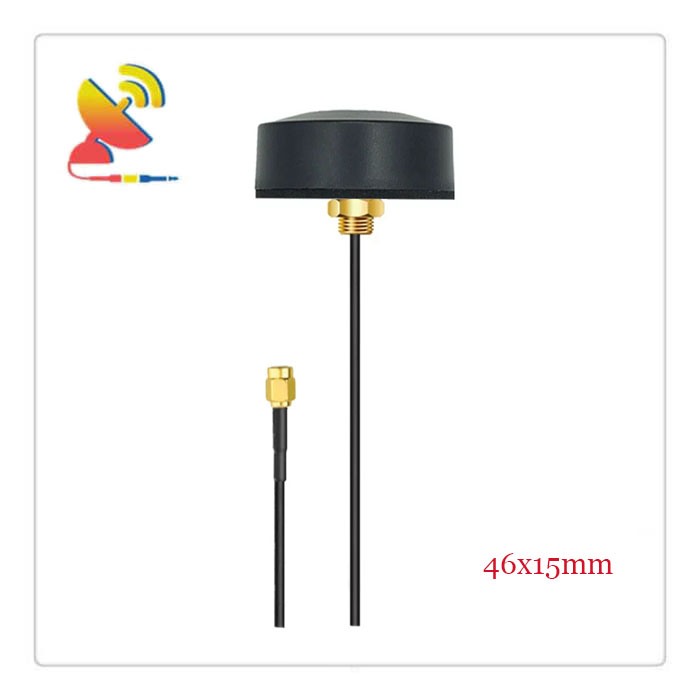

Item: CTRF-ANTENNA-EX-8593-4615-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

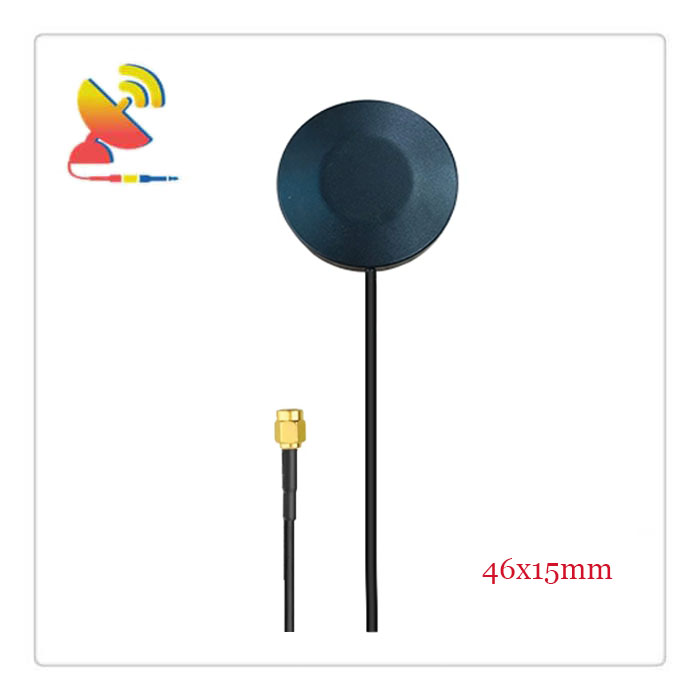

Item: CTRF-ANTENNA-EX-8593-4615S-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x15mm
Mounting: Sticker

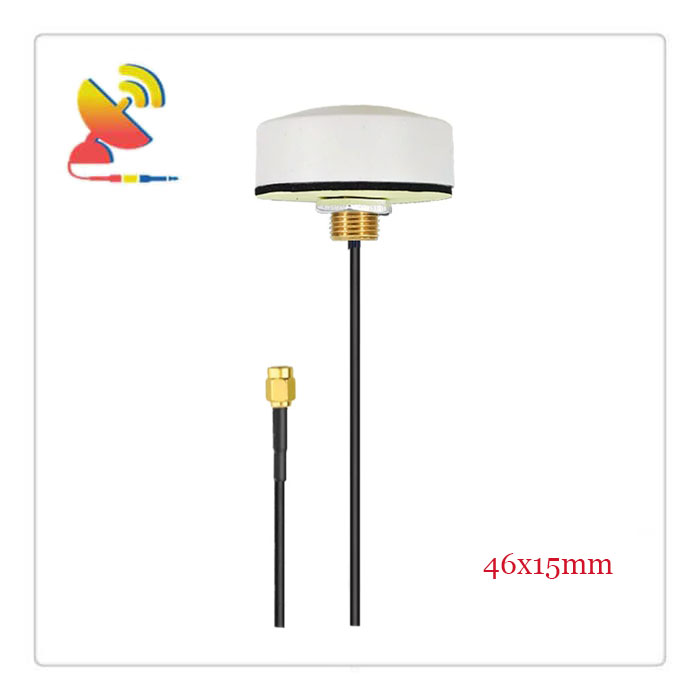

Item: CTRF-ANTENNA-EX-8593-4615W-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: White
Dimension: Φ46x15mm
Mounting: Screw/through-hole

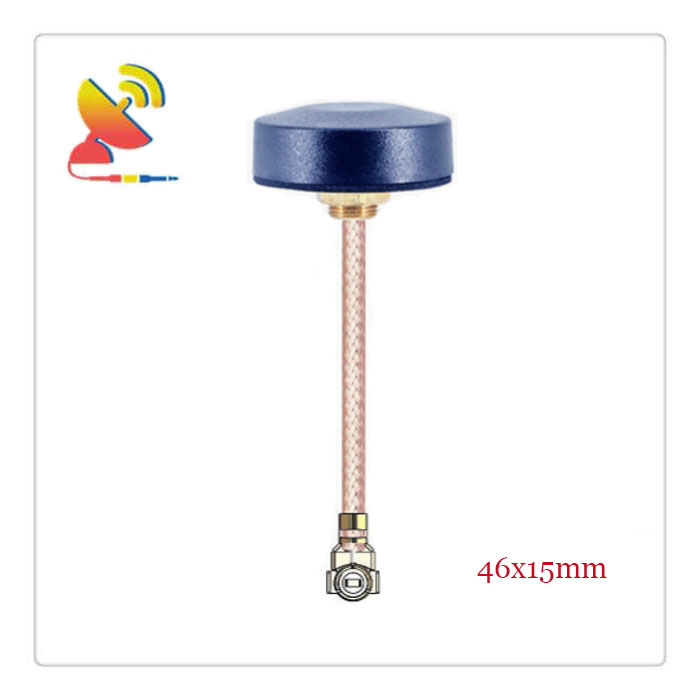

Item: CTRF-ANTENNA-EX-8593-4615-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13/RG178/RG316
Cable length: 0.2M
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

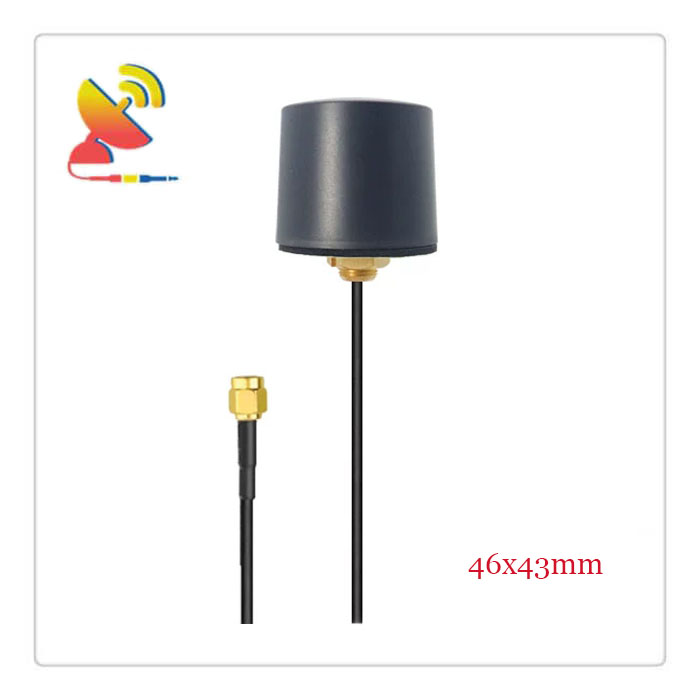

Item: CTRF-ANTENNA-EX-8593-4643-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ46x43mm
Mounting: Screw/through-hole

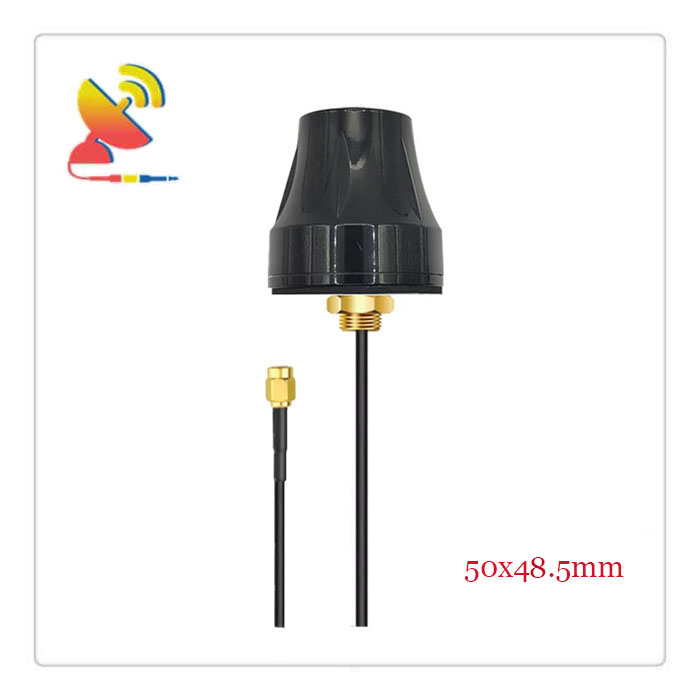

Item: CTRF-ANTENNA-EX-8593-5048-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

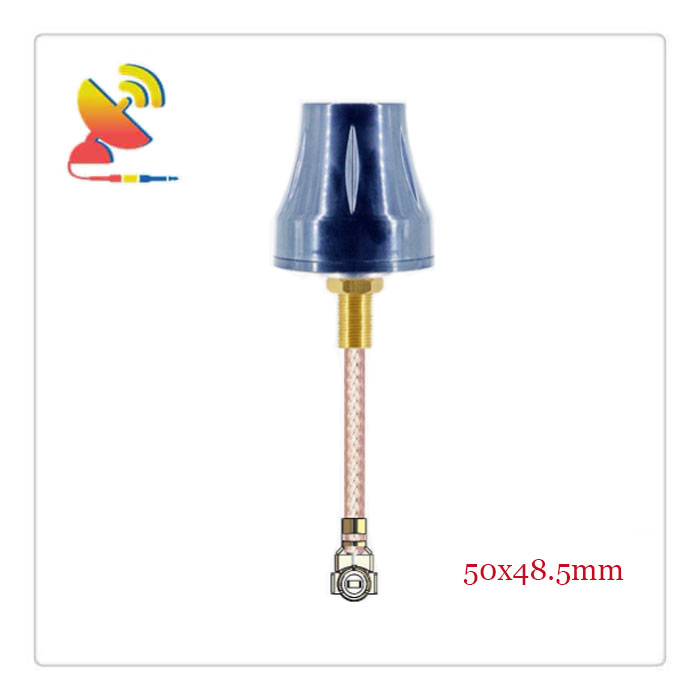

Item: CTRF-ANTENNA-EX-8593-5048-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13/RG178
Cable length: 0.2M
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

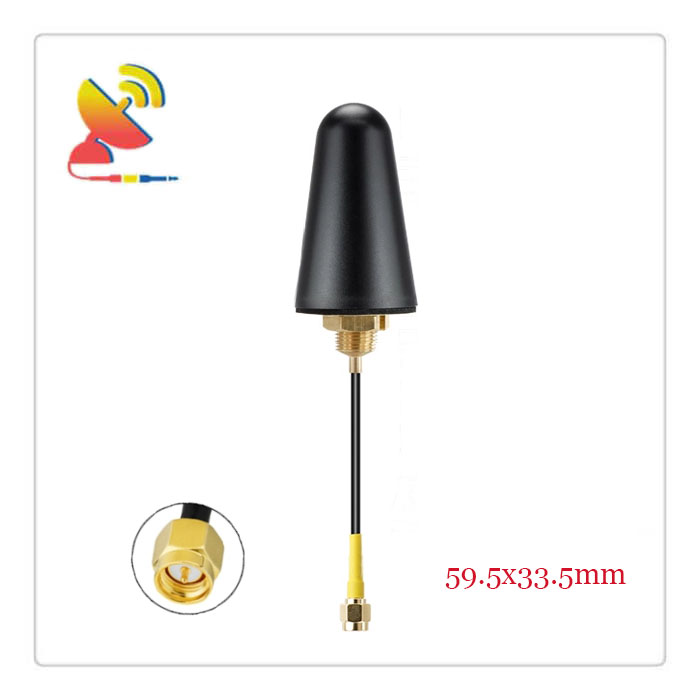

Item: CTRF-ANTENNA-EX-8593-5933-RPSMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ59.5×33.5mm
Mounting: Screw/through-hole

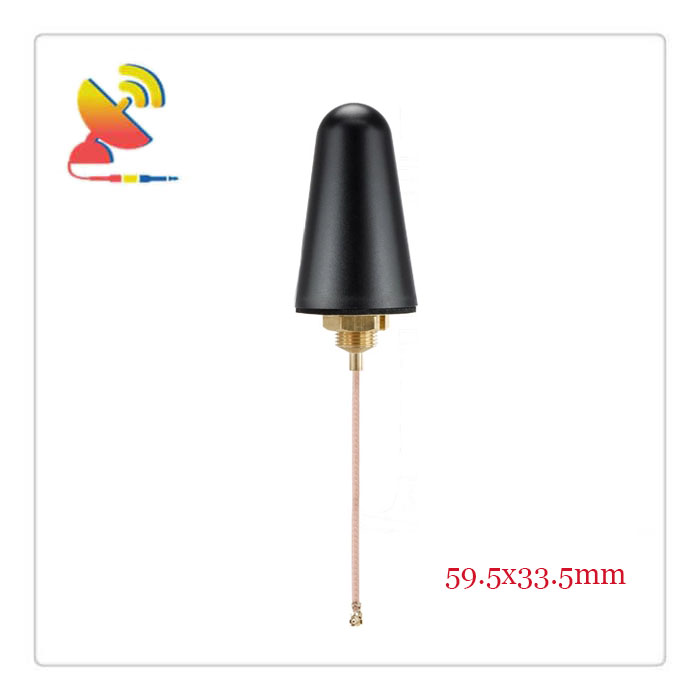

Item: CTRF-ANTENNA-EX-8593-5933-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: Black
Dimension: Φ59.5×33.5mm
Mounting: Screw/through-hole

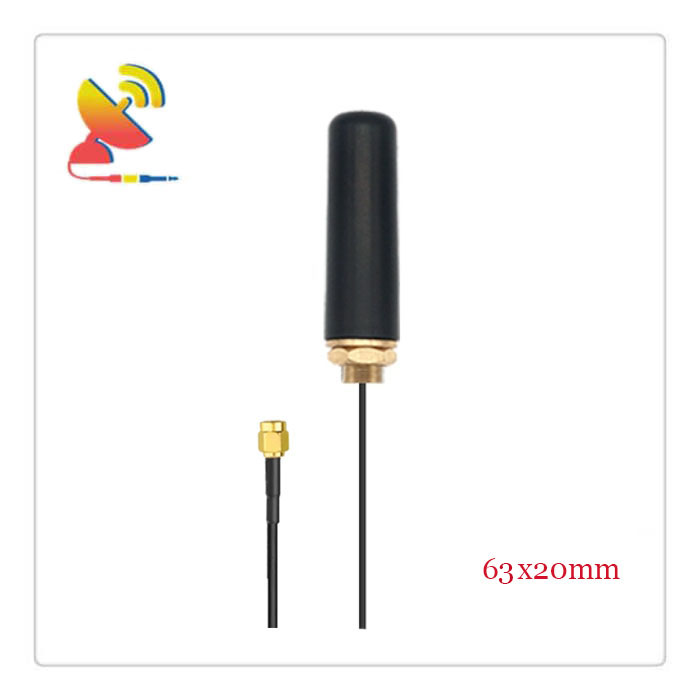

Item: CTRF-ANTENNA-EX-8593-6320-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ63x20mm
Mounting: Screw/through-hole

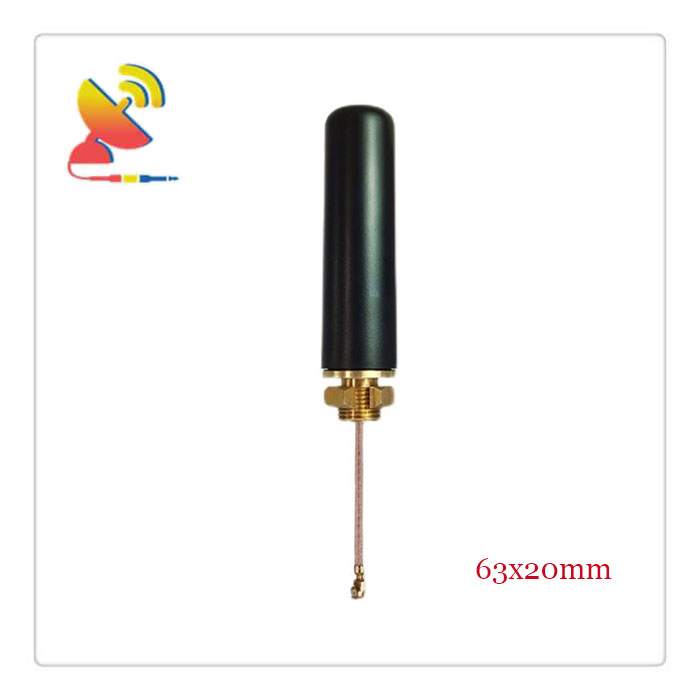

Item: CTRF-ANTENNA-EX-8593-6320-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: Black
Dimension: Φ63x20mm
Mounting: Screw/through-hole

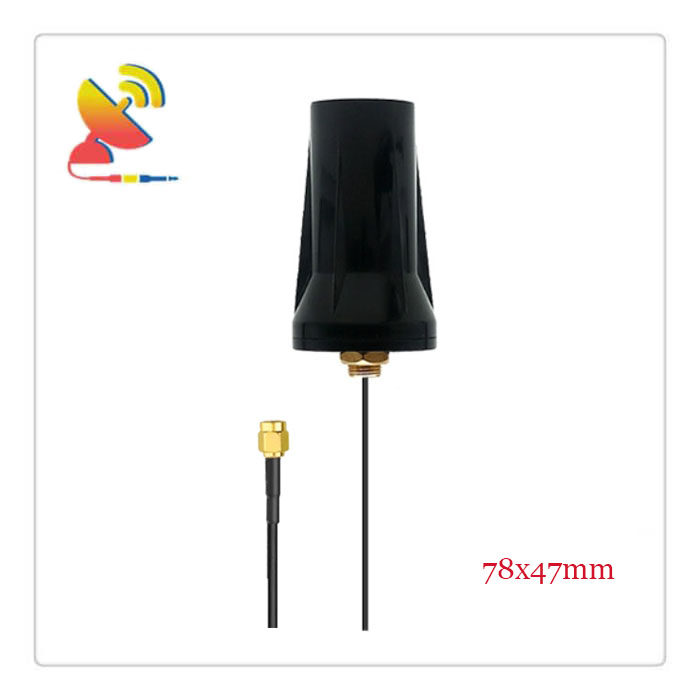

Item: CTRF-ANTENNA-EX-8593-7847-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ78x47mm
Mounting: Screw/through-hole

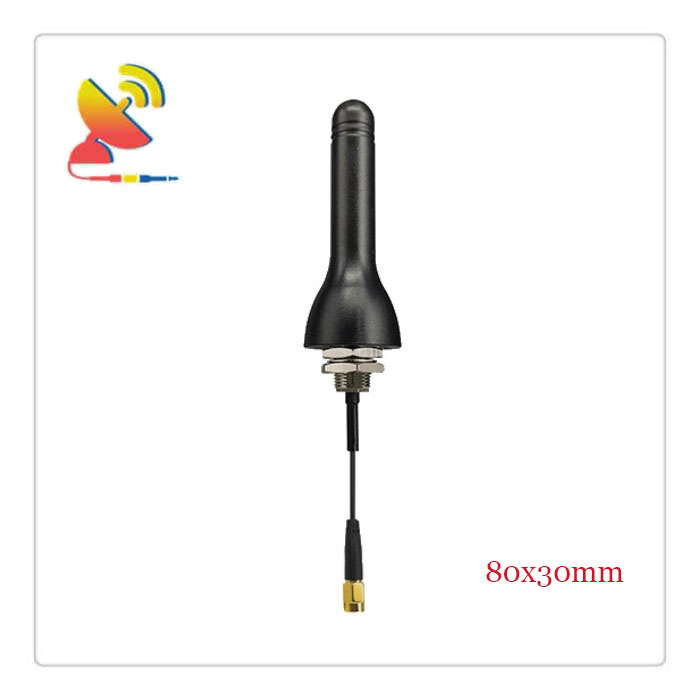

Item: CTRF-ANTENNA-EX-8593-8030-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ80x30mm
Mounting: Screw/through-hole

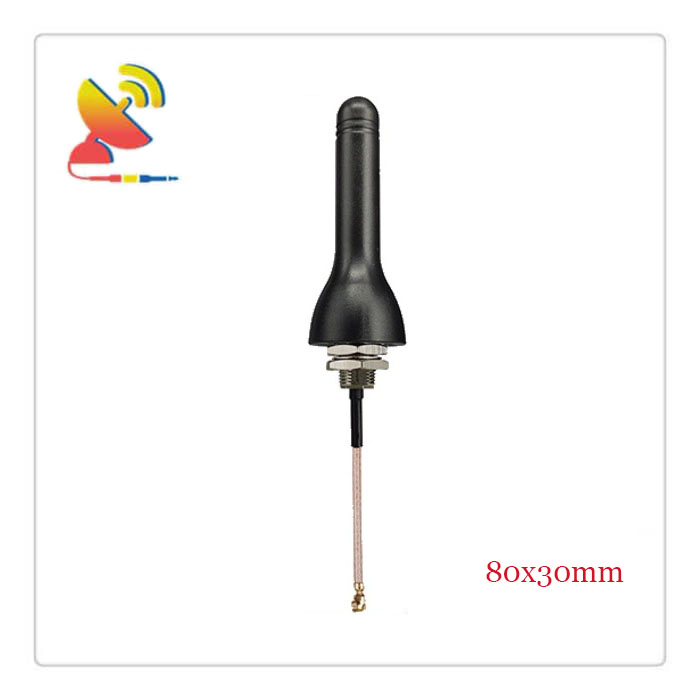

Item: CTRF-ANTENNA-EX-8593-8030-IPEX
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: Black
Dimension: Φ80x30mm
Mounting: Screw/through-hole

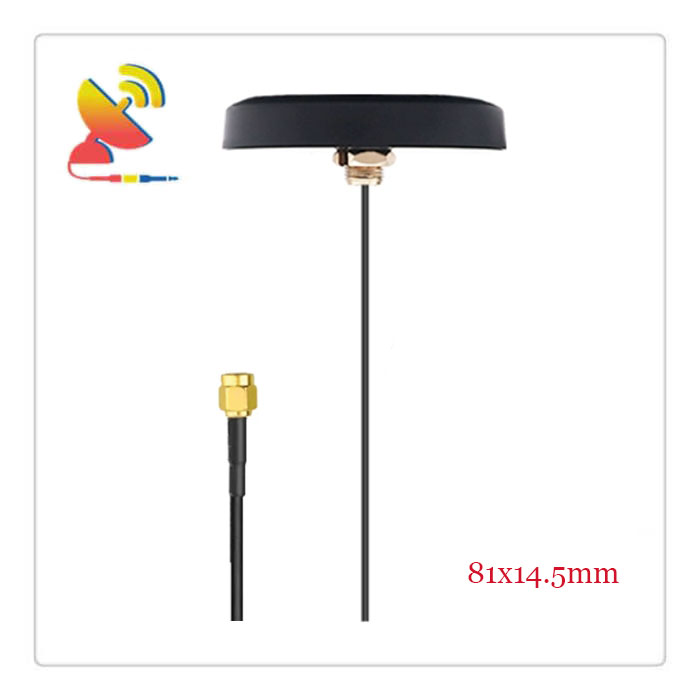

Item: CTRF-ANTENNA-EX-8593-8114-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

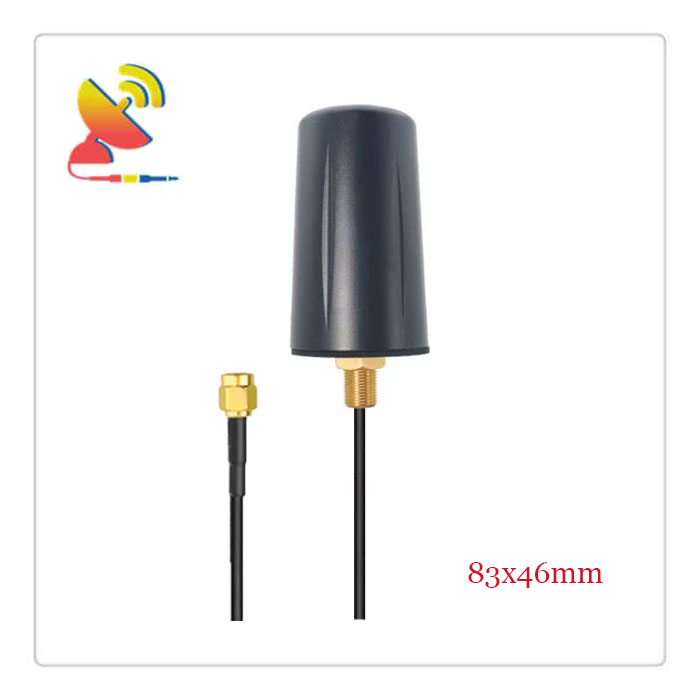

Item: CTRF-ANTENNA-EX-8593-8346-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ83x46mm
Mounting: Screw/through-hole

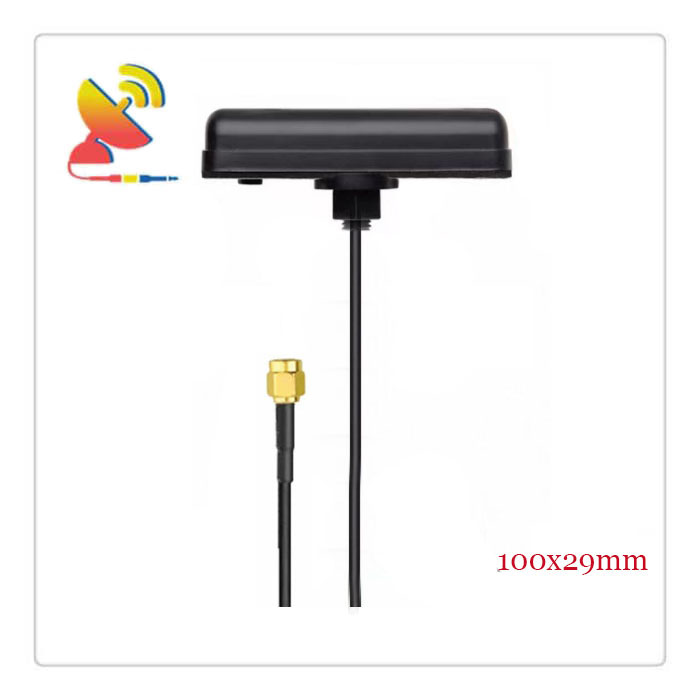

Item: CTRF-ANTENNA-EX-8593-10029-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ100x29mm
Mounting: Screw/through-hole

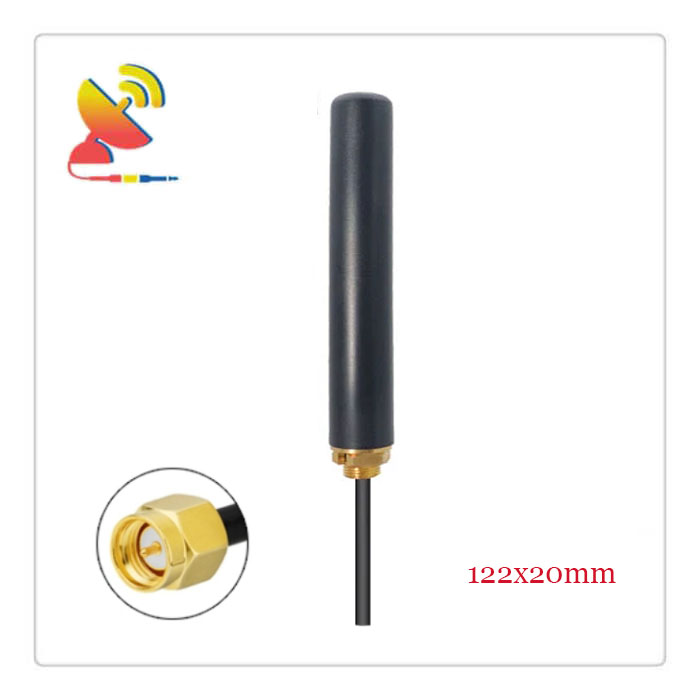

Item: CTRF-ANTENNA-EX-8593-12220-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ122x20mm
Mounting: Screw/through-hole

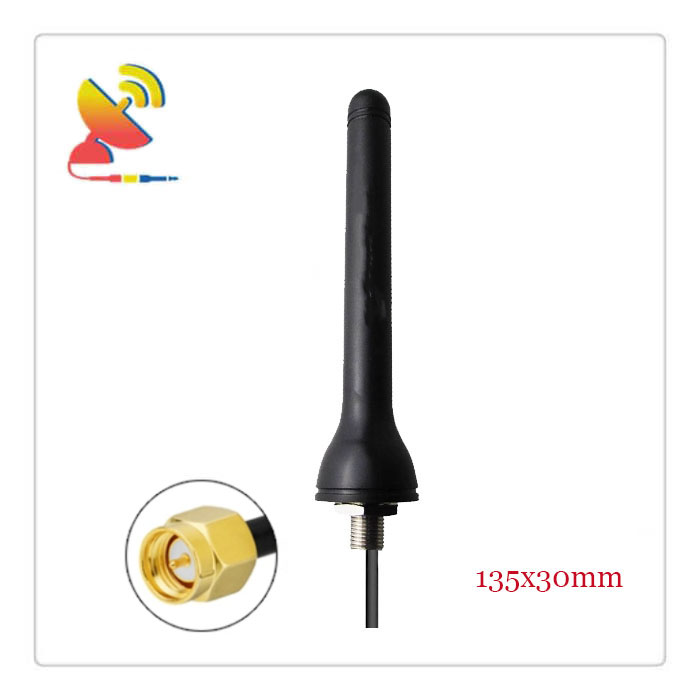

Item: CTRF-ANTENNA-EX-8593-13530-SMA
Specifications:
Material: Plastic ABS
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ135x30mm
Mounting: Screw/through-hole
Besides the through-hole screw mount puck antennas. C&T RF Antennas Inc. also offers 868/915 MHz LoRa/ISM antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
