PCB Antennas

What are PCB antennas?

PCB antenna, also known as printed circuit board antenna, is a form of antenna in which the antenna’s circuitry is printed on a PCB (printed circuit board).

This type of antenna plays an increasingly important role in modern wireless communication devices, especially in mobile devices, IoT devices, M2M, and wireless sensor networks, due to its compactness, lightweight, and low-cost characteristics, it has been widely used.

What are the types of PCB antennas?

There are many types of PCB antennas, and the common ones are dipole antenna, monopole antenna, loop antenna, slot antenna, and so on.
These antenna forms have their advantages and disadvantages and are suitable for different application scenarios.

For example, the dipole antenna has better radiation performance and stability, and is suitable for general wireless communication equipment; while the monopole antenna has a smaller size and lower cost, and is suitable for miniaturization and low-cost applications.

PCB antenna design

In practical applications, the design and optimization of PCB antennas is a key task. Designers need to select the appropriate antenna form and parameters based on specific wireless communication standards, device size, performance requirements, and other factors, and conduct detailed simulation and testing. By continuously optimizing the antenna design, the performance, stability, and reliability of wireless communication devices can be improved.

In addition to design optimization, the fabrication and installation of the PCB antenna is also an important task. The fabrication process needs to ensure factors such as the quality of the PCB board, and the precision and consistency of the conductor pattern to ensure the performance of the antenna.

Installation requires consideration of the antenna’s position, orientation, impedance matching, and other issues to ensure that the antenna can be effectively integrated with the rest of the wireless communication device.

With the continuous development and progress of wireless communication technology, PCB antennas are also facing new challenges and opportunities.

On the one hand, new wireless communication standards and technologies put forward higher requirements on the performance of antennas; on the other hand, with the continuous progress of PCB board manufacturing technology and the continuous reduction of cost, PCB antennas will also be applied in more fields.

PCB antenna as an important part of modern wireless communication equipment, its design and application involve knowledge and technology in many fields. Through continuous research and innovation, we can expect PCB antennae to play a more important role in the future wireless communication field. At the same time, it is also necessary to pay attention to the problems and challenges that PCB antennas may face in practical applications, such as electromagnetic interference, antenna matching, and other problems, and take corresponding measures to solve them.

In practical applications, PCB antennas also need to cooperate with other wireless communication equipment components, such as RF transceivers, filters, power amplifiers, and so on.

Therefore, for the design and application of PCB antennas, comprehensive wireless communication knowledge and technical background are required. At the same time, it is also necessary to pay attention to the development trend of wireless communication technology and market demand, and constantly push forward to make contributions to the development of the wireless communication field.

PCB antenna, as an important part of modern wireless communication equipment, its design, fabrication, and application involve knowledge and technology in many fields.

Through continuous research and innovation, we can expect PCB antennas to play a more important role in the future wireless communication field and bring more convenient and efficient communication experience for people’s production and life.

Who manufactures PCB antennas?

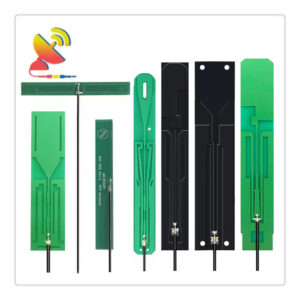

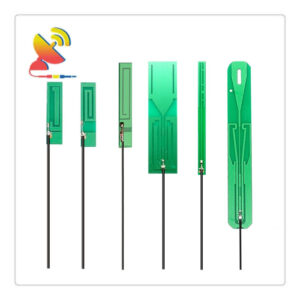

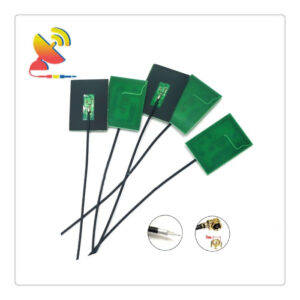

C&T RF Antennas Inc. manufactures many types of PCB antennas for your choice. Contact us for off-the-shelf internal PCB antennas or design customizations.
