C&T RF Antennas Inc. manufactures a series of Omni GSM NB-IoT 4G 5G antenna IPEX connector rubber duck antenna, the Omni GSM NB-IoT 4G 5G antenna with U.FL/IPEX/MHF connector external antenna. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance Omni GSM NB-IoT 4G 5G antenna IPEX antenna such as the 4G 5G antenna datasheet, LTE antenna pricing, and IPEX antenna inventory.
Or other indoor-outdoor GSM NB-IoT 4G 5G antenna IPEX antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance Omni GSM NB-IoT 4G 5G antenna IPEX is a rubber duck antenna with u.FL/IPEX/MHF connector cellular external antenna manufactured by C&T RF Antennas Inc. for 3G, 4G, GSM, NB-IoT, and 5G LTE cellular wireless networks for IoT and M2M industries.
The high-performance Omni GSM NB-IoT 4G 5G antenna IPEX covers all worldwide 5G/4G bands. The antenna has been designed in a rubber duck antenna material with an omnidirectional pattern. The IPEX connector makes the antenna easy to install to the IoT devices.
Besides the high-performance IPEX.GSM NB-IoT 4G 5G antennas, we also provide rubber duck antennas with IPEX/u.FL/MHF connectors, such as 2.4/5GHz dual-band IPEX antennas, and Omni IPEX WiFi antennas.
Rubber duck antennas with SMA connectors, such as 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, SMA GPS antennas, 2.4 GHz SMA WiFi antennas, dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, and N-male 2.4 GHz & 5GHz antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
4G/3G/GSM/NB-IoT compatible antenna
5G/4G/3G/GNSS compatible antenna
External antenna
IPEX connector antenna
Rubber ducky antenna
etc.
C&T RF Antennas Inc. provides high-performance Omni GSM NB-IoT 4G 5G antenna IPEX connector rubber duck antennas. Below are some of the Omni GSM NB-IoT 4G 5G antenna IPEX styles.

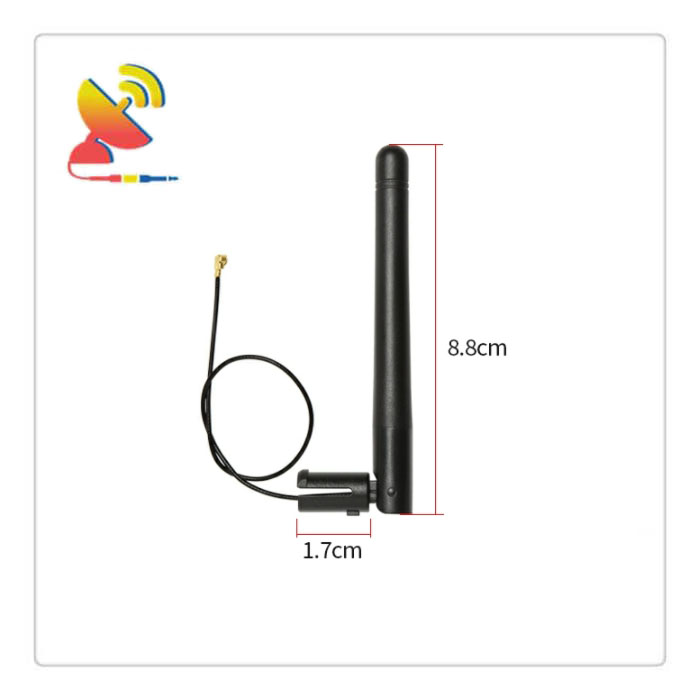

Item: CTRF-ANTENNA-AP-7027-10110B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ10x110mm

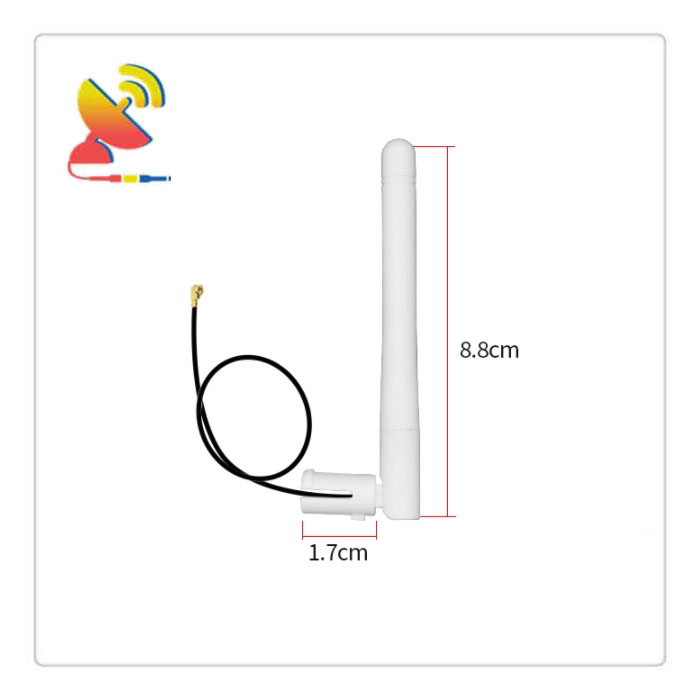

Item: CTRF-ANTENNA-AP-7027-10110W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: White
Dimension: Φ10x110mm

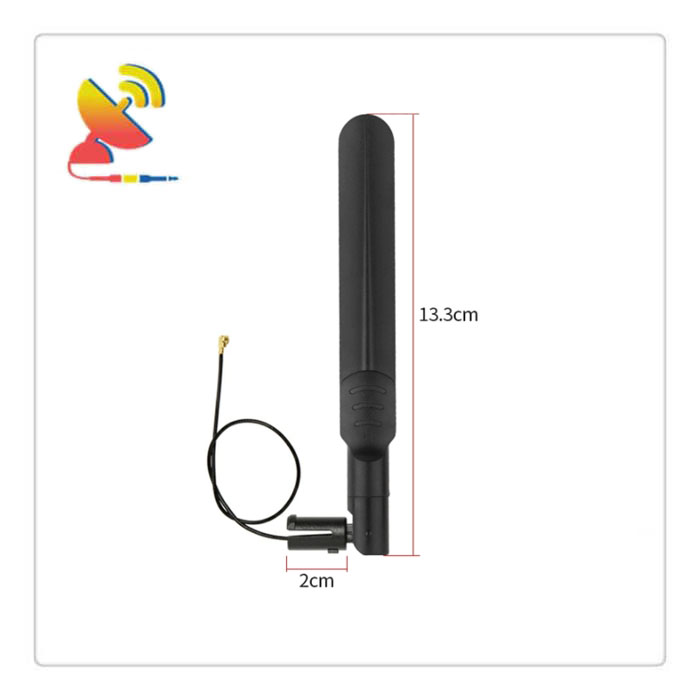

Item: CTRF-ANTENNA-AP-7027-13155B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ13x155mm
Item: CTRF-ANTENNA-AP-7027-13160B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ13x160mm

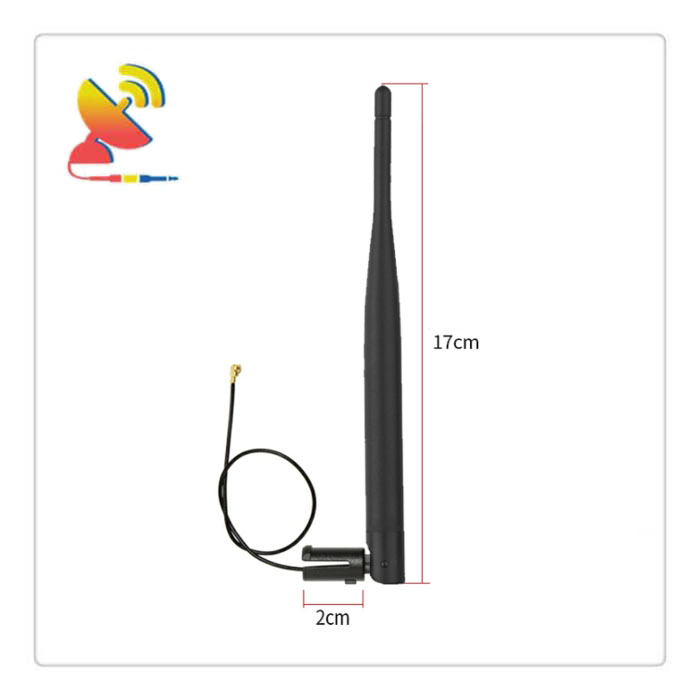

Item: CTRF-ANTENNA-AP-7027-13195B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-7027-13195W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: White
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-7027-13200B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ13x200mm
Item: CTRF-ANTENNA-AP-7027-13200W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: White
Dimension: Φ13x200mm
Item: CTRF-ANTENNA-AP-NR-13195B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤3.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ13x195mm

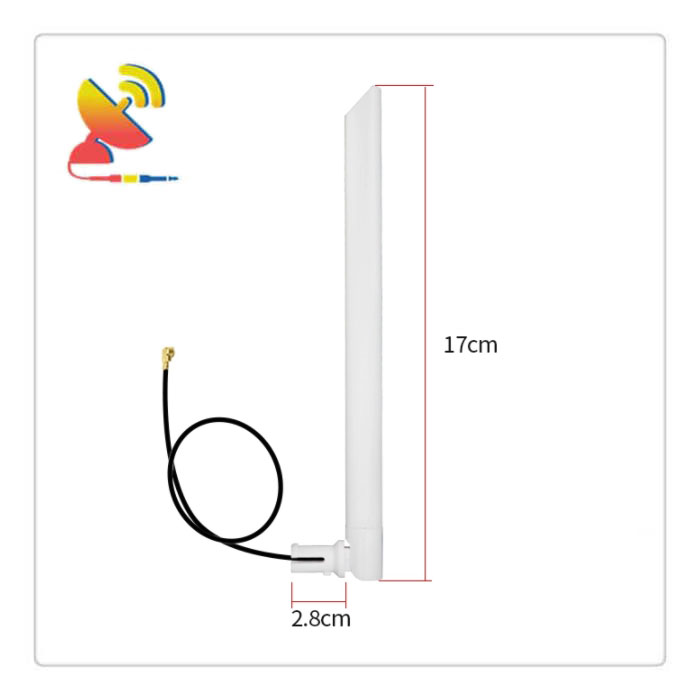

Item: CTRF-ANTENNA-AP-NR-13195W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤3.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: White
Dimension: Φ13x195mm

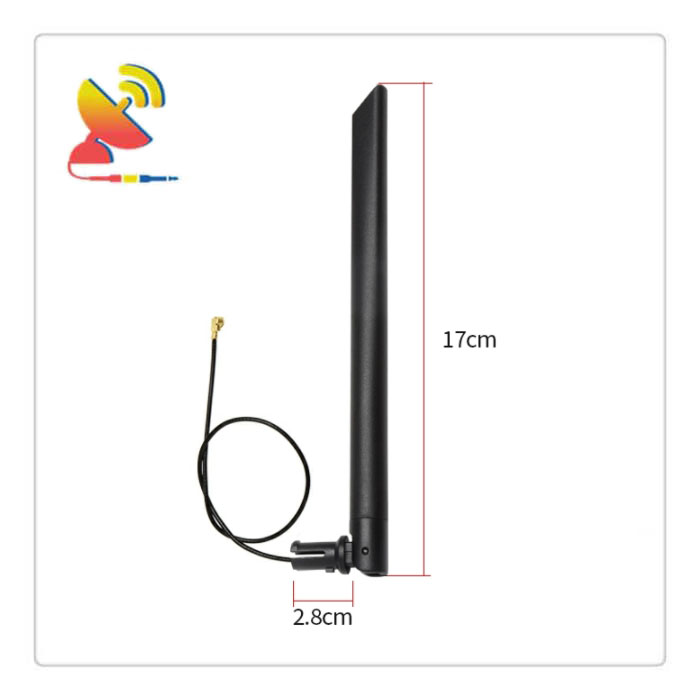

Item: CTRF-ANTENNA-AP-NR-13198B-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤3.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: Black
Dimension: Φ13x198mm
Item: CTRF-ANTENNA-AP-NR-13198W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤3.0
Polarization: Vertical
Connector: IPEX/MHF/u.FL
Cable: RG1.13 15cm
Color: White
Dimension: Φ13x198mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers GSM NB-IoT 4G 5G antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
