Multi-Band Antennas

What are multi-band antennas?

Multi-band antennas are radio frequency antennas designed to operate across ranges of radio frequency bands, each band made of several channels or individual frequencies.

Multi-band antenna is an antenna that can meet all the performance specifications (such as bandwidth, VSWR, gain, directional map efficiency, etc.) required by the system in several different frequency band ranges.

When there is only one consecutive segment in the working frequency band, it is called a single-band; when there are two consecutive segments separated by band gaps, it is called a dual-band; when there are more than three consecutive segments separated by band gaps, it is called multi-band.

More and more requirements for the design of broadband antenna to adapt to the dual-band or multi-band work needs.

What are the features of multi-band antennas?

Multi-band coverage

Multi-band antenna supports multiple frequency ranges to ensure stable communication in different network environments.

Efficient design

Multi-band antenna supports multiple functions through a single antenna, optimizing the internal space layout of the device.

Superior performance

Provides high efficiency and high gain signal transmission over multiple frequency bands.

Wide adaptability

Flexibly adapts to a variety of equipment forms to meet the needs of modern technology for diversified design.

What is the advantage of multiband antennas?

Multi-banding is a technology that uses multiple frequency bands. The advantage of multi-banding is that it is adaptive and scalable, the number of bands can vary and can be dynamically adjusted to minimize the effects of interferences and to avoid taking up the frequency bands needed for other services.

Multi-band antenna working principle

The working principle of multi-band antenna is based on its unique design and structure, which can realize good impedance matching and radiation performance in multiple frequency bands.

It is through the RF input physical electrical signals into electromagnetic waves in space to transmit out, be received by the receiving antenna, and then converted into electrical signals, to realize the transmission and reception of signals.

Multi-band antenna applications

Multi-band antennas are widely used in various wireless communication fields, including but not limited to the below applictions.

Smart building & smartphones

Multi-band antennas support Wi-Fi, Bluetooth, GSM/UMTS/PCS, 3G/4G/5G, GPS/GNSS, NB-IoT/LTE-M, and other communication functions.

IoT devices

Multi-band antennas provide strong wireless support for smart homes, smart buildings, and other IoT devices.

Telematics and autonomous driving

Multi-band antennas integrated into the glass or windows of automobiles to provide reliable support for navigation, in-car entertainment, telecommunication, and other functions.

Industrial and medical

Multi-band antennas meet the needs of remote monitoring and data transmission with excellent environmental adaptability.

Aerospace

Multi-band antennas are suitable for satellite communication, providing multi-frequency band support.

With the rise of 5G/6G and other new technologies, multi-band antennas will continue to drive the innovation and development of wireless communications.

In the future, multi-band antennas will pay more attention to technological breakthroughs and cost optimization, support higher frequency bands, achieve multi-functional integration, and focus on environmental protection and sustainable development.

Who manufactures multi-band antennas?

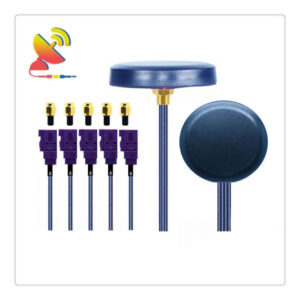

C&T RF Antennas Inc. manufactures many types of multi-band antennas for your choice. Contact us for off-the-shelf internal-external multi-band antennas or design customizations.
