C&T RF Antennas Inc. manufactures a series of 5×5 4G LTE MIMO antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on our low-profile 5×5 4G LTE MIMO antennas, including the 5-in-1 MMO 4G LTE antenna datasheet, pricing, and availability of the LTE antenna.
Or other 2×2, 3×3, 4×4, 5×5 MIMO antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

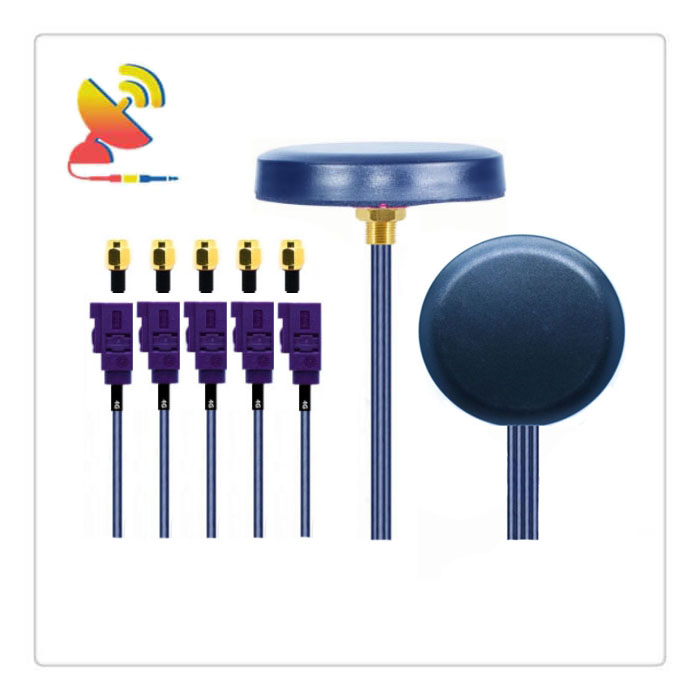

The low-profile 5×5 4G LTE MIMO antennas are omni-directional 5-in-1 MIMO combination antennas that use 5 connectors on low-loss coaxial cables manufactured by C&T RF Antennas Inc. to support cellular 4G LTE wireless frequency bands (700-2700 MHz) communications.
The low-profile 5×5 4G LTE MIMO antennas are 5-in-1 5×5 MIMO cellular Multi-band antennas with waterproof IP67-rated functionality, plastic housing antenna domes, and independent cable extensions, easy installation to the devices for IoT & M2M industries.
Besides the low-profile 5×5 4G LTE MIMO Antennas, the 4×4 MIMO Antenna 5G NR, 3×3 NR 5G MIMO Antennas, 2×2 MIMO 5G antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO WiFi Antennas, 3×3 4G LTE MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 LTE MIMO Antennas, 5G/4G LTE 5×5 MIMO Antennas, Dual 4G+GPS+WiFi 4×4 MIMO Antennas, 3×3 MIMO LTE 4G/5G/GPS Antennas, 2×2 MIMO LTE 4G+GPS Antennas, 4G/GPS 2×2 MIMO Antennas, 4G/WiFi Antenna MIMO 2×2, and 2×2 MIMO WiFi/GPS Antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
4G LTE MIMO 5×5 technology
5-in-1 combination antenna
Cellular multi-band antenna
Wide applications
Easy mount/installation
etc.
The low-profile 5×5 4G LTE MIMO antennas are used for most industrial, commercial, and industrial IoT (IIoT), smart cities, public transportation, Internet-of-Things (IoT), and Machine-to-Machine (M2M) applications.

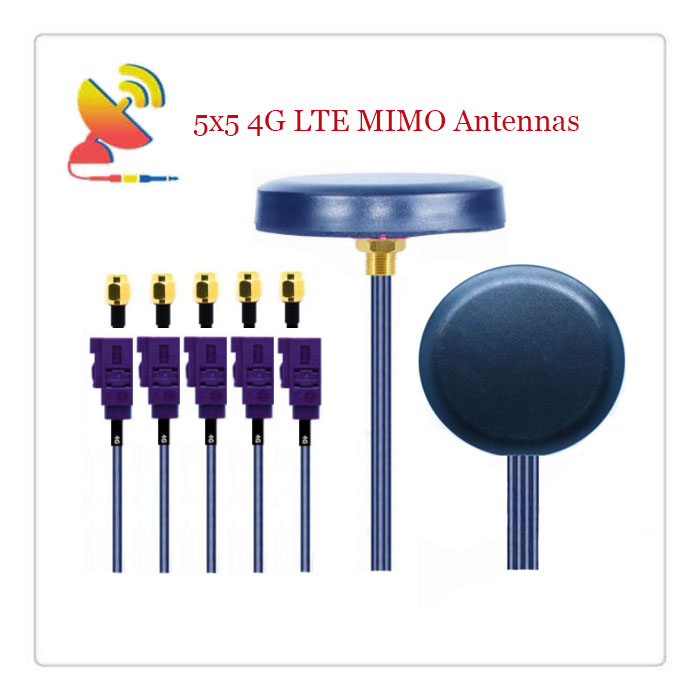

C&T RF Antennas Inc. provides low-profile 5×5 4G LTE MIMO antennas. Below are some of them.

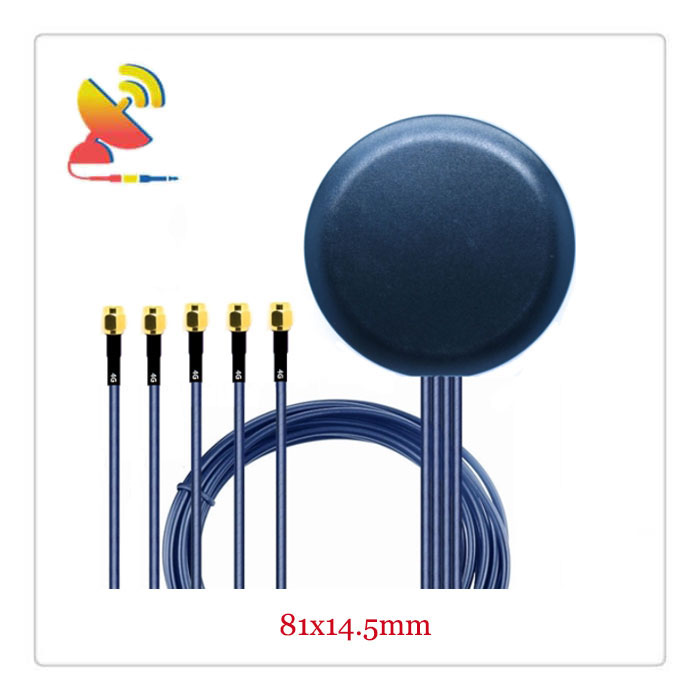

Item: CTRF-ANTENNA-EX-27X5-8114-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x5
Cable type: RG174 x5
Cable length: 1M x5
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

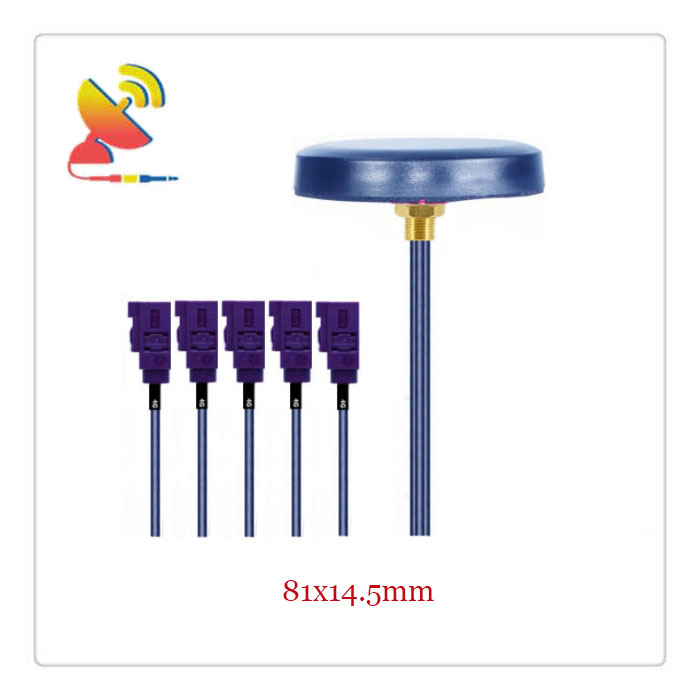

Item: CTRF-ANTENNA-EX-27X5-8114-FRA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Fraka x5
Cable type: RG174 x5
Cable length: 1M x5
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-27X5-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x5
Cable type: RG174 x5
Cable length: 1M x5
Color: Black
Dimension: Φ81×14.5mm
Mounting: Sticker

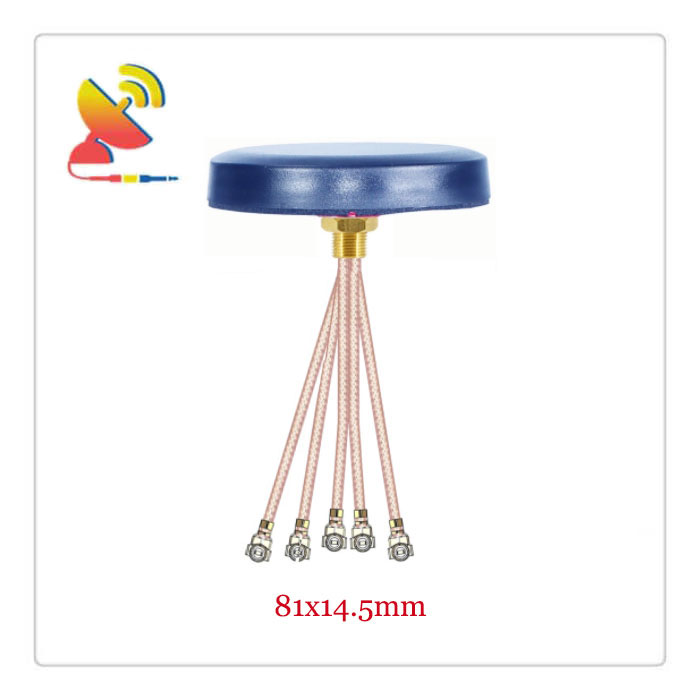

Item: CTRF-ANTENNA-EX-27X5-8114-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF x5
Cable type: RG178 x5
Cable length: 0.2M x5
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular GSM 4G LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
