C&T RF Antennas Inc. manufactures a series of low-profile 4×4 MIMO antennas for 5G NR extra-wide bands. Please scroll to the bottom of this page for more 4×4 5G NR MIMO antennas’ information.
Contact us for more details on the low-profile 4×4 MIMO antenna 5G NR, such as the 4×4 5G NR antenna datasheet, 4×4 5G MIMO antenna pricing, and 5G MIMO antenna inventory.
Or other MIMO antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The low-profile 4×4 MIMO antenna 5G NR is a type of 4×4 MIMO antenna for 4G and 5G cellular applications, which is manufactured by C&T RF Antennas Inc. The antennas are available with screw-mounted or puck-mounted options for indoor-outdoor IoT/M2M applications.
The low-profile 4×4 MIMO antenna for 5G NR features a full-band design, providing global compatibility from 600 MHz to 6000 MHz, and fully covers 5G, 4G, LTE, 3G, 2G, cellular, and WLAN bands.
Besides the low-profile 4×4 MIMO Antenna 5G NR, the 3×3 NR 5G MIMO Antennas, 2×2 MIMO 5G antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO WiFi Antennas, 3×3 4G LTE MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 LTE MIMO Antennas, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Extra-wideband from 600-6000 MHz
Extra-wide applications
IP67-rated waterproof
Omnidirectional patterns
Indoor-outdoor installations
Easy mounting
etc.
The low-profile 4×4 MIMO antenna 5G NR for LTE, M2M, and IoT applications. The 4×4 MiMo 4G/5G antenna comes with GPS/GNSS and WiFi capabilities.

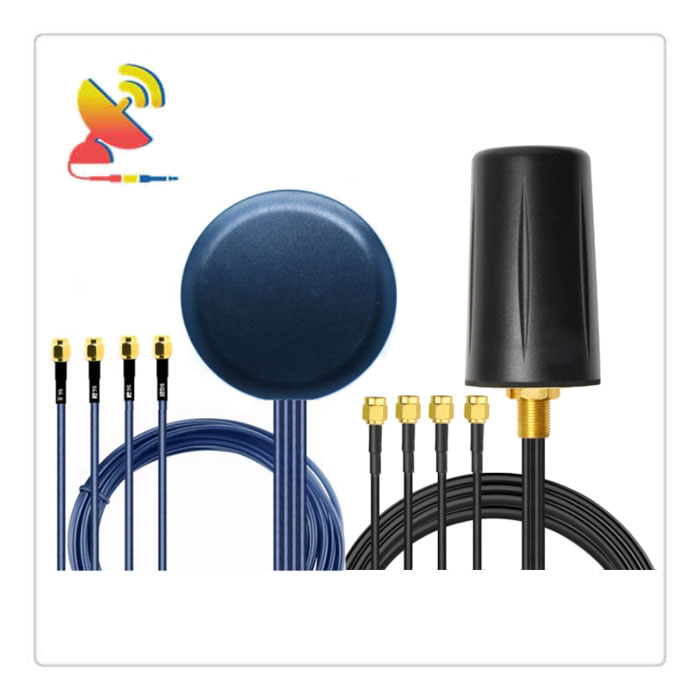

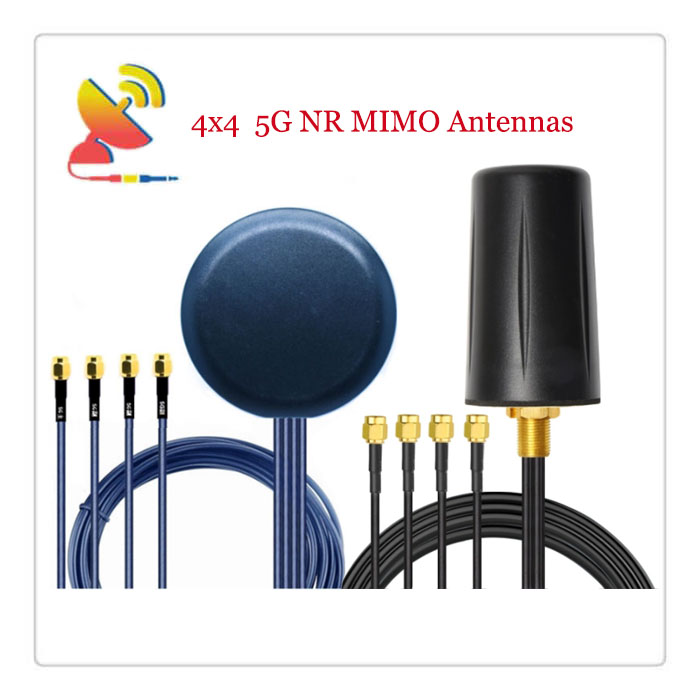

C&T RF Antennas Inc. provides low-profile 4×4 4G LTE 5G NR MIMO antennas. Below are some of the existing 5×5 cellular LTE 5G MIMO antenna styles.

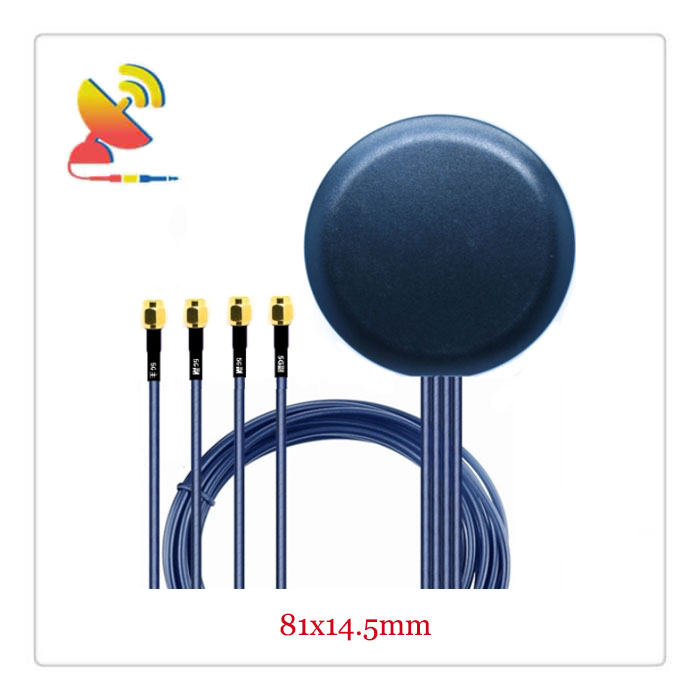

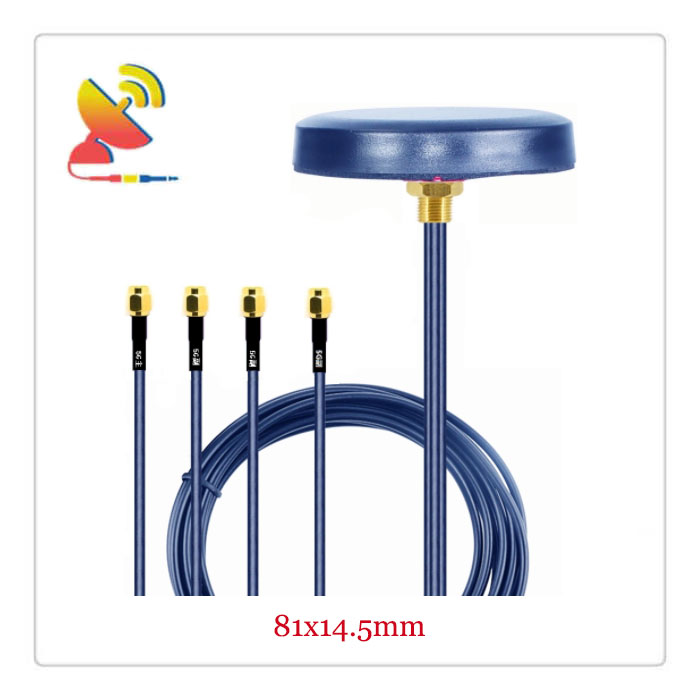

Item: CTRF-ANTENNA-EX-NRX4-8114-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-NRX4-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Sticker

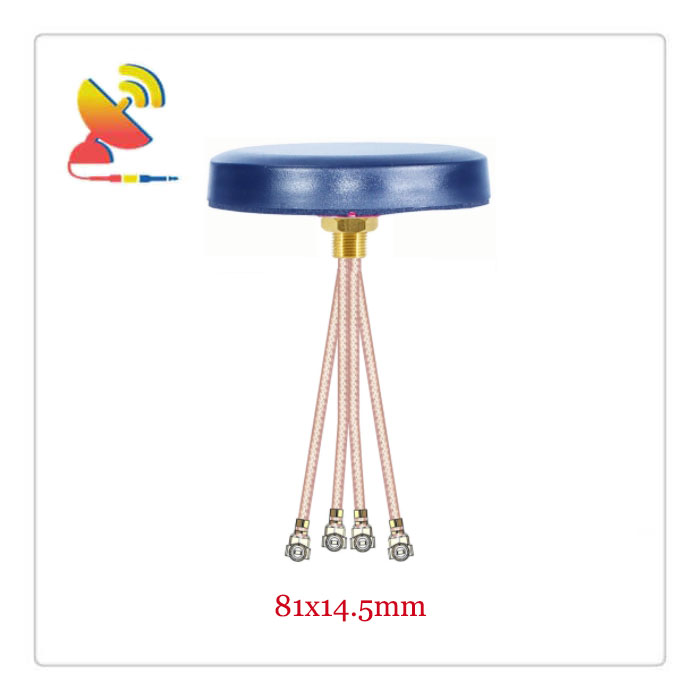

Item: CTRF-ANTENNA-EX-NRX4-8114-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX x4
Cable type: RG178 x4
Cable length: 0.2M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

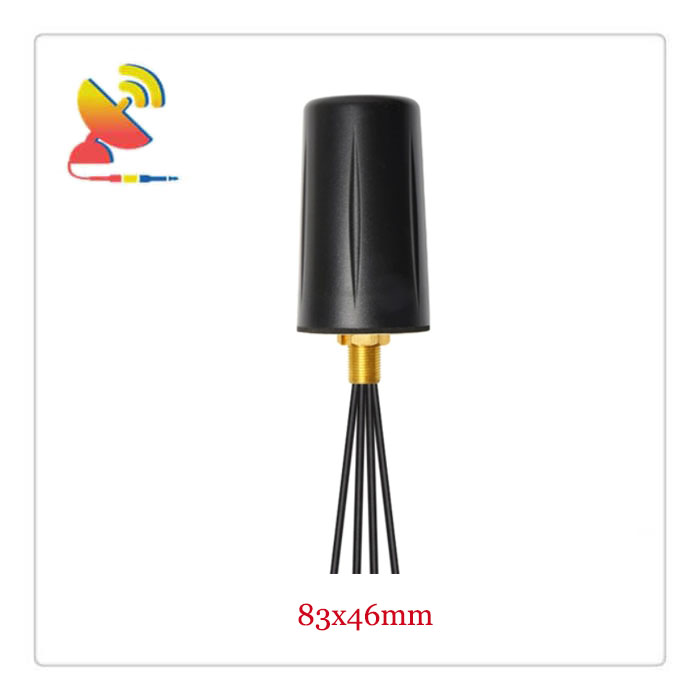

Item: CTRF-ANTENNA-EX-NRX4-8346-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ83×46mm
Mounting: Screw/through-hole

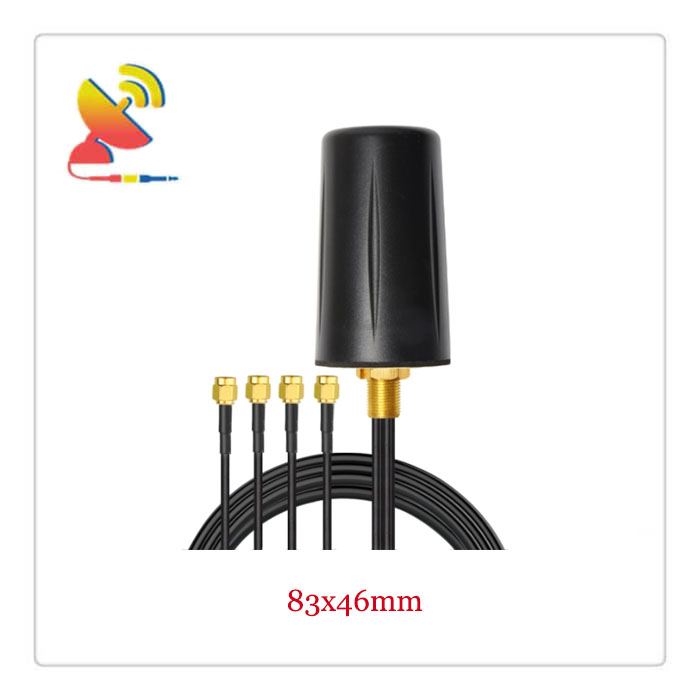

Item: CTRF-ANTENNA-EX-NRX4-8346-RPSMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: RP-SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ83×46mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-NRX4-8346-113-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG178 x4
Cable length: 0.5M x4
Color: Black
Dimension: Φ83×46mm
Mounting: Screw/through-hole

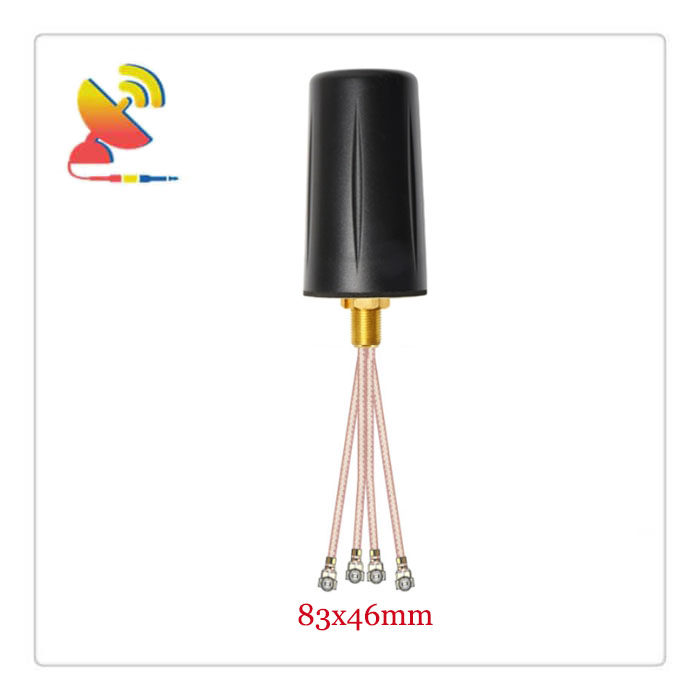

Item: CTRF-ANTENNA-EX-NRX4-8346-178-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG1.13 x4
Cable length: 0.5M x4
Color: Black
Dimension: Φ83×46mm
Mounting: Screw/through-hole

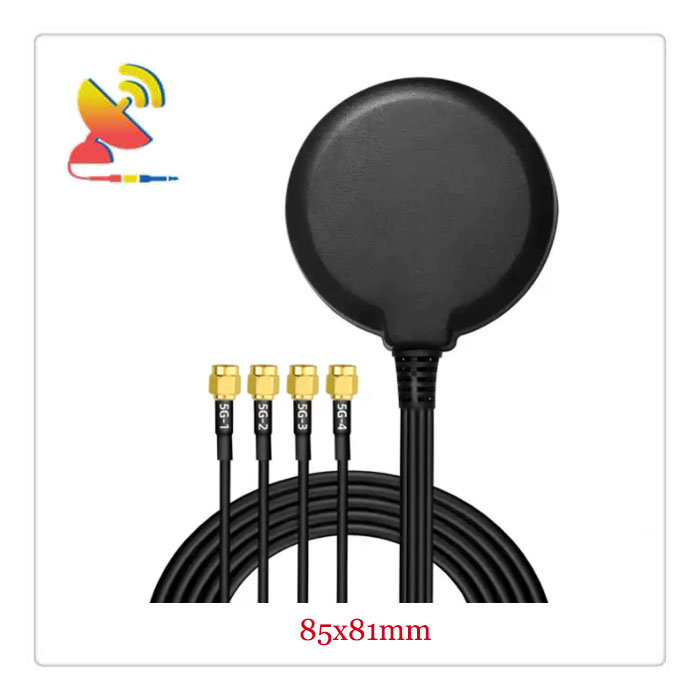

Item: CTRF-ANTENNA-EX-NRX4-8581-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ85x81mm
Mounting: Sticker

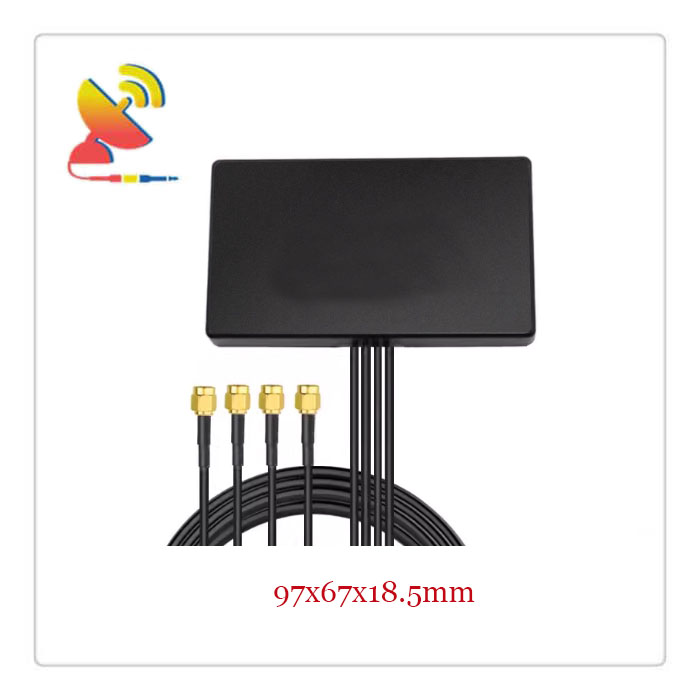

Item: CTRF-ANTENNA-EX-NRX4-9767-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ97x67x18.5mm
Mounting: Sticker
Item: CTRF-ANTENNA-EX-NRX4-15690-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 10/12dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ156x90x21mm
Mounting: Sticker
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular LTE 5G NR antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
