C&T RF Antennas Inc. manufactures a series of 4G LTE MIMO antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on our low-profile 4×4 4G LTE MIMO antennas, including the 4×4 MMO 4G LTE antenna datasheet, pricing, and availability of the outdoor antenna.
Or other 2×2, 3×3, 4×4, 5×5 MIMO antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The low-profile 4×4 LTE MIMO antennas are omni-directional MIMO indoor/outdoor antennas that use 4 connectors on low-loss coaxial cables manufactured by C&T RF Antennas Inc. to support cellular 4G LTE wireless frequency bands (700-2700 MHz) communications.
The low-profile 4×4 LTE MIMO antennas are Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal-resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks, or other mobile installations.
Besides the low-profile 4×4 LTE MIMO Antennas, the 3×3 4G LTE MIMO Antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO 5G antennas, 2×2 MIMO WiFi Antennas, 3×3 NR 5G MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 MIMO Antenna 5G NR, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Low-profile indoor-outdoor antennas
4 identical isolated omnidirectional antenna elements
4 connectors
4 cable extensions
Omnidirectional waterproof antennas
etc.
The low-profile 4×4 LTE MIMO antennas are used for most industrial, commercial, and IoT applications such as Hotspots, Kiosks, Vending, POS, M2M, Video Surveillance (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage, etc.

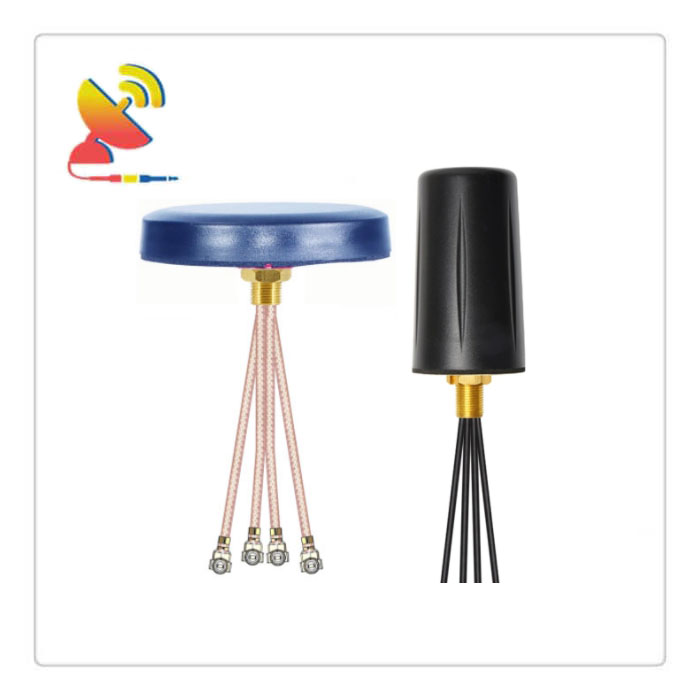

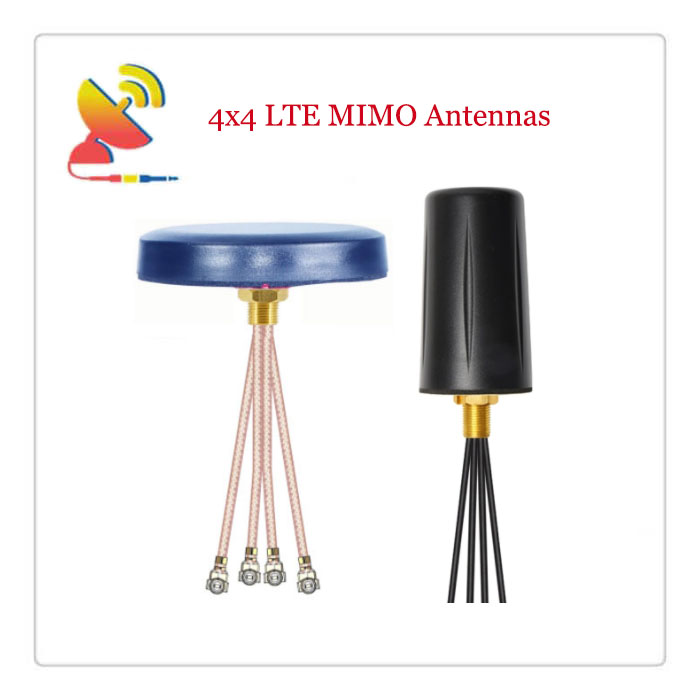

C&T RF Antennas Inc. provides low-profile 4×4 4G LTE MIMO antennas. Below are some of them.

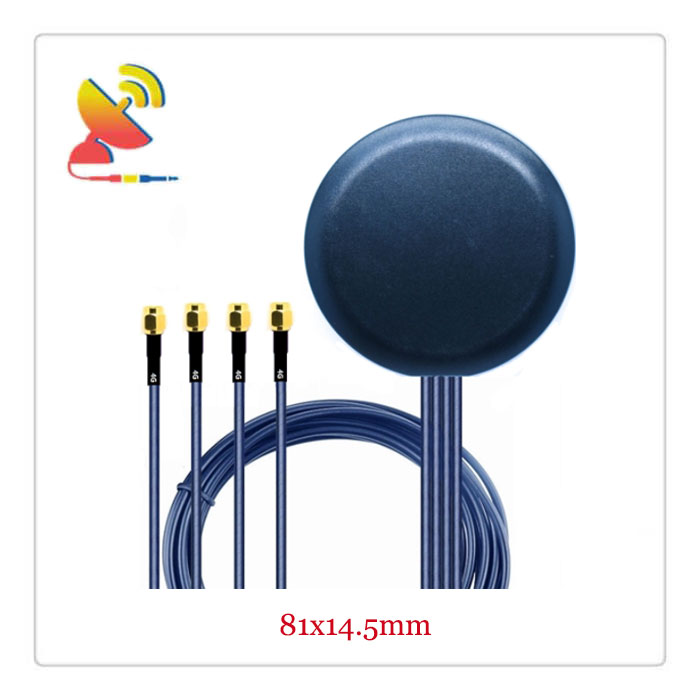

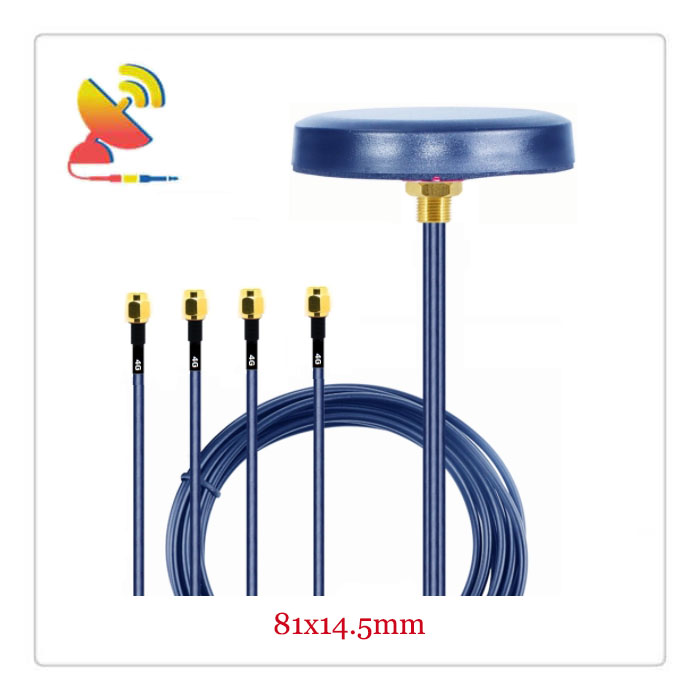

Item: CTRF-ANTENNA-EX-27X4-8114-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-27X4-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Sticker

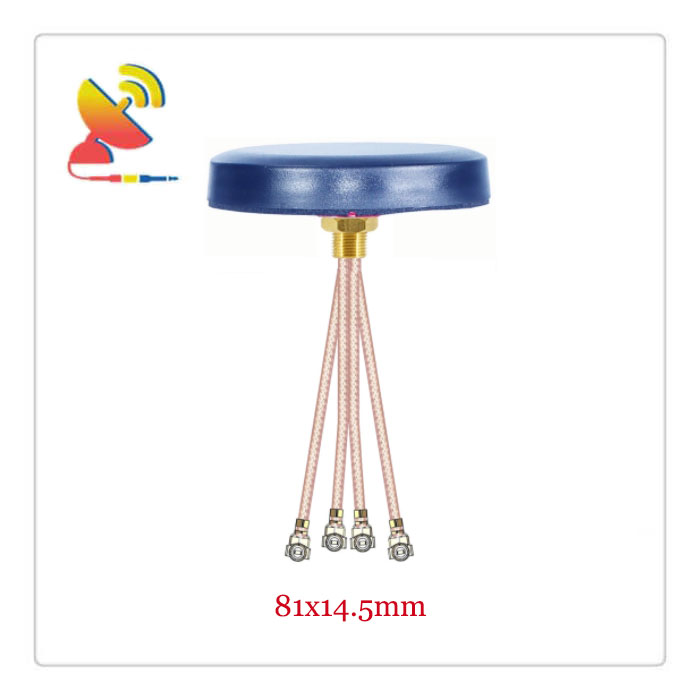

Item: CTRF-ANTENNA-EX-27X4-8114-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF x4
Cable type: RG178 x4
Cable length: 0.2M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

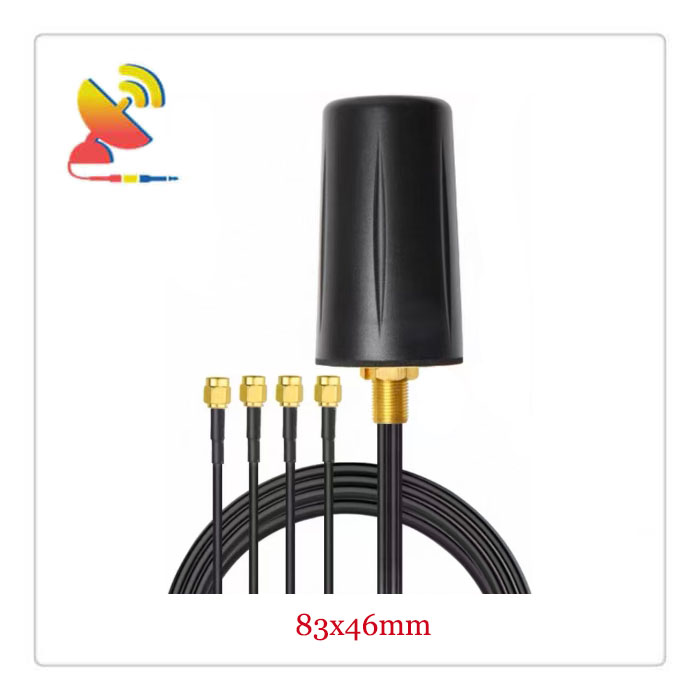

Item: CTRF-ANTENNA-EX-27X4-8346-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF x4
Cable type: RG178 x4
Cable length: 0.2M x4
Color: Black
Dimension: Φ83x46mm
Mounting: Screw/through-hole
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular GSM 4G LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
