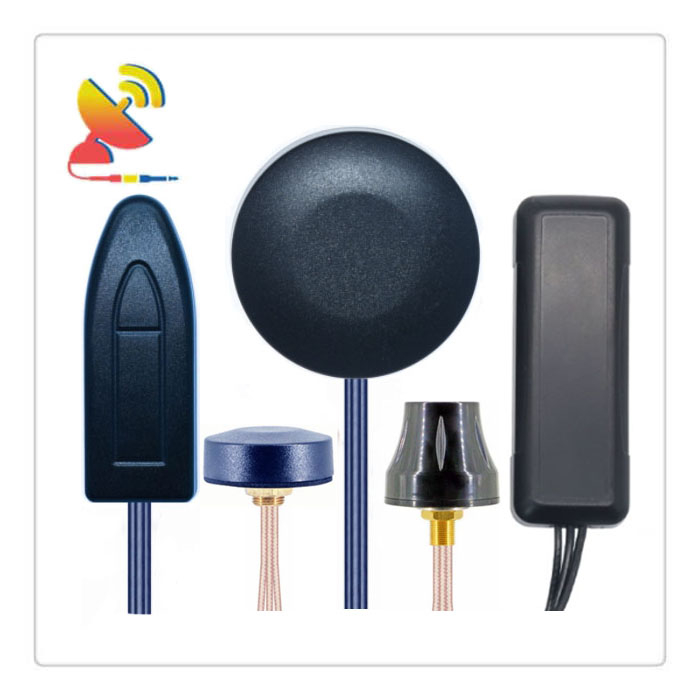

Low-profile 4G+GPS+WiFi 3×3 MIMO Antennas

What are the 4G+GPS+WiFi 3×3 MIMO antennas?

The low-profile 4G+GPS+WiFi 3×3 MIMO antennas are external omnidirectional antennas that combine cellular LTE 4G, WiFi/BT, and GPS, manufactured by C&T RF Antennas Inc. The 4G/LTE bands cover the frequency range of 698-960 MHz and 1710-2700 MHz. The WiFi/BT bands cover the frequency range of 2400-2483.5 MHz. The GPS/BD bands cover the frequencies of 1561 MHz and 1575.42 MHz.

The low-profile 4G+GPS+WiFi 3×3 MIMO antennas are three isolated high-performance antenna elements covering 4G/GPS/WiFi bands, and are used in indoor-outdoor IoT and M2M industries.



Besides the low-profile 3×3 MIMO LTE 4G/5G/GPS Antennas, the 2×2 MIMO LTE 4G+GPS Antennas, 4G/GPS 2×2 MIMO Antennas, 4G/WiFi Antenna MIMO 2×2, 2×2 MIMO WiFi/GPS Antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO 5G antennas, 2×2 MIMO WiFi Antennas, 3×3 NR 5G MIMO Antennas, 3×3 4G LTE MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 LTE MIMO Antennas, 4×4 MIMO Antenna 5G NR, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.

C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.





Features of The Low-profile 4G+GPS+WiFi 3×3 MIMO Antennas

1x GPS/BD element, 1x WiFi/BT element, 1x 4G/LTE element

3-in-1 antenna into a compact surface-mount radome

Three isolated cable extensions

Indoor-outdoor 3×3 MIMO antennas

For GPS, WiFi, and Cellular applications

etc.





Applications of The Low-profile 4G+GPS+WiFi 3×3 MIMO Antennas

The low-profile 4G+GPS+WiFi 3×3 MIMO antennas are waterproof external IoT/M2M antennas for use in telematics, transportation, and remote monitoring applications with the 4G/LTE Cellular, Wi-Fi/BT, and GPS/BD for multiple wireless technology systems.

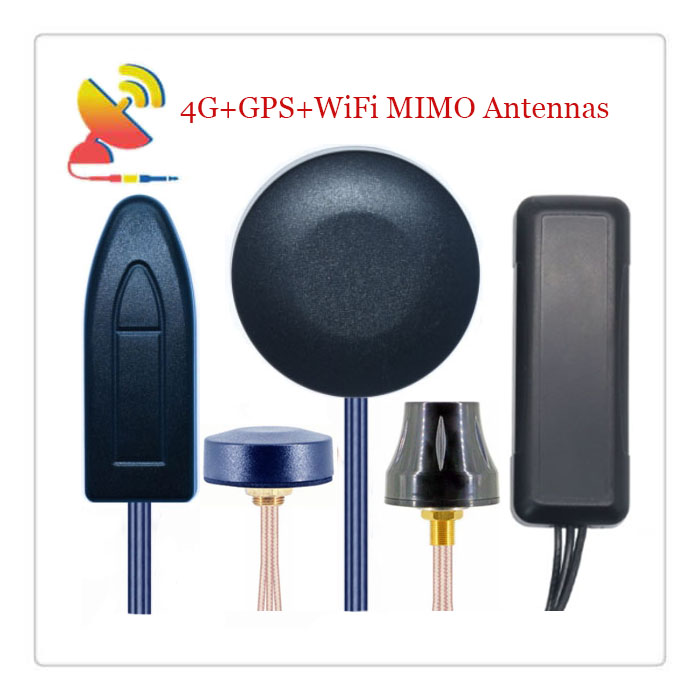

Types of Low-profile 4G+GPS+WiFi 3×3 MIMO Antennas

C&T RF Antennas Inc. provides low-profile 4G+GPS+WiFi 3×3 MIMO antennas. Below are some of them.

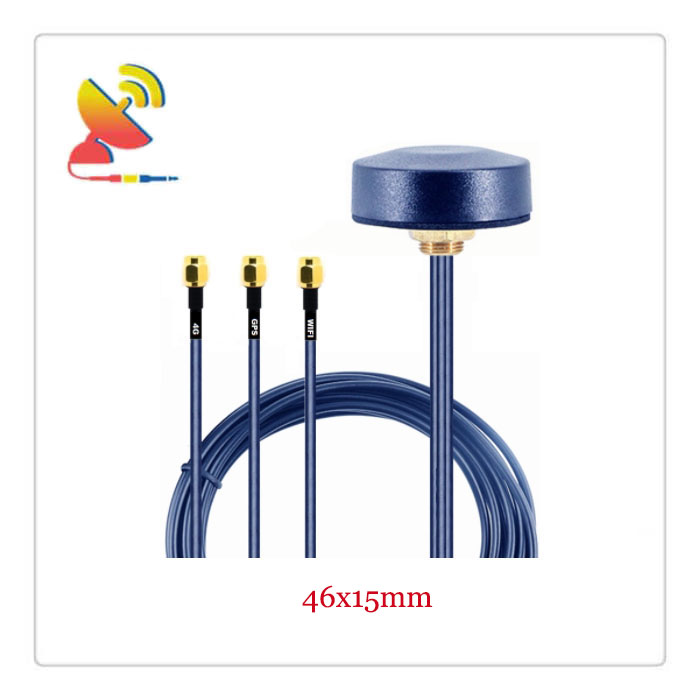

Item: CTRF-ANTENNA-EX-15-24-27-4615-SMA

High-performance and Low-Profile 3×3 MIMO 4G WiFi GPS Dome Antenna

Specifications:

Material: Plastic ABS

Frequency range:

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi/BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw-mount/Through-hole

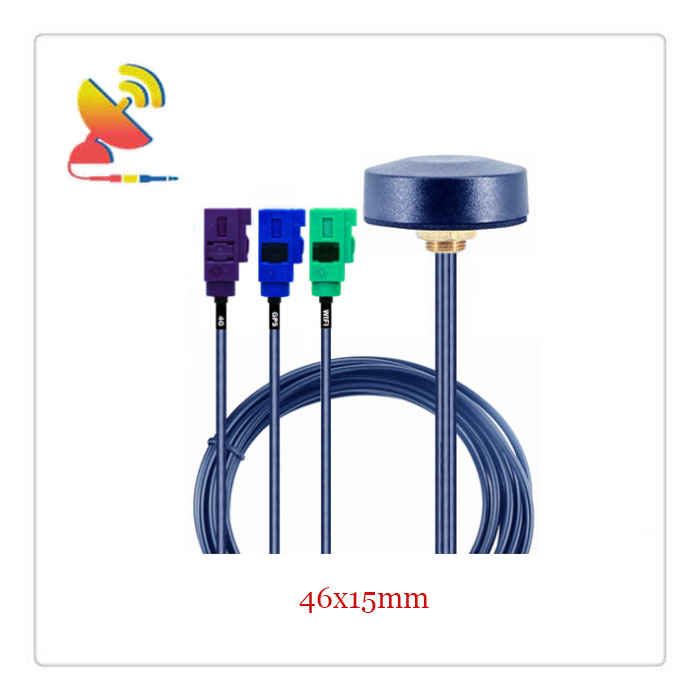

Item: CTRF-ANTENNA-EX-15-24-27-4615-FKA

High-performance and Low-Profile 3-in-1 4G+GPS+WiFi 3×3 MIMO Through-hole Mount Antenna

Specifications:

Material: Plastic ABS

Frequency range:

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi/BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw-mount/Through-hole

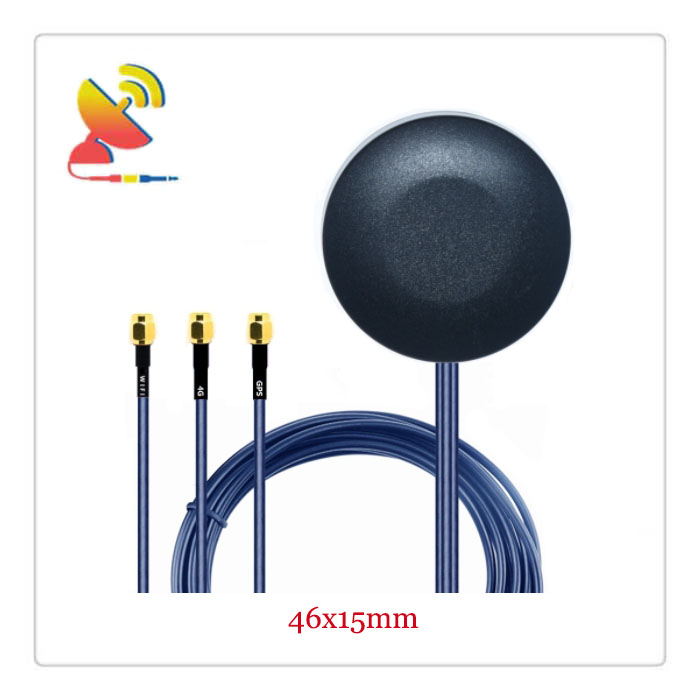

Item: CTRF-ANTENNA-EX-15-24-27-4615S-SMA

High-performance and Low-Profile 3-in-1 4G+GPS+WiFi MIMO 3×3 External Antenna

Specifications:

Material: Plastic ABS

Frequency range:

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw-mount/Through-hole







Item: CTRF-ANTENNA-EX-15-BT-27-4615S-SMA

High-performance and Low-Profile 3×3 MIMO 4G BT GPS Puck Antenna

Specifications:

Material: Plastic ABS

Frequency range:

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

BT Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw-mount/Through-hole

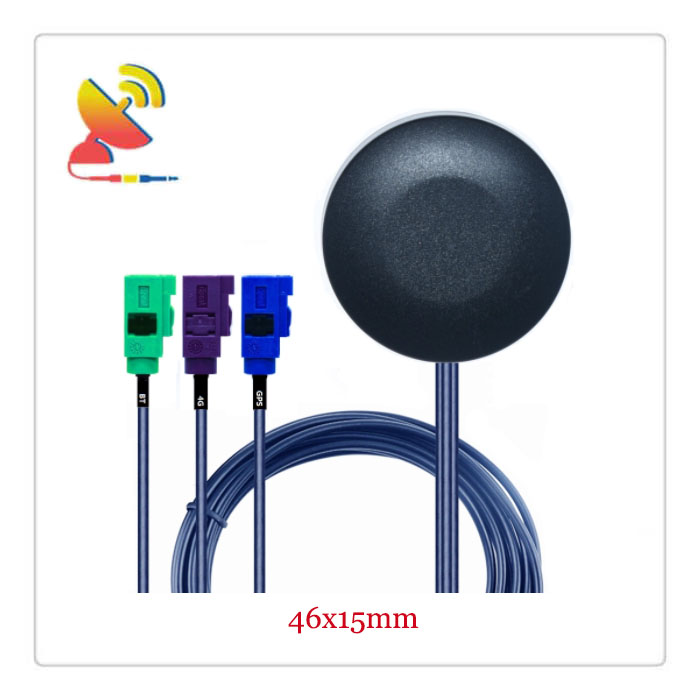

Item: CTRF-ANTENNA-EX-15-BT-27-4615S-FKA

High-performance and Low-Profile Cellular LTE 4G+BT+GPS 3×3 MIMO Antenna

Specifications:

Material: Plastic ABS

Frequency range:

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

BT Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw/Sticker

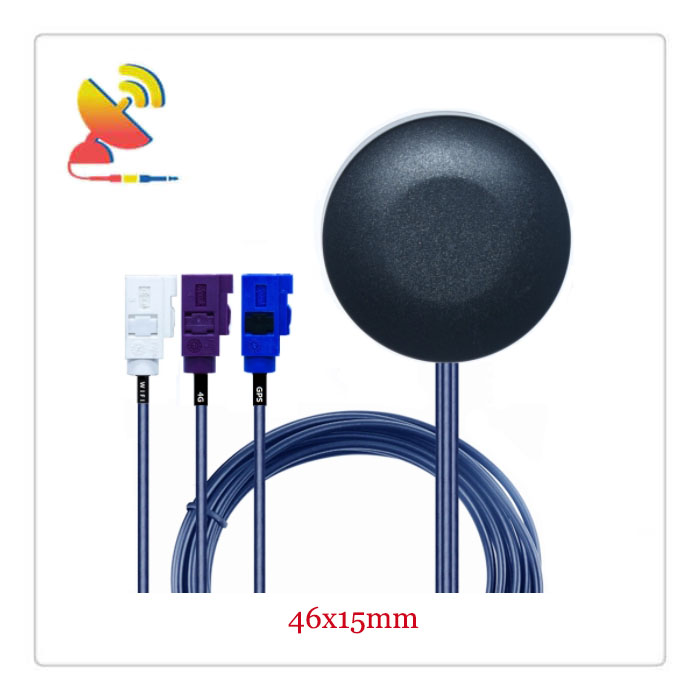

Item: CTRF-ANTENNA-EX-15-24-27-4615S-FKA

High-performance and Low-Profile 3-in-1 4G+GPS+WiFi MIMO Combination Antenna

Specifications:

Material: Plastic ABS

Frequency range:

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw/Sticker

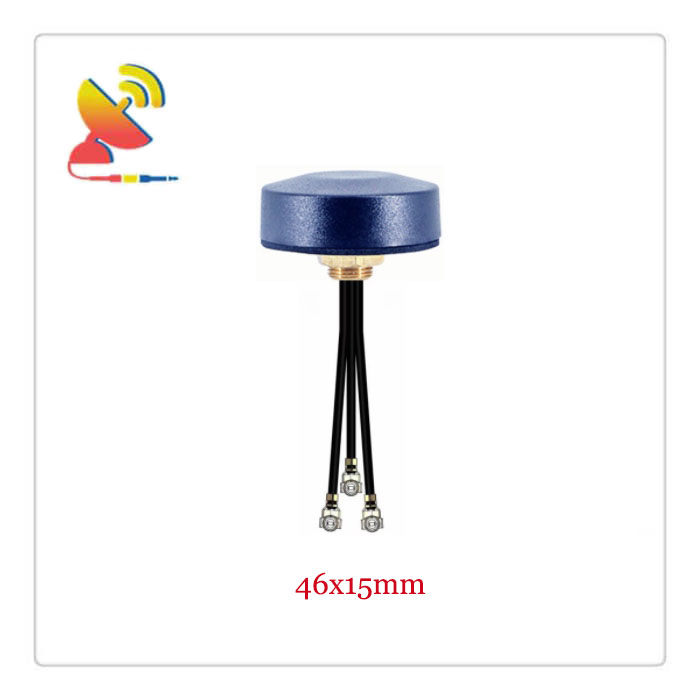

Item: CTRF-ANTENNA-EX-15-24-27-4615-178-IPEX

High-performance, Low-profile MIMO 3×3 LTE WiFi GPS Combo Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF1 x3

Cable type: RG178 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw/through-hole







Item: CTRF-ANTENNA-EX-15-24-27-4615-113-IPEX

High-performance, Low-profile 3×3 MIMO 4G WiFi GPS Combo Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF1 x3

Cable type: RG1.13 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ46x15mm

Mounting: Screw-mount/Through-hole

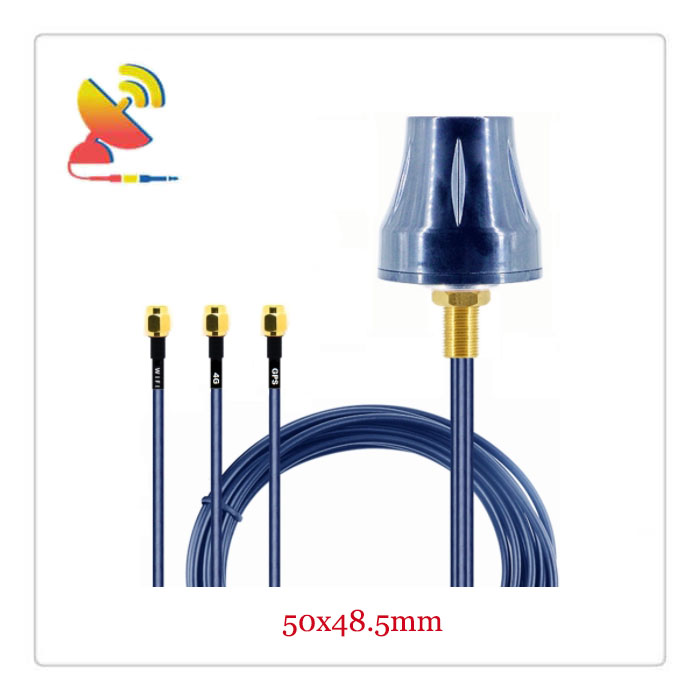

Item: CTRF-ANTENNA-EX-15-24-27-5048-SMA

High-performance, Low-profile Cellular LTE 4G+WiFi+GPS Combination Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole







Item: CTRF-ANTENNA-EX-15-BT-27-5048-SMA

High-performance, Low-profile MIMO 3×3 4G+GPS+BT Outdoor Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

BT Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole

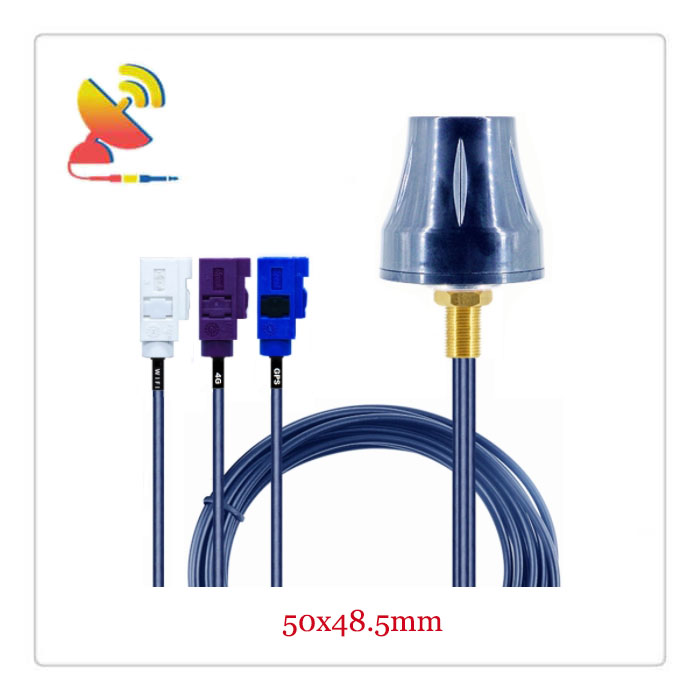

Item: CTRF-ANTENNA-EX-15-24-27-5048-FKA

High-performance, Low-profile Outdoor 4G+GPS+WiFi MIMO 3×3 Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole

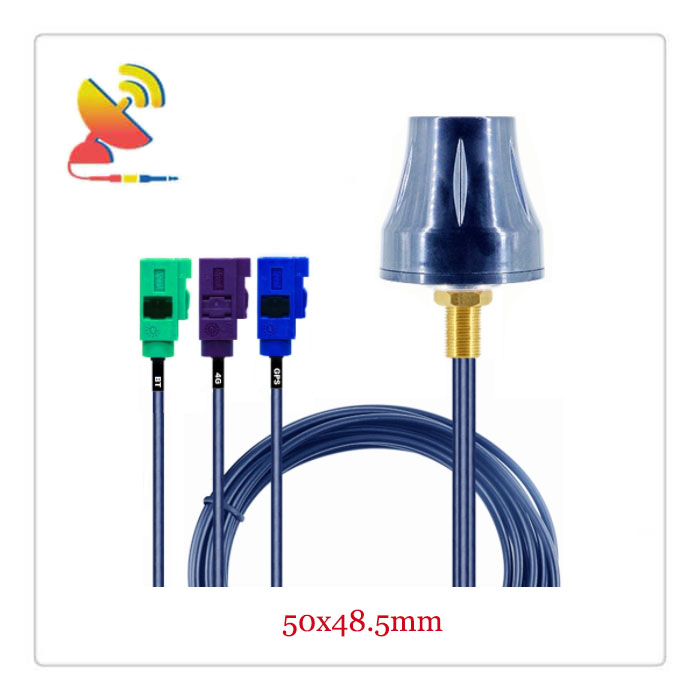

Item: CTRF-ANTENNA-EX-15-BT-27-5048-FKA

High-performance, Low-profile MIMO 3×3 4G+GPS+BT Through-hole Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

BT Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole

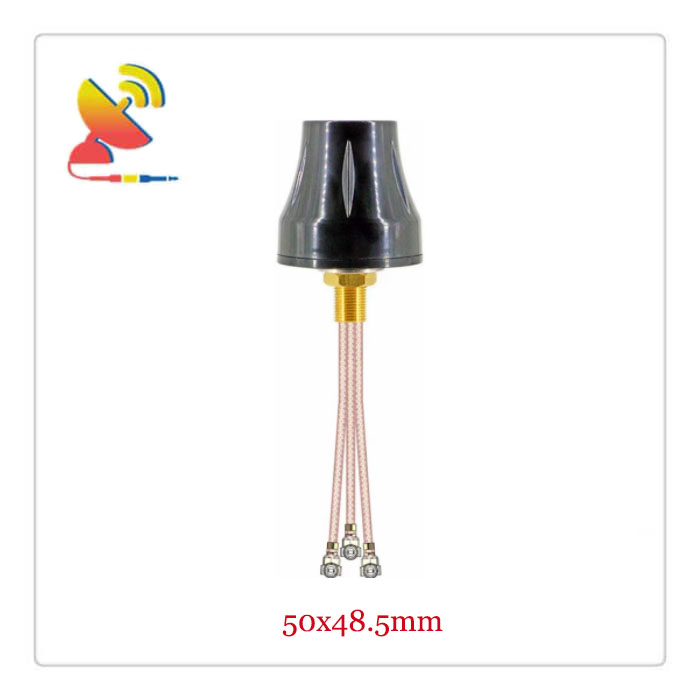

Item: CTRF-ANTENNA-EX-15-24-27-5048-178-IPEX

High-performance, Low-profile Cellular LTE 4G+WiFi+GPS Omnidirectional Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF1 x3

Cable type: RG78 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole







Item: CTRF-ANTENNA-EX-15-BT-27-5048-178-IPEX

High-performance, Low-profile MIMO 3×3 4G+GPS+BT Screw-mount Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

BT Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF1 x3

Cable type: RG178 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole







Item: CTRF-ANTENNA-EX-15-24-27-5048-113-IPEX

High-performance, Low-profile MIMO 3×3 4G+GPS+BT Dome Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

WiFi Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF1 x3

Cable type: RG1.13 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole







Item: CTRF-ANTENNA-EX-15-BT-27-5048-113-IPEX

High-performance, Low-profile MIMO 3×3 4G+GPS+BT Dome Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 5dBi

BT Gain: 5dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF1 x3

Cable type: RG1.13 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ50×48.5mm

Mounting: Screw-mount/Through-hole







Item: CTRF-ANTENNA-EX-15-24-27-8114-SMA

High-performance & Low-profile Cellular LTE 4G+WiFi+GPS Outdoor Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw-mount/Through-hole

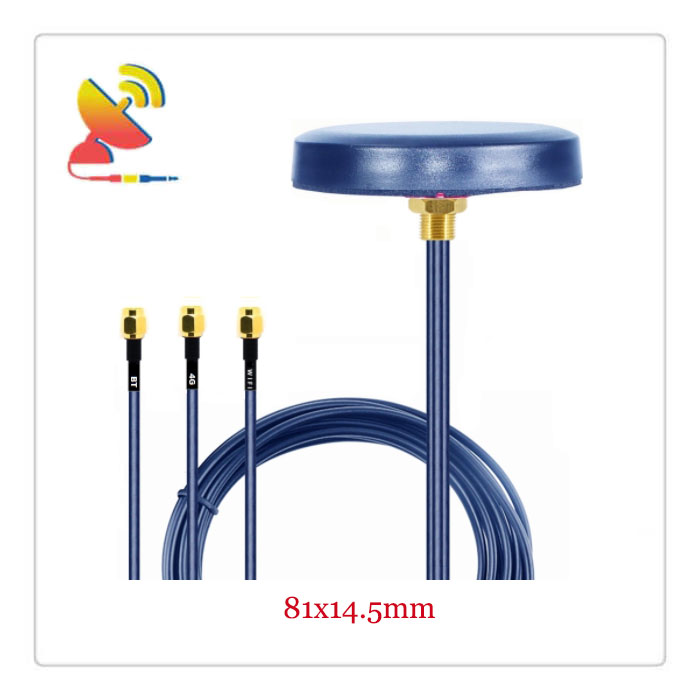

Item: CTRF-ANTENNA-EX-15-BT-27-8114-SMA

High-performance & Low-profile 3-in-1 4G+GPS+BT MIMO 3×3 Screw-mount Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

BT Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw-mount/Through-hole

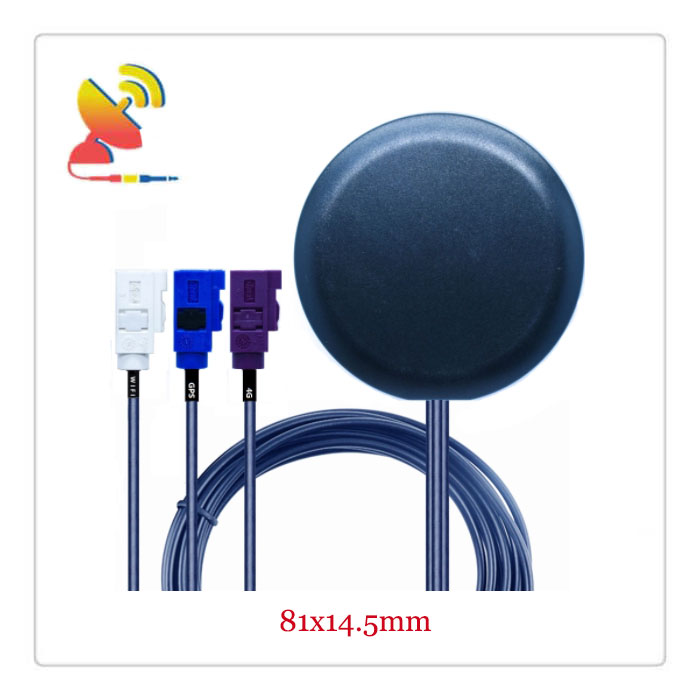

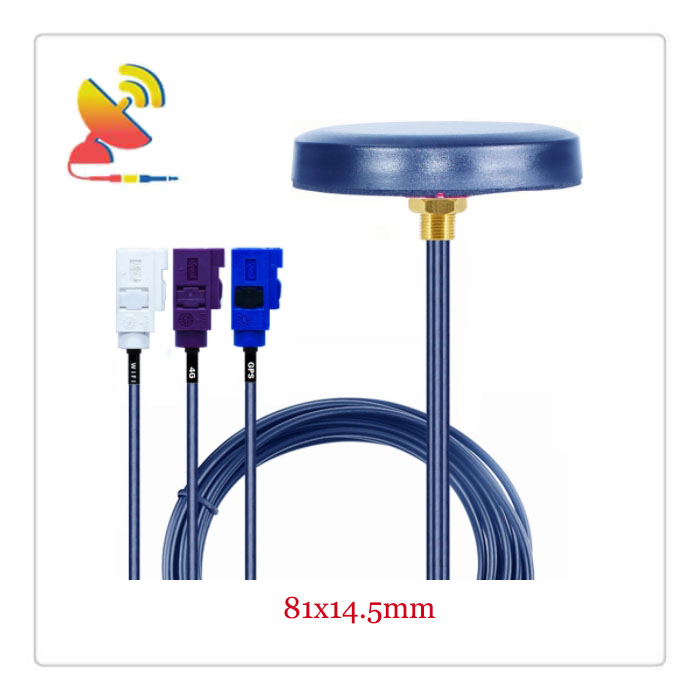

Item: CTRF-ANTENNA-EX-15-24-27-8114-FKA

High-performance & Low-profile Cellular LTE 4G+WiFi+GPS 3-in-1 Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw-mount/Through-hole

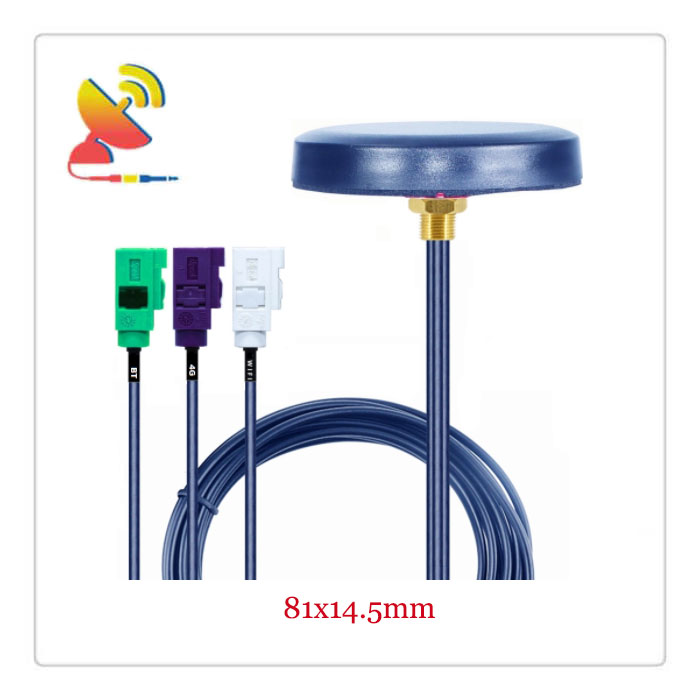

Item: CTRF-ANTENNA-EX-15-BT-27-8114-FKA

High-performance & Low-profile 3×3 MIMO 4G BT GPS Through-hole Mount Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

BT Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw-mount/Through-hole

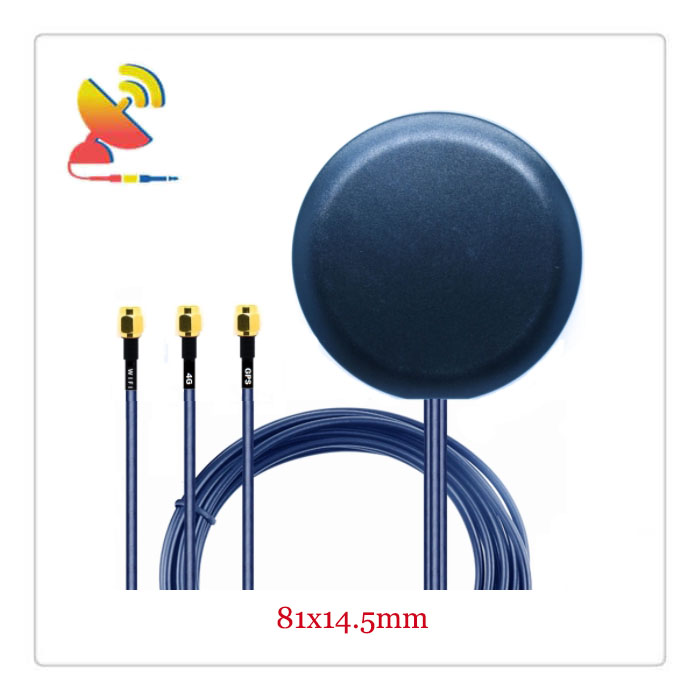

Item: CTRF-ANTENNA-EX-15-24-27-8114S-SMA

High-performance & Low-profile 3-in-1 4G+GPS+WiFi 3×3 MIMO Puck Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw/Sticker

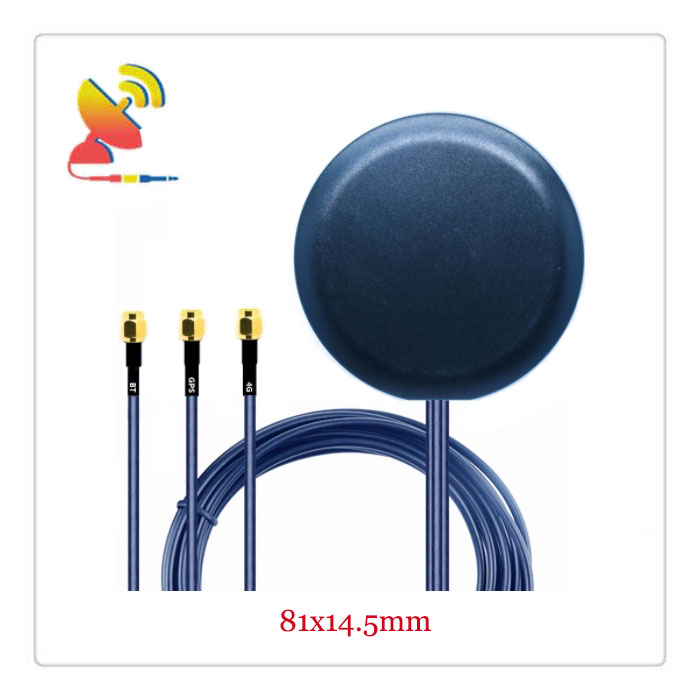

Item: CTRF-ANTENNA-EX-15-BT-27-8114S-SMA

High-performance & Low-profile 3-in-1 4G+GPS+BT MIMO 3×3 Puck Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

BT Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw/Sticker







Item: CTRF-ANTENNA-EX-15-24-27-8114S-FKA

High-performance & Low-profile 3×3 MIMO 4G WiFi GPS Puck Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw/Sticker







Item: CTRF-ANTENNA-EX-15-BT-27-8114S-FKA

High-performance & Low-profile 3-in-1 4G+GPS+BT 3×3 MIMO Outdoor Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

BT Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw/Sticker







Item: CTRF-ANTENNA-EX-15-24-27-8114-IPEX

High-performance & Low-profile 3×3 MIMO 4G/WiFi/GPS Screw-mount Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX/u.FL/MHF-1 x3

Cable type: RG178 x3

Cable length: 0.2M x3

Color: Black

Dimension: Φ81×14.5mm

Mounting: Screw/through-hole

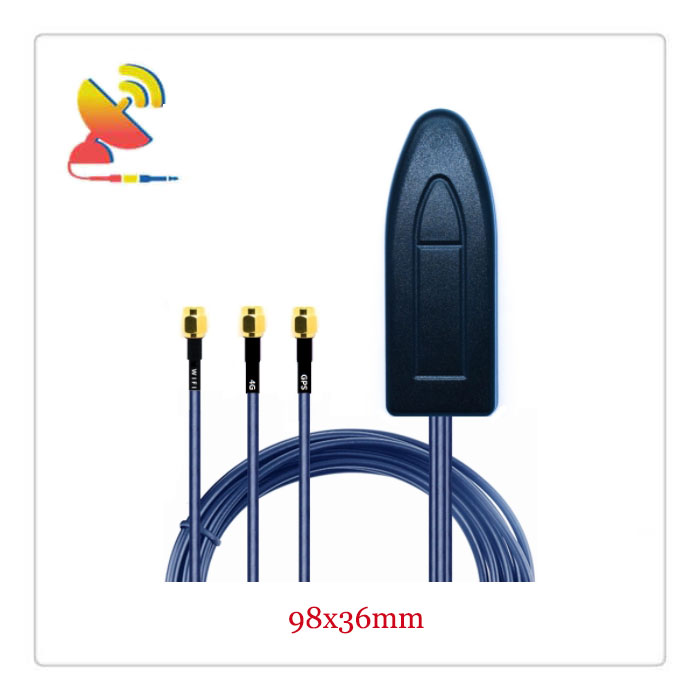

Item: CTRF-ANTENNA-EX-15-24-27-9836-SMA

High-performance & Low-profile 3-in-1 4G+GPS+WiFi Combined 3×3 MIMO Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ98x36mm

Mounting: Screw/Sticker







Item: CTRF-ANTENNA-EX-15-BT-27-9836-SMA

High-performance & Low-profile MIMO 3×3 4G+GPS+BT External Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

BT Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ98x36mm

Mounting: Screw/Sticker

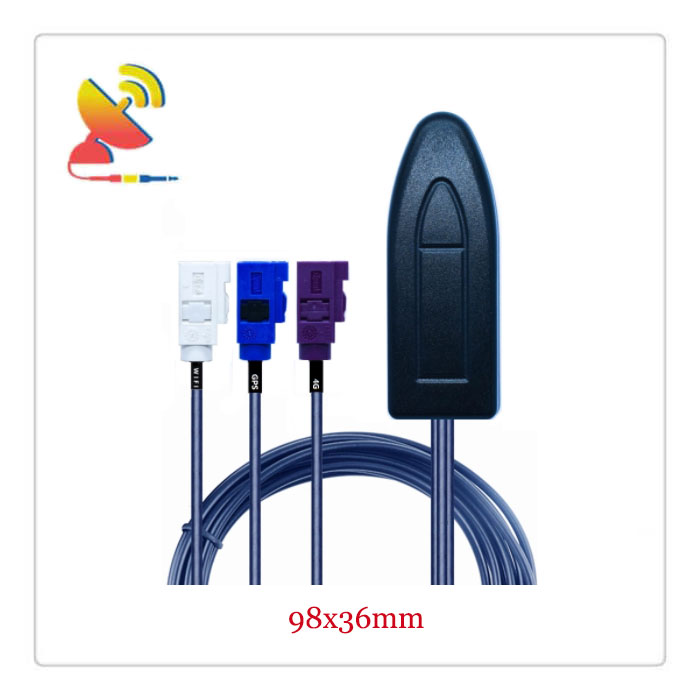

Item: CTRF-ANTENNA-EX-15-24-27-9836-FKA

High-performance & Low-profile MIMO 3×3 4G+GPS+WiFi Combination Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

WiFi Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ98x36mm

Mounting: Screw/Sticker

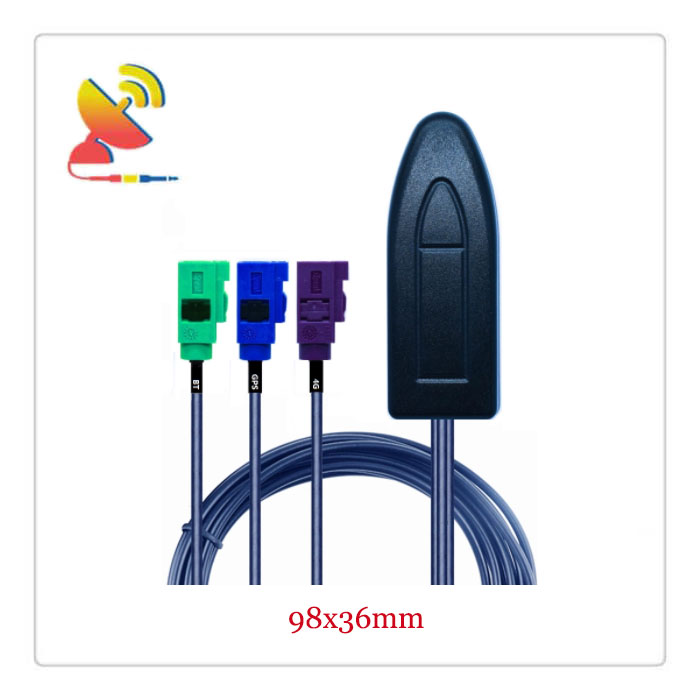

Item: CTRF-ANTENNA-EX-15-BT-27-9836-FKA

High-performance & Low-profile 3-in-1 4G+GPS+BT 3×3 MIMO Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

BT: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 7dBi

BT Gain: 7dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: Fakra x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ98x36mm

Mounting: Screw/Sticker

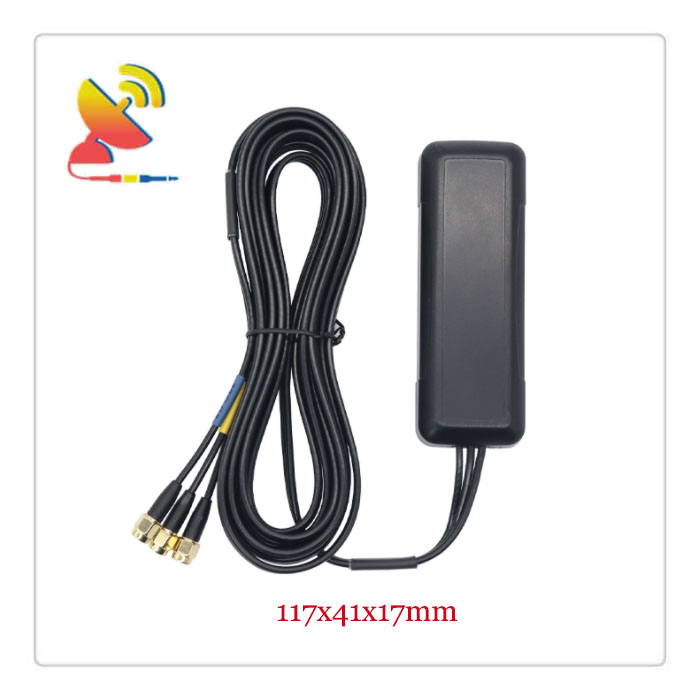

Item: CTRF-ANTENNA-EX-15-24-27-11741-SMA

High-performance & Low-profile Outdoor 4G+WiFi+GPS/BD Combination Antenna

Specifications:

Material: Plastic ABS

4G LTE: 698-960 MHz, 1710-2700 MHz

WiFi: 2400-2483.5 MHz

GPS/BD: 1561MHz/1575.42MHz

4G Gain: 8dBi

WiFi Gain: 8dBi

GPS/BD Gain: 28dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: SMA Male x3

Cable type: RG174 x3

Cable length: 1M x3

Color: Black

Dimension: Φ117x41x17mm

Mounting: Screw/Sticker







The low-profile 4G+GPS+WiFi 3×3 MIMO antennas are available with Fakra/IPEX1/SMA connectors or opening ends, allowing for selection.







Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular GSM 4G LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.







Customize 2×2, 3×3, 4×4, and 5×5 MIMO Antennas With Other Combinations.
