C&T RF Antennas Inc. manufactures a series of low-profile 2×2, 3×3, 4×4, and 5×5 MIMO antennas. Please scroll to the bottom of this page for more 3×3 NR 5G MIMO antennas’ information.
Contact us for more details on the low-profile 3×3 NR 5G MIMO antennas, such as the 3×3 5G NR antenna datasheet, 3×3 5G MIMO antenna pricing, and 5G MIMO antenna 3×3 inventory.
Or other MIMO antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The low-profile 3×3 NR 5G MIMO antennas are 3-in-1 extra-wideband 5G NR/LTE 3×3 MIMO antennas with through-hole screw/puck mount capable of supporting 600 MHz – 6 GHz for indoor-outdoor 4G/5G cellular wireless network applications.
Each of the low-profile 3×3 NR 5G MIMO antenna enclosures contains three isolated high-performance antenna elements. The 3×3 4G/5G MiMo antennas are very suitable for ISM and IoT industries.
Besides the low-profile 3×3 NR 5G MIMO Antennas, the 2×2 MIMO 5G antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO WiFi Antennas, 3×3 4G LTE MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 LTE MIMO Antennas, 4×4 MIMO Antenna 5G NR, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Three independent cable extensions
Waterproof-housing antennas
600-6000MHz extra-wide bands
Capable of 2G, 3G, 4G, 5G LTE applications
Available for through-hole screw mount or puck mount
etc.
The robust low-profile housing contains four 4G LTE / 5G NR elements covering 600-6000 MHz. It is constructed from robust plastic housing, and the IP65 rating ensures that the product is suitable for use in tough environments and devices located in public areas. The low-profile 3×3 NR 5G MIMO antennas are designed to be a one-size-fits-all solution for IoT and ISM applications.

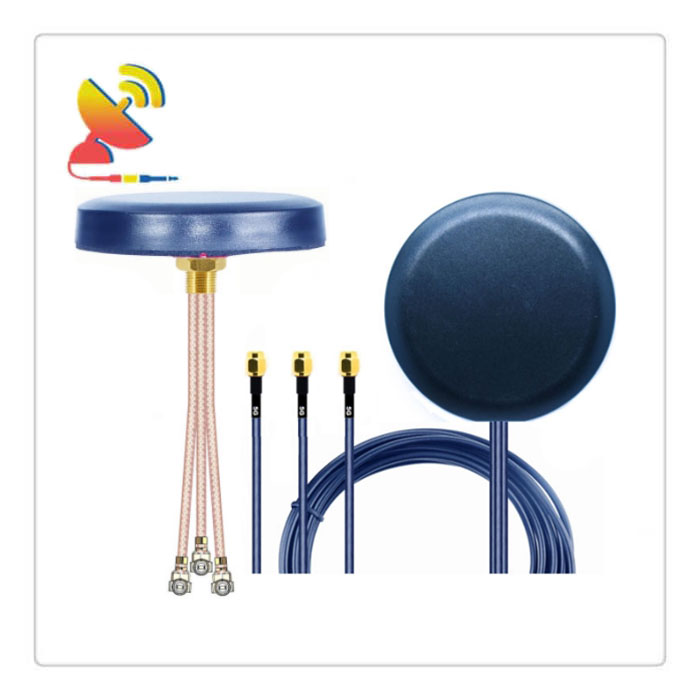

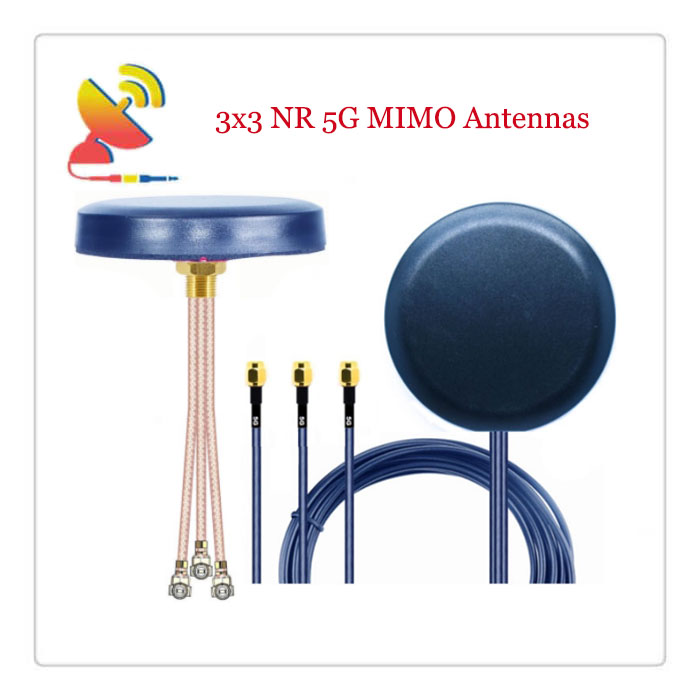

C&T RF Antennas Inc. provides low-profile 3×3 NR 5G MIMO antennas. Below are some of the existing 3×3 NR 5G MIMO antenna styles.

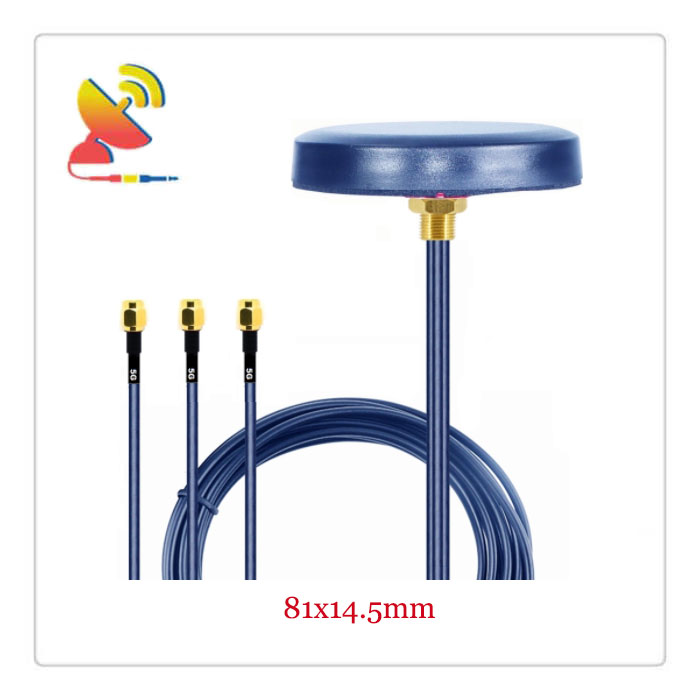

Item: CTRF-ANTENNA-EX-NRX3-8114-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

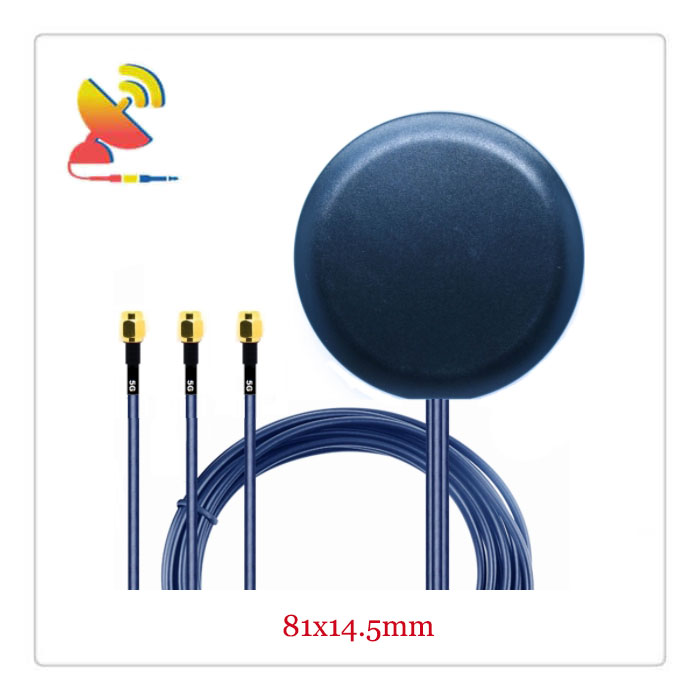

Item: CTRF-ANTENNA-EX-NRX3-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Sticker

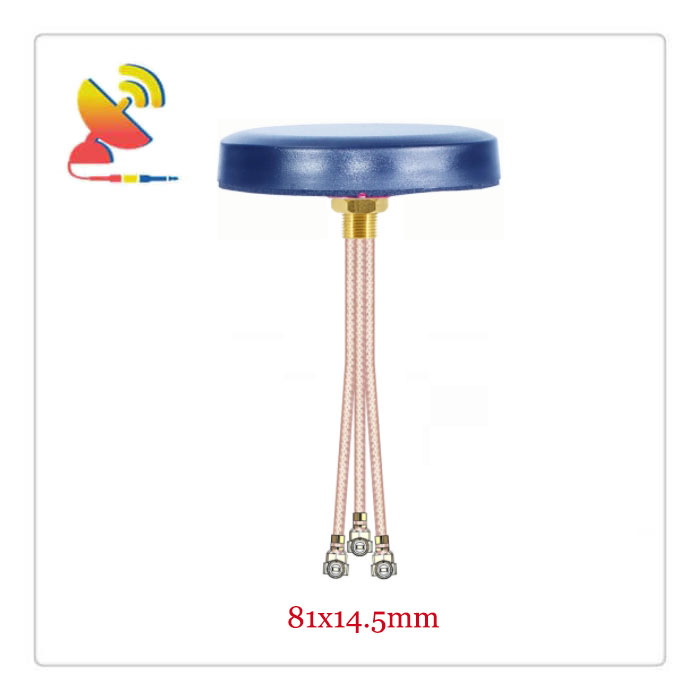

Item: CTRF-ANTENNA-EX-NRX3-8114-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2G/3G/4G/5G (600-6000 MHz)
Gain: 7/9dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX x3
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular LTE 5G NR antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
