C&T RF Antennas Inc. manufactures a series of high-performance & low-profile 3×3 MIMO WiFi antennas, the 2×2 MIMO antennas for all WiFi/Bluetooth/Sigfox applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the low-profile 3×3 MIMO WiFi antennas, including the MIMO WiFi antenna datasheet, pricing information, and inventory availability for antennas.
Or other MIMO WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

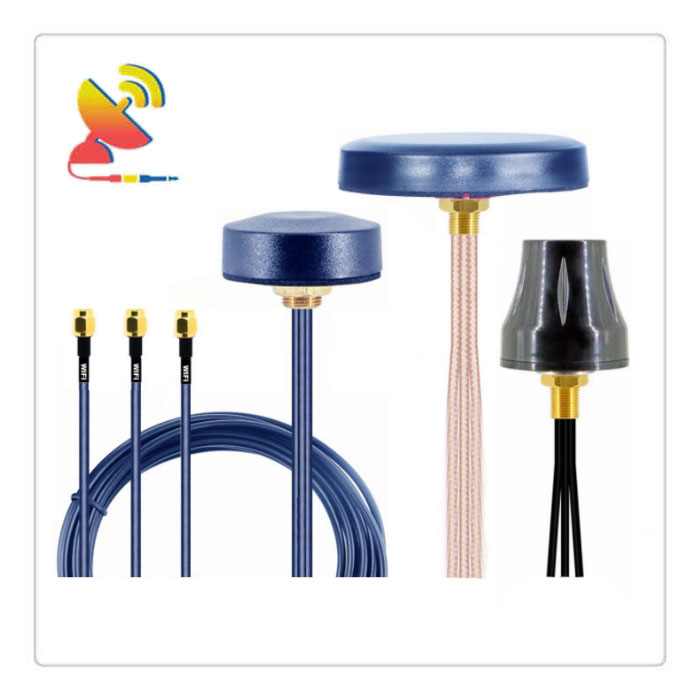

The high-performance & low-profile 3×3 MIMO Wi-Fi antennas are 3-in-1 Omnidirectional Wi-Fi MIMO antennas manufactured by C&T RF Antennas Inc. for 2.4 GHz ISM applications such as Wi-Fi, Bluetooth, Zigbee, and Sigfox, with a through-hole screw-mount design for indoor and outdoor use.
The low-profile 3×3 MIMO Wi-Fi antennas enable high data rate connectivity for fleet, rail, mass transit, public safety, and M2M applications.
Besides the low-profile 3×3 MIMO WiFi Antennas, the 2×2 MIMO WiFi Antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO 5G antennas, 3×3 NR 5G MIMO Antennas, 3×3 4G LTE MIMO Antennas, 4×4 LTE MIMO Antennas, 4×4 MIMO Antenna 5G NR, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
The low-profile 3×3 MIMO Wi-Fi antennas support ISM band 2.4 GHz MIMO for 802.11n WLAN networks.
The low-profile 3×3 MIMO Wi-Fi antennas feature a through-hole screw mount or puck mount for secure, temporary installations.
The low-profile 3×3 MIMO Wi-Fi antennas combined three antenna elements into one IP67-rated housing.
The low-profile 3×3 MIMO Wi-Fi antennas have Omnidirectional patterns.
etc.
The low-profile 3×3 MIMO Wi-Fi antennas are typically used in Smart Home, Routers and Gateways, Smart Devices, and HD Video Streaming. The antennas have excellent efficiency and isolation performance for all 2.4 GHz applications.
C&T RF Antennas Inc. provides high-performance & low-profile 3×3 MIMO WiFi antennas. Below are some of the Bluetooth/Wi-Fi MIMO antenna styles.

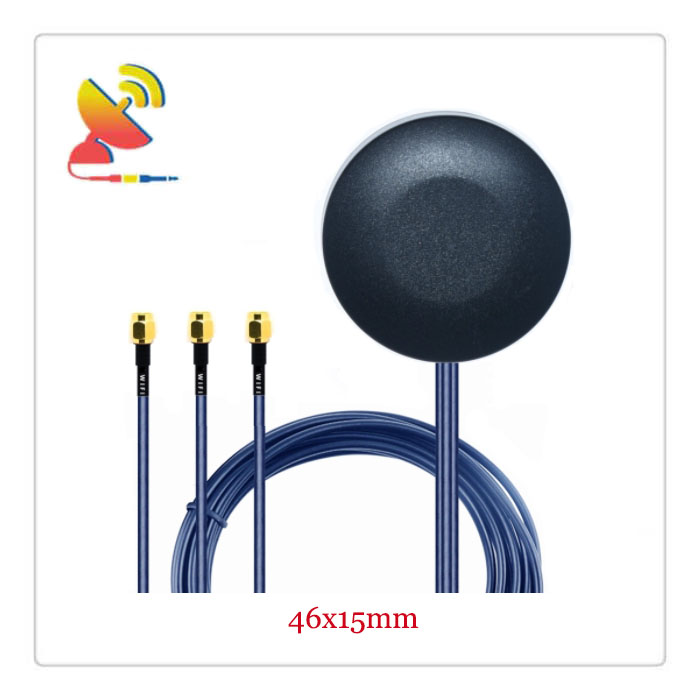

Item: CTRF-ANTENNA-EX-24X3-4615-SMA
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

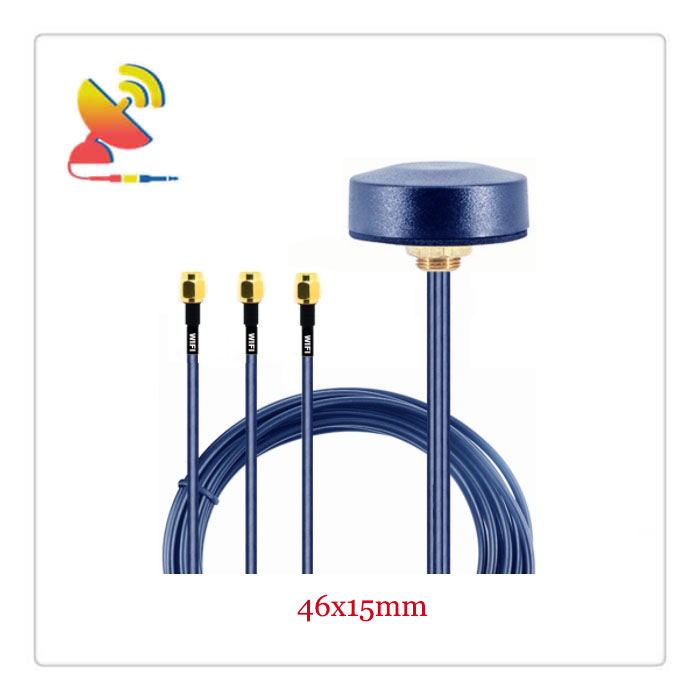

Item: CTRF-ANTENNA-EX-24X3-4615S-SMA
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

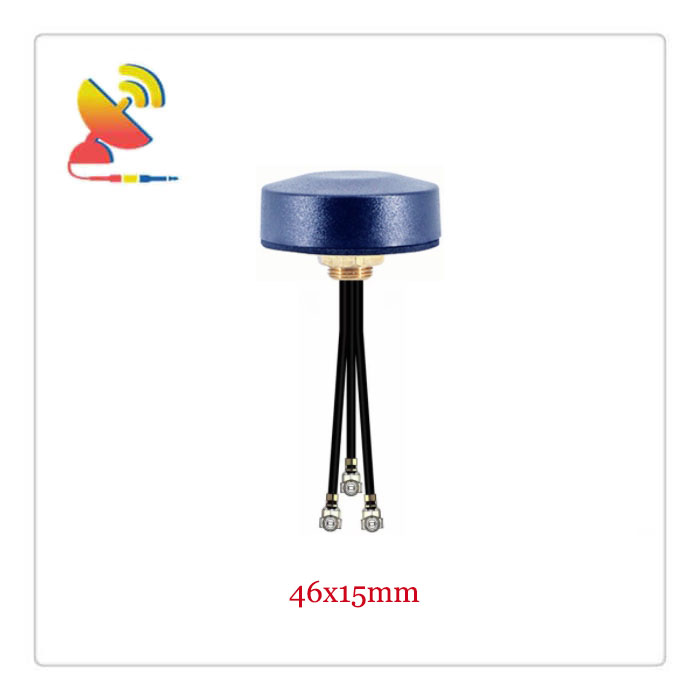

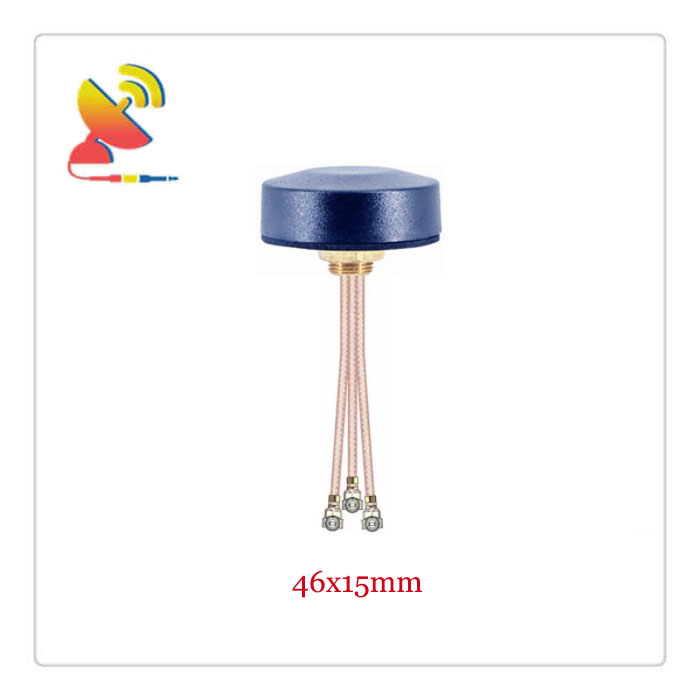

Item: CTRF-ANTENNA-EX-24X3-4615-113-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-24X3-4615-178-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

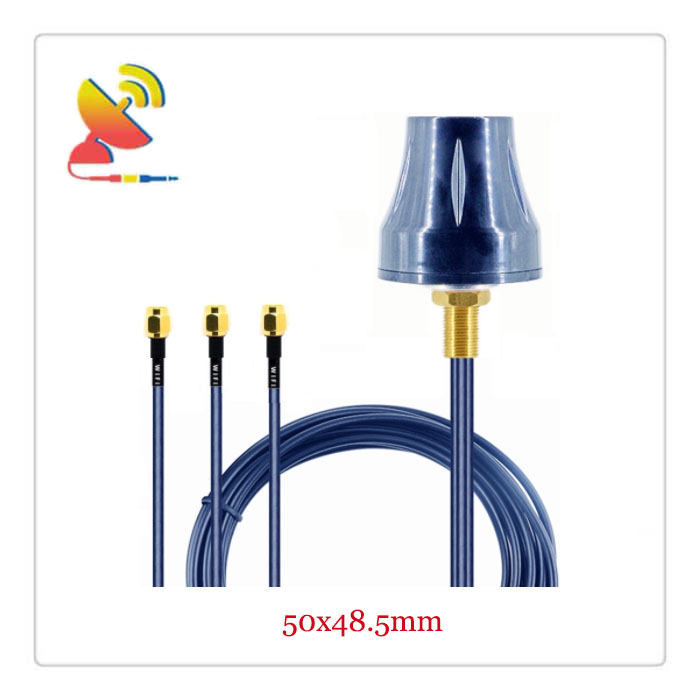

Item: CTRF-ANTENNA-EX-24X3-5048-SMA
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

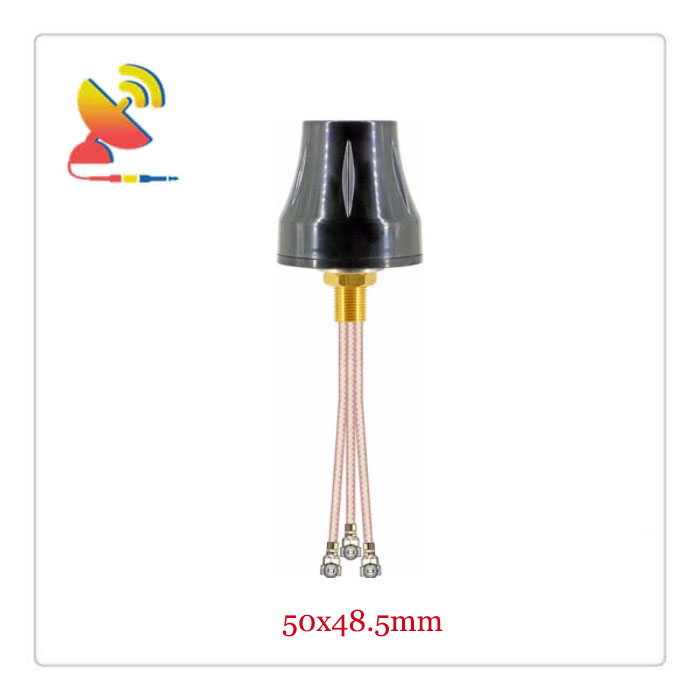

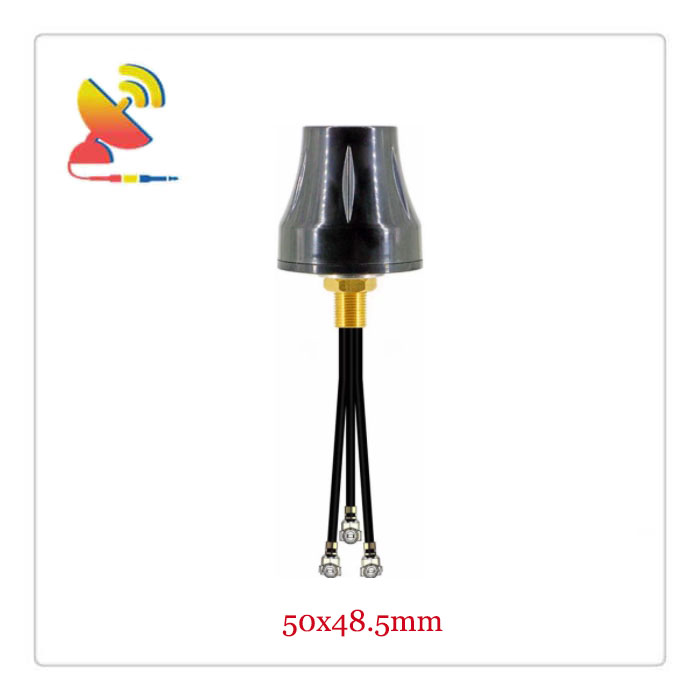

Item: CTRF-ANTENNA-EX-24X3-5048-178-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-24X3-5048-113-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG1.13 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

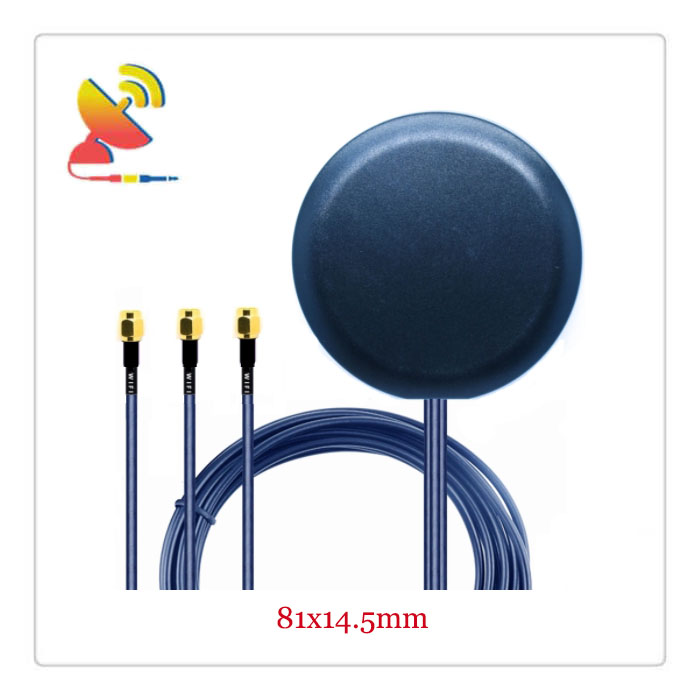

Item: CTRF-ANTENNA-EX-24X3-8114-SMA
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

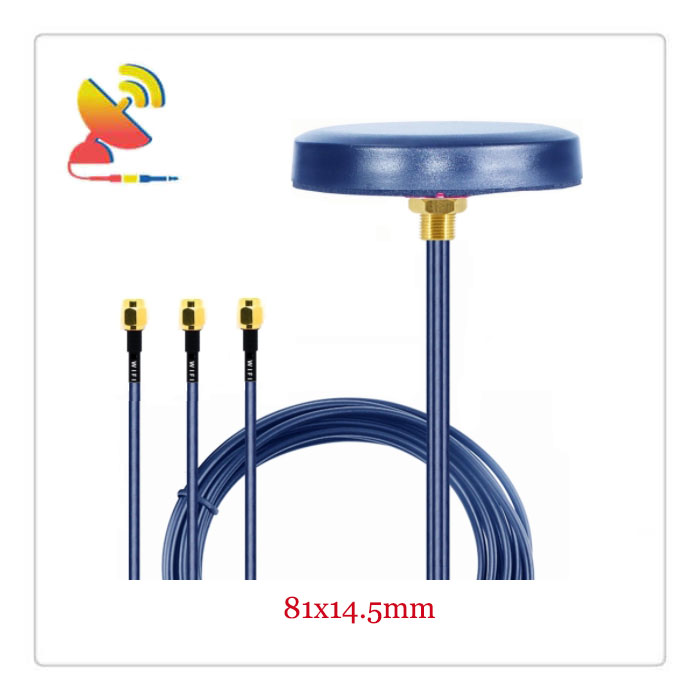

Item: CTRF-ANTENNA-EX-24X3-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: SMA male
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-24X3-8114-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers WiFi/Bluetooth antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
