C&T RF Antennas Inc. manufactures a series of MIMO 4G LTE antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on our low-profile 4G LTE MIMO antennas, including the 3×3 MMO 4G LTE antenna datasheet, pricing, and availability of the outdoor antenna.
Or other 2×2, 3×3, 4×4, 5×5 MIMO antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

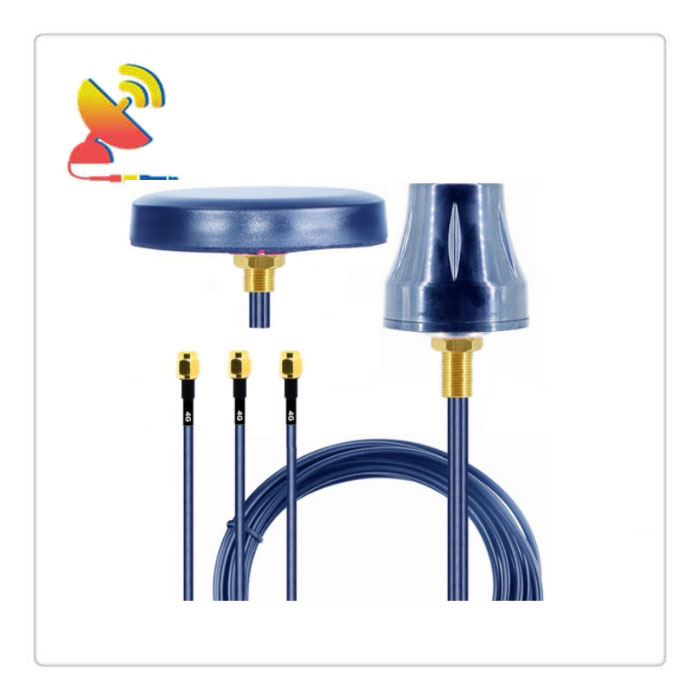

The low-profile 3×3 4G LTE MIMO antennas are external combination antennas with 3×3 MIMO LTE 4G bands, manufactured by C&T RF Antennas Inc., to enhance wireless connectivity with advanced MIMO technology and support cellular 4G LTE communications.
The low-profile 3×3 4G LTE MIMO antennas are high-gain Omnidirectional antennas with 3×3 MIMO capability, a wideband 698-2700 MHz range, a compact design, and easy installation.
Besides the low-profile 3×3 4G LTE MIMO Antennas, the 2×2 MIMO 4G LTE Antennas, 2×2 MIMO 5G antennas, 2×2 MIMO WiFi Antennas, 3×3 NR 5G MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 LTE MIMO Antennas, 4×4 MIMO Antenna 5G NR, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Three-in-one antennas
Global 4G LTE range antennas
3×3 MIMO technology
Omnidirectional pattern
Indoor-outdoor mounting
Easy to install and use.
etc.
The low-profile 3×3 4G LTE MIMO antennas are perfect for RVs, marine vehicles, remote IoT devices, surveillance systems, and industrial environments, ensuring reliable connectivity in various applications.

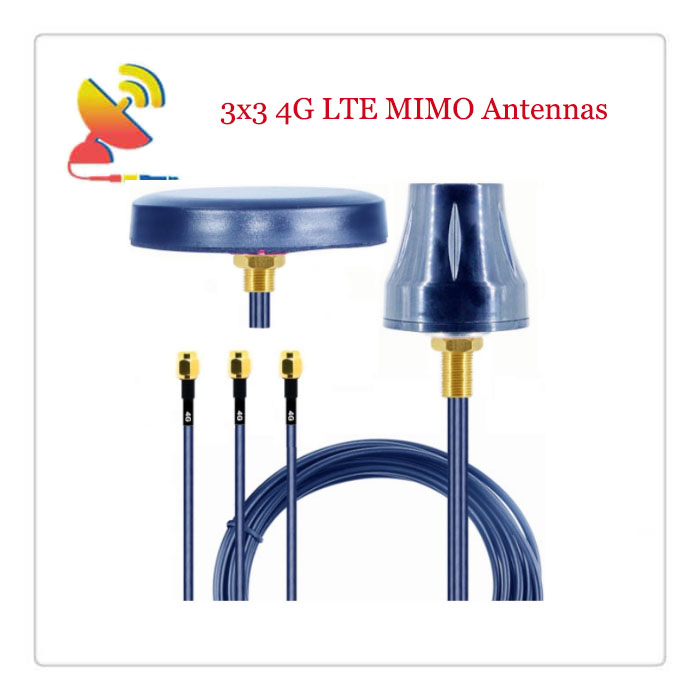

C&T RF Antennas Inc. provides low-profile 3×3 4G LTE MIMO antennas. Below are some of them.

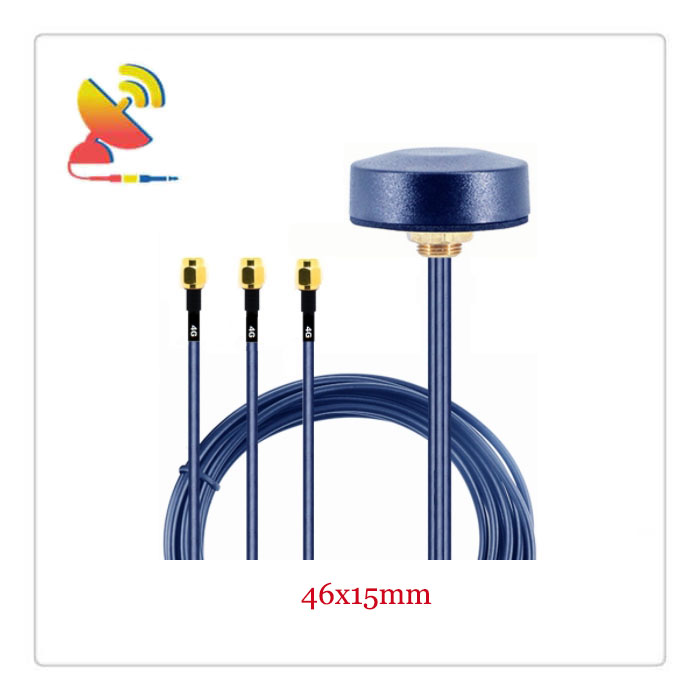

Item: CTRF-ANTENNA-EX-27X3-4615-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-27X3-4615S-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

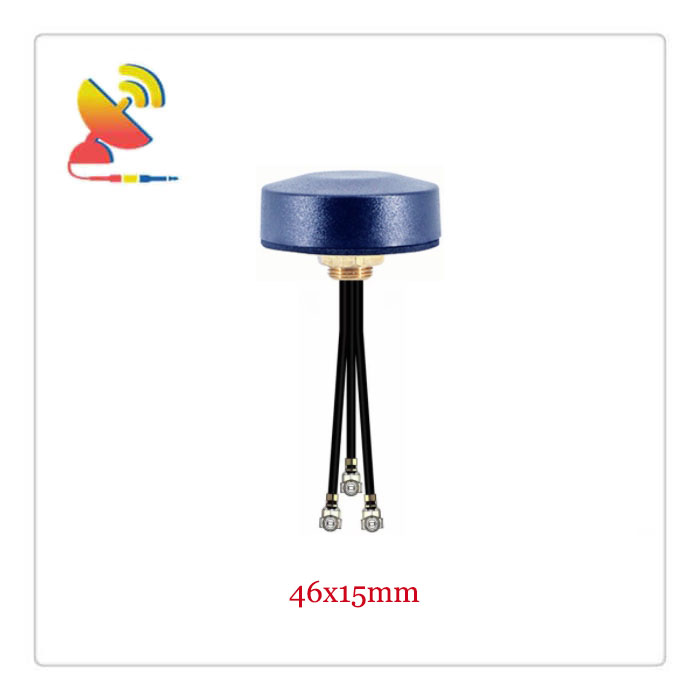

Item: CTRF-ANTENNA-EX-27X3-4615-178-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1 x3
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole
Item: CTRF-ANTENNA-EX-27X3-4615-113-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1 x3
Cable type: RG1.13 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ46x15mm
Mounting: Screw/through-hole

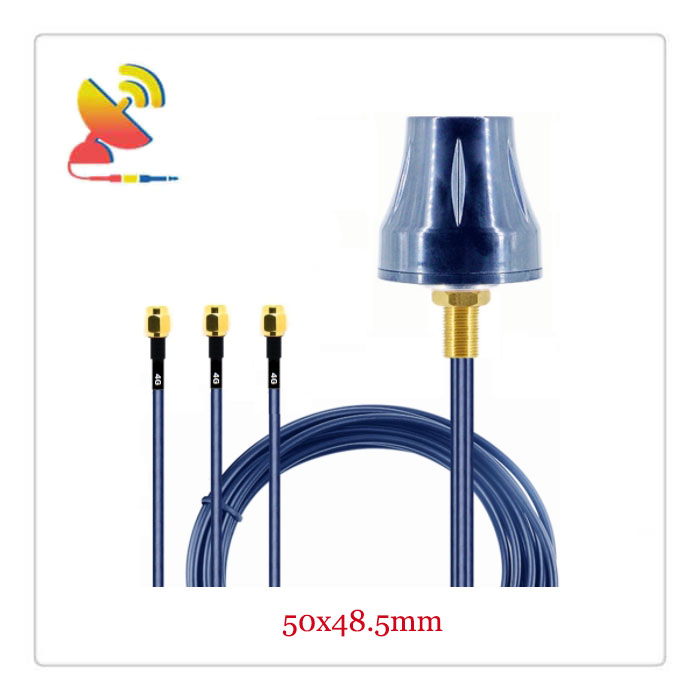

Item: CTRF-ANTENNA-EX-27X3-5048-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

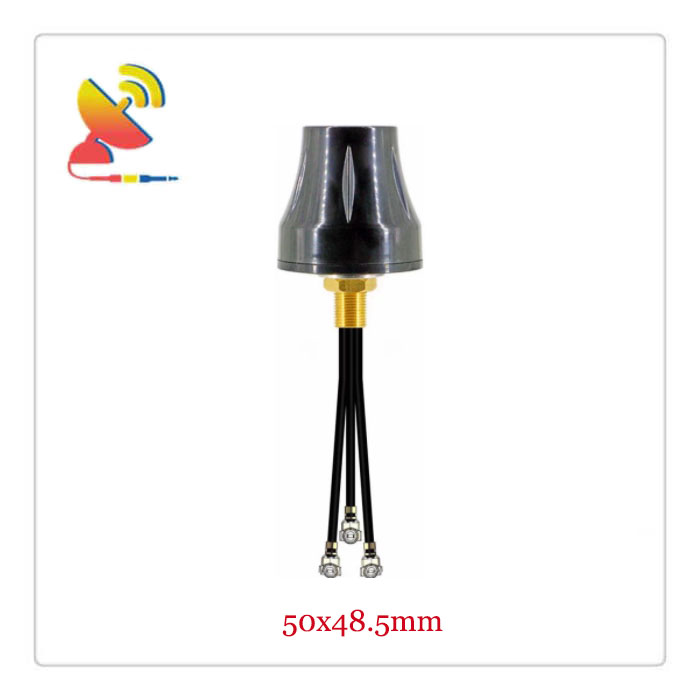

Item: CTRF-ANTENNA-EX-27X3-5048-178-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1 x3
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

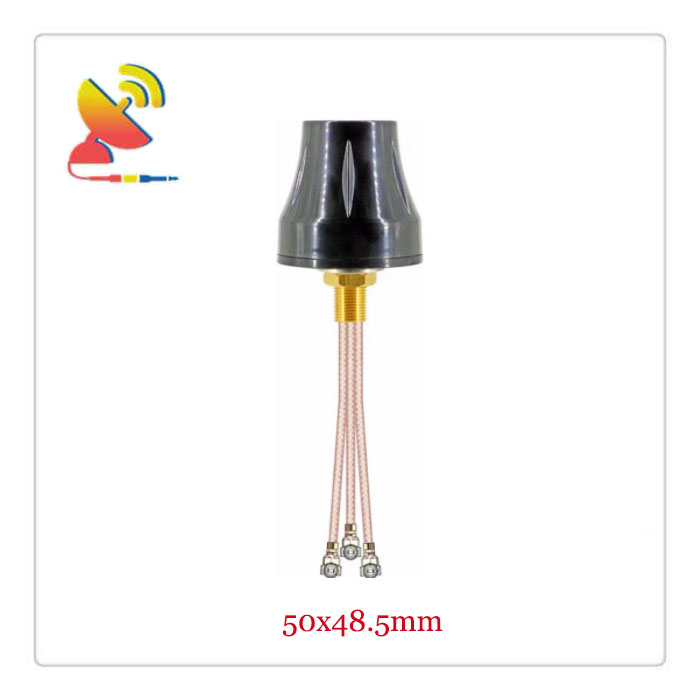

Item: CTRF-ANTENNA-EX-27X3-5048-113-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1 x3
Cable type: RG1.13 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ50×48.5mm
Mounting: Screw/through-hole

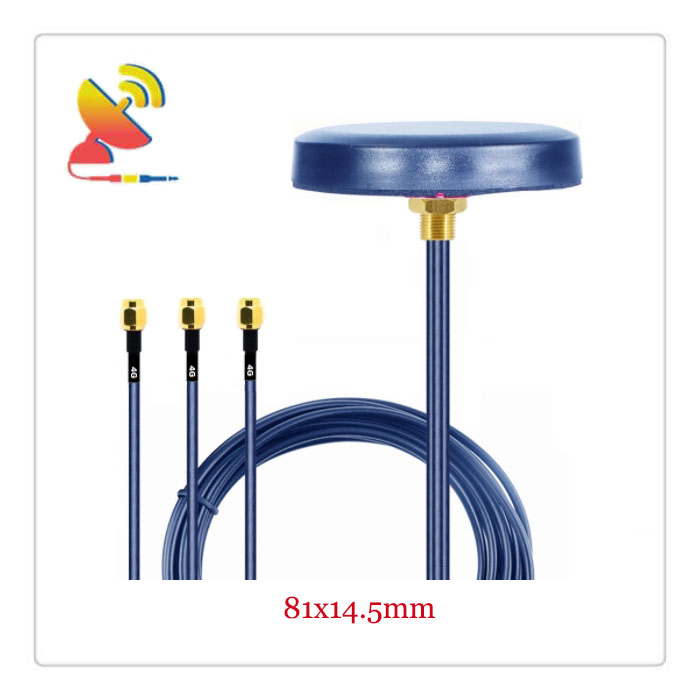

Item: CTRF-ANTENNA-EX-27X3-8114-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole

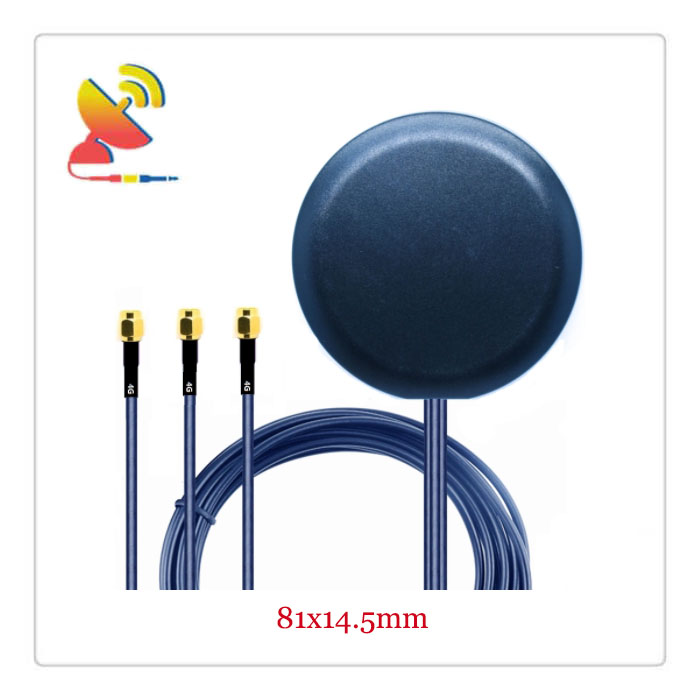

Item: CTRF-ANTENNA-EX-27X3-8114S-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x3
Cable type: RG174 x3
Cable length: 1M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Sticker

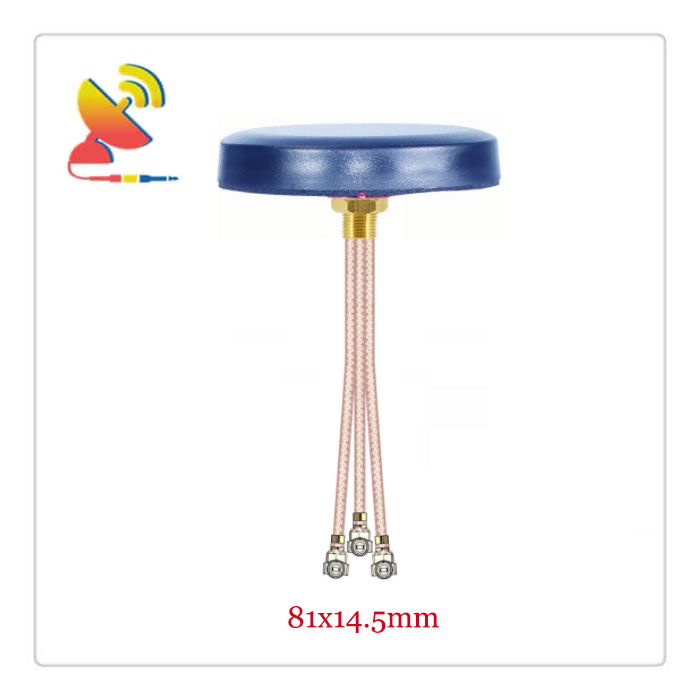

Item: CTRF-ANTENNA-EX-27X3-8114-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF x3
Cable type: RG178 x3
Cable length: 0.2M x3
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/through-hole
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular GSM 4G LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
