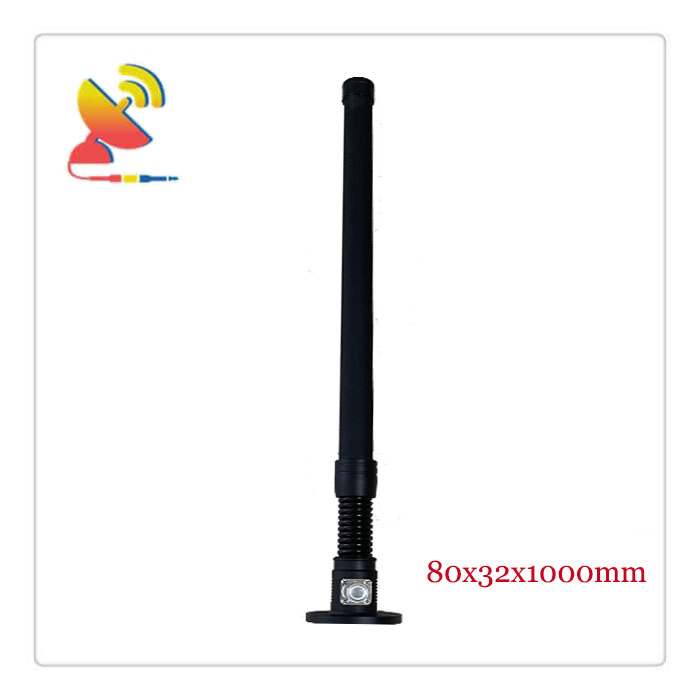

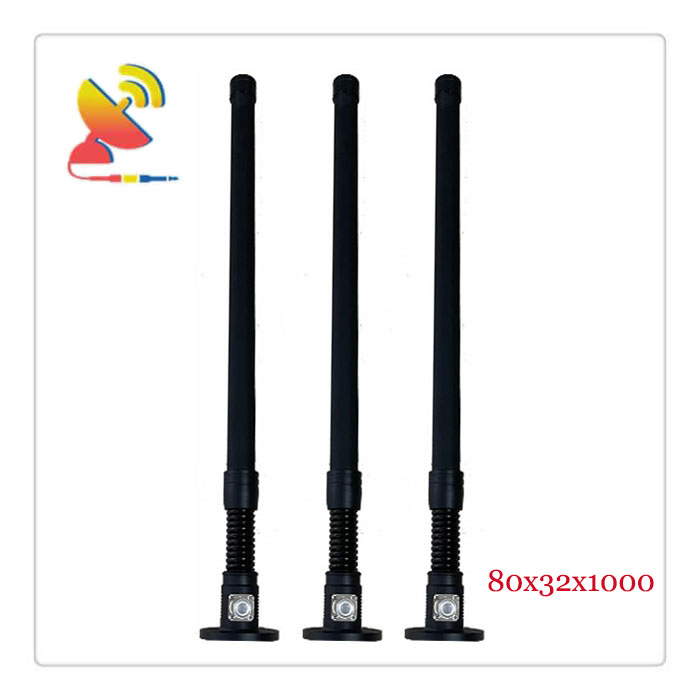

C&T RF Antennas Inc. manufactures a series of high-performance 150W vehicular antennas. The external Omnidirectional fiberglass material jamming antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on high-power 150W vehicular antennas, including the 150W Omni antenna datasheet, vehicular antenna pricing, and omni vehicular antenna inventory.
Or other indoor-outdoor antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-power 150W vehicular antennas are omnidirectional antennas operating across different radio frequency bands, manufactured by C&T RF Antennas Inc. for use in most vehicle applications.
The high-power 150W vehicular antennas are designed to be installed or mounted on the exterior of a vehicle with their strong base mounts. They have a meter-high antenna size, N-type female connector, and robust antenna housing to against the harsh environment.

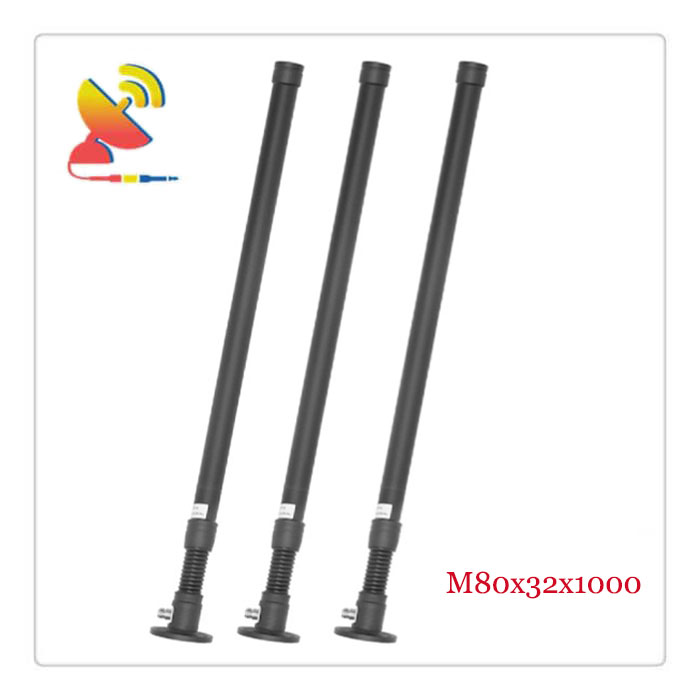

In addition to the ɸ80x32x1000 high-power 150W vehicular antennas, C&T RF Antennas Inc. also provides the same high-power 150W Omni antennas with ɸ80x32x500 150W anti-jamming antennas, ɸ80x32x600 car jammer antennas, ɸ80x32x800 high-power 150W vehicle jammer antennas, ɸ80x32x1100, ɸ80x32x1200, ɸ80x32x1300, ɸ80x32x1500, ɸ80x32x1800, and ɸ80x32x2000, etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
The high-power 150W vehicular antennas are made to fit specific vehicle applications; we have models to fit most classic vehicles. They have the following advantages.
Sealed enclosure design (IP67-rating) to withstand harsh weather conditions such as rain, snow, and dust.
Material selection (e.g., high-temperature-resistant plastic, metal shielding) and structural reinforcement ensure stable operation in extreme temperatures ranging from -40°C to +85°C and vibration-prone environments.
Surface treatment (e.g., painting) prevents corrosion from salt fog and chemical substances, extending service
etc.
Vehicles
Cars
Boats
Base stations
etc.
C&T RF Antennas Inc. offers high-power 150W vehicular antennas compatible with various radio frequency bands. Below are some of the vehicular antenna styles. If you are unable to obtain the one you need, don’t hesitate to get in touch with our sales team for assistance.
Item: CTRF-ANTENNA-FRP-1723-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 170-230 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-0433-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 410-450 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-6172-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 610-720 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-7080-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 700-800 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-7983-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 790-830 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-7487-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 740-870 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-8590-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 850-900 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-0868-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 860-870 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-8693-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 860-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-0915-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 900-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-9096-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 900-960 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-92102-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 920-1020 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-95105-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 950-1050 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1100-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1100-1200 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1112-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1160-1280 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1214-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1200-1400 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1116-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1160-1610 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1415-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1420-1530 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1500-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1500-1600 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1516-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1540-1630 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1700-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1700-1800 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1819-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1800-1920 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-1900-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 1900-2000 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-2121-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 2110-2180 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-2224-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 2200-2400 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-2300-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 2300-2400 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-2450-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 2400-2500 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-2527-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 2500-2700 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-3436-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 3400-3600 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-3338-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-3442-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 3400-4200 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-5158-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 5150-5850 MHz
Gain: 12dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-5758-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 5725-5850 MHz
Gain: 12dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
Item: CTRF-ANTENNA-FRP-82600-80321000-NK
Specifications:
Material: Glass fiber
Frequency range: 824-6000 MHz
Gain: 12dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type female
Color: Black
Dimension: ɸ80x32x1000
Mounting: Screw
