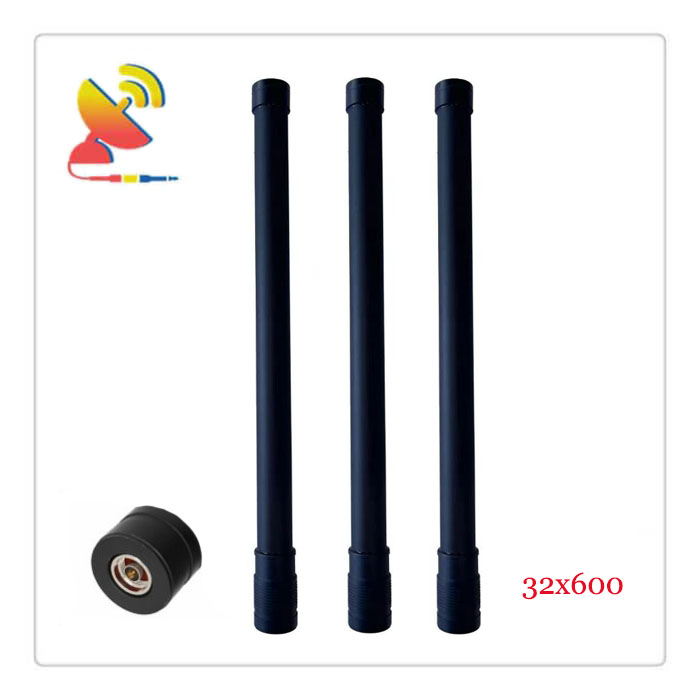

High-power 150W Signal Jammer Antennas ɸ32×600

What are the high-power 150W signal jammer antennas?

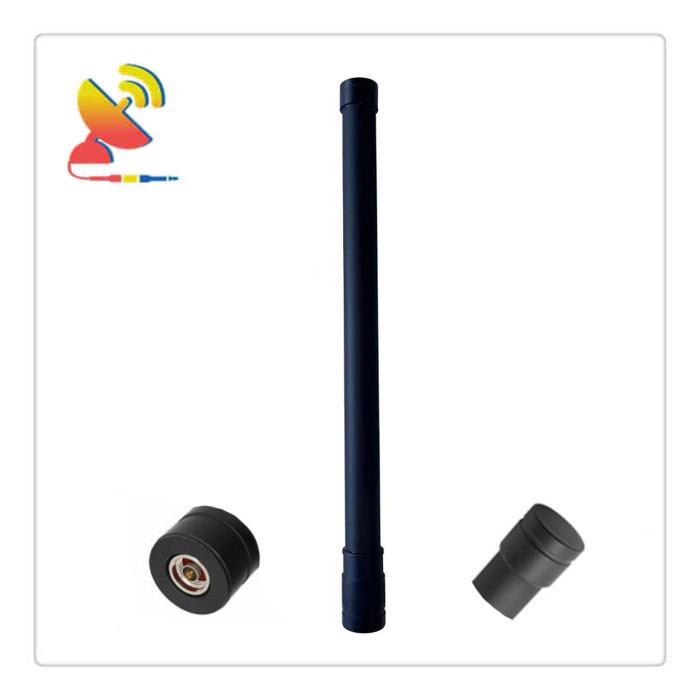

The high-power 150W signal jammer antennas are omnidirectional, operating across various RF frequency bands, and are manufactured by C&T RF Antennas Inc. for use in RF jammers, anti-drone devices, and other applications.

The high-power 150W signal jammer antennas can help signal jammer devices with a powerful and compact design to block a wide range of wireless communications.



In addition to the ɸ32×600 signal jammer antennas, C&T RF Antennas Inc. also provides the same high-power 150W Omni antennas with ɸ32×300, ɸ32×350, ɸ32×400, ɸ32×500, ɸ32×800 Omni jamming antennas,, ɸ32×1000 Omni anti-jam antennas, ɸ32×1100, ɸ32×1200, ɸ32×1300, ɸ32×1500, ɸ32×1800, and ɸ32×2000, etc.



C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.

Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.





Applications of the high-power 150W signal jammer antennas

As the name suggests, signal jammer antennas (jamming antennas) are specifically used to interfere with radio noise or signals.

The high-power 150W signal jammer antennas are used for drone signal blockers, RF jammers, signal jammers, Cell phone jammers, signal jamming devices, and signal blockers, etc.





High-power 150W signal jammer antenna specifications

C&T RF Antennas Inc. offers high-power 150W signal jammer antennas compatible with various RF frequency bands. Below are some of the signal jamming antenna styles. If you are unable to obtain the one you need, don’t hesitate to contact our sales team for assistance.



Item: CTRF-ANTENNA-FBJM-2575-32600-NM

High-performance & High-power 150W VHF (25-75MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 25-75 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3088-32600-NM

High-performance & High-power 150W VHF (30-88MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 30-88 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-30100-32600-NM

High-performance & High-power 150W VHF (30-100MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 30-100 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-108200-32600-NM

High-performance & High-power 150W VHF (108-200MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 108-200 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-130180-32600-NM

High-performance & High-power 150W VHF (130-180MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 130-180 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-136174-32600-NM

High-performance & High-power 150W VHF (136-174MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 136-174 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-150174-32600-NM

High-performance & High-power 150W VHF (150-174MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 150-174 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-156162-32600-NM

High-performance & High-power 150W VHF (156-162MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 156-162 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-170230-32600-NM

High-performance & High-power 150W VHF (170-230MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 170-230 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3040-32600-NM

High-performance & High-power 150W UHF (300-400MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 300-400 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw

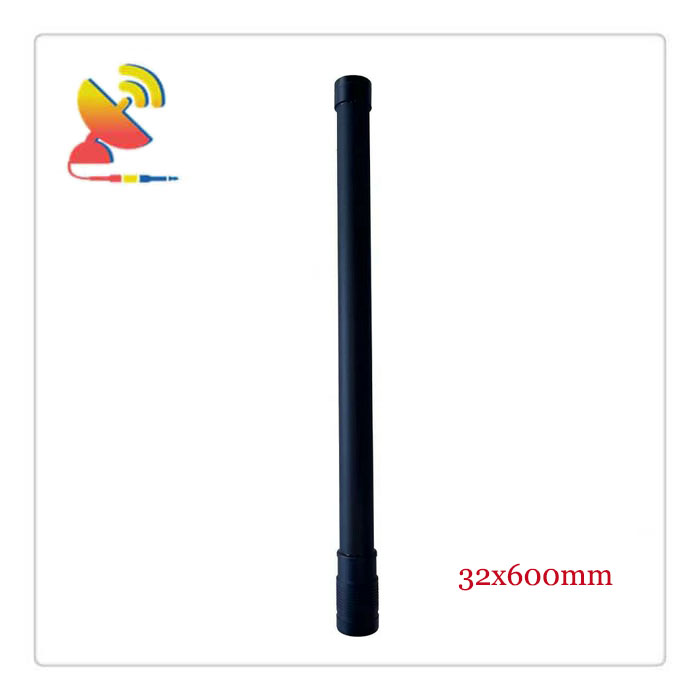

Item: CTRF-ANTENNA-FBJM-3847-32600-NM

High-performance & High-power 150W UHF (380-470MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-470 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3850-32600-NM

High-performance & High-power 150W UHF (380-500MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-500 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3851-32600-NM

High-performance & High-power 150W UHF (380-512MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-512 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3852-32600-NM

High-performance & High-power 150W UHF (380-520MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-520 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-4048-32600-NM

High-performance & High-power 150W UHF (400-480MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 400-480 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-4052-32600-NM

High-performance & High-power 150W UHF (400-520MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 400-520 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-4145-32600-NM

High-performance & High-power 150W UHF (410-450MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 410-450 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-0433-32600-NM

High-performance & High-power 150W 433 MHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency: 433 MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-6172-32600-NM

High-performance & High-power 150W UHF (610-720 MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 610-720 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-6580-32600-NM

High-performance & High-power 150W LTE (650-880MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 650-800 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-7080-32600-NM

High-performance & High-power 150W LTE (700-800MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 700-800 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-70100-32600-NM

High-performance & High-power 150W UHF (700-1000MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 700-1000 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-7288-32600-NM

High-performance & High-power 150W LTE (720-880MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 720-880 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-7487-32600-NM

High-performance & High-power 150W LTE (740-870MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 740-870 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-7583-32600-NM

High-performance & High-power 150W UHF (750-830MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 750-830 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-7983-32600-NM

High-performance & High-power 150W LTE (790-830MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 790-830 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-80102-32600-NM

High-performance & High-power 150W NTN (800-1020MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 800-1020 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-8288-32600-NM

High-performance & High-power 150W 5G 850MHz LTE (824-880MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 824-880 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-8590-32600-NM

High-performance & High-power 150W CDMA 900 (850-895MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 850-895 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-0868-32600-NM

High-performance & High-power 150W ISM 868 MHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 860-870 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-8693-32600-NM

High-performance & High-power 150W LoRa/GSM (860-930MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 860-930 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-86102-32600-NM

High-performance & High-power 150W LoRa/GSM (860-1020MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 860-1020 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-0915-32600-NM

High-performance & High-power 150W ISM 915 MHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 900-930 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-9096-32600-NM

High-performance & High-power 150W LoRa GSM (900-960MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 900-960 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-9296-32600-NM

High-performance & High-power 150W LoRa (920-960MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 920-960 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-92102-32600-NM

High-performance & High-power 150W LoRa (920-1020MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 920-1020 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-95105-32600-NM

High-performance & High-power 150W GSM (950-1050MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 950-1050 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1100-32600-NM

High-performance & High-power 150W SHF 1.1 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1100-1200 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1112-32600-NM

High-performance & High-power 150W L-band (1160-1280MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1160-1280 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1116-32600-NM

High-performance & High-power 150W GNSS (1160-1610MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1160-1610 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1200-32600-NM

High-performance & High-power 150W 1.2 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1200-1300 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1214-32600-NM

High-performance & High-power 150W 1.2-1.4 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1200-1400 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1300-32600-NM

High-performance & High-power 150W 1.3 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1300-1400 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1314-32600-NM

High-performance & High-power 150W UHF (1380-1480MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1380-1480 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1400-32600-NM

High-performance & High-power 150W 1.4 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1400-1500 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1415-32600-NM

High-performance & High-power 150W 1.4 GHz (1420-1530MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1420-1530 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1500-32600-NM

High-performance & High-power 150W 1.5 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1500-1600 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1516-32600-NM

High-performance & High-power 150W GNSS (1540-1630MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1540-1630 MHz

Gain: 5.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1700-32600-NM

High-performance & High-power 150W 1.7 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1700-1800 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1818-32600-NM

High-performance & High-power 150W 1.8 GHz (1800-1880 MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1800-1880 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1800-32600-NM

High-performance & High-power 150W 1.8 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1800-1900 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-18199-32600-NM

High-performance & High-power 150W GSM (1805-1990MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1805-1990 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1819-32600-NM

High-performance & High-power 150W 1.8 GHz (1800-1920MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1800-1920 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-1900-32600-NM

High-performance & High-power 150W 1.9 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 1900-2000 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2100-32600-NM

High-performance & High-power 150W LTE 2.1 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2100-2200 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2121-32600-NM

High-performance & High-power 150W 2.1 GHz (2110-2180MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2110-2180 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2224-32600-NM

High-performance & High-power 150W 2.2-2.4 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2200-2400 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2300-32600-NM

High-performance & High-power 150W LTE 2.3 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2300-2400 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2325-32600-NM

High-performance & High-power 150W 2.3-2.5 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2300-2500 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2450-32600-NM

High-performance & High-power 150W (2400-2500 MHz) Wi-Fi Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2400-2500 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2527-32600-NM

High-performance & High-power 150W 2.5-2.7 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2500-2700 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2626-32600-NM

High-performance & High-power 150W LTE (2620-2690MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2620-2690 MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3436-32600-NM

High-performance & High-power 150W 3.4-3.6 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 3400-3600 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3338-32600-NM

High-performance & High-power 150W 3.3-3.8 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 3300-3800 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-3442-32600-NM

High-performance & High-power 150W 3.4-4.2 GHz Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 3400-4200 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-5158-32600-NM

High-performance & High-power 150W (5150-5850 MHz) Wi-Fi Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 5150-5850 MHz

Gain: 9dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-5758-32600-NM

High-performance & High-power 150W 5.8 GHz Wi-Fi Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 5725-5850 MHz

Gain: 9dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-82600-32600-NM

High-performance & High-power 150W 5G LTE (824-6000MHz) Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 824-6000 MHz

Gain: 9dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







Item: CTRF-ANTENNA-FBJM-2458-32600-NM

High-performance & High-power 150W 2.4-5 GHz Wi-Fi Signal Jammer Antenna

Specifications:

Material: Glass fiber

Frequency range: 2400-2500 MHz; 5150-5850 MHz

Gain: 9dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×600

Mounting: Screw







The high-power 150W Omni signal jammer antenna features and applications











Different types of Omni jammer antennas
