C&T RF Antennas Inc. manufactures a series of high-performance 150W Omni jamming antennas. The external Omnidirectional fiberglass material jamming antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on high-power 150W Omni jamming antennas, including the Omni jamming antenna datasheet, pricing, and inventory availability.
Or other indoor-outdoor antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-power 150W Omni jamming antennas are omnidirectional, operating across various radio frequency bands, and are manufactured by C&T RF Antennas Inc. They are designed for jamming applications and range from 22 to 6000 MHz.
The high-power 150W Omni jamming antennas we offer on this page are capable of operating at up to 150 Watts, with a 100% duty cycle and continuous power level.

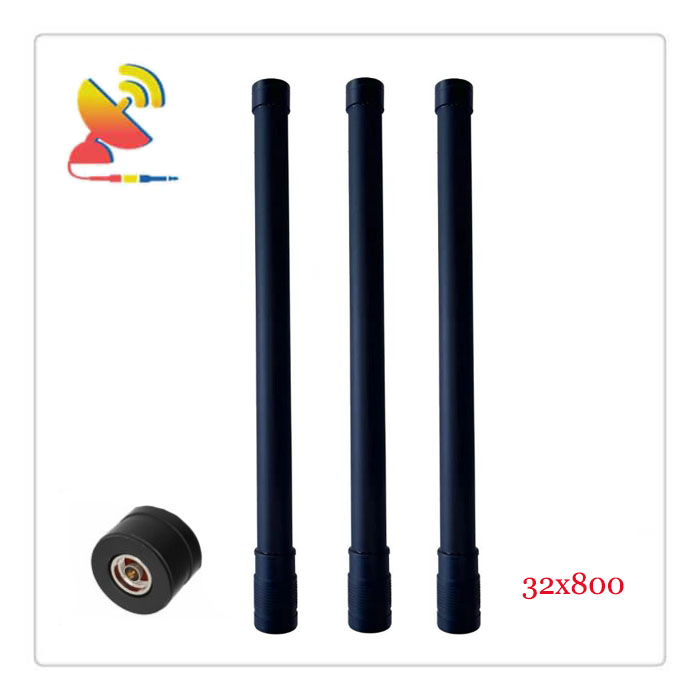

In addition to the ɸ32×800 Omni jamming antennas, C&T RF Antennas Inc. also provides the same high-power 150W Omni antennas with ɸ32×300, ɸ32×350, ɸ32×400, ɸ32×500, ɸ32×600, ɸ32×800, ɸ32×1000 Omni anti-jam antennas, ɸ32×1100, ɸ32×1200, ɸ32×1300, ɸ32×1500, ɸ32×1800, and ɸ32×2000, etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
VHF Low Band: 54–72 MHz;
VHF Mid Band: 76–88 MHz;
VHF High Band: 174–216 MHz;
UHF Low Band: 470–608 MHz;
UHF Mid Band: 614–698 MHz;
UHF High Band: 806–960 MHz;
1.2 GHz Band: 1164–1240 MHz;
1.4 GHz Band: 1382–1444 MHz;
2.3 GHz Band: 2300–2400 MHz;
2.4 GHz Band: 2400–2485 MHz;
2.5 GHz Band: 2500–2570 MHz;
3.5 GHz band: 3400–3600 MHz;
3.6 GHz band: 3600–3800 MHz;
4.9 GHz band: 4800–6100 MHz;
5.8 GHz band: 5725–5850 MHz.
5.47 GHz band: 5470–5725 MHz;
5.725 GHz band: 5725–5850 MHz.
etc.
Continuous operation even in hot climates with no time limit.
Waterproof, designed for outdoor installation.
Secure design to avoid sabotage.
Selection of frequency band antennas to provide more flexibility regarding jamming coverage.
etc.
The high-power 150W Omni jamming antennas are manpack, vehicular, tactical, or base station military omnidirectional antennas for radio monitoring, signal jamming, and other very wideband operations.
C&T RF Antennas Inc. offers high-power 150W Omni jamming antennas compatible with various radio frequency bands. Below are some of the military jammer antenna styles. If you are unable to obtain the one you need, don’t hesitate to contact our sales team for assistance.
Item: CTRF-ANTENNA-FBJM-2575-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 25-75 MHz
Gain: 1.8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3088-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 30-88 MHz
Gain: 1.8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-30100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 30-100 MHz
Gain: 1.8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-108200-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 108-200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-130180-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 130-180 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-136174-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 136-174 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-150174-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 150-174 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-156162-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 156-162 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-170230-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 170-230 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3040-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 300-400 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3847-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-470 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3850-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-500 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3851-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-512 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3852-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-520 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-4048-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 400-480 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-4052-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 400-520 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-4145-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 410-450 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-0433-32800-NM
Specifications:
Material: Glass fiber
Frequency: 433 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-6172-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 610-720 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-6580-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 650-800 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-7080-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 700-800 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw

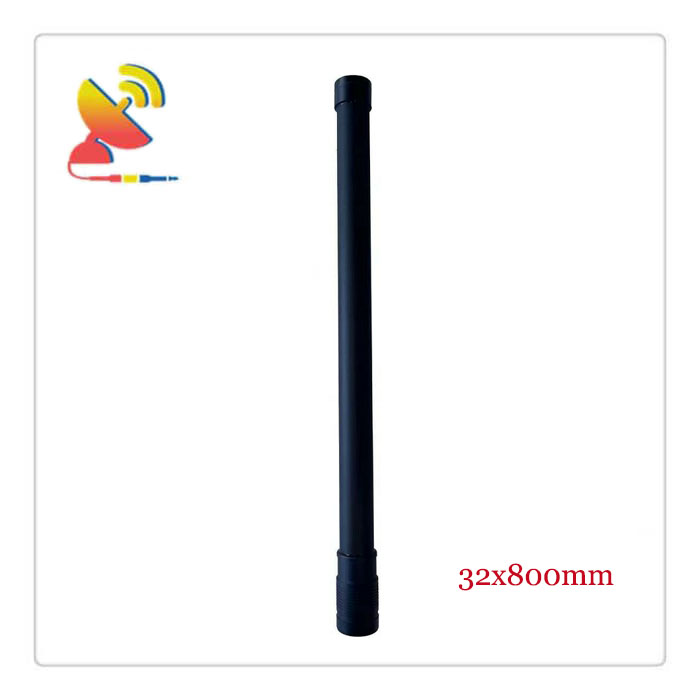

Item: CTRF-ANTENNA-FBJM-70100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 700-1000 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-7288-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 720-880 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-7487-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 740-870 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-7583-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 750-830 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-7983-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 790-830 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-80102-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 800-1020 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-8288-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 824-880 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-8590-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 850-895 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-0868-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 860-870 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-86102-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 860-1020 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-8693-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 860-930 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-0915-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 900-930 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-9096-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 900-960 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-9296-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 920-960 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-92102-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 920-1020 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-95105-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 950-1050 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1100-1200 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1112-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1160-1280 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1116-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1160-1610 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1200-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1200-1300 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1214-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1200-1400 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1300-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1300-1400 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1314-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1380-1480 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1400-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1400-1500 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1415-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1420-1530 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1500-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1500-1600 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1516-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1540-1630 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1700-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1700-1800 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1818-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1800-1880 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1800-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1800-18900 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1819-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1800-1920 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-18199-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1805-1990 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-1900-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1900-2000 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2100-2200 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2121-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2110-2180 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2224-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2200-2400 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2300-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2300-2400 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2325-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2300-2500 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2450-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2400-2500 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2527-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2500-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2626-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2620-2690 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3436-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 3400-3600 MHz
Gain: 9dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3338-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 3300-3800 MHz
Gain: 9dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-3442-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 3400-4200 MHz
Gain: 9dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-5158-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 5150-5850 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-5758-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 5725-5850 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-82600-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 824-6000 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJM-2458-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2400-2500 MHz; 5150-5850 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
