C&T RF Antennas Inc. manufactures a series of high-performance 150W military jammer antennas. The external Omnidirectional fiberglass material jamming antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on high-power 150W military jammer antennas, including the military jammer antenna datasheet, pricing, and inventory availability.
Or other indoor-outdoor antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

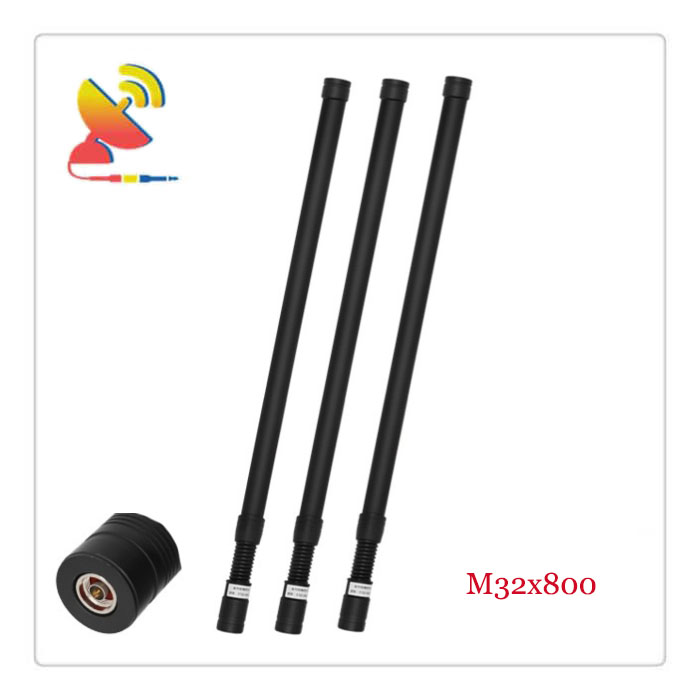

The high-power 150W military jammer antennas are omnidirectional, operating across various radio frequency bands, and are manufactured by C&T RF Antennas Inc. for use in most military industries.
The high-power 150W military jammer antennas are military antennas and jammer antennas. They are designed to provide a high-powered, ultra-efficient mobile multi-band jamming system that can be installed in any suitable vehicle. The system simultaneously jams the most widely used RF frequency bands, including cellular (CDMA, TDMA, GSM, HGSM, etc. ), satellite, walkie-talkie (VHF/UHF), and computer network (WLAN, WiFi, Bluetooth). etc.
In addition to the ɸ32×800 military jammer antennas, C&T RF Antennas Inc. also provides the same high-power 150W Omni antennas with ɸ32×300, ɸ32×350, ɸ32×400, ɸ32×500 drone jamming antennas, ɸ32×600 signal jamming antennas, ɸ32×1000 jammer spring antennas, ɸ32×1100, ɸ32×1200, ɸ32×1300, ɸ32×1500, ɸ32×1800, and ɸ32×2000, etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
High-power
High-effective
Full-day working
Waterproof
UV-proof
Dust-proof
Worldwide Shipping
1-Year Warranty
etc.
The high-power 150W military jammer antennas are designed to transmit and receive in the 25 to 6000 MHz including the MF, HF, VHF, UHF, and UWB frequency range. They are used for outdoor applications such as jammer devices, vehicles, cars, boats, etc.
C&T RF Antennas Inc. offers high-power 150W military jammer antennas compatible with various radio frequency bands. Below are some of the military jammer antenna styles. If you are unable to obtain the one you need, don’t hesitate to contact our sales team for assistance.
Item: CTRF-ANTENNA-FBJA-2575-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 25-75 MHz
Gain: 1.8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3088-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 30-88 MHz
Gain: 1.8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-30100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 30-100 MHz
Gain: 1.8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-108200-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 108-200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-130180-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 130-180 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-136174-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 136-174 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-150174-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 150-174 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-156162-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 156-162 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-170230-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 170-230 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3040-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 300-400 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3847-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-470 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3850-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-500 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3851-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-512 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3852-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 380-520 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-4048-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 400-480 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-4052-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 400-520 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-4145-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 410-450 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-0433-32800-NM
Specifications:
Material: Glass fiber
Frequency: 433 MHz
Gain: 4.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-6172-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 610-720 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-6580-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 650-800 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-7080-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 700-800 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-70100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 700-1000 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-7288-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 720-880 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-7487-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 740-870 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-7583-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 750-830 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-7983-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 790-830 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-80102-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 800-1020 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-8288-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 824-880 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-8590-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 850-895 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-0868-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 860-870 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-86102-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 860-1020 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-8693-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 860-930 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-0915-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 900-930 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-9096-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 900-960 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-9296-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 920-960 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw

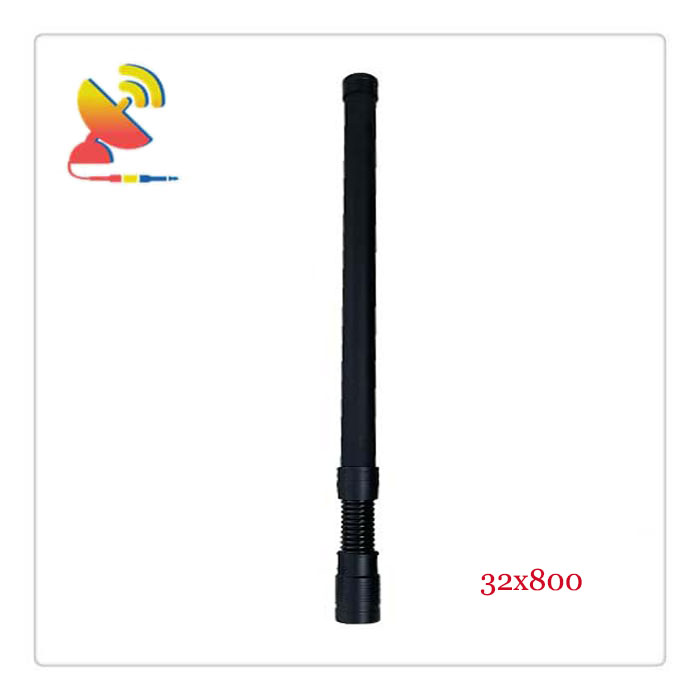

Item: CTRF-ANTENNA-FBJA-92102-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 920-1020 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-95105-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 950-1050 MHz
Gain: 5.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1100-1200 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1112-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1160-1280 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1116-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1160-1610 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1200-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1200-1300 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1214-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1200-1400 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1300-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1300-1400 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1314-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1380-1480 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1400-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1400-1500 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1415-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1420-1530 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1500-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1500-1600 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1516-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1540-1630 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1700-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1700-1800 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1818-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1800-1880 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1800-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1800-18900 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-18199-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1805-1990 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1819-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1800-1920 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-1900-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 1900-2000 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2100-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2100-2200 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2121-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2110-2180 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2224-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2200-2400 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2300-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2300-2400 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2325-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2300-2500 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2450-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2400-2500 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2527-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2500-2700 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2626-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2620-2690 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3436-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 3400-3600 MHz
Gain: 9dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3338-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 3300-3800 MHz
Gain: 9dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-3442-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 3400-4200 MHz
Gain: 9dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-5158-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 5150-5850 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-5758-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 5725-5850 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-82600-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 824-6000 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
Item: CTRF-ANTENNA-FBJA-2458-32800-NM
Specifications:
Material: Glass fiber
Frequency range: 2400-2500 MHz; 5150-5850 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: N-type male
Color: Black
Dimension: ɸ32×800
Mounting: Screw
