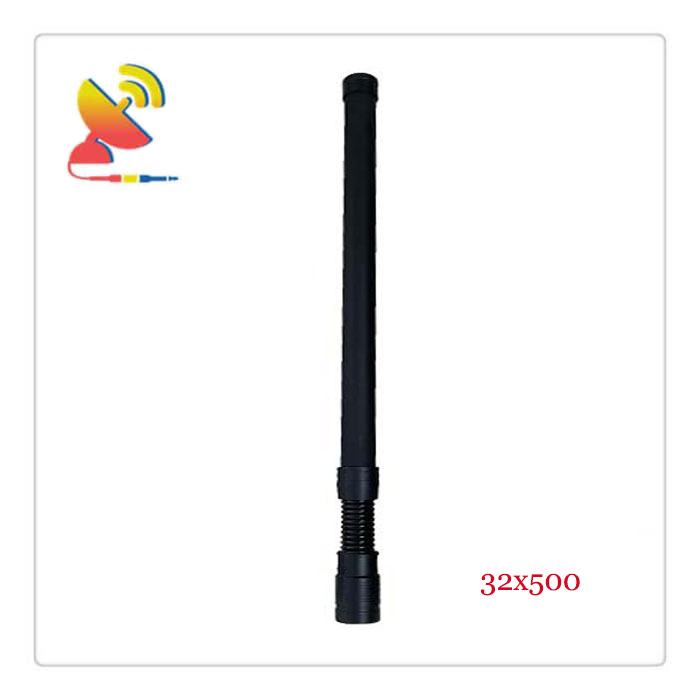

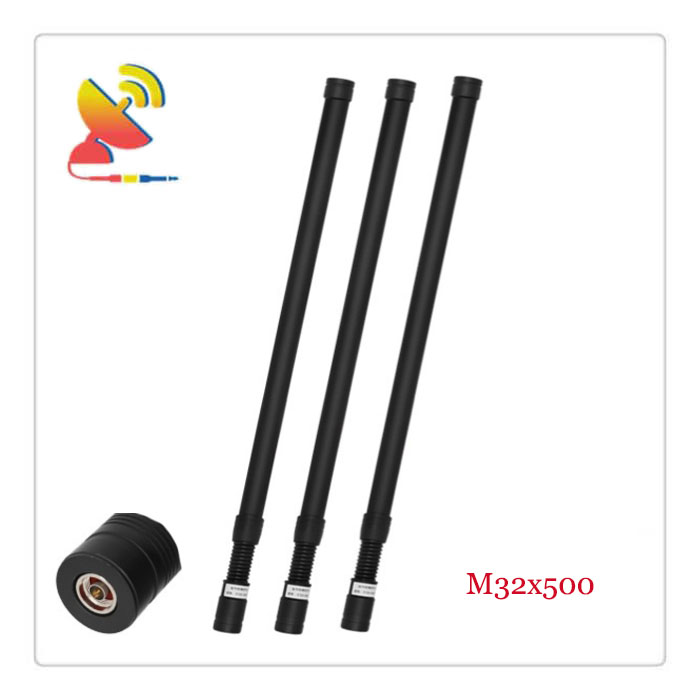

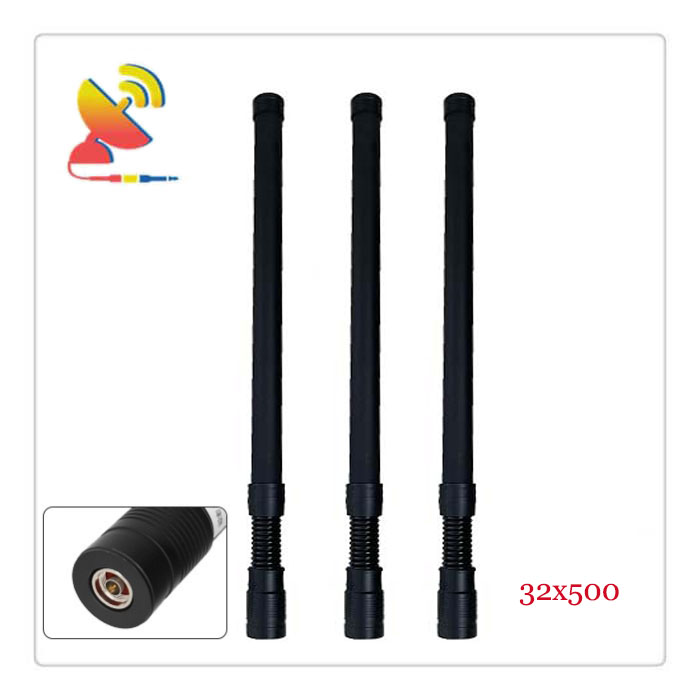

High-power 150W Drone Jamming Antennas ɸ32×500

What are the high-power 150W drone jamming antennas?

The high-power 150W drone jamming antennas are omnidirectional, operating across various RF frequency bands, and are manufactured by C&T RF Antennas Inc. for use in drone, FPV, and UAV applications.

The high-power 150W drone jamming antennas are developed to provide a range of high-power drone jamming antennas for the jammers against UAV drones working on GPS, 2.4GHz, 5GHz, and other frequencies.

In addition to the ɸ32×500 150W drone jamming antennas, C&T RF Antennas Inc. also provides the same high-power 150W Omni antennas with ɸ32×300, ɸ32×350, ɸ32×400,  ɸ32×600 signal jamming antennas, ɸ32×800 military jammer antennas,, ɸ32×1000 jammer spring antennas, ɸ32×1100, ɸ32×1200, ɸ32×1300, ɸ32×1500, ɸ32×1800, and ɸ32×2000, etc.



C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.

Besides the fiberglass antennas, C&T RF Antennas Inc. also offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.







Features of the high-power 150W drone jamming antennas

Broadband frequency coverage antennas

360-degree coverage omnidirectional antennas

150W high-power output antennas

Waterproof design antennas

UV-proof design antennas

Dust-proof design antennas

etc.







Applications of the high-power 150W drone jamming antennas

The high-power 150W drone jamming antennas are designed for detectors, jammers, and jamming devices, mostly used in drone, FPV, and UAV applications.







High-power 150W drone jamming antenna specifications

C&T RF Antennas Inc. offers high-power 150W drone jamming antennas compatible with various RF frequency bands. Below are some of the drone jamming antenna styles. If you are unable to obtain the one you need, don’t hesitate to contact our sales team for assistance.



Item: CTRF-ANTENNA-FBJA-2575-32500-NM

High-performance & High-power 150W (25-75 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 25-75 MHz

Gain: 1.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3088-32500-NM

High-performance & High-power 150W (30-88 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 30-88 MHz

Gain: 1.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-30100-32500-NM

High-performance & High-power 150W (30-100 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 30-100 MHz

Gain: 1.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-108200-32500-NM

High-performance & High-power 150W (108-200 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 108-200 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-130180-32500-NM

High-performance & High-power 150W (130-180 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 130-180 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-136174-32500-NM

High-performance & High-power 150W (136-174 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 136-174 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-150174-32500-NM

High-performance & High-power 150W (150-174 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 150-174 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-156162-32500-NM

High-performance & High-power 150W (156-162 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 156-162 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-170230-32500-NM

High-performance & High-power 150W (170-230 MHz) VHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 170-230 MHz

Gain: 1.8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3040-32500-NM

High-performance & High-power 150W (300-400 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 300-400 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3847-32500-NM

High-performance & High-power 150W (380-470 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-470 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3850-32500-NM

High-performance & High-power 150W (380-500 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-500 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3851-32510-NM

High-performance & High-power 150W (380-512 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-512 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3852-32500-NM

High-performance & High-power 150W (380-520 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 380-520 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-4048-32500-NM

High-performance & High-power 150W (400-480 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 400-480 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-4052-32500-NM

High-performance & High-power 150W (400-520 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 400-520 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-4145-32500-NM

High-performance & High-power 150W (410-450 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 410-450 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-0433-32500-NM

High-performance & High-power 150W 433 MHz UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency: 433 MHz

Gain: 3.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-6172-32500-NM

High-performance & High-power 150W (610-720 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 610-720 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-6580-32500-NM

High-performance & High-power 150W (650-800 MHz) LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 650-800 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-7080-32500-NM

High-performance & High-power 150W 700 MHz LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 700-800 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-70100-32500-NM

High-performance & High-power 150W (700-1000 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 700-1000 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-7288-32500-NM

High-performance & High-power 150W (720-880 MHz) LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 720-880 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-7487-32500-NM

High-performance & High-power 150W (740-870 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 740-870 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-7583-32500-NM

High-performance & High-power 150W (750-830 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 750-830 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-7983-32500-NM

High-performance & High-power 150W (790-830 MHz) LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 790-830 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-80102-32500-NM

High-performance & High-power 150W (800-1020 MHz) NTN Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 800-1020 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-8288-32500-NM

High-performance & High-power 150W 850 MHz LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 824-880 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-8590-32500-NM

High-performance & High-power 150W CDMA 900 Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 850-895 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-0868-32500-NM

High-performance & High-power 150W 868 MHz ISM Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency: 868 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-8693-32500-NM

High-performance & High-power 150W (860-930 MHz) LoRa Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 860-930 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-86102-32500-NM

High-performance & High-power 150W (860-1020 MHz) LoRa Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 860-1020 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-0915-32500-NM

High-performance & High-power 150W 915 MHz ISM Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency: 915 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-9296-32500-NM

High-performance & High-power 150W (920-960 MHz) LoRa Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 920-960 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-92102-32500-NM

High-performance & High-power 150W (920-1020 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 920-1020 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-95105-32500-NM

High-performance & High-power 150W (950-1050 MHz) GSM Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 950-1050 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1100-32500-NM

High-performance & High-power 150W 1.1 GHz S-band Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1100-1200 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1112-32500-NM

High-performance & High-power 150W (1160-1280 MHz) L-band Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1160-1280 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1116-32500-NM

High-performance & High-power 150W (1160-1610 MHz) GNSS Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1160-1610 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1200-32500-NM

High-performance & High-power 150W 1.2 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1200-1300 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1214-32500-NM

High-performance & High-power 150W 1.2-1.4 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1200-1400 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1300-32500-NM

High-performance & High-power 150W 1.3 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1300-1400 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1314-32500-NM

High-performance & High-power 150W (1380-1480 MHz) UHF Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1380-1480 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1400-32500-NM

High-performance & High-power 150W 1.4 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1400-1500 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1415-32500-NM

High-performance & High-power 150W (1420-1530 MHz) GNSS Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1420-1530 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1500-32500-NM

High-performance & High-power 150W 1.5 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1500-1600 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1516-32500-NM

High-performance & High-power 150W (1540-1630 MHz) GNSS Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1540-1630 MHz

Gain: 4.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1700-32500-NM

High-performance & High-power 150W 1.7 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1700-1800 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1800-32500-NM

High-performance & High-power 150W (1800-1900 MHz) GSM Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1800-1900 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1818-32500-NM

High-performance & High-power 150W (1800-1880 MHz) GSM Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1800-1880 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-18199-32500-NM

High-performance & High-power 150W (1805-1990 MHz) GSM Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1805-1990 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1819-32500-NM

High-performance & High-power 150W (1800-1920 MHz) LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1800-1920 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-1900-32500-NM

High-performance & High-power 150W 1.9 GHz GSM, LTE, PCS Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 1900-2000 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2100-32500-NM

High-performance & High-power 150W 2.1 GHz LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2100-2200 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2121-32500-NM

High-performance & High-power 150W (2110-2180 MHz) 3G Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2110-2180 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2224-32500-NM

High-performance & High-power 150W 2.2-2.4 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2200-2400 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2300-32500-NM

High-performance & High-power 150W 2.3 GHz LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2300-2400 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2325-32500-NM

High-performance & High-power 150W 2.3-2.5 GHz LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2300-2500 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2450-32500-NM

High-performance & High-power 150W 2.4 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2400-2500 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2527-32500-NM

High-performance & High-power 150W 2.5-2.7 GHz LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2500-2700 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2626-32500-NM

High-performance & High-power 150W (2620-2690 MHz) LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2620-2690 MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3436-32500-NM

High-performance & High-power 150W 3.4-3.6 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 3400-3600 MHz

Gain: 7dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3338-32500-NM

High-performance & High-power 150W CBRS 3.3-3.8 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 3300-3800 MHz

Gain: 7dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-3442-32500-NM

High-performance & High-power 150W CBRS 3.4-4.2 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 3400-4200 MHz

Gain: 7dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-5158-32500-NM

High-performance & High-power 150W WiFi 5.15-5.85 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 5150-5850 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-5758-32500-NM

High-performance & High-power 150W (5725-5850 MHz) 5.8 GHz Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 5725-5850 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-82600-32500-NM

High-performance & High-power 150W (824-6000 MHz) LTE Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 824-6000 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







Item: CTRF-ANTENNA-FBJA-2458-32500-NM

High-performance & High-power 150W 2.4 GHz 5 GHz WiFi Drone Jamming Antenna

Specifications:

Material: Glass fiber

Frequency range: 2400-2500 MHz; 5150-5850 MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: N-type male

Color: Black

Dimension: ɸ32×500

Mounting: Screw







The high-power 150W Omni drone jamming antenna features and applications















Different types of Omni jammer antennas
