C&T RF Antennas Inc. manufactures a series of WiFi PCB 2.4 GHz 5GHz antennas. The internal PCB antennas for 2.4/5GHz dual-band applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the WiFi PCB 2.4 GHz 5GHz antennas, such as the dual-band WiFi antenna datasheet, 2.4/5GHz antenna pricing, and 2.4 GHz 5GHz antenna inventory.
Or other internal-external dual-band WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance WiFi PCB 2.4 GHz 5GHz antennas are embedded/internal/built-in rigid printed circuit board antennas specifically designed for 2.4/5 GHz wireless antennas manufactured by C&T RF Antennas Inc. for all WiFi wireless communication applications.
The dual-band WiFi PCB 2.4 GHz 5GHz antennas allow a device to connect to both the 2.4 GHz and 5 GHz frequency bands of a WiFi network.
Besides the high-performance WiFi PCB 2.4 GHz 5GHz antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz PCB antennas, 4G/LTE PCB antennas, 5G NR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Ground-plane-independent design
High radiation efficiency antenna
Compact rigid PCB antenna
Poly-flexible, double-sided adhesive tape
Omnidirectional pattern
etc.
2.4G & 5.8GHz WLAN system
Wi-Fi telecommunication system
Point-to-multipoint applications
Wireless AP/adapter/bridge
etc.

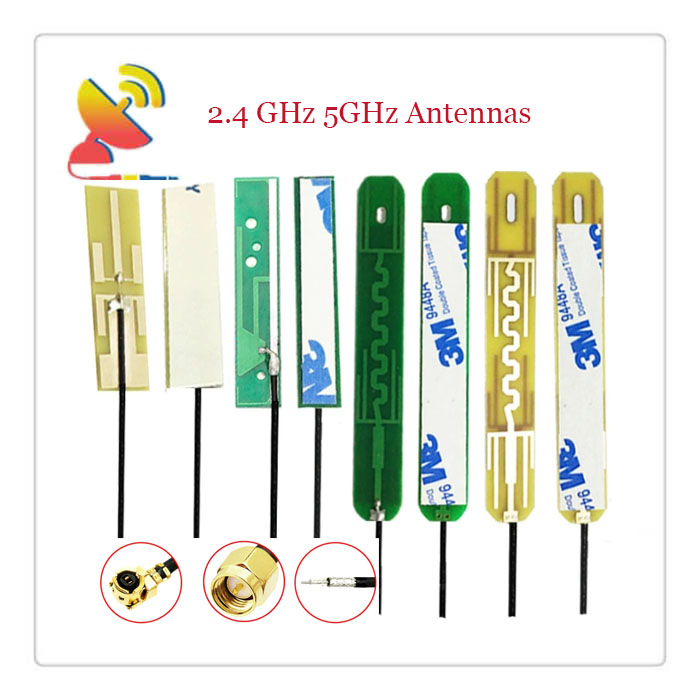

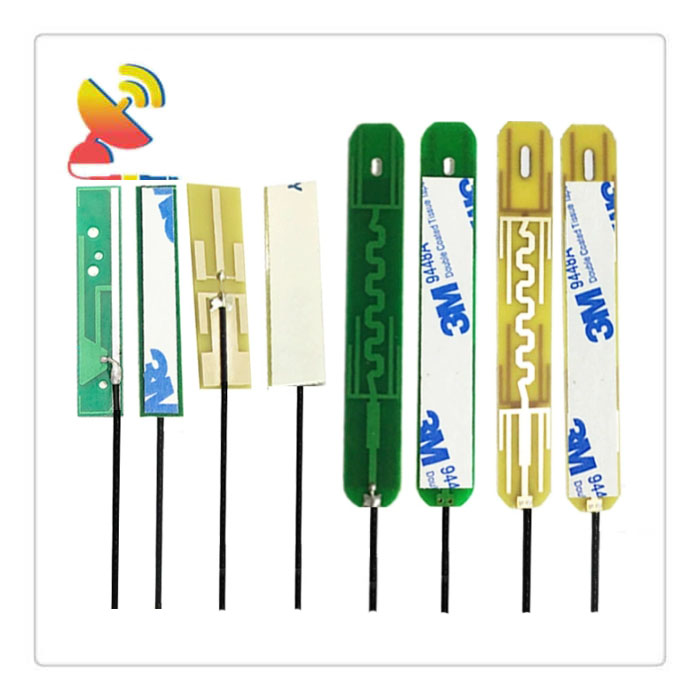

C&T RF Antennas Inc. provides high-performance WiFi PCB 2.4 GHz 5GHz antennas. Below are some of the styles of 2.4 GHz/5 GHz WiFi PCB antennas.

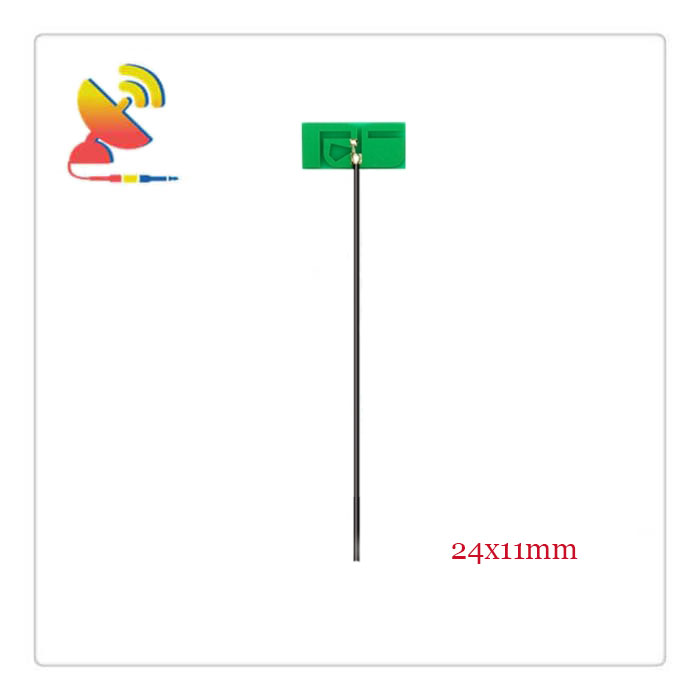

Item: CTRF-ANTENNA-PCB-2458-2411-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ24x11mm

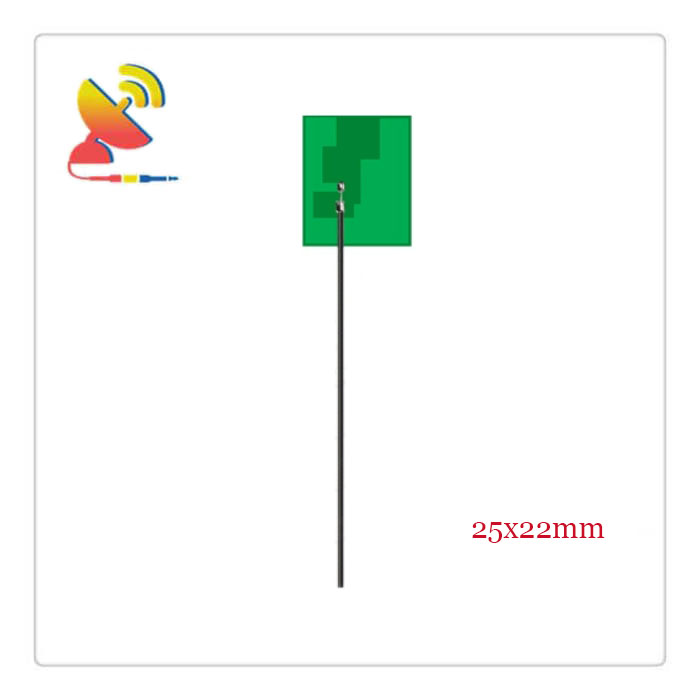

Item: CTRF-ANTENNA-PCB-2458-2522-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ25x22mm

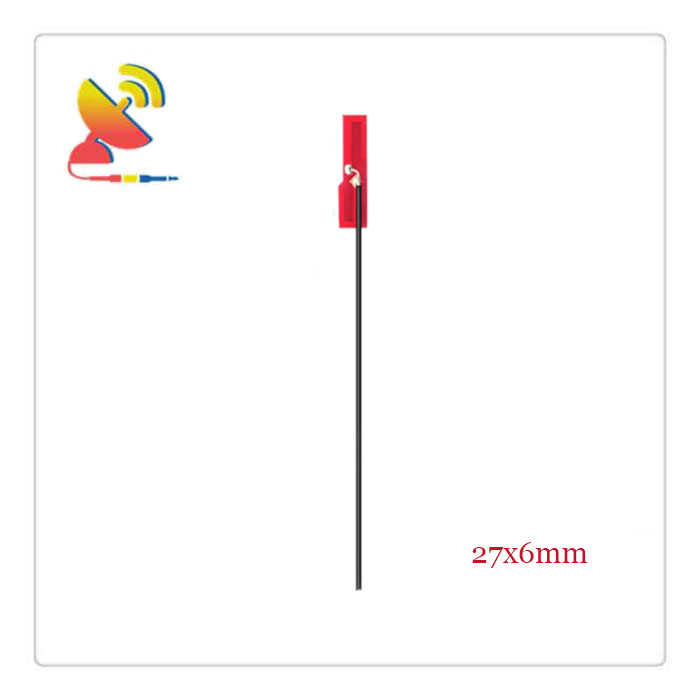

Item: CTRF-ANTENNA-PCB-2458-2706-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Red
Dimension: Φ27x6mm

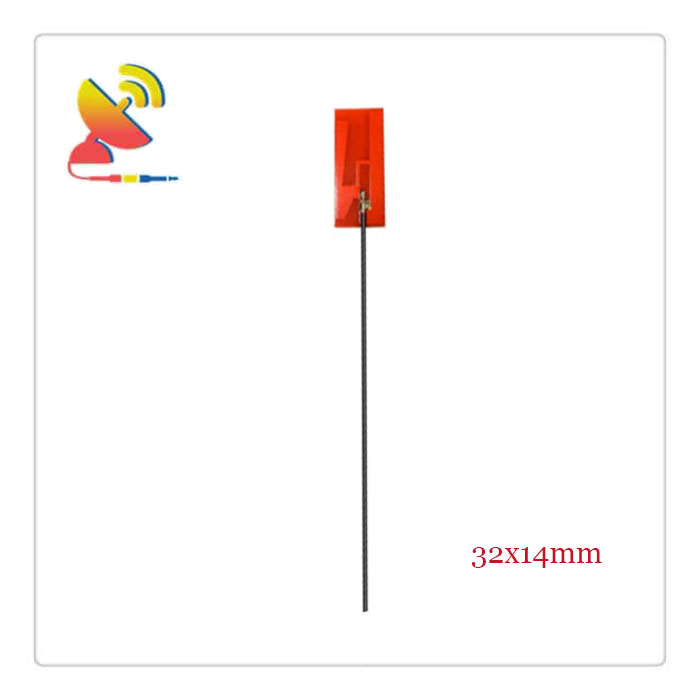

Item: CTRF-ANTENNA-PCB-2458-3214-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Red
Dimension: Φ32x14mm
Item: CTRF-ANTENNA-PCB-2458-3507-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ35x7mm

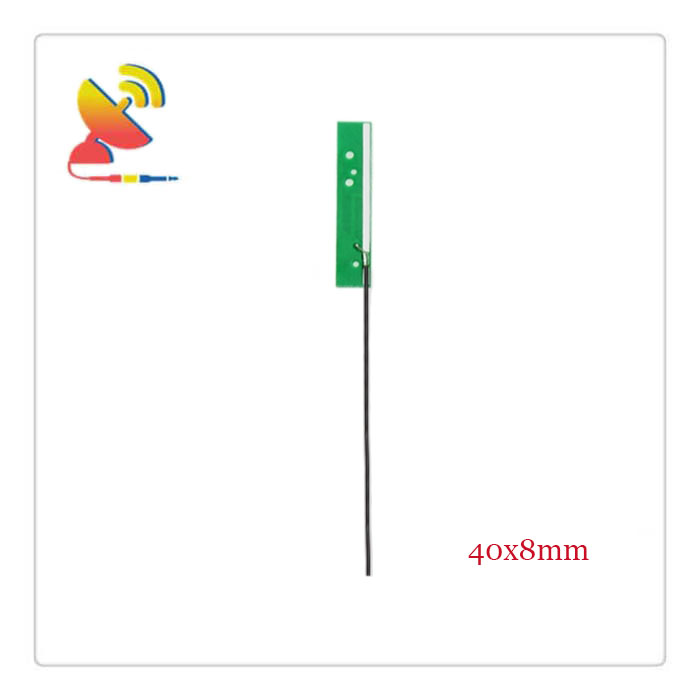

Item: CTRF-ANTENNA-PCB-2458-4008-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ40x8mm
Item: CTRF-ANTENNA-PCB-2458-4112-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ41.5x12mm

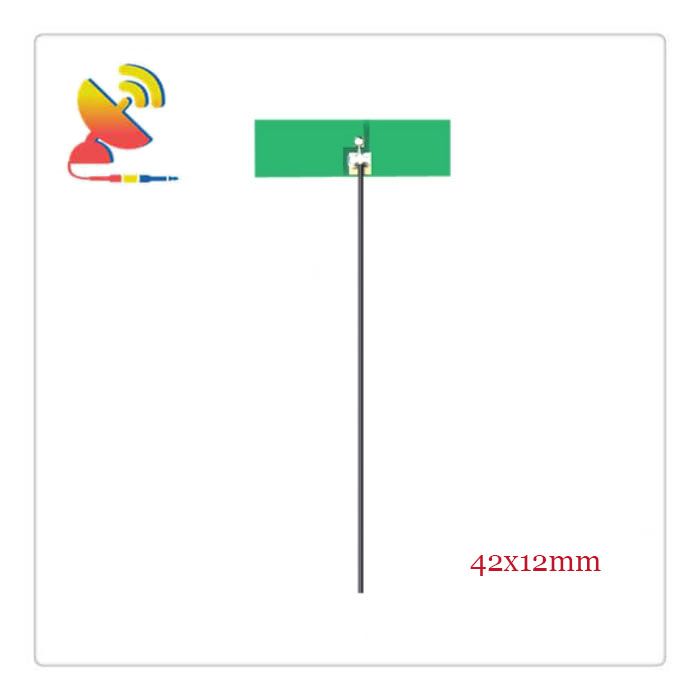

Item: CTRF-ANTENNA-PCB-2458-4212-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ42x12mm

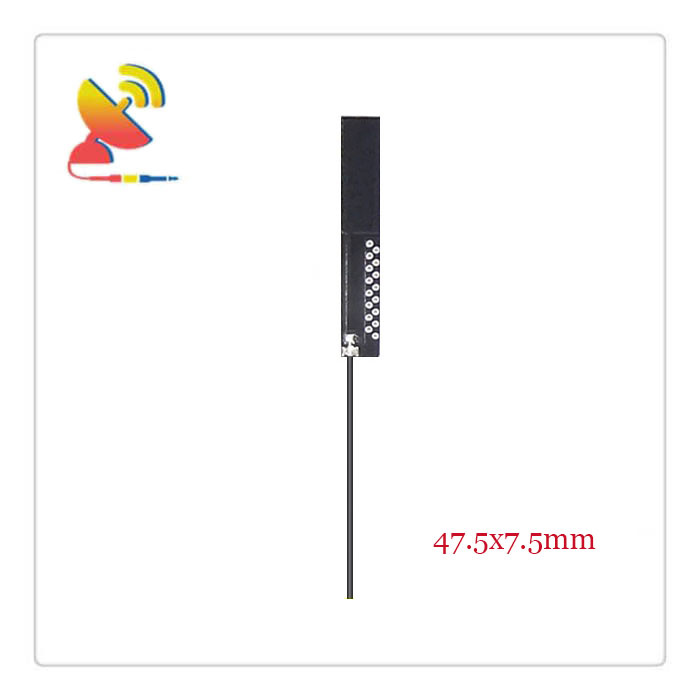

Item: CTRF-ANTENNA-PCB-2458-4707-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ47.5×7.5mm

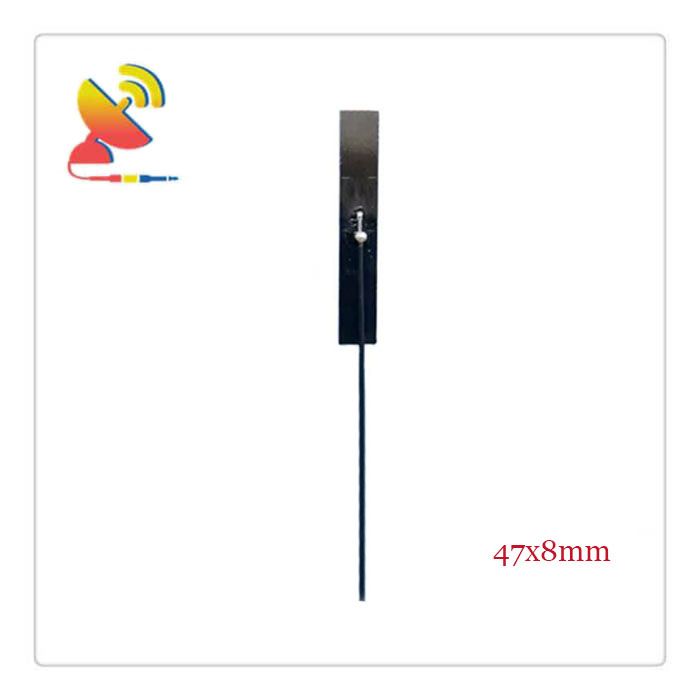

Item: CTRF-ANTENNA-PCB-2458-4708-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ47x8mm

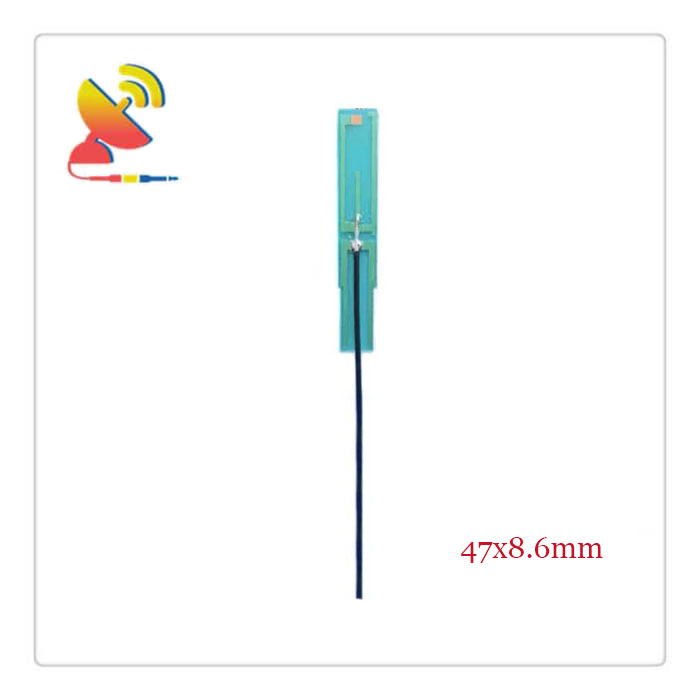

Item: CTRF-ANTENNA-PCB-2458-4709-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ47×8.6mm

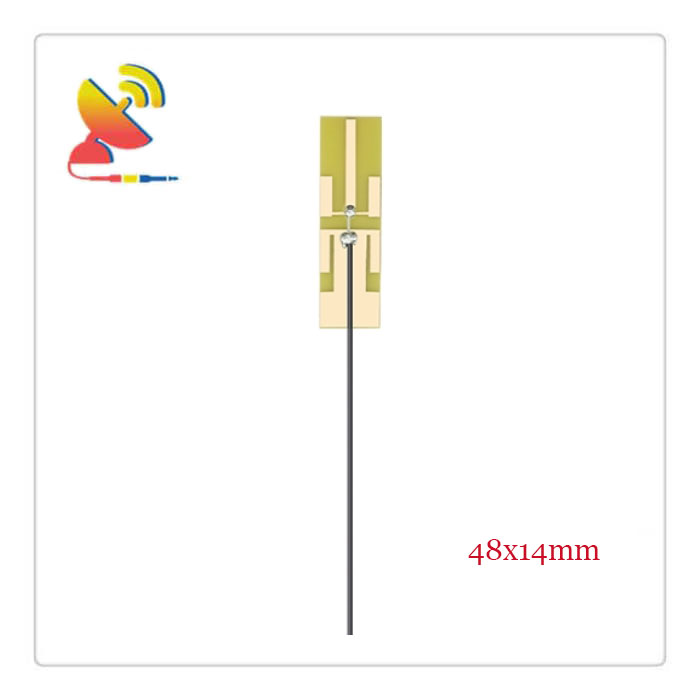

Item: CTRF-ANTENNA-PCB-2458-4814-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Brown
Dimension: Φ48x14mm
Item: CTRF-ANTENNA-PCB-2458-4908-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ49x8mm

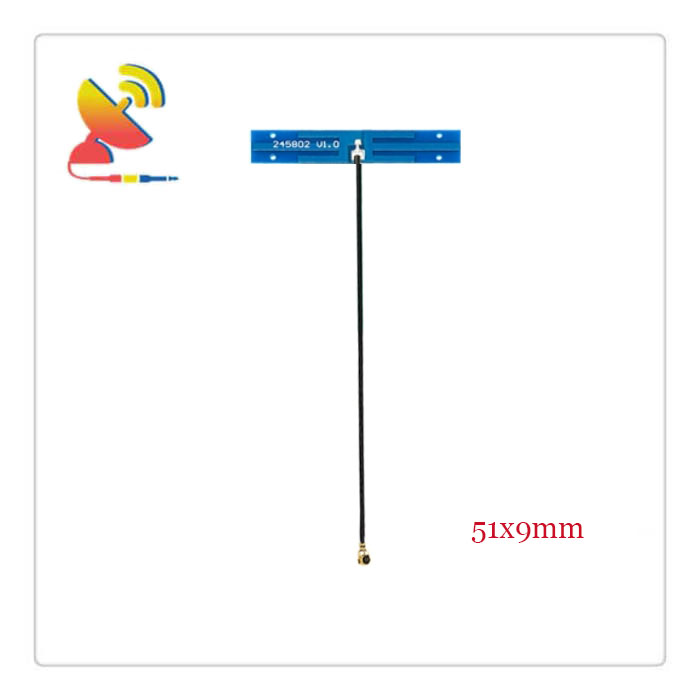

Item: CTRF-ANTENNA-PCB-2458-5109-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Blue
Dimension: Φ51x9mm

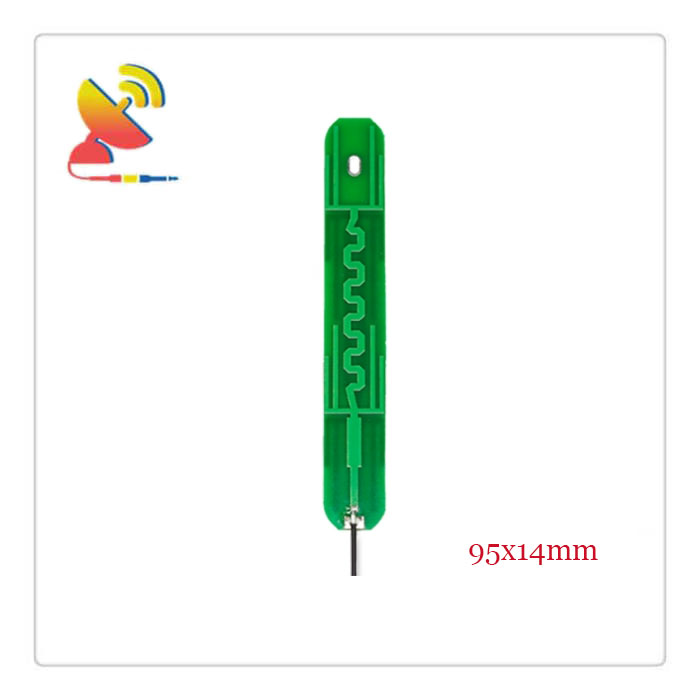

Item: CTRF-ANTENNA-PCB-2458-9514G-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ95x14mm

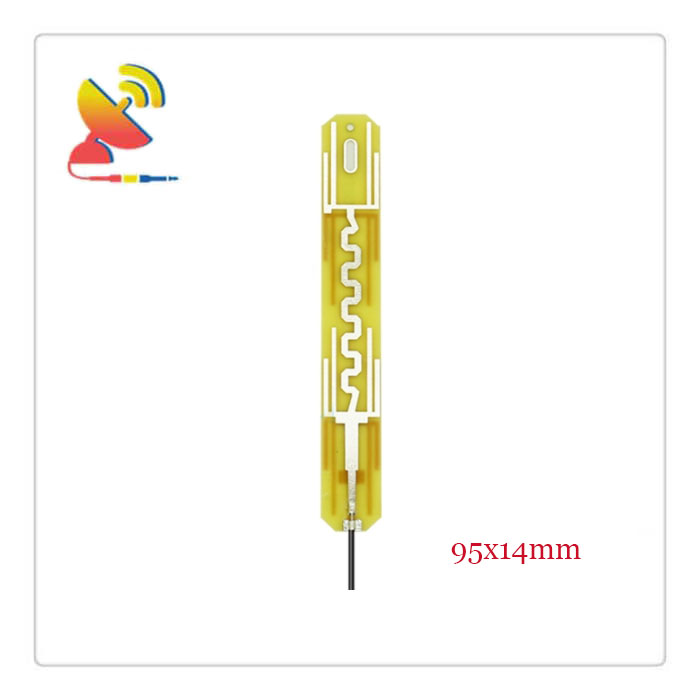

Item: CTRF-ANTENNA-PCB-2458-9514Y-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Yellow
Dimension: Φ95x14mm

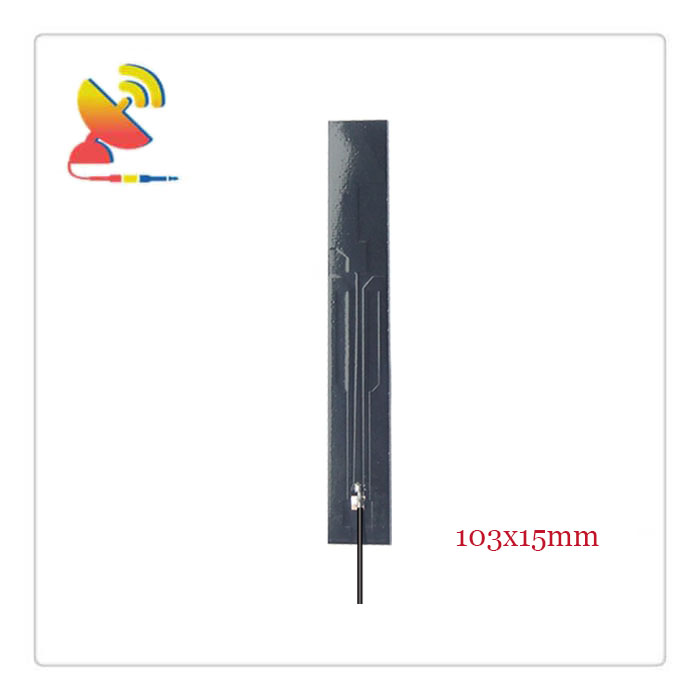

Item: CTRF-ANTENNA-PCB-2458-10315-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz, 5150-5800MHz
Gain: 8/10dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ103x15mm

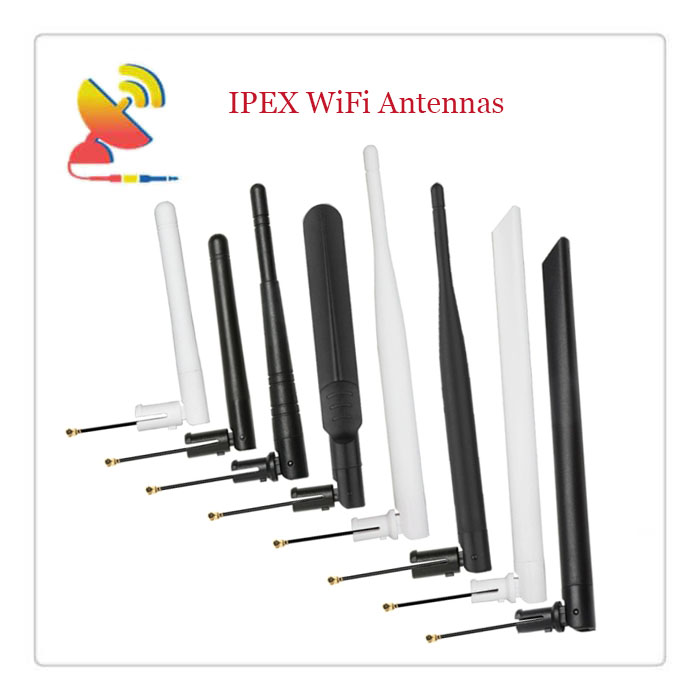

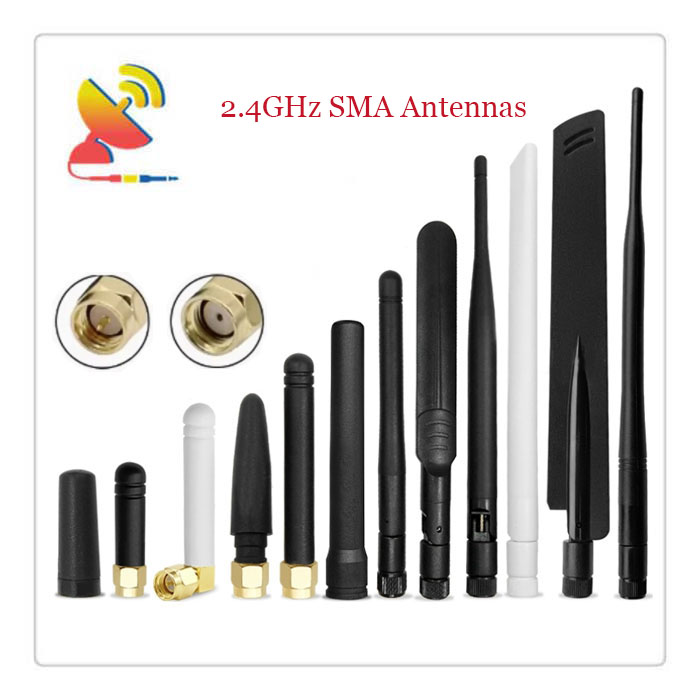

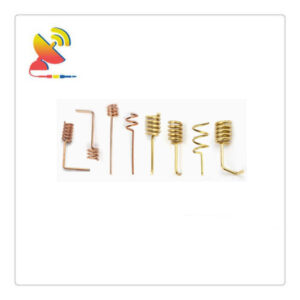

Besides the PCB antennas, C&T RF Antennas Inc. also offers 2.4/5GHz dual-band WiFi antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas, internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
