C&T RF Antennas Inc. manufactures a range of high-performance WiFi adhesive mount antennas for all Wi-Fi, Bluetooth/Sigfox applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance WiFi adhesive mount antennas, including the 2.4 GHz, 2.4/5.8GHz adhesive antenna datasheet, pricing information, and inventory availability for WiFi antennas.
Or other internal-external WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance WiFi adhesive mount antennas are 2.4 GHz single-band and 2.4/5GHz dual-band external antennas designed for all wireless LNA applications. The WiFi adhesive mount antennas manufactured by C&T RF Antennas Inc. are suitable for applications such as WiFi, Bluetooth, Zigbee, and Sigfox. The high-performance WiFi adhesive mount antennas are flat patch antennas with an adhesive mount externally on the devices.
The high-performance single-band WiFi adhesive mount antennas are designed to operate from 2.4 GHz to 2.5 GHz, and are used in IoT, automotive, industrial, and medical applications.
The high-performance dual-band WiFi adhesive mount antennas are designed to operate from 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.85 GHz, which eliminates the need to purchase different antennas for each frequency.
In addition to the WiFi adhesive mount antennas, C&T RF Antennas Inc. offers 433 MHz adhesive patch antennas, 4G LTE patch antennas, NB-IoT/LTE-M adhesive blade antennas, 5G NR patch antennas, GPS/GNSS patch antennas, and 860-960MHz UHF RFID LoRa GSM adhesive antennas.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
The high-performance WiFi adhesive mount antennas with WIFI frequency 2.4GHz/5GHz are ideal for WiFi, WiMAX, and Bluetooth Signal boosting routers, CPE, etc.
The high-performance WiFi adhesive mount antennas with wide applications are used for Mini PCIe Wireless Card Routers, Repeater, Range Extender, Desktop PC, Mini ITX Build, PCI Card, FPV UAV Drone, etc.
The high-performance WiFi adhesive mount antennas with adhesive mount are ideal for use indoors, through walls in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile external antenna.
etc.
The C&T RF antennas Inc. is a provider of throughput-optimized antenna systems and performance validation services, enabling high-performance wireless connectivity globally for in-home, enterprise, and M2M applications. The high-performance WiFi adhesive mount antennas are used for the following applications.
Wireless LAN
Residential Gateway & Set Top Boxes
Connected Home / IoT and M2M
Industrial IoT (IIoT)
Small Cell Antenna Systems
Automotive & Fleet Connectivity
Low Power Wide Area Networks
Smart TV
The World Unwired
etc.

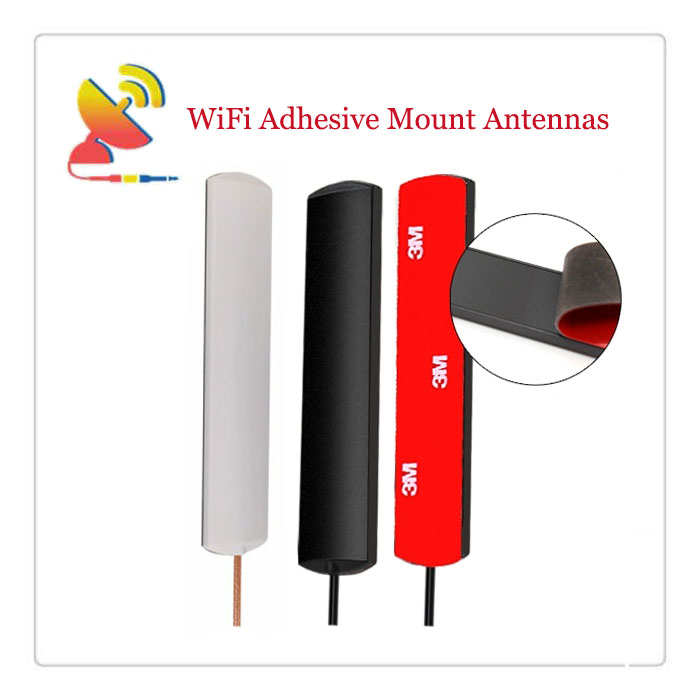

C&T RF Antennas Inc. provides high-performance WiFi adhesive mount antennas. Below are some examples of WiFi antenna styles.

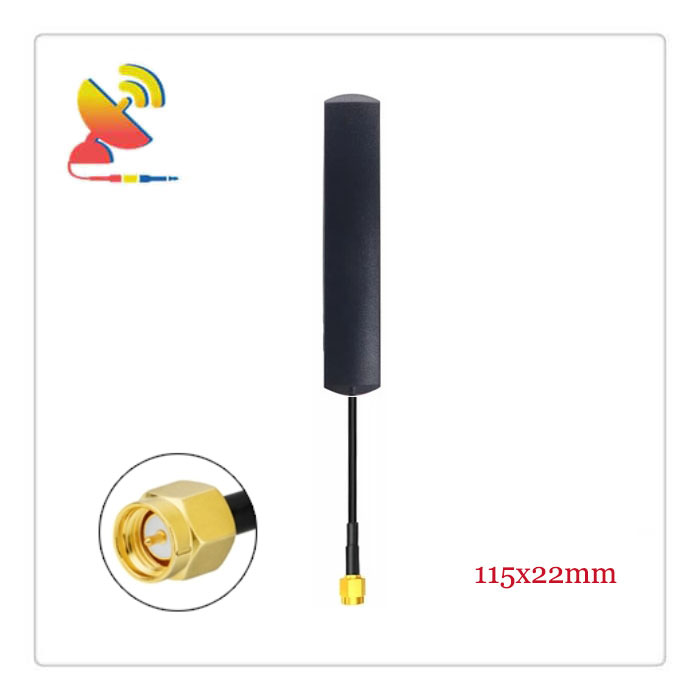

Item: CTRF-ANTENNA-PA-2450-11522-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ115x22x4.5mm
Mounting: Adhesive

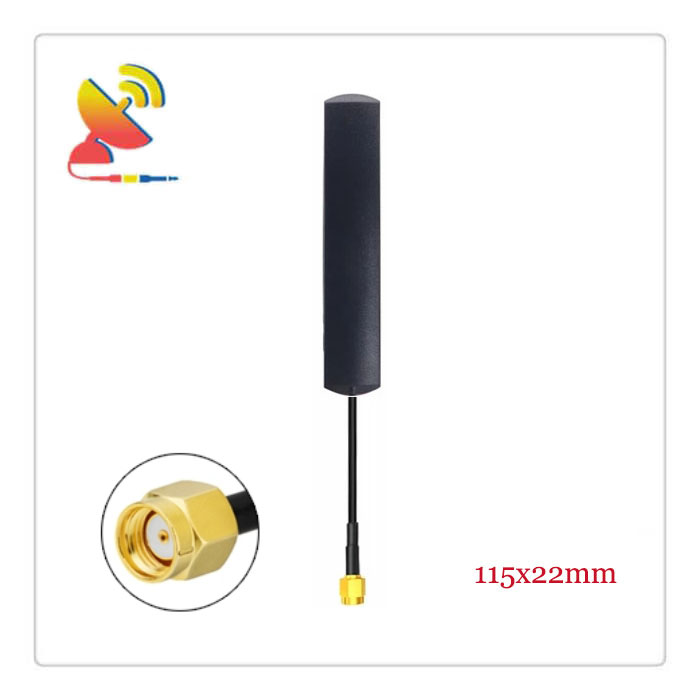

Item: CTRF-ANTENNA-PA-2450-11522-RPSMA
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ115x22x4.5mm
Mounting: Adhesive
Item: CTRF-ANTENNA-PA-2450-11522-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX1/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: Black
Dimension: Φ115x22x4.5mm
Mounting: Adhesive

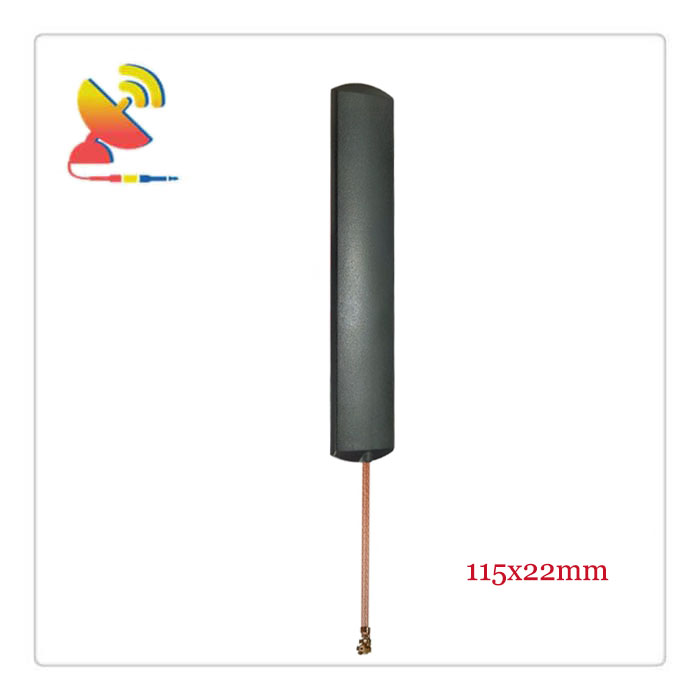

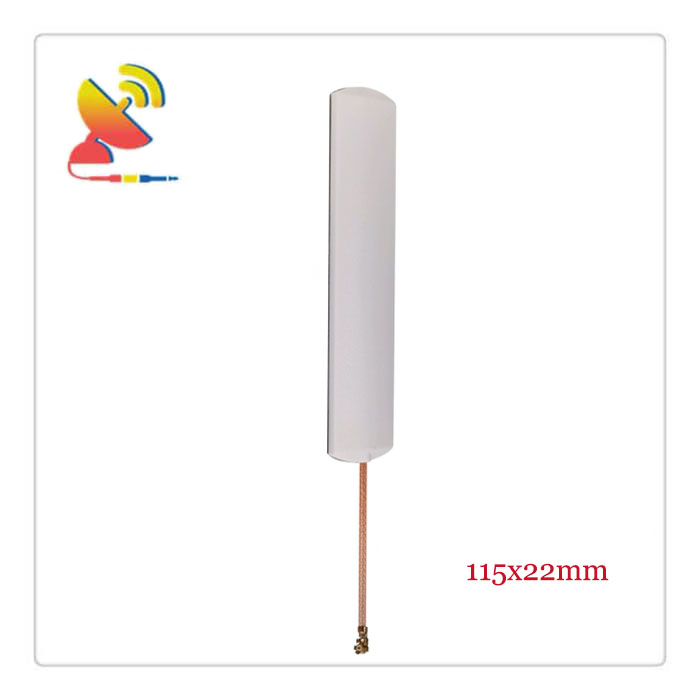

Item: CTRF-ANTENNA-PA-2450-11522W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX1/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: White
Dimension: Φ115x22x4.5mm
Mounting: Adhesive
Item: CTRF-ANTENNA-PA-2450-12522-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: White
Dimension: Φ125x22mm
Mounting: Adhesive

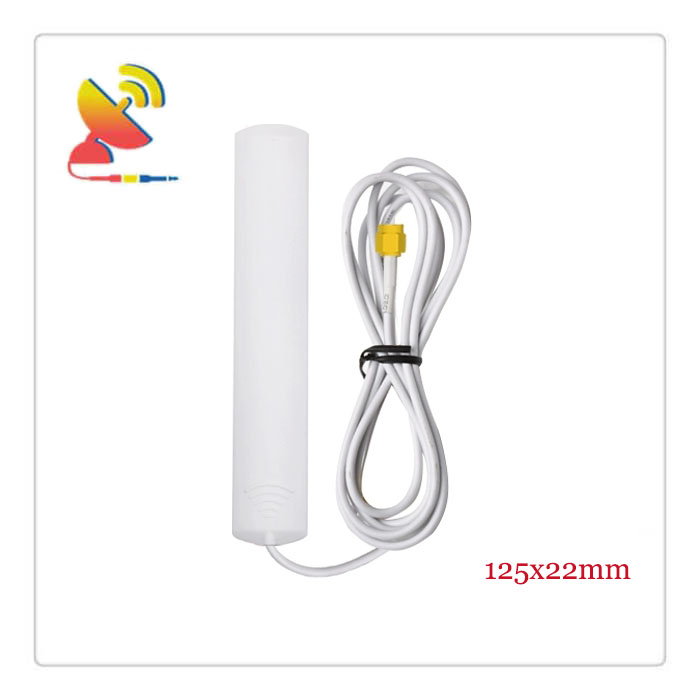

Item: CTRF-ANTENNA-PA-2450-12522W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: White
Dimension: Φ125x22mm
Mounting: Adhesive

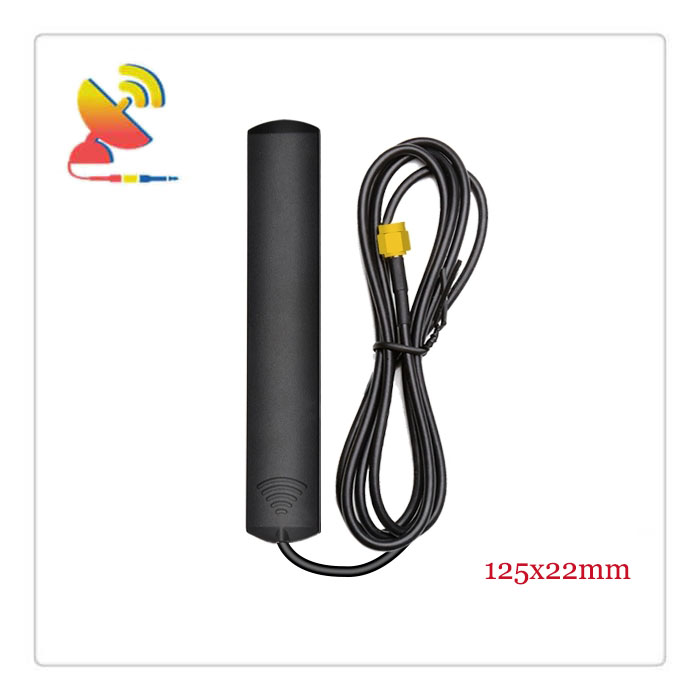

Item: CTRF-ANTENNA-PA-2458-12522W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 2400-2500 MHz, 5150-5850 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: White
Dimension: Φ125x22mm
Mounting: Adhesive
Besides the adhesive mount antennas, C&T RF Antennas Inc. also offers WiFi/Bluetooth antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
