High-performance SMA WiFi Antenna 2.4 GHz

What are the 2.4 GHz SMA WiFi Antennas?

The high-performance 2.4 GHz SMA WiFi antennas are SMA male plug rubber duck antennas specifically designed for 2.4 to 2.5 GHz wireless antennas manufactured by C&T RF Antennas Inc. for all 2.4 GHz bands such as WiFi, Bluetooth, Zigbee, Sigfox, etc.

The high-performance 2.4 GHz SMA WiFi antennas have a 1dBi to 15dBi high gain, 2400- 2500MHz frequency band, and an SMA male plug connector for choice.

Besides the high-performance 2.4 GHz SMA WiFi antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, SMA GPS antennas, dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas

Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.

C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.





The features of the 2.4 GHz SMA WiFi antennas

Omnidirectional design

Signal stabilization

Strong anti-jamming capability

Compact and lightweight

Cost-effective

Adaptable

etc.



Applications of High-performance 2.4 GHz SMA WiFi Antennas

The 2.4 GHz SMA WiFi antennas are widely used in Wi-Fi devices, Bluetooth devices, wireless CCTV cameras, and other wireless communication fields, providing stable and efficient wireless signal transmission services for these devices.

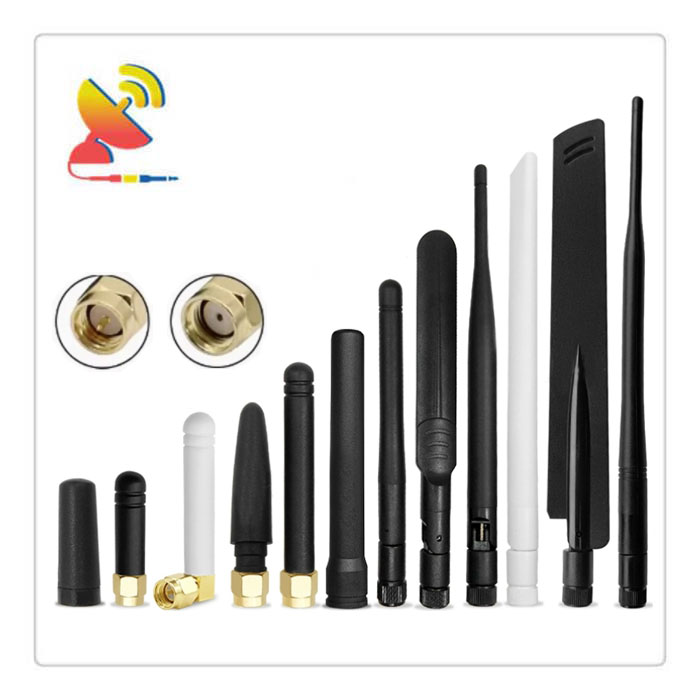

Types of High-performance 2.4 GHz SMA WiFi Antennas

C&T RF Antennas Inc. provides high-performance 2.4 GHz SMA WiFi antennas. Below are some of the styles of 2.4 GHz SMA WiFi antennas.

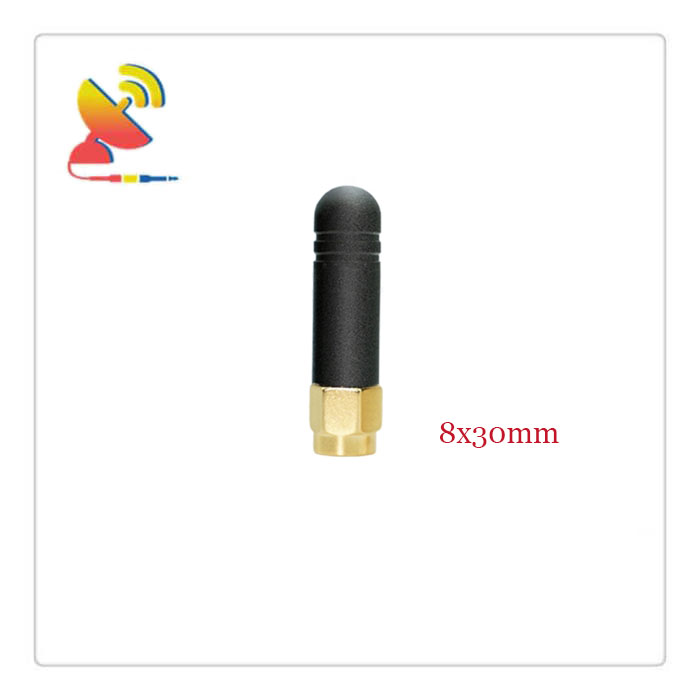

Item: CTRF-ANTENNA-AP-2450-0830-SMA

High-performance Small 2.4 GHz Antenna SMA Male Plug Connector

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ8x30mm

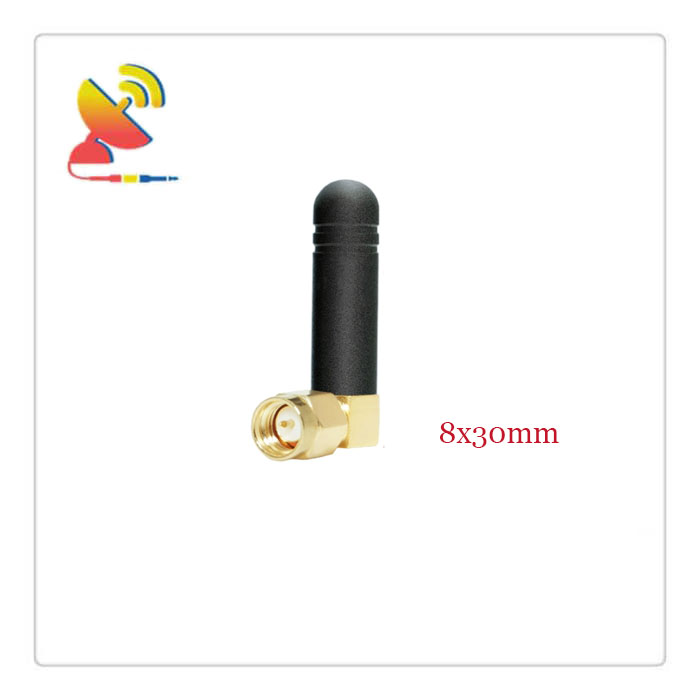

Item: CTRF-ANTENNA-AP-2450-0830-SMAW

High-performance Small Wi-Fi Antenna SMA Connector Right-Angle

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ8x30mm

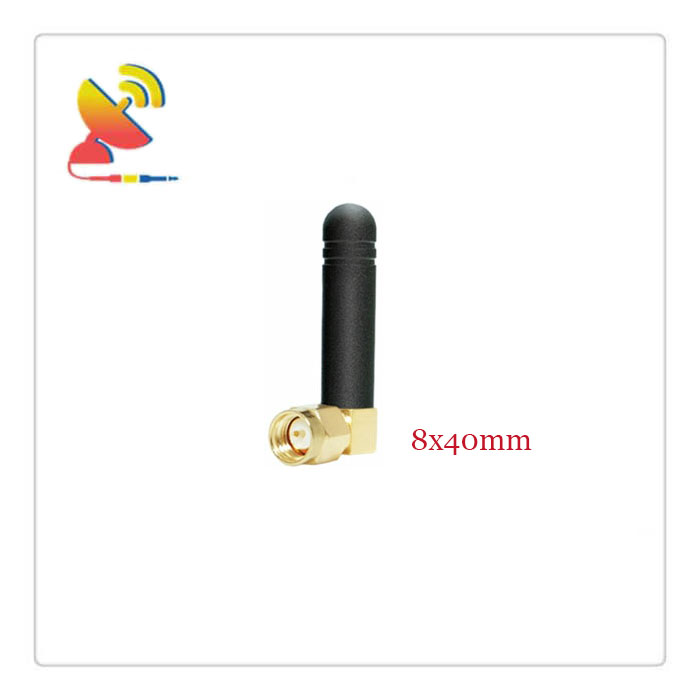

Item: CTRF-ANTENNA-AP-2450-0840-SMAW

High-performance MINI SMA 2.4 GHz Rubber Duck Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ8x40mm

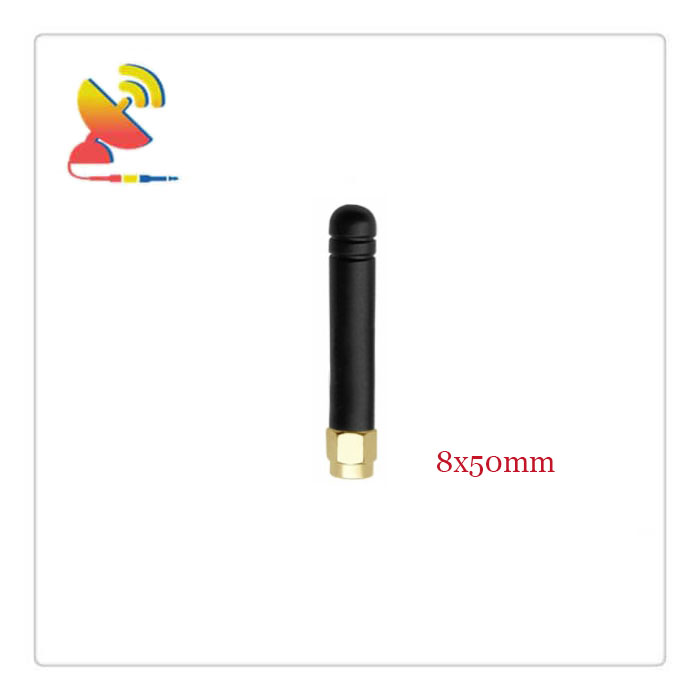

Item: CTRF-ANTENNA-AP-2450-0850B-SMA

High-performance SMA Antenna Wifi Bluetooth Rubber Duck Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ8x50mm

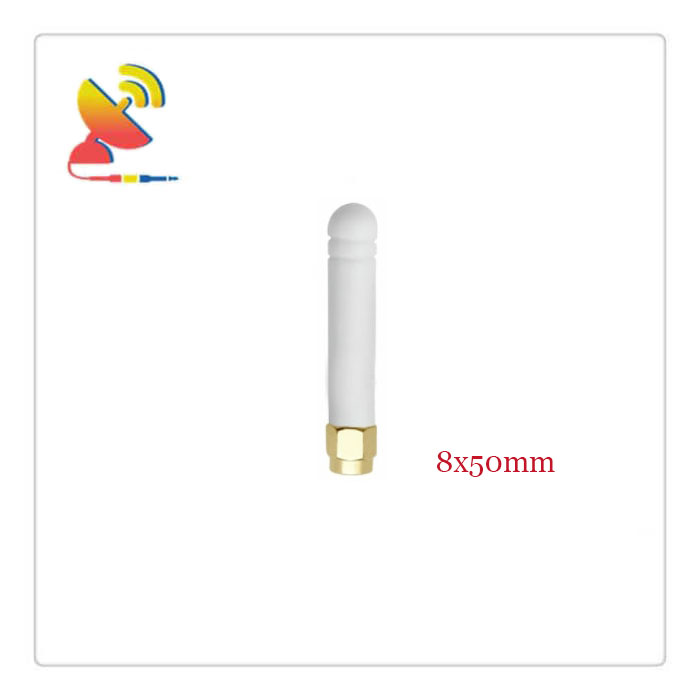

Item: CTRF-ANTENNA-AP-2450-0850W-SMA

High-performance Omnidirectional Small SMA Male Wi-Fi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ8x50mm

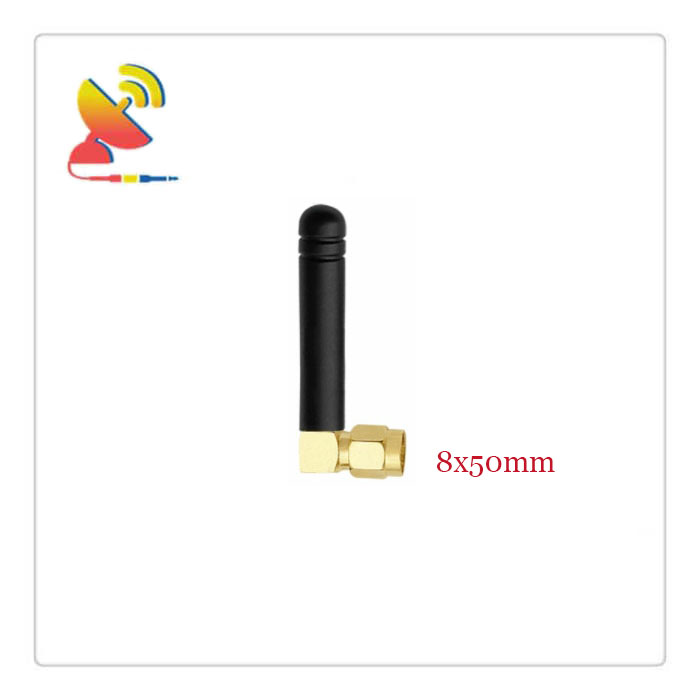

Item: CTRF-ANTENNA-AP-2450-0850B-SMAW

High-performance Small 2.4 GHz Bluetooth Wi-Fi SMA Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ8x50mm







Item: CTRF-ANTENNA-AP-2450-0850W-SMAW

High-performance SMA Antenna 2.4 GHz Rubber Duck Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: White

Dimension: Φ8x50mm

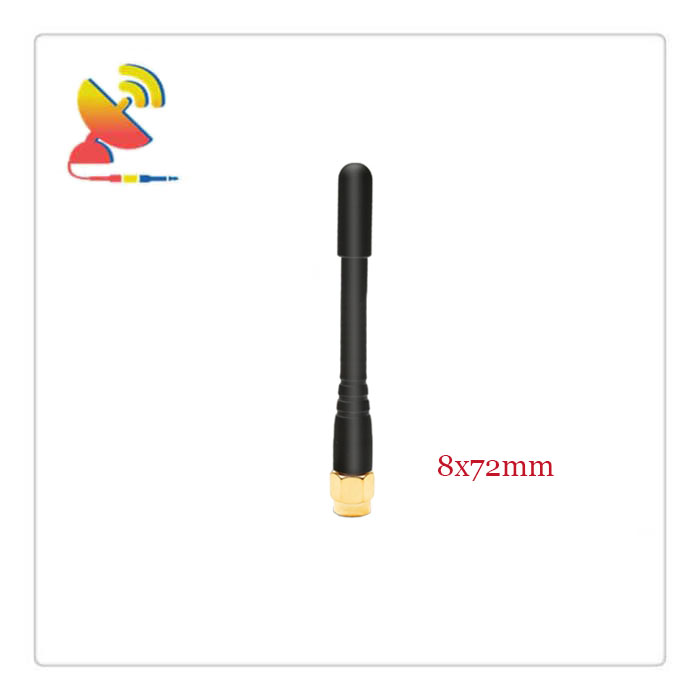

Item: CTRF-ANTENNA-AP-2450-0872-SMA

High-performance External SMA Male Wi-Fi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ8x72mm

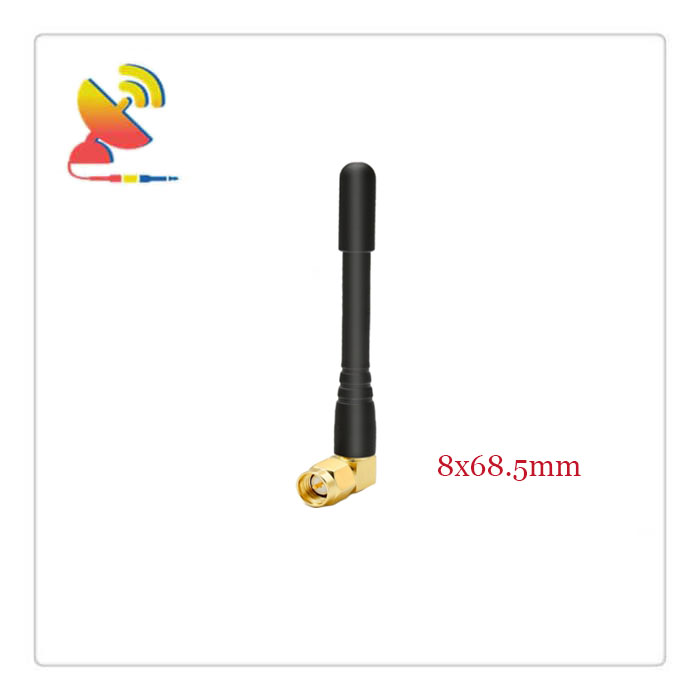

Item: CTRF-ANTENNA-AP-2450-0868-SMAW

High-performance SMA Male Connector 2.4 GHz Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ8×68.5mm

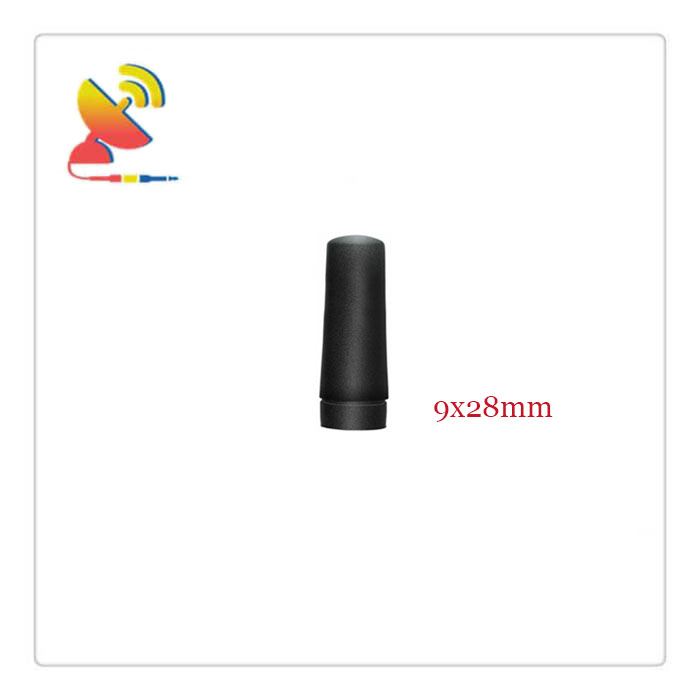

Item: CTRF-ANTENNA-AP-2450-0928B-SMA

High-performance MINI SMA 2.4 GHz Rubber Duck Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ9x28mm

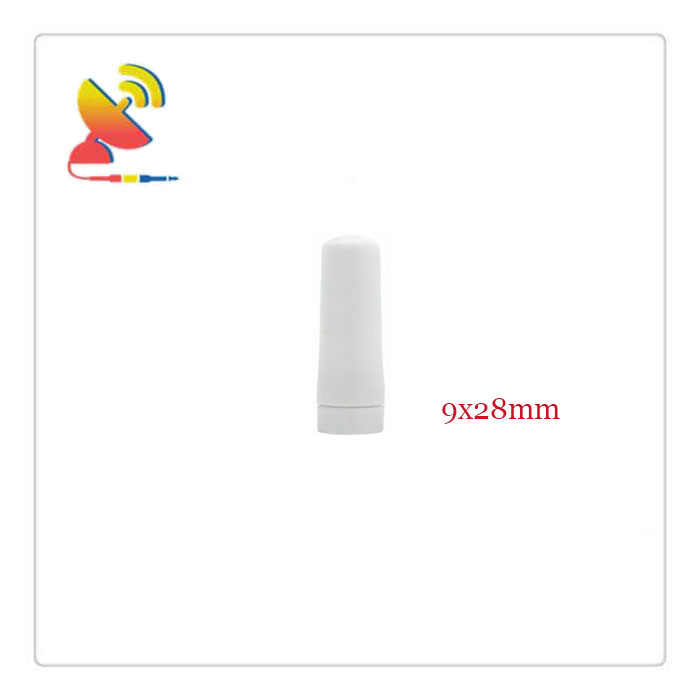

Item: CTRF-ANTENNA-AP-2450-0928W-SMA

High-performance MINI SMA WiFi Rubber Duck Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ9x28mm

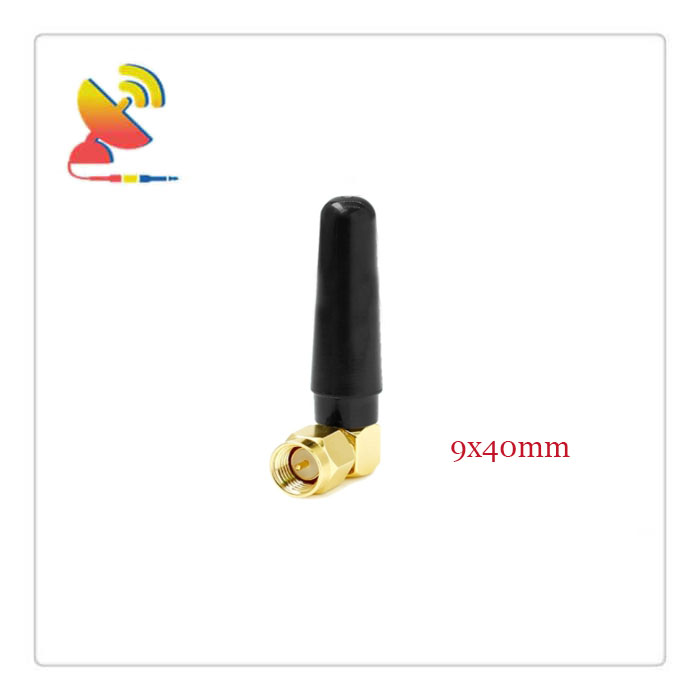

Item: CTRF-ANTENNA-AP-2450-0940-SMAW

High-performance 2.4 GHz Wifi Bluetooth SMA Male Rubber Duck Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ9x40mm

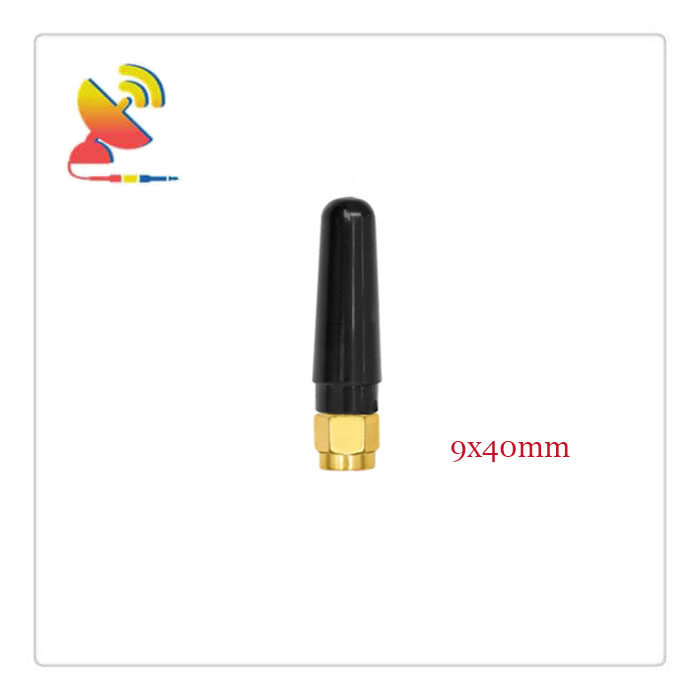

Item: CTRF-ANTENNA-AP-2450-0940-SMA

High-performance External SMA Antenna WiFi Bluetooth Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ9x40mm

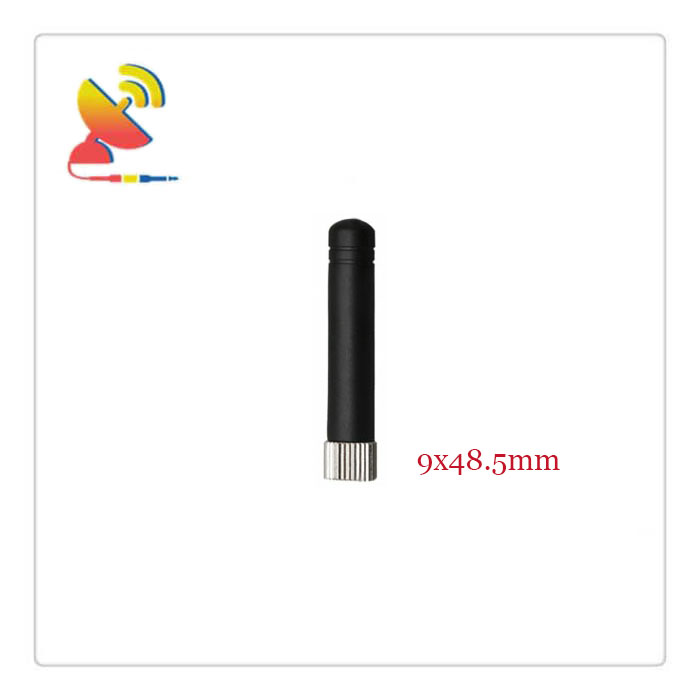

Item: CTRF-ANTENNA-AP-2450-0948-SMA

High-performance Small SMA Wifi Bluetooth Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ9×48.5mm

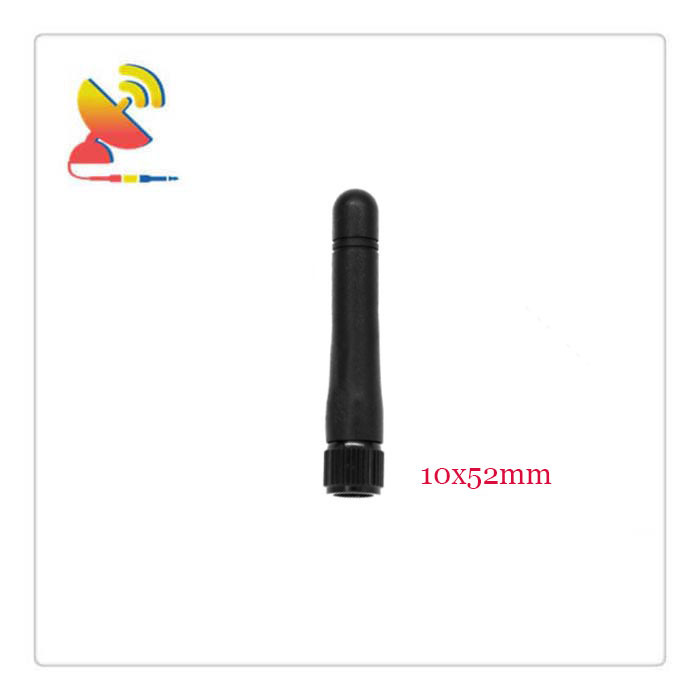

Item: CTRF-ANTENNA-AP-2450-1052B-SMAS

High-performance External 2.4 GHz Antenna SMA Male Omni Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x52mm

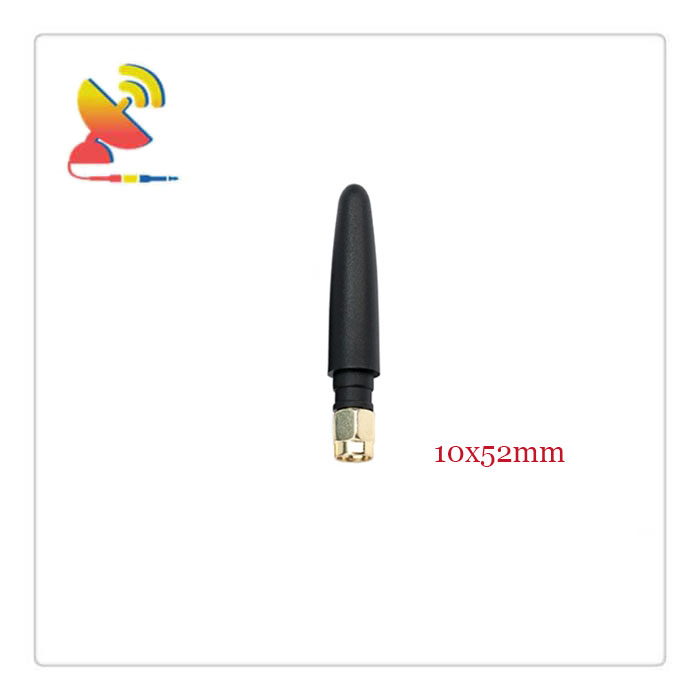

Item: CTRF-ANTENNA-AP-2450-1052B-SMA

High-performance SMA Wireless Antenna Wifi 2.4 GHz Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x52mm

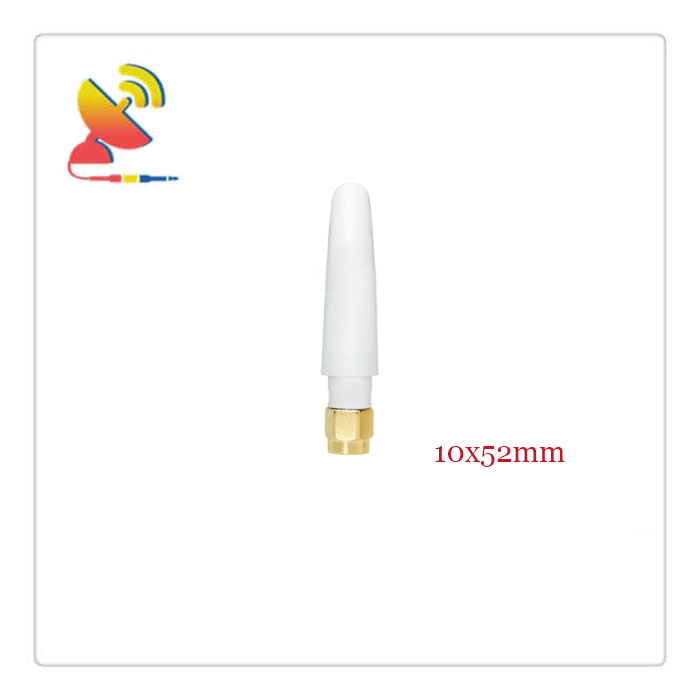

Item: CTRF-ANTENNA-AP-2450-1052W-SMA

High-performance SMA Male Plug Wi-Fi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ10x52mm







Item: CTRF-ANTENNA-AP-2450-1052B-SMAW

High-performance Rubber Duck SMA Male Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ10x52mm

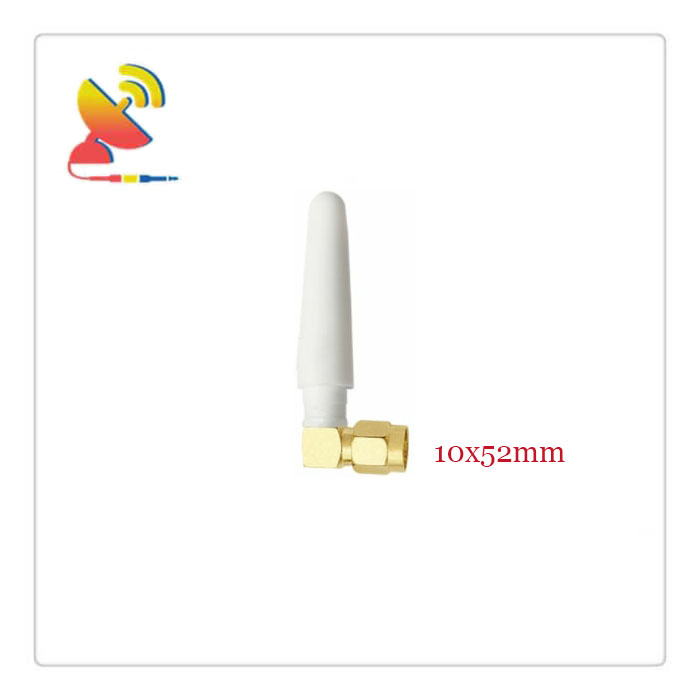

Item: CTRF-ANTENNA-AP-2450-1052W-SMAW

High-performance SMA Single Band Zigbee Bluetooth Antenna 2.4 GHz

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: White

Dimension: Φ10x52mm

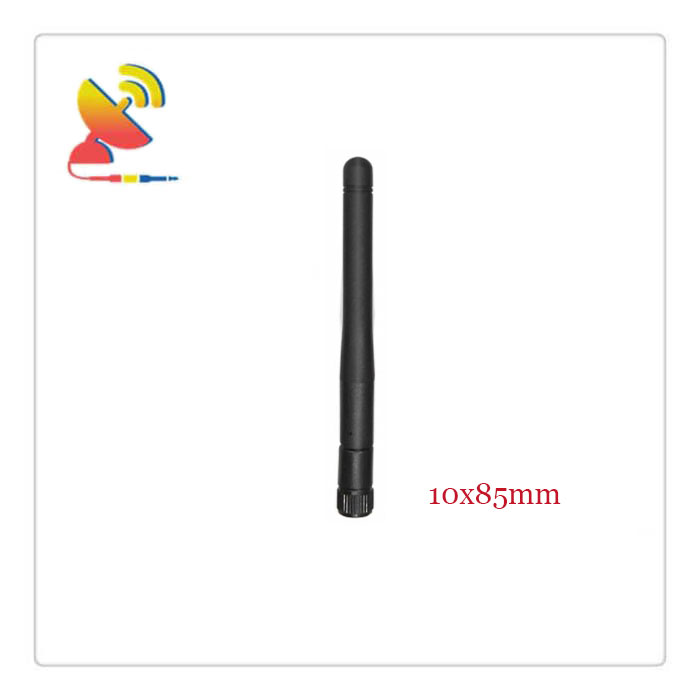

Item: CTRF-ANTENNA-AP-2450-1085-SMA

High-performance External SMA Male Wi-Fi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 2.5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x85mm

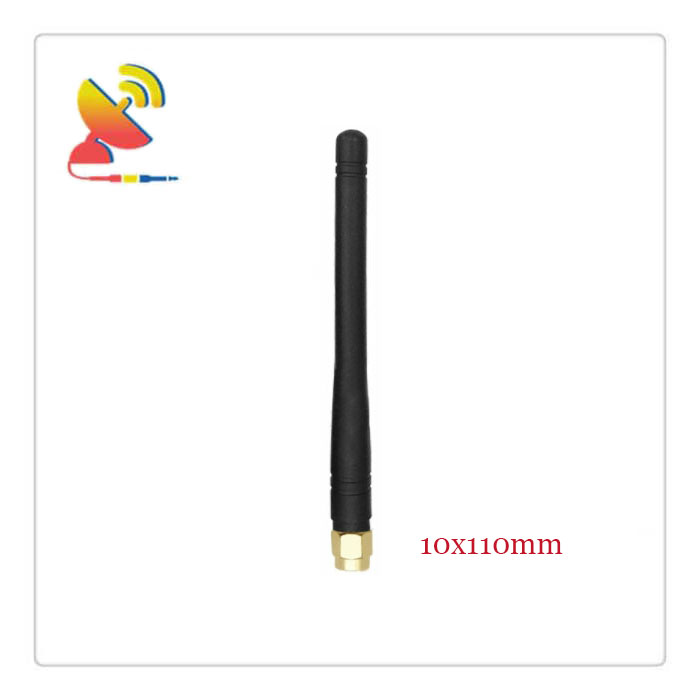

Item: CTRF-ANTENNA-AP-2450-10110B-SMAS

High-performance Omni 2.4 GHz Wi-Fi Bluetooth External Antenna SMA

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x110mm

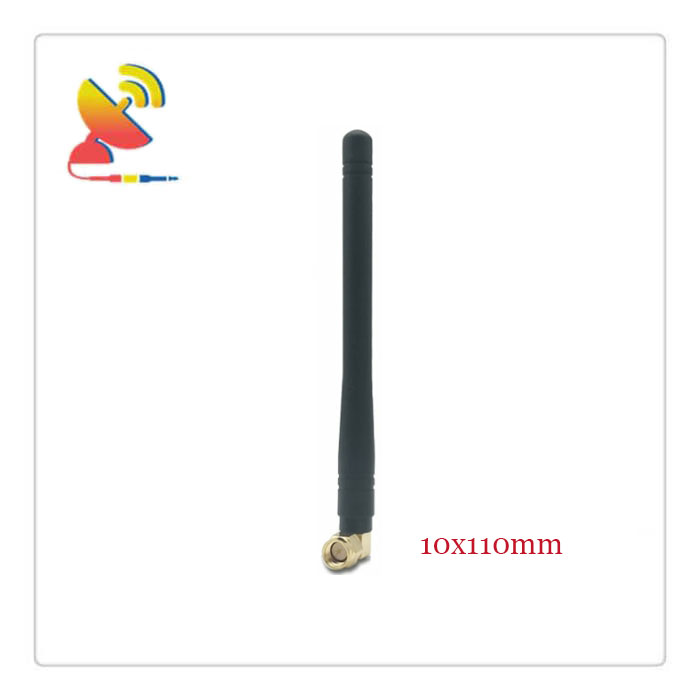

Item: CTRF-ANTENNA-AP-2450-10110B-SMAW

High-performance Wifi Antenna SMA Connector Rubber Duck Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ10x110mm

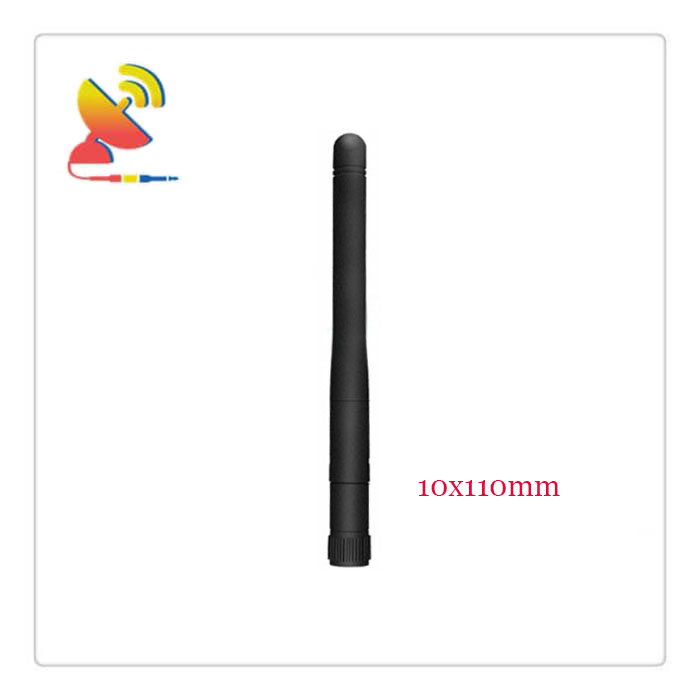

Item: CTRF-ANTENNA-AP-2450-10110B-SMA

High-performance SMA Port 2.4 GHz Bluetooth WiFi Single-band Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x110mm

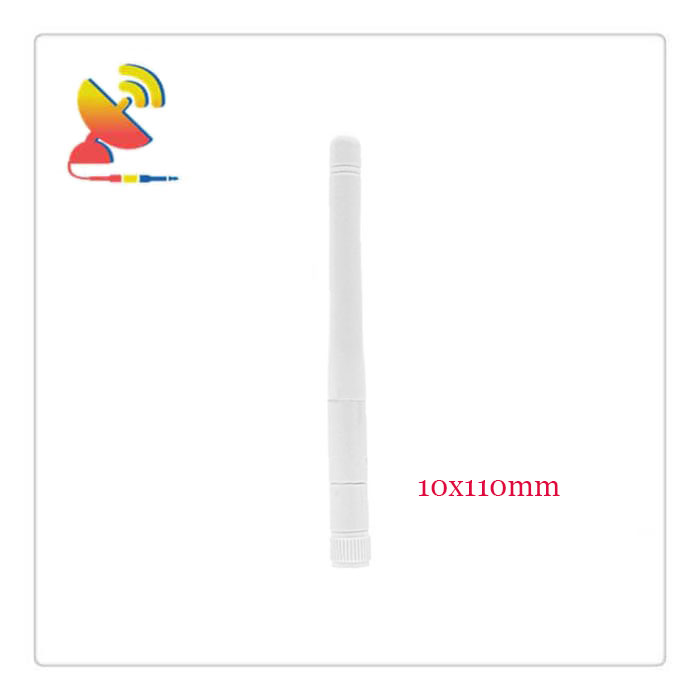

Item: CTRF-ANTENNA-AP-2450-10110W-SMA

High-performance WiFi 2.4 GHz SMA Wireless Bluetooth Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ10x110mm

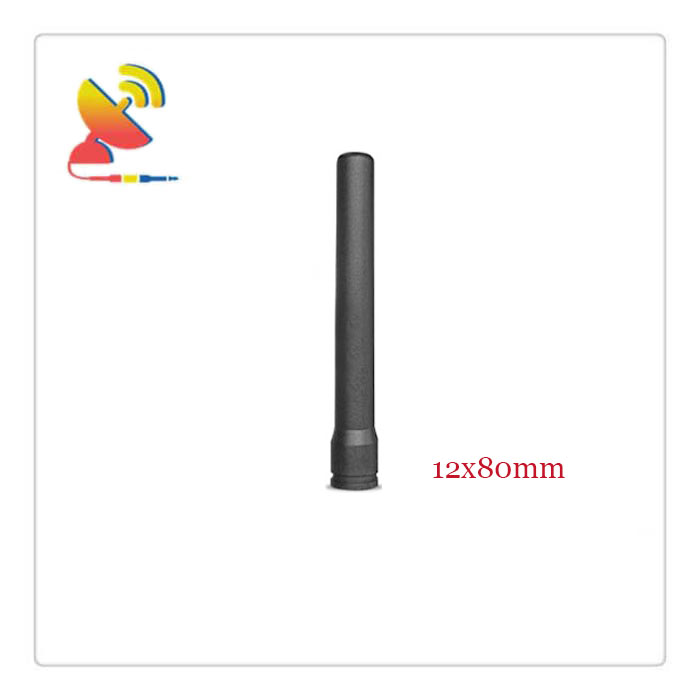

Item: CTRF-ANTENNA-AP-2450-1280-SMA

High-performance Omnidirectional Wifi Antenna SMA Male Plug Connector

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ12x80mm

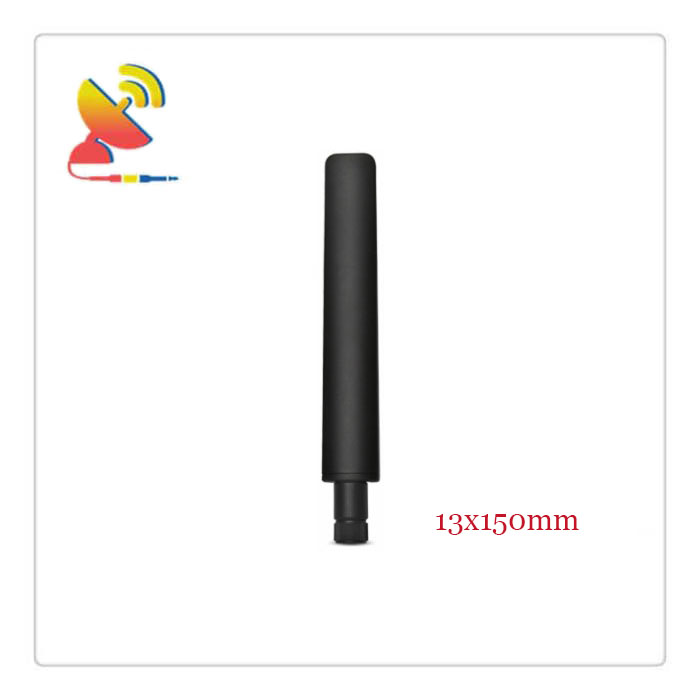

Item: CTRF-ANTENNA-AP-2450-13150-SMA

High-performance Bluetooth Antenna 2.4 GHz Wifi SMA Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x150mm

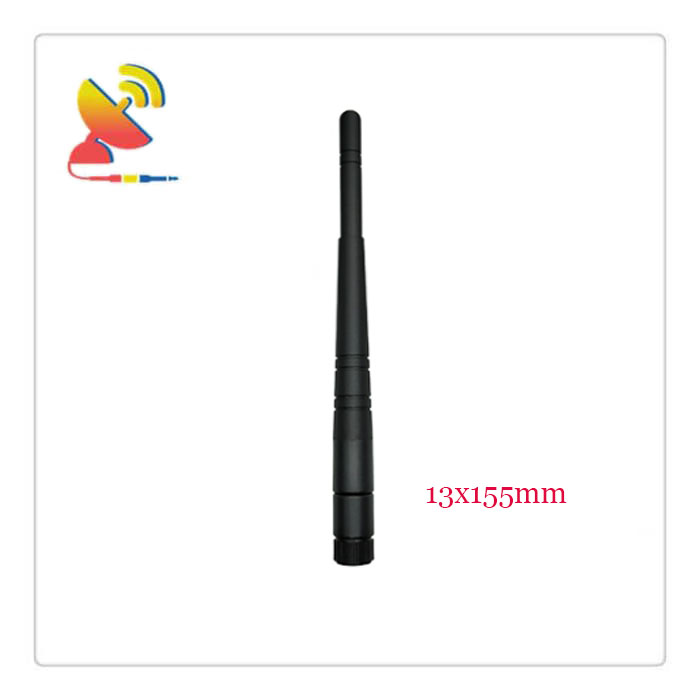

Item: CTRF-ANTENNA-AP-2450-13155-SMA

High-performance 2.4 GHz Folded Bluetooth Wifi Module Zigbee Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x155mm

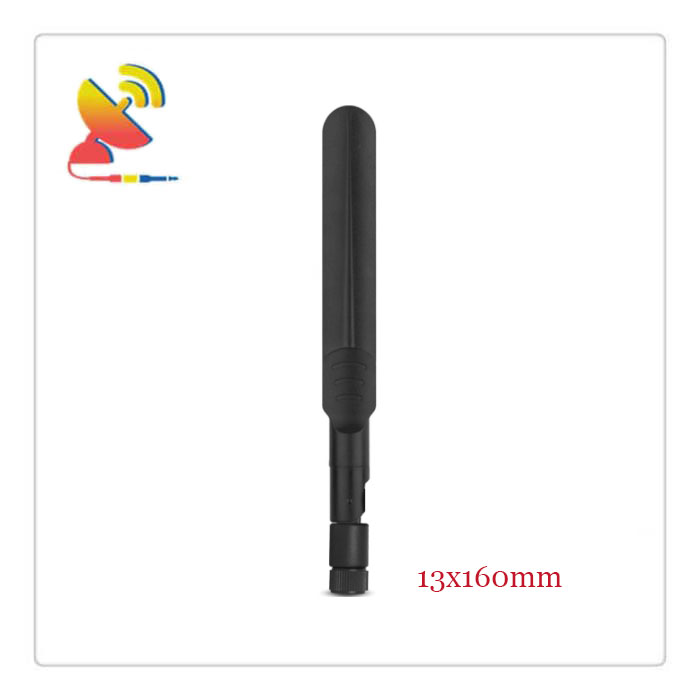

Item: CTRF-ANTENNA-AP-2450-13160B-SMA

High-performance SMA Male Plug 2.4 GHz WiFi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x160mm

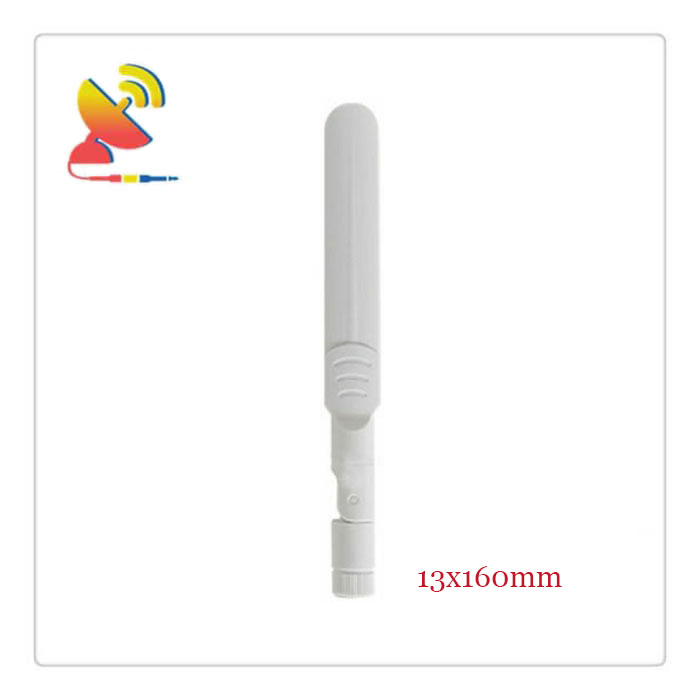

Item: CTRF-ANTENNA-AP-2450-13160W-SMA

High-performance 2.4G Wi-Fi Antenna with SMA Connector

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ13x160mm

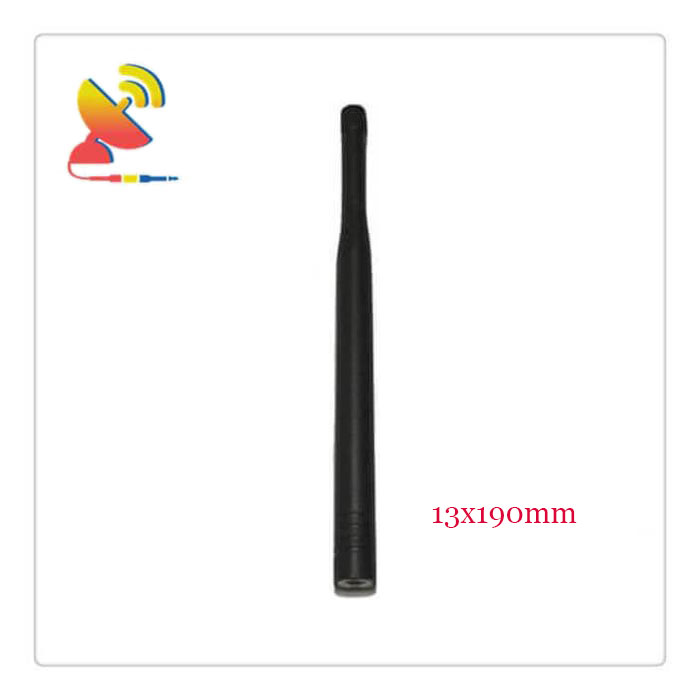

Item: CTRF-ANTENNA-AP-2450-13190-SMAS

High-performance Omnidirectional SMA Male Plug External WiFi Bluetooth Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x190mm

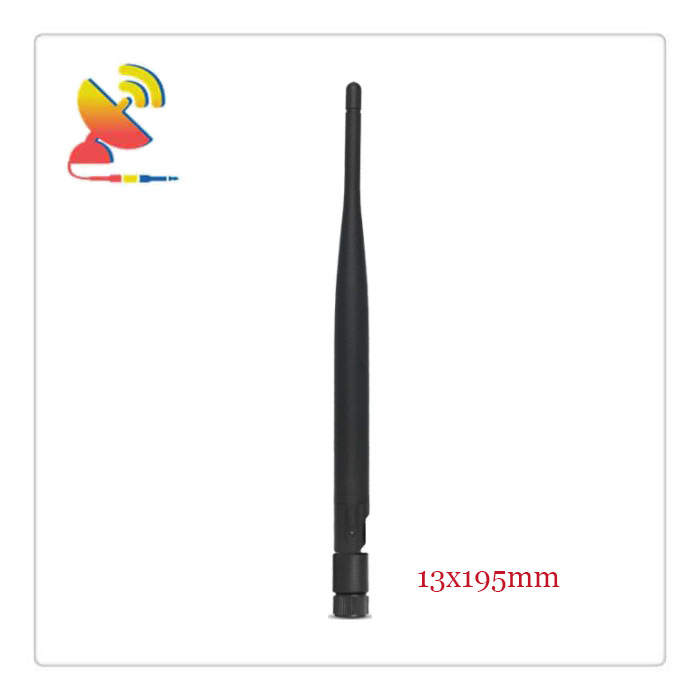

Item: CTRF-ANTENNA-AP-2450-13195B-SMA

High-performance Omnidirectional 2.4GHz Wifi Bluetooth Zigbee Module Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x195mm

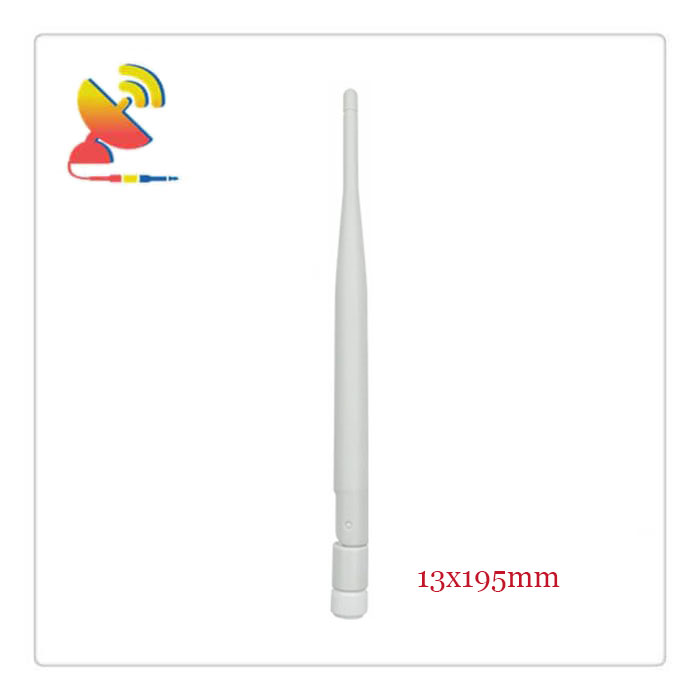

Item: CTRF-ANTENNA-AP-2450-13195W-SMA

High-performance 2.4 GHz Dipole Antenna Wifi Bluetooth SMA Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ13x195mm







Item: CTRF-ANTENNA-AP-2450-13195-SMAR

High-performance & High-gain SMA WiFi Bluetooth Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black+Red

Dimension: Φ13x195mm

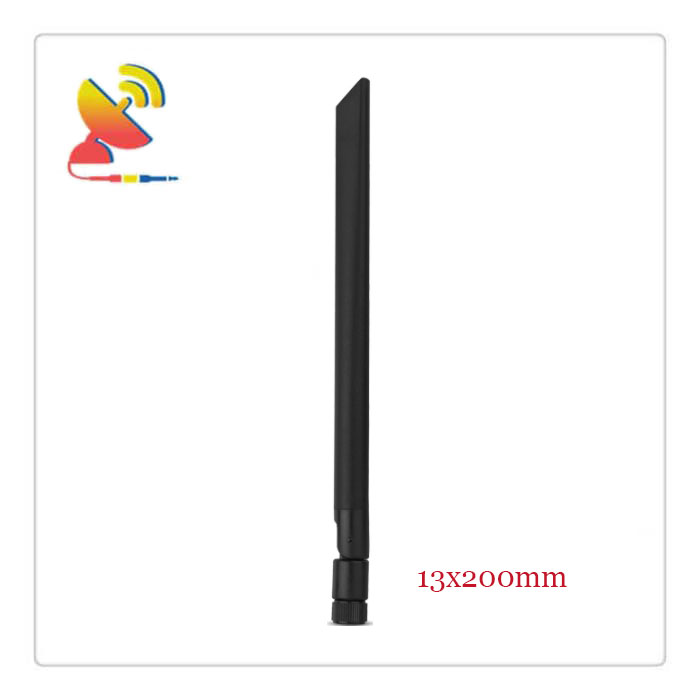

Item: CTRF-ANTENNA-AP-2450-13200B-SMA

High-performance 2.4GHz Dipole Swivel Antenna with RP-SMA or SMA Male Connector Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x200mm







Item: CTRF-ANTENNA-AP-2450-13200W-SMA

High-performance Omnidirectional 2.4 Ghz Wi-Fi SMA Male Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ13x200mm







Item: CTRF-ANTENNA-AP-2450-13220B-SMA

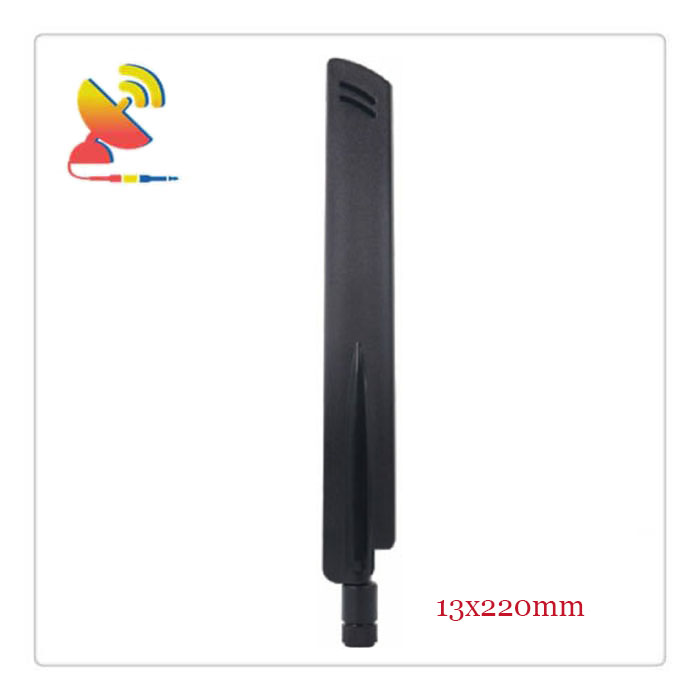

High-performance 2.4GHz Bluetooth WiFi SMA Male High-gain Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x220mm







Item: CTRF-ANTENNA-AP-2450-13290-SMA

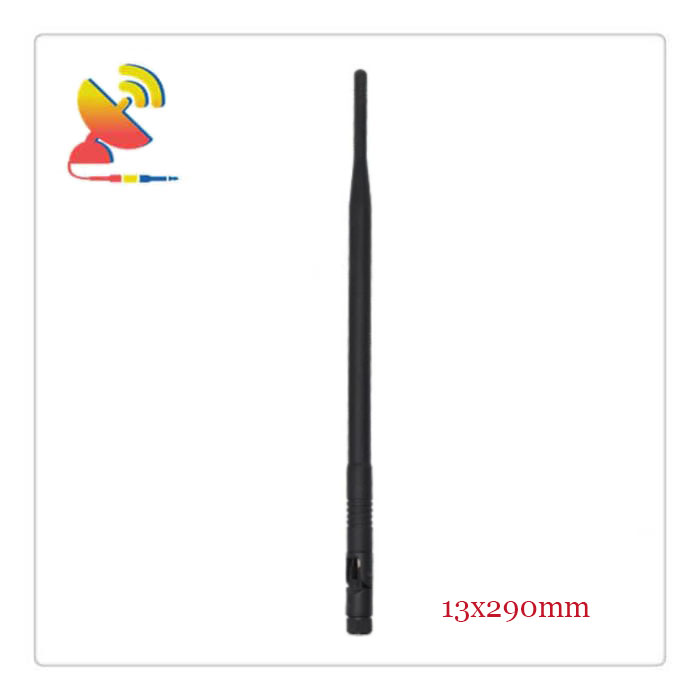

High-performance & High-gain 2.4 GHz 10dBi SMA Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 10dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x290mm







Item: CTRF-ANTENNA-AP-2450-13390-SMA

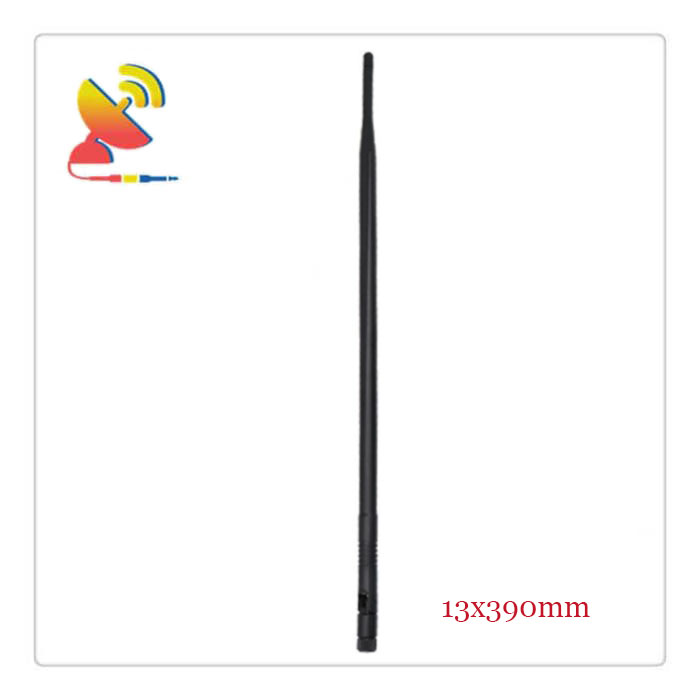

High-performance & High-gain 2.4 GHz 12dBi SMA Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 12dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x390mm







Item: CTRF-ANTENNA-AP-2450-13450-SMA

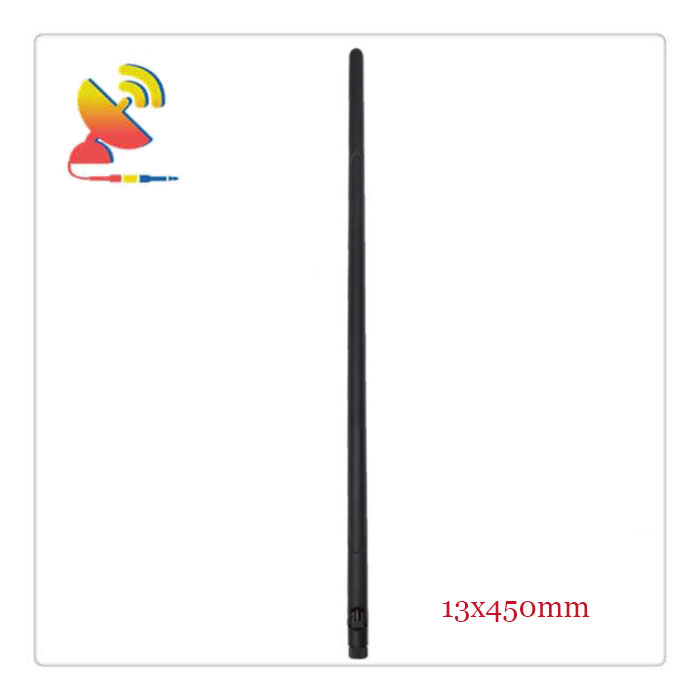

High-performance & High-gain 2.4 GHz 15dBi SMA Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500MHz

Gain: 15dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x450mm







High-performance 2.4 GHz WiFi Bluetooth Antenna With SMA Male Plug, RP-SMA, Or IPEX Connectors Are Choosable







Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 2.4 GHz WiFi/Bluetooth/Sigfox antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
