High-performance SMA Antenna WiFi Dual-band 2.4/5GHz

What is the 2.4/5GHz Antenna WiFi Dual-band?

The high-performance antenna WiFi dual-band 2.4/5GHz antenna is made by SMA rubber duck antenna and manufactured by C&T RF Antennas Inc. Antenna Wifi dual-band is used for 2.4/5 GHz wireless network applications.

2.4/5GHz SMA antenna Wifi dual-band antenna can be used in a wider range than single-band antennas and a variety of wireless communication systems. They can also receive signals from two frequency bands simultaneously, thus reducing the number of antennas and lowering the cost.

Dual-band WiFi technology provides faster speeds and more stable connections by transmitting data simultaneously through the 2.4GHz and 5GHz bands. The 5GHz band has a wider bandwidth and less interference from the wireless environment, resulting in a more stable network.

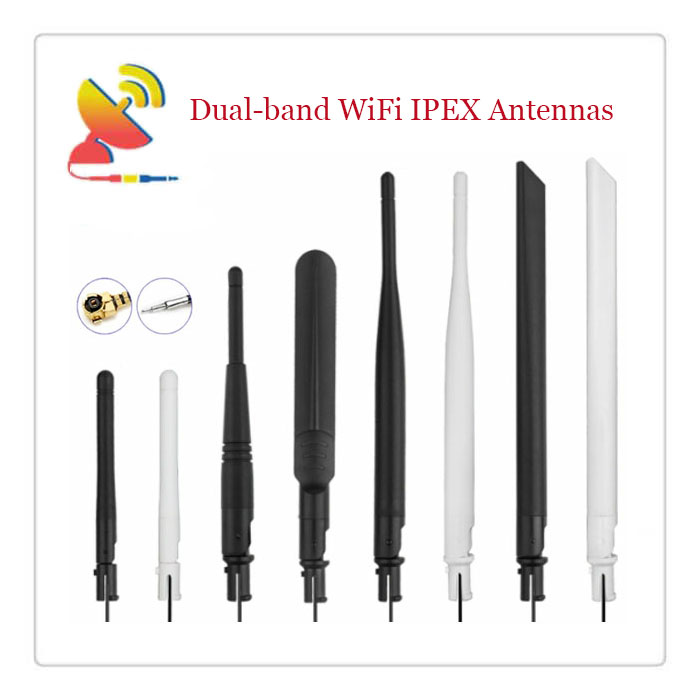

Besides the high-performance, dual-band 2.4/5GHz WiFi SMA antennas, we also provide SMA GPS antennas, 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, 2.4GHz, 5GHz single-band antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas

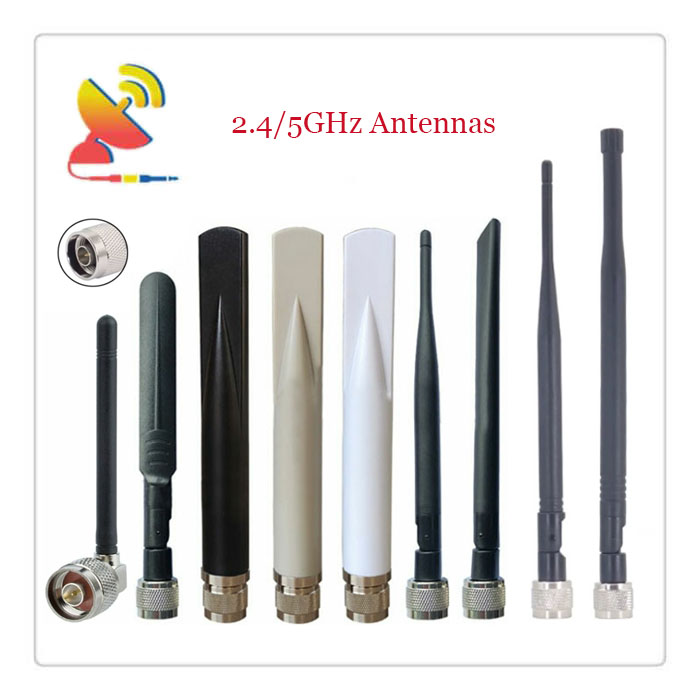

Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.

C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.





The features of the SMA antenna WiFi dual-band 2.4/5GHz

Signal stability and low noise

Wide range of use

Cost-effective

Highly adaptable

Fast transmission speed

Wide coverage

Compact size

etc.





Applications of High-performance SMA antenna WiFi dual-band 2.4/5GHz

WiFi routers:

Dual-band WiFi routers can support 2.4GHz and 5.8GHz bands at the same time, providing a more stable network connection and larger coverage.

Graphic transmissions:

In image transmission applications, dual-band antennas can ensure high-quality image transmission and reduce signal interference.

Remote control range extensions:

In remote control equipment, dual-band antennas can improve signal stability and transmission distance.

And other WiFi devices.

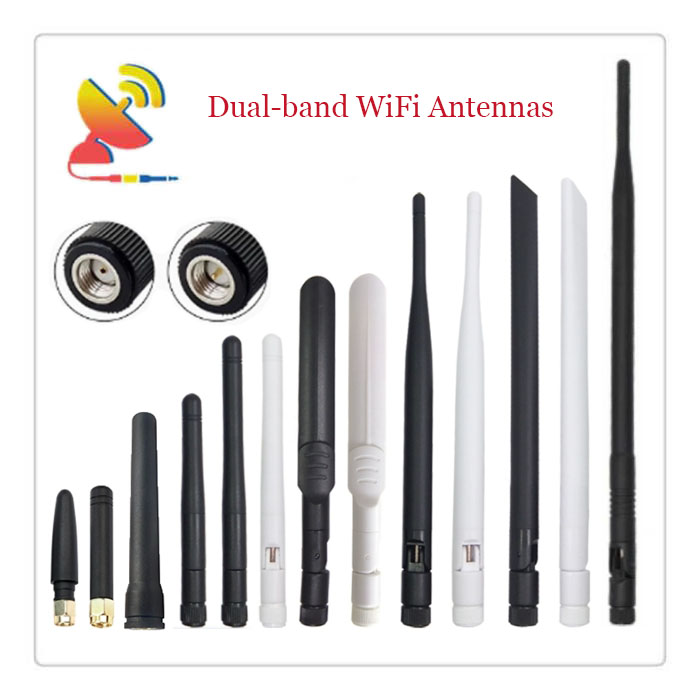

Types of High-performance SMA Antenna WiFi Dual-band 2.4/5GHz

C&T RF Antennas Inc. provides a high-performance WiFi dual-band antenna with 2.4/5GHz radio frequency bands. Below are some of the styles of antenna WiFi dual-band 2.4/5GHz.

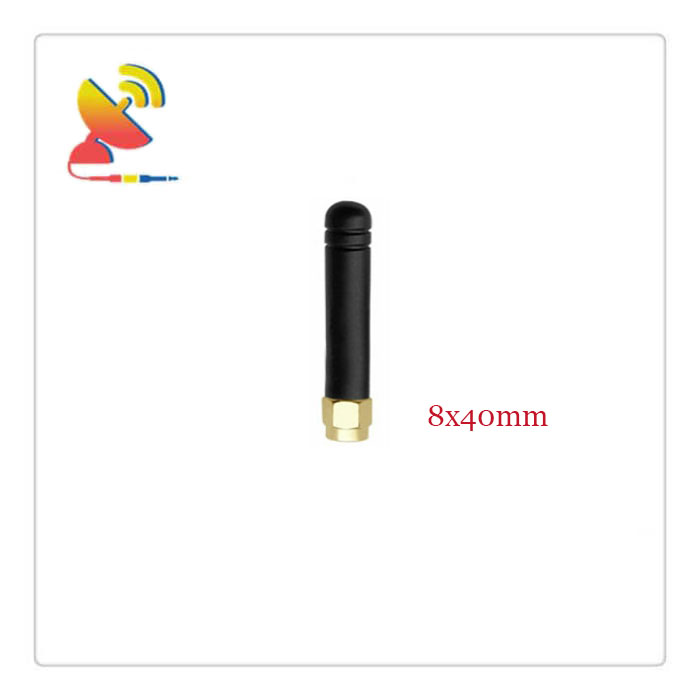

Item: CTRF-ANTENNA-AP-2458-0840-SMA

High-performance MINI Dual-band Wifi Antenna SMA Plug

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ8x40mm

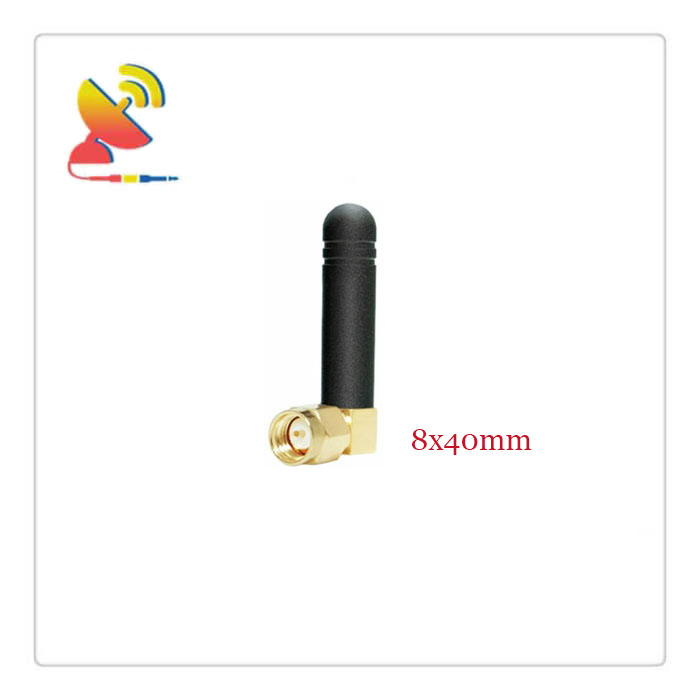

Item: CTRF-ANTENNA-AP-2458-0848-SMAW

High-performance MINI Dual-band Wifi Antenna SMA Male Right-Angle Connector

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ8x40mm

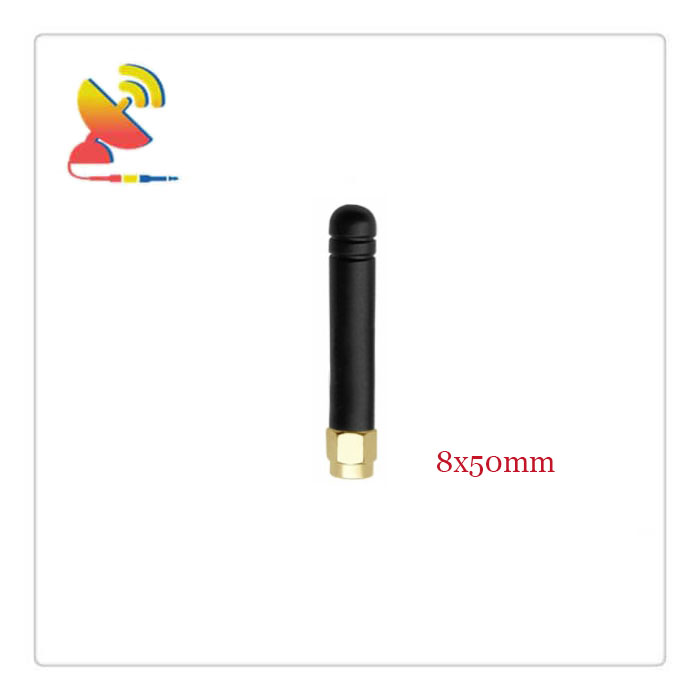

Item: CTRF-ANTENNA-AP-2458-0850B-SMA

High-performance MINI Dual-band Wifi Antenna SMA Male

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ8x50mm

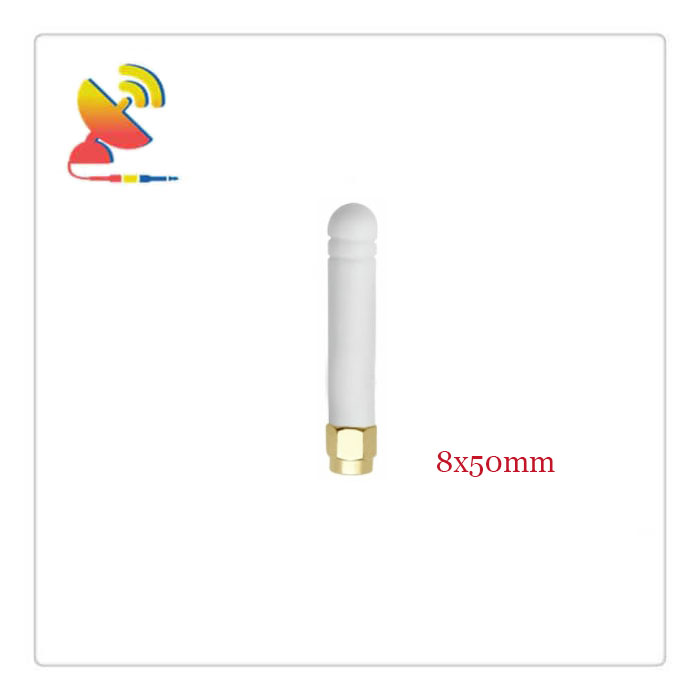

Item: CTRF-ANTENNA-AP-2458-0850W-SMA

High-performance SMA Male MINI Dual-band Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ8x50mm

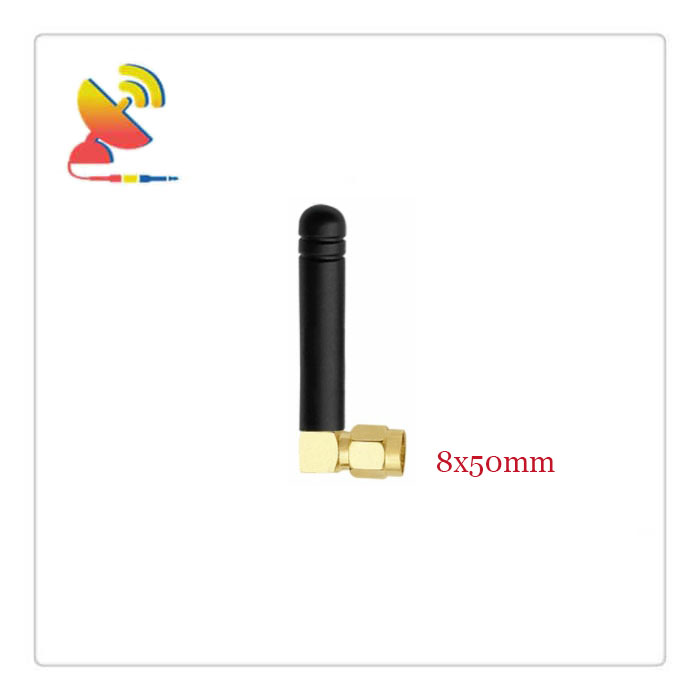

Item: CTRF-ANTENNA-AP-2458-0850B-SMAW

High-performance Small Dual-band Wifi 2.4/5 GHz Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ8x50mm

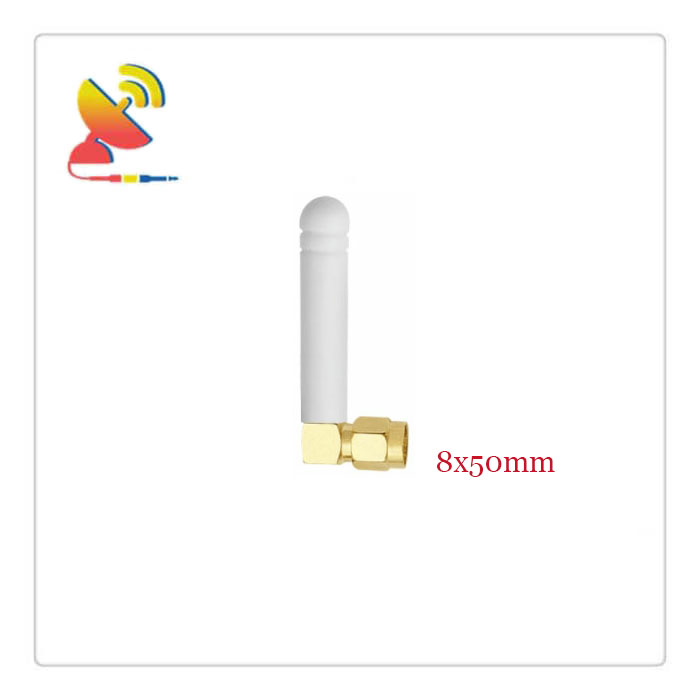

Item: CTRF-ANTENNA-AP-2458-0850W-SMAW

High-performance Rubber Duck MINI Dual-band Wifi Antenna SMA Connector

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: White

Dimension: Φ8x50mm







Item: CTRF-ANTENNA-AP-2458-0870-SMA

High-performance Dual-band Wifi Antenna SMA Right-angle Connector

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ8x72mm

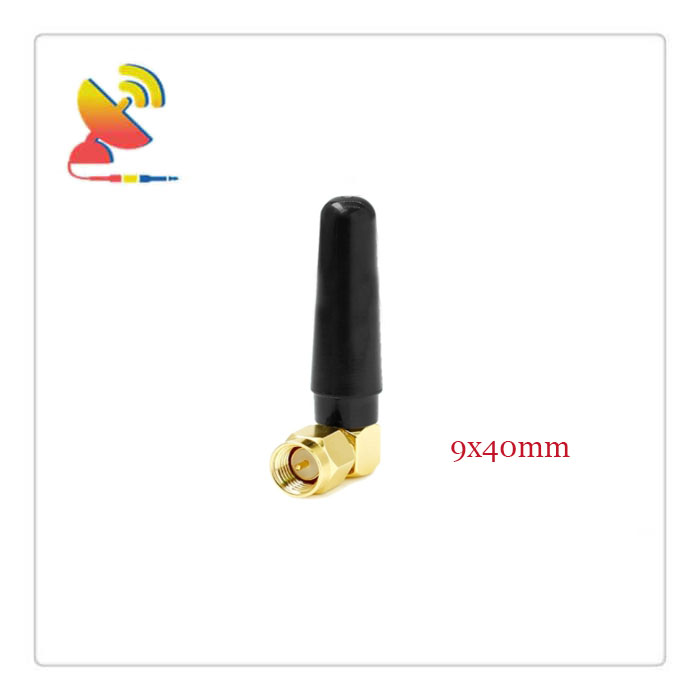

Item: CTRF-ANTENNA-AP-2458-0940-SMAW

High-performance Small Dual-band SMA WiFi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ9x40mm

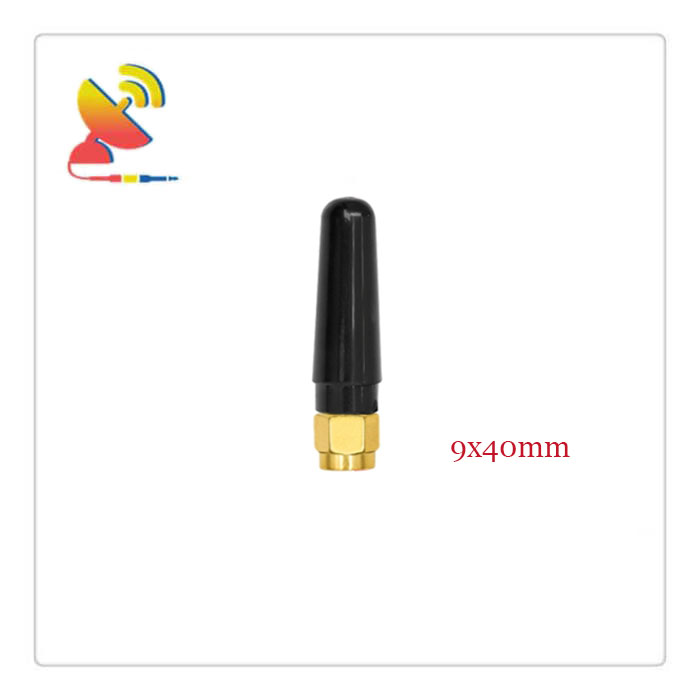

Item: CTRF-ANTENNA-AP-2458-0940-SMA

High-performance Small 2.4/5/5.8GHz SMA Dual-Band WiFi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ9x40mm

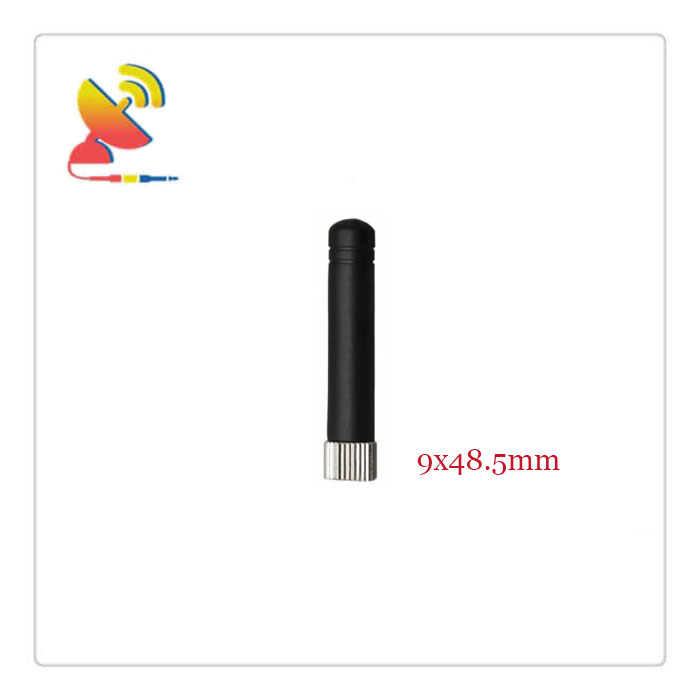

Item: CTRF-ANTENNA-AP-2458-0948-SMA

High-performance Small 2.4GHz 5GHz 5.8GHz Dual Band Wireless WiFi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ9×48.5mm

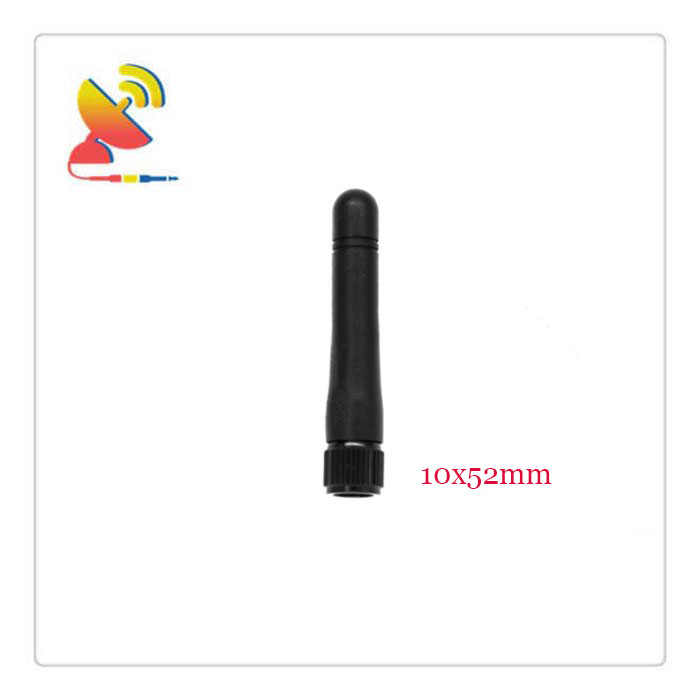

Item: CTRF-ANTENNA-AP-2458-1052B-SMAS

High-performance 2.4GHz 5GHz 5.8GHz Dual-Band Wireless Terminal Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x52mm

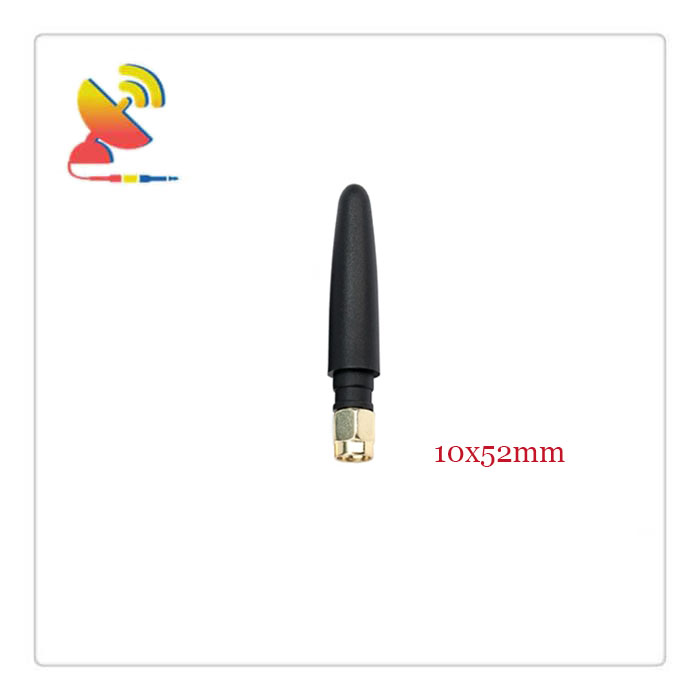

Item: CTRF-ANTENNA-AP-2458-1052B-SMA

High-performance Dual-band Wifi 2.4GHz 5GHz SMA Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x52mm

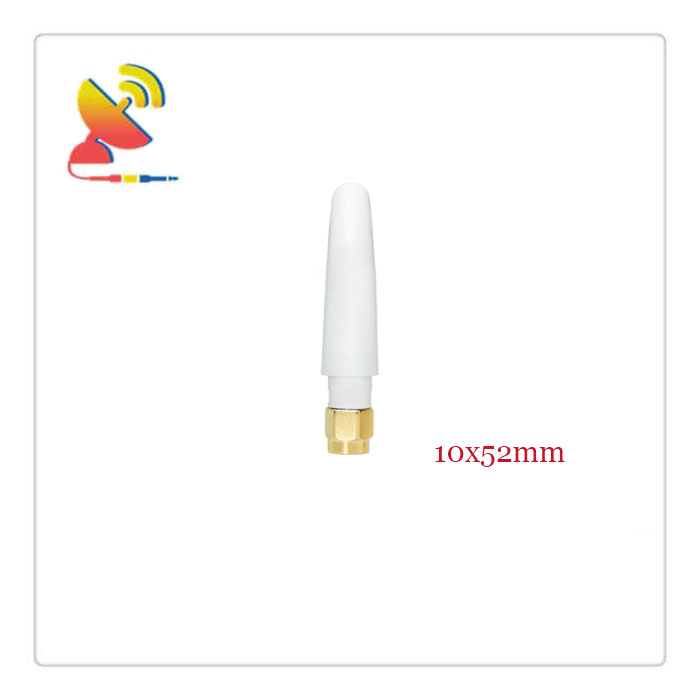

Item: CTRF-ANTENNA-AP-2458-1052W-SMA

High-performance SMA Dual-Band Omnidirectional Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ10x52mm







Item: CTRF-ANTENNA-AP-2458-1052B-SMAW

High-performance 2.4/5 GHz WiFi Dual-Band Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ10x52mm

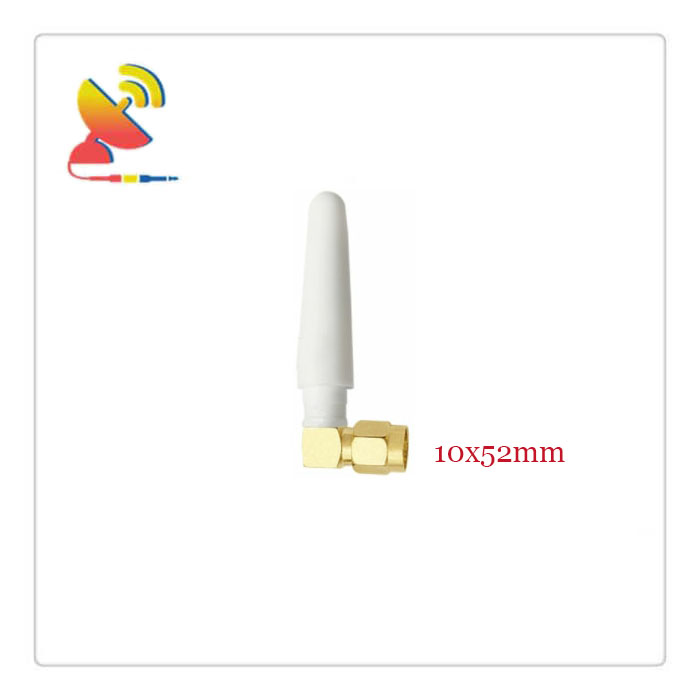

Item: CTRF-ANTENNA-AP-2450-1052W-SMAW

High-performance SMA 2.4/5 GHz Dual-Band Omni Wifi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 2/3dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: White

Dimension: Φ10x52mm

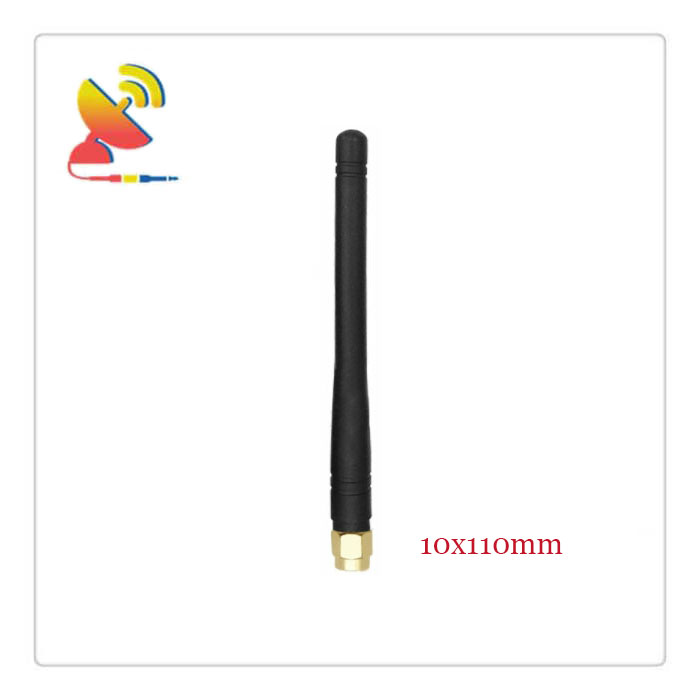

Item: CTRF-ANTENNA-AP-2458-10110B-SMAS

High-performance Omni 2.4/5 GHz Dual-band Wifi Antenna For Sale

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 3/4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x110mm

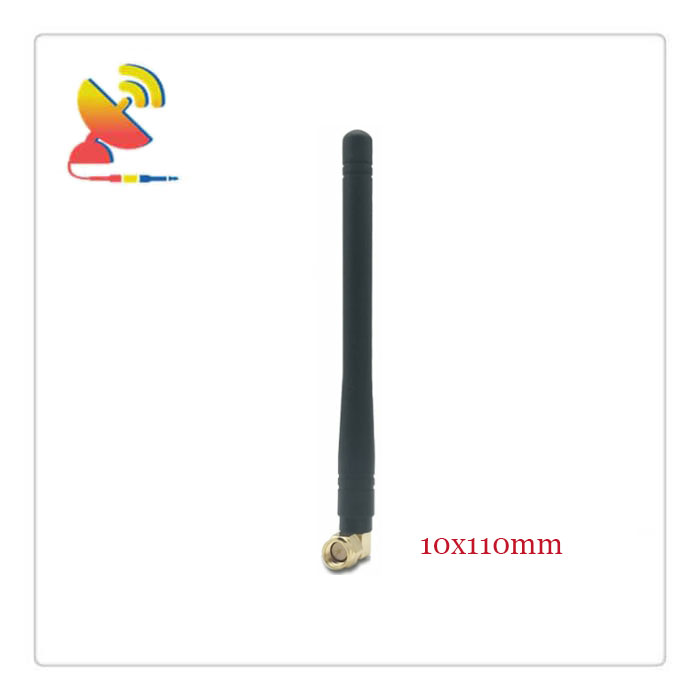

Item: CTRF-ANTENNA-AP-2458-10110B-SMAW

High-performance Wifi Dual-band SMA Male Rubber Duck Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 3/4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male Right-Angle

Color: Black

Dimension: Φ10x110mm







Item: CTRF-ANTENNA-AP-2458-10110B-SMA

High-performance SMA Dual-band Wifi Antenna Near Me

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 3/4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ10x110mm

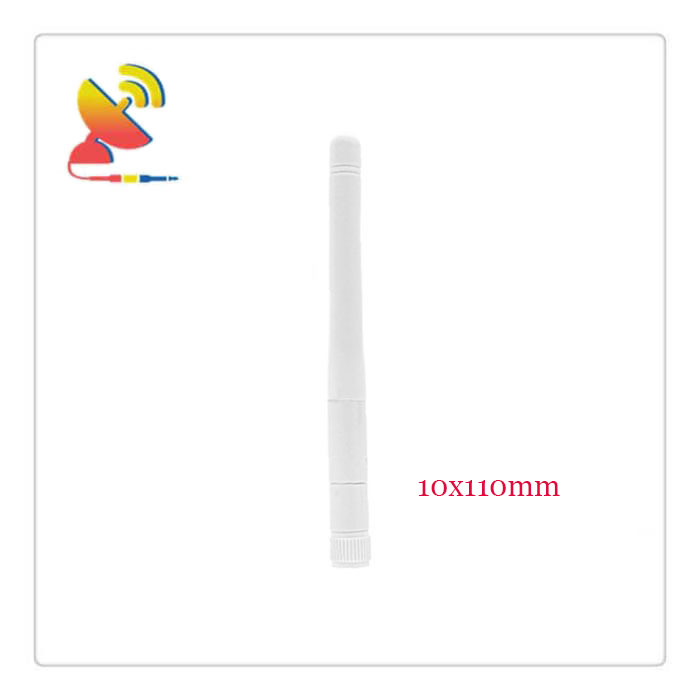

Item: CTRF-ANTENNA-AP-2458-10110W-SMA

High-performance Dual-band Wifi Antenna 2.4/5GHz

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 3/4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ10x110mm

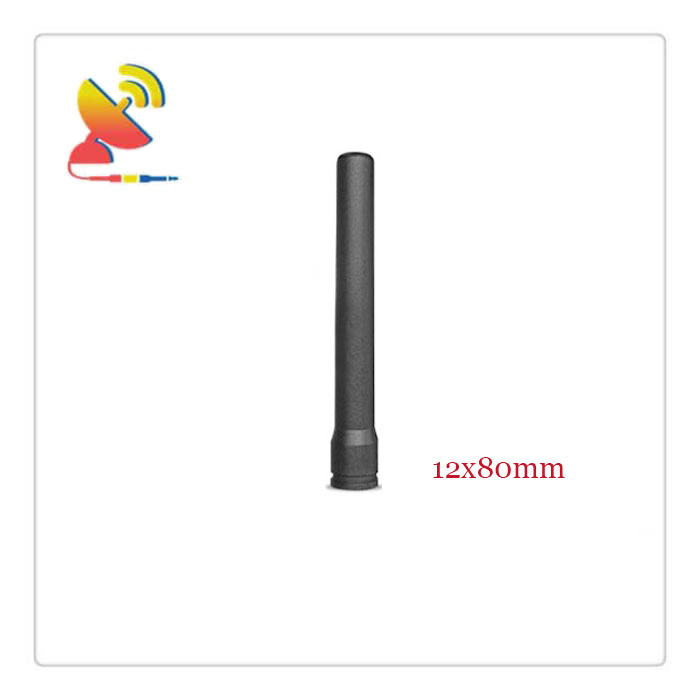

Item: CTRF-ANTENNA-AP-2458-1280-SMA

High-performance Omnidirectional Dual-Band 2.4/5.8 GHz WiFi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 3/4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ12x80mm

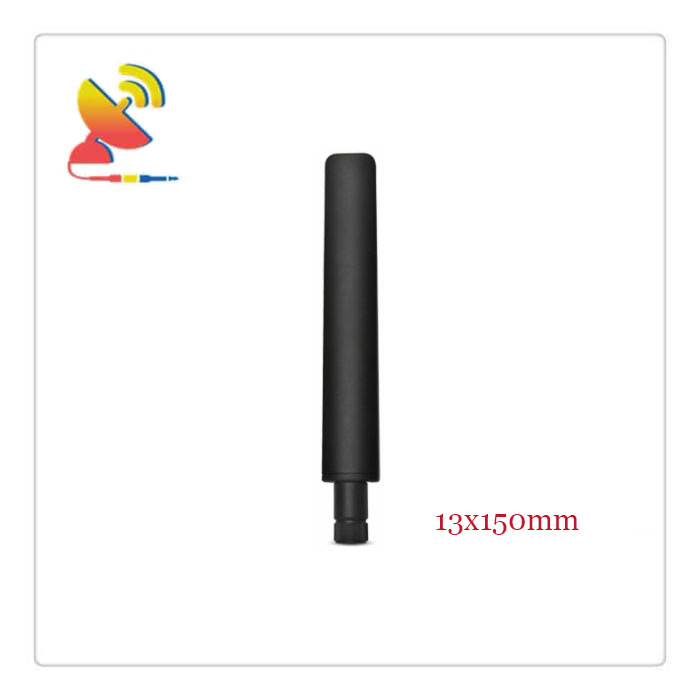

Item: CTRF-ANTENNA-AP-2458-13150-SMA

High-performance 2.4GHz 5GHz 5.8GHz Dual Band Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 4/5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x150mm

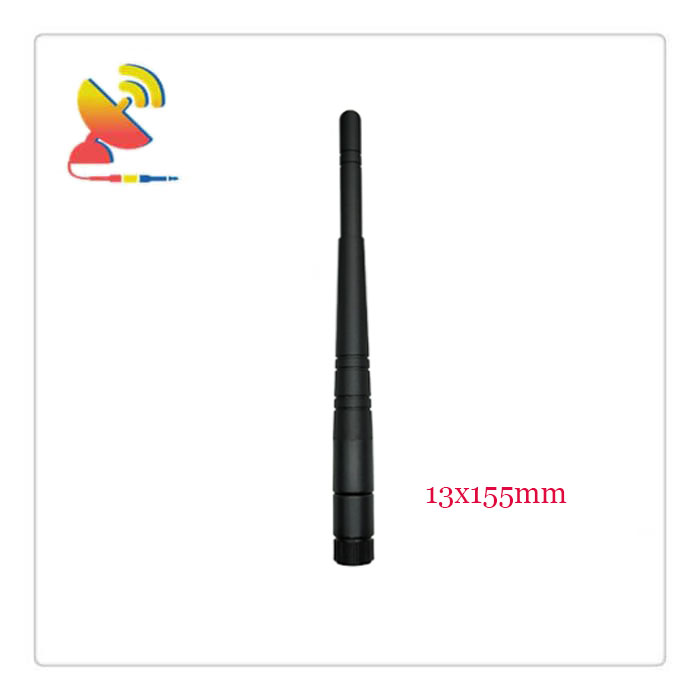

Item: CTRF-ANTENNA-AP-2458-13155-SMA

High-performance 2.4/5 GHz Dual-band Wireless SMA Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 3/4dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x155mm

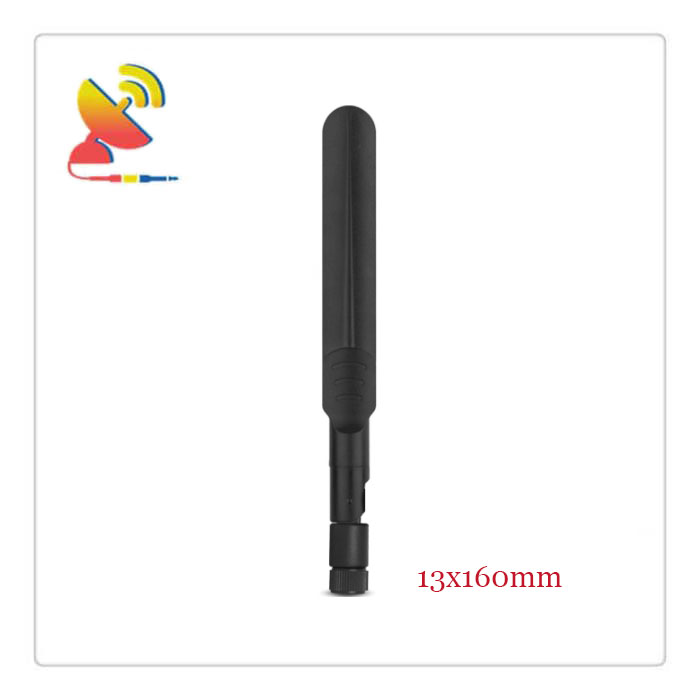

Item: CTRF-ANTENNA-AP-2458-13160B-SMA

High-performance SMA 2.4/5GHz Dual-band Wireless Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 4/5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x160mm

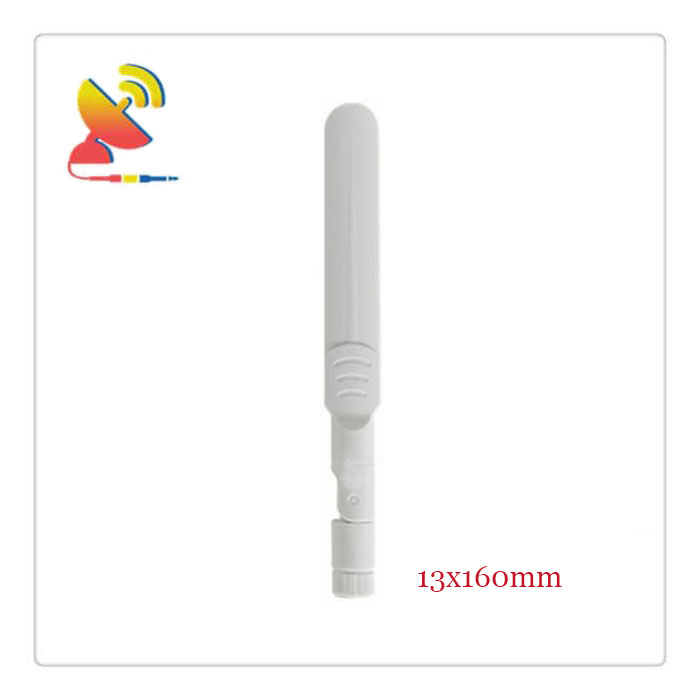

Item: CTRF-ANTENNA-AP-2458-13160W-SMA

High-performance Wifi Antenna Dual-band Omnidirectional Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 4/5dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ13x160mm

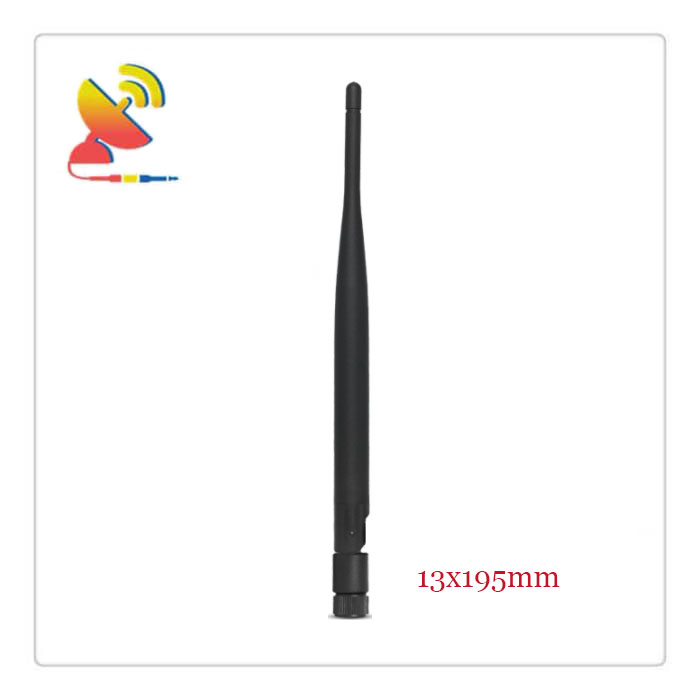

Item: CTRF-ANTENNA-AP-2458-13195B-SMA

High-performance Omni 2.4GHz 5GHz Wifi Dual-band SMA Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 5/6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x195mm

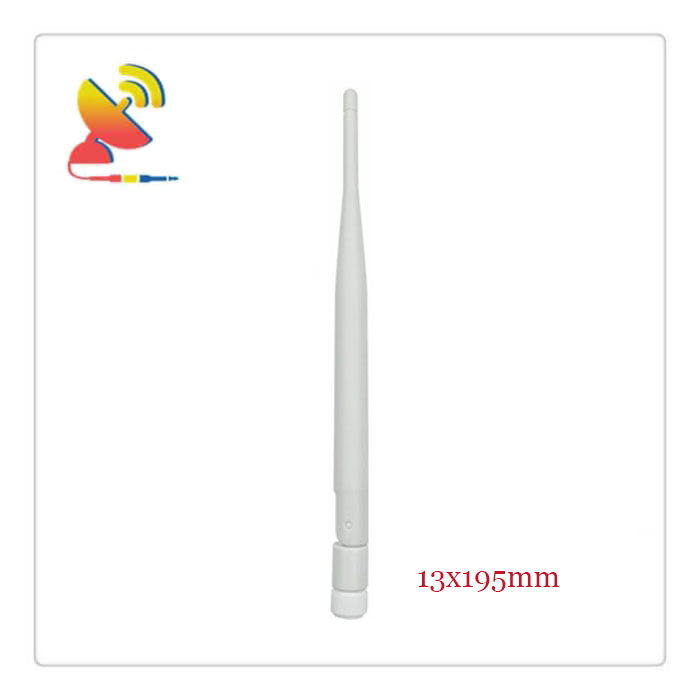

Item: CTRF-ANTENNA-AP-2458-13195W-SMA

High-performance 2.4/5.8/5 GHz Dual-band High-gain Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 5/6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ13x195mm

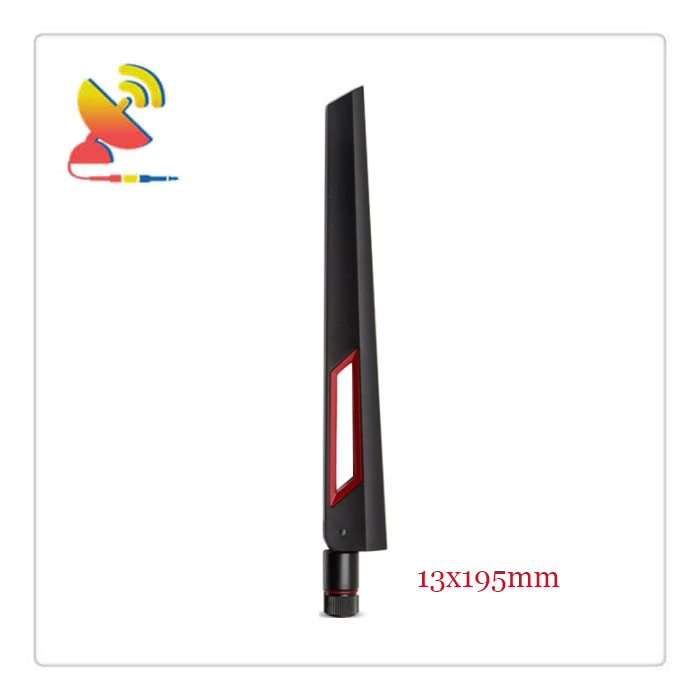

Item: CTRF-ANTENNA-AP-2458-13195-SMAR

High-performance High-gain SMA 2.4/5GHz Dual-band Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 6/8dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black+Red

Dimension: Φ13x195mm

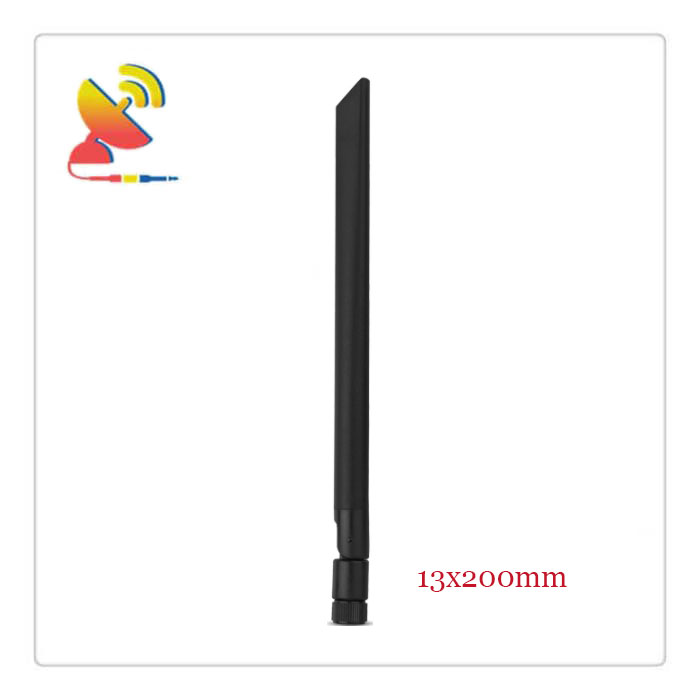

Item: CTRF-ANTENNA-AP-2458-13200B-SMA

High-performance 2.4/5 GHz Dual-band Omnidirectional WiFi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 5/6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x200mm

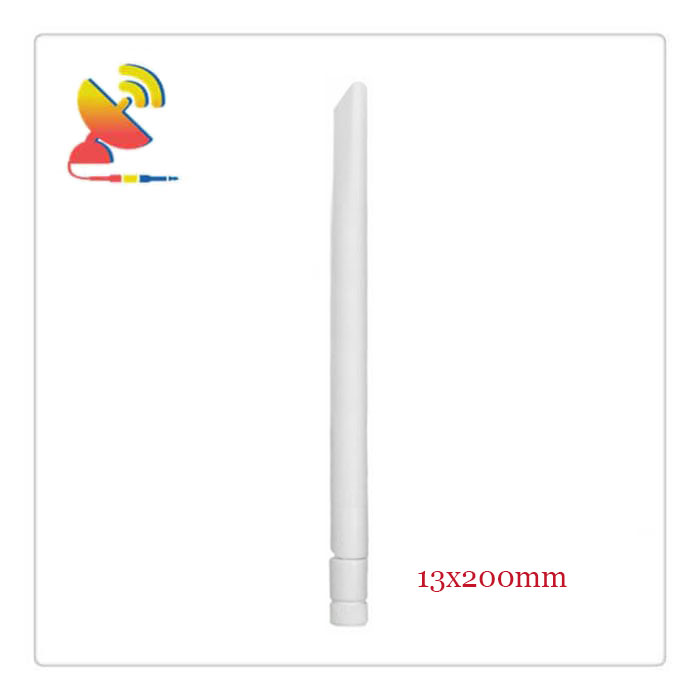

Item: CTRF-ANTENNA-AP-2458-13200W-SMA

High-performance Omnidirectional Rubber Duck 2.4 GHz 5GHz Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 5/6dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: White

Dimension: Φ13x200mm

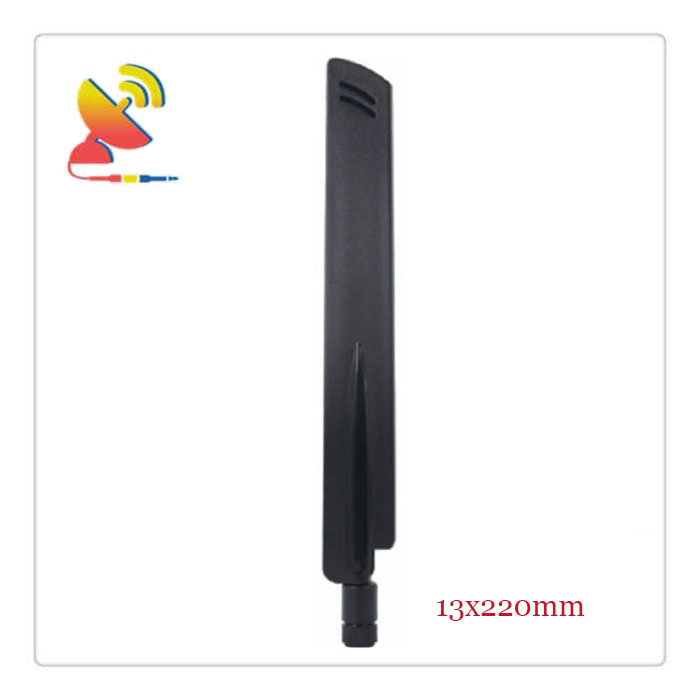

Item: CTRF-ANTENNA-AP-2458-13220B-SMA

High-performance High-gain Rubber Duck Dual-band Wi-Fi Antennas

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x220mm

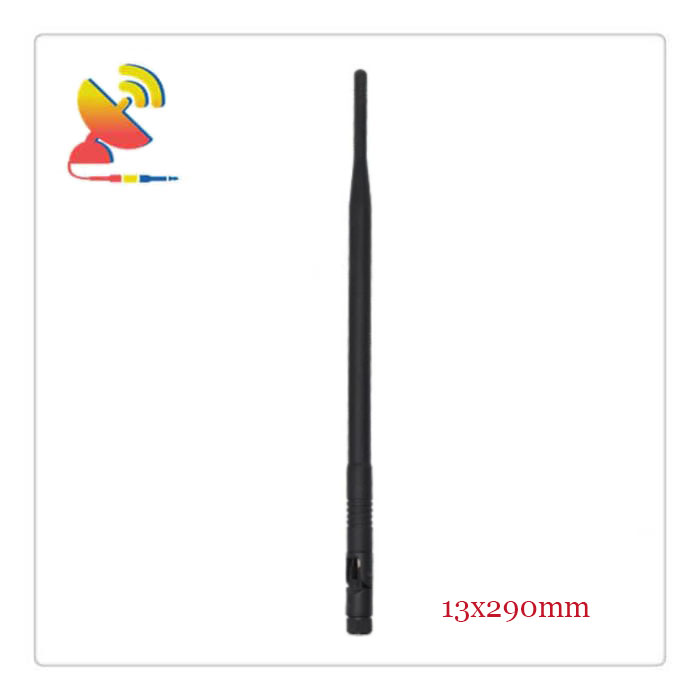

Item: CTRF-ANTENNA-AP-2458-13290-SMA

High-performance High-gain 2.4/5.8 GHz Antenna SMA Wifi Antenna

Specifications:

Material: Plastic ABS

Frequency: 2400-2500 MHz, 5150-5800 MHz

Gain: 7/9dBi

H-Beam width: 360°

V.S.W.R: ≤2.0

Polarization: Vertical

Connector: SMA Male

Color: Black

Dimension: Φ13x290mm





High-performance 2.4/5GHz Antenna WiFi Dual-band Antenna with SMA Male Plug or RP-SMA, N-type Male, IPEX/u.FL/MHF Connectors Are Choosable







Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 2.4 GHz/5 GHz WiFi/Bluetooth/Sigfox antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
