C&T RF Antennas Inc. manufactures a series of passive SMA GPS antennas Omni rubber duck antenna – The SMA plug and RP-SMA passive GPS antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance passive SMA GPS antennas, such as the passive SMA GPS antenna datasheet, pricing, and 1575.42 MHz antenna inventory.
Or other indoor-outdoor active & passive GPS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance SMA GPS antennas are Omnidirectional SMA rubber duck antennas with 1575.42 MHz GPS L1 band passive antennas, manufactured by C&T RF Antennas Inc., for positioning applications.
The rubber duck passive SMA GPS antennas can be applied to car networking communication, including GPS positioning, vehicle remote control, etc.
Besides the high-performance SMA GPS antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
The GPS is a terminal that receives satellite signals for positioning or navigation. Receiving signals must use the antenna. GPS satellite signals are divided into L1 and L2, the frequencies of 1575.42 MHz and 1228 MHz, of which L1 is an open civil signal, and the signal is circularly polarization.
The application of rubber duck passive SMA GPS antenna is widely used in the GPS positioning wireless communication field because of its omnidirectionality, high gain, small size, low cost, and easy installation.
C&T RF Antennas Inc. provides high-performance pass SMA GPS antennas and RP-SMA male connector rubber duck antennas. Below are some of the passive SMA GPS antennas.

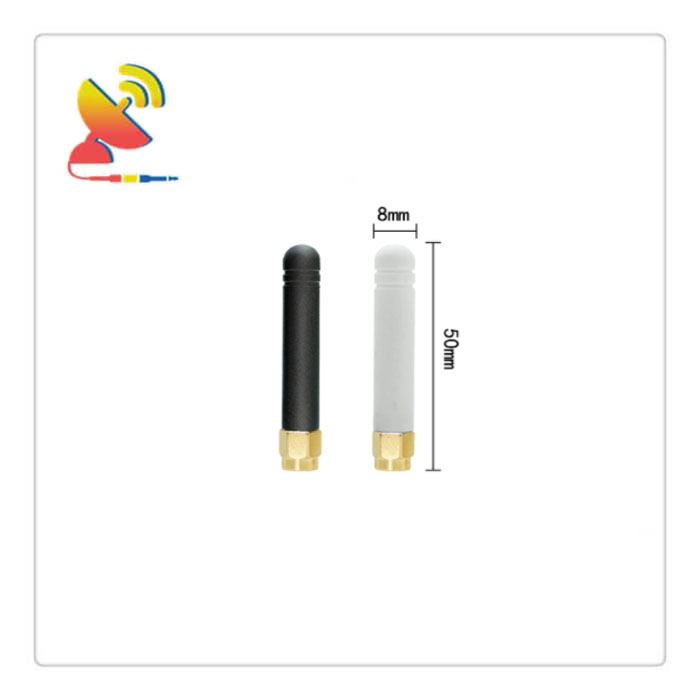

Item: CTRF-ANTENNA-AP-GPS-0850B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

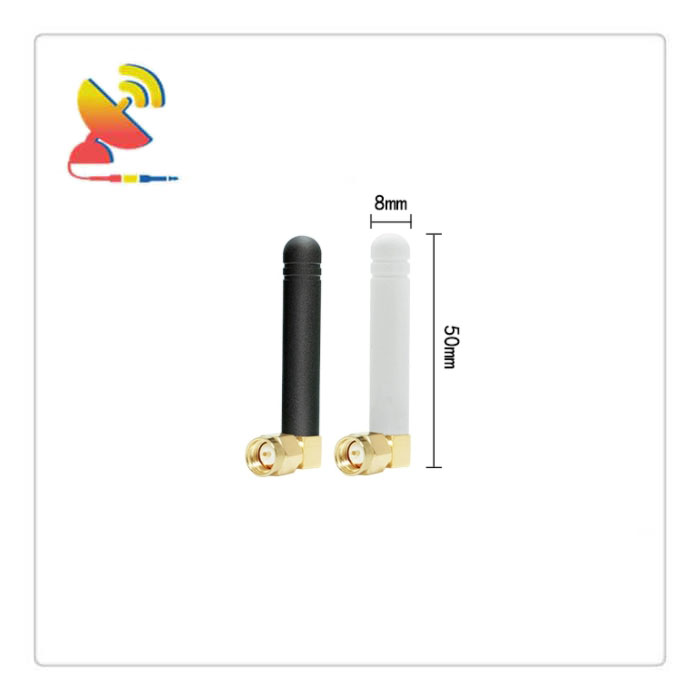

Item: CTRF-ANTENNA-AP-GPS-0850B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

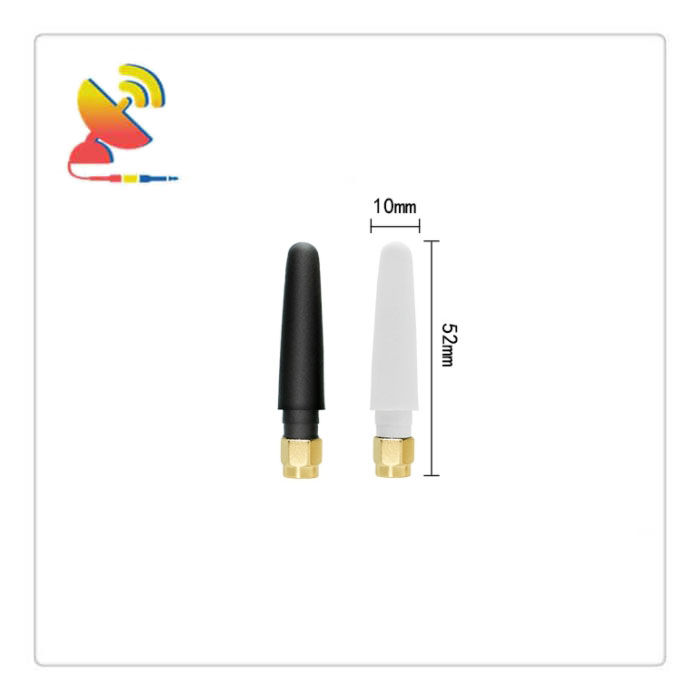

Item: CTRF-ANTENNA-AP-GPS-1052B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 1.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm

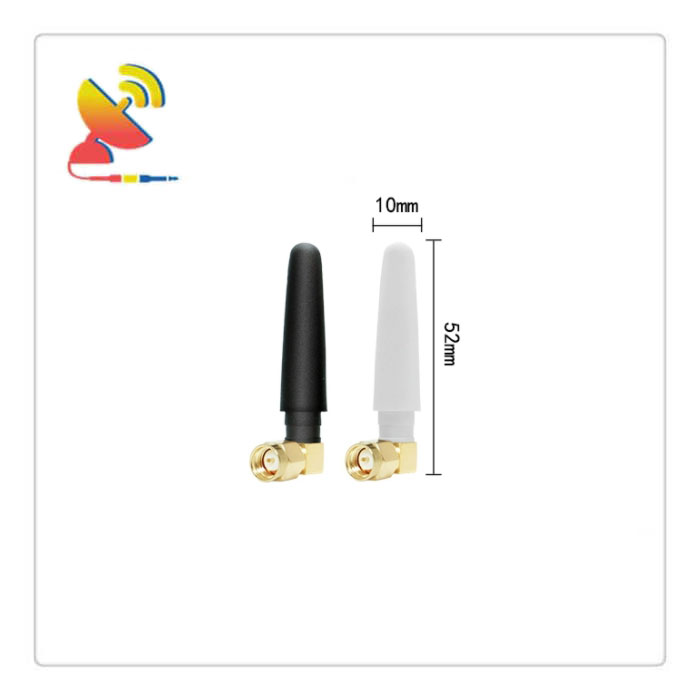

Item: CTRF-ANTENNA-AP-GPS-1052B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 1.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm

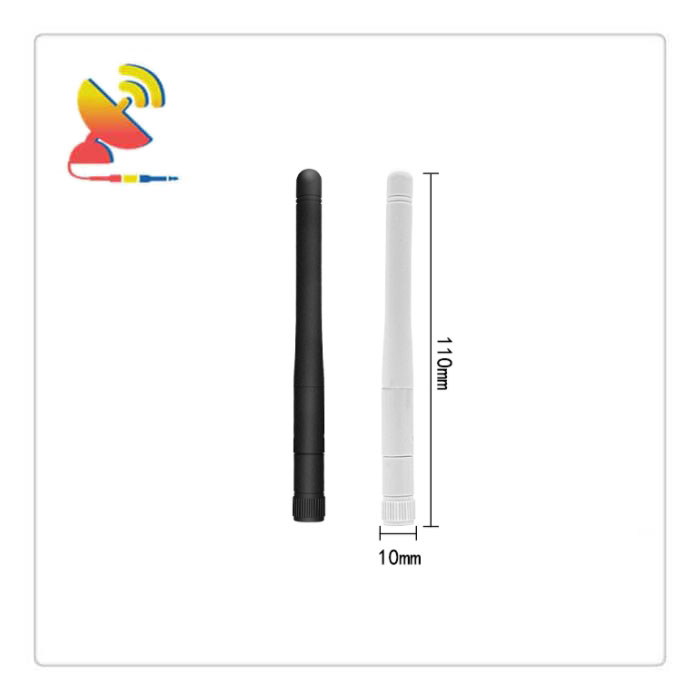

Item: CTRF-ANTENNA-AP-GPS-10110B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male
Color: Black
Dimension: Φ10x110mm

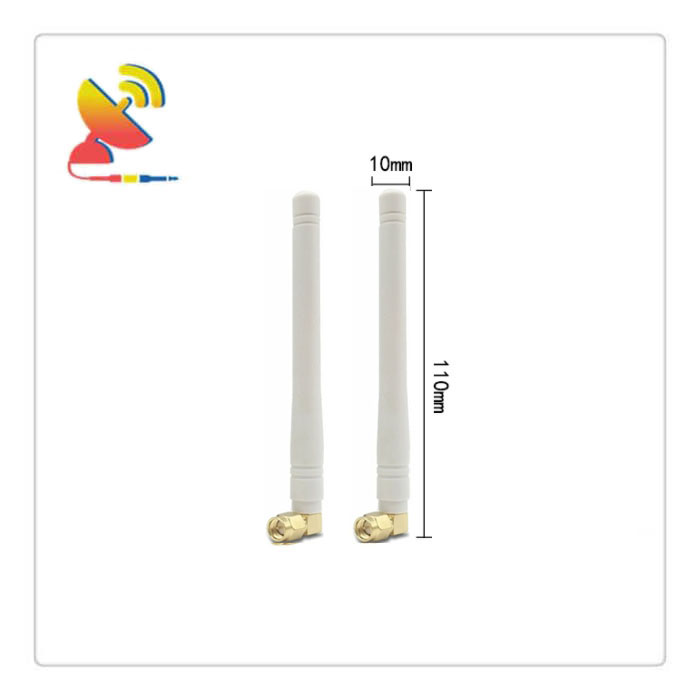

Item: CTRF-ANTENNA-AP-GPS-10110W-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male RIght-Angle
Color: White
Dimension: Φ10x110mm
Item: CTRF-ANTENNA-AP-GPS-10110B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male RIght-Angle
Color: Black
Dimension: Φ10x110mm

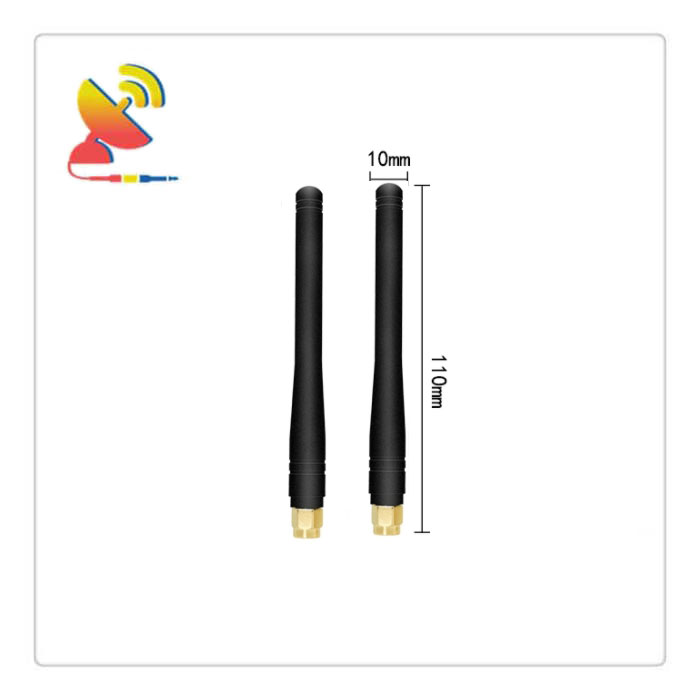

Item: CTRF-ANTENNA-AP-GPS-10110-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: Straight SMA Male
Color: Black
Dimension: Φ10x110mm
Item: CTRF-ANTENNA-AP-GPS-1280-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male
Color: Black
Dimension: Φ12x80mm

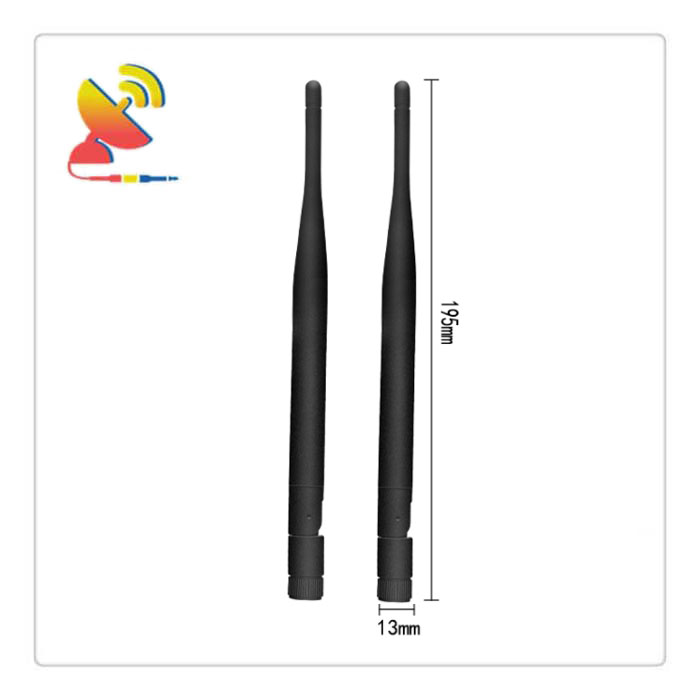

Item: CTRF-ANTENNA-AP-GPS-13195B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm

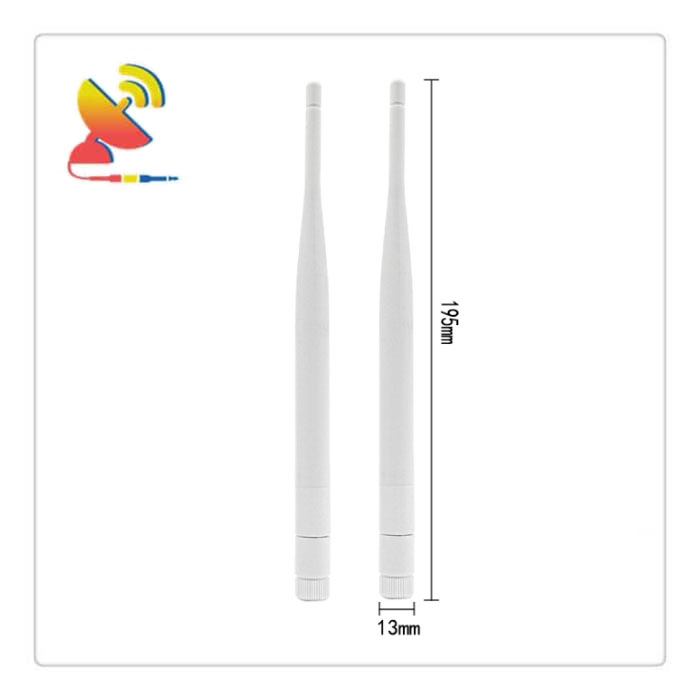

Item: CTRF-ANTENNA-AP-GPS-13195W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male
Color: White
Dimension: Φ13x195mm

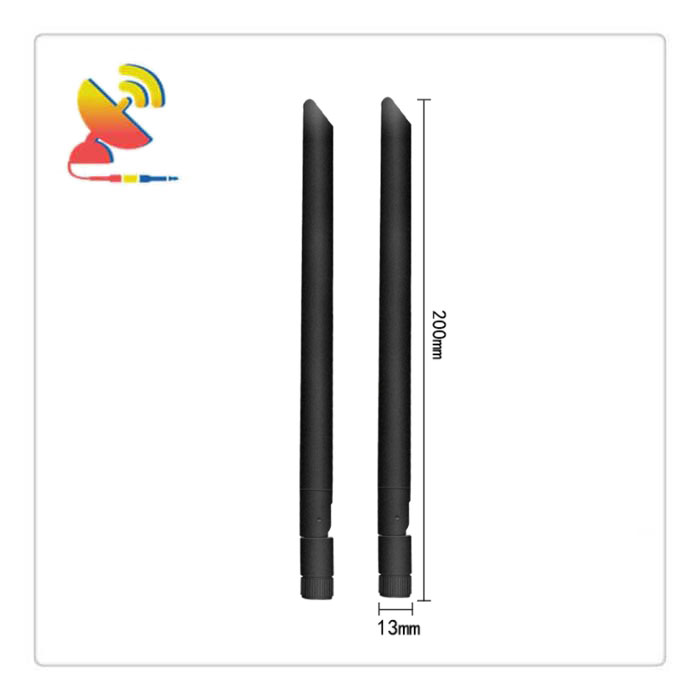

Item: CTRF-ANTENNA-AP-GPS-13200B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male
Color: Black
Dimension: Φ13x200mm

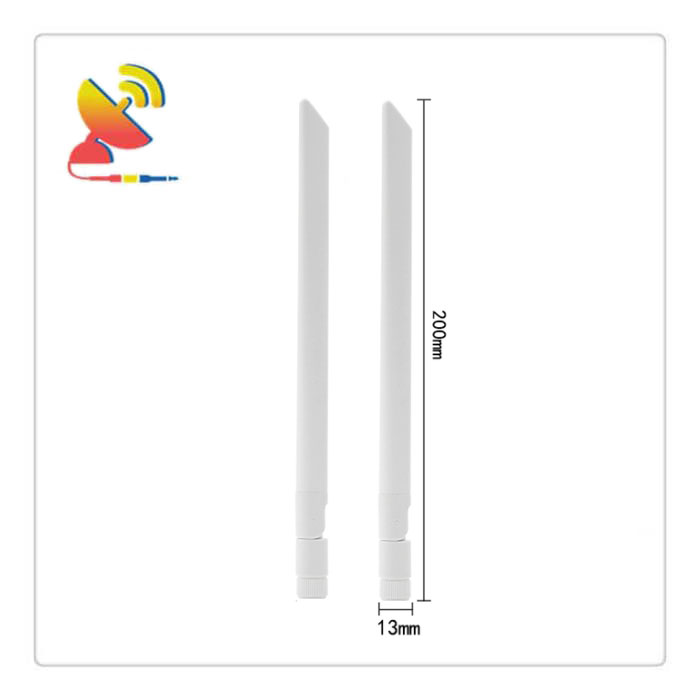

Item: CTRF-ANTENNA-AP-GPS-13200W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1575.42 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: SMA Male
Color: White
Dimension: Φ13x200mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers GPS antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
