C&T RF Antennas Inc. manufactures a series of passive GNSS GPS PCB antennas. The internal passive GPS/GNSS antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance passive GNSS GPS PCB antennas, such as the passive GPS antenna datasheet, passive GNSS antenna pricing, and 1575.42 MHz antenna inventory.
Or other indoor-outdoor active & passive GPS/GNSS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance passive GNSS GPS PCB antennas are embedded PCB antennas with GPS/GNSS/Beidou/Glonass multi-band antennas manufactured by C&T RF Antennas Inc. for positioning/tracking devices.
The high-performance passive GNSS GPS PCB antennas have GPS single-band, GPS/Beidou dual-band, GPS/GNSS dual-band, and GPS/Glonass dual-band antenna styles for choice. They are passive antennas that come without a low-noise amplifier (LNA).

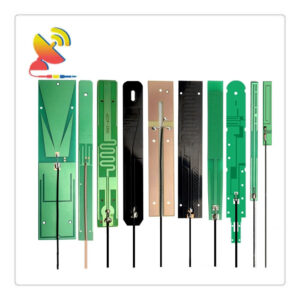

Besides the high-performance GNSS/GPS PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, 868 MHz PCB/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz PCB antennas, WiFi PCB 2.4 GHz 5GHz antennas, 4G/LTE PCB antennas, 5G NR/3.5G CBRS PCB antennas for your choice.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
The GPS PCB antenna is integrated directly into the board, eliminating the need for additional antenna components, saving space and cost for smaller devices.
The shape, size, and layout of the PCB antenna can be customized according to the needs of the device, adapting to different installation environments and performance requirements.
Due to the PCB process manufacturing, the production cost is relatively low, suitable for mass production.
With reasonable design and layout, PCB antennas can provide stable performance to meet the needs of most GPS applications.
PCB antenna can be packaged together with other parts of the device to adapt to different working environments, such as waterproof and dustproof.
During the design and production process, the performance can be optimized by adjusting the layout of the PCB antenna, matching circuit, and other parameters.
etc.
The high-performance passive GNSS GPS PCB antennas are crucial for enabling location-based services and navigation in a wide range of devices, from smartphones and wearables to automotive systems and IoT devices.
The main function of the GNSS GPS PCB antenna is to receive signals from the GPS satellites, which contain the position and time information of the satellites.
By receiving GPS signals, the device can calculate its position, speed, and time to achieve positioning, navigation,n, and tracking functions.
The antenna integrated on the PCB reduces the size and complexity of the device, making it suitable for use in miniaturized devices such as smartphones, wearable devices, and car navigation.
Since no additional antenna components are required, PCB antennas can reduce the overall system cost and improve the market competitiveness of products.
Through reasonable design, PCB antennas can achieve good signal reception performance in a limited space to ensure the accuracy and reliability of positioning.
etc.
C&T RF Antennas Inc. provides high-performance GNSS GPS PCB antennas. Below are some of the passive GNSS GPS PCB antennas.

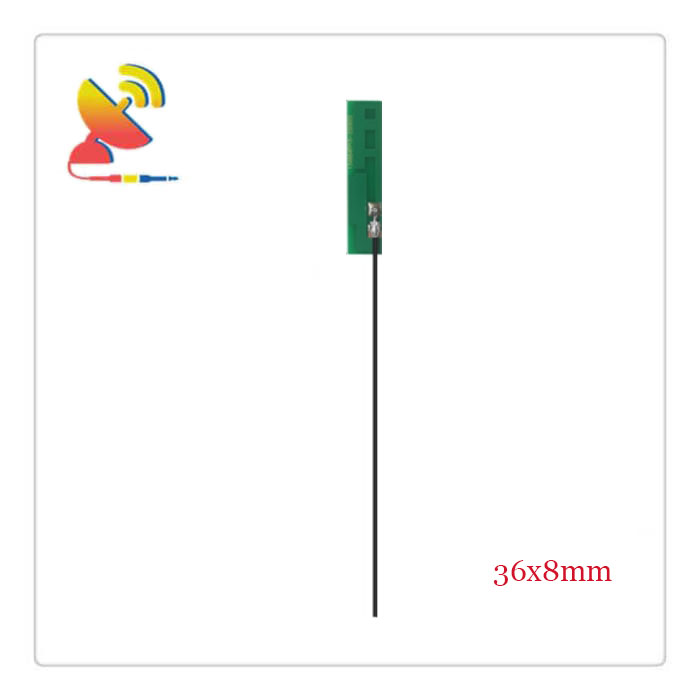

Item: CTRF-ANTENNA-PCB-GPS-3608-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ36x8mm
Item: CTRF-ANTENNA-PCB-GNSS-3608-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42/1561/1610 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ36x8mm

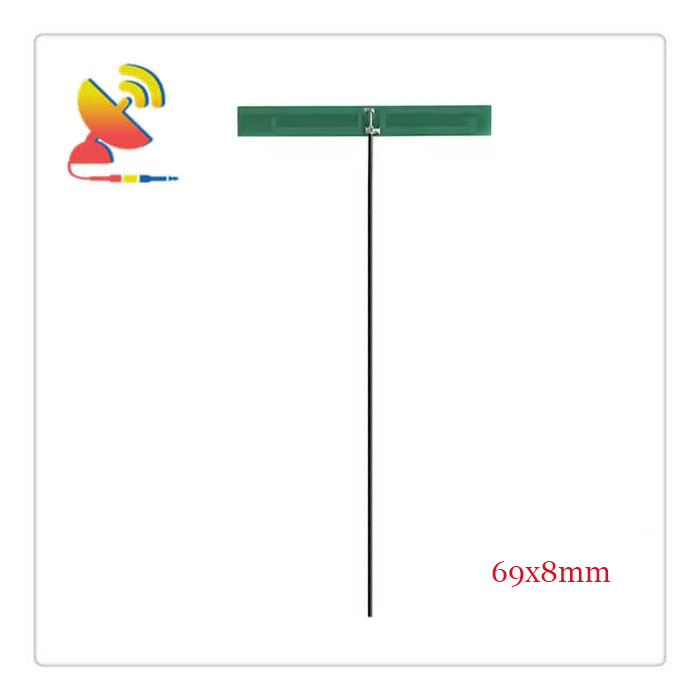

Item: CTRF-ANTENNA-PCB-GPS-6908-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ69x8mm

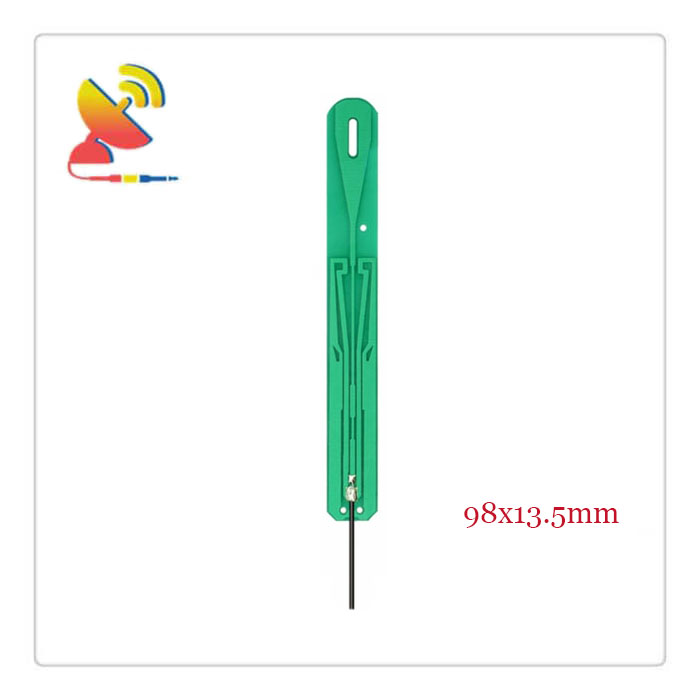

Item: CTRF-ANTENNA-PCB-GNSS-9814-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42/1561/1610 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ98×13.5mm

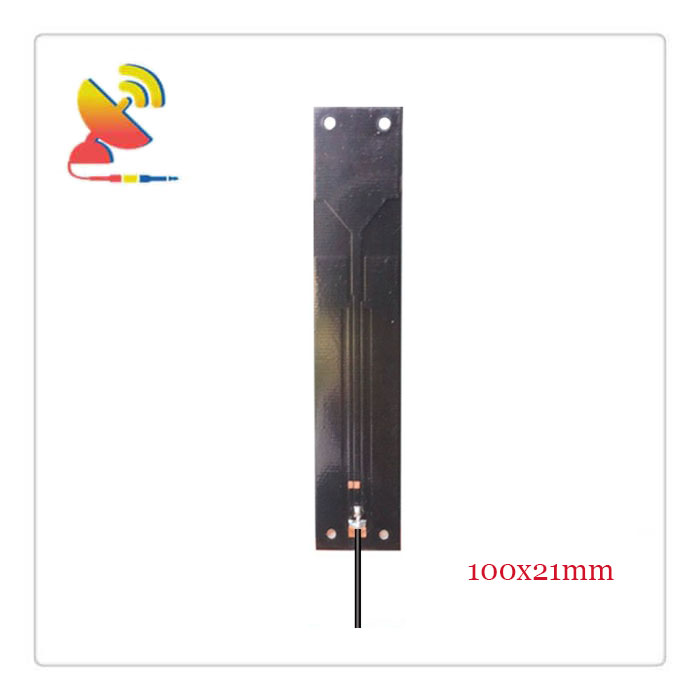

Item: CTRF-ANTENNA-PCB-GNSS-10021-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42/1561/1610 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ100x21mm

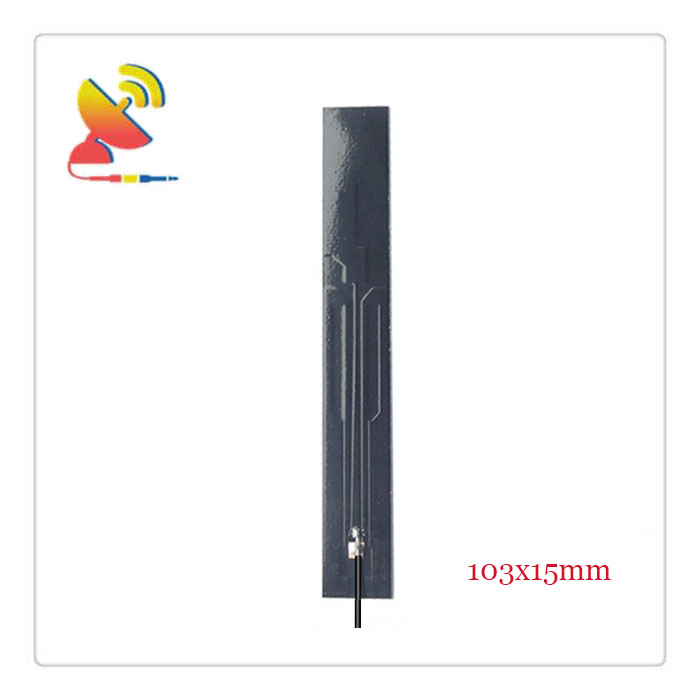

Item: CTRF-ANTENNA-PCB-GNSS-10315-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42/1561/1610 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ103x15mm

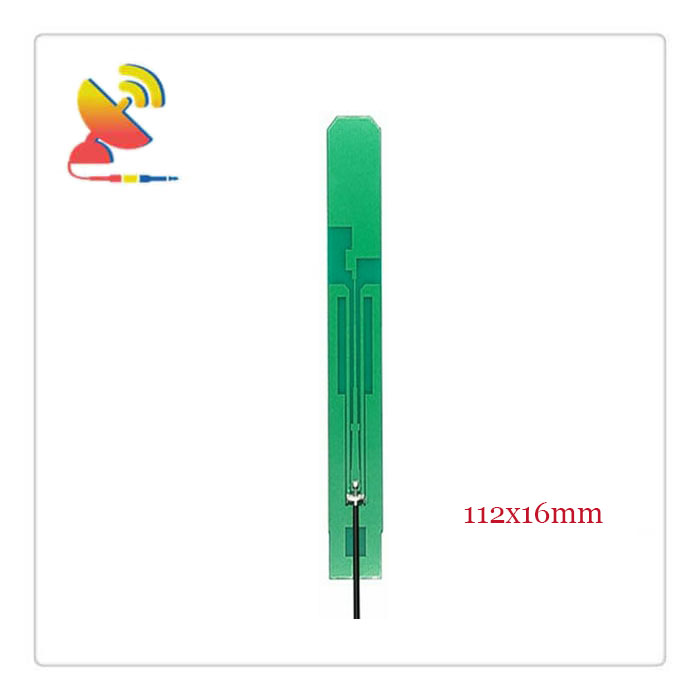

Item: CTRF-ANTENNA-PCB-GNSS-11216-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency range: 1575.42/1561/1610 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: RHCP
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ112x16mm

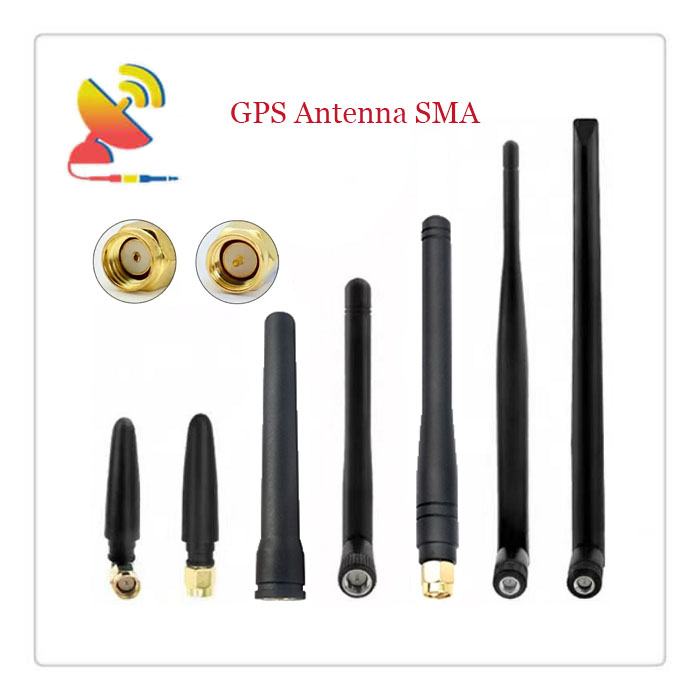

In addition to the PCB antennas, C&T RF Antennas Inc. also offers GPS/GNSS antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
