High-performance LTE-M/NB-IoT PCB Antennas

What are the LTE-M/NB-IoT PCB Antennas?

The high-performance LTE-M/NB-IoT PCB antennas are internal printed circuit board LPWAN antennas manufactured by C&T RF Antennas Inc. for use in LTE-M/NB-IoT cellular IoT and M2M industries.

The high-performance LTE-M/NB-IoT PCB antennas are now 5G technologies with long-term support. They mainly come with low-loss RG cable 1.13 100mm length (30-300mm length is customized) and RF connectors IPEX1/2/3/4, u.FL, MHF4, or open ends for cellular IoT/M2M applications. Ideal as an accessory for LTE-M/NB-IoT modules, devices, etc.

Besides the high-performance LTE-M/NB-IoT PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, 3G GSM PCB antennas, WiFi 2..4GHz/2.4&5GHz PCB antennas, 4G/LTE PCB antennas, 5GNR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.

C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.





What is LTE-M and NB-IoT?

NB-IoT is the most suitable technology for low data rate applications that require indoor coverage. LTE-M, on the other hand, is the best choice for high-data-rate applications that require mobility or real-time data transfer. LTE-M is a “Low-power, wide-area” (LPWA) technology standard specifically designed for the Internet of Things (IoT) and Machine-to-Machine (M2M) connectivity.



Benefits of The High-performance LTE-M/NB-IoT PCB Antennas

Global coverage

Worry-free future

Long range

High throughput

Ultra-low power consumption

Reliable and secure connectivity

Scalability

Cost-effective

etc.





Applications of The High-performance LTE-M/NB-IoT PCB Antennas

Vehicle tracking

Portable medical devices

Logistics tracking

Industrial automation

Remote monitoring

Wearable Devices

Smart Bands

Smart Watches

Asset Tracking

Health Monitors

Alarm systems

etc.

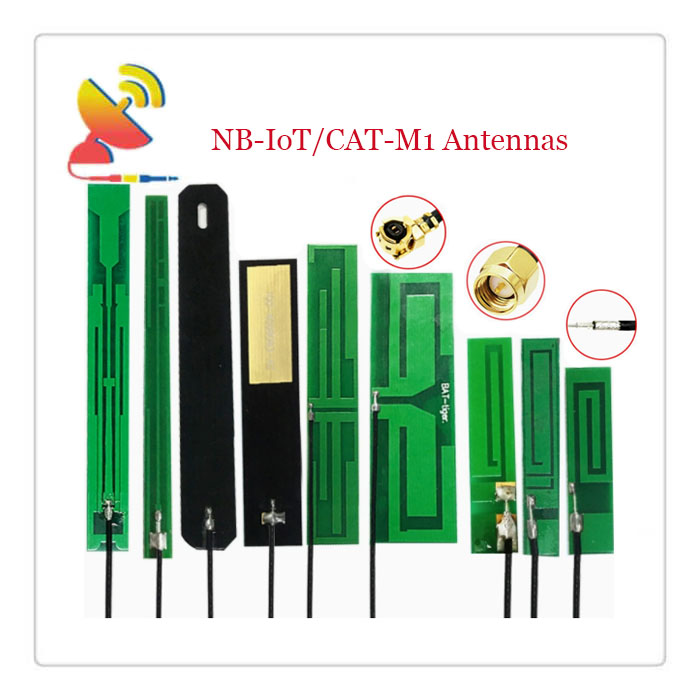

Types of High-performance LTE-M/NB-IoT PCB Antennas

C&T RF Antennas Inc. provides high-performance LTE-M/NB-IoT PCB antennas. Below are some of them.

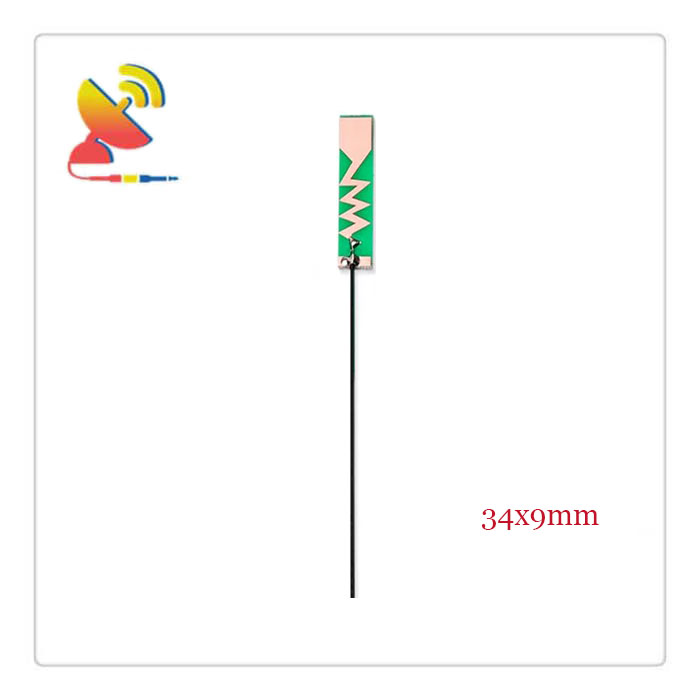

Item: CTRF-ANTENNA-PCB-7026-3409-IPEX

High-performance Small-Size 4G LTE-M/NB-IoT Cellular PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ34x9mm

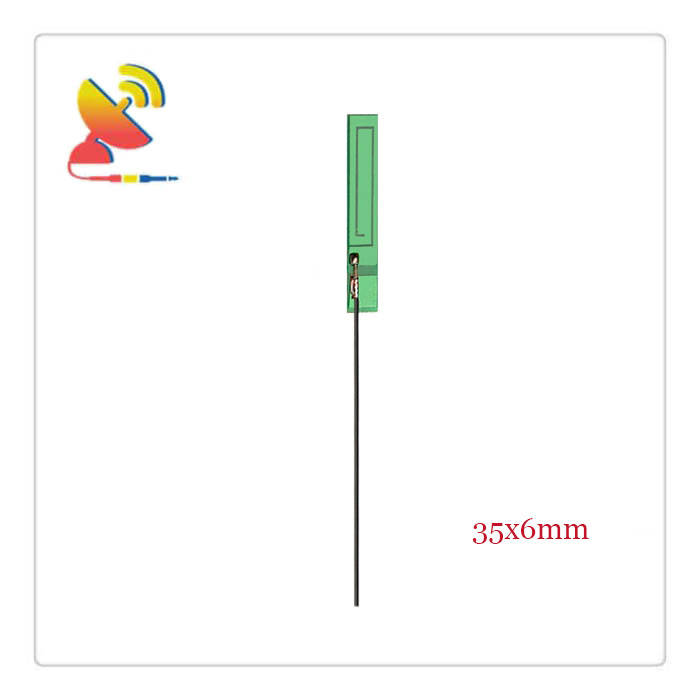

Item: CTRF-ANTENNA-PCB-7026-3506-IPEX

High-Performance Small-Size LTE-M/NB-IoT Cellular Module Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ35x6mm

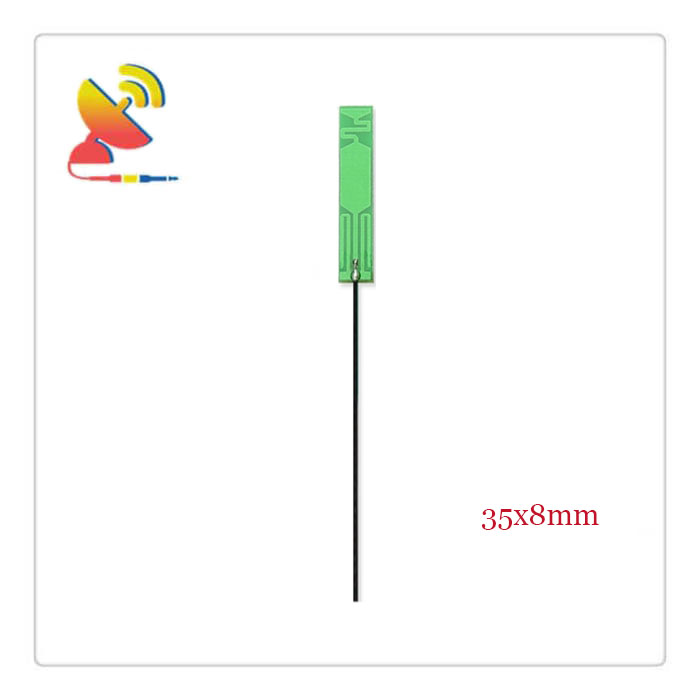

Item: CTRF-ANTENNA-PCB-7026-3508-IPEX

High-performance Small-Size Cellular NBIoT LTE PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ35x8mm

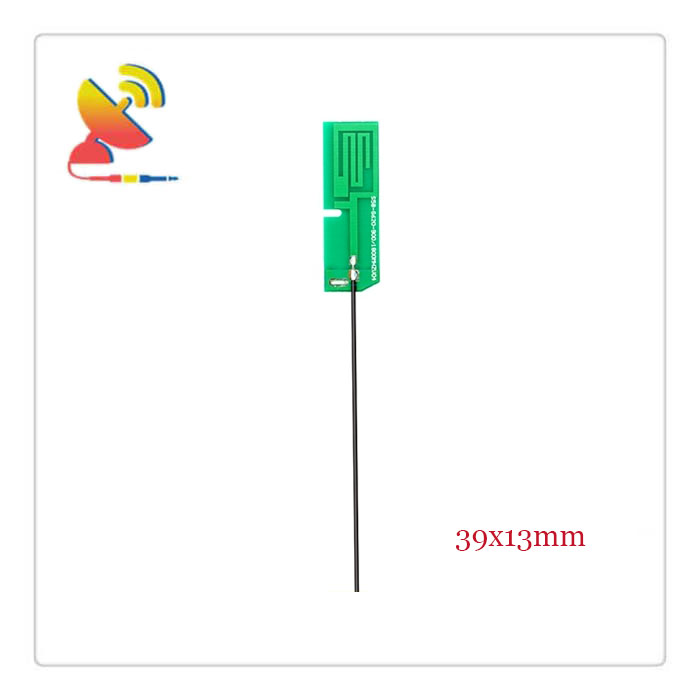

Item: CTRF-ANTENNA-PCB-7026-3913-IPEX

High-performance Compact-size 4G NB-IoT/Cat-M1 PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 2/4dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ39x13mm

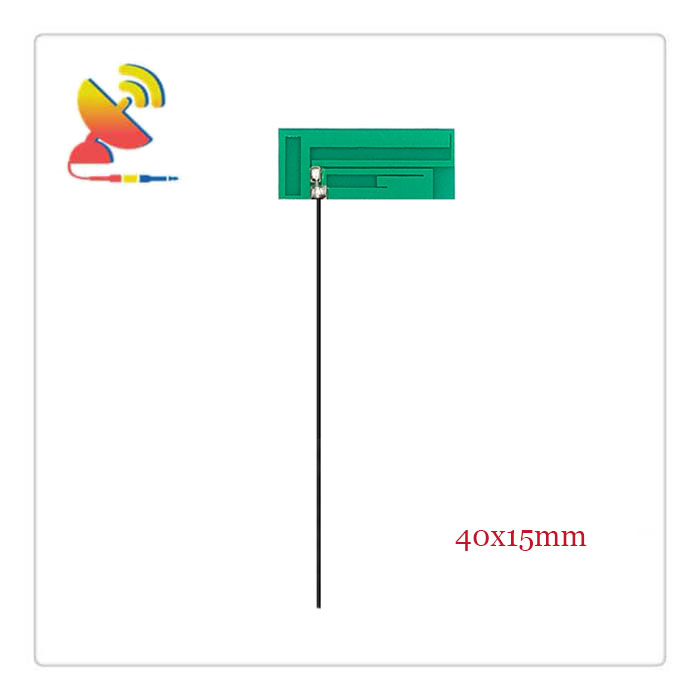

Item: CTRF-ANTENNA-PCB-7026-4015-IPEX

High-performance Cat-M/NB-IoT 2G 3G 4G Embedded Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 2/4dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Linear

Connector: IPEX

Color: Green

Dimension: Φ40x15mm

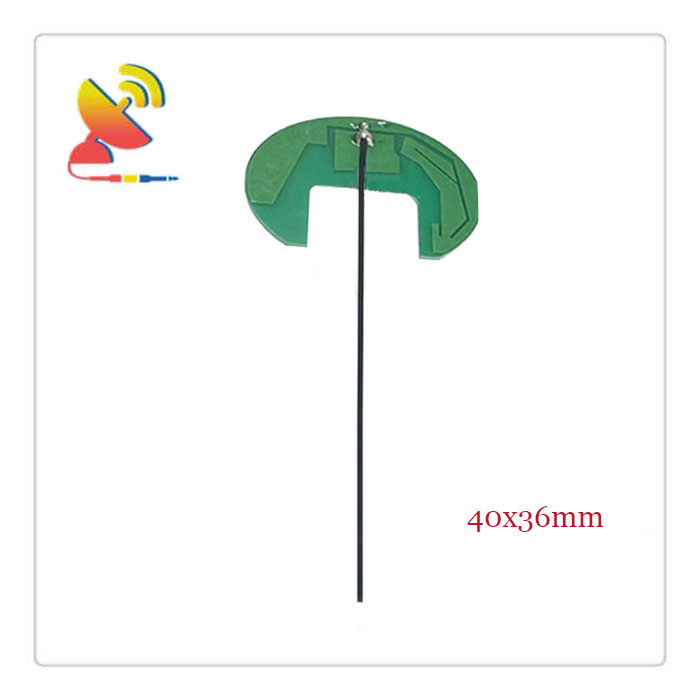

Item: CTRF-ANTENNA-PCB-7026-4036-IPEX

High-performance Customized Embedded PCB Cellular Cat-M/NB-IoT Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Linear

Connector: IPEX

Color: Green

Dimension: Φ40x36mm







Item: CTRF-ANTENNA-PCB-7026-4040-IPEX

High-performance Wide Band LTE Cat-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ40x40mm

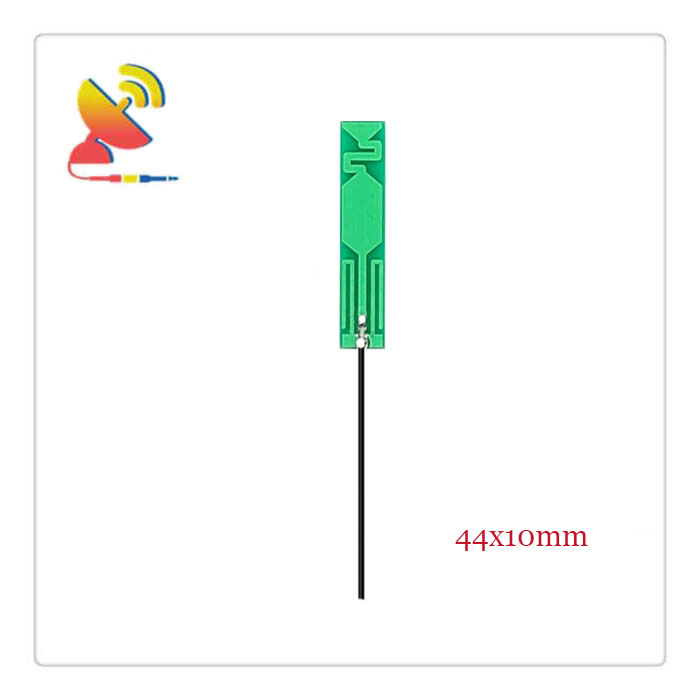

Item: CTRF-ANTENNA-PCB-7026-4410-IPEX

High-performance Internal LTE-M/NB-IoT LPWA PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ44x10mm

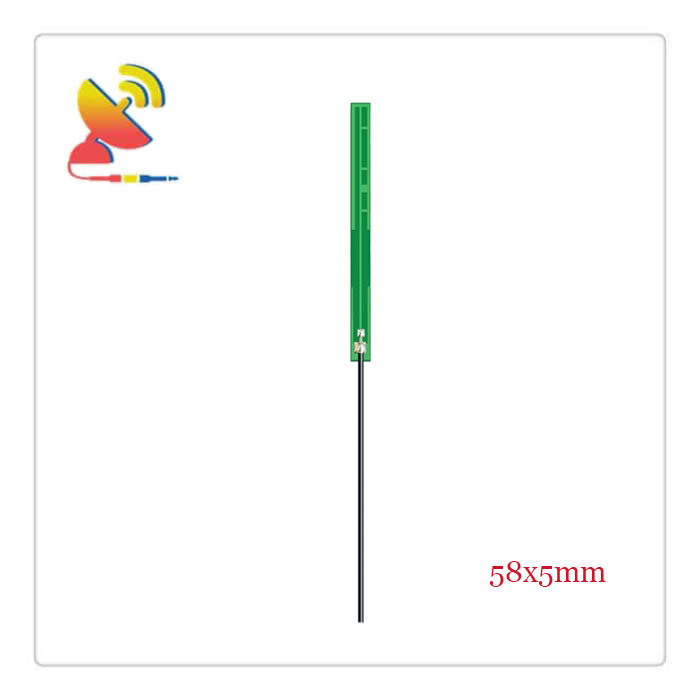

Item: CTRF-ANTENNA-PCB-7026-5805-IPEX

High-performance Low-profile 3G 4G LTE-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ58x5mm

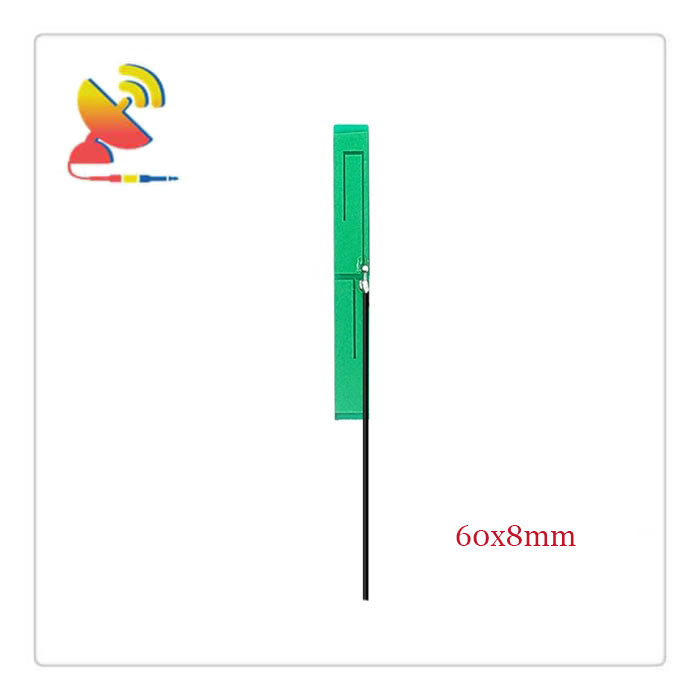

Item: CTRF-ANTENNA-PCB-7026-6008-IPEX

High-performance Internal 4G LTE NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ60x8mm

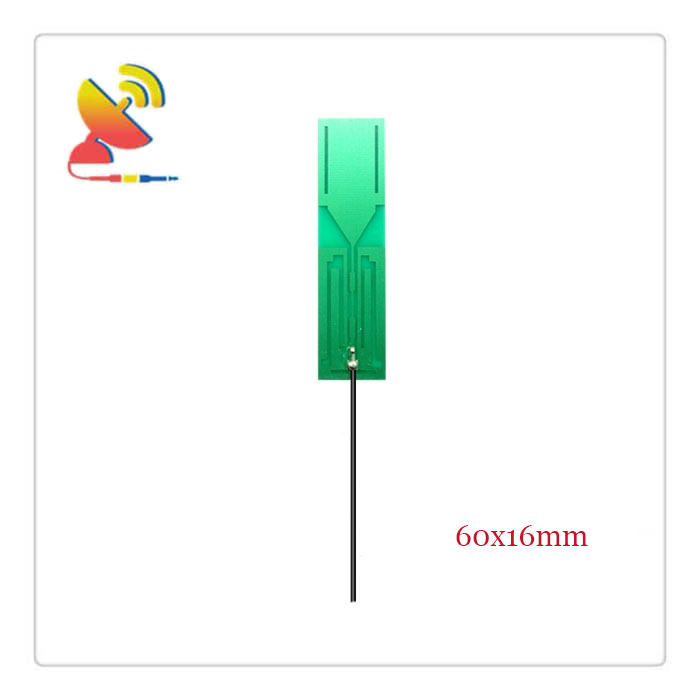

Item: CTRF-ANTENNA-PCB-7026-6016-IPEX

High-performance Internal PCB Dipole NB-IoT/LTE-M Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ60x16mm

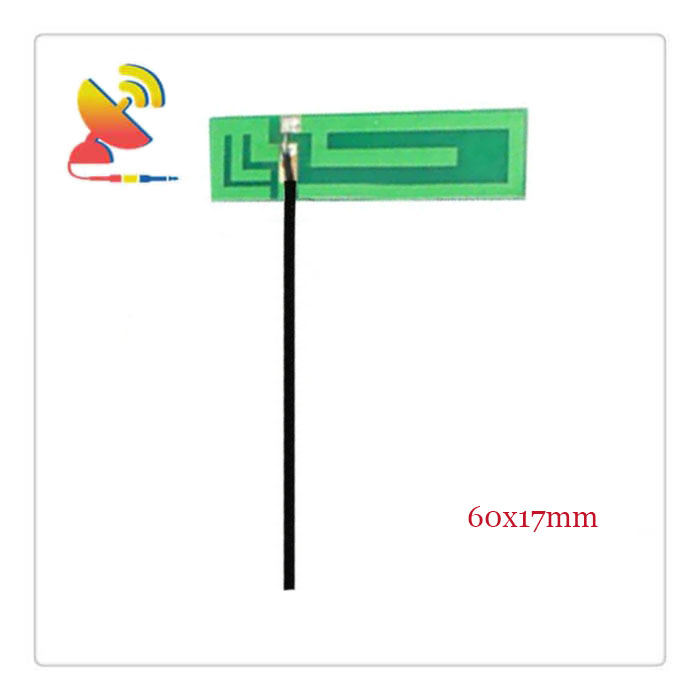

Item: CTRF-ANTENNA-PCB-7026-6017-IPEX

High-performance Embedded PCB 2G 3G 4G LTE NB-IoT IPEX Connector Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Linear

Connector: IPEX

Color: Green

Dimension: Φ60x17mm

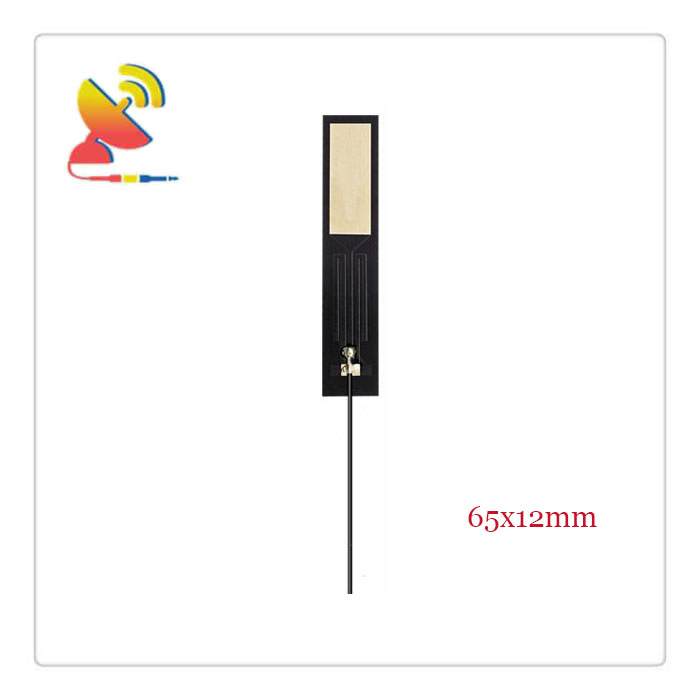

Item: CTRF-ANTENNA-PCB-7026-6512-IPEX

High-performance IPEX Antenna Cat-M/NB-IoT PCB Antenna

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ65x12mm

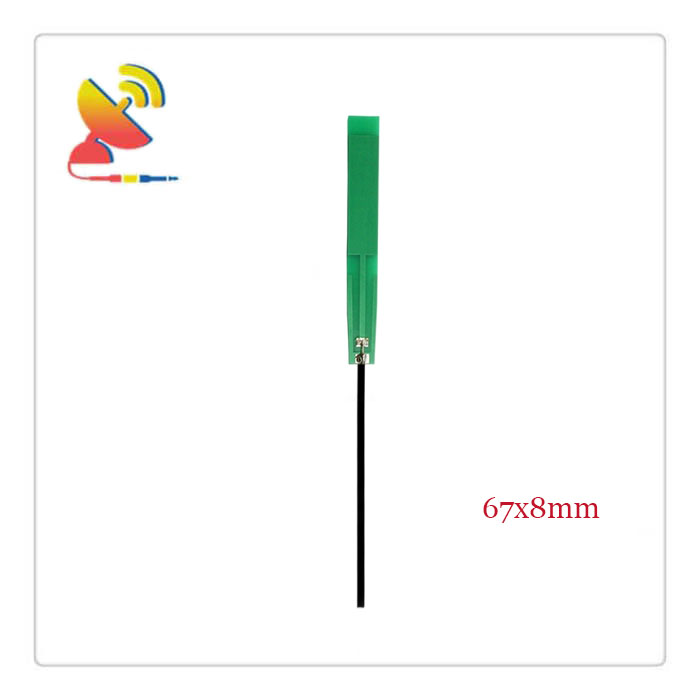

Item: CTRF-ANTENNA-PCB-7026-6708-IPEX

High-performance Internal Cellular (NBIoT, LTE) PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ67x8mm

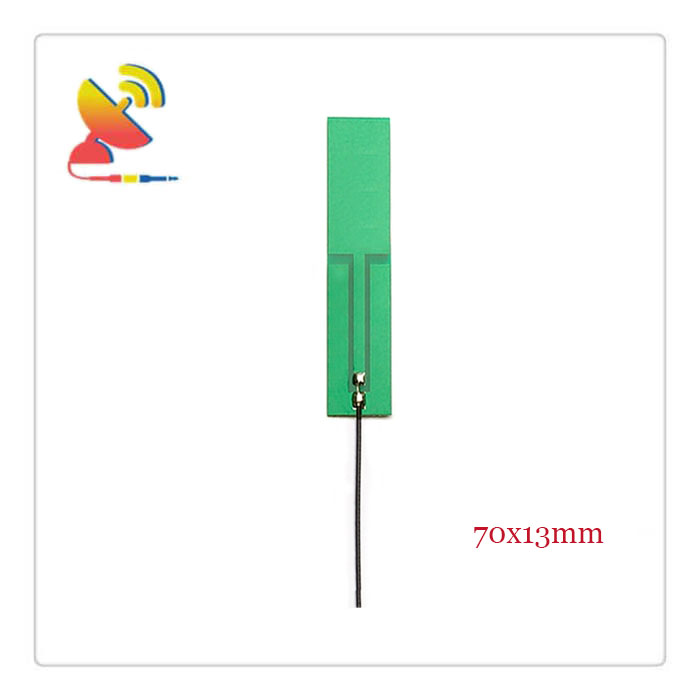

Item: CTRF-ANTENNA-PCB-7026-7013-IPEX

High-performance 4G LTE-M (Cat-M1) and NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ70x13mm

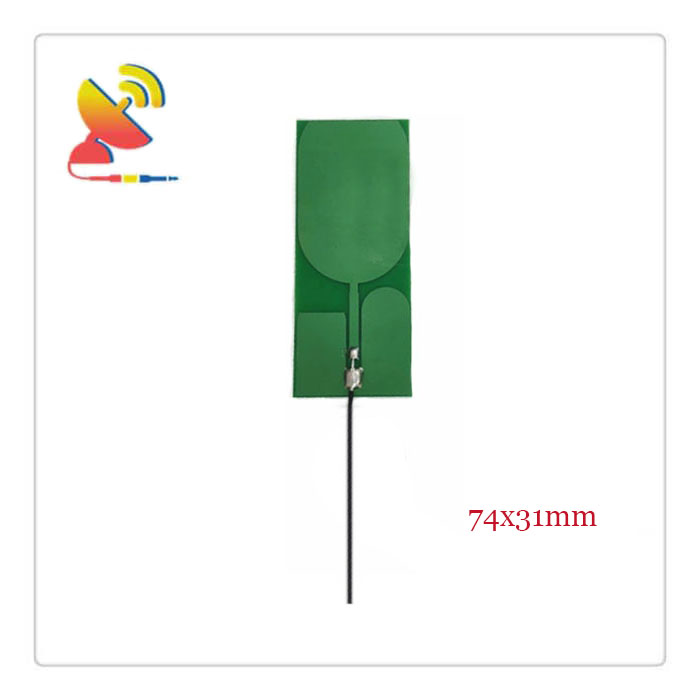

Item: CTRF-ANTENNA-PCB-7026-7431-IPEX

High-performance Internal 3G 4G LTE Cat-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ74x31mm

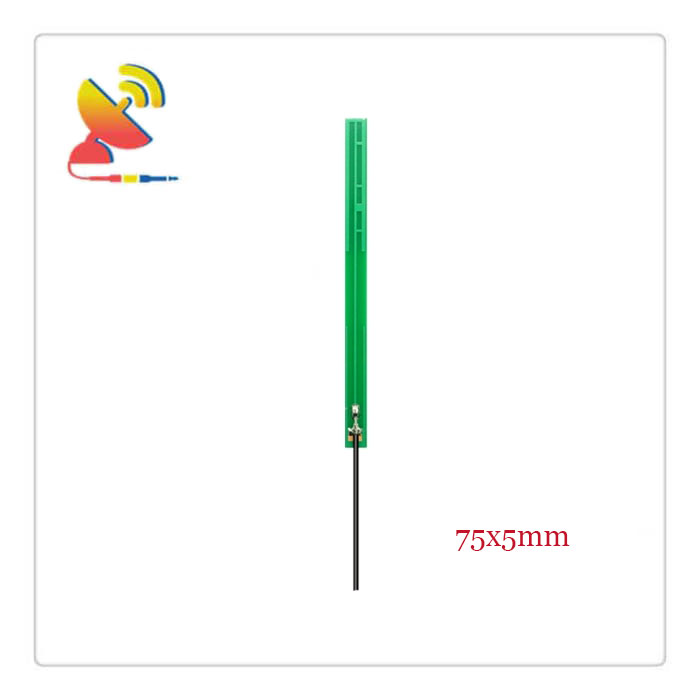

Item: CTRF-ANTENNA-PCB-7026-7505-IPEX

High-performance Small-size PCB 4G CAT-M1/NB-IoT Multi-Bands Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ75x5mm

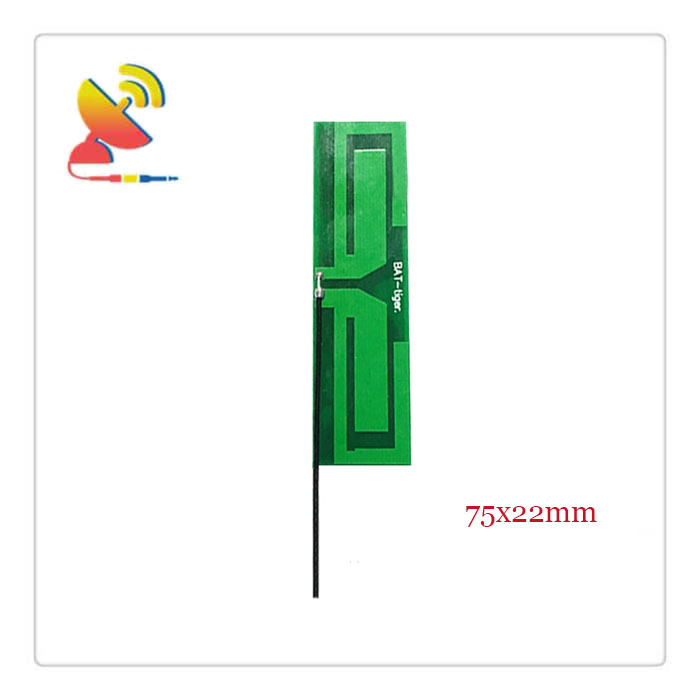

Item: CTRF-ANTENNA-PCB-7026-7522-IPEX

High-performance Internal 4G LTE Cat-M1/NB-IoT Cellular PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ75x22mm

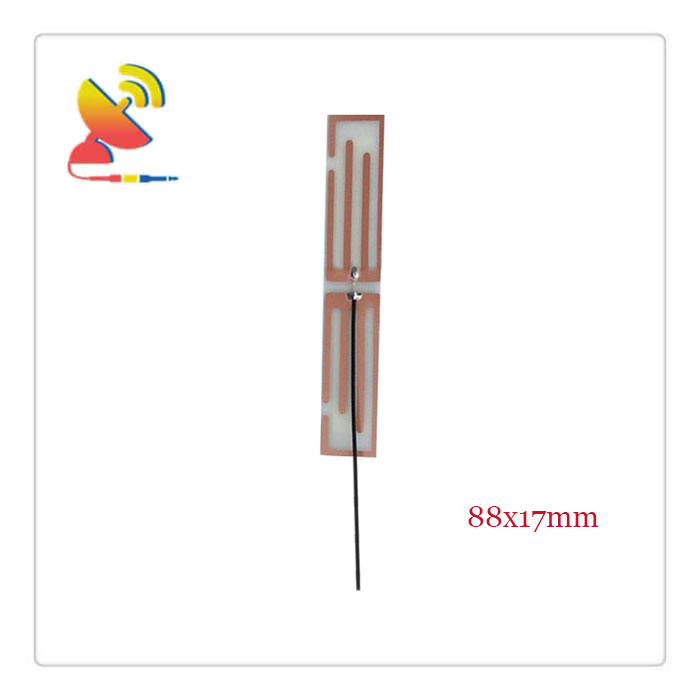

Item: CTRF-ANTENNA-PCB-7026-8817-IPEX

High-performance Internal NB-IoT/LTE-M/GSM Cellular IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Brown

Dimension: Φ88x17mm







Item: CTRF-ANTENNA-PCB-7026-9115-IPEX

High-performance & High-gain Cellular IoT (LTE-M and NB-IoT) PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ91x15mm

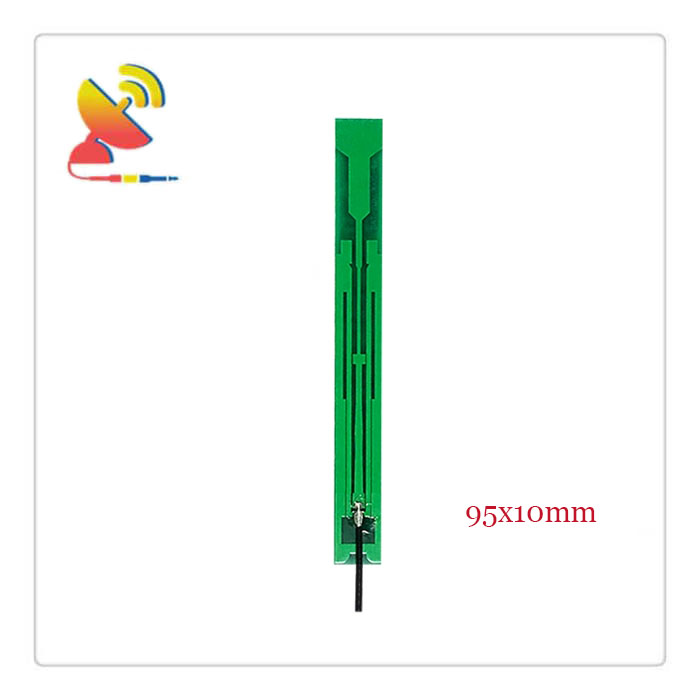

Item: CTRF-ANTENNA-PCB-7026-9510-IPEX

High-performance & High-gain PCB Multi Band Cat-M/NB-IoT LPWA Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ95x10mm

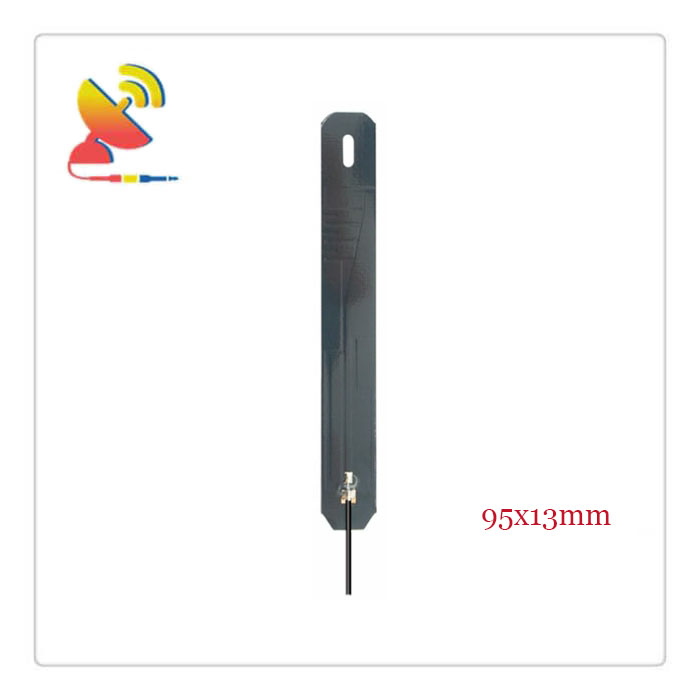

Item: CTRF-ANTENNA-PCB-7026-9513-IPEX

High-performance & High-gain Embedded FR4 LTE-M/NB-IoT/LPWA Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ95x13mm

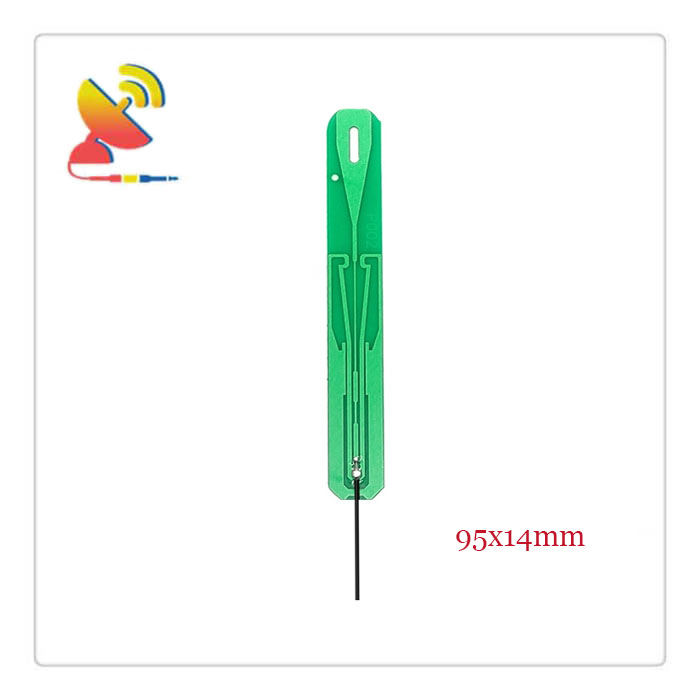

Item: CTRF-ANTENNA-PCB-7026-9514-IPEX

High-performance & High-gain PCB Wide-Band LTE Cat-M1/NB-IoT Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ95x14mm

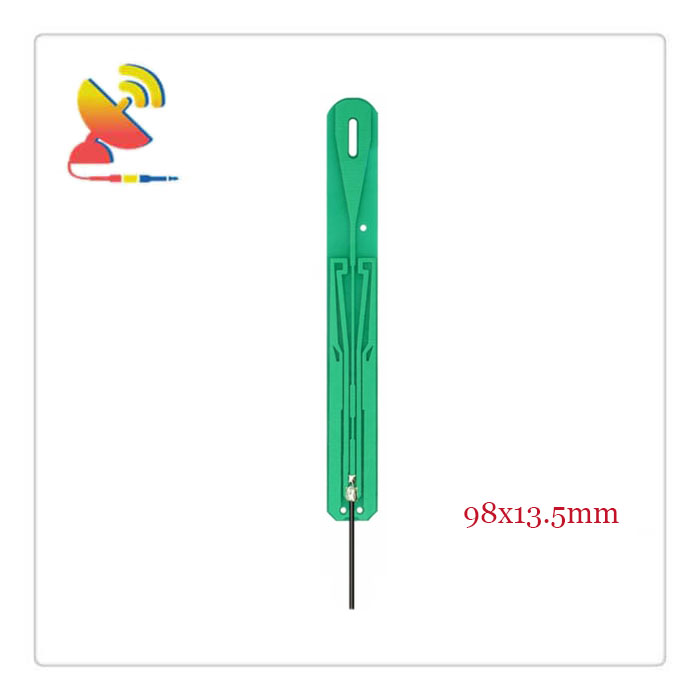

Item: CTRF-ANTENNA-PCB-7026-9813-IPEX

High-performance & High-gain 4G LTE (NB-IoT) IPEX Connector Mount PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ98×13.5mm

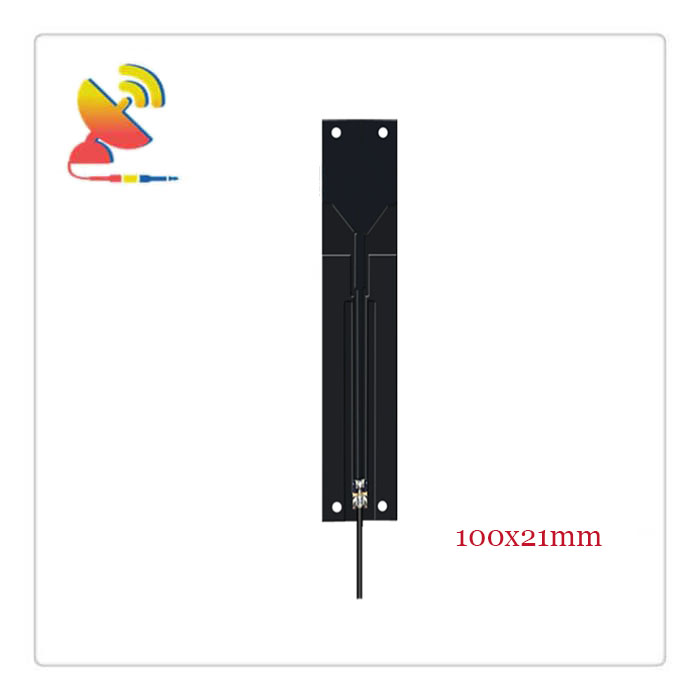

Item: CTRF-ANTENNA-PCB-7026-10021-IPEX

High-performance & High-gain 5G LTE Cat-M1/NB-IoT Cellular GPS PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ100x21mm

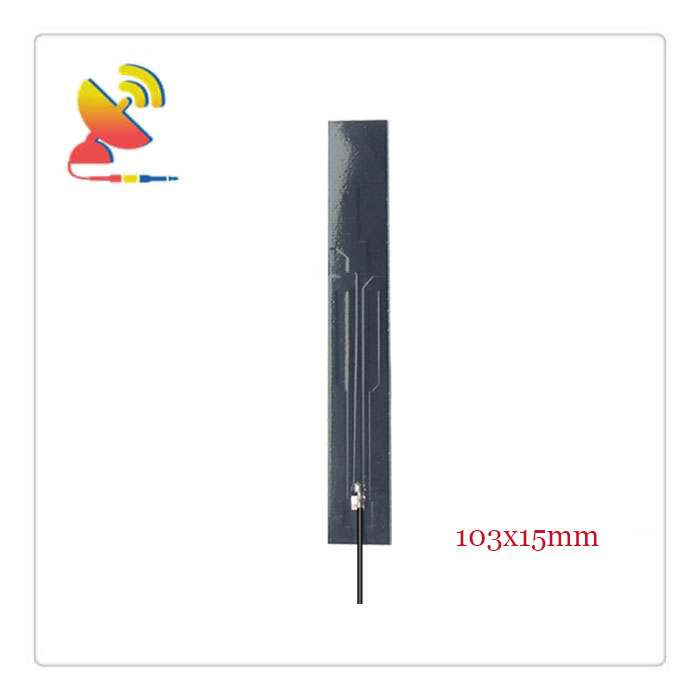

Item: CTRF-ANTENNA-PCB-7026-10315-IPEX

High-performance & High-gain 5G LTE Cat-M1/NB-IoT Cellular GPS PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ103x15mm

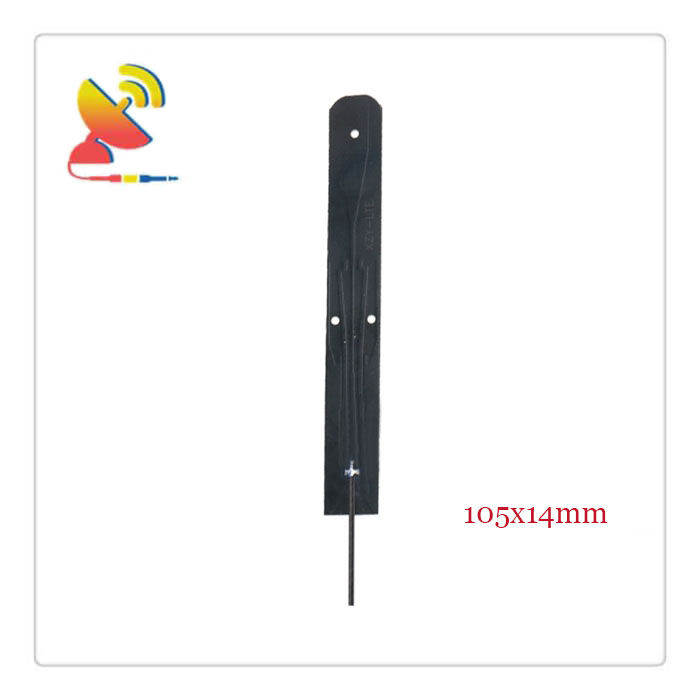

Item: CTRF-ANTENNA-PCB-7026-10514-IPEX

High-performance & High-gain 4G LTE-Cat1/LTE-M/NB-IoT Printed Circuit Board Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ105x14mm







Item: CTRF-ANTENNA-PCB-7026-10515-IPEX

High-performance & High-gain Cellular 4G LTE Narrowband IoT M2M Rigid PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ105x15mm







Item: CTRF-ANTENNA-PCB-7026-10520-IPEX

High-performance & High-gain LTE/PCS/UMTS/LoRa/NB-IoT/LTE-M PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Brown

Dimension: Φ105×20.5mm

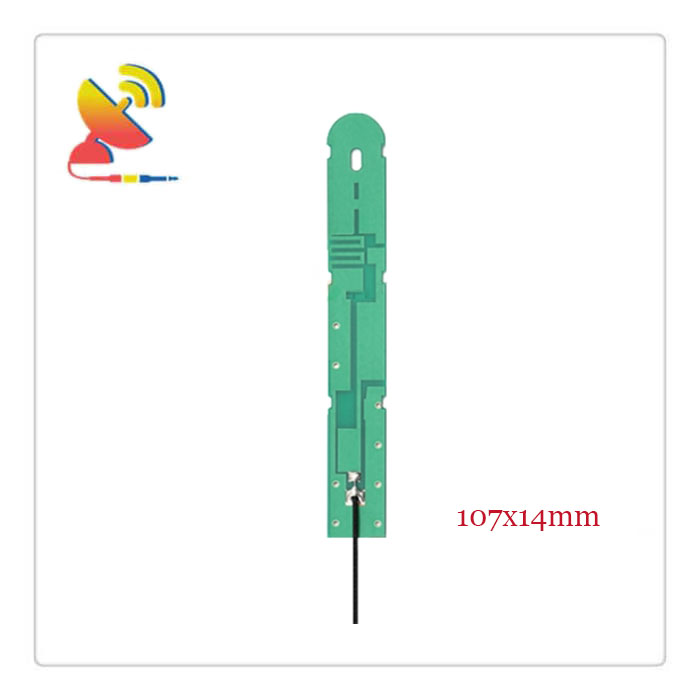

Item: CTRF-ANTENNA-PCB-7026-10714-IPEX

High-performance & High-gain GSM LTE-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ107x14mm

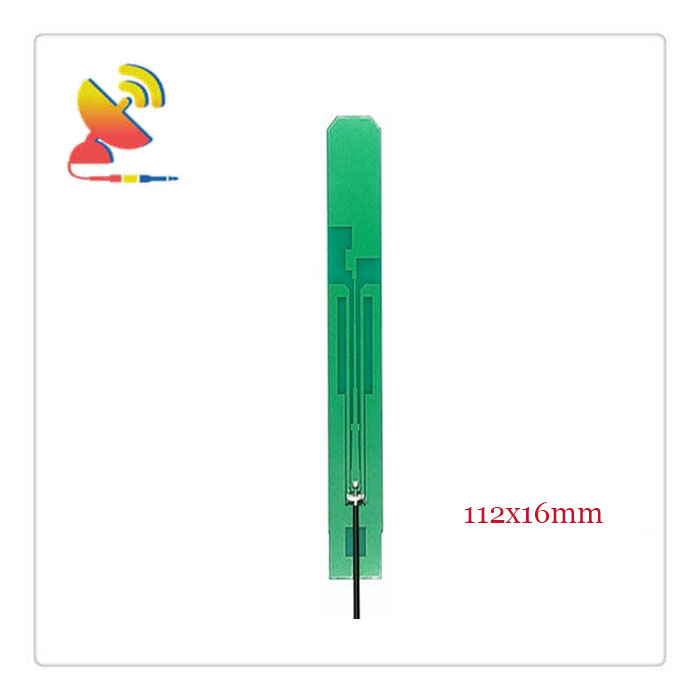

Item: CTRF-ANTENNA-PCB-7026-11216-IPEX

High-performance & High-gain Internal PCB Antenna for 5G, NB-IoT and Cat-M Applications

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ112x16mm

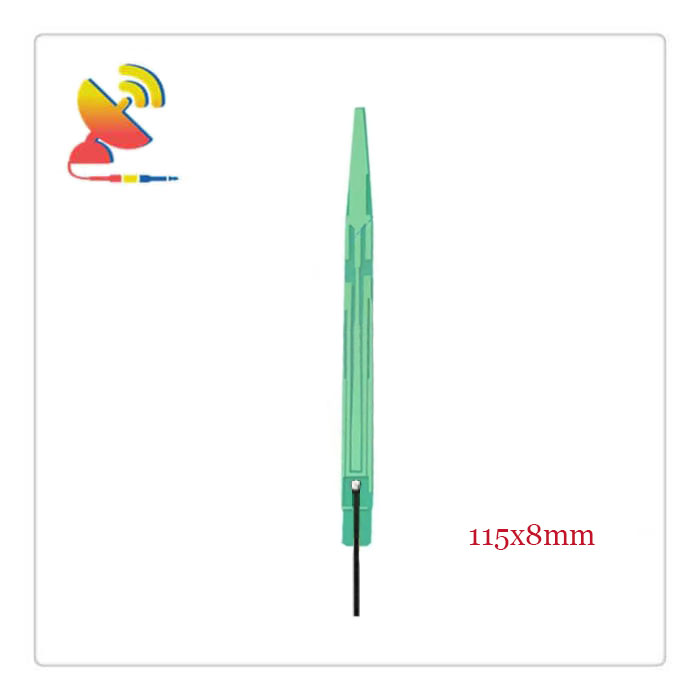

Item: CTRF-ANTENNA-PCB-7026-11508-IPEX

High-performance Internal 3G 4G LTE-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ115x8mm







Item: CTRF-ANTENNA-PCB-7026-11518-IPEX

High-performance & High Gain Wide Band 5G Cat-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ115x18mm







Item: CTRF-ANTENNA-PCB-7026-12013-IPEX

High-performance & High-gain Cellular Cat-M/NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 10/12dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ120x13mm







Item: CTRF-ANTENNA-PCB-7026-12514-IPEX

High-performance & High-gain Cat-M/NB-IoT Bluetooth PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 10/12dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ125x14mm







Item: CTRF-ANTENNA-PCB-7026-13412-IPEX

High-performance & High-gain 4G LTE-M Narrowband IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 12/14dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ134x12mm







Item: CTRF-ANTENNA-PCB-7026-13632-IPEX

High-performance & High-Gain LTE-M Embedded NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 12/15dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ136.5×32.5mm







Item: CTRF-ANTENNA-PCB-7026-14512-IPEX

High-performance & High-gain Cellular IoT LTE-M/NB-IoT eGPRS PCB Antennas

Specifications:

Material: PCB

Frequency range: 699-960 MHz, 1710-2690 MHz

Gain: 12/15dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ145x12mm







The high-performance LTE-M/NB-IoT PCB antennas with u.FL/IPEX1/MHF4 connectors or opening ends are choosable.







In addition to the PCB antennas, C&T RF Antennas Inc. also offers LTE-M/NB-IoT antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
