C&T RF Antennas Inc. manufactures a series of IPEX 13.56 MHz PCB antennas. The internal PCB antenna 13.56 MHz with an IPEX connector antenna cable extender. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance IPEX PCB antenna 13.56 MHz such as the 13.56 MHz antenna datasheet, PCB antenna pricing, and IPEX antenna inventory.
Or other internal-external 13.56 MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance IPEX PCB antenna 13.56 MHz is a built-in PCB antenna with an IPEX connector antenna cable extension 13.56 MHz band low-frequency antenna manufactured by C&T RF Antennas Inc. for RFID/NFC wireless applications.
13.56 MHz antenna operating frequency is located in the high-frequency band, its working principle belongs to the magnetic field coupling mode, and the communication distance is closer (much smaller than its working wavelength). The 13.56 MHz antenna according to the specific use of the environment is generally designed as rectangular, circular, etc.
The Near Field Communication (NFC) PCB 13.56 MHz antennas are essential components with self-adhesive backing and coaxial cable extender for NFC/RFID devices. They come with or with IPEX connector/soldered opening end antenna cable extensions available for choice.
Besides the high-performance IPEX 13.56 MHz PCB antennas, we also provide 13.56 MHz NFC coil antennas, 13.56 MHz RFID coil antennas, 125KHz RFID antennas, and MX 1.25mm NFC Tag antennas for your choice.
For the rigid PCB material antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz/2.4&5GHz PCB antennas, 4GLTE/5GNR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Rigid printed circuit board
IPEX connector or opening end for soldering cable extension
13.56 MHz frequency band
RFID/NFC applications
Omnidirectional
Linear
etc.
The self-adhesive embedded PCB antenna operates at a 13.56 MHz frequency band for RFID and NFC applications such as readers, ID cards, etc.
C&T RF Antennas Inc. provides high-performance 13.56 MHz PCB antennas. Below are some of the 13.56 MHz antennas.
Item: CTRF-ANTENNA-FPC-1356-3813-IPEX
Specifications:
Material: Printed Circuit Board(PCB)
Frequency range: 13.56 MHz
Gain: 2dBi
Inductance: 2.0-3.0uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Color: Black
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-3813)
Cable length: 100mm
Antenna size: 13x38mm

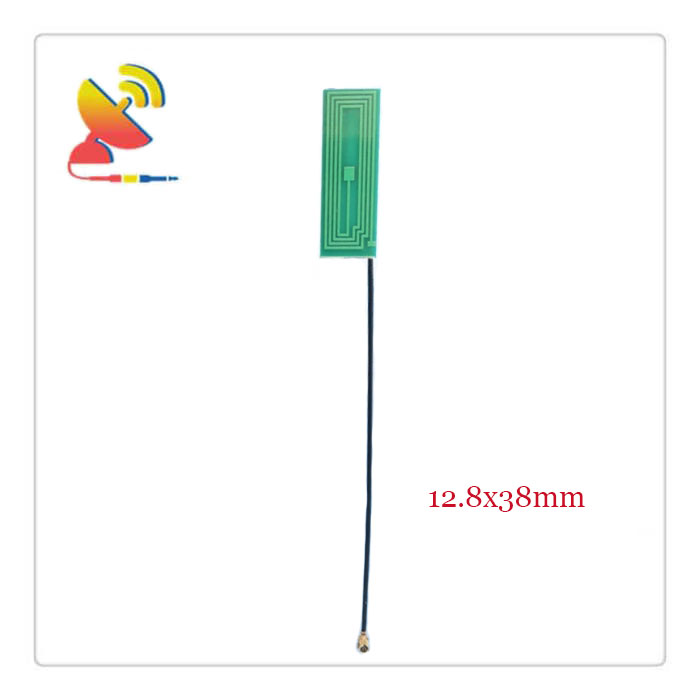

Item: CTRF-ANTENNA-FPC-1356-1338-IPEX
Specifications:
Material: Printed Circuit Board(PCB)
Frequency range: 13.56 MHz
Gain: 2dBi
Inductance: 2.0-3.0uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Color: Green
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-1338)
Cable length: 100mm
Antenna size: 13x38mm
Item: CTRF-ANTENNA-FPC-1356-2821-IPEX
Specifications:
Material: Printed Circuit Board(PCB)
Frequency range: 13.56 MHz
Gain: 2dBi
Inductance: 2.0-3.0uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-2821)
Cable length: 120mm
Antenna size: 28x21mm

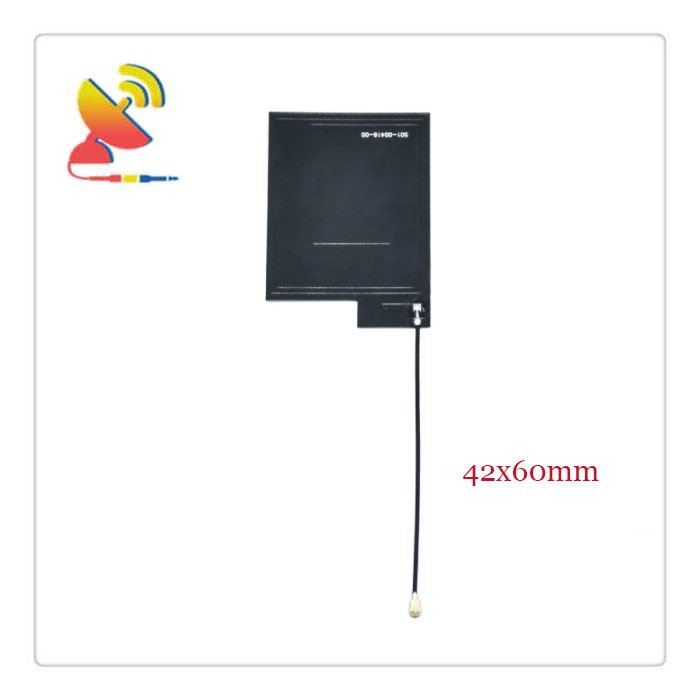

Item: CTRF-ANTENNA-FPC-1356-6042-IPEX
Specifications:
Material: Printed Circuit Board(PCB)
Frequency range: 13.56 MHz
Gain: 3dBi
Inductance: 2.8-4.0uH
Reading distance: more than 10mm
VSWR: ≤2.0
Polarization: Linear
Connector: IPEX/MHF1/u.FL/Opening-end or without cable extension (SKU: CTRF-ANTENNA-FPC-1356-6042)
Cable length: 100mm
Antenna size: 60x42mm

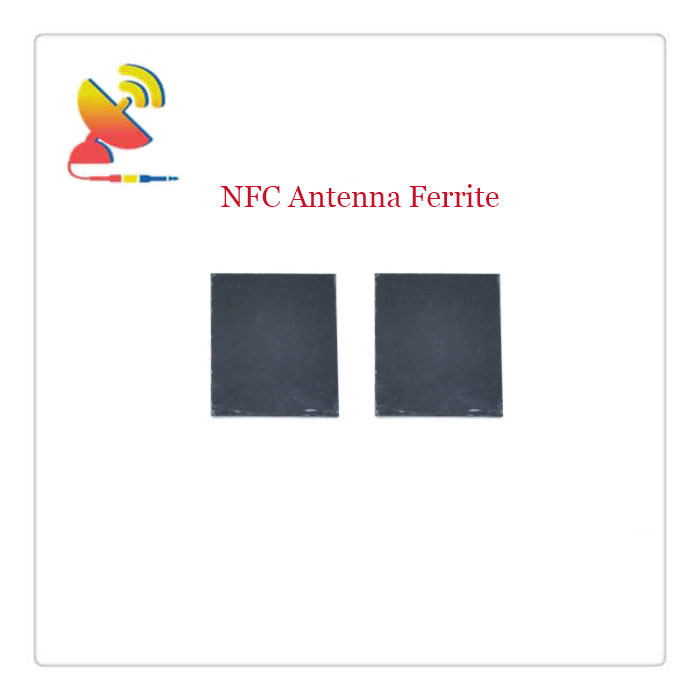

The antenna comes with high magnetic flux ferrite, thin material, high sensitivity, and strong anti-interference ability, compared with no wave-absorbing material antenna significantly improves the sensing distance, and the antenna can be mounted on top of the battery or metal.
Don’t hesitate to contact the C&T RF Antennas Inc. sales team for other 13.56 MHz antenna types such as external PCB antennas, flexible PCB antennas, etc.
Besides the coil antennas, C&T RF Antennas Inc. also offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas, internal ceramic antennas, PCB antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
