C&T RF Antennas Inc. manufactures a series of copper spring 868MHz helical antennas—the internal antenna for RF 868 MHz applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the 868MHz helical antennas such as the 868MHz spring antenna datasheet, 868MHz coil antenna pricing, and 868MHz helical antenna inventory.
Or other 868MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The 868MHz helical antennas are high-performance copper spring helix antennas working in the 868 MHz RF band antennas manufactured by C&T RF Antennas Inc. for IoT and M2M applications.
In the wireless module, common 868 MHz spring helical antennas are made by the material of gold-plated spring antennas, copper spring antennas, nickel-plated spring antennas, and so on.
The 868MHz spring antenna is an essential part of wireless communication; its role is to radiate and receive radio waves. When transmitting, it converts high-frequency current into electromagnetic waves; When receiving, it converts electromagnetic waves into high-frequency currents.
Besides the High-performance 868MHz helical antennas, we also provide 433MHz spring antennas, 915MHz helical antennas, 868/915MHz spring antennas, 3G GSM spring antennas, WiFi helical antennas, 4G NB-IoT LTE-M helical antennas, GPS/GNSS spring antennas, and 315MHz spring antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
Frequency: Mainly working in the 868MHz band
Material: Usually made of copper material
Shape: spring-spiral shaped, so it is named a spring helical antenna.
Installation: Directly weld to the PCBs by its straight or 90-degree footprints.
etc.
The 868MHz helical antennas are widely used in smart homes, meter reading systems, remote control equipment, and other fields to achieve low power consumption and low-cost data transmission. They are very suitable for LoRa/ISM gateway modules.

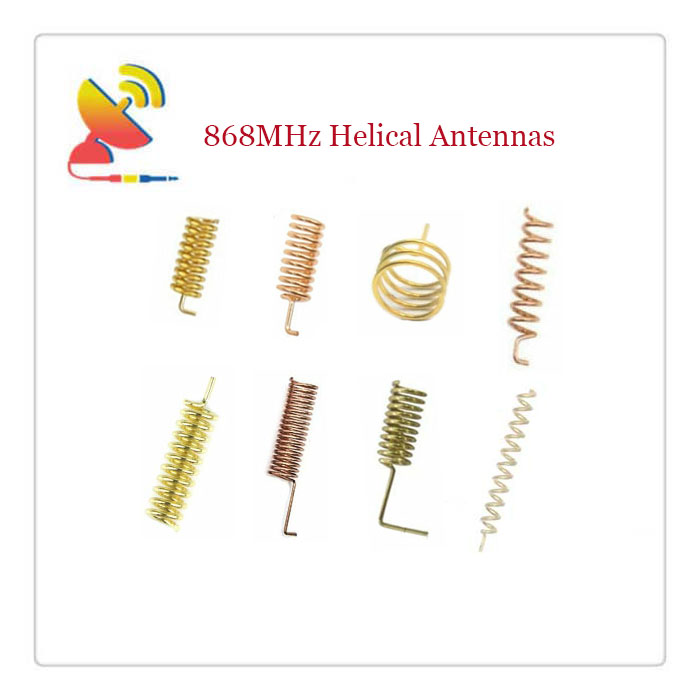

C&T RF Antennas Inc. provides a list of high-performance 868MHz helical antennas. Below are some of the styles of 868MHz helical antennas.

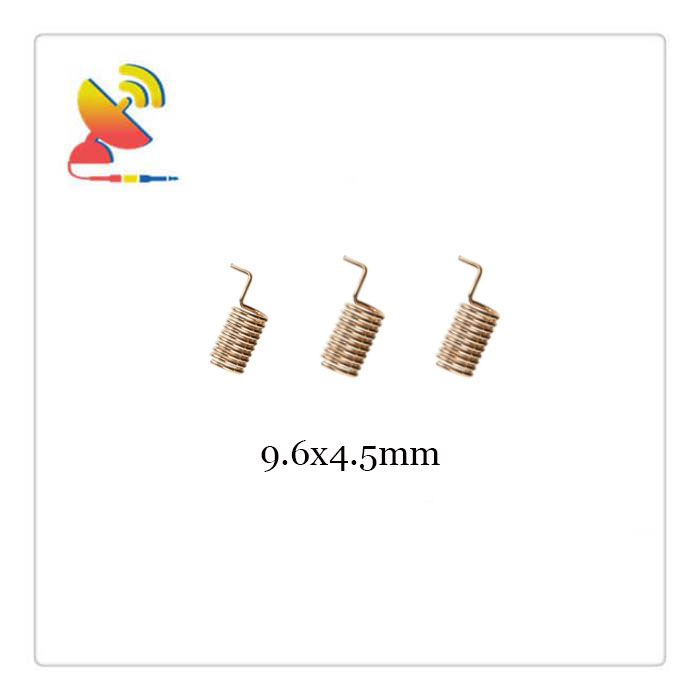

Item: CTRF-ANTENNA-SP-0868-1004W
Specifications:
Material: Copper spring wire
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 9.8
Wire ID: 0.5mm
Dimension: Φ9.6*4.5mm

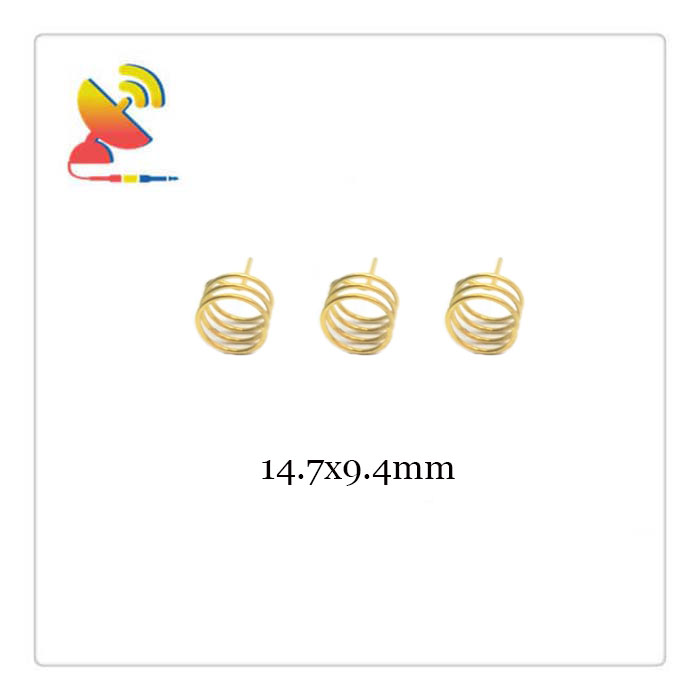

Item: CTRF-ANTENNA-SP-0868-1409
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 1.5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Turns: 4
Wire ID: 0.7mm
Dimension: Φ14.7*9.4mm
Item: CTRF-ANTENNA-SP-0868-1605W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 9
Wire ID: 0.8mm
Dimension: Φ16*5mm

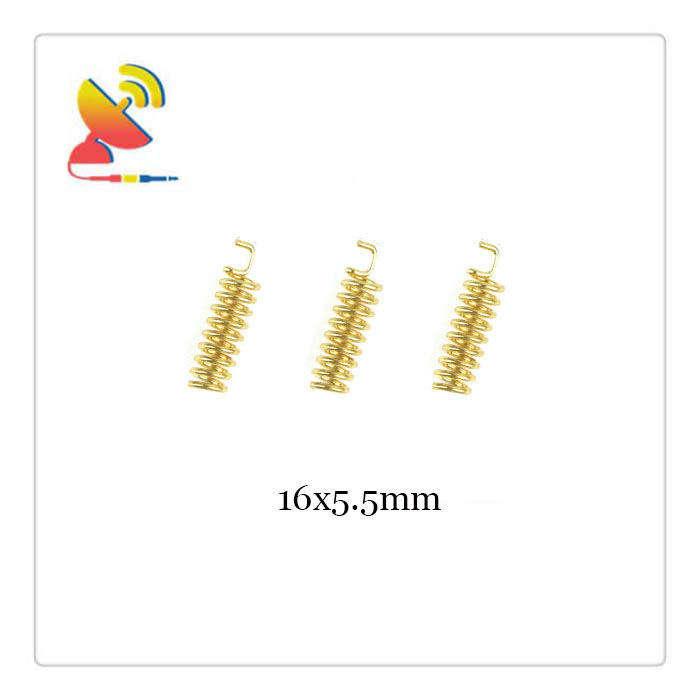

Item: CTRF-ANTENNA-SP-0868-16055W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 9
Wire ID: 0.8mm
Dimension: Φ16*5.5mm

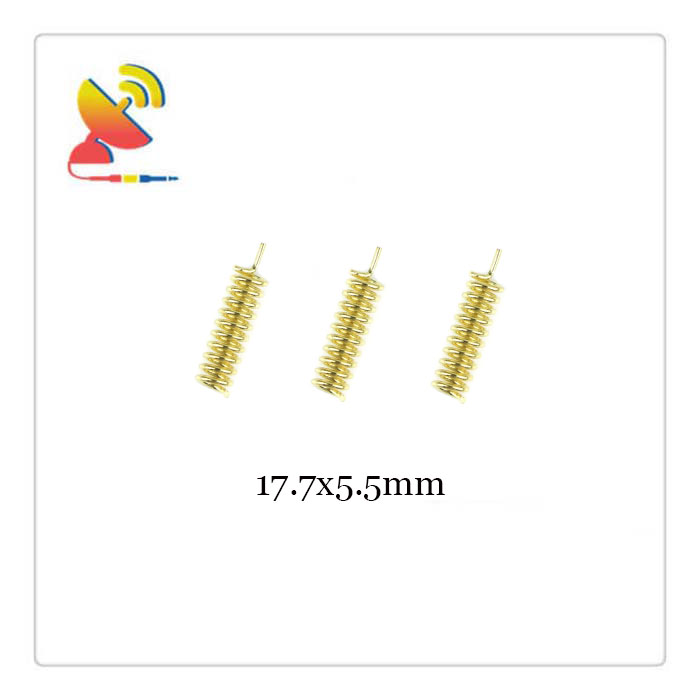

Item: CTRF-ANTENNA-SP-0868-1705
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Turns: 9
Wire ID: 0.8mm
Dimension: Φ17*5.5mm

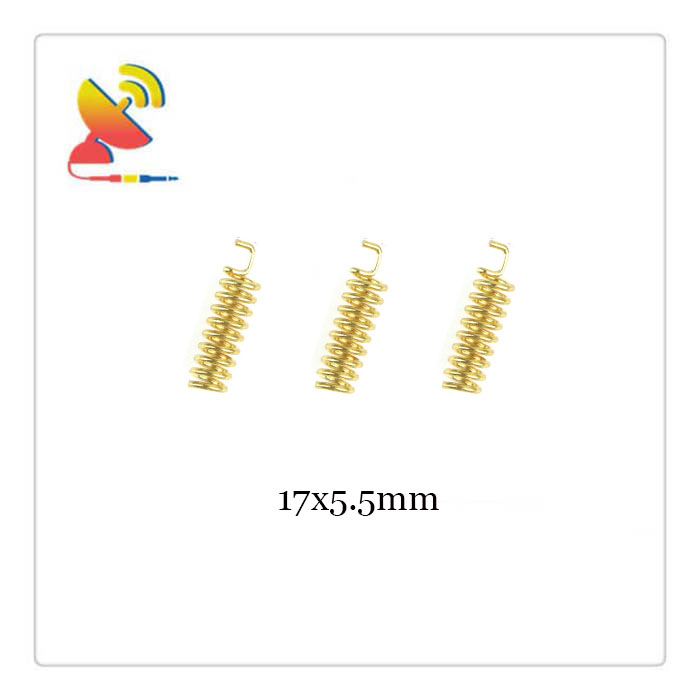

Item: CTRF-ANTENNA-SP-0868-1705W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 9
Wire ID: 0.8mm
Dimension: Φ17*5.5mm

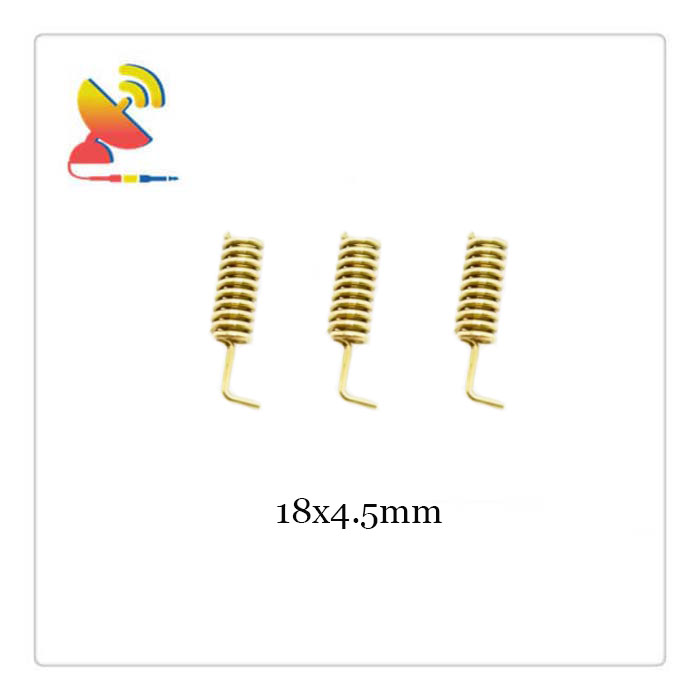

Item: CTRF-ANTENNA-SP-0868-1804W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 10
Wire ID: 0.8mm
Dimension: Φ18*4.5mm
Item: CTRF-ANTENNA-SP-0868-1805W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 9
Wire ID: 0.8mm
Dimension: Φ18*5.5mm

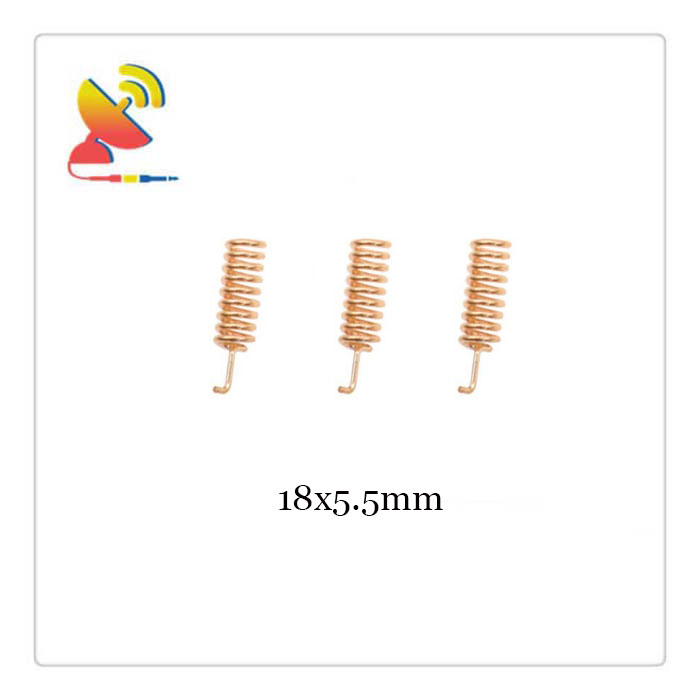

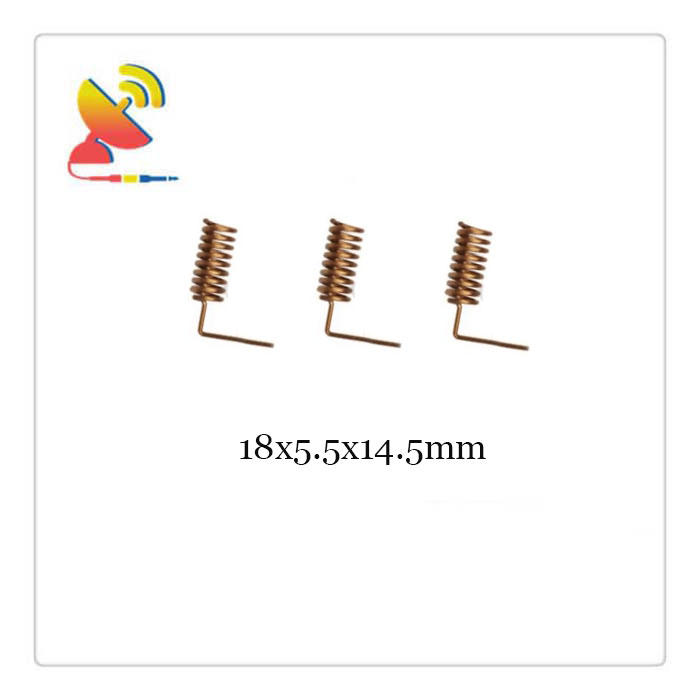

Item: CTRF-ANTENNA-SP-0868-18055W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 9
Footprint: 14.5mm
Wire ID: 0.8mm
Dimension: Φ18*5.5*14.5mm

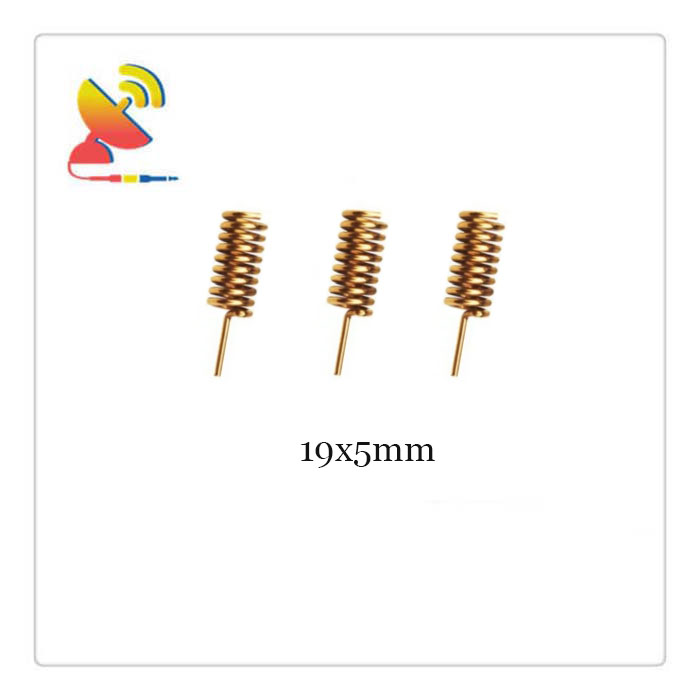

Item: CTRF-ANTENNA-SP-0868-1905
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Turns: 9
Wire ID: 0.8mm
Dimension: Φ19*5mm

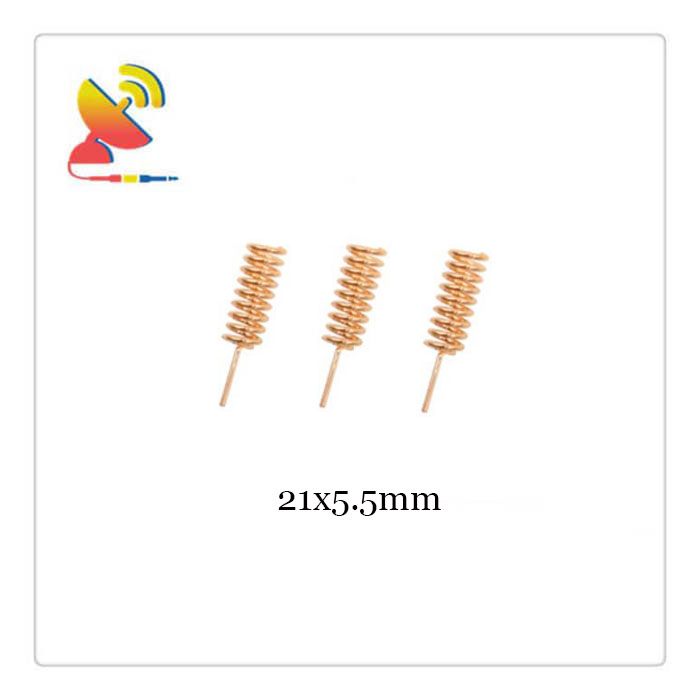

Item: CTRF-ANTENNA-SP-0868-2105
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Turns: 9
Wire ID: 0.8mm
Dimension: Φ21*5.5mm

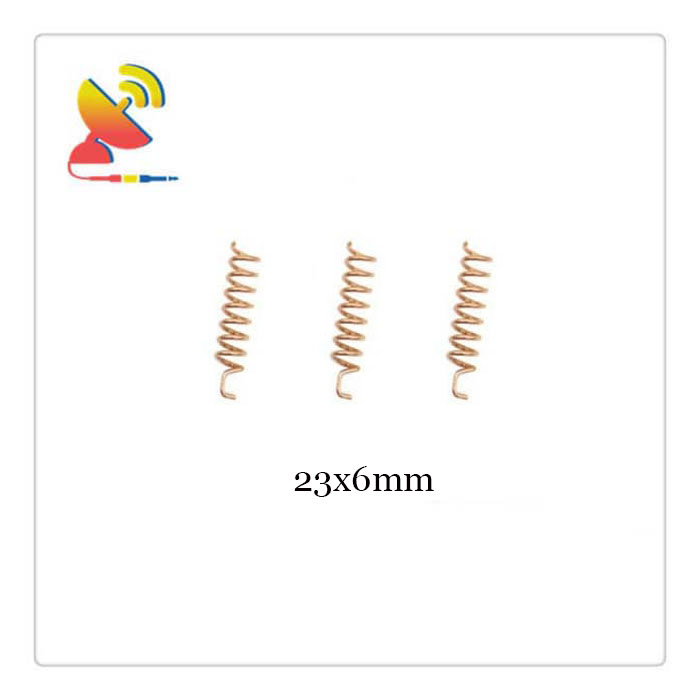

Item: CTRF-ANTENNA-SP-0868-2306W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 8
Wire ID: 0.9mm
Dimension: Φ23*6.1mm
Item: CTRF-ANTENNA-SP-0868-2505W
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 11
Wire ID: 0.8mm
Dimension: Φ25*5mm

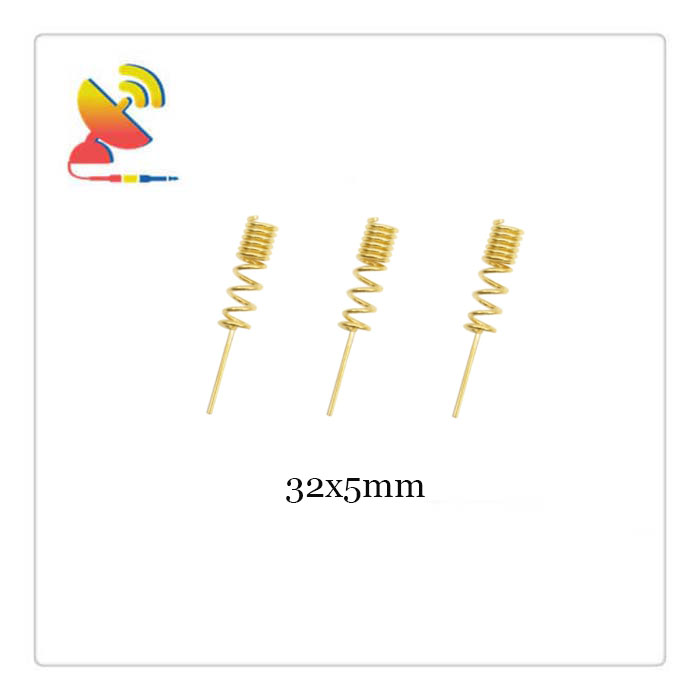

Item: CTRF-ANTENNA-SP-0868-3205
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Turns: 11
Wire ID: 0.8mm
Dimension: Φ232*5mm

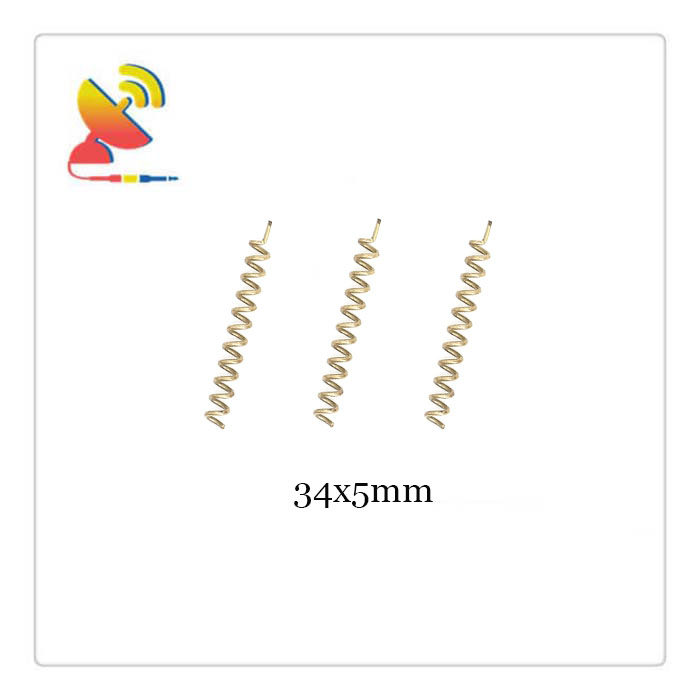

Item: CTRF-ANTENNA-SP-0868-3405
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Turns: 11
Wire ID: 0.8mm
Dimension: Φ34*5mm

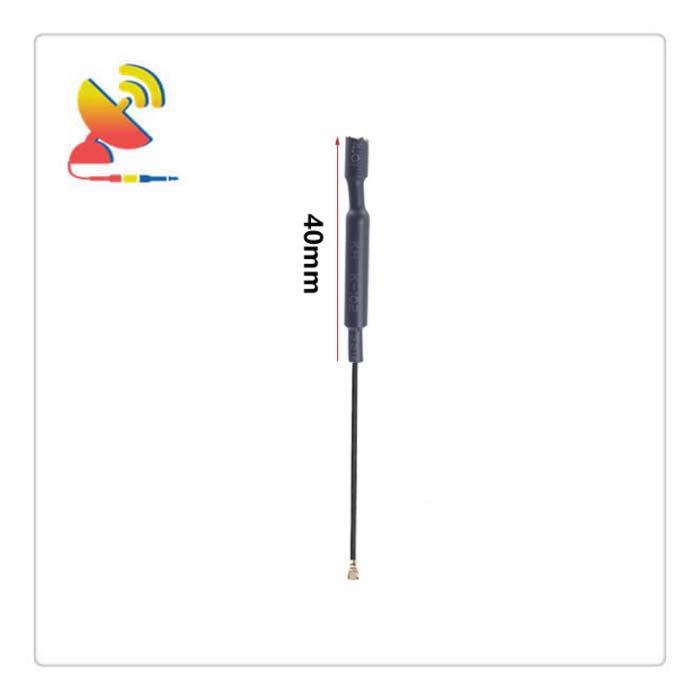

Item: CTRF-ANTENNA-SP-0868-40100-IPEX
Specifications:
Material: Spring
Frequency: 868MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Cable length: 100mm
Connector: IPEX
Dimension: Φ40*100mm
C&T RF Antennas Inc. supplies the existing 868MHz helical antennas. Also, customization of the 868MHz helical antennas is workable.
Besides the helical antennas. C&T RF Antennas Inc. also offers 868 MHz antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, rubber duck antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, PCB antennas, flexible PCB antennas, etc. Contact us for more specs you need.
